SPECIFICATIONS

Brand Name: TENSTAR ROBOT

Display Mode: 999

Hign-concerned Chemical: None

Model Number: 0.96

Origin: Mainland China

Resolution: 128*64

Type: OLED

is_customized: Yes

Buyers show

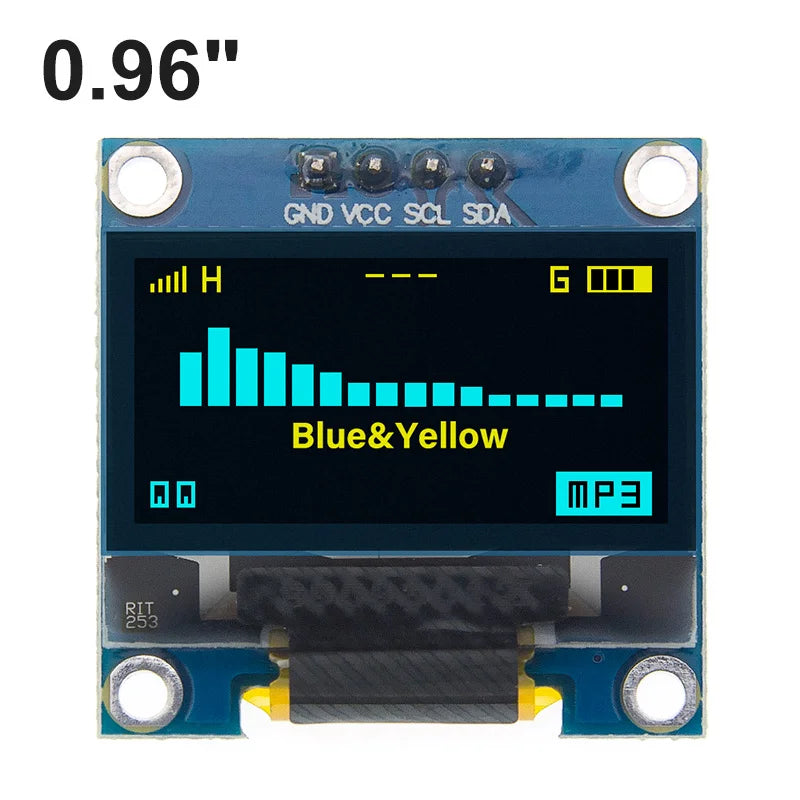

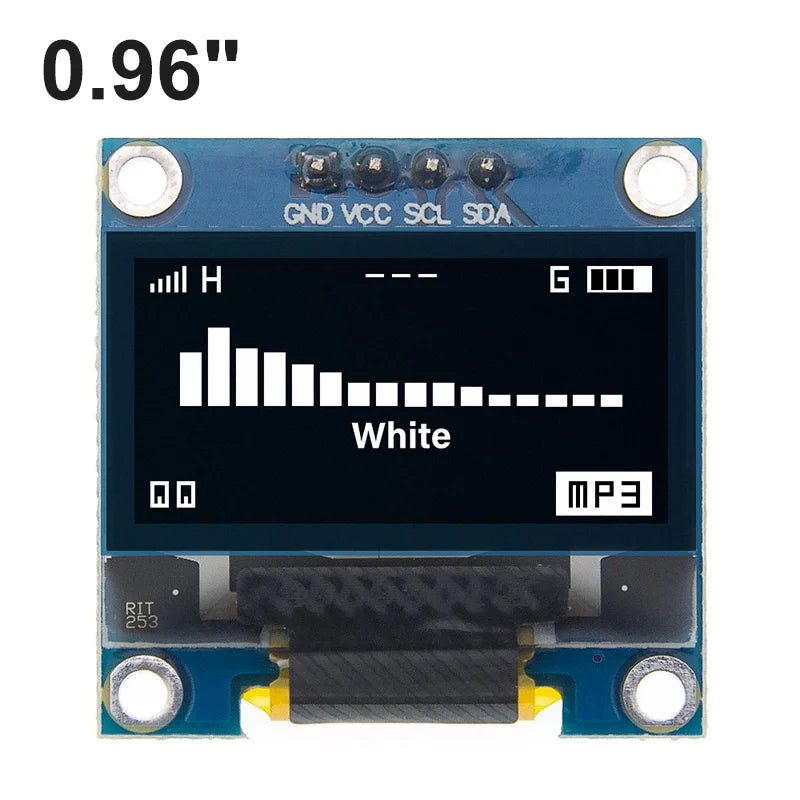

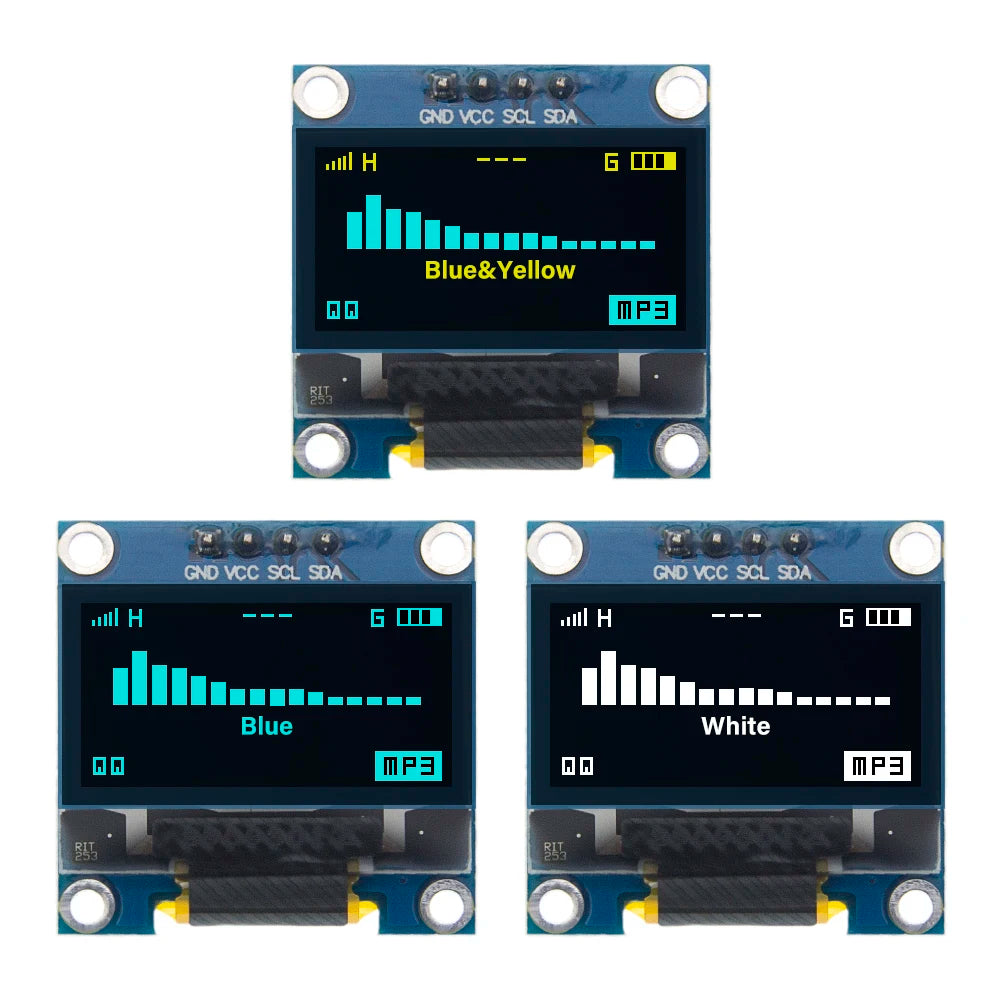

128*64 LED display module for Arduino, supports many control chip.

Fully compatible with for Arduino, 51 Series, MSP430 Series, STM32 / 2, CSR IC, etc.

Ultra-low power consumption: full screen lit 0.08W

Super high brightness and contrast are adjustable

With embedded driver/controller

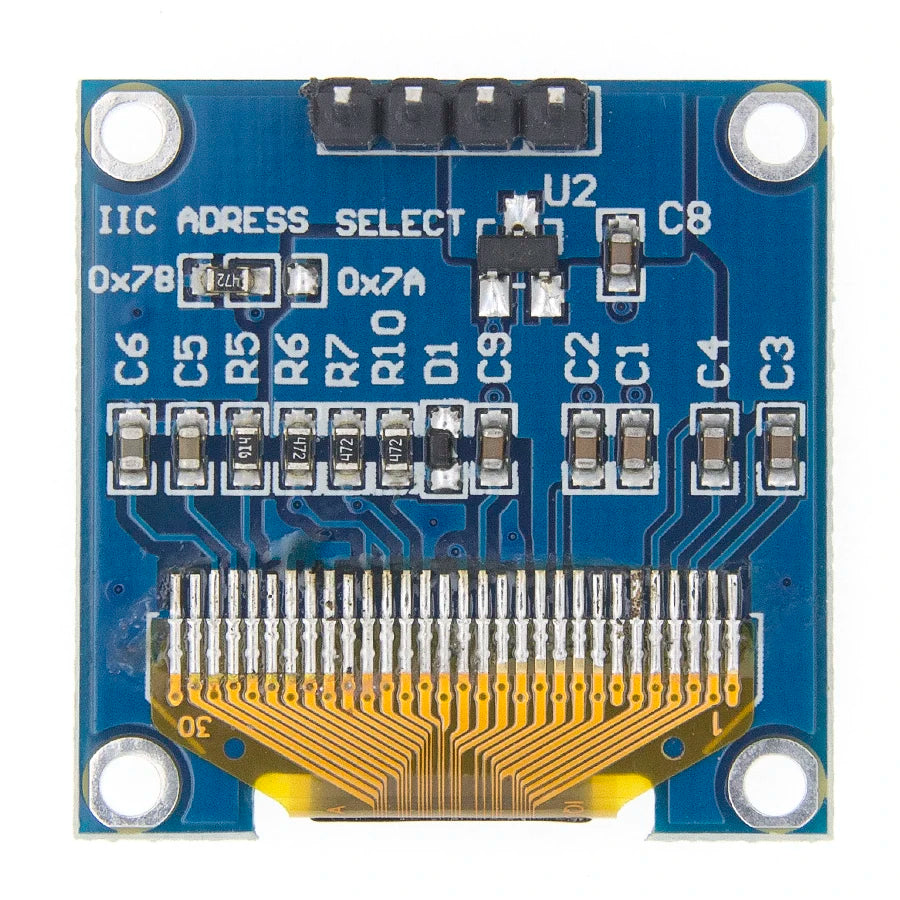

Interface type is IIC

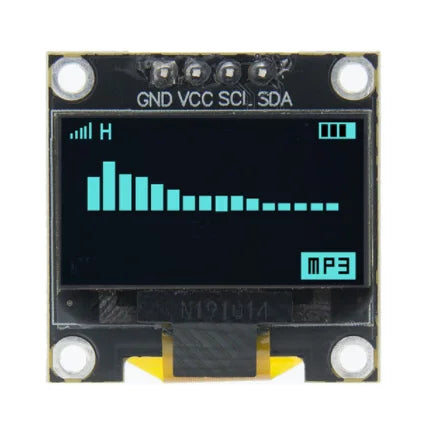

Pin Definition: GND, VCC ,SCL, SDA

Pins: 4 pins

Voltage: 3V ~ 5V DC

Working Temperature: -30 ° ~ 70 °

Drive Duty: 1/64 Duty

High resolution: 128 * 64

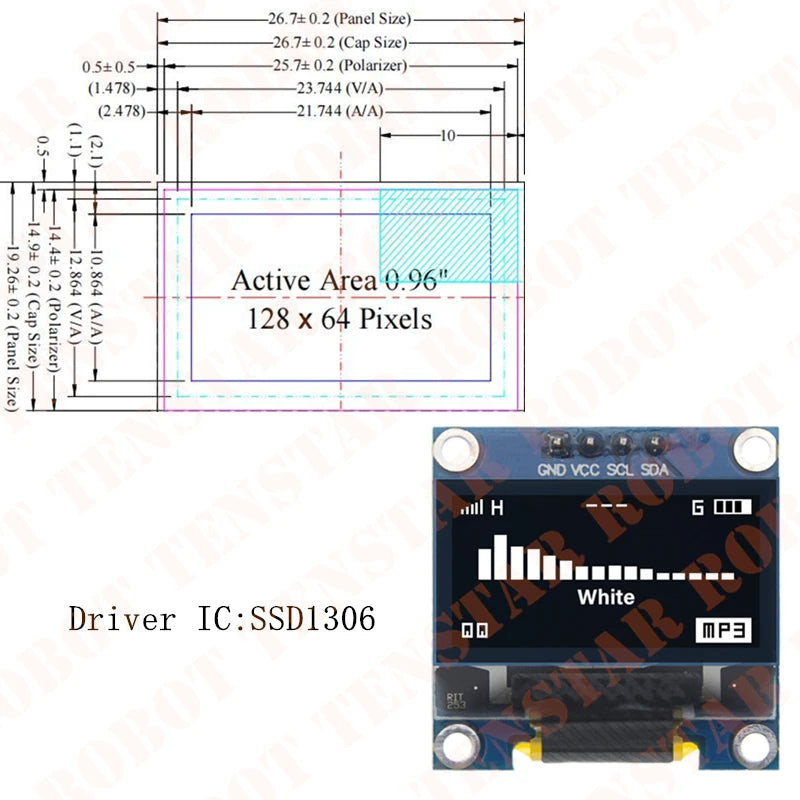

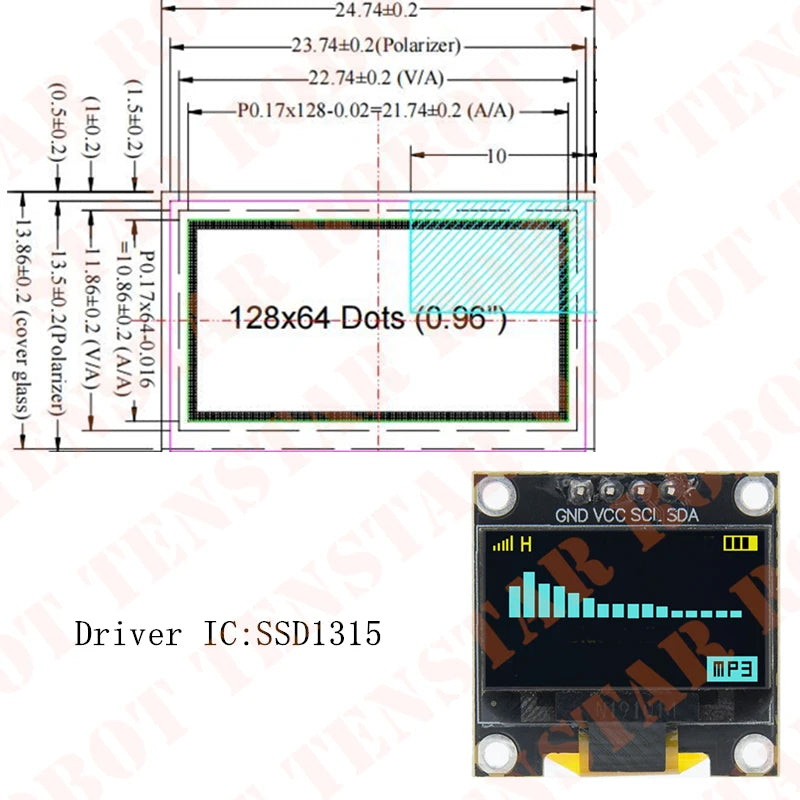

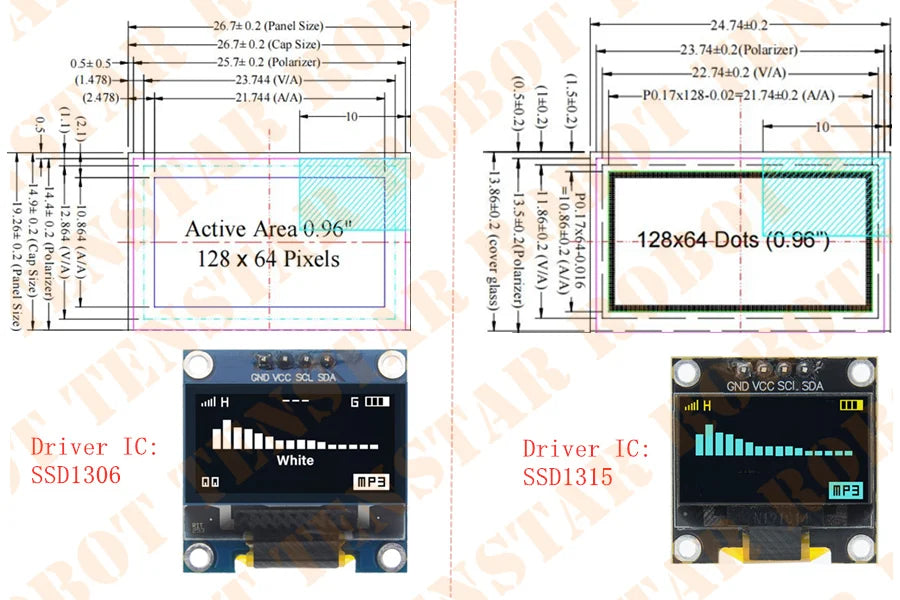

Panel Dimensions: 26.70* 19.26* 1.85mm/1.03*0.76*0.07 inch(approx)

Active Area: 21.74* 11.2mm /0.86*0.44 inch(approx)

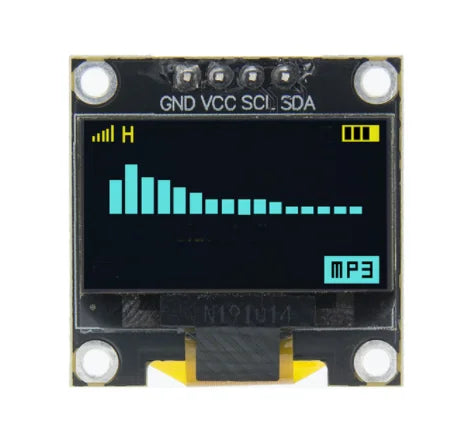

Driver IC: Blue board SSD1306, Black board SSD1315
