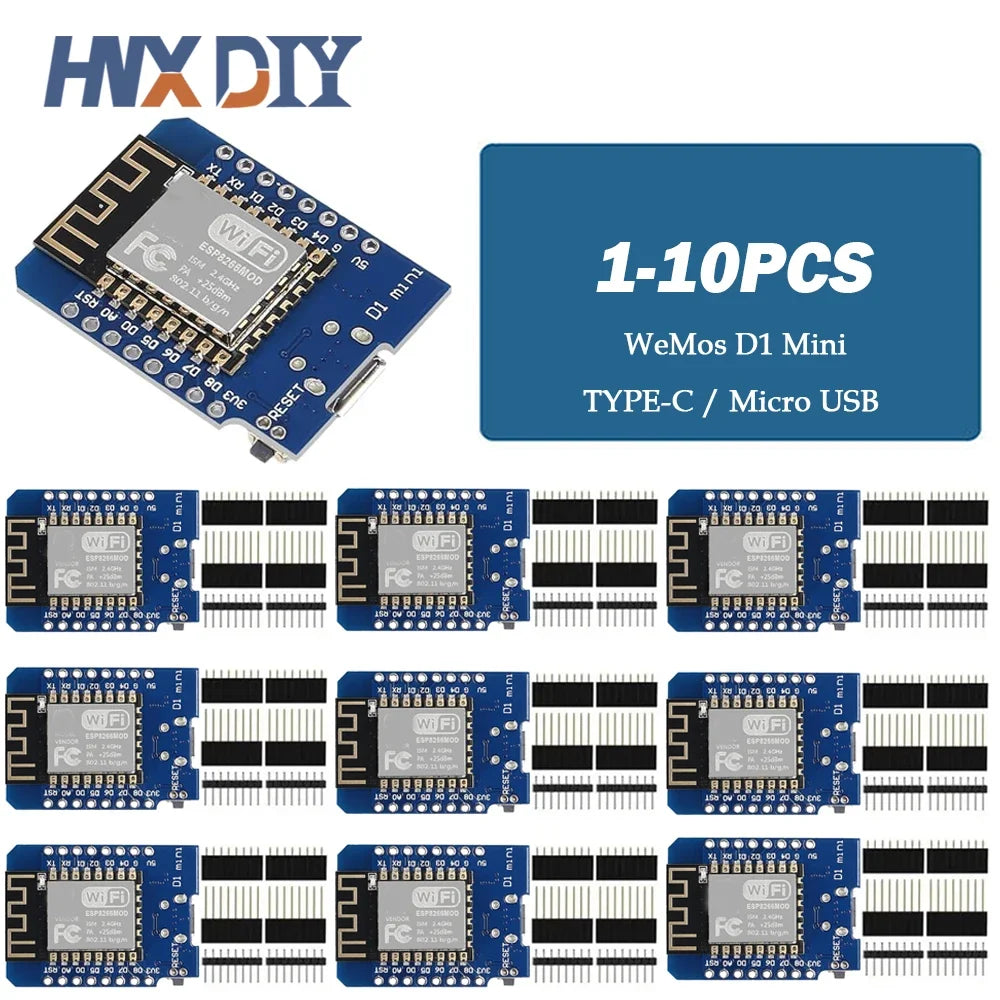

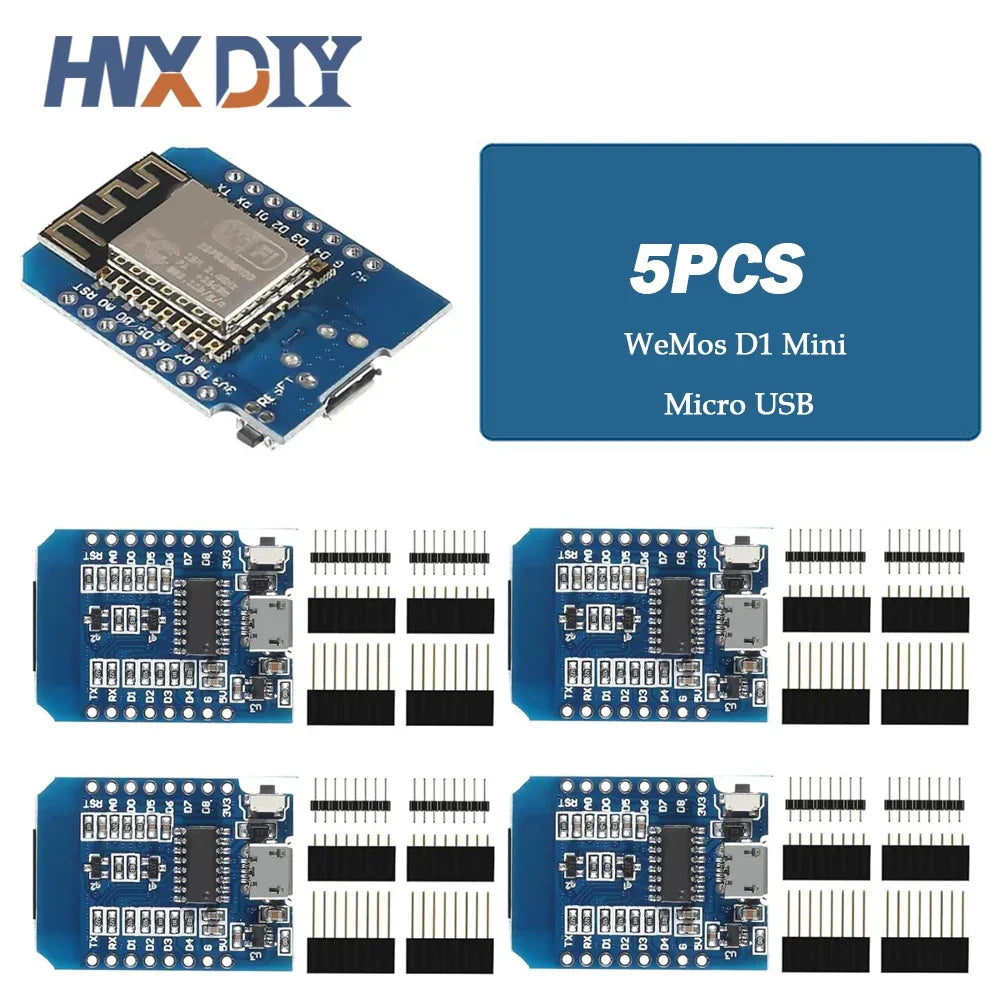

1-10PCS D1 Mini Nodemcu ESP8266 ESP-12 ESP-12F CH340 V2 Usb Wemos Wifi Development Board D1 Mini Nodemcu Lua Iot Board 3.3V

Feature:
1. Introduction:The WiFi Development Board is D1 mini, which is a mini NodeMcu Lua WiFi board based on ESP-8266EX.
2. Compatible with WeMos D1 Mini:The D1 Mini NodeMcu Lua 4M byte WLAN WiFi Internet WiFi Development Board is based on the ESP8266 ESP-12F for Arduino and is compatible with WeMos D1 Mini. It can be programmed in an Arduino IDE compatible environment.
3. 11 Digital Input/Output Pins:The Expansion Board has 11 digital input/output pins, all of which have interrupts/PWM/I2C/support for 1 wire (excluding D0); 1 analog input (maximum 3.2V input). Micro USB connection; Compatible with Arduino; 1MB flash memory; 500mA resettable fuse.
4. Switching Power Supply:The Internet Development Board has a 4M byte. 5V 1A switching power supply (switching power supply) onboard.

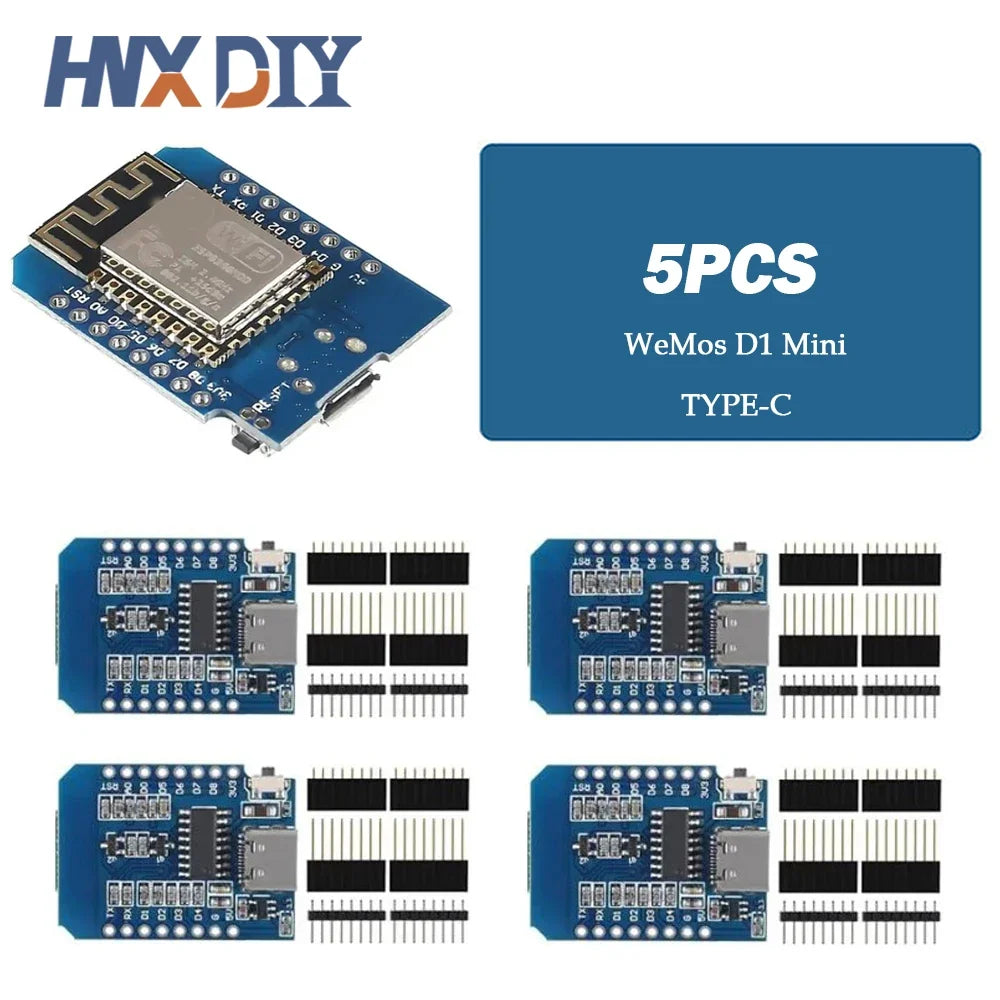

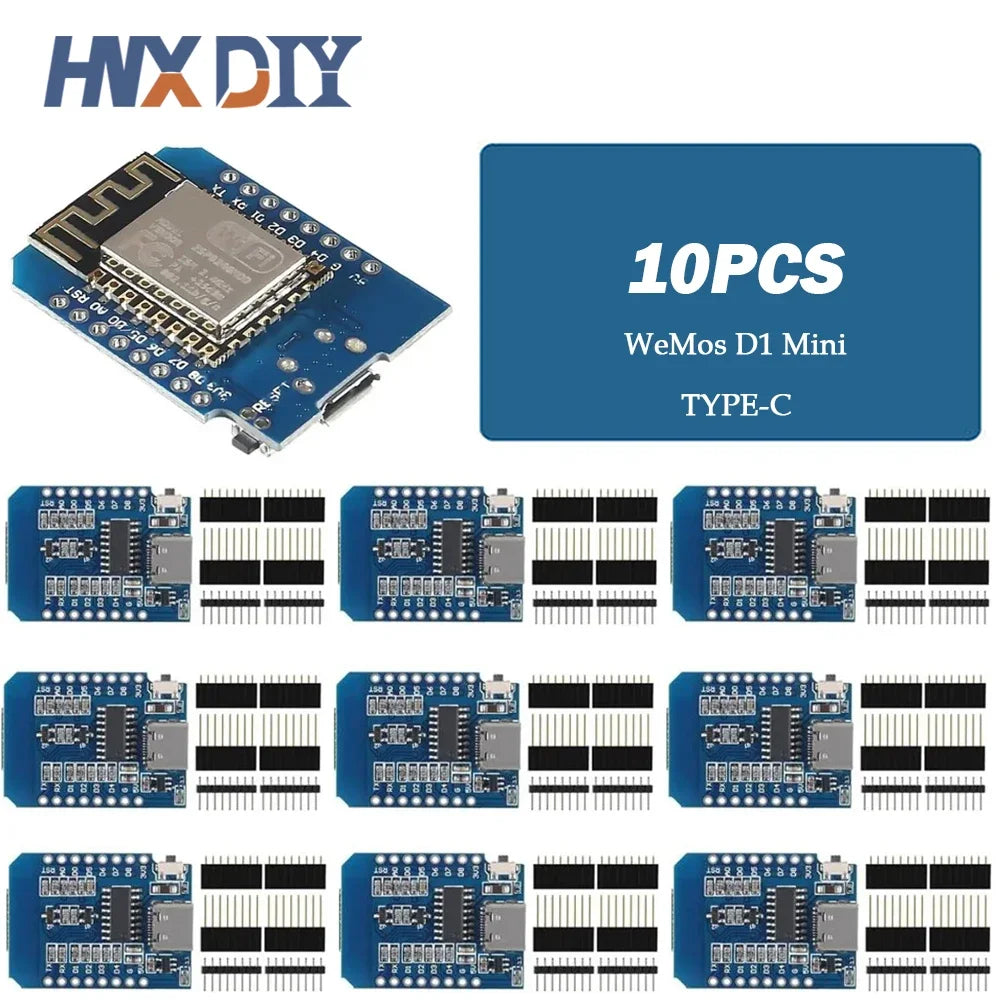

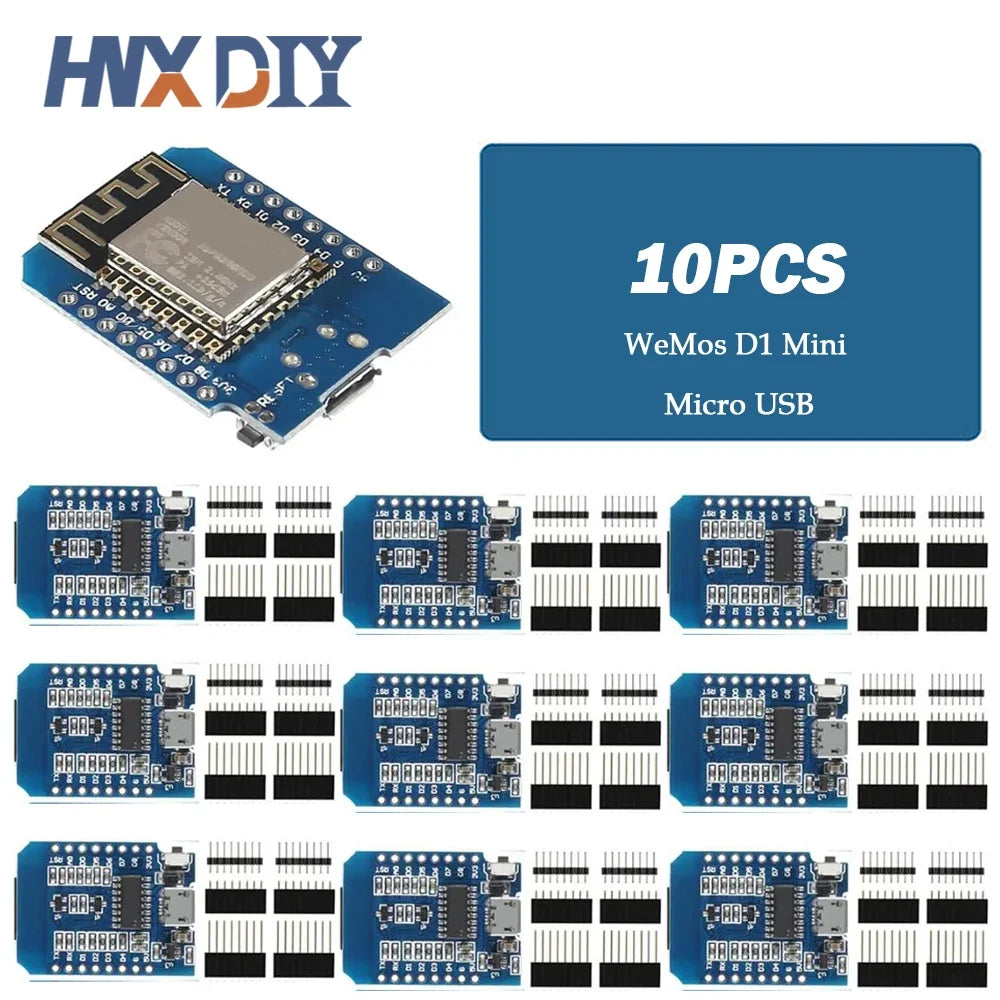

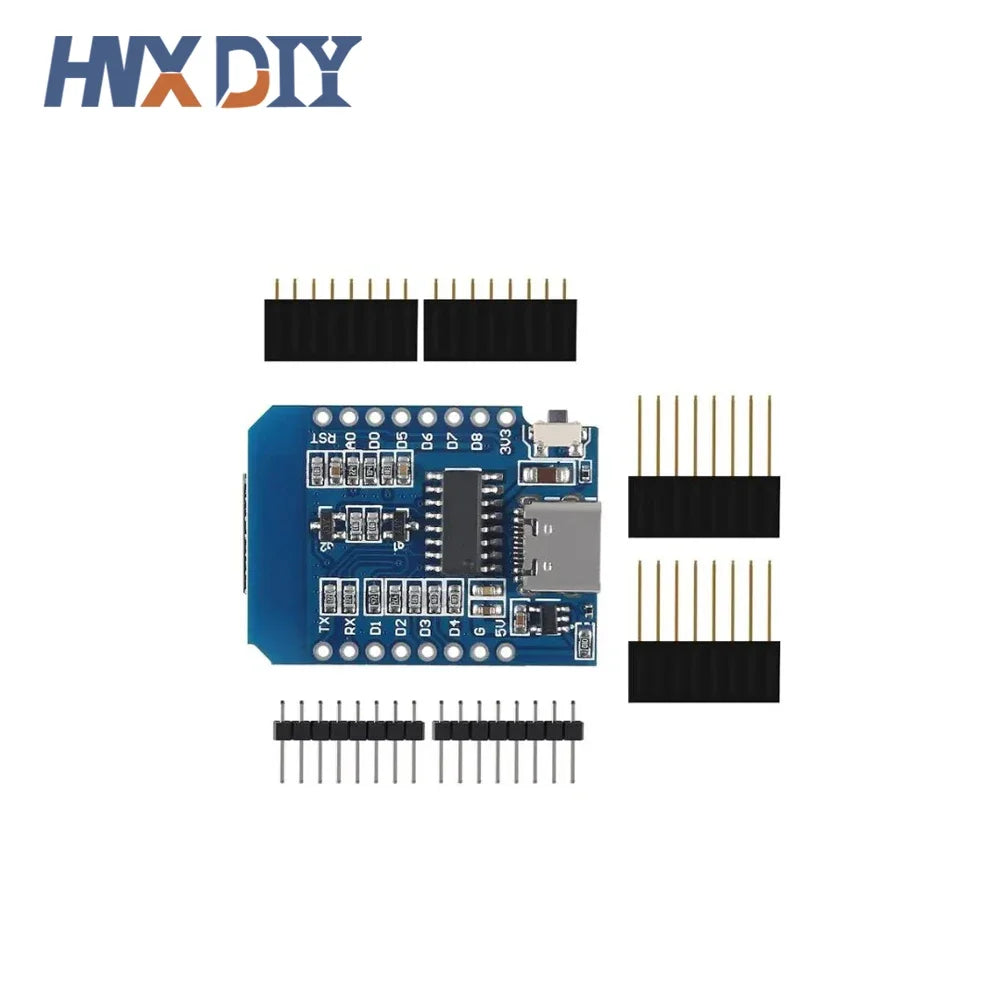

5. 2 Options:The WiFi Development Board has Micro and Type-C

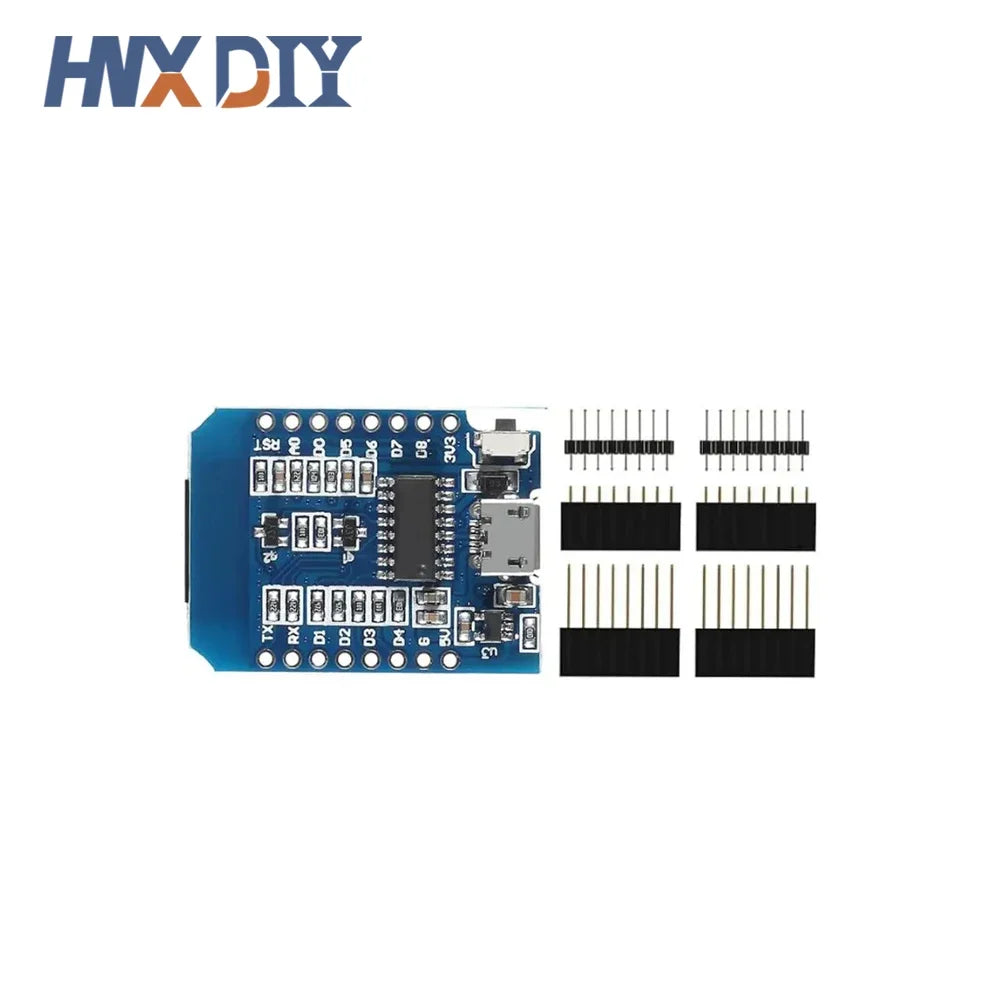

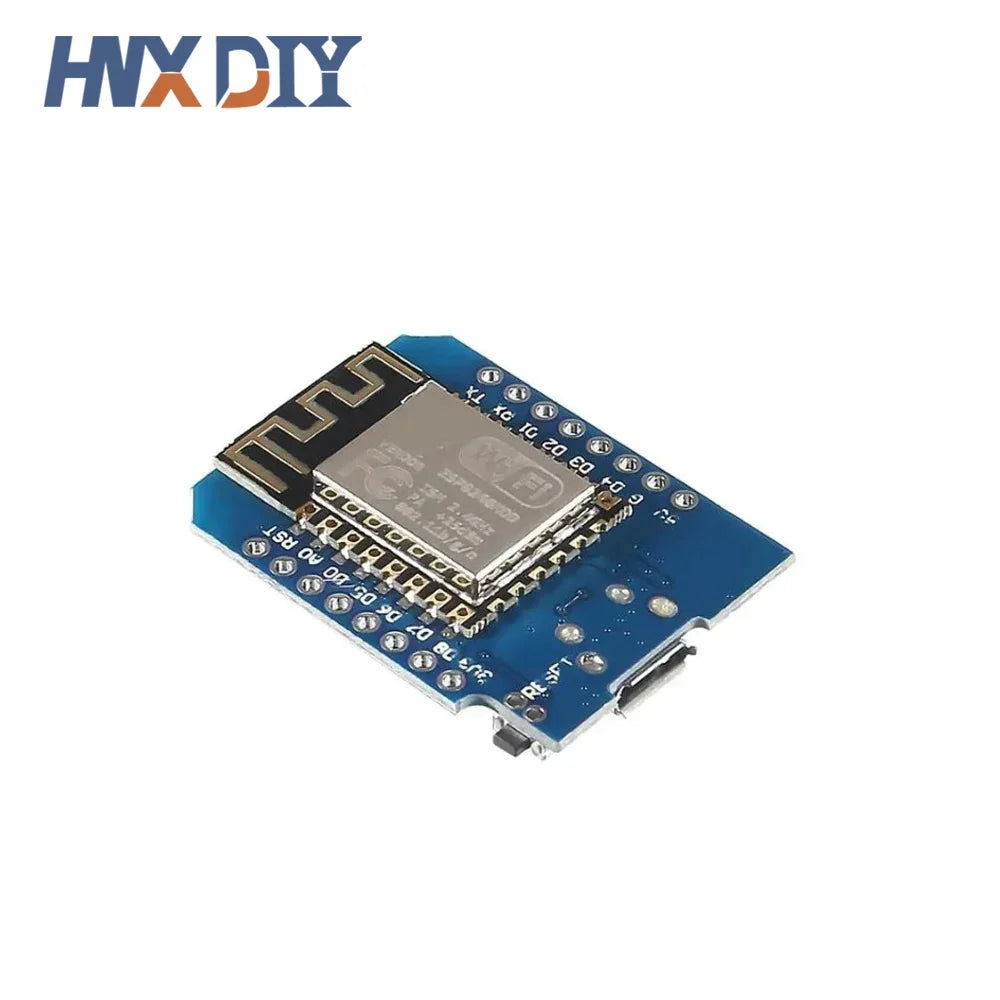

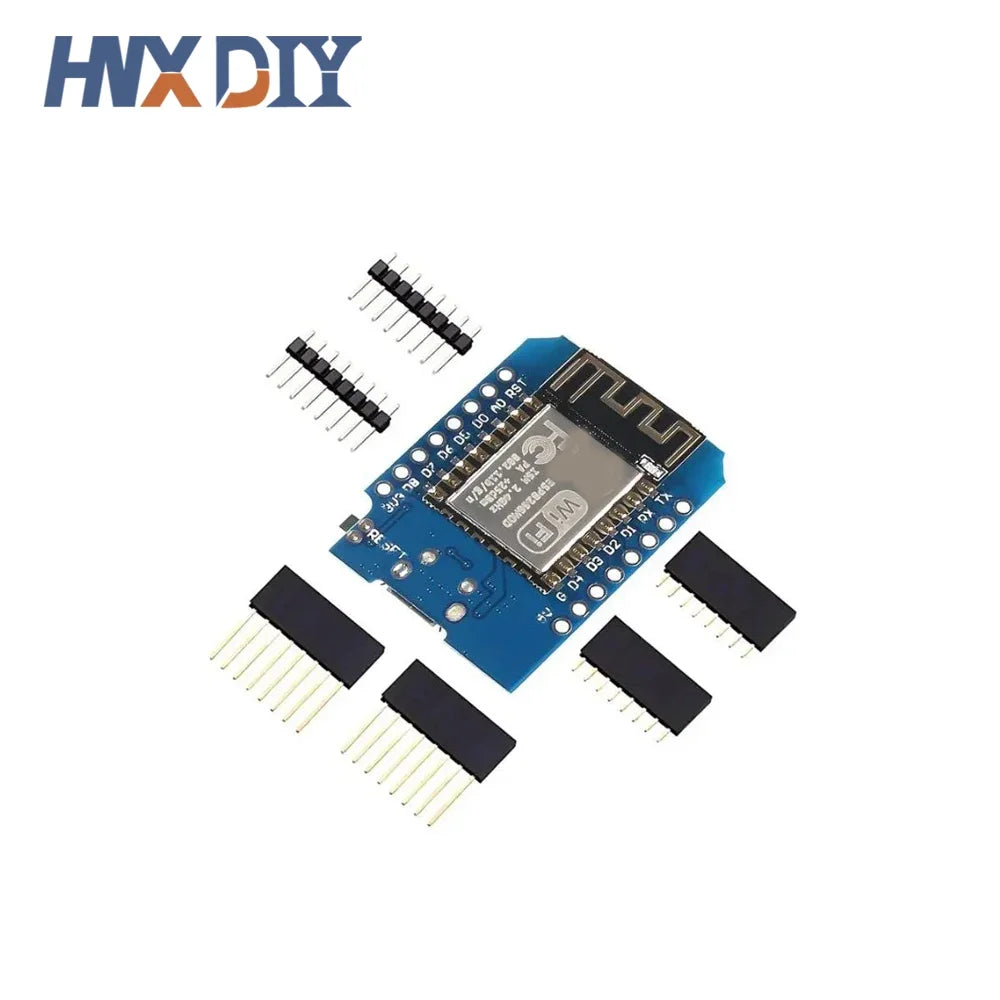

This is D1 mini, it is a mini WIFI board based on ESP-8266EX.

11 digital input/output pins, all pins have interrupt/pwm/I2C/one-wire

supported(except D0)

1 analog input(3.3V max input)

a Micro USB connection

How to get started in :

    Setup driver

Before you use miniD1 boards, you need setup CH340g driver.

    Python

On Windows you need install Python 2.7.10.

On Linux & MAC OSX, you don't need install it, comes preinstalled with OS.

    Installing Hardware package

There is two ways to install hardware package, Boards Manager or GIT

    Installing with Boards Manager

Starting with 1.6.4,for Arduino allows installation of third-party platform packages using

Boards Manager. We have packages available for Windows, Mac OS, and Linux (32 and

64 bit).

<1>. Install for Arduino 1.6.7 from the for Arduino website.

<2>. Start for Arduino and open Preferences window.

<3>
into Additional Boards Manager URLs field. You can add multiple URLs, separating them

with commas.

<4>. Open Tools→Board:xxx→Boards Manager and install esp8266 by ESP8266

Community (and don't forget to select your ESP8266 board from Tools > Board menu

after installation).

   Installing with GIT (Recommend):

We recommend using GIT to install Hardware package,

you can always get the latest version of it.
