G72 G-Mouse USB GPS Dongle Glonass Beidou GNSS Receiver Module for Raspberry Pi Linux Window Better Than vk-172 GPS

Description:
Frequency: GPS L1, 1575.42MHz/BEIDOU B1, 1561MHZ/GLONASS G1, 1602MHZ
Baud rate: 4800, 9600, 19200, 38400, 57600, 115200bps
Channel:72
Sensitivity:
Tracking: -164dBm Capture: -159dBm Cold Start - 147dBm
Cold start Average :26 seconds
Warm start Average: 24 seconds
Hot start average :1 second
Precision:
Horizontal Position: Autonomous<2.5m average SBAS < 2.0m average
Timepulse signal: RMS 30 ns
Maximum height :50000 m
Maximum speed :500 m/s
Maximum acceleration :≦4G
Update frequency :1-10 Hz
Physical characteristics:

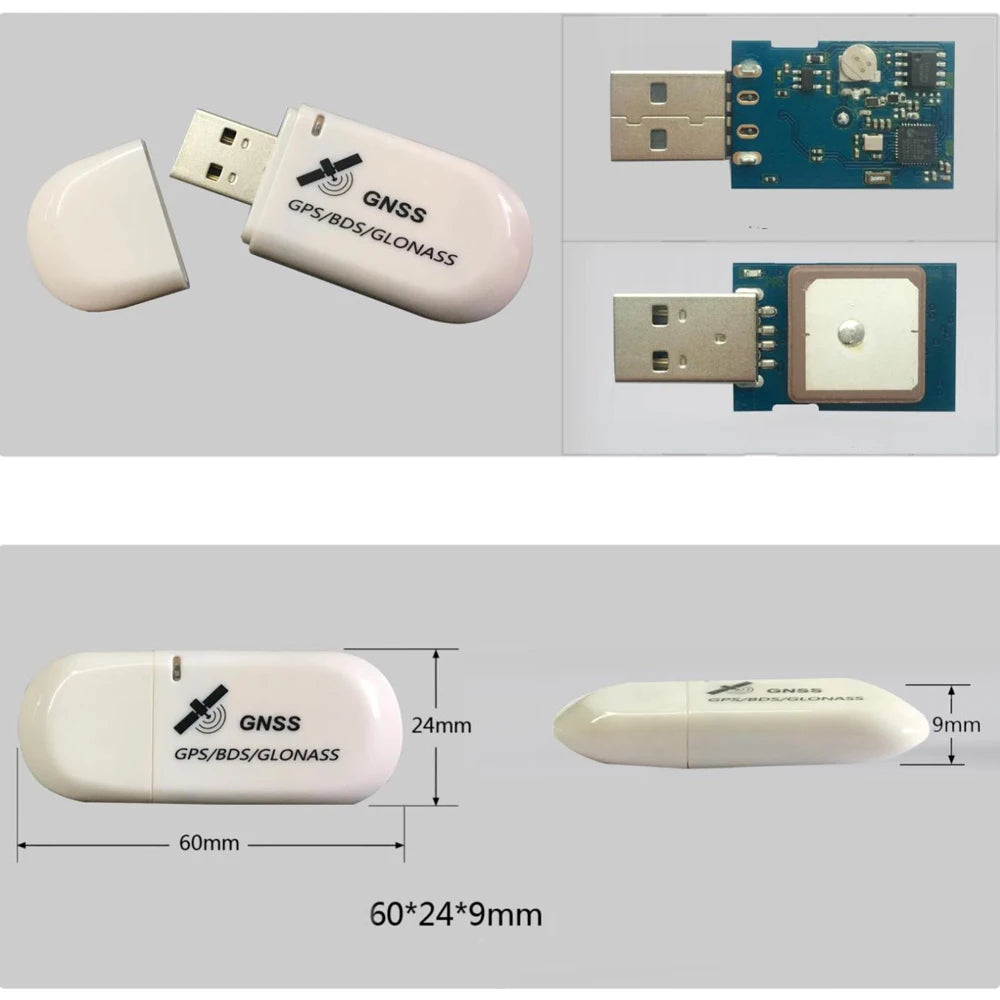

Dimensions :60X24X9mm
Working environment:
Operating temperature: -40°C to 85°C
Storage temperature :-40°C to 85°C

Support system:
Mac os,linux, Windows ME/98/CE, server 2003, server 2008, vista, XP, Windows 7, Windows 8,Windows 10, all windows series system.

NMEA 0183 protocol
NMEA 0183 Output

GGA: Time, Location, Location Type
GLL: Longitude, Latitude, UTC Time
GSA: GPS receiver operation mode, positioning satellite, DOP value GSV: visible GPS satellite information, elevation, azimuth, signal-to-noise ratio (SNR) RMC: time, date, position, speed
VTG: Ground Velocity Information

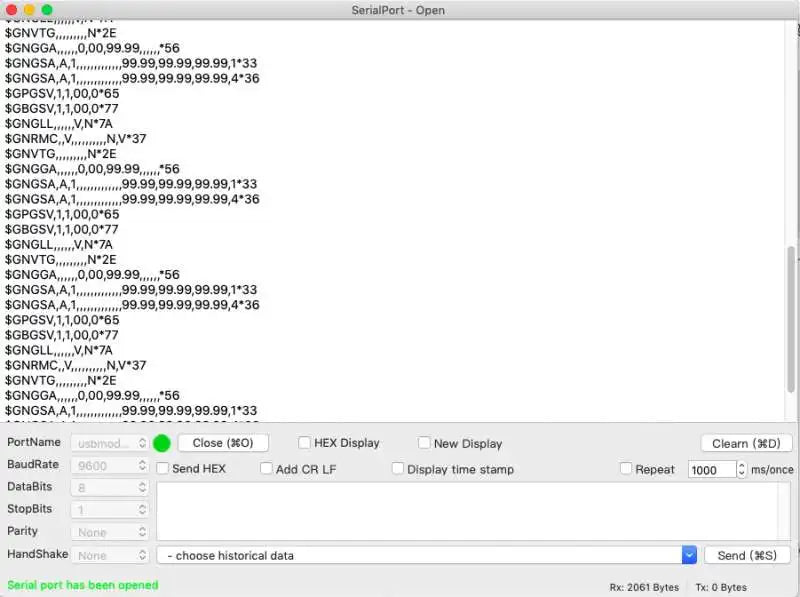

Data Sample:
$GNGGA,092135.00,2240.60418,N,11359.85182,E,1,12,0.99,137.9,M,-2.7,M,,*5F

$GNGSA,A,3,10,25,21,32,15,14,31,12,20,,,,2.04,0.99,1.78,1*0F

$GNGSA,A,3,03,02,06,10,13,07,08,05,16,09,,,2.04,0.99,1.78,4*0C

$GPGSV,3,1,10,10,56,335,39,12,35,090,24,14,19,288,40,15,17,074,20,0*69

$GPGSV,3,2,10,20,85,040,37,21,33,205,32,24,28,038,23,25,39,140,20,0*63

$GPGSV,3,3,10,31,18,227,42,32,32,306,38,0*60

$GBGSV,4,1,15,01,50,130,,02,47,236,33,03,62,189,42,04,32,111,,0*73

$GBGSV,4,2,15,05,24,255,39,06,54,019,34,07,53,163,43,08,18,190,36,0*78

$GBGSV,4,3,15,09,46,330,39,10,34,188,41,12,05,241,,13,32,219,38,0*74

$GBGSV,4,4,15,16,53,002,31,18,,,44,21,,,40,0*4C

$GNGLL,2240.60418,N,11359.85182,E,092135.00,A,A*7D

$GNRMC,092135.00,A,2240.60418,N,11359.85182,E,0.058,,271018,,,A,V*1E

$GNVTG,,T,,M,0.058,N,0.107,K,A*36

Package Includes:
Bundle 1 - 1PCS
Bundle 2 - 2PCS
Bundle 3 - 5PCS
Bundle 4 - 10PCS
