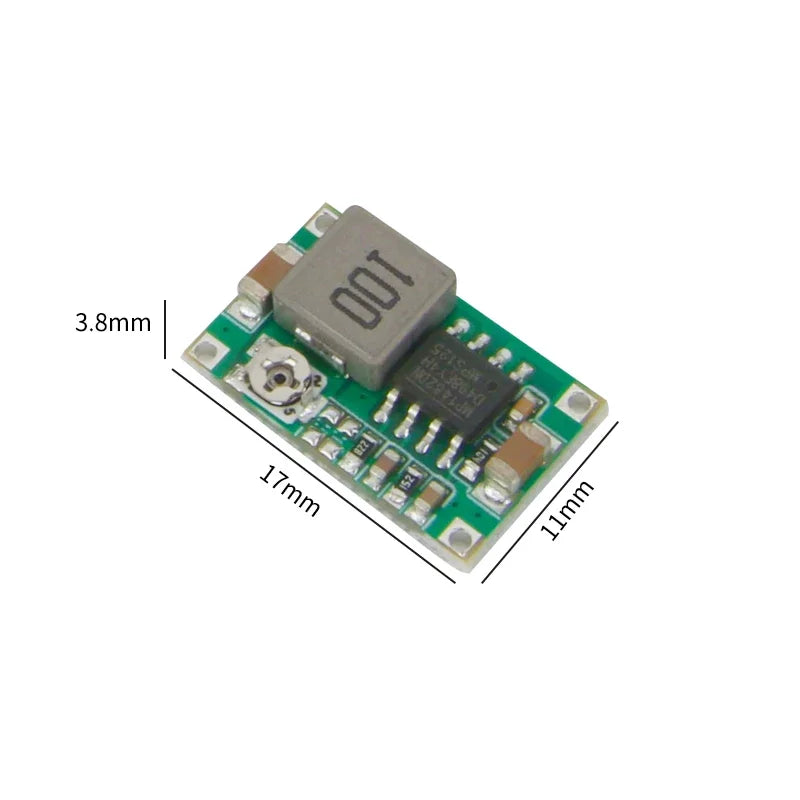

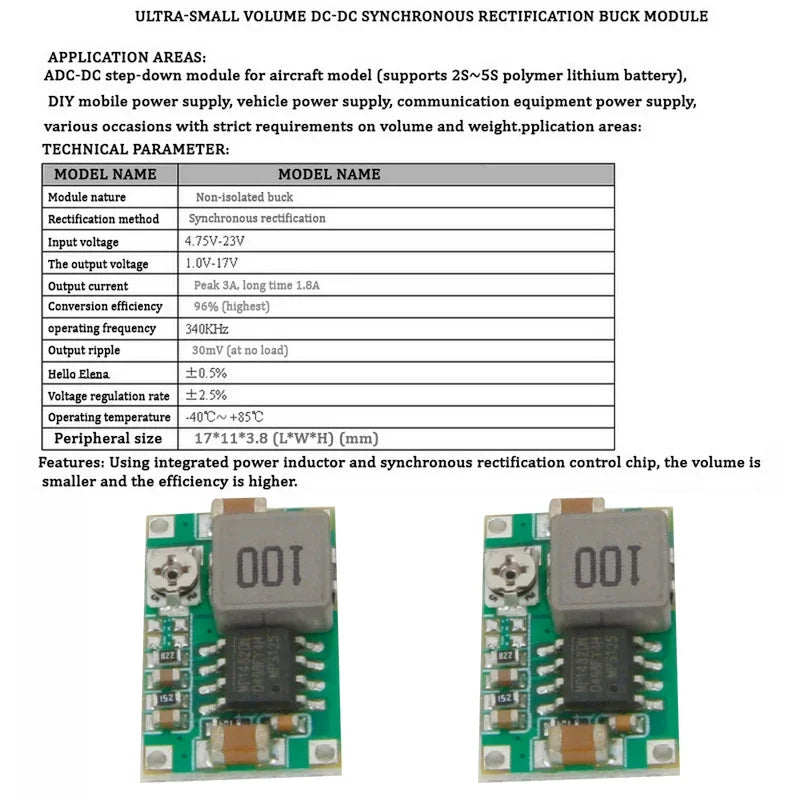

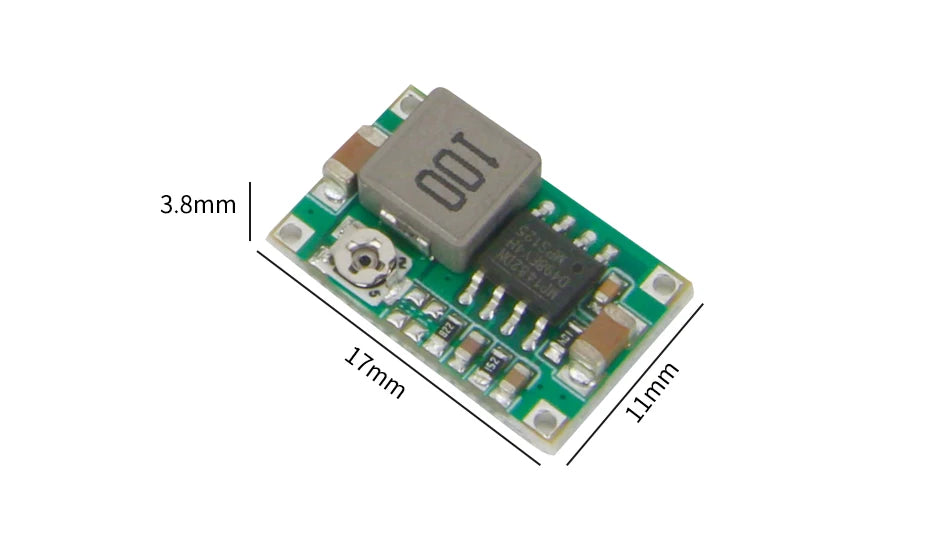

Size: 1.7*1.1*0.38cm/3.7*1.6*0.97cm

Color: multicolor

Material: electronic components

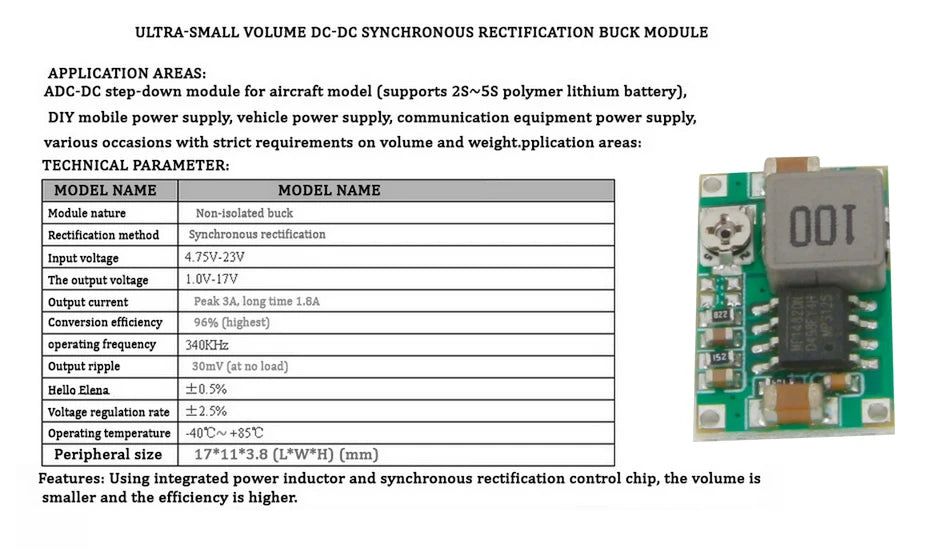

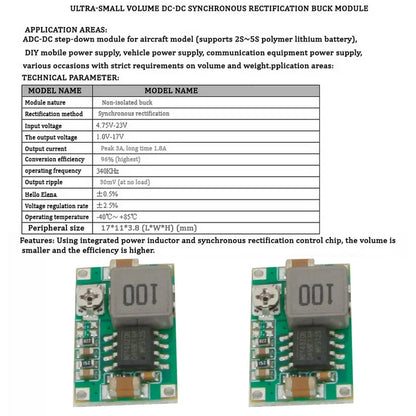

Input voltage: 4.75V-23V/6V-36V

Output voltage: 1V-17V/5.2V  3A

Output current: 3A,  1.8A/2A for long time

Transfer efficiency: 96% (MAX.)

Switching frequency: 340KHz/150KHZ

Output ripple: 30mV (no-load)

Load regulation: ±0.5%

Voltage  regulation: ±2.5%

Working temperature: -40~85℃

Package list:

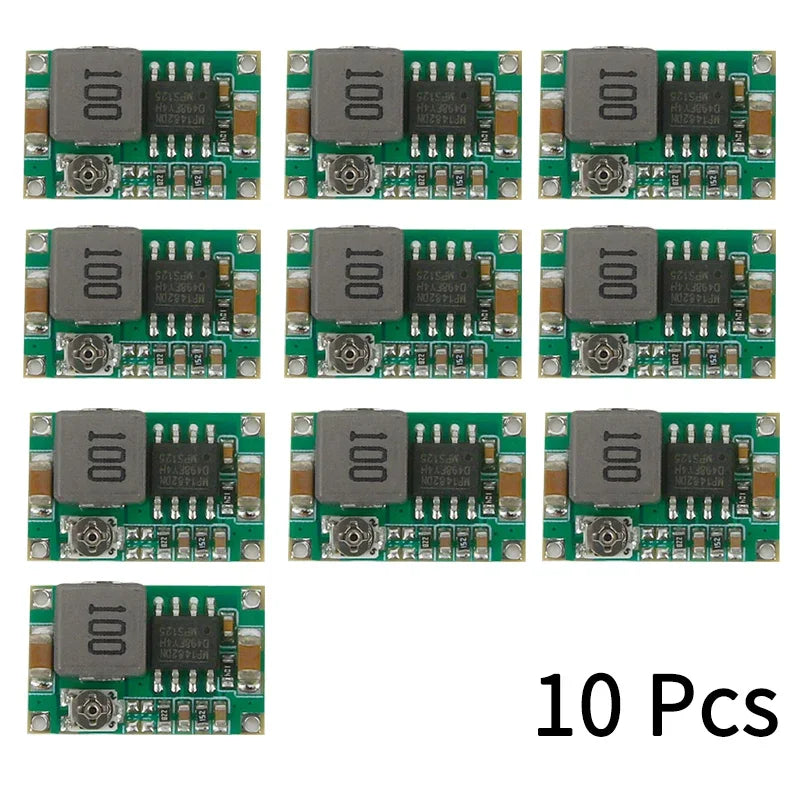

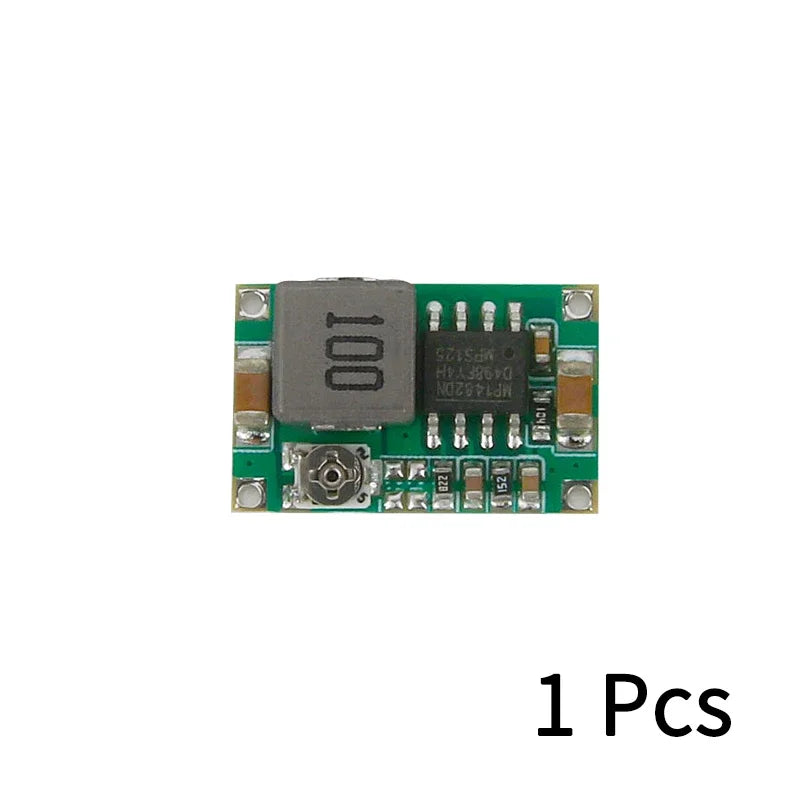

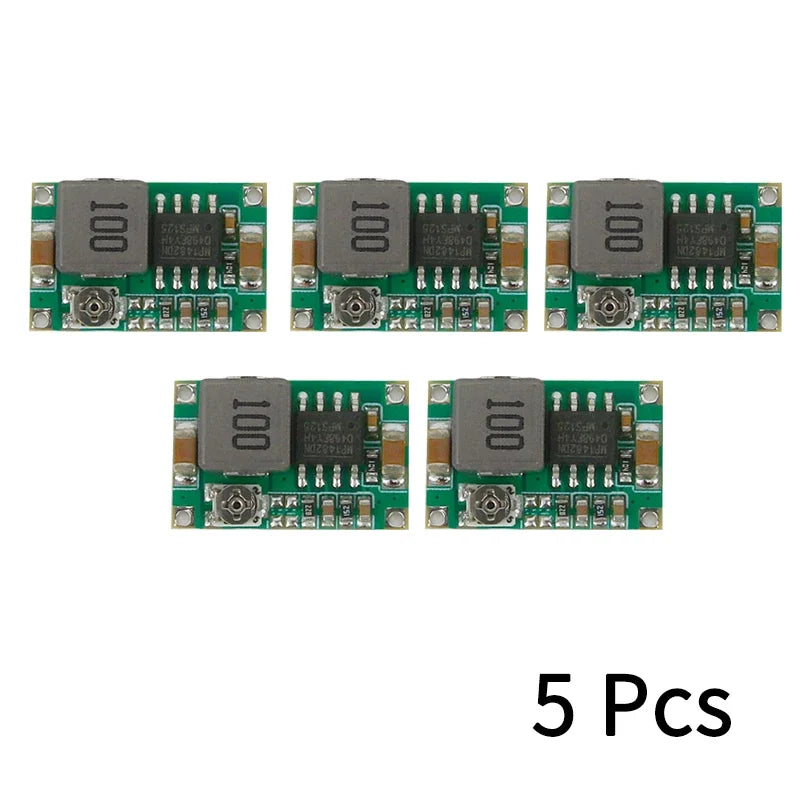

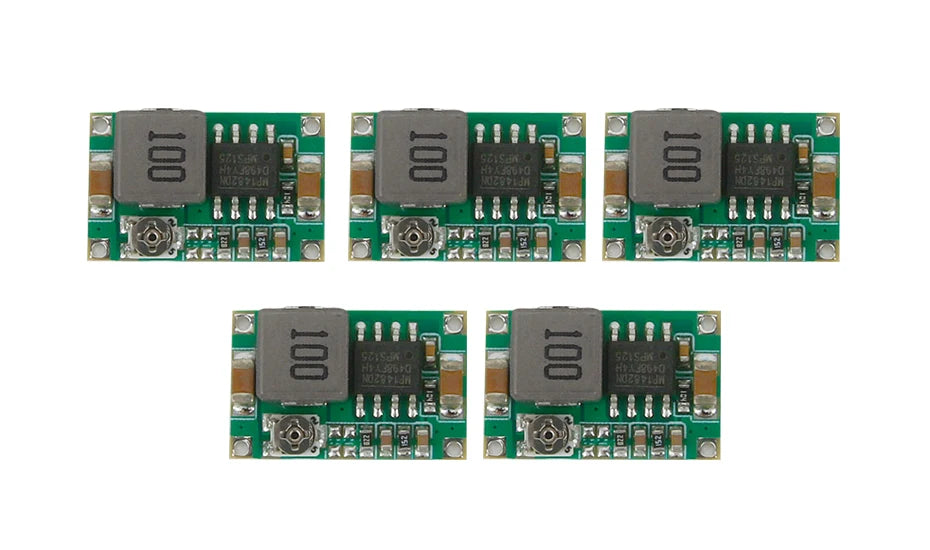

1/5/10 x DC -DC power supply module

Features:

< Efficiency: Up to 96% (depends on the difference between input and output voltage) This module uses synchronous rectification, efficient power conversion available.

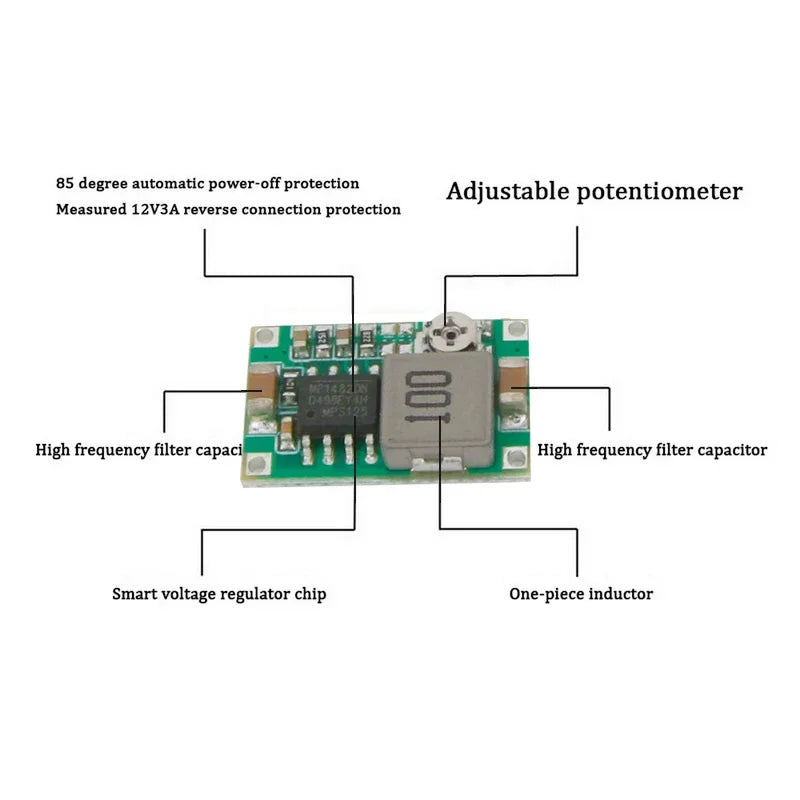

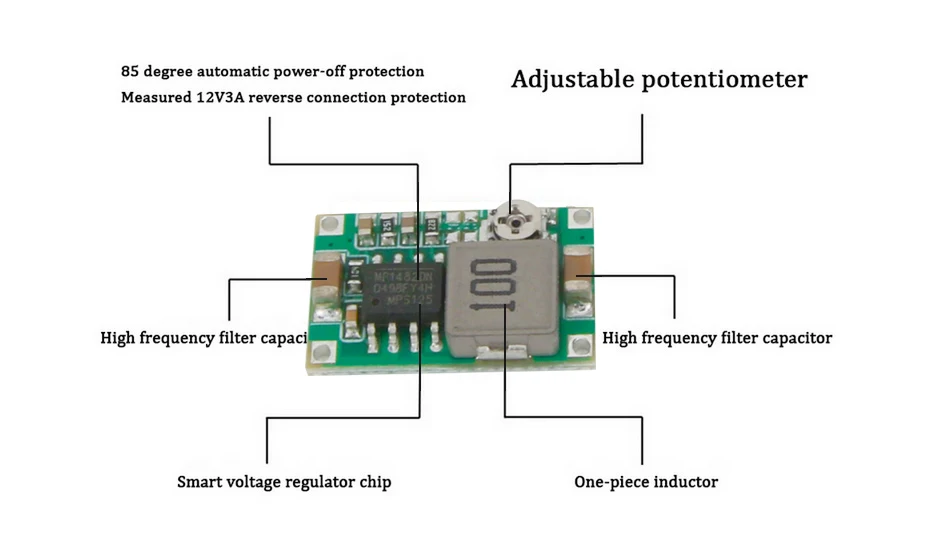

< Good performance: Use integrally molded power inductor and synchronous rectifier control chip, small and efficient

< Wide application: Great for LED lights, micro-controllers, battery chargers, and most other low power devices.

< Compact and lightweight: It is compact and portable, high efficiency

Notes:

1. Please allowed 1-3mm differences due to manual measurement, thank you for your understanding!

2. Due to the difference between different monitors, please understand that the picture may not reflect the actual color of the item.
