Intelligent t12 high-power JBC245 control board constant temperature 210 soldering station 936 color screen cabbage white light DIY kit

Product features:

1. Support automatic recognition of jbc245/t12/jbc210/936 handles;

2. Two sets of UI support free switching;

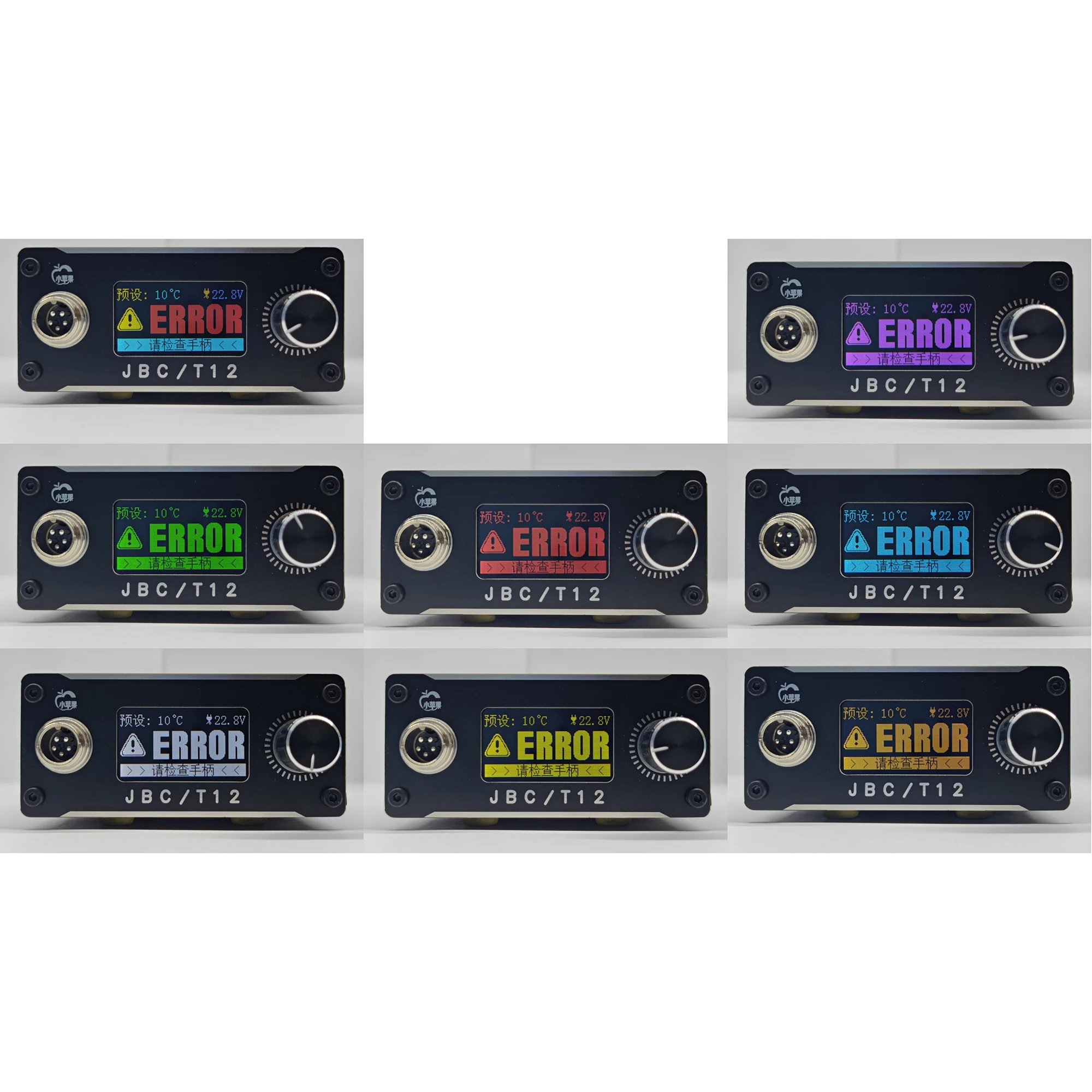

3. Support multiple color display switching;

4. Adopting high-power MOSFETs to ensure output and service life;

5. Adopting a 32-bit main control, the temperature control and reaction speed are effortless;

6. Built in Chinese/English;

7. Support multi stage temperature calibration for more accurate temperature;

8. Support hibernation and hibernation;

9. Supports jbc core replacement protection (requires a sleep seat);

10. Adopting low-power and high-precision operational amplifier chips for stable sampling;

11. Support calibration of room temperature, making cold end compensation more accurate;

12. Support knob direction switching (Settings Other Settings Knob Direction);

13. Support power supply voltage calibration, the gospel of using battery power, real-time and accurate display of the current voltage, (Settings Other Settings Voltage Calibration);

14. Supports low voltage protection. By using battery power, a target value can be set, and when the voltage reaches this target value, the output stops, thus better protecting the battery life! (Settings System Settings Voltage Protection)

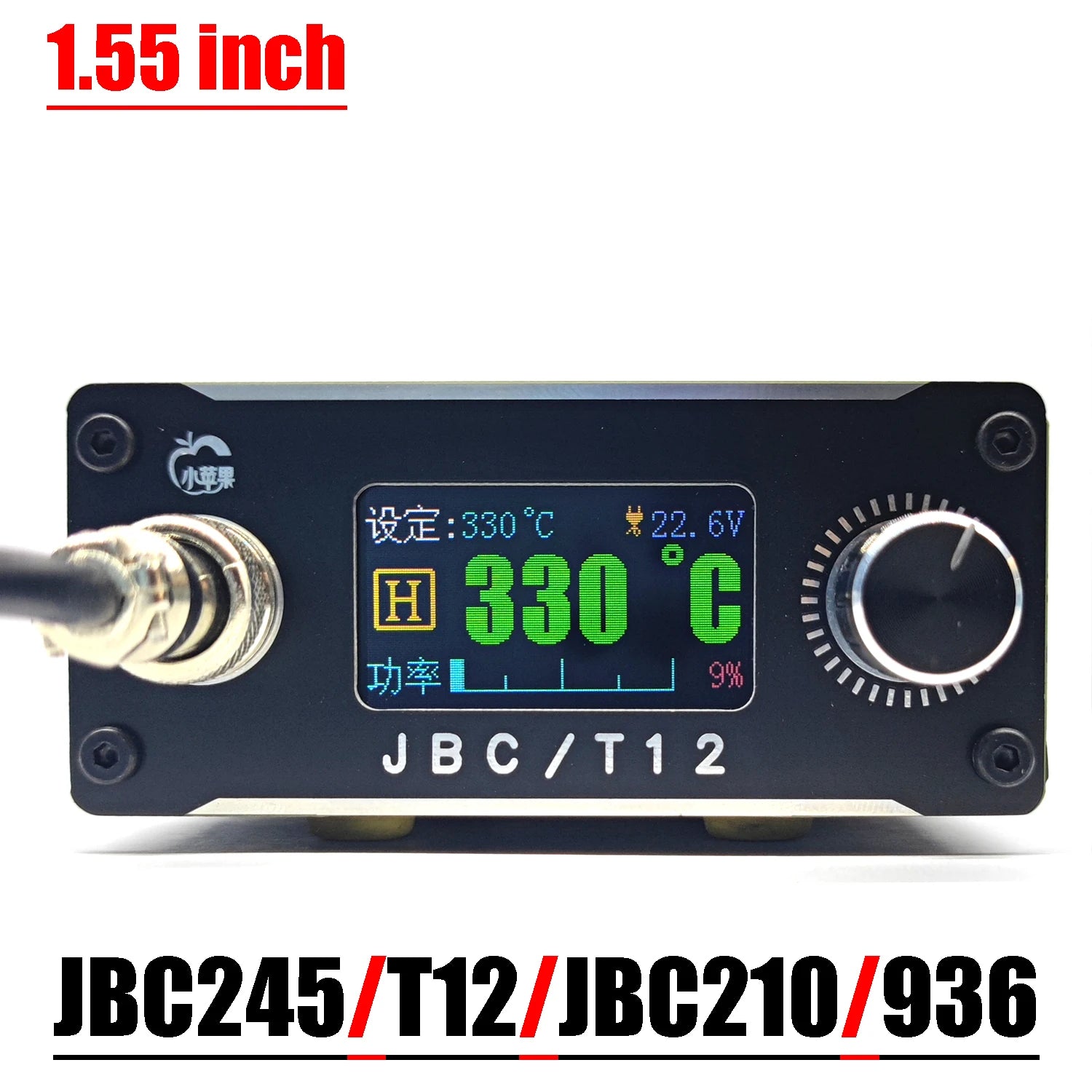

The actual display area size is 1.55 inches (not the screen size, it is the actual display area size)

After sales strategy: We support returns and exchanges without soldering and without affecting secondary sales, and we need to bear the round-trip shipping cost!

Soldering or affecting secondary sales is not supported for returns or exchanges!
