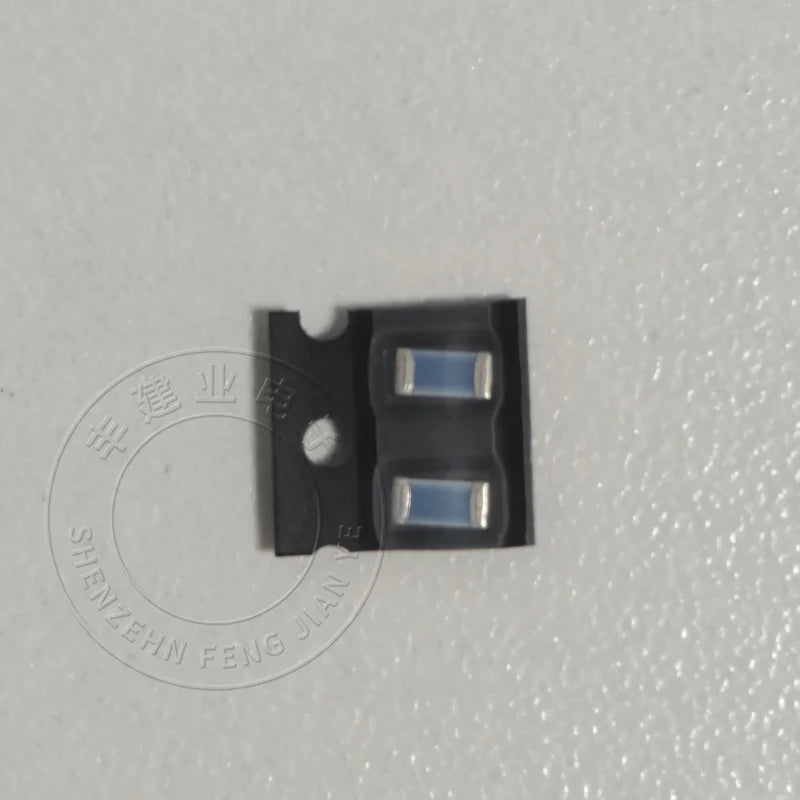

SMD Introduction:

Suitable for temperatures ranging from -50 to+150 ° C (-70 to+250 ° C)

According to DIN EN 60751, nominal values Pt100, Pt500, and Pt1000

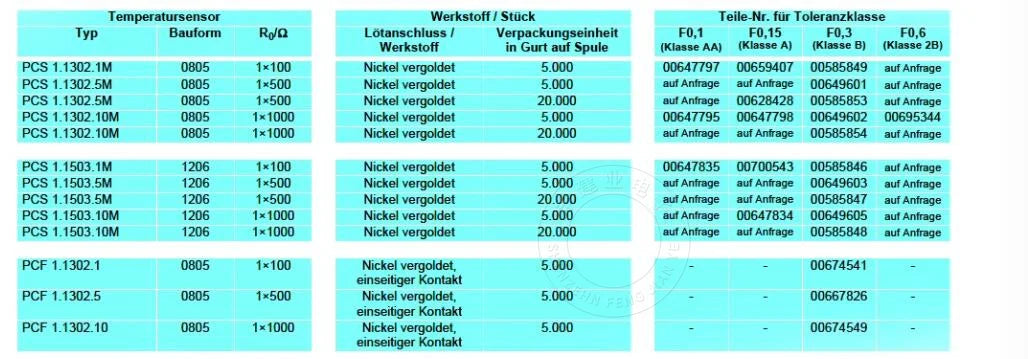

• Tolerance grade:

AA=F0.1 degrees

A=F0.15 degrees

B=F0.3 degrees (standard)

2B=F0.6 degrees

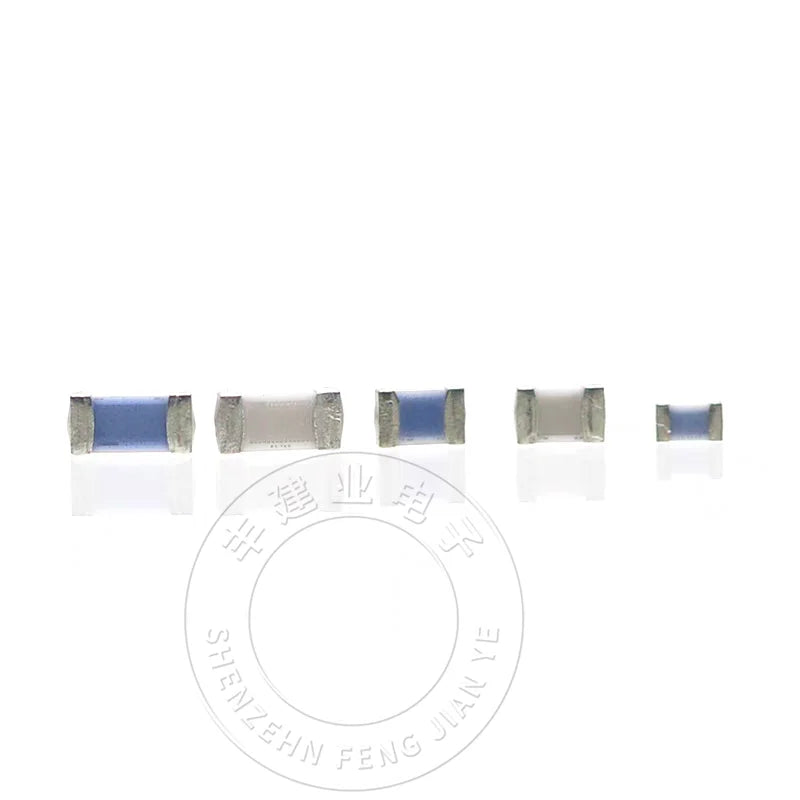

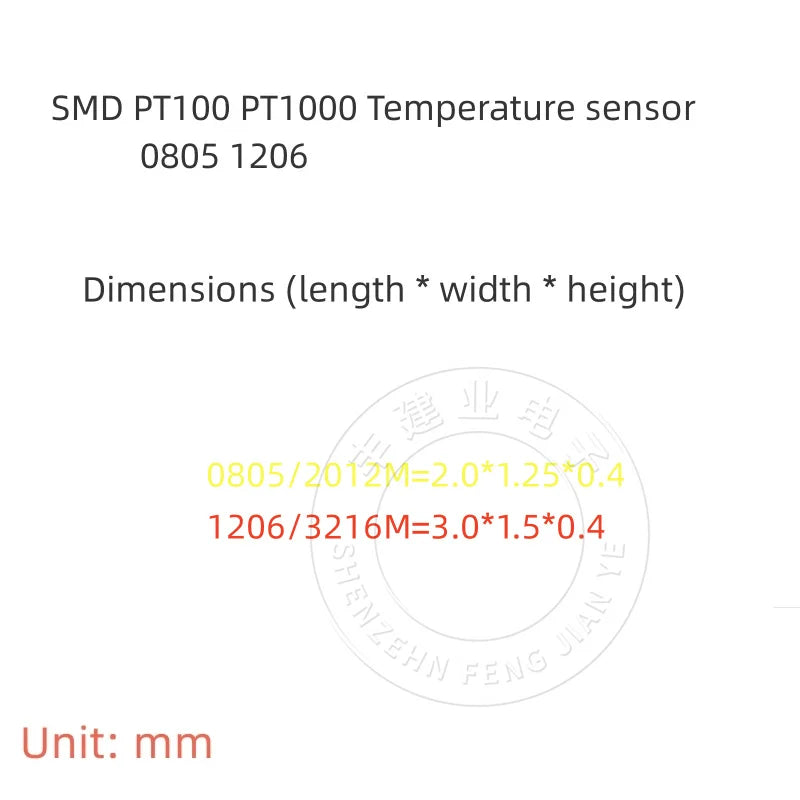

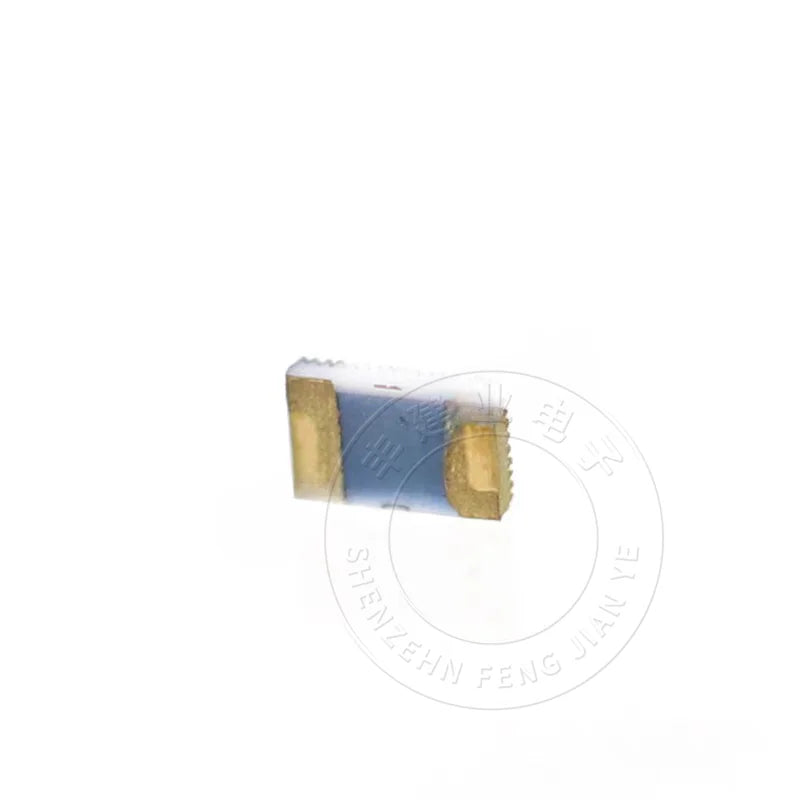

SMD models 1206 (3216M) and 0805 (2012M)

• Gold plated nickel welding contacts

• Weldability in accordance with IEC/DIN EN 60068-2-58

Belt packaging complies with DIN IEC 60286-3 standard

• High load capacity

SMD features:

Platinum chip temperature sensors belong to the category of thin film technology temperature sensors.

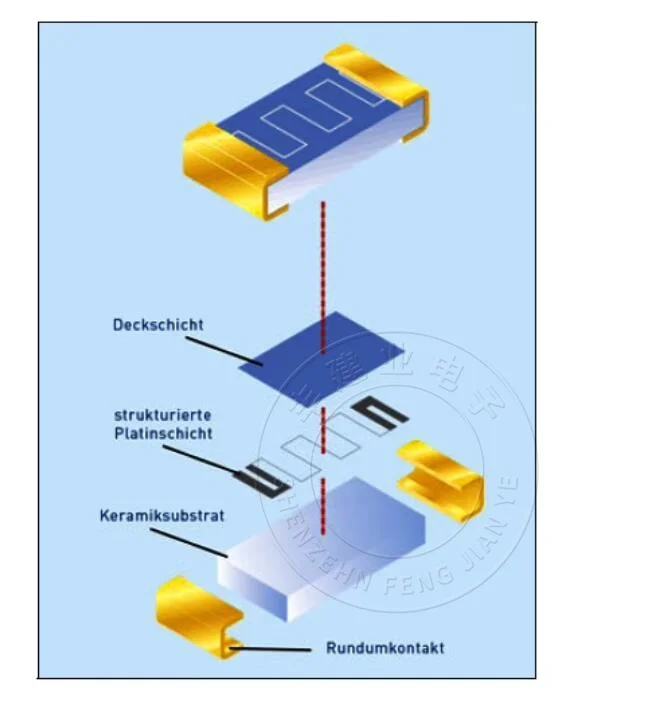

In the production of these temperature sensors, a thin platinum layer structure is deposited and coiled on a substrate made of high-purity alumina ceramics.

The temperature sensor is based on temperature dependent resistance, and the allowable tolerance of its history is defined in the international standard DIN EN 60751.

By using thin film technology, it is possible to produce designs that are particularly small and more robust.

Good linear characteristic curve, large temperature measurement range, and high measurement accuracy

These standardized temperature sensors have good long-term stability, so choose

SMD Overview:

SMD temperature sensors allow for high assembly density due to their small size. Applications include surface or ambient temperature measurement on circuit boards

Application areas such as temperature monitoring or compensation circuits and various applications of temperature sensors

The printed circuit board (data sheet 906122) used for filling here serves as a measurement plugin

Easy to install and can also be used as a heating resistor for calorimeter measurement.

Gold plated nickel solder contacts also allow for all types of reflow soldering alternative connection techniques,

For example, wave soldering, conductive bonding, or wire bonding. The first level metallization of the contacts also ensures the high reliability of the temperature sensor

In operation. In order to achieve particularly high thermal shock resistance, based on selecting suitable printed circuit board materials

Pay attention to the expansion coefficient. We recommend using type 1302 (0805 or 2012M) when cycling in high temperatures.

The platinum layer of the temperature sensor is reliably protected against external influences by two baked glass coverings.

The application temperature range of the temperature sensor is designed to be -50 to+150 ° C. The temperature sensor can even be used at -70 to+250 ° C. Then, according to the application, check for compliance with tolerance limits. The heat capacity is determined by the selected connection technology and the enclosure.

The delivery is bundled on a standard roll. Storage is a layer structure in high-quality original packaging that can also be problem free for a long time.

The temperature sensor can be used as a position contact (PCS type) or a single-sided contact (PCS type) PCF (flip chip) for face down installation.
