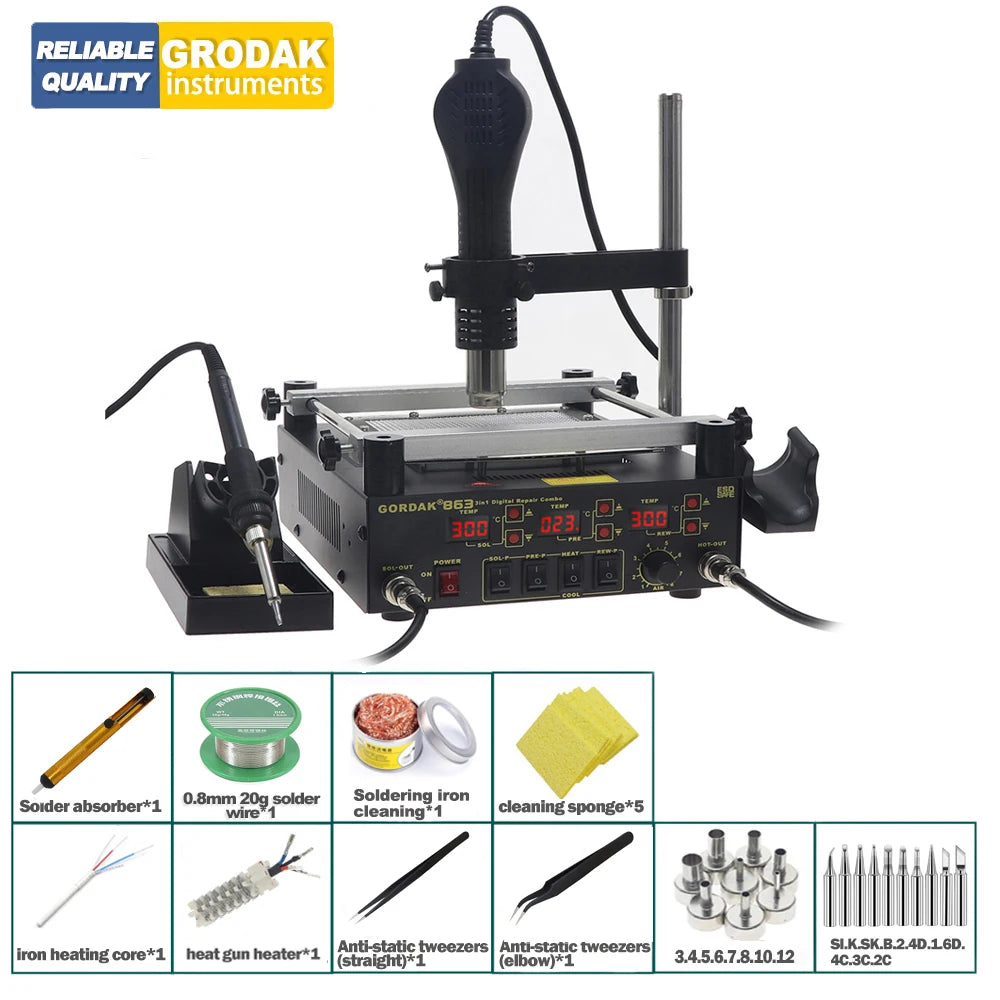

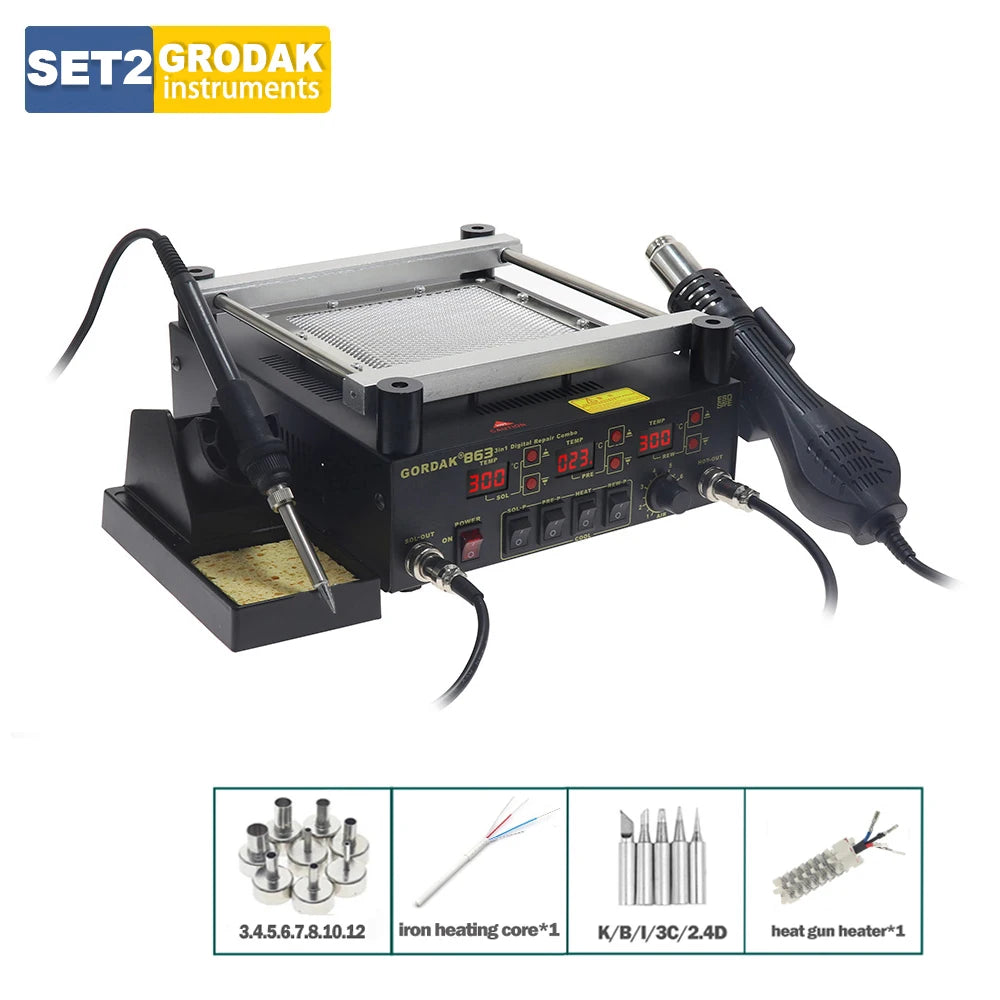

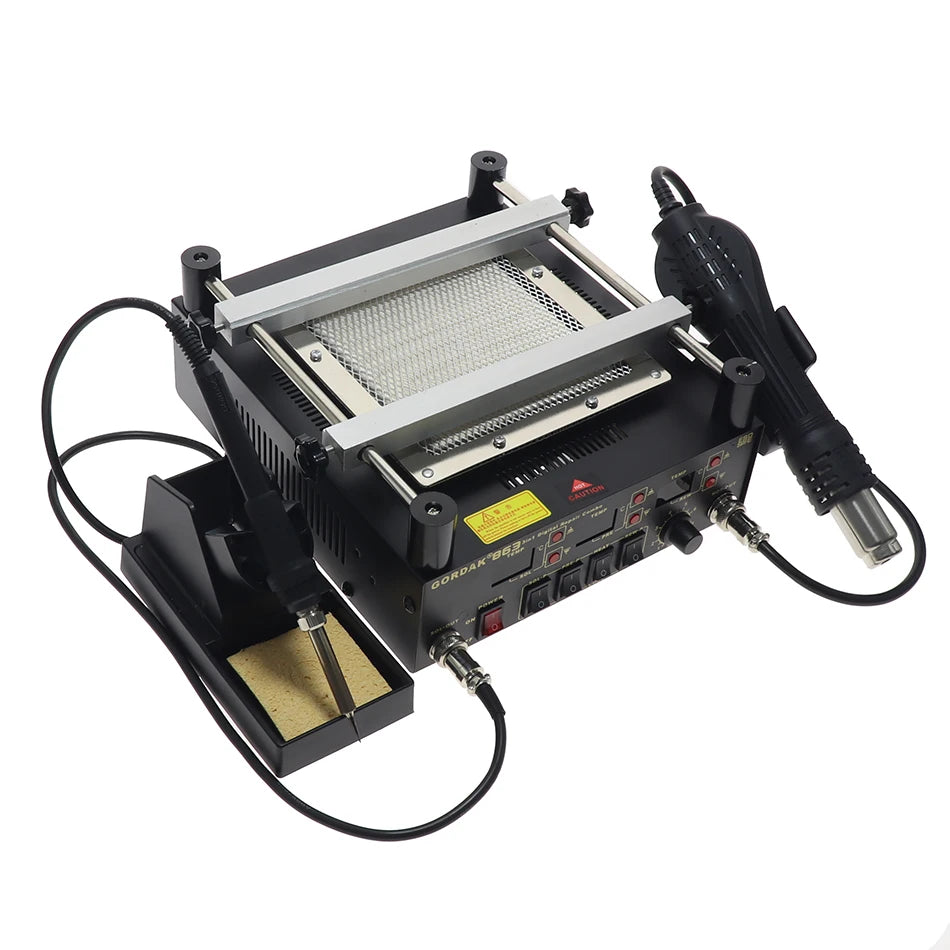

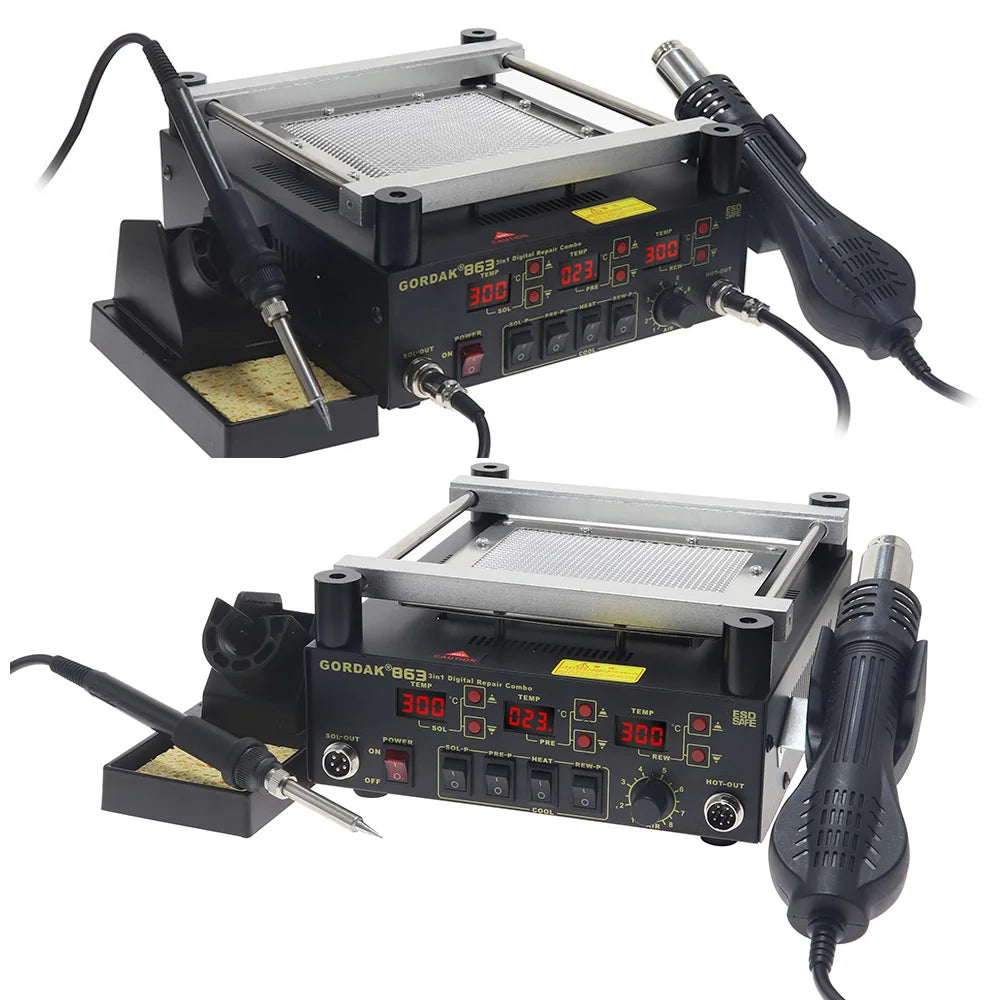

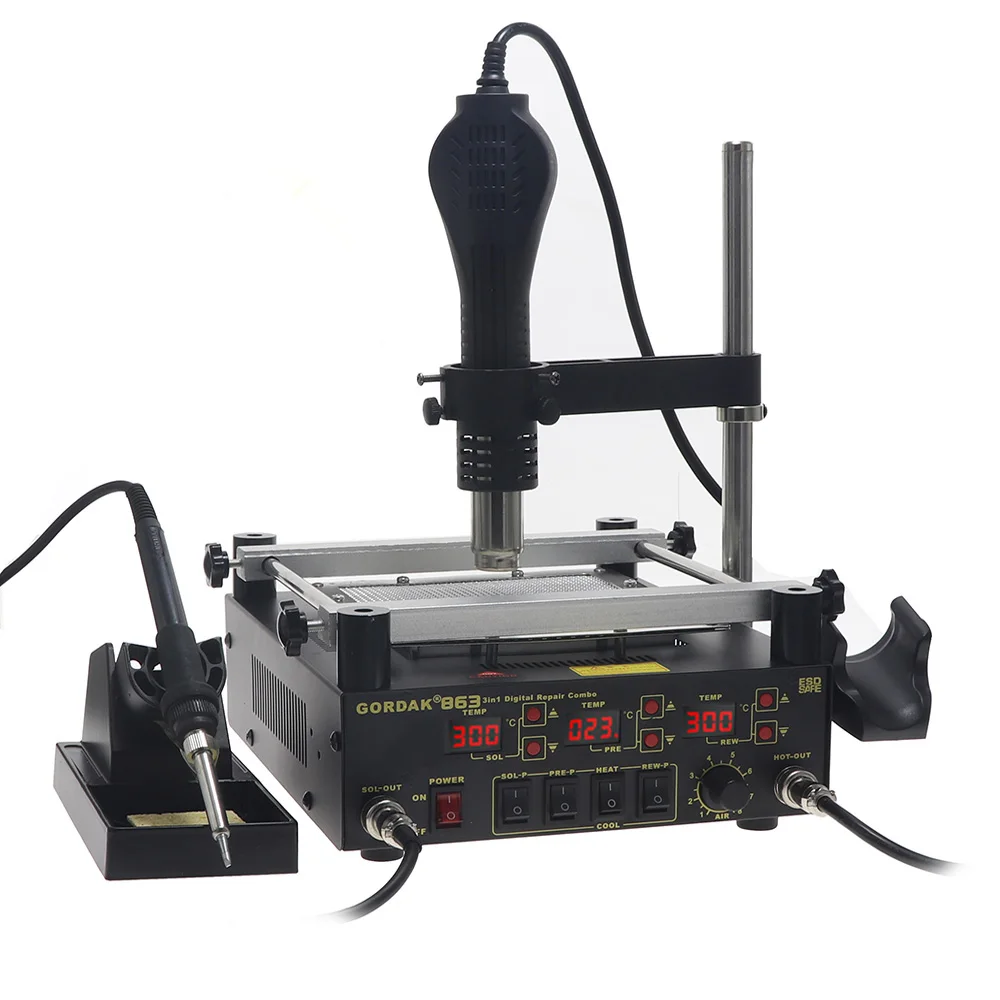

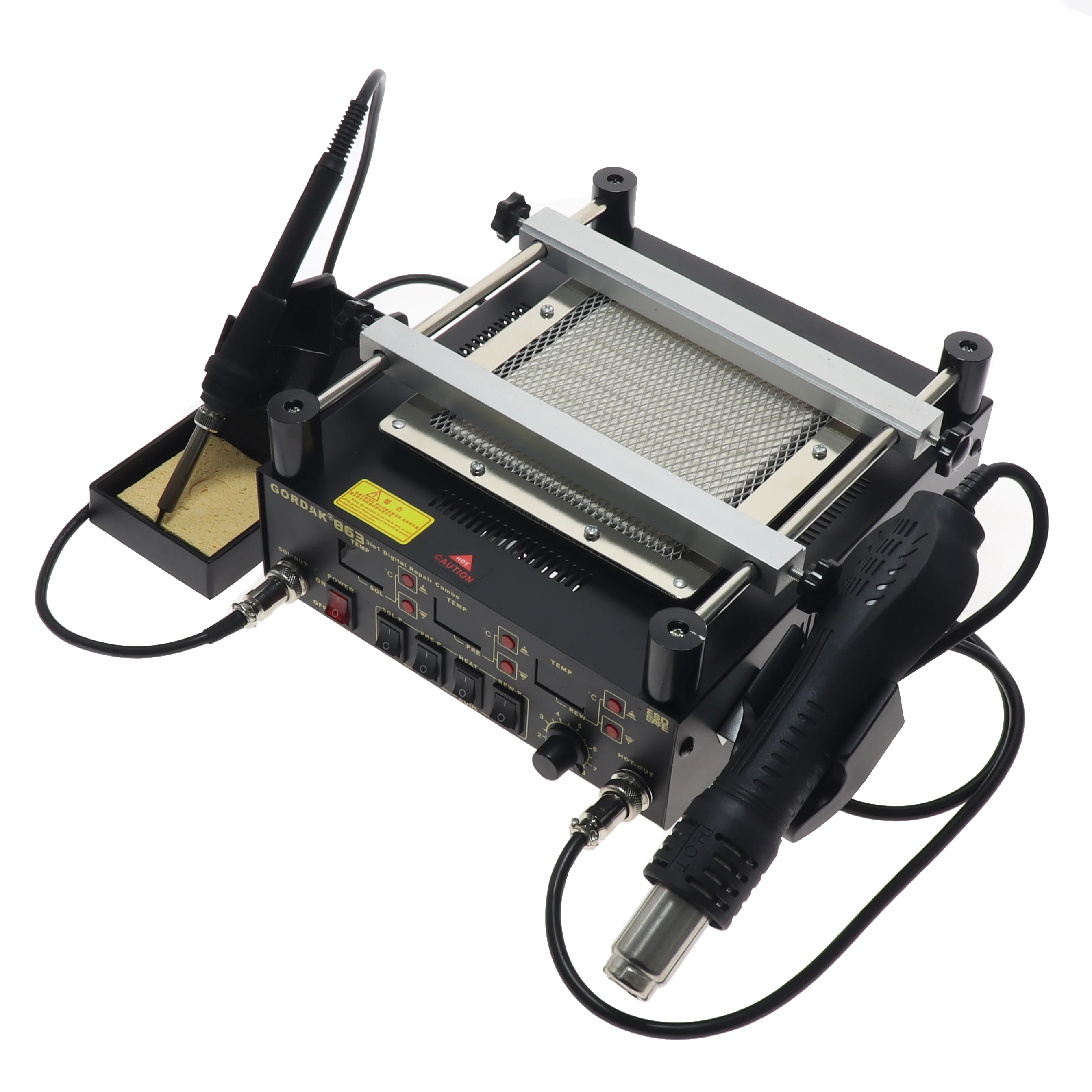

Godak 863 soldering station rework station heating soldering iron hot air infrared preheating station three-in-one soldering station

Product Description
3 in 1 soldering station

* ESD safe, hot air station, soldering station, and preheater three functions compose by design. The intelligent control circuit, LED display, easy operation.

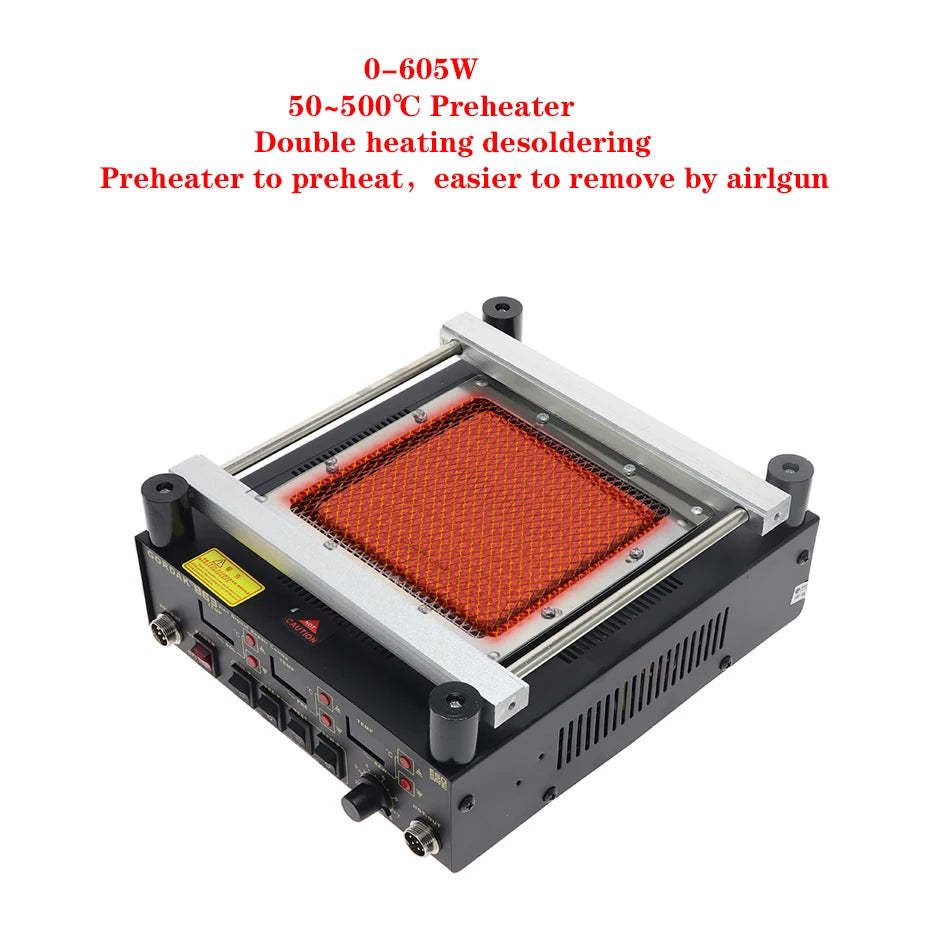

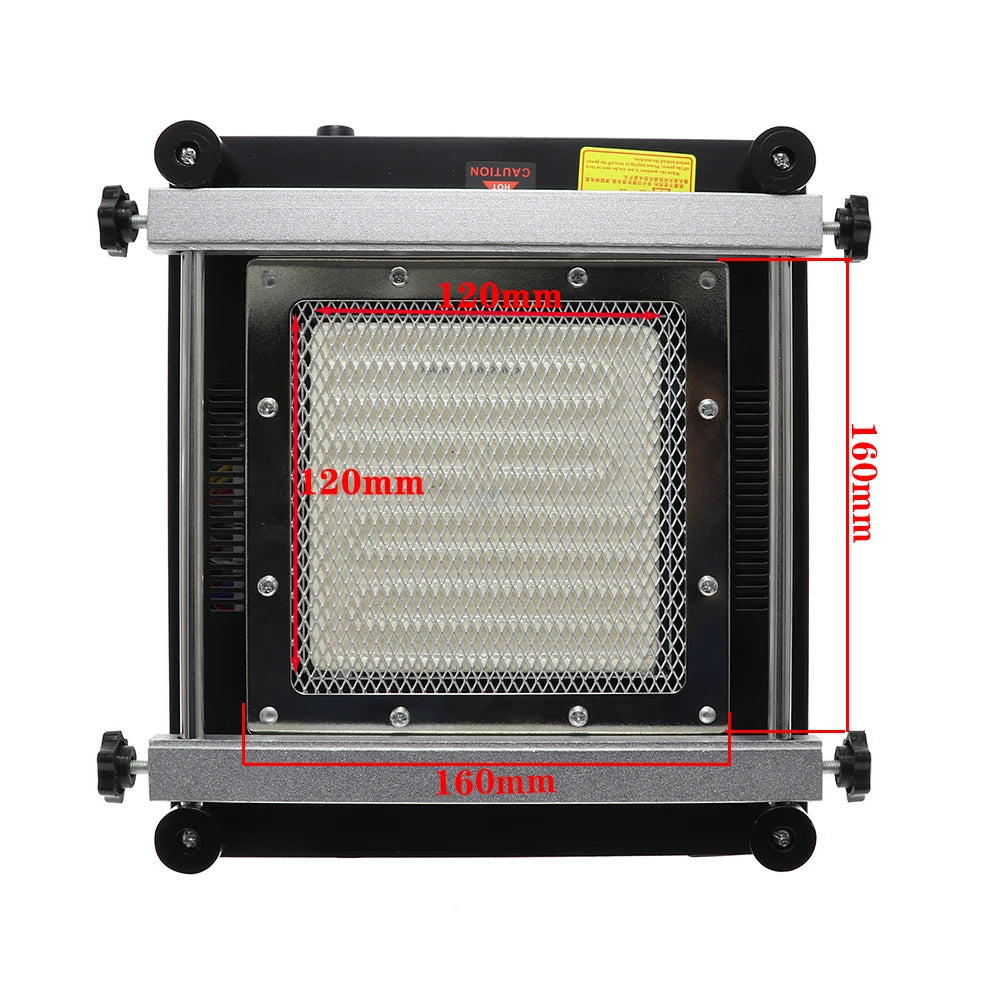

* Preheater use big power 120mm*120mm far infrared heater, rapid heating.

* Original heat insulation by design, increase the temperature area greatly.

* Could remove could soldering, fit for a deal with big area BGA and computer mainboard extend groove's knockdown and fix.

* Hot airflow could adjust, none brushless fan, soft wind, low noise.

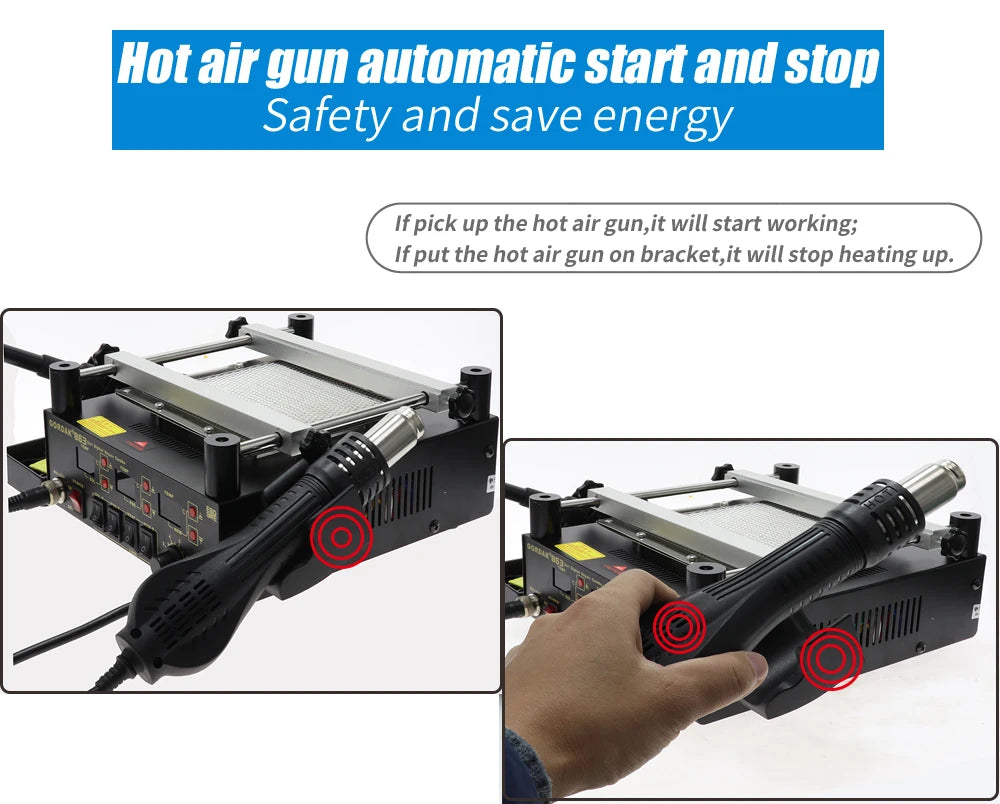

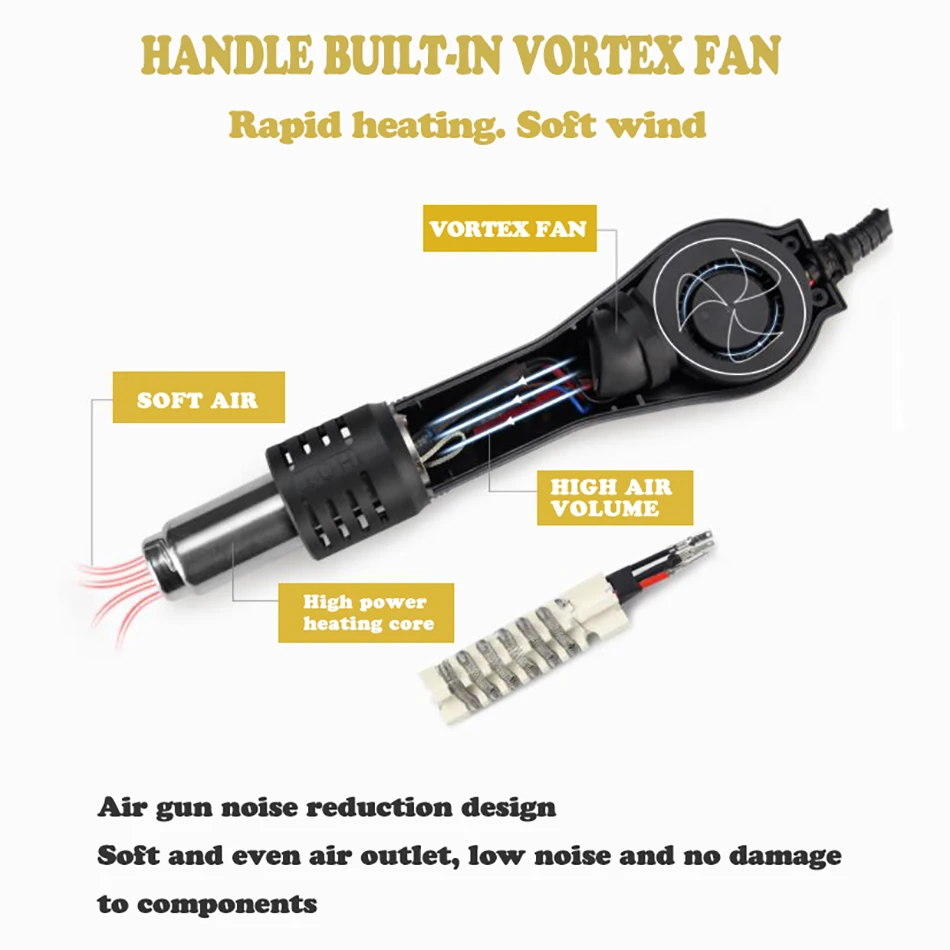

* The hot air station handle has an induction button, has automatism cold wind function,it will go to the saving energy state automatically when the temperature is below 100℃, prolong the heater life and protect the hot air gun.

* Light handle, suitable for long used.

Hot air gun parameters:
Rated voltage: AC 220V 50HZ
Maximum power consumption: 450W
Type: brushless fan, soft wind
Air flow: 120L/min (max)
Temperature range: 100 Celsius degree -500 Celsius degree
Handle assembly length: 120CM
Noise: 45db

Soldering station parameters:
Output Voltage: AC 24V
Maximum power consumption: 50W
Temperature range: 100 Celsius degree -500 Celsius degree
Ground potential: 2mV less
Ground Impedance: 2 Ohms less

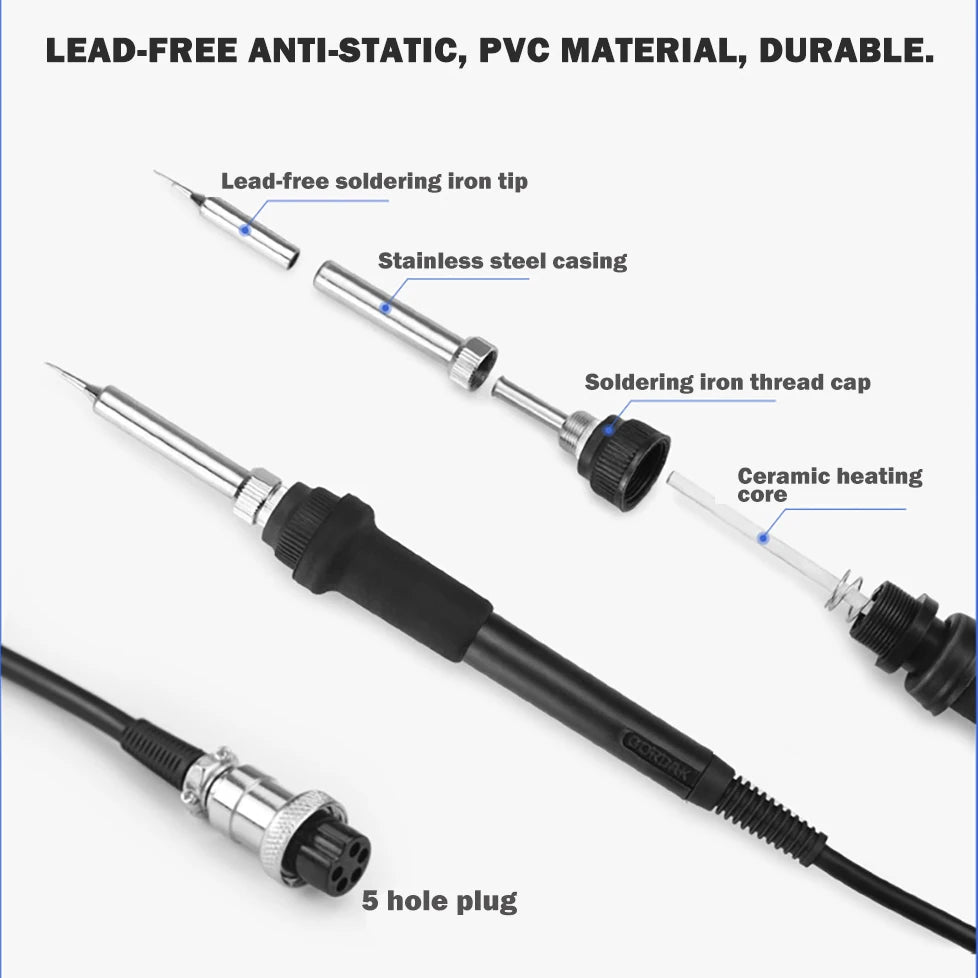

Heating element: ceramic heating element
Heater power: 50W

Preheater parameters:
Maximum power: 600W
Fever Type: far infrared heating plate
Temperature range: 100 Celsius degree -500 Celsius degree

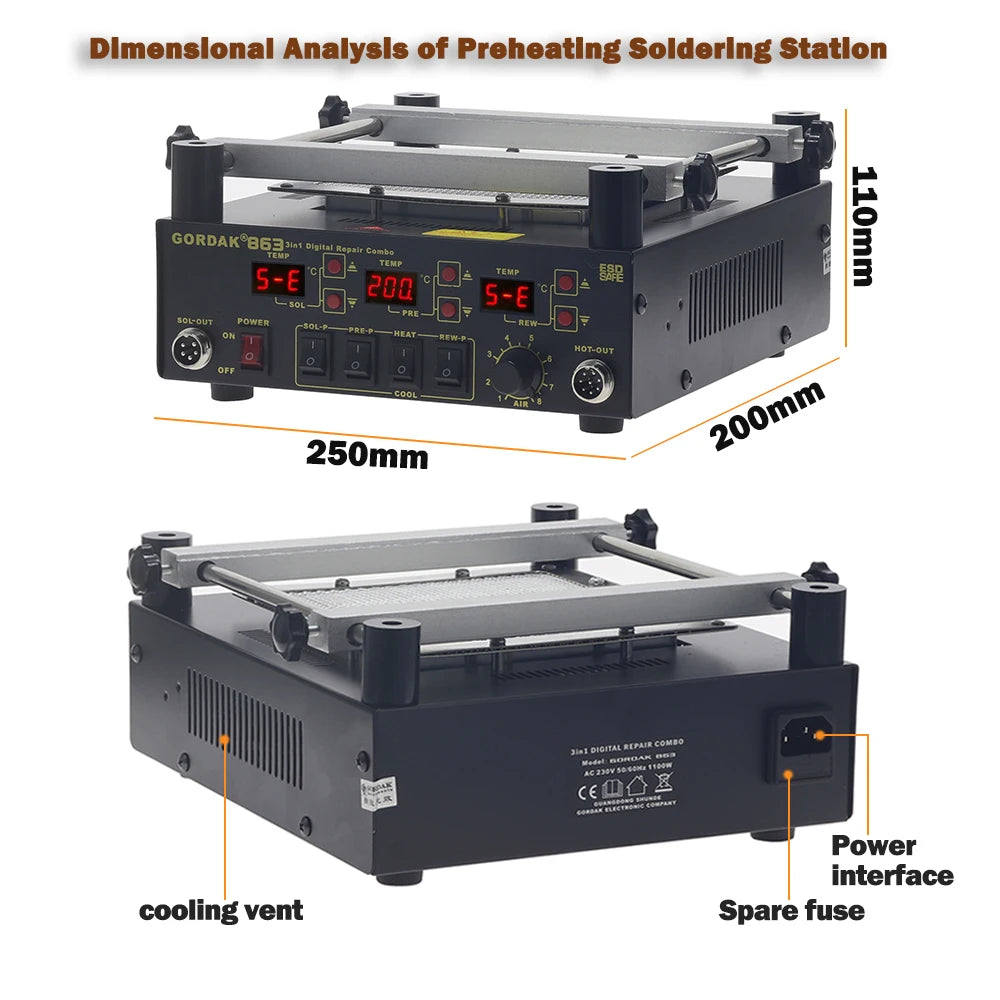

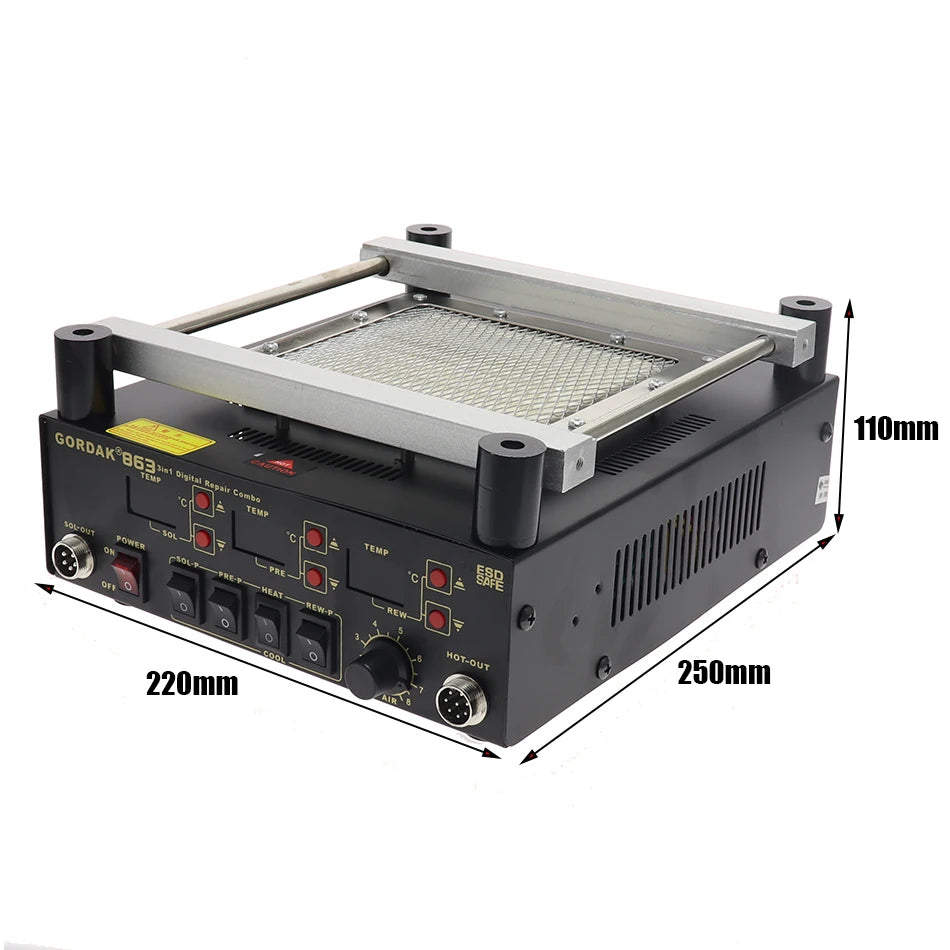

Dimensions: 221 × 251 × 112MM

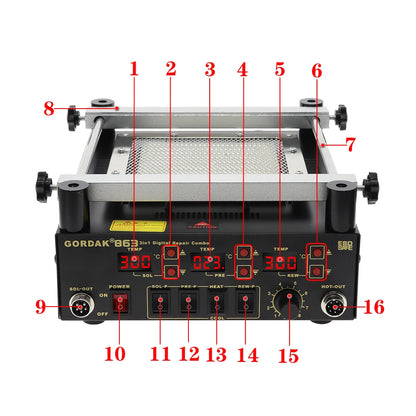

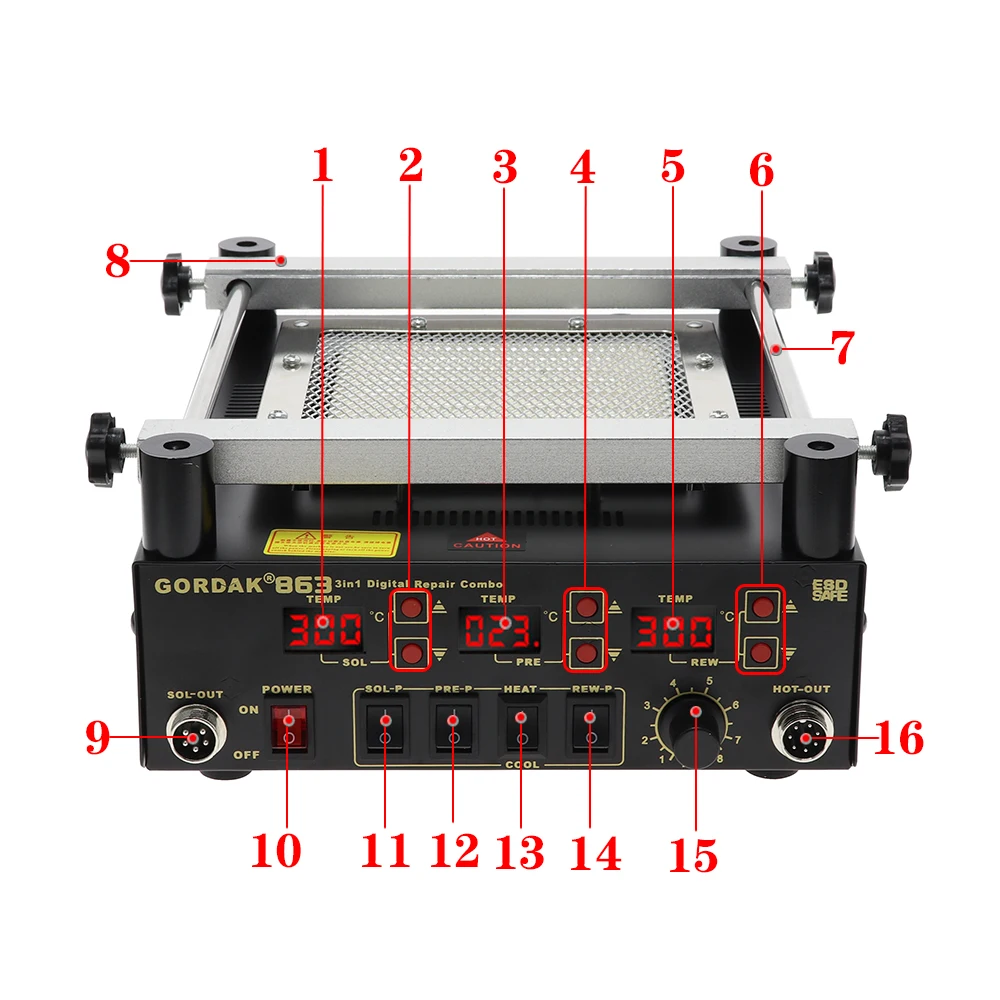

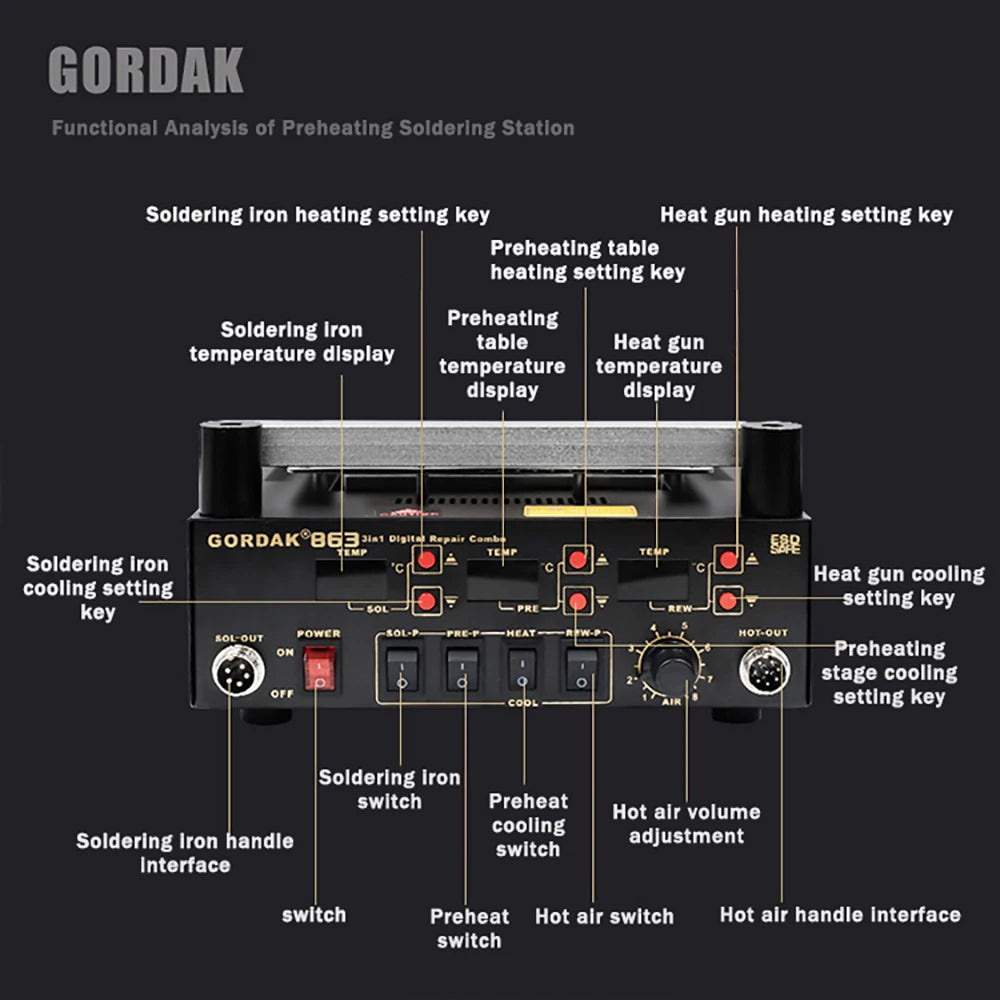

Panel function introduction

1. Soldering iron temperature display
2. Soldering iron temperature adjustment
3. Preheating table temperature display
4. Preheating table temperature adjustment
5. Hot air gun temperature display
6. Heat gun temperature adjustment
7. Sliding guide bar
8. Holder
9. Soldering iron handle socket
10. Power switch
11. Soldering iron switch
12. Preheater switch
13. Preheating station heating switch
14. Heat gun switch
15. Heat gun air volume adjustment
16.Heat gun handle socketPanel function introduction
