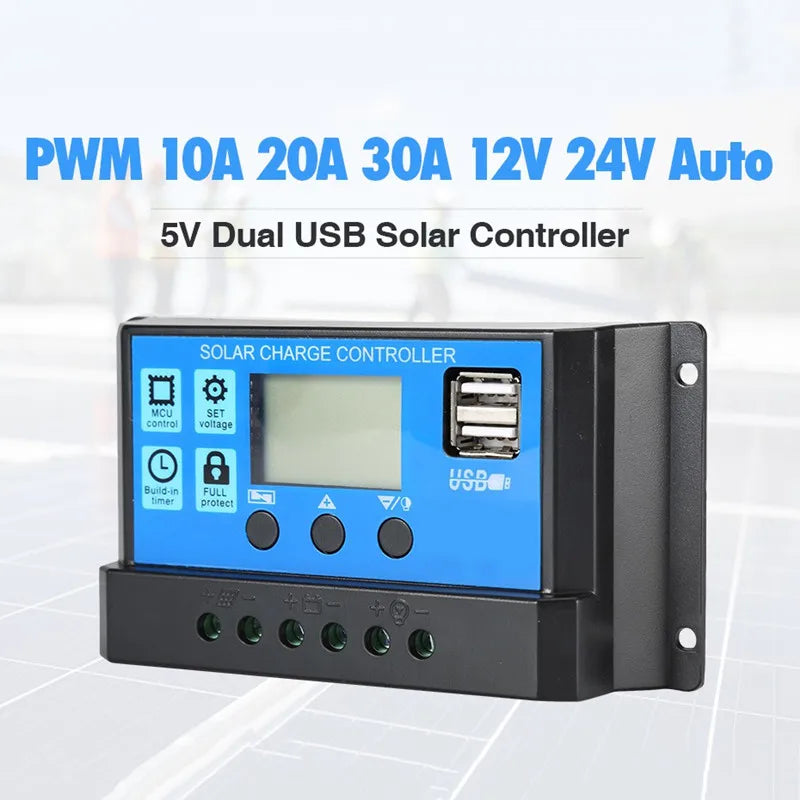

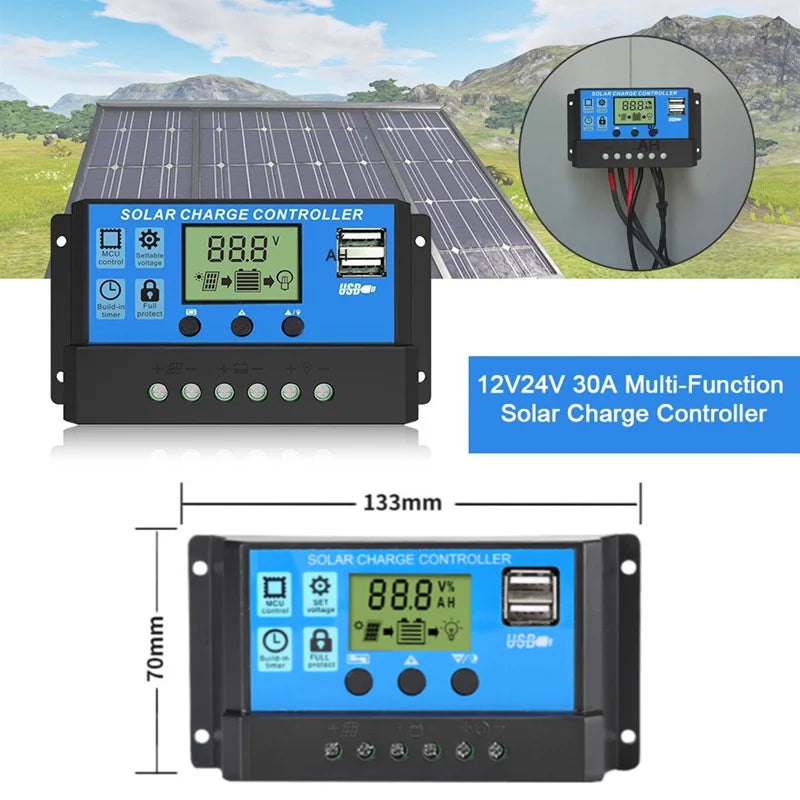

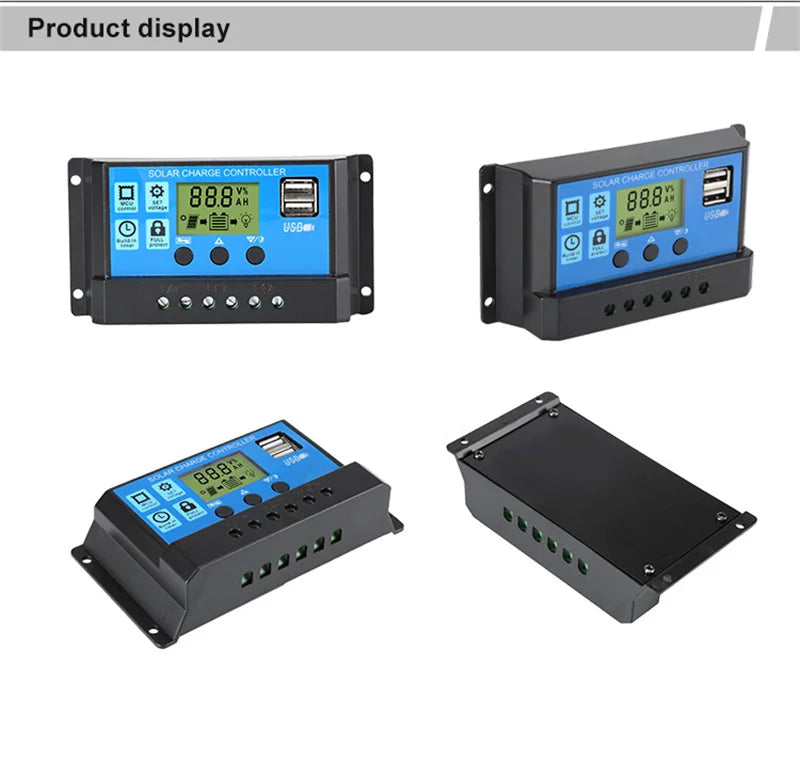

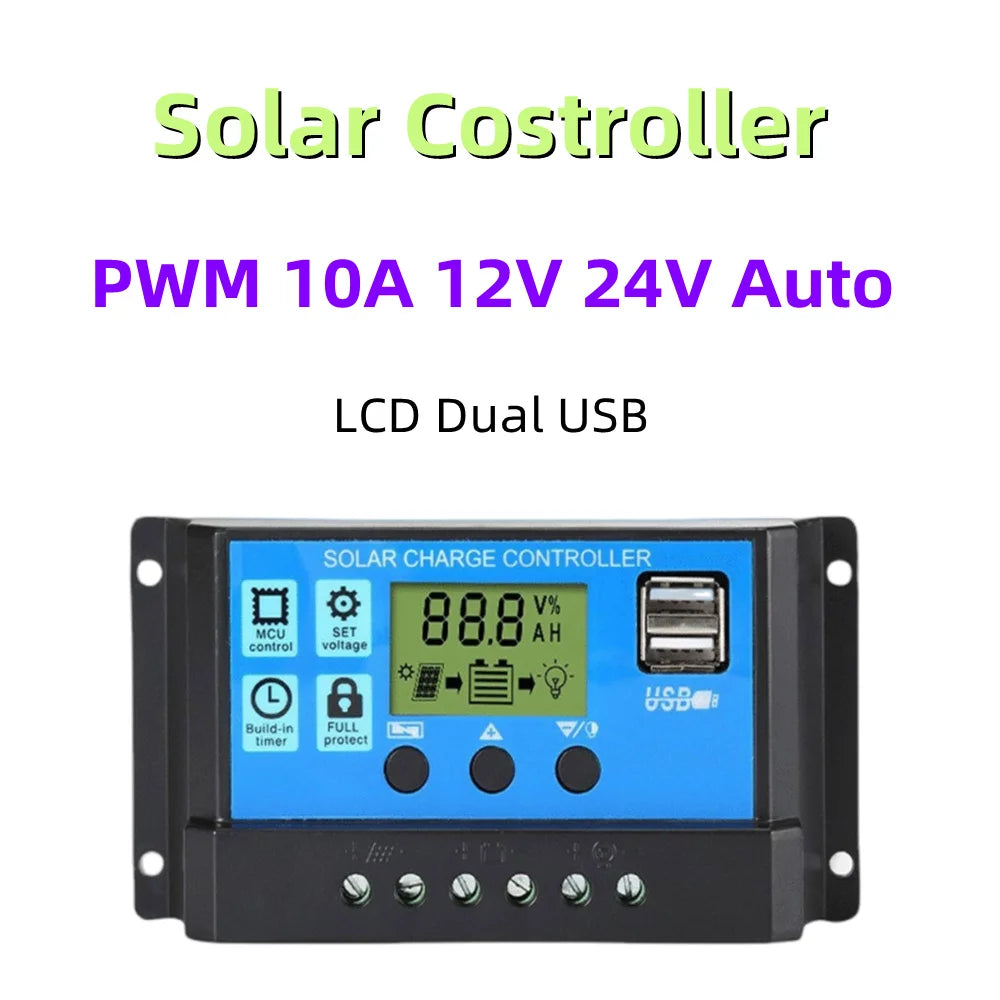

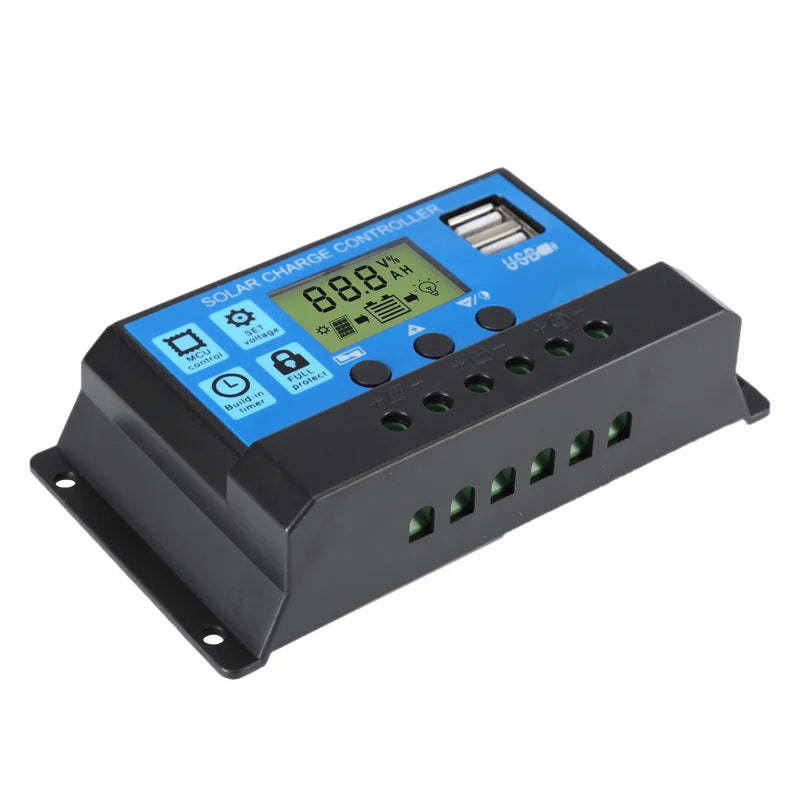

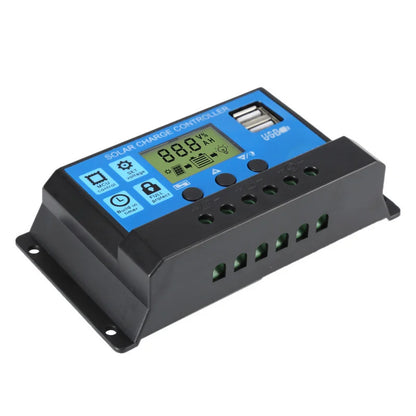

Controlador Carga Solar PWM 10A 12V/24V Control Luz/Tiempo Auto Dual USB LCD
Controlador Carga Solar PWM 10A 12V/24V Control Luz/Tiempo Auto Dual USB LCD
No se pudo cargar la disponibilidad de retiro
SPECIFICATIONS
Application: Charger Controller,Voltage Controller,Wind Controller,Lighting Controller,Solar System Controller
Brand Name: NoEnName_Null
Certification: CE,FCC,RoHS

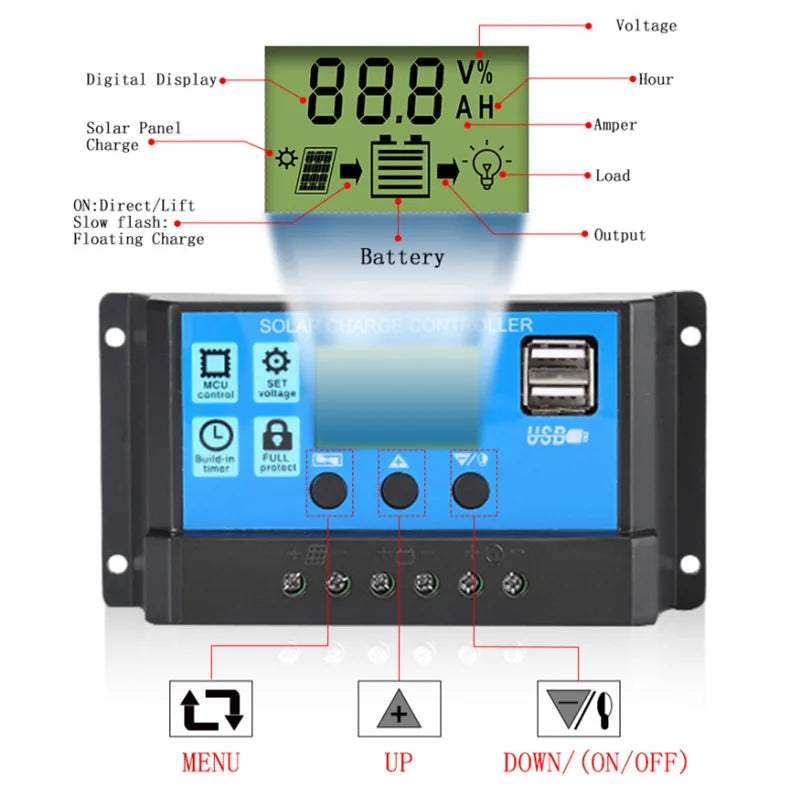

Display: LCD screen
Dual USB output: 5V / 2A (charge mobile phone, iPad, etc.)
Feature: Solar Charge Controller
Feature 2: Solar Regulator
Feature 3: Smart Solar Charge Controller
Is Smart Device: No
Maximum Current: 10A
Model Number: Solar Charge Controller
Name: Solar Controller
Origin: Mainland China
Self-consumption: <10MA
Voltage: DC 12V / 24V
Working temperature: -35 ℃ -60 ℃,12V fits 18V solar panel, 24V fits 36V solar panel
is_customized: Yes
10A 12V 24V PWM Solar Controller Light &Time Control Auto Adapte Solar Charge MCU Controller Dual USB Port 5V Output LCD Display Hot Sale
Feature:

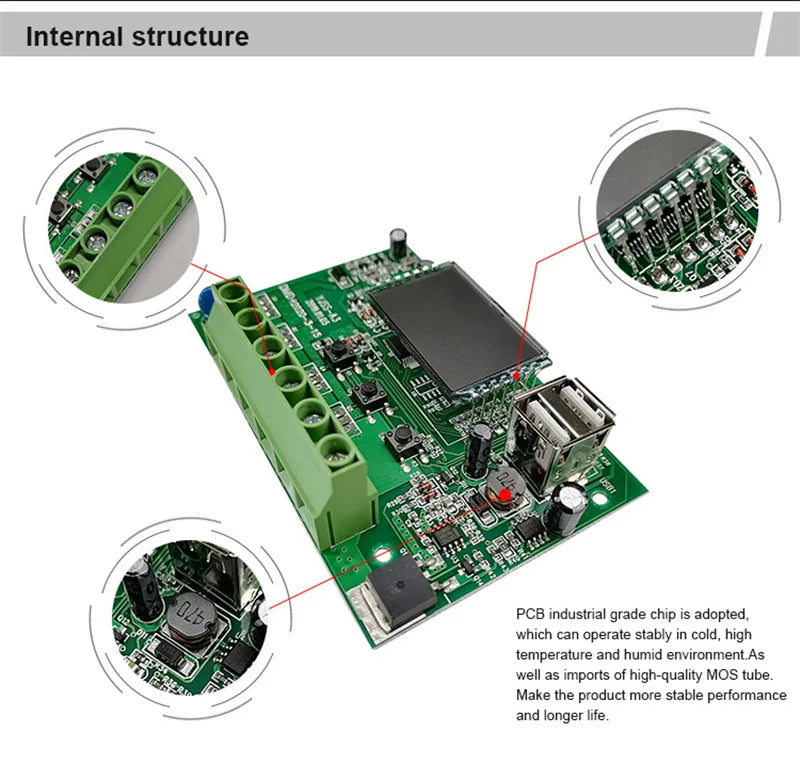

1.Build-in industrial micro controller.
2.Fully 4-stage PWM charge management.

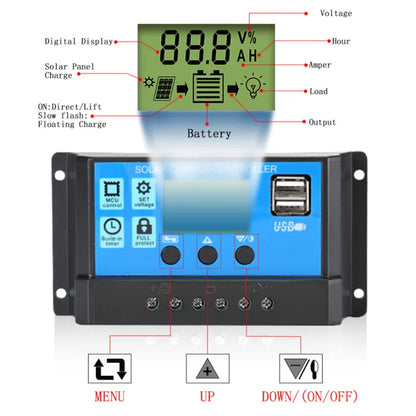

3.One-key setting,digital display, auto memory function.
4.Dual mosfet Reverse current protections, low heat productions.

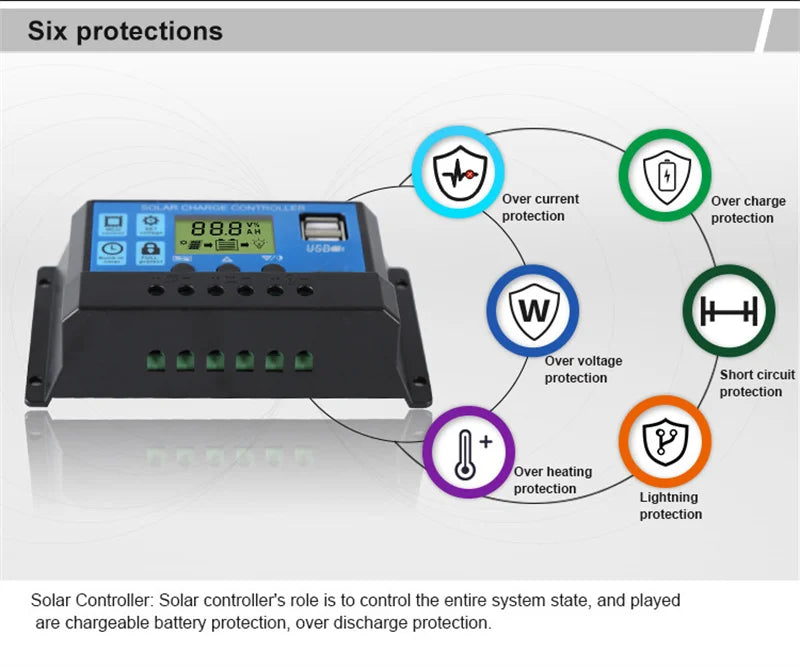

5.Build-in short-circuit protections, open-circuit protections, reverse protections, over-load protections.
|

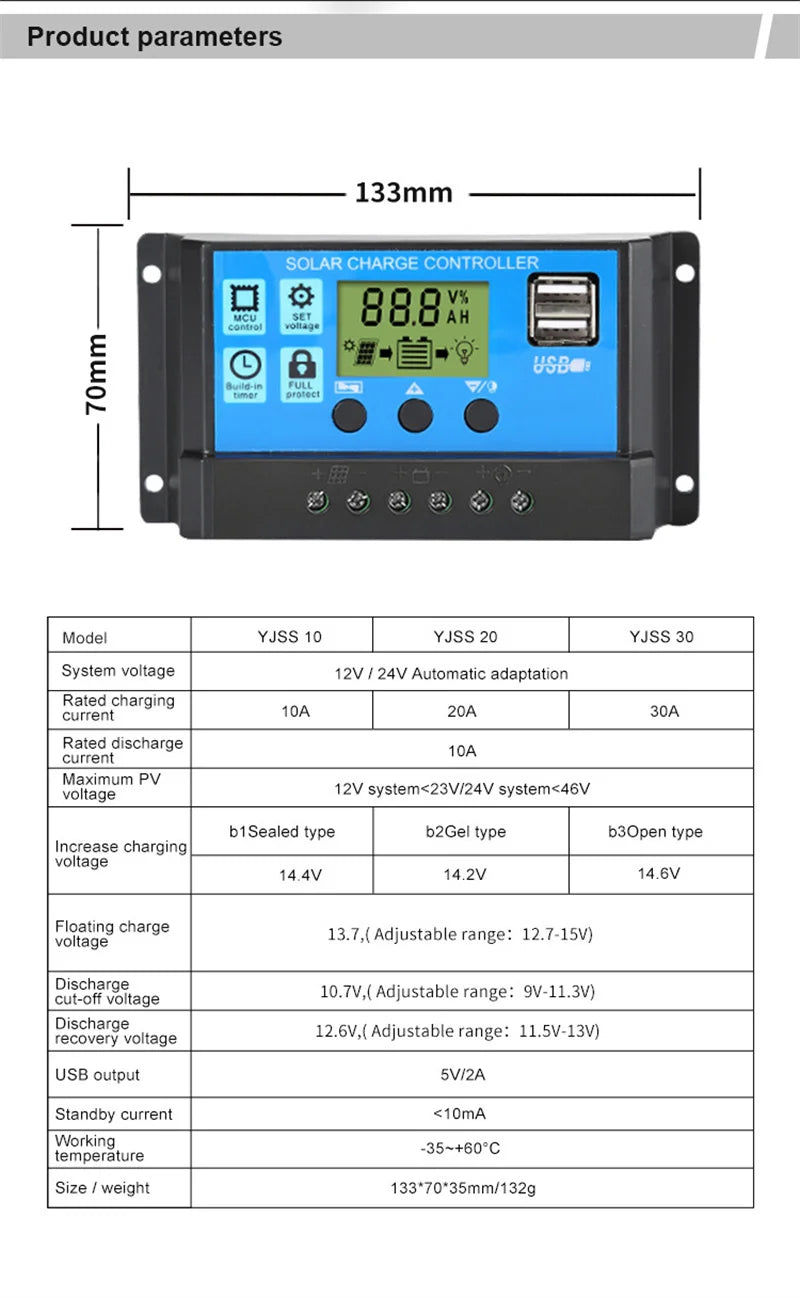

Specifications: |
Model: PWM
Buck charge: 28.8V
Float charge: 27.4V
USB output: 5V/3A
Self-consume: <10mA
Discharge stop: 21.4V
Voltage: DC 12V/24V
Max solar input: <50V
Current: 10A
Rated working current: ≤20A
Discharge reconnect: 25.2V
Working temperature: -35℃~60℃

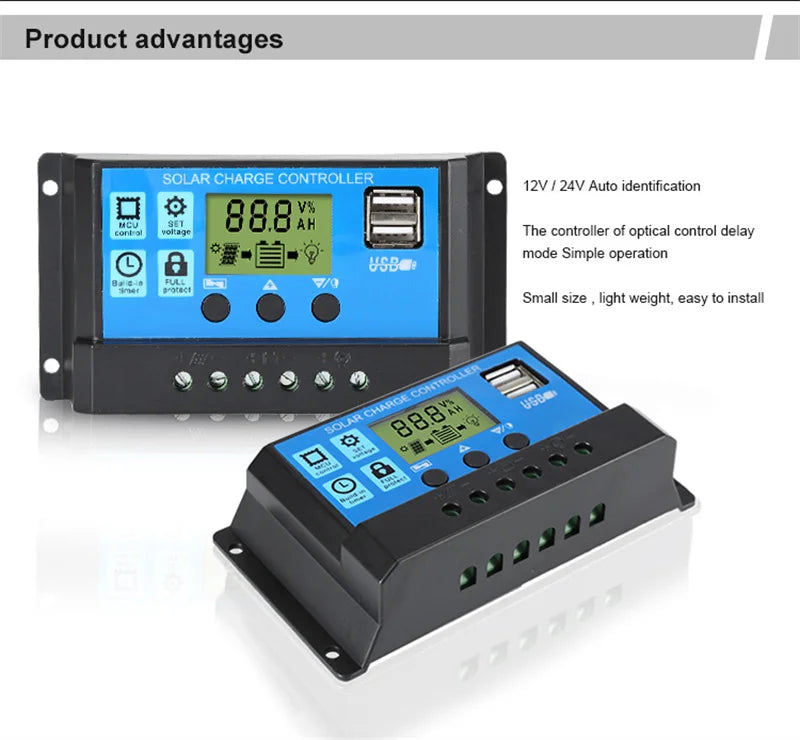

Output voltage: 12V/24V Automatically distinguish voltage
|
Feature: |
With
Timer and light
sensor, it could work for solar light system(Only For off-Grid PV Solar System):
-For 10A 12V Pv System: 120W Solar Panel, 12V Lead-acid Battery, 21V for Max input Voltage.
-For 10A 24V Pv System: 240W Solar Panel, 24V Lead-acid Battery, 42V for Max input Voltage.
|
Safety Instructions: |
1.Make sure your battery has enough voltage for the controller to recognize the battery type before first installation.
2.The battery cable should be as short as possible to minimize loss.
3.The regulator is only suitable for lead acid batteries: OPEN, AGM, GEL(It is not suited for nickel metal hydride, lithium ions or other batteries).
4.The charge regulator is only suitable for regulating solar modules. Never connect another charging source to the charge regulator.
|

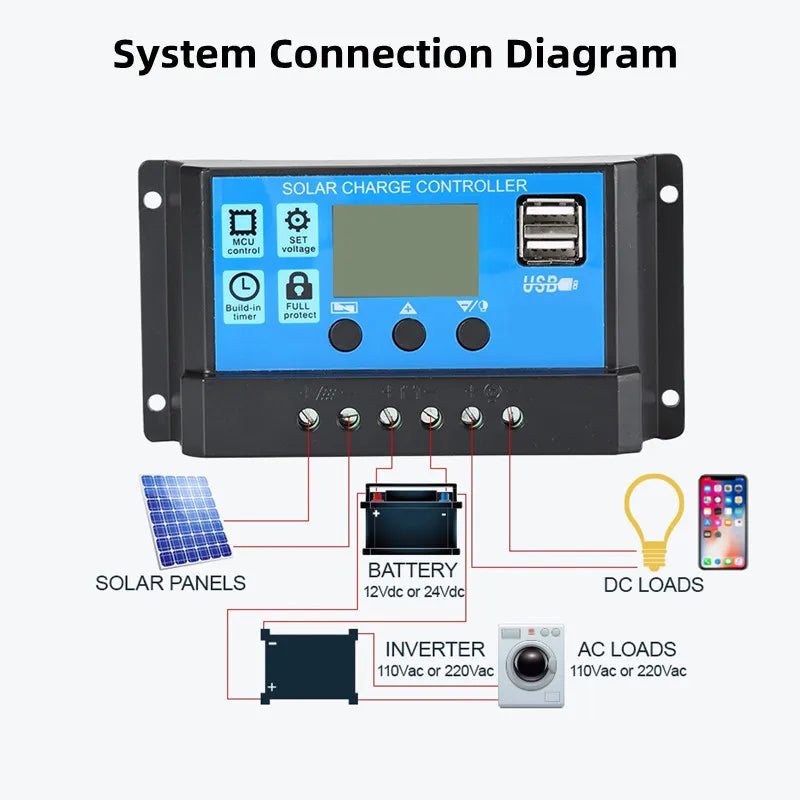

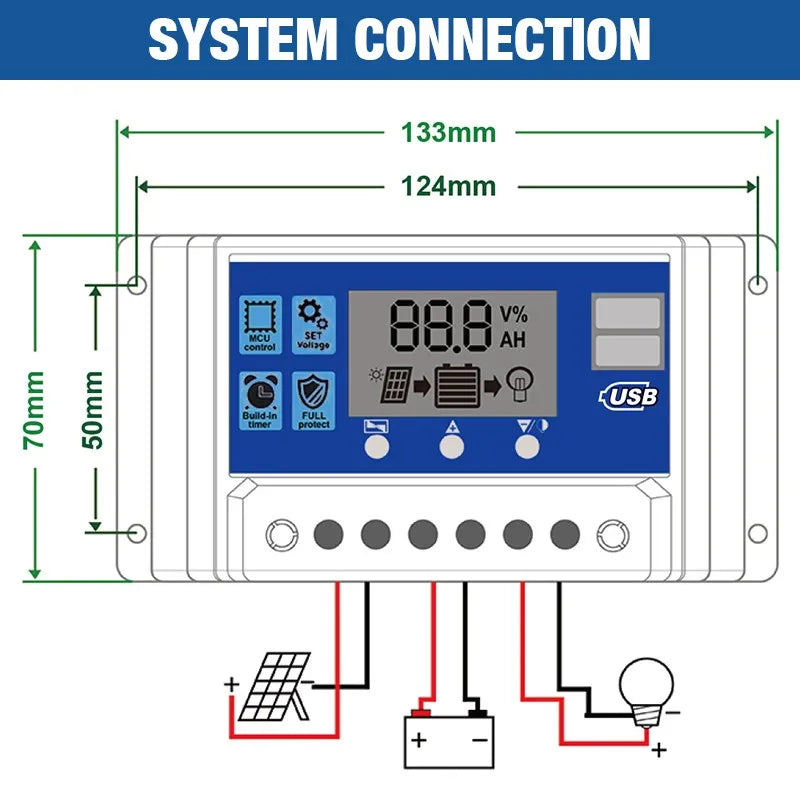

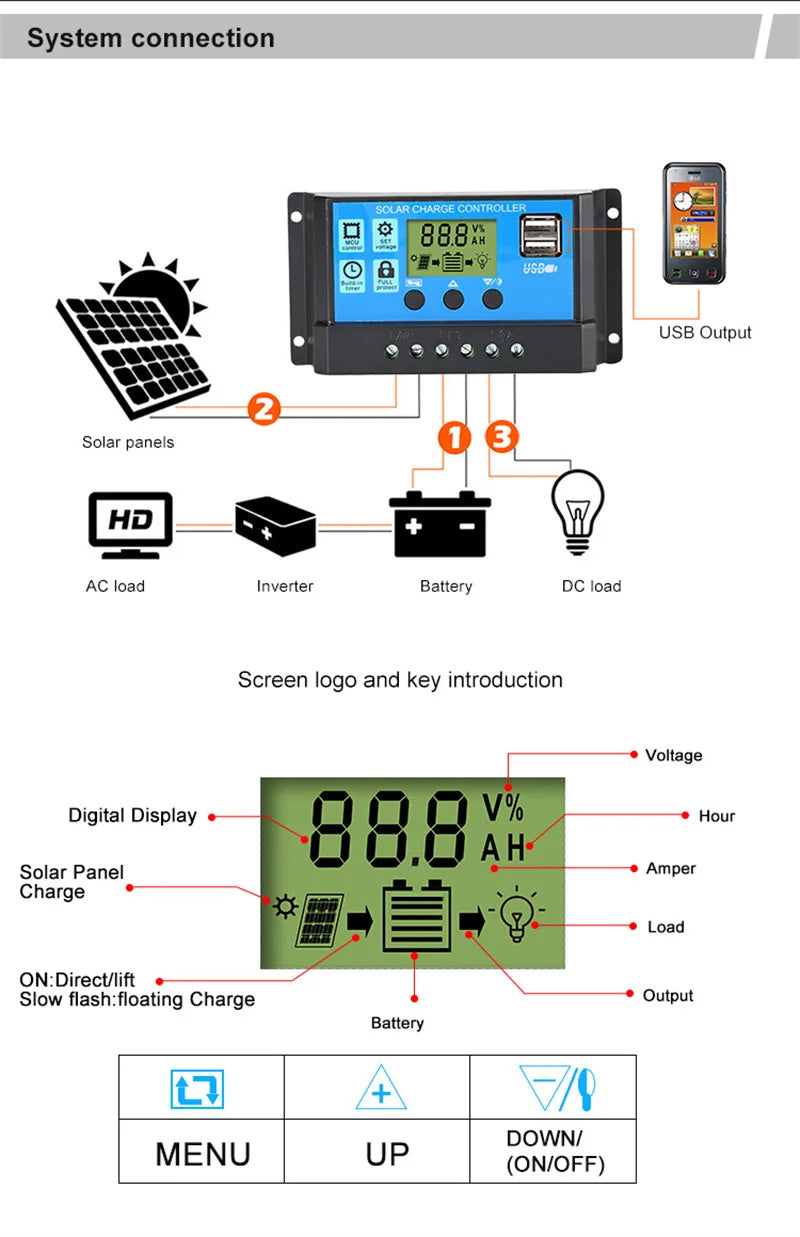

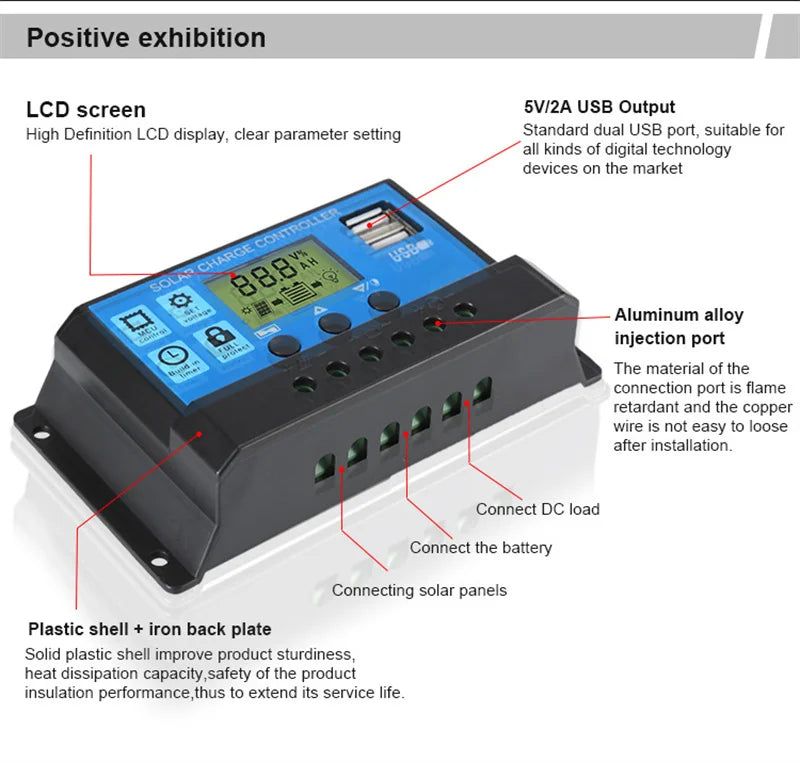

System Connection: |
1.Connect the battery to the charge regulator - plus and minus.it will show 1 ,if it detects 12V battery, 2 if it detects 24V battery.
2.Connect the photovoltaic module to the regulator - plus and minus.
3. Connect the consumer to the charge regulator - plus and minus.
|
Package includes: |
1X Solar panels Battery Charge Controller(10/20/30/40A)
1X User Manual
|
Notice:
1.Please allow slight deviation of measurement due to manual measurement.
2.Due to different producing batches, product details might be a little different.
3.Due to different monitors and different light, the picture may not reflect the actual color of the item.
4.Please consider the actual sizes shown in the listing as the pictures are generally enlarged to show detail.
5. Indoor use only: the working temperature of this controller is -35°C to 60°C, during hot sunny days, the temperature outside might go up to 60-75°C. Please do keep the controller stay in cool and well-ventilated place to maintain good heat dissipation.
