SPECIFICATIONS

Brand Name: SZYTF

Choice: yes

Condition: New

Hign-concerned Chemical: None

Max. Operating Voltage: N/A

Operating Temperature: n

Origin: Mainland China

Resistance Tolerance: 1%

Technology: Metal alloy

semi_Choice: yes

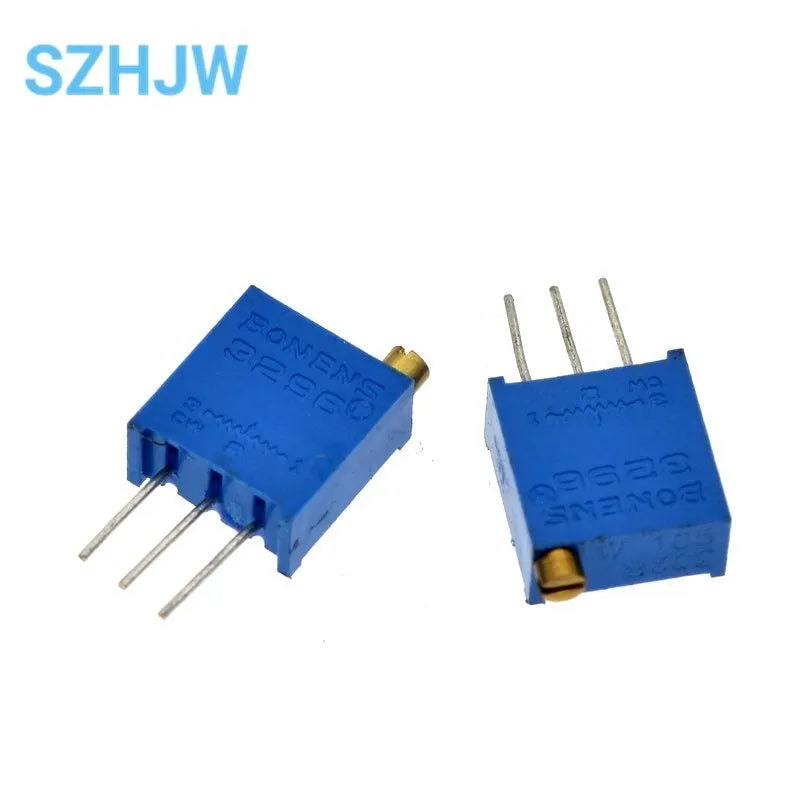

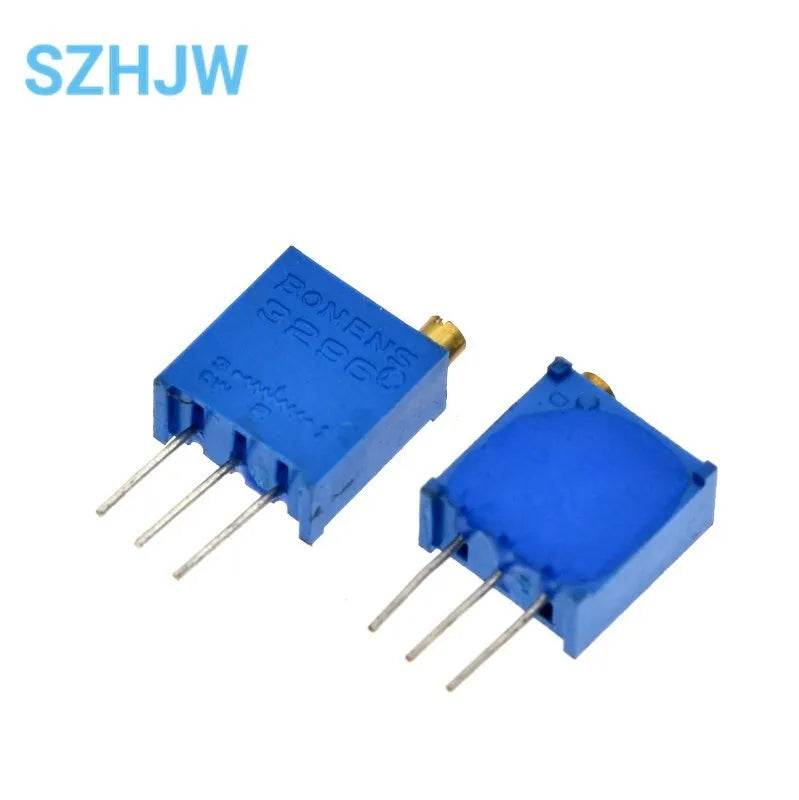

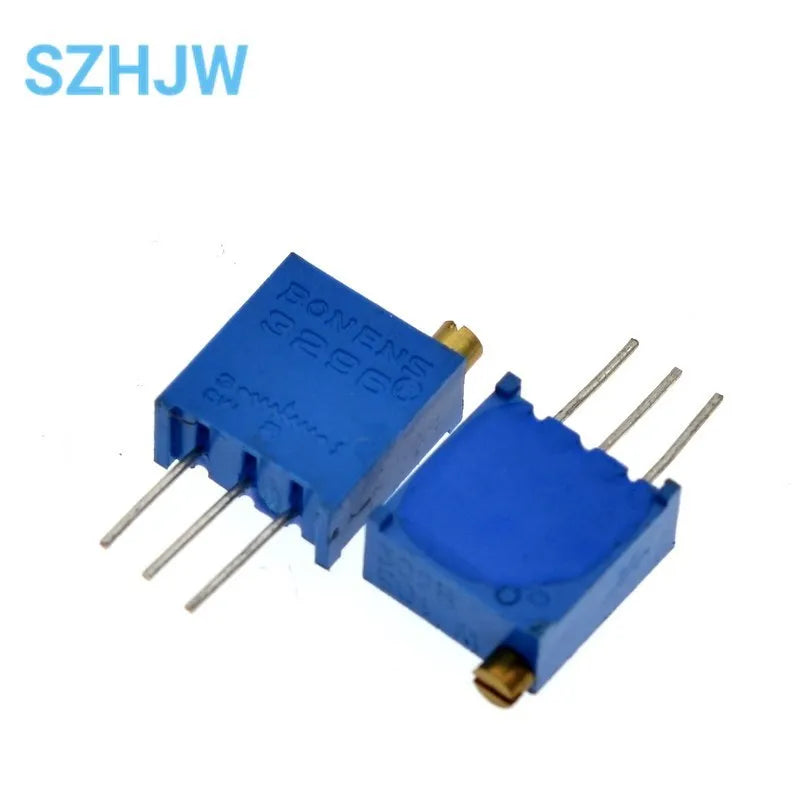

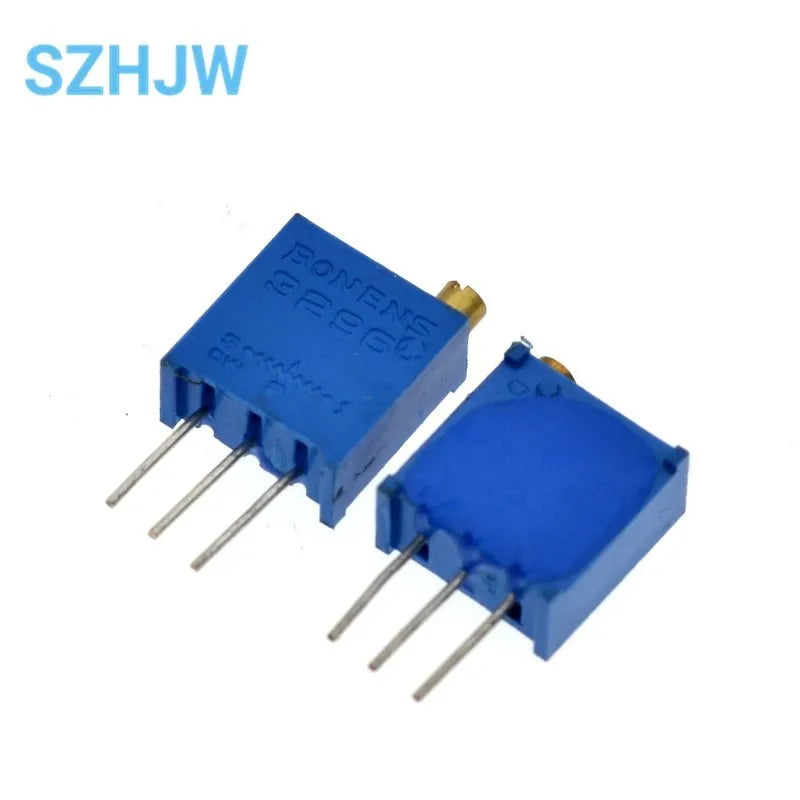

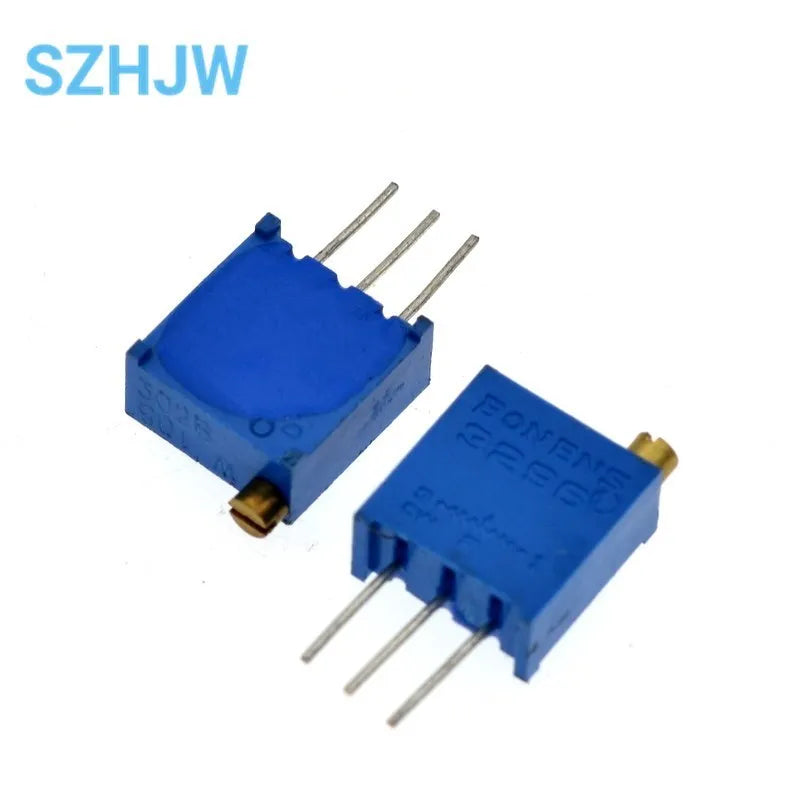

Product Description

Potentiometers usually consist of a resistor body and a movable brush.

When the brush moves along the resistor body, the resistance value or voltage that has a certain relationship with the displacement is obtained at the output end.

Potentiometers can be used as both three-terminal components and two-terminal components.

Because its function in the circuit is to obtain an output voltage that has a certain relationship with the input voltage (applied voltage), it is called a potentiometer.

1. Used as a voltage divider

The potentiometer is a continuously adjustable resistor. When the handle or slide of the potentiometer is adjusted, the movable contact slides on the resistor body.

⒉. Used as a varistor

When the potentiometer is used as a varistor, it should be connected as a two-terminal device to obtain a smooth and continuously changing resistance value.

3. Used as a current controller

When the potentiometer is used as a current controller, one of the selected current outputs must be a sliding contact terminal.

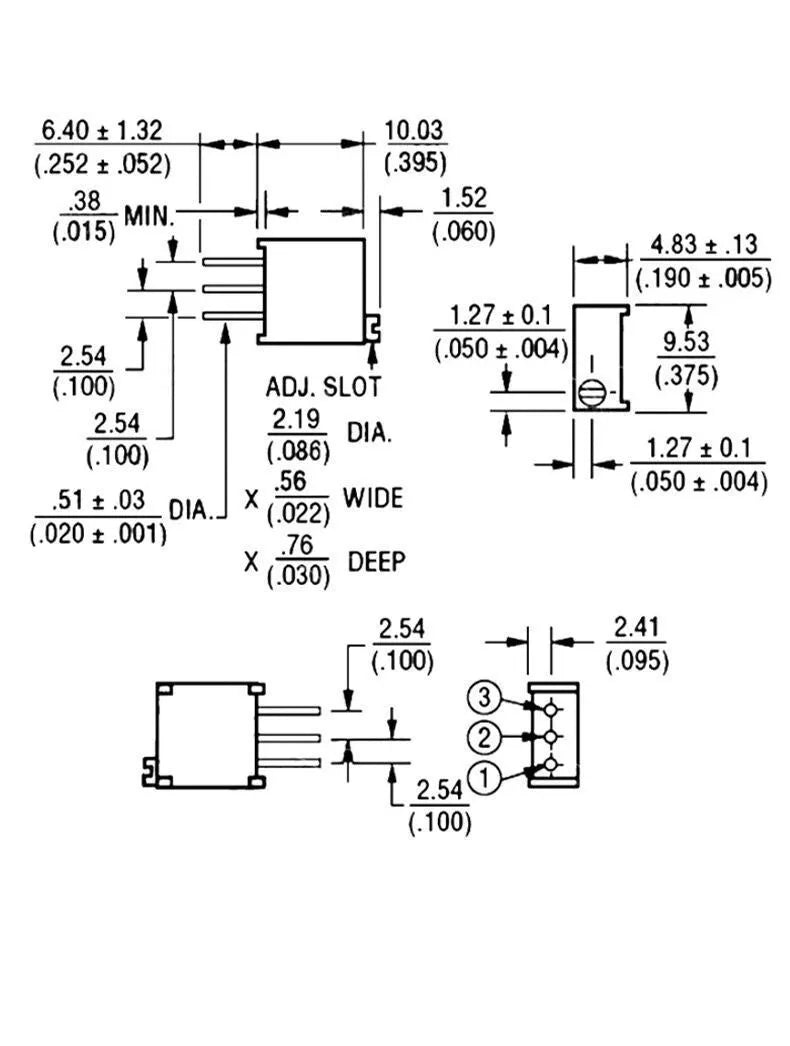

Installation method: Insert the lead end of the potentiometer into the hole of the printed board, and tighten it

paste, fix with solder

Rated power consumption: 0.5W

Nominal resistance range: 100~1mQ

Resistance series: E3 series in 1EC63 is preferred, take 1 significant figure, namely 1, 2, 5

Resistance tolerance: soil 10%TCR≤±250×10-6/℃

Resistor body limit voltage: 315V (DC or AC RMS)

Moving contact limit current: 100mA

Withstand voltage (AC peak voltage with a frequency of 40~60Hz)

Under normal atmospheric pressure: 640V
