SPECIFICATIONS

Brand Name: NoEnName_Null

Condition: New

Factory Pack Quantity (Pcs): 3000

Hign-concerned Chemical: None

Manufacturer Product Number: INA197AQDBVRQ1

Mfr: Texas Instruments

Mfr's product laser code: BOK

Mounting Style: Surface Mount

Operating Temperature: -40°C ~ 125°C

Origin: Mainland China

Packaging: Reel

Product Type: Current & Power Monitors & Regulators

Quantity: 1

Subcategory: PMIC - Power Management ICs

Supplier Device Package: SC-74A, SOT-753

Type: SWITCH

Unit Weight / single: 0.08g

Voltage - Supply (Vcc/Vdd): 2.7 V ~ 18 V

is_customized: Yes

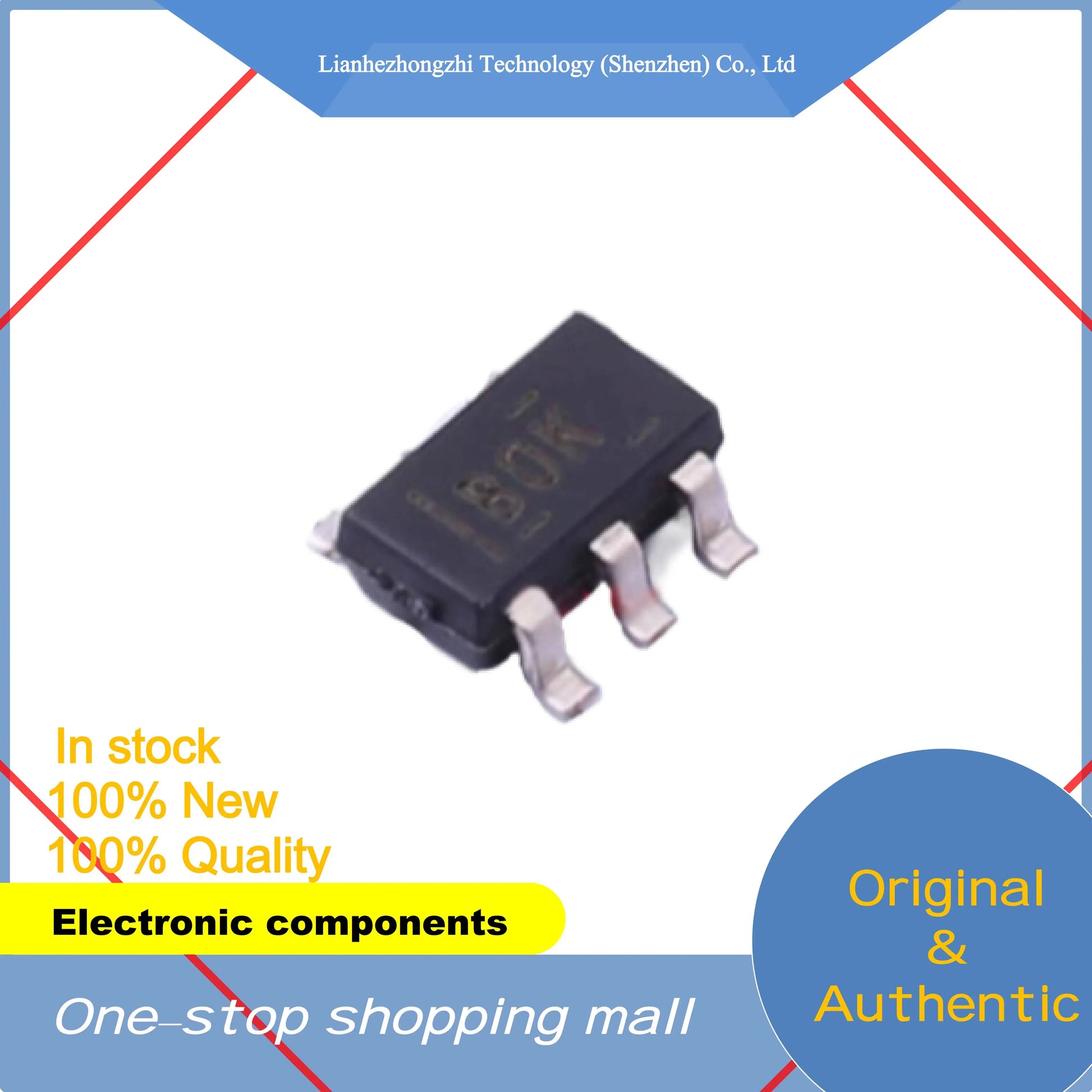

INA197AQDBVRQ1

Description The INA19xA-Q1 family of current shunt monitors with voltage output can sense drops across shunts at common-mode voltages from –16 V to 80 V, independent of the INA19xA supply voltage. They are available with three output voltage scales: 20 V/V, 50 V/V, and 100 V/V. The 500-kHz bandwidth simplifies use in current control loops and monitoring DC motor health. The INA193A–INA195A provide identical functions but alternative pin configurations to the INA196A–INA198A, respectively. The INA19xA-Q1 operate from a single 2.7-V to 18-V supply. They are specified over the extended operating temperature range (–40°C to 125°C), and are offered in a space-saving SOT-23 package.
