SPECIFICATIONS

Accuracy: 1%

Brand Name: NoEnName_Null

Choice: yes

Condition: New

Hign-concerned Chemical: None

Origin: Mainland China

Technology: resistor

Type: Thermal Resistor

semi_Choice: yes

1K 2K 10K 50K is the temperature at 25 ℃
Negative temperature thermistor, the lower the temperature, the higher the resistance

Product features

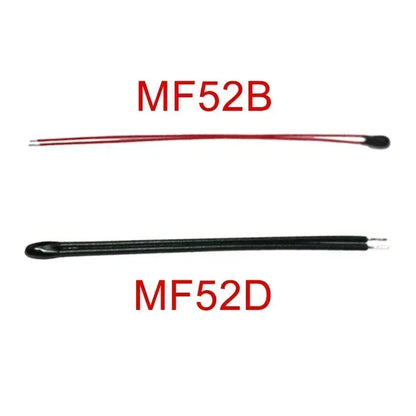

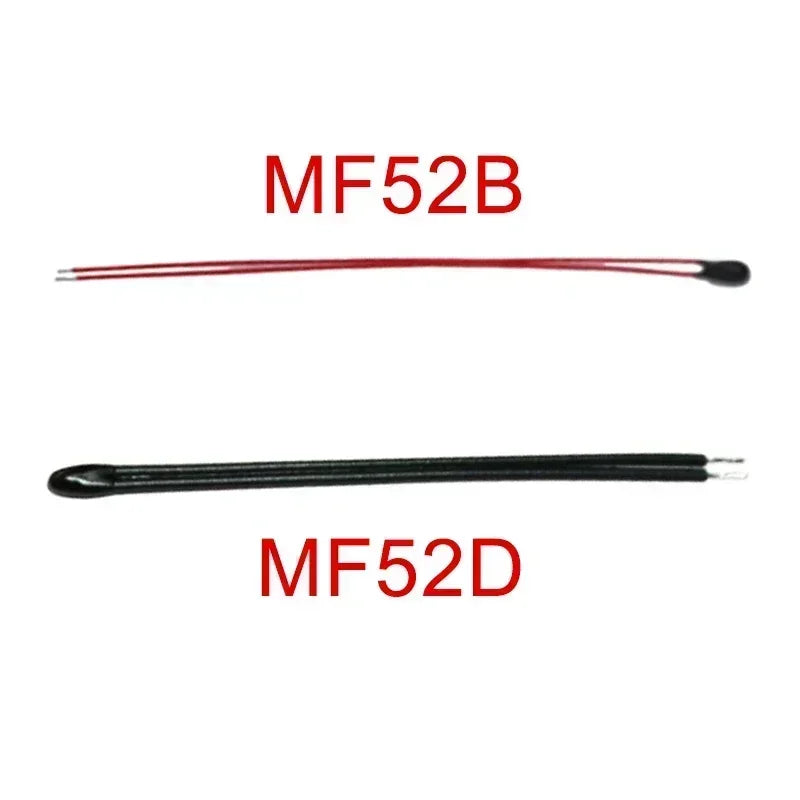

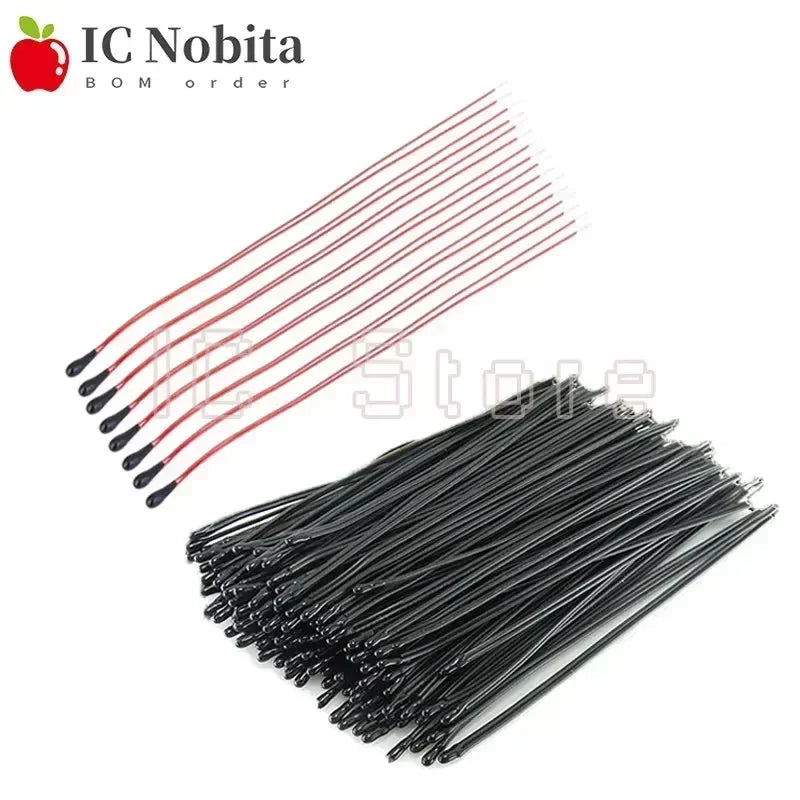

1. Mf52a series products are radial CP line resin coating type

2. The resistance range is wide: 0.1 to 500K
3. High precision of resistance and B value
4. High temperature measurement accuracy
5. Small volume and fast reaction speed
6. High reliability
7. Be able to work stably for a long time
8. Operating temperature range - 40 ~ 120 ℃

The scope of application

1. electronic thermometer
2. Medical instruments
3. Household appliances such as air conditioners, refrigerators, freezers, soya-bean milk machines, bread makers and water dispensers
4. Temperature control meter
5. Electronic gifts
6. Automobile temperature measurement
7. Electronic desk calendar
8. Rechargeable battery pack and charger
9.LED power supply

Product model description

MF52A --503F3950FB

① ② ③ ④ ⑤ ⑥ ⑦

①MF52Series: bead precisionNTCThermistor

②Type of lead-out material:A-镀锡铜包钢线(CPLine)

③Nominal resistance valueR25:503-50KΩ 103-10KΩ

④Tolerance range:F-±1% G-±2% H-±3% J-±5% K-±10%
