SPECIFICATIONS

Application: Computer,Computer

Brand Name: NoEnName_Null

Choice: yes

Condition: New,New

Dissipation Power: 2A,2A

Features 1: MT3608

Features 10: MT3608 10PCS

Features 11: MINI360 10PCS

Features 2: MINI360

Features 3: buck converter

Features 4: buck boost

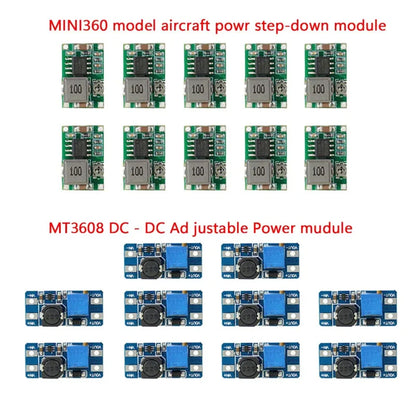

Features 5: Mini360 model aircraft power step-down module

Features 6: MT3608 DC-DC Adjustable Power Module

Features 7: MT3608 2A Booster Board

Features 8: Mini360 DC-DC Buck Converter Module

Features 9: DC-DC synchronous rectification step-down module

Hign-concerned Chemical: None

Model Number: MT3608 module Mini360 module

Operating Temperature: standard,standard

Origin: Mainland China,Mainland China

Package: SMD,SMD

Supply Voltage: 2-24V Adjustable,2-24V Adjustable

Type: Voltage Regulator,Voltage Regulator

isCustomized: Yes

semi_Choice: yes

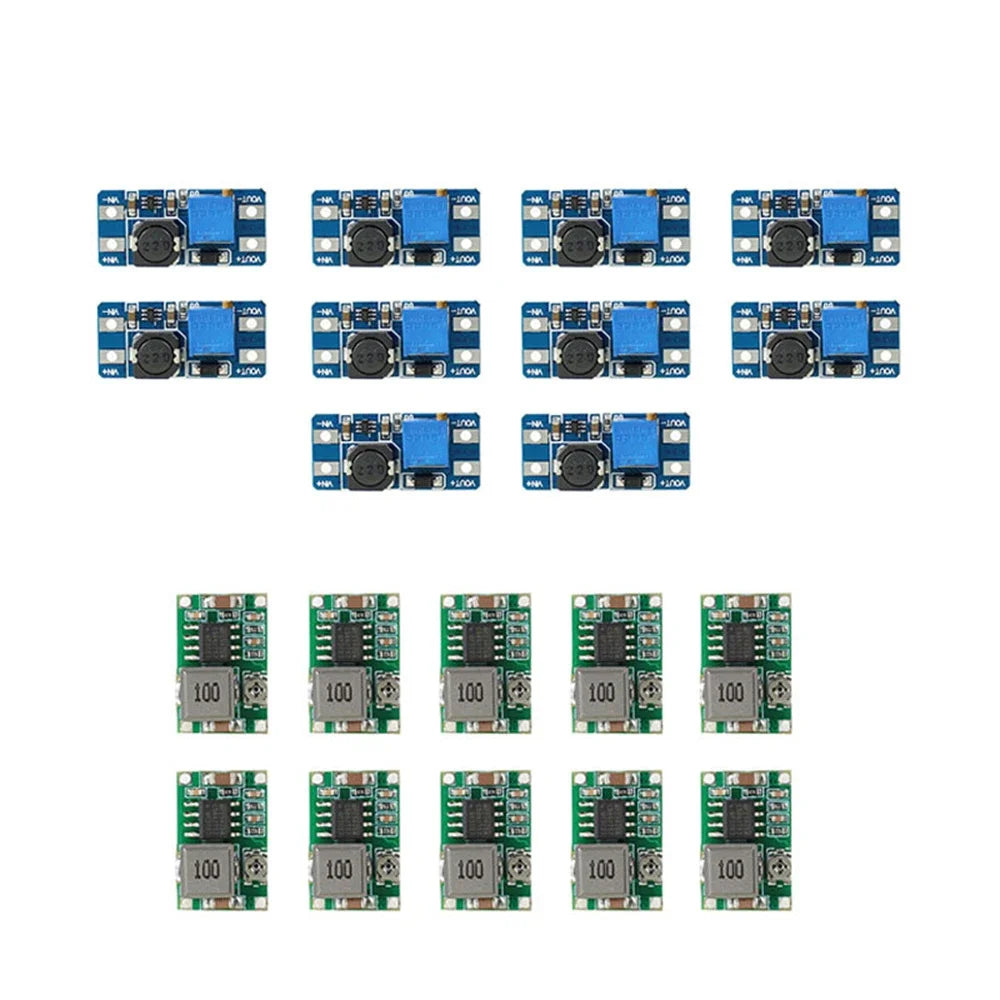

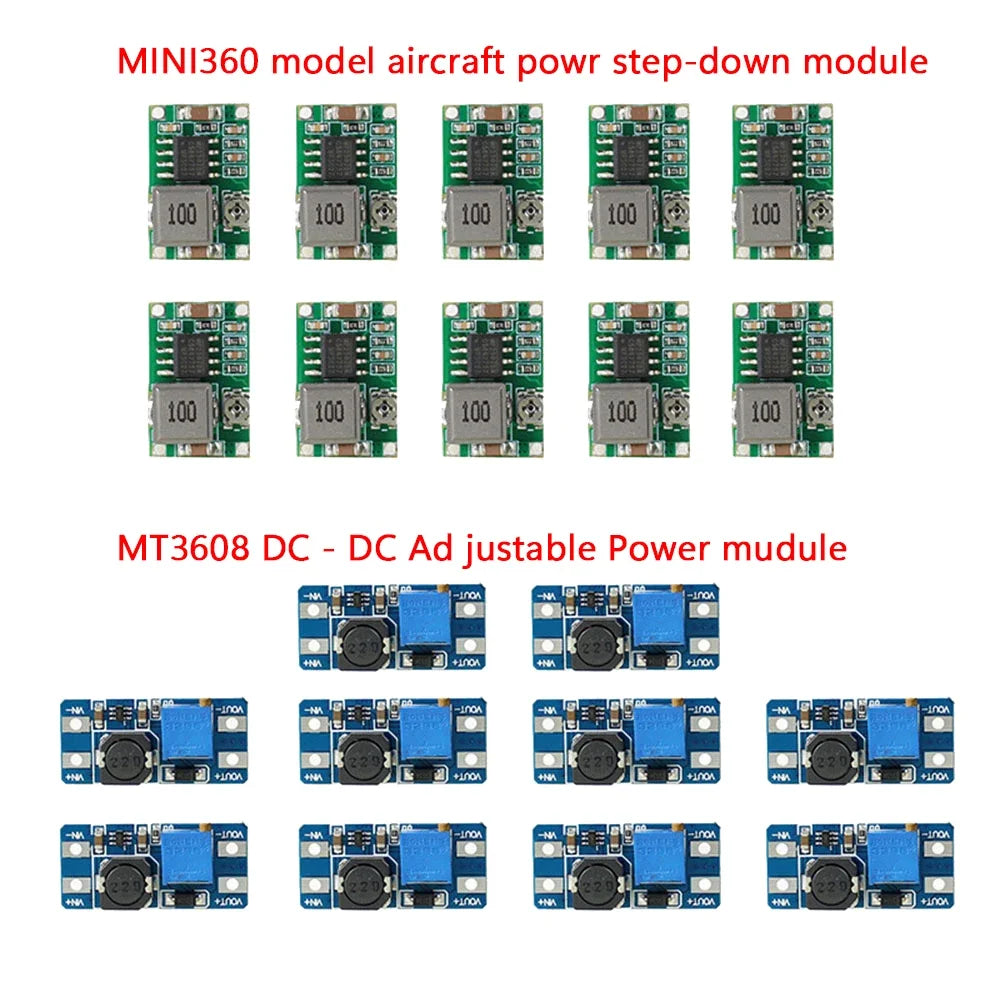

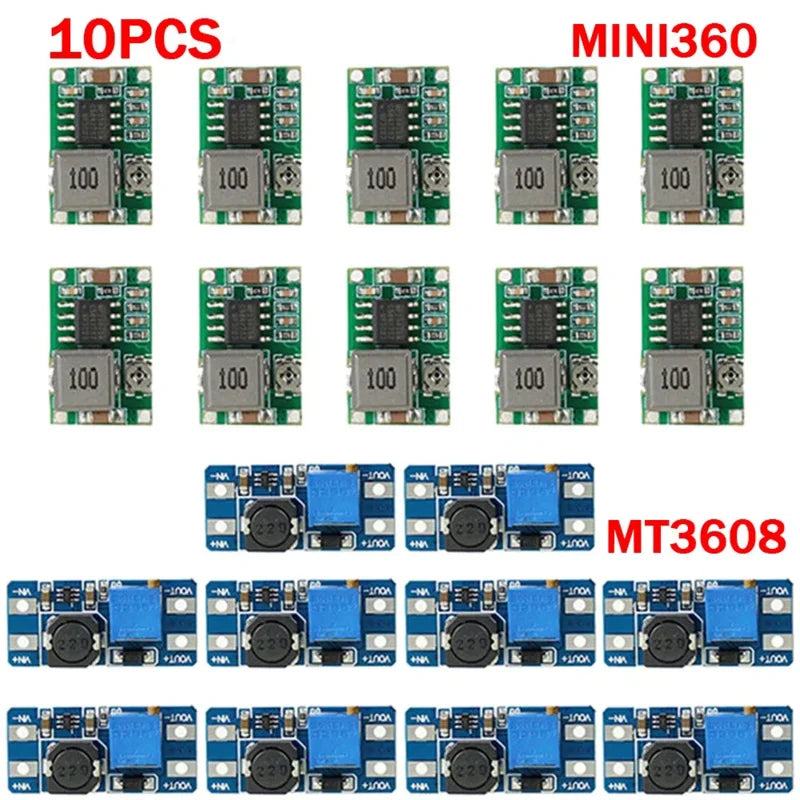

10PCS Mini360 DC-DC Step-Down Converter Module MT3608 Adjustable Power Regulator DC DC Step-up Transformer Power Supply LM2596

Mini360 Application:
DIY mobile power supply, vehicle power supply, communication equipment power supply, various occasions with strict requirements on volume and weight (such as aviation models, etc.).

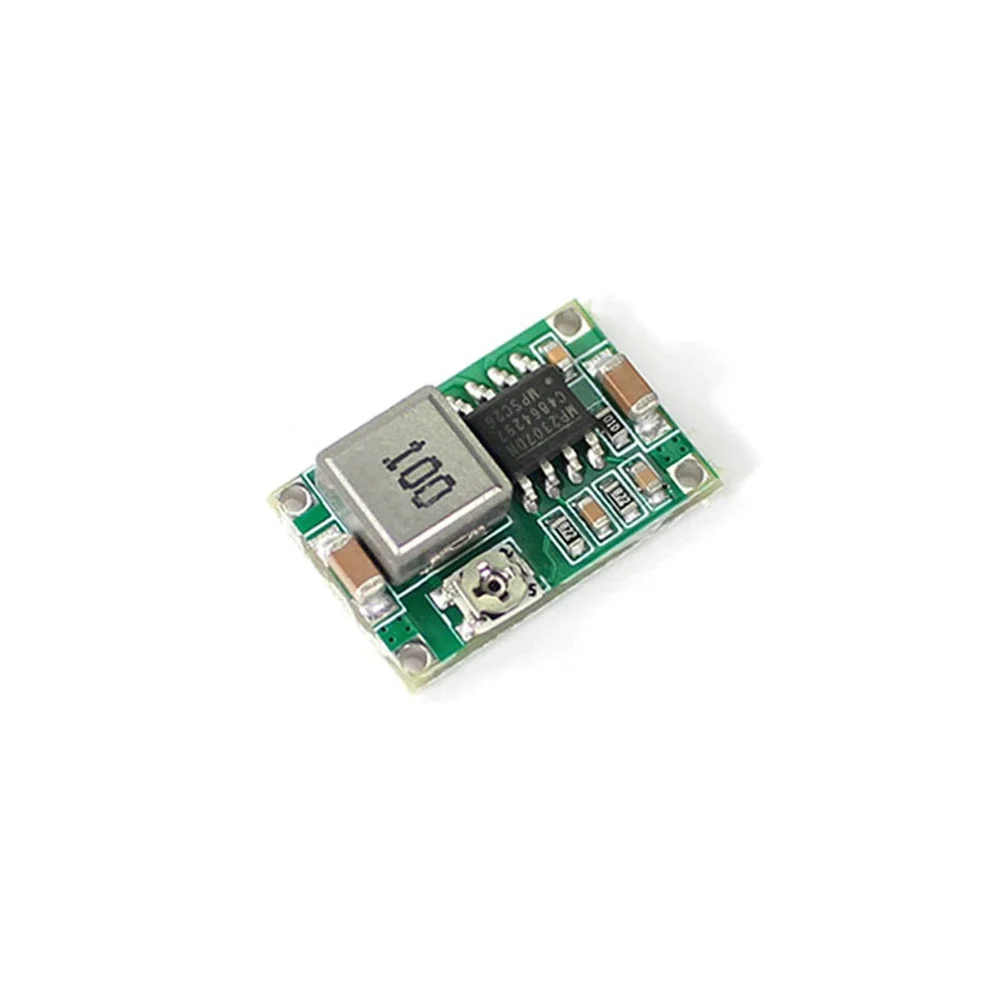

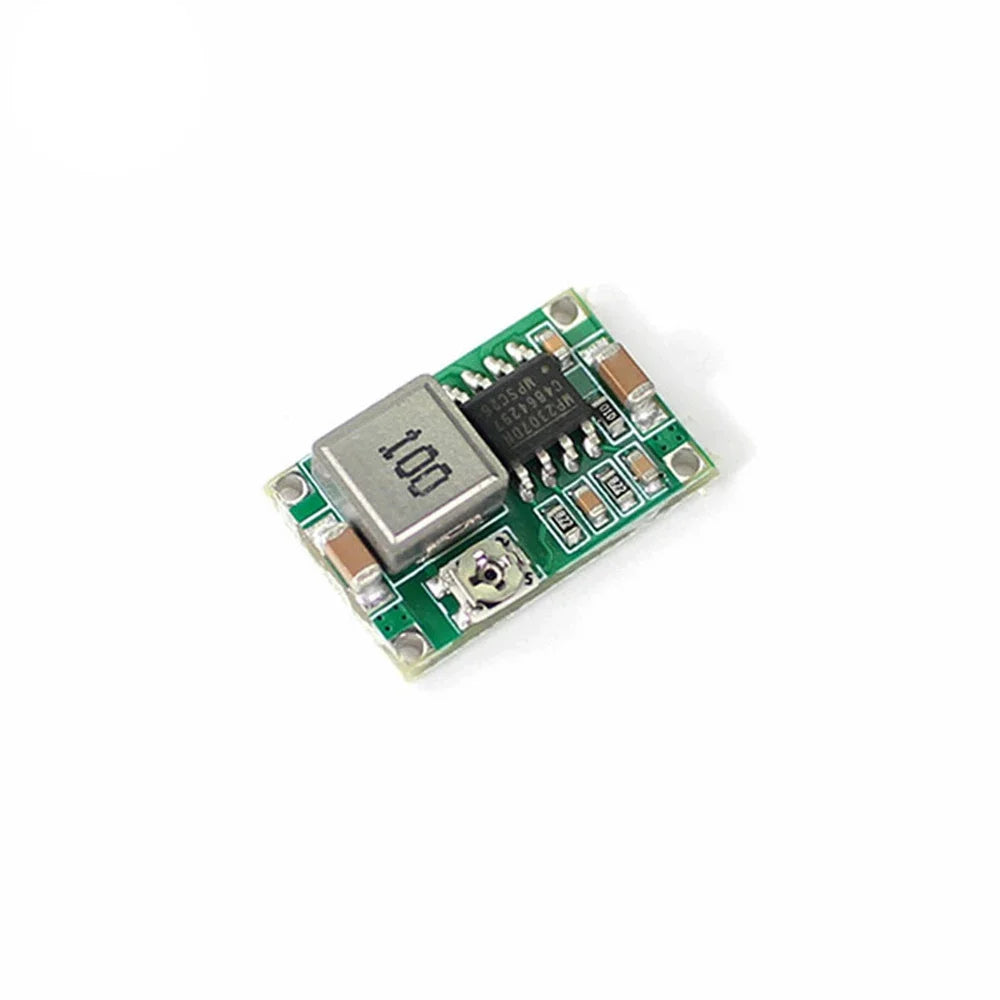

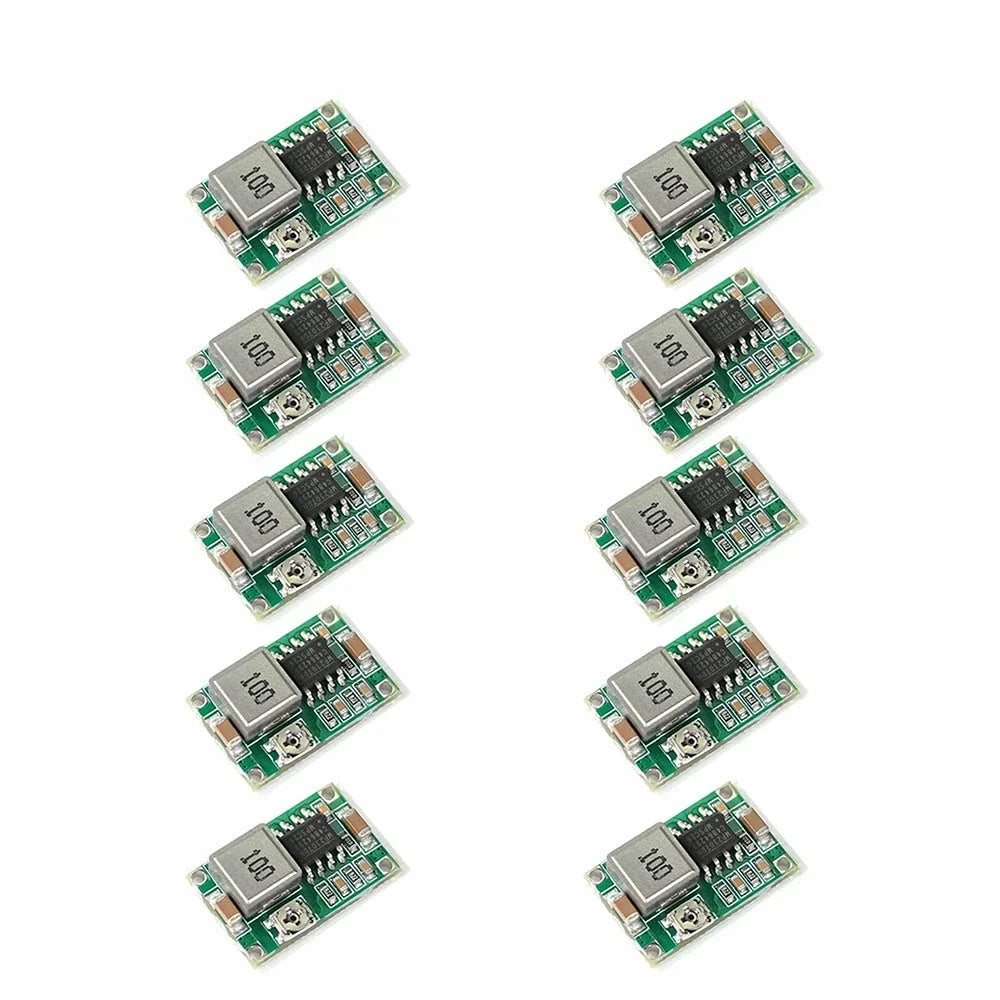

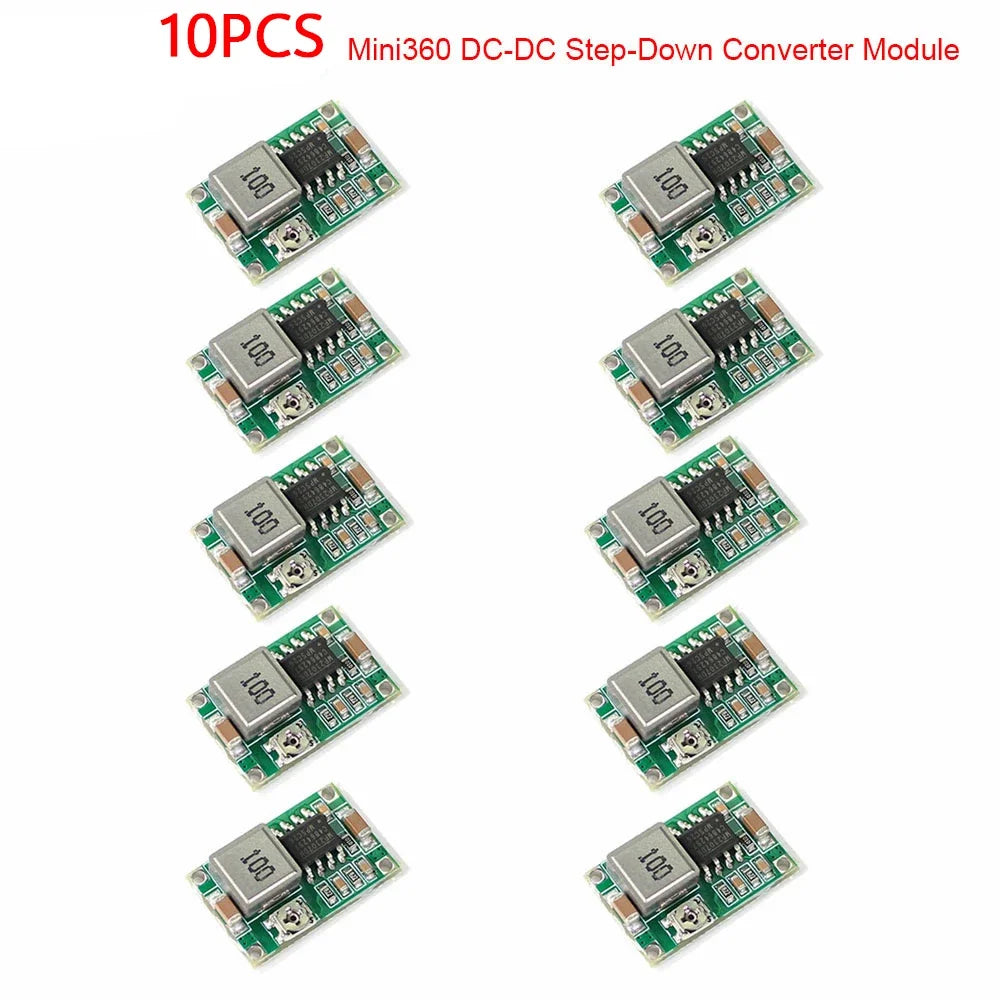

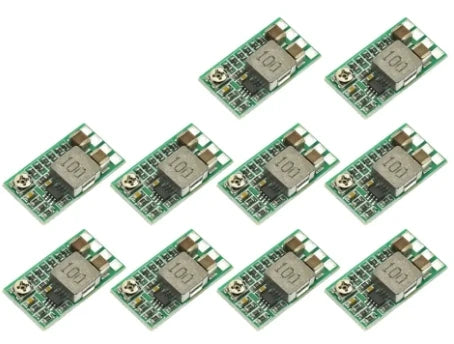

Model name: Mini360 (ultra-small size DC-DC synchronous rectification step-down module)
Module nature: non-isolated step-down
Rectification mode: synchronous rectification
Input voltage: 4.75V-23V
Output voltage: 1.0V-17V
Output current: 3A peak, 1.8A long time
Conversion efficiency: 96% (highest)
Switching frequency: 340KHz
Output ripple: 30mV (no load)
Load Regulation: ±0.5%
Voltage regulation: ±2.5%
Operating temperature: -40C to 85°C
Outer size: 17*11*3.8 (L*W*H) (mm)

Features: Using integrated power inductor and synchronous rectifier control chip, smaller size and higher efficiency.

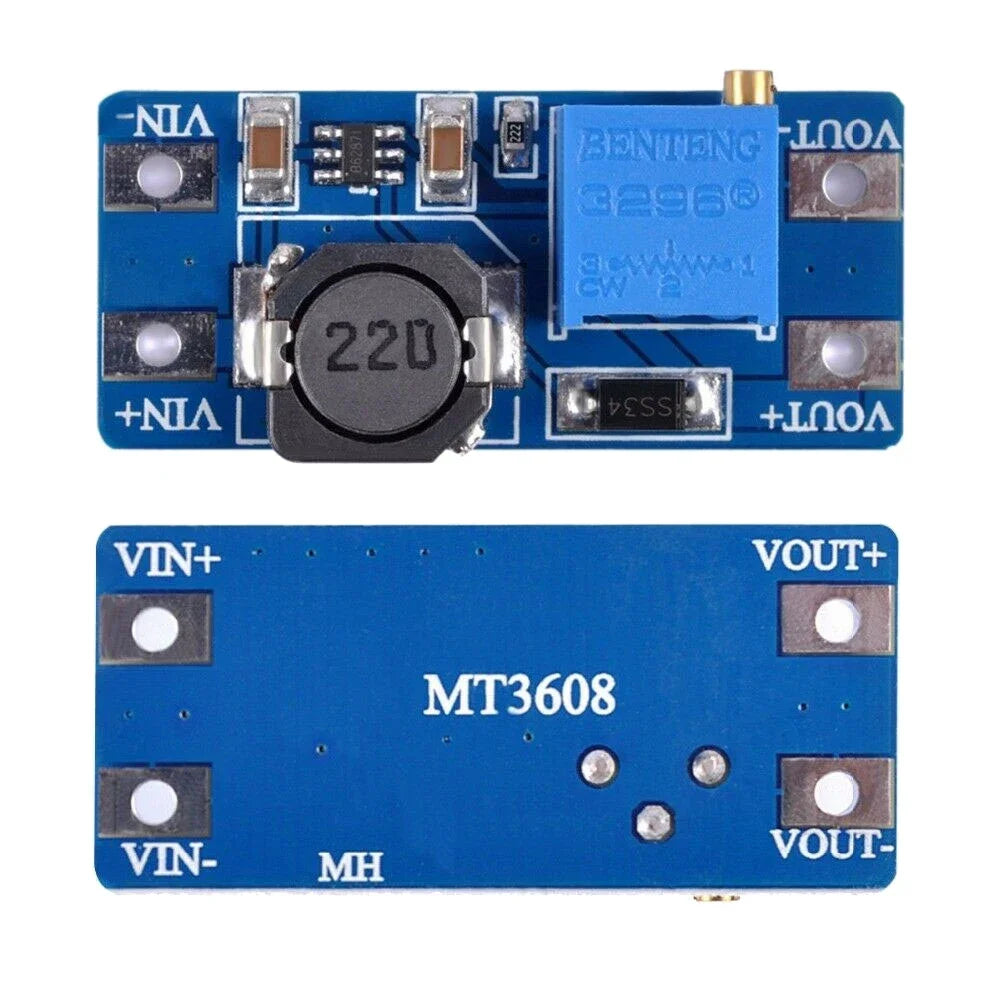

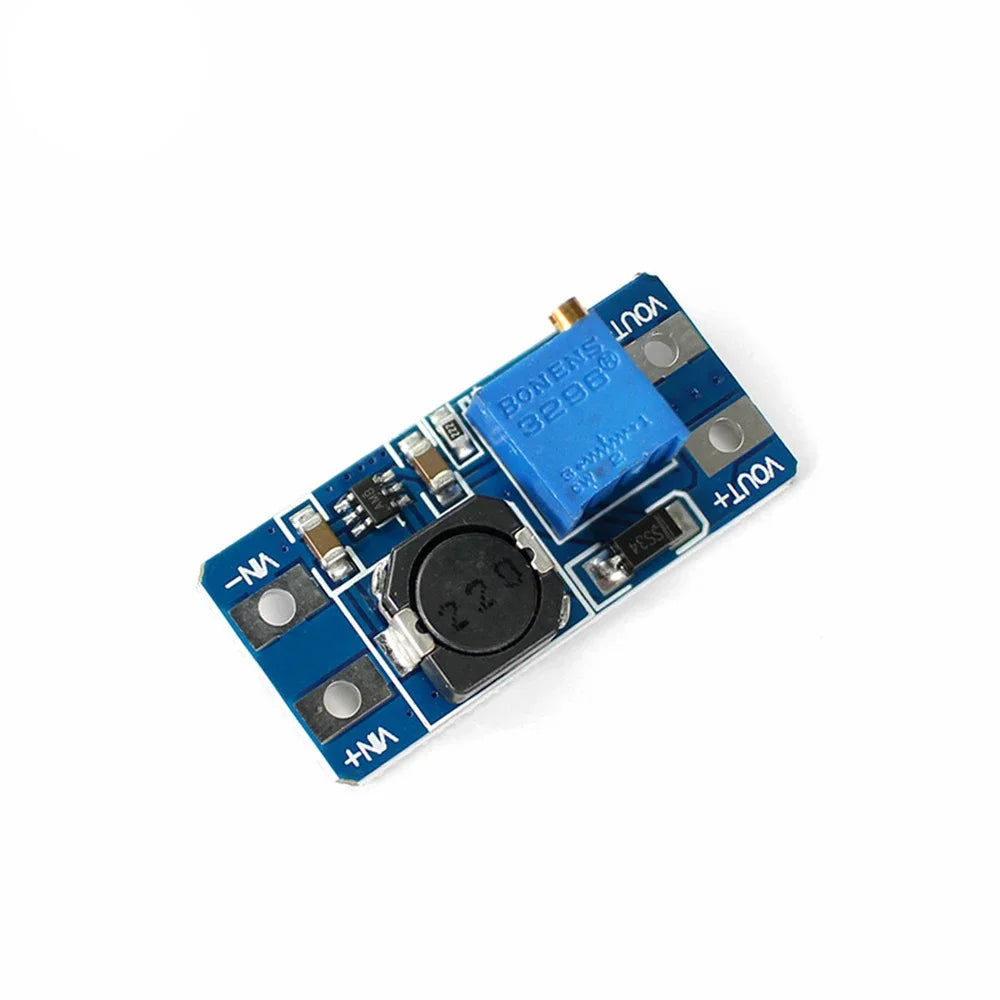

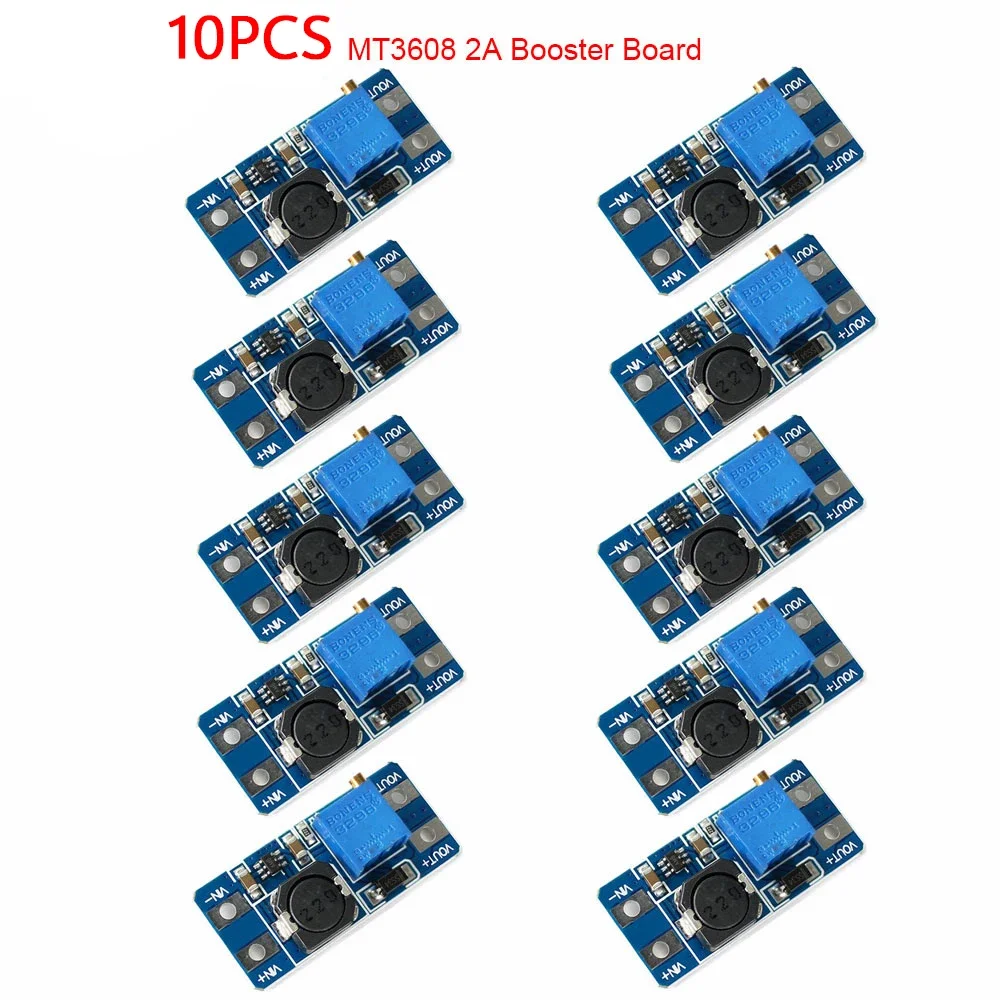

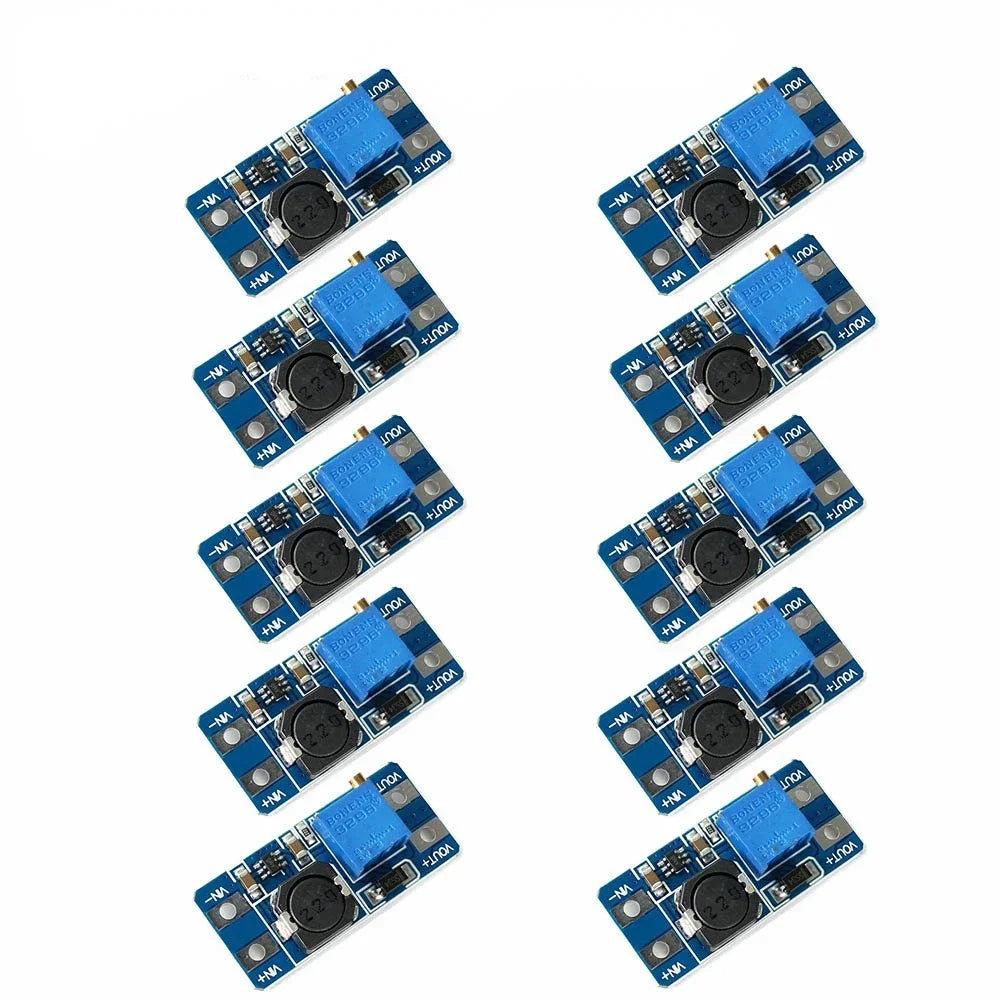

MT3608 2A Booster Board
Product parameters:
Input voltage: 2V- 24V
Output voltage:>5V-28V
Efficiency:> 93%
Output current: 2A
Size: 37mm*17. 3mm

Precautions
1. The input voltage should not exceed the input voltage
2. Peak current output current does not exceed 2A
Note: Reverse the potentiometer 15 times before taking the goods for testing!
The potentiometer of the voltage regulation mode faces the chest and turns counterclockwise to boost the voltage!
Some customers reported that the output voltage of the module cannot be adjusted and is always equal to the input voltage. when you
When encountering this kind of problem, please turn the potentiometer counterclockwise for more than 10 turns before using the module
The voltage can be adjusted normally.

Product Highlights
Small size adjustable boost module, can be easily installed in various small equipment. MicroUSB input can be used, just use a USB charger or mobile power supply through the mobile phone data cable
Easily get 9V, 12V, 15V, 18V, 24V common voltage, very convenient to use.
Ultra-wide input and output voltage, ultra-high conversion efficiency.
