�� 12V/24V Dual Voltage Solar Charge Controller

Smart Auto-Switch & LCD Display | Overcharge/Short Circuit Protection

⚡ KEY FEATURES

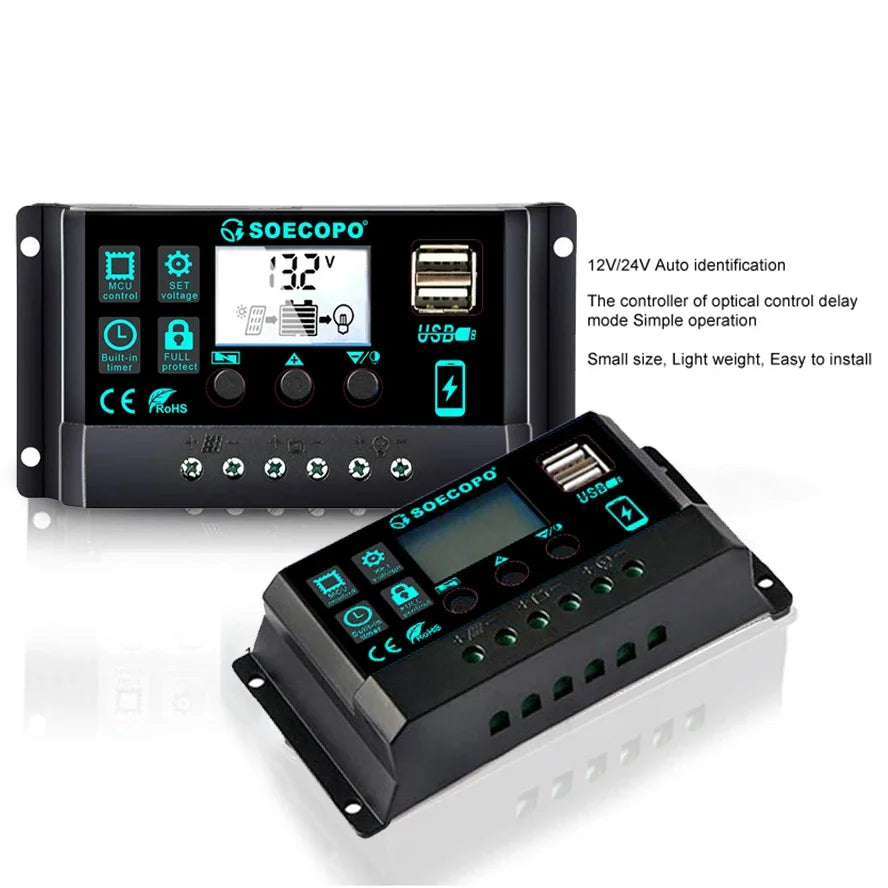

• ✅ Dual Voltage Auto-Switch
  Automatically detects 12V/24V systems – No manual setting required! Perfect for RV, boats, and hybrid solar setups.


• ✅ 3-Stage Smart Charging
  Boost ➜ Float ➜ Equalization charging modes maximize battery lifespan (+30% efficiency vs. basic controllers).

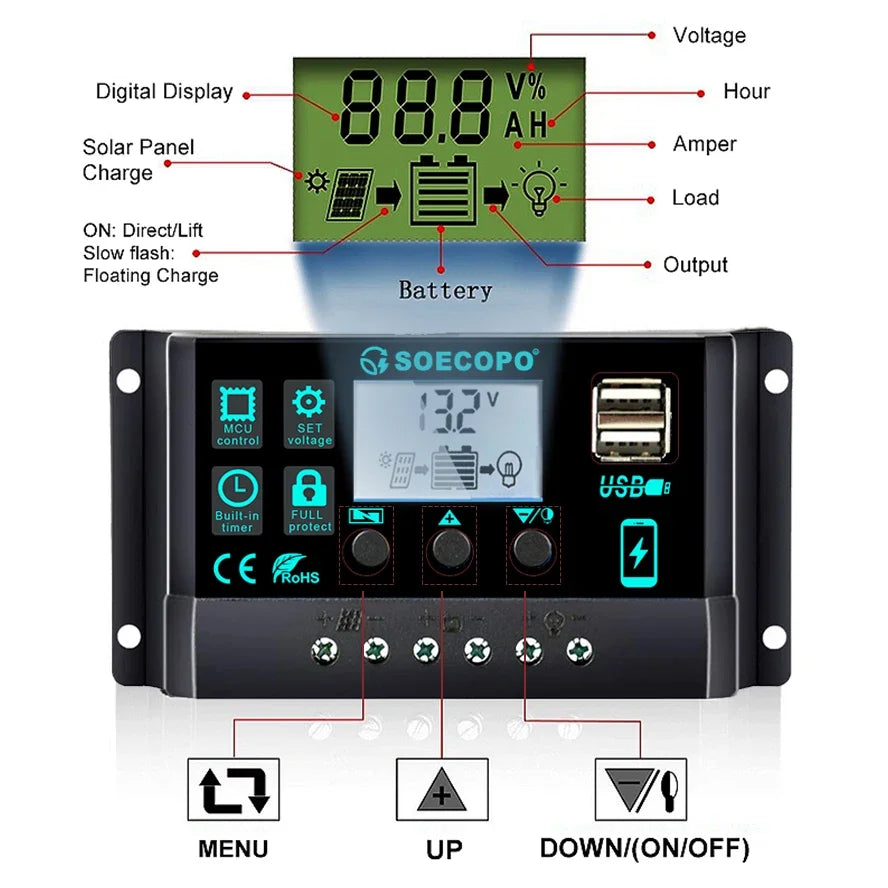

• ✅ Real-Time Monitoring
  2.4" LCD screen shows voltage, current, temperature, and charging status at a glance.


• ✅ Military-Grade Protection
  Overcharge/Short circuit/Reverse polarity/Overload/Low-temperature compensation – 5-in-1 safety shield.


• ✅ Universal Compatibility
  Works with AGM, Gel, LiFePO4 batteries and 100W-400W solar panels.

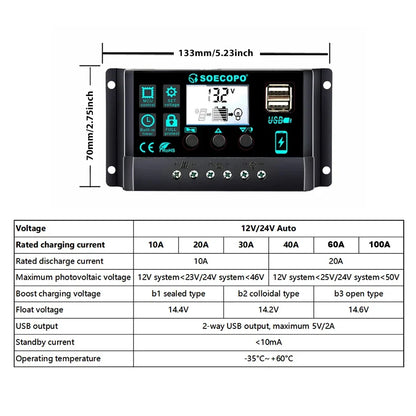

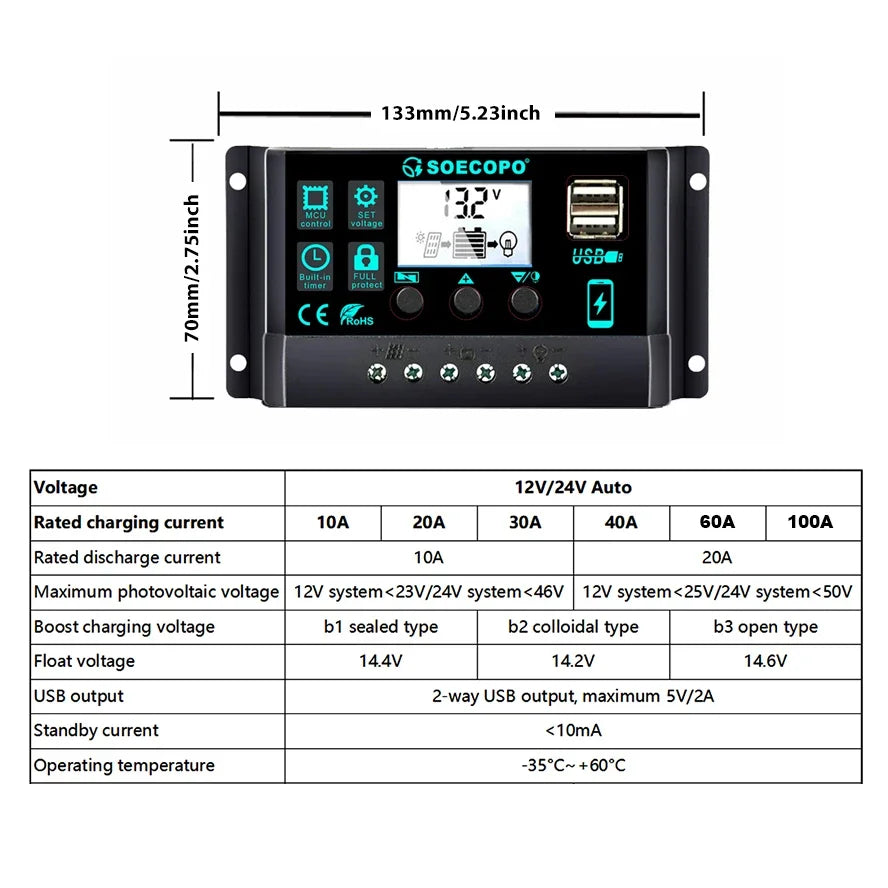

�� TECHNICAL SPECIFICATIONS

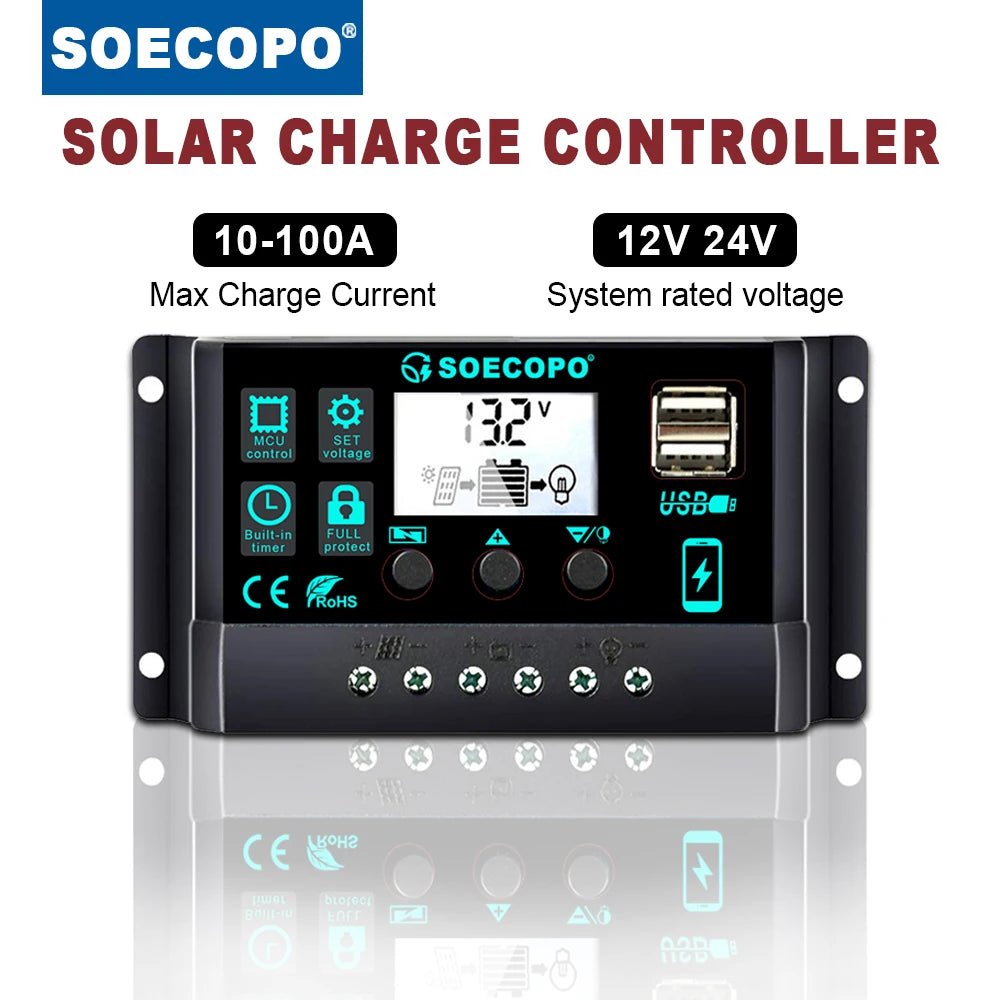

▶ Voltage: 12V/24V Auto-Sensing
▶ Max Current: 10A/20A/30A/60A/100A
▶Floating charge voltage: 13.7V (adjustable)
▶End-off voltage: 10.7V (adjustable)
▶Discharge recover voltage: 12.6V (adjustable)
▶ Efficiency: ≥98%
▶ Temp Range: -35°C to +60°C
▶ Waterproof Rating: IP67 (splash-proof)
▶ Dimensions: 134x70x33mm | Weight: 0.14kg

�� TYPICAL APPLICATIONS

• 1. The controller is 12V/24V auto-identification, when first installed, please make sure the battery has enough voltage so that the controller can be recognized as the correct battery type.


• 2. Install the controller as close to the battery as possible to avoid the voltage drop caused by the long wire, which will affect the normal voltage judgment.


• 3. The controller is only applicable to various lead-acid batteries (including open, sealed, gel, etc.), please do not use it for other batteries (including RI batteries, NiMH batteries, etc.).


• 4. This controller can only use photovoltaic panels as the charging source, please do not use DC or other power sources as the charging source.


• 5. The controller will be hot when running, please pay attention to install the controller on a flat, well-ventilated surface.

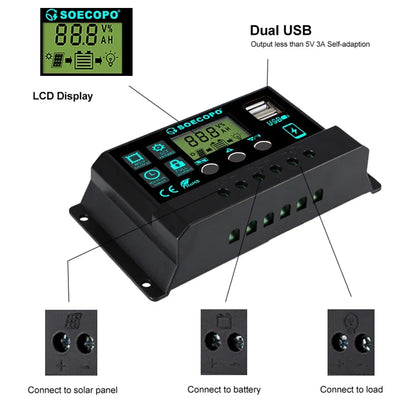

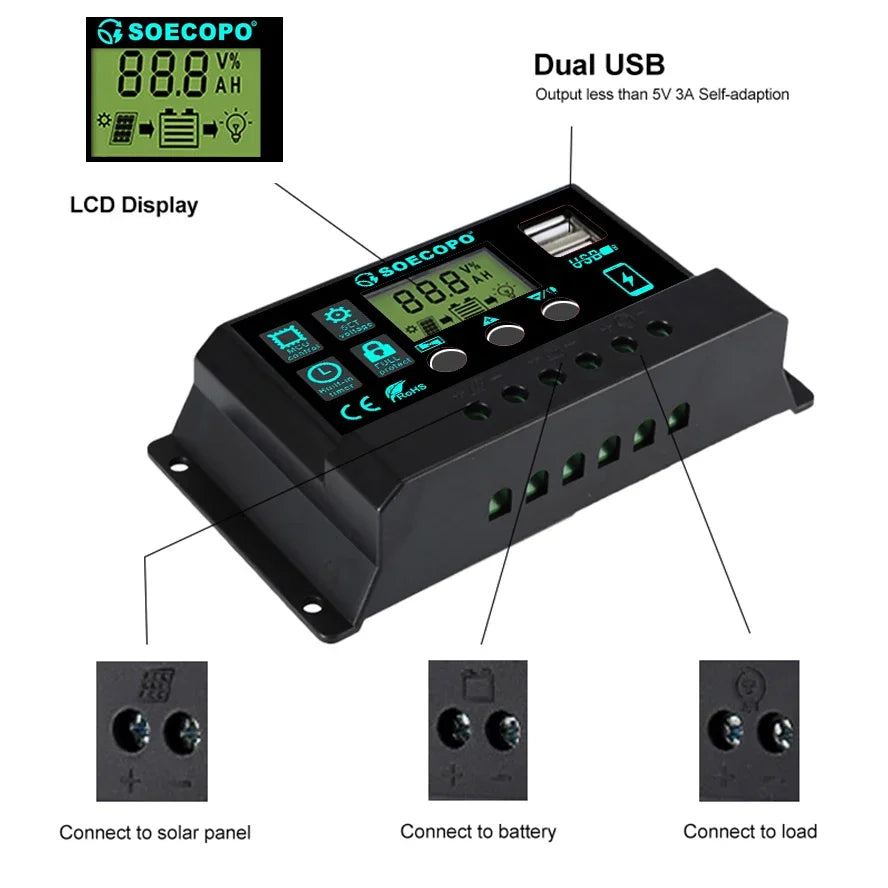

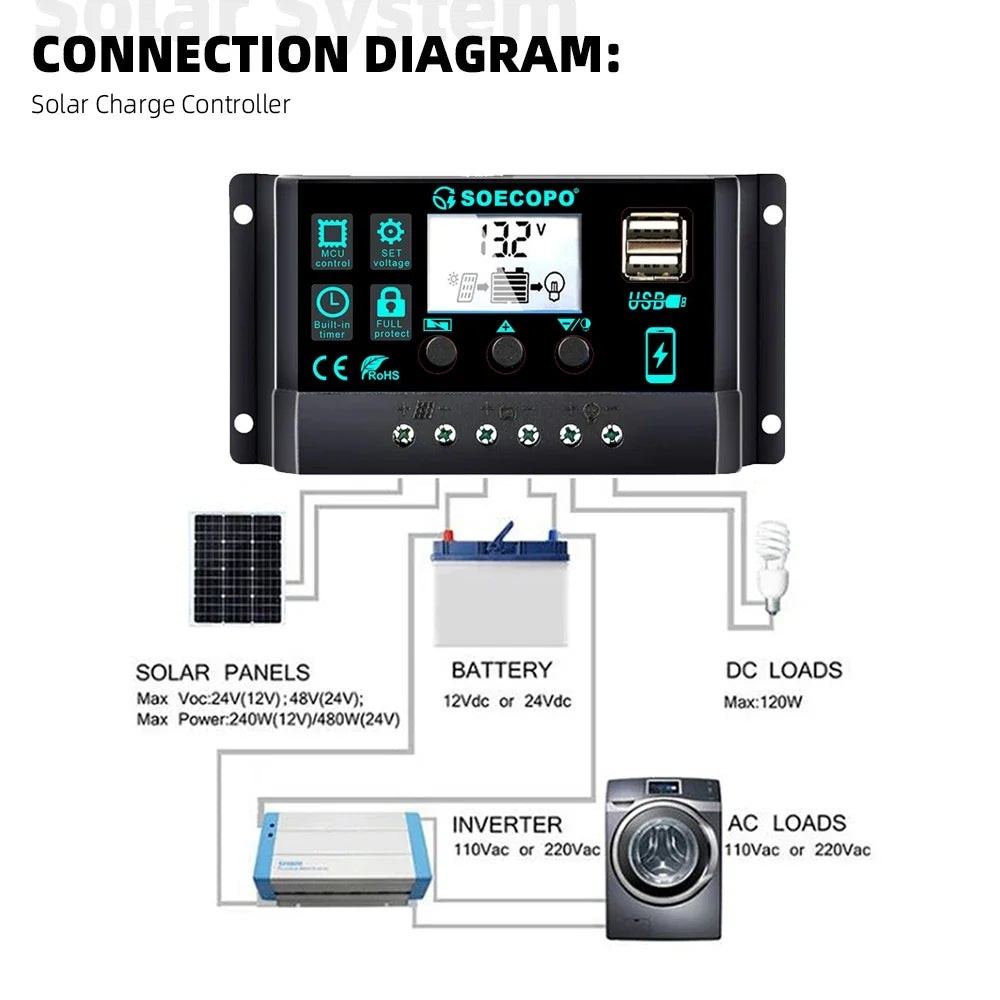

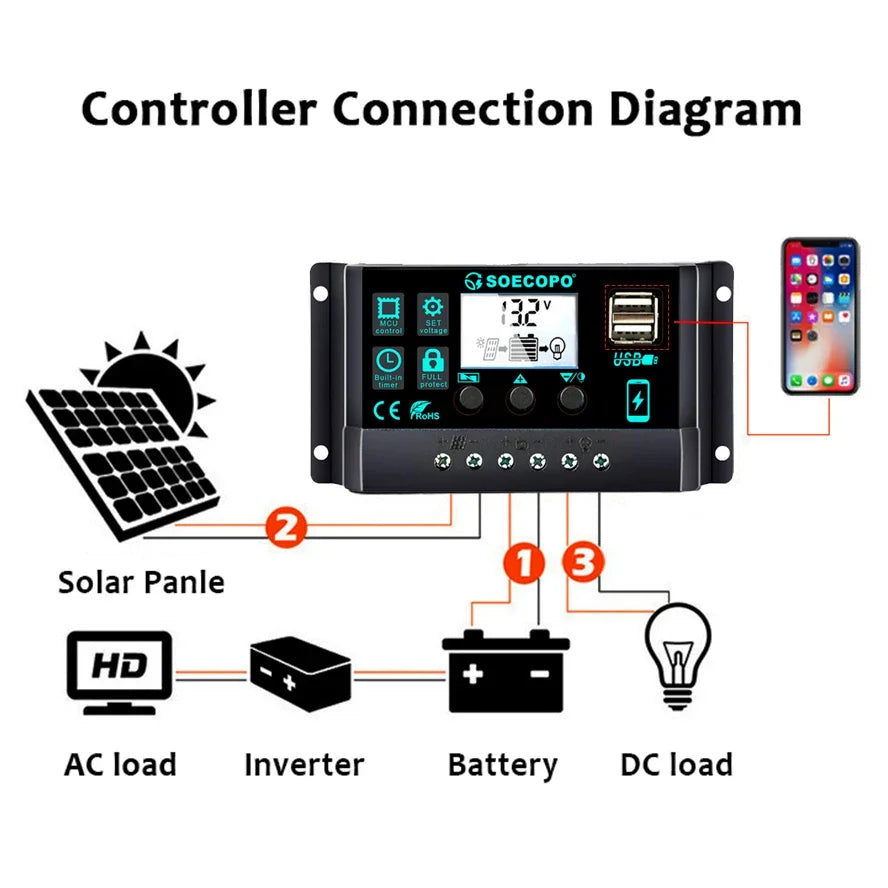

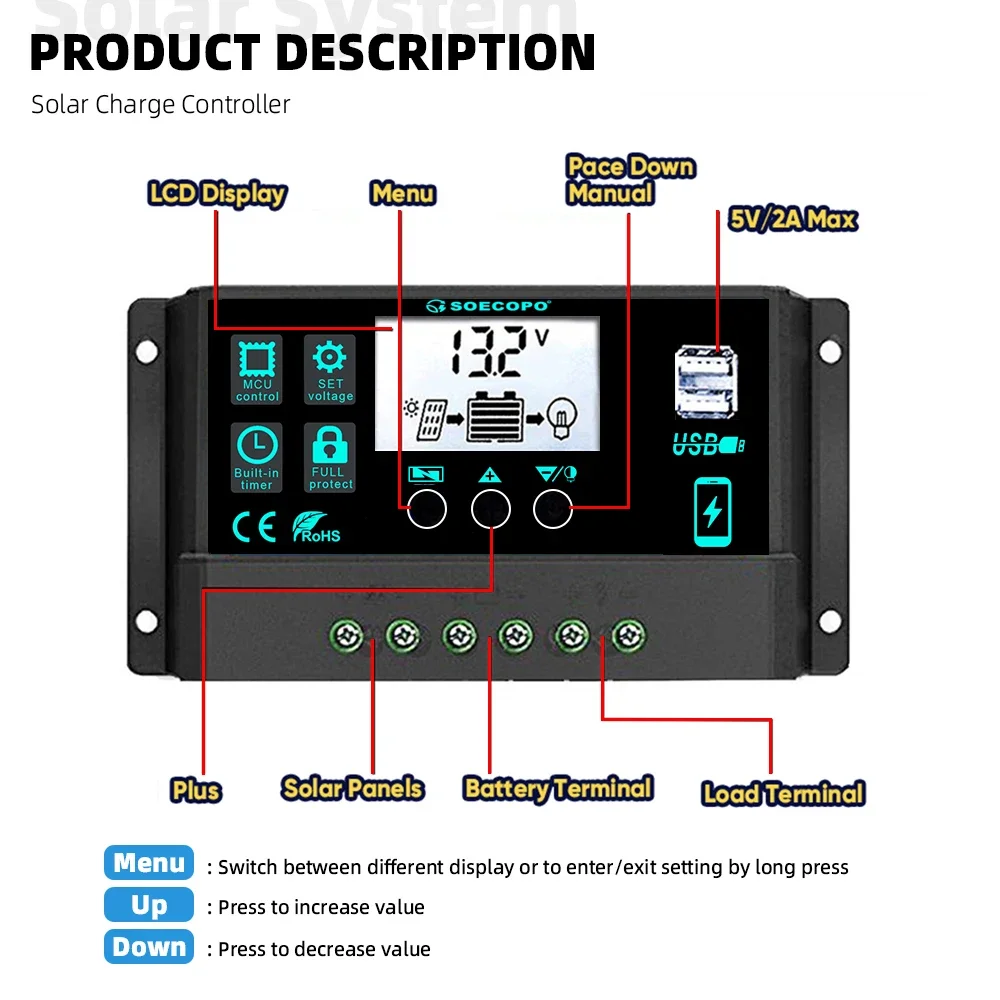

��️System connection

• 1. Connect the battery to the positive and negative side of the charge regulator

• 2. Connect the photovoltaic module to the positive and negative side of the regulator

• 3. Connect the user to the positive and negative side of the charge regulator.


• The opposite order applies when unloading!

• Improper sequence can damage the controller!

❗ BUYER TIPS

⚠️ For best performance:

Match controller current ≥1.25x solar panel max current

Use with batteries ≥100Ah for 400W+ solar systems

10A: Maximum solar panel input is 240W
20A: Maximum solar panel input of 480W
30A: Maximum solar panel input 720W
40A: Maximum solar panel input of 960W
50A: Maximum solar panel input is 1200W
60A: Maximum solar panel input is 1440W
