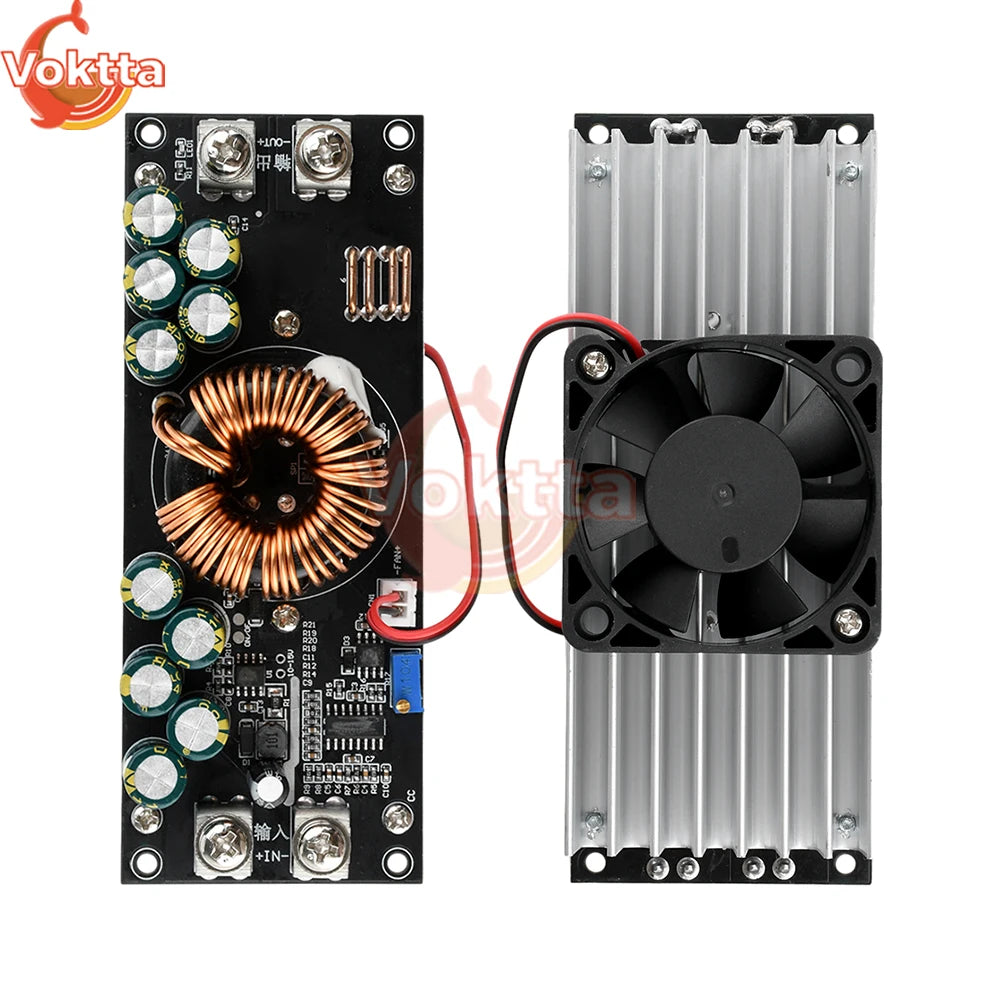

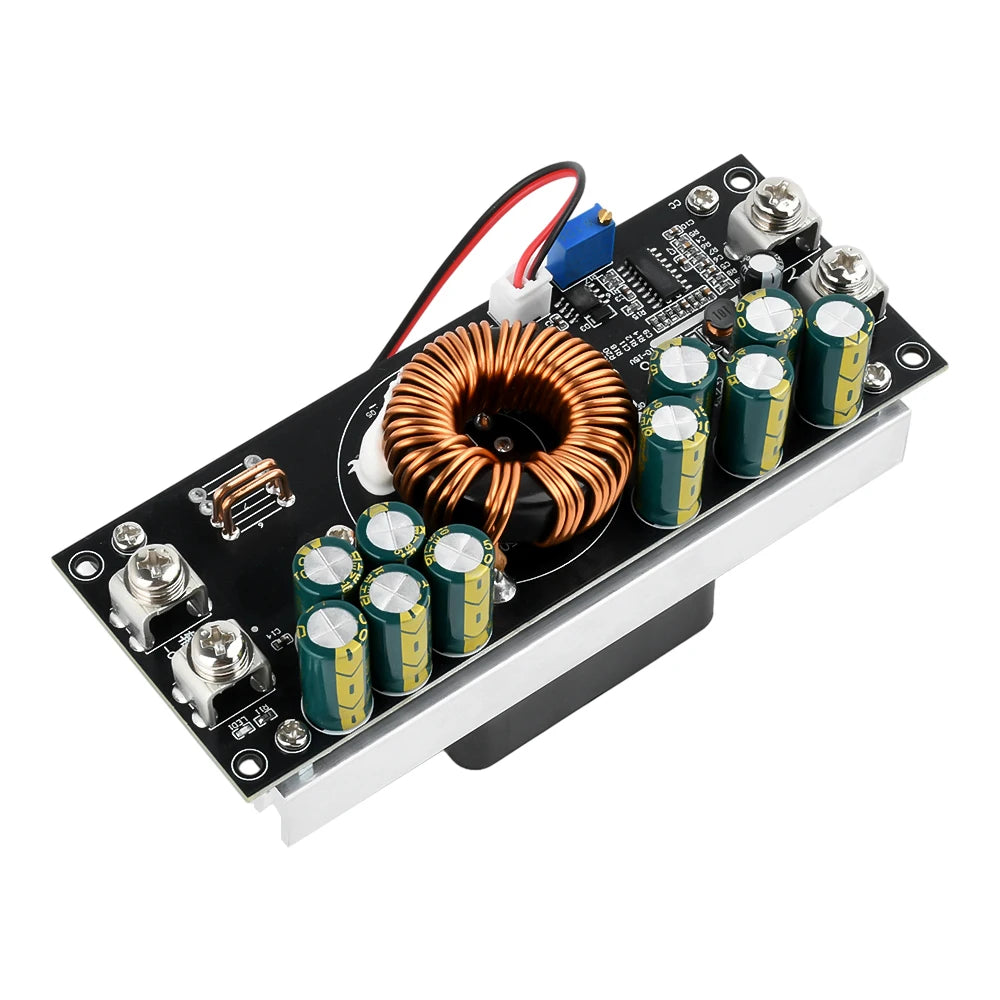

Módulo Convertidor Buck DC-DC 1500W 50A / 1200W 30A Step-Down 15V-90V a 2.5V-72V Regulador Voltaje
Módulo Convertidor Buck DC-DC 1500W 50A / 1200W 30A Step-Down 15V-90V a 2.5V-72V Regulador Voltaje
Precio habitual
$37.488 CLP
Precio habitual
$40.488 CLP
Precio de oferta
$37.488 CLP
Precio unitario
por
Los gastos de envío se calculan en la pantalla de pago.
No se pudo cargar la disponibilidad de retiro
SPECIFICATIONS
Brand Name: Gaqqee
Certification: CE
Hign-concerned Chemical: None
Model Number: DC-DC Buck Converter
Origin: Mainland China

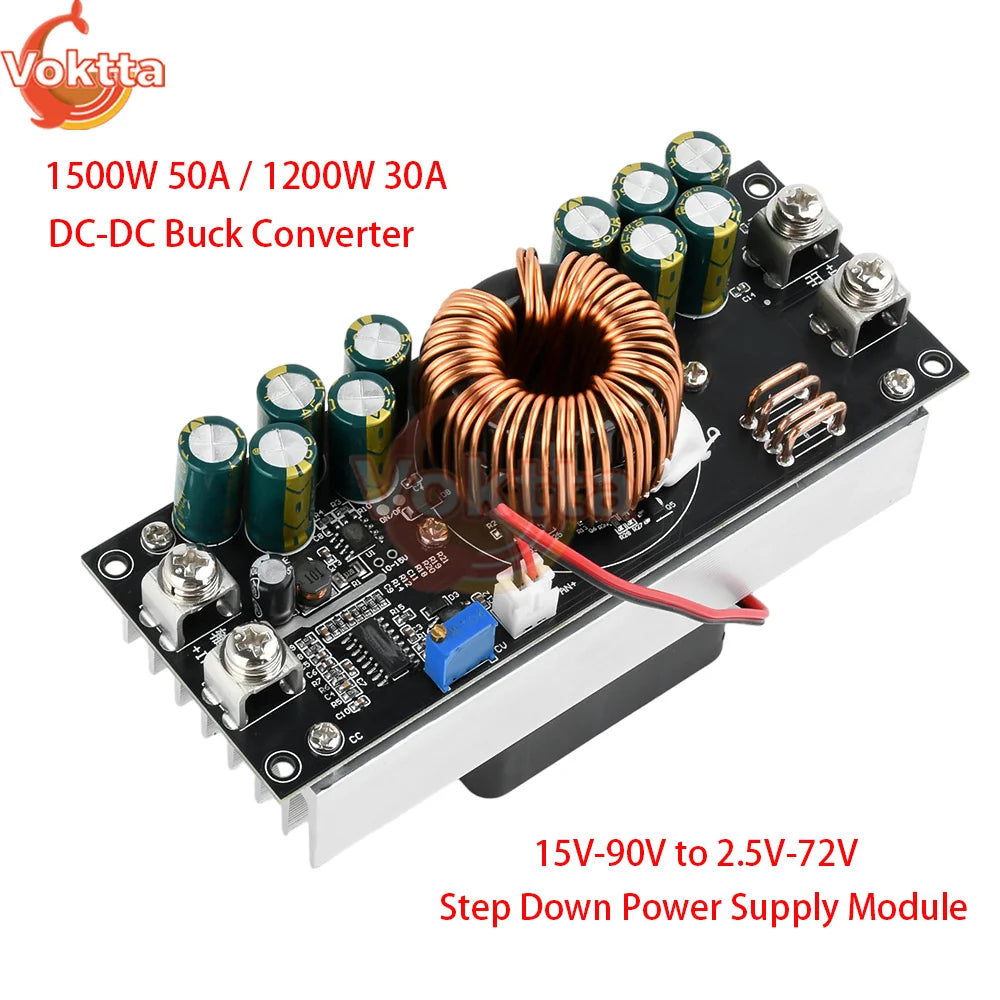

1500W 50A 1200W 30A DC-DC Buck Converter Step Down Power Supply Module 15V-90V to 2.5V-72V Buck Adapter Voltage Regulator
Product selling points:
1. Input voltage 15V-90V, output voltage 2.5V-72V, suitable for various power supply and equipment needs
2. Supports up to 1200W/1500W power output, suitable for high-power devices, ensuring stable power supply
3. Supports 25A constant voltage output to ensure stable output voltage, suitable for scenarios with strict voltage requirements

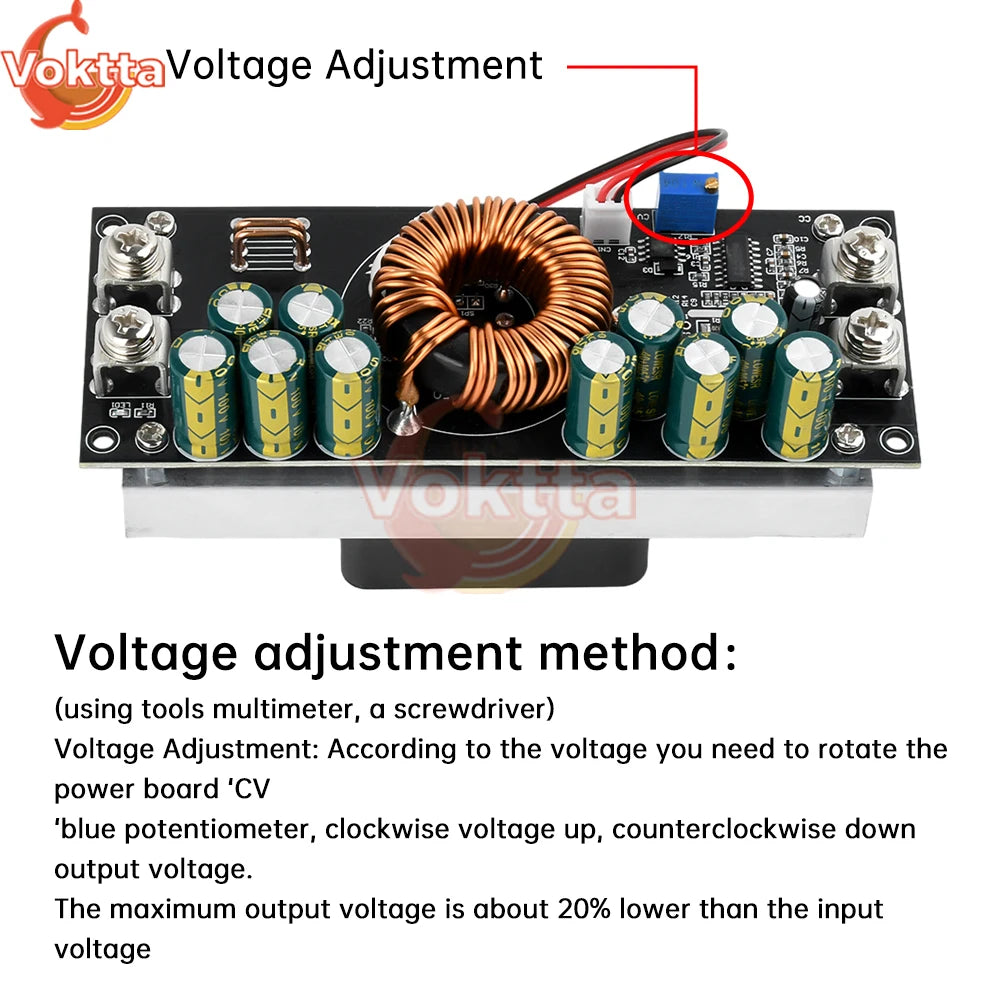

4. The output voltage can be adjusted to flexibly meet the needs of different application scenarios and improve user convenience
5. Efficient voltage reduction conversion, reducing energy loss, improving system efficiency, and minimizing heat generation
Product parameters:
Module nature: Non isolated voltage reduction module (BUCK)

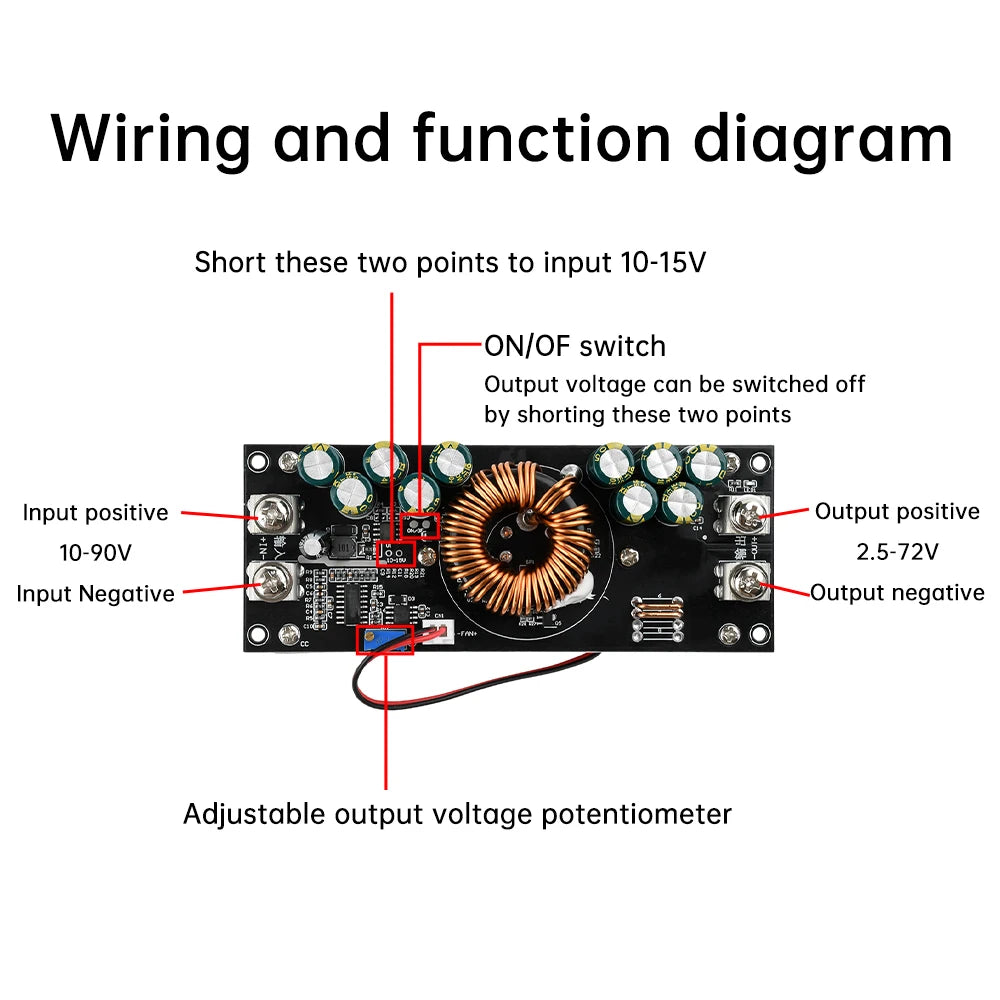

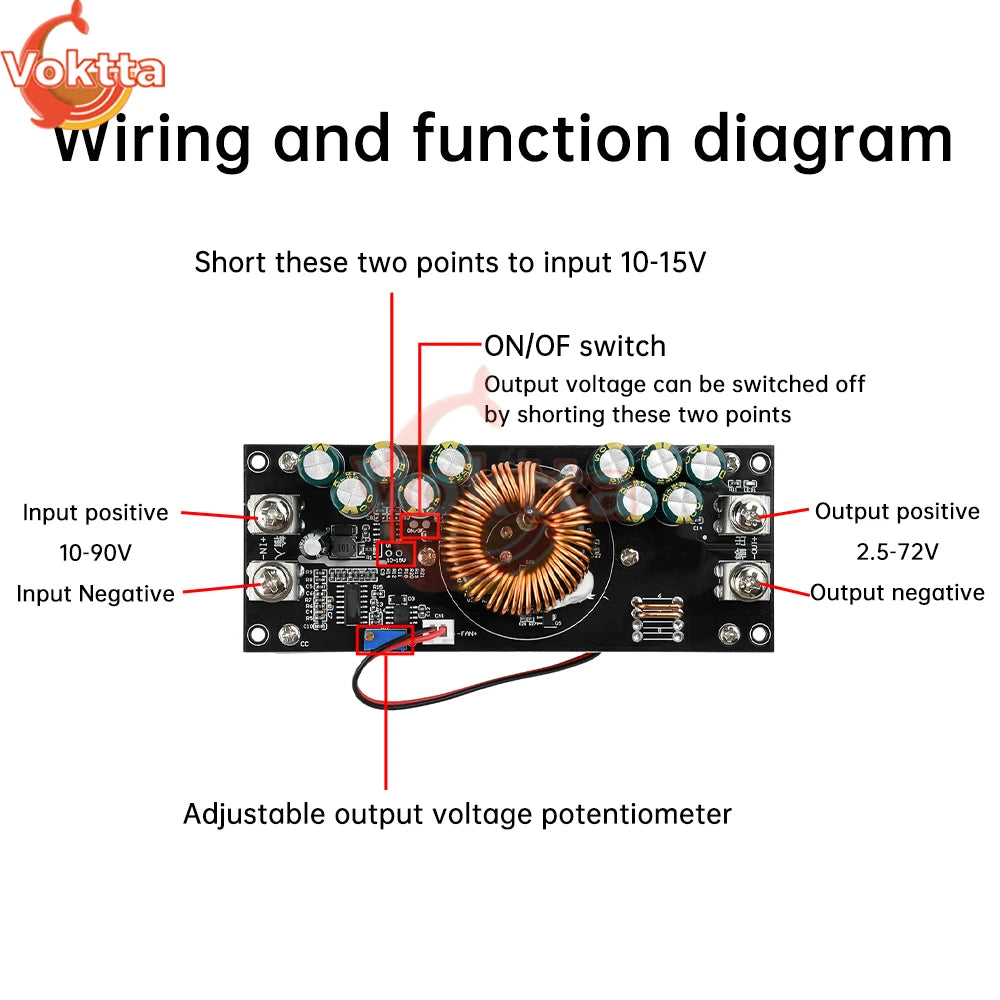

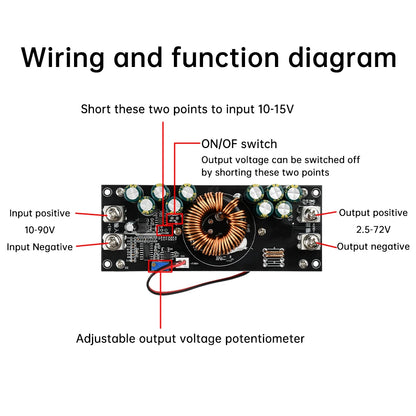

Input voltage: DC15-90V (10-15V can also be input, short circuit "12-15V" is required, and only 10-15V can be input after short circuit. If the input voltage is above 15V, it will cause module damage, and short circuit "10-15V" ON/OFF will fail)
Output voltage: 2.5-72V (must meet the voltage reduction condition, IN input multiplied by 0.8 equals the highest output voltage)
Minimum output voltage: 2.5V
Maximum output voltage: 72V (when input voltage is 90V) Input voltage * 0.8 equals output voltage

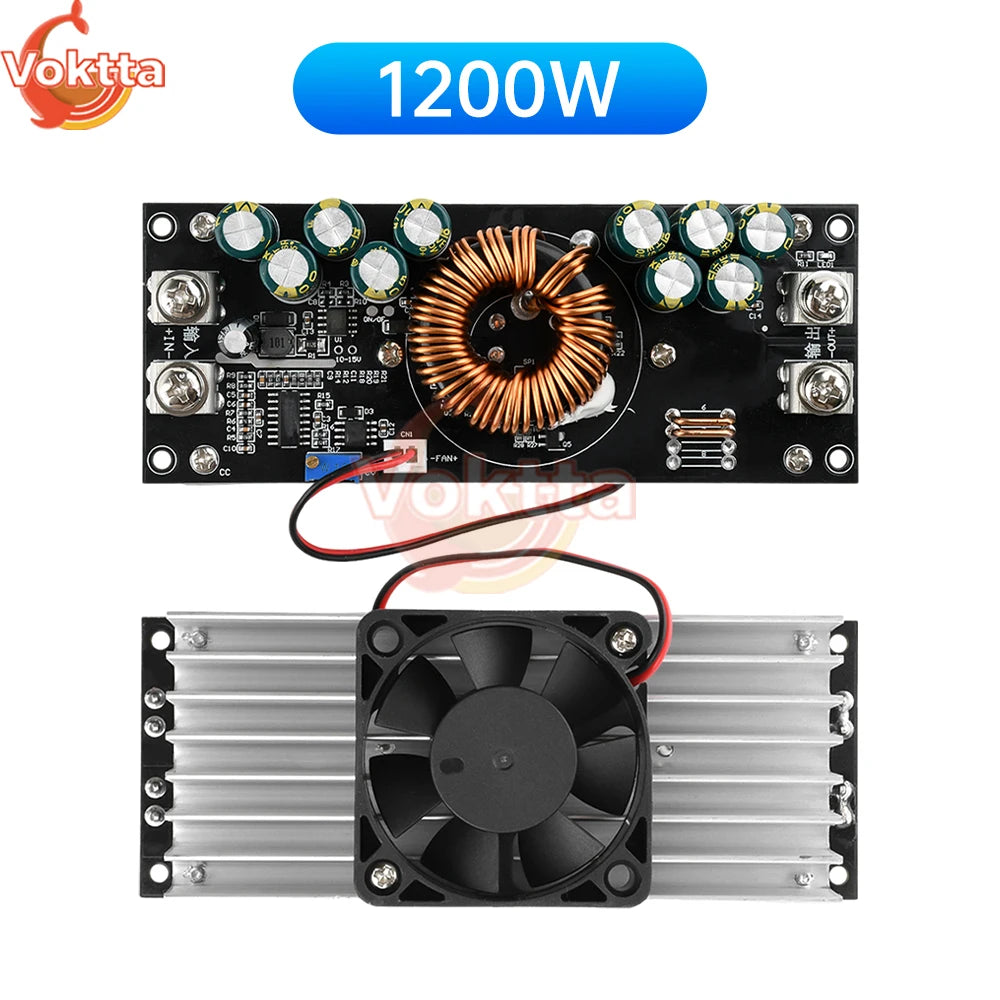

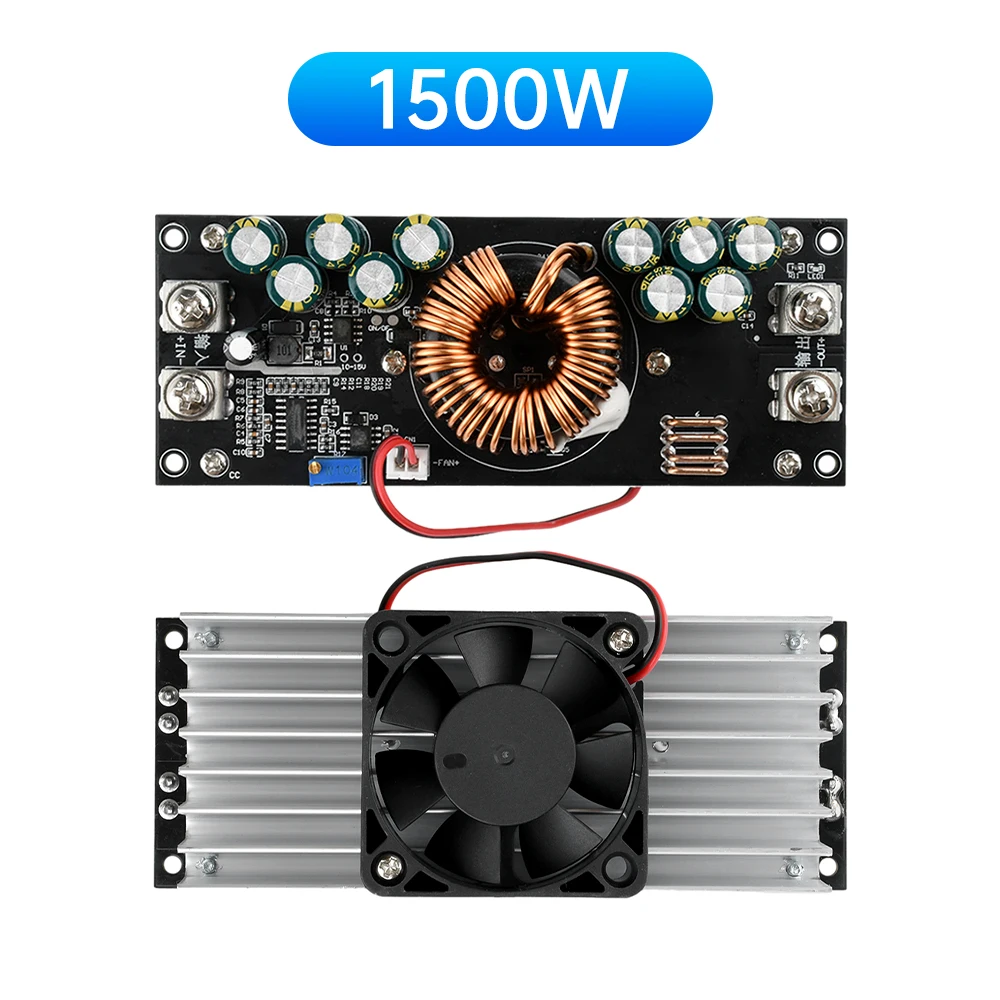

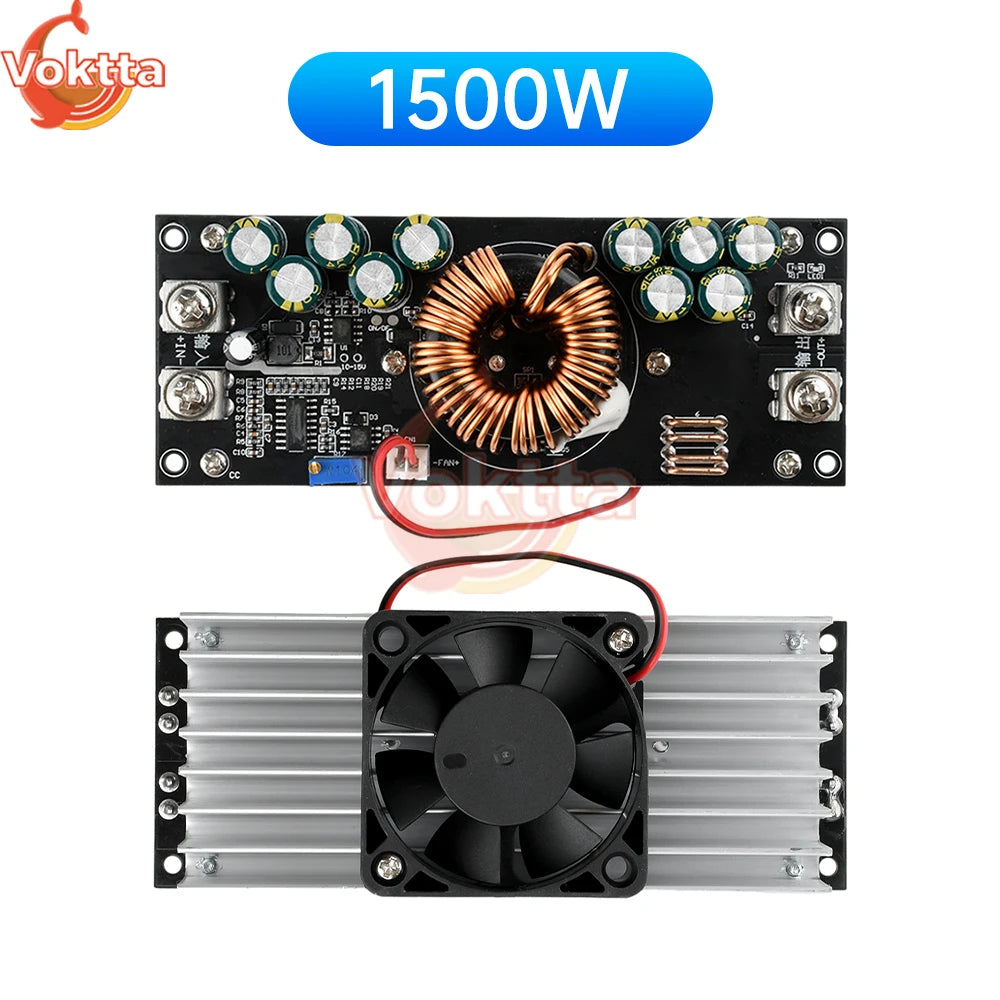

Maximum output power: 1200W/1500W (the working environment must be well ventilated, and the output voltage must be above 50V)
Continuous working rated power: 1000W/1200W (in ventilated environment)
Continuous working rated current: 25A/45A (in ventilated environment)
Maximum output current: 30A/50A

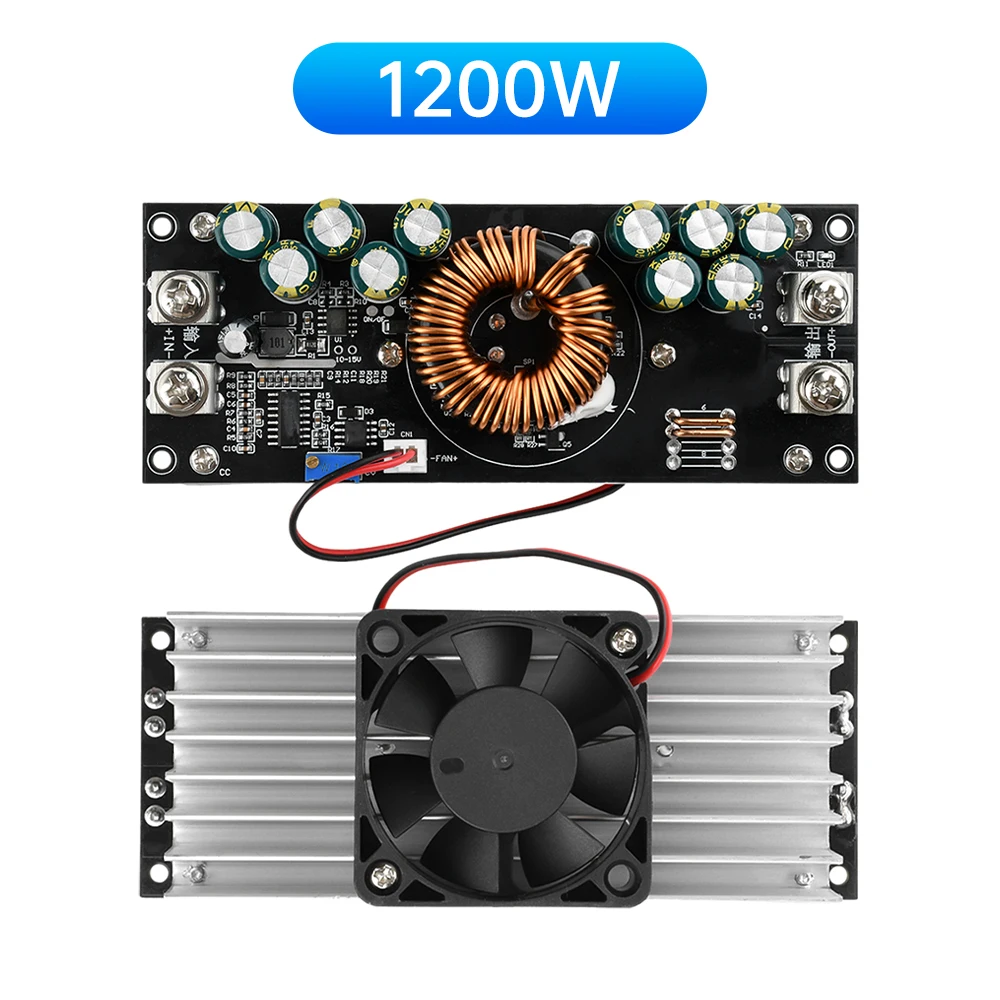

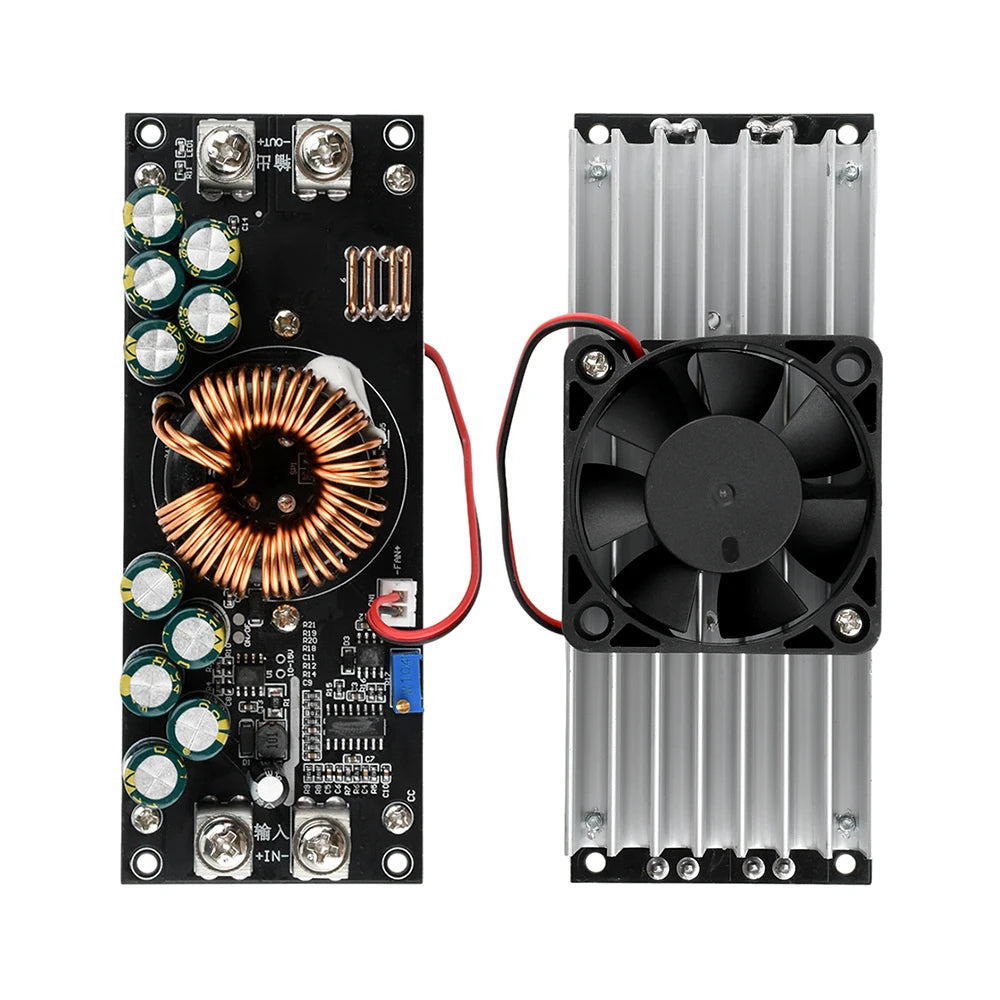

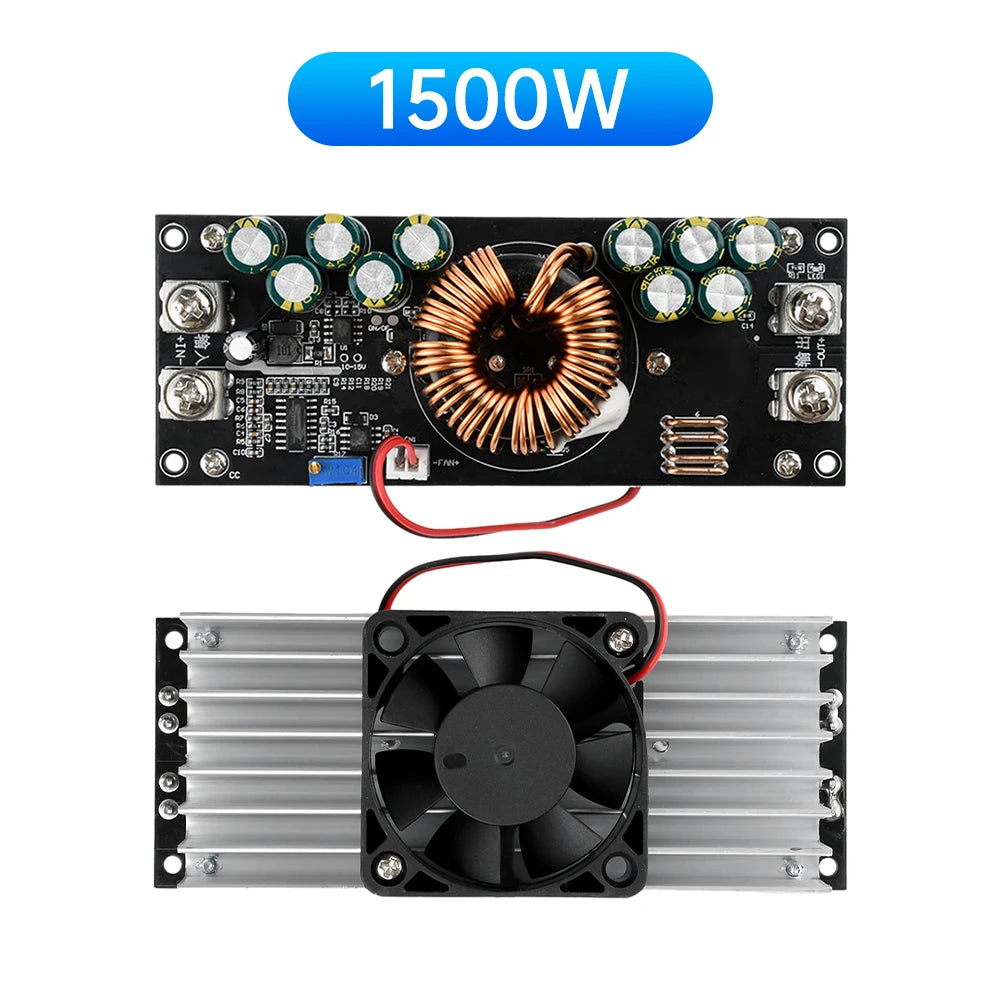

Heat dissipation method: air-cooled heat dissipation
Input anti reverse connection: None (input reverse connection is strictly prohibited)
Input undervoltage protection: None
Input overvoltage protection: None (overvoltage prohibited)
Output ON/OF switch interface: Yes (user needs to wire it themselves)
Working temperature:- 10+65℃
Operating frequency: 80KHz
Conversion efficiency: up to 97% (efficiency is related to input and output voltage, current, and voltage difference)
Short circuit protection: None (can limit current to 30A/50A)

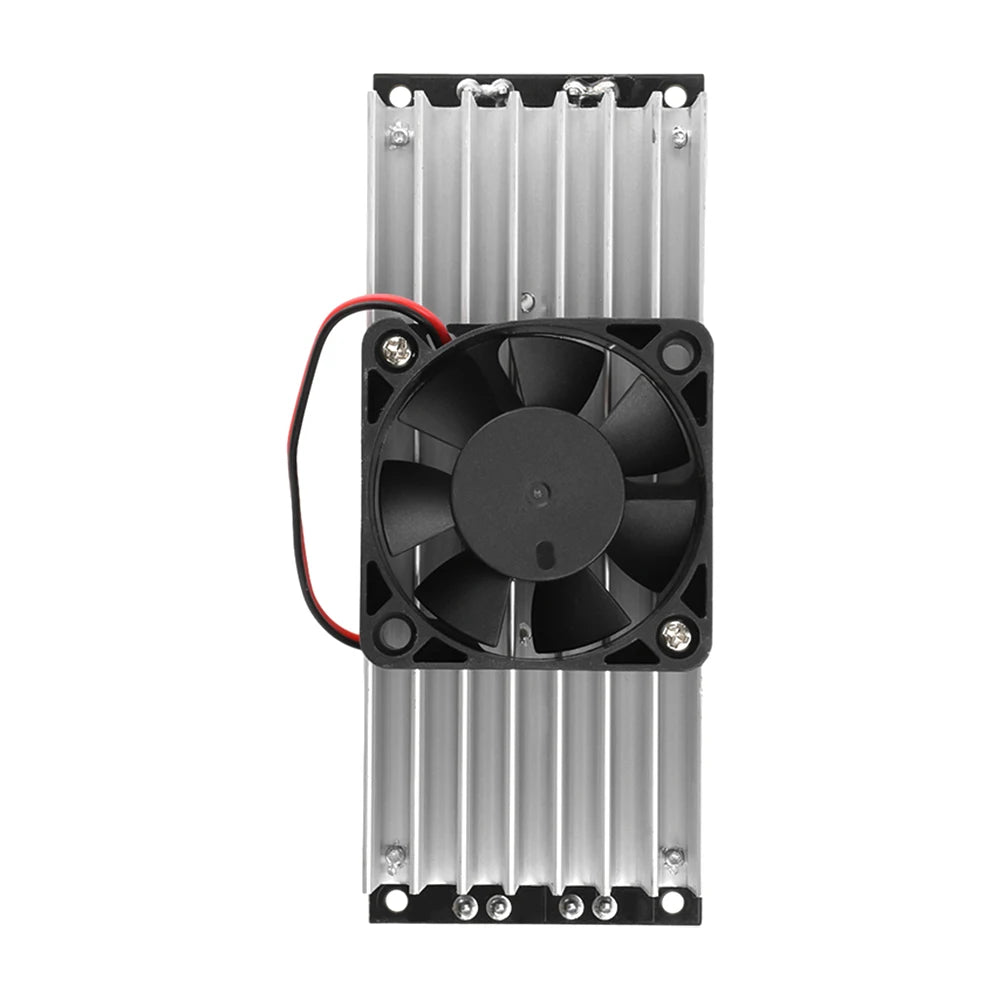

Cooling method: Air cooling (temperature controlled fan, turned on at around 45 ℃)
Output anti backflow: None (output connected to inductive load, such as motor must be equipped with anti backflow diode)
Package List:
1200W/1500W voltage reduction module * 1
