SPECIFICATIONS

Brand Name: NoEnName_Null

Choice: yes

Hign-concerned Chemical: None

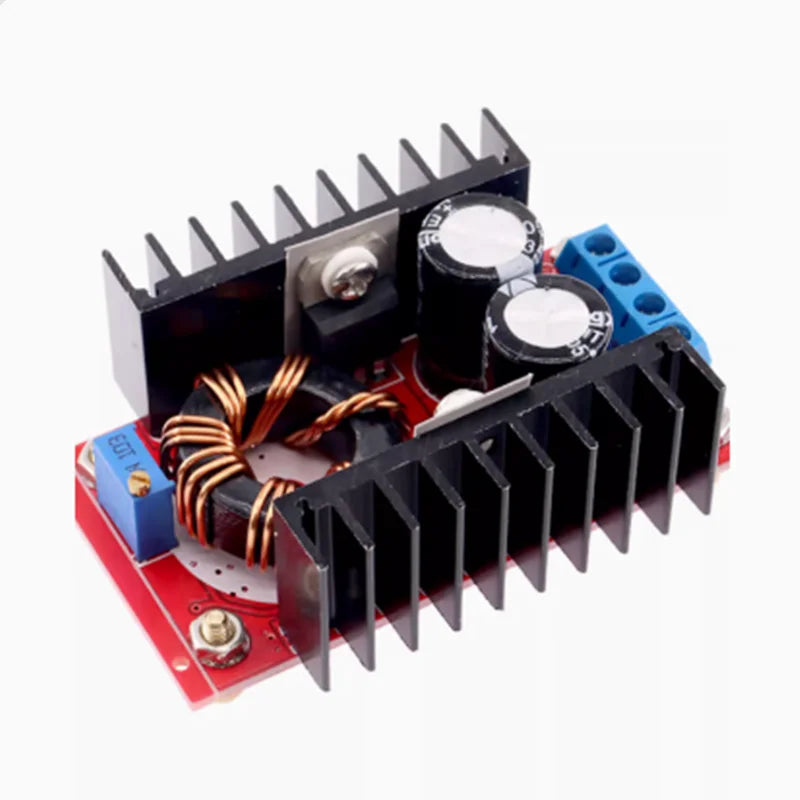

Model Number: 150W boost module

Origin: Mainland China

Output Current: 6A (MAX)

Size: 65*47*25mm

Type: DC/DC Converters

semi_Choice: yes

Specification :

The Input voltage: 10-32 v
The Output voltage: 12-35 v (adjustable)
The Output Current: 6 a (MAX)
The Input Current: 10 a (MAX) (both Please enhance heat dissipation if wining 10 a)
The Output power: natural cooling 100 w (MAX), enhance heat dissipation 150 w (MAX)
Easy to drive 65 w to 90 w dual - core notebook.
Use a 12 v 'drive 19 v 3.42 a notebook, the module temperature is about 45 ° c
Conversion efficiency: 94% (measured at 16 v Input, the output of 19 v 2.5 A)
The Output Ripple: 2% (MAX) 20 m - bandwidth
Operating Temperature: Industrial (40 ° c to + 85 ° c) (ambient Temperature exceeds 40 ° c, the lower the power use, or to enhance the heat dissipation)
Full load temperature rise: 45 ° c
No - load current: 25 ma typical
Voltage regulation: plus or minus 0.5%
The Dynamic response speed: 5% 200 us
