Driver LED No Aislado 220mA/230mA (18W/24W/32W/40W) Fuente AC80-180V Transformador Iluminación SMD Bulbo
Driver LED No Aislado 220mA/230mA (18W/24W/32W/40W) Fuente AC80-180V Transformador Iluminación SMD Bulbo
No se pudo cargar la disponibilidad de retiro
SPECIFICATIONS
18-24W Voltage: 80-110V
24-32W Voltage: 110-145V
32-40W Voltage: 145-182V

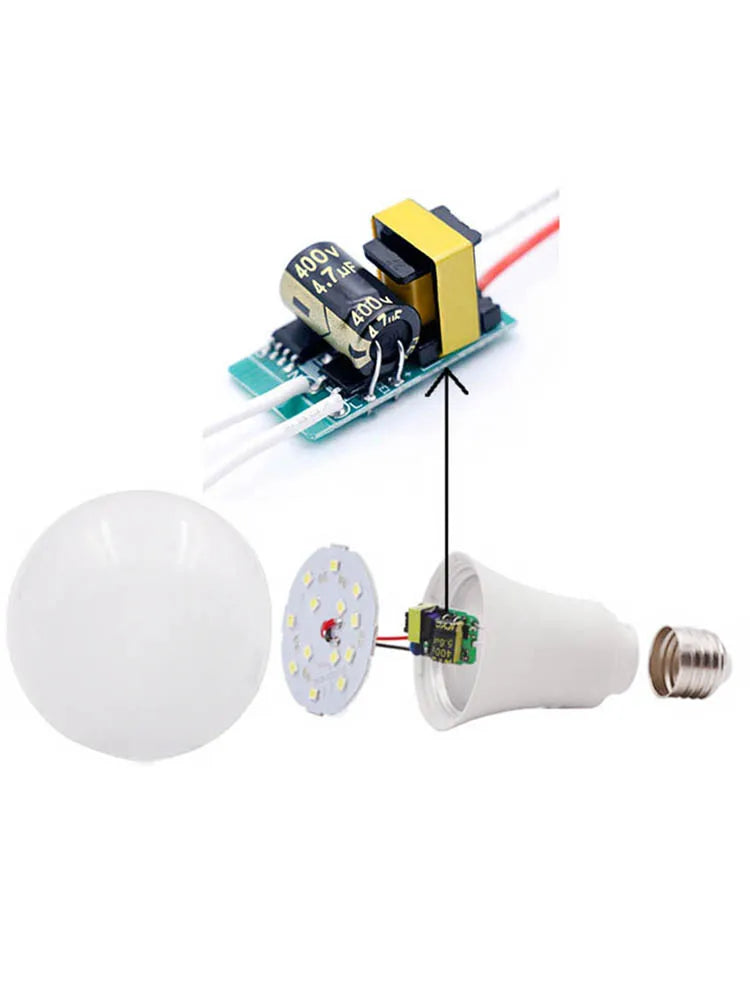

Applicable place: LED Blub inside driver
Brand Name: warm and happy
Certification: CCC,ce,CQC,ROHS
Current: 220-230mA
Features: Non-isolated LED driver
Hign-concerned Chemical: None
Input Signal: AC
Input Voltage: 175-265v
Item Type: Lighting Transformers
Material: Plastic + Alloy + copper coil
Model Number: TD001
Origin: Mainland China
Output Signal: DC
Output Voltage: 80-110V/110-145V/145-182V
Plug Type: None
Power: 18-24W/24-32W/32-40W
Warranty: 2year
Weight: 11
Product detail

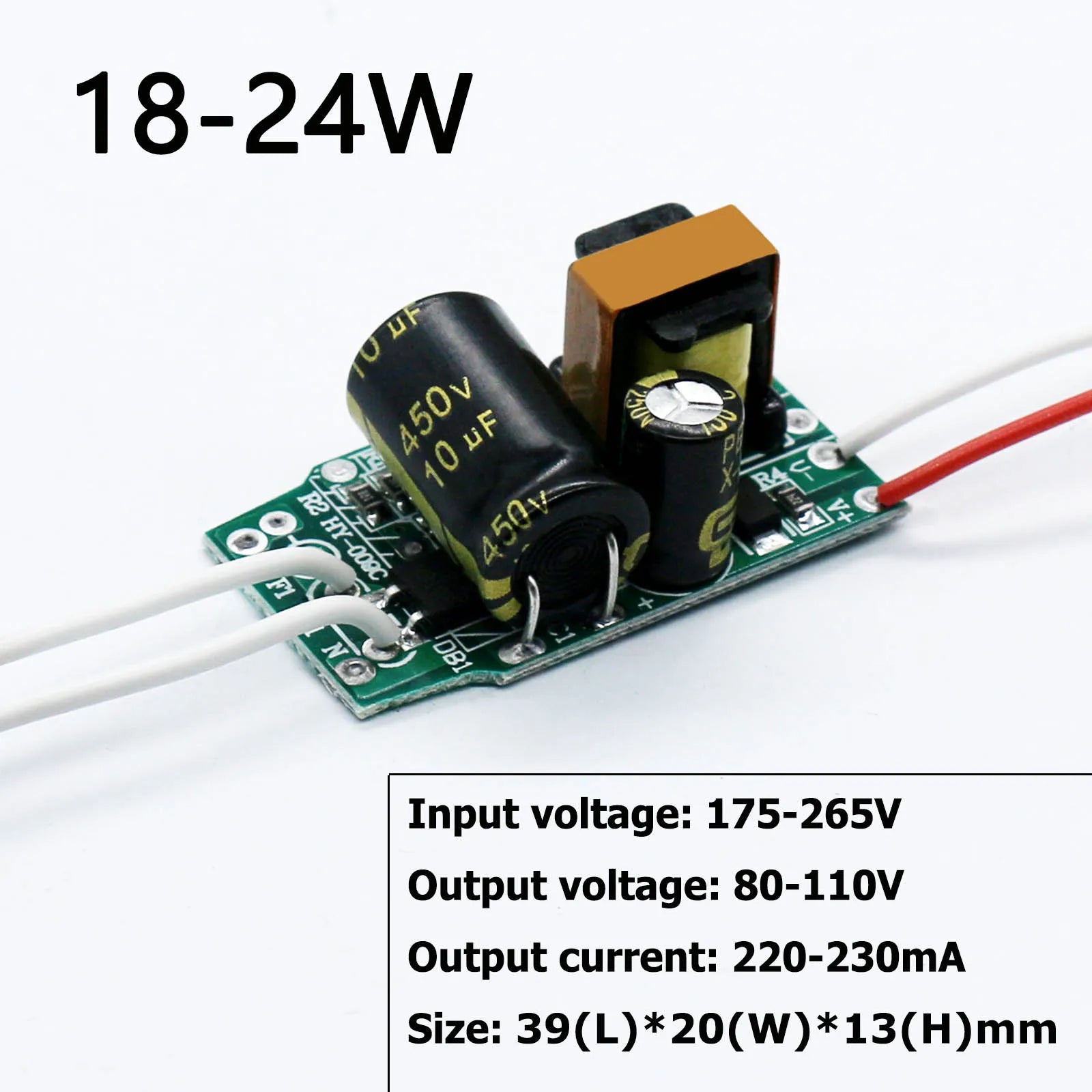

LED Non-isolated 18-24W
Parallel/serial ：2B14C to 2B16C
450v 10uF
130 degree high temperature resistant material
8000 hours of electrolysis
2.0mH Full copper transformer
7G16 copper copper wire
Input voltage: 175-265V
Load Output voltage: 80-110V
Output current: 220-230mA
No-load output voltage : 20-148V
（Danger! No-load test is prohibited）
Size: 39 (L) * 20 (W) * 13 (H) mm

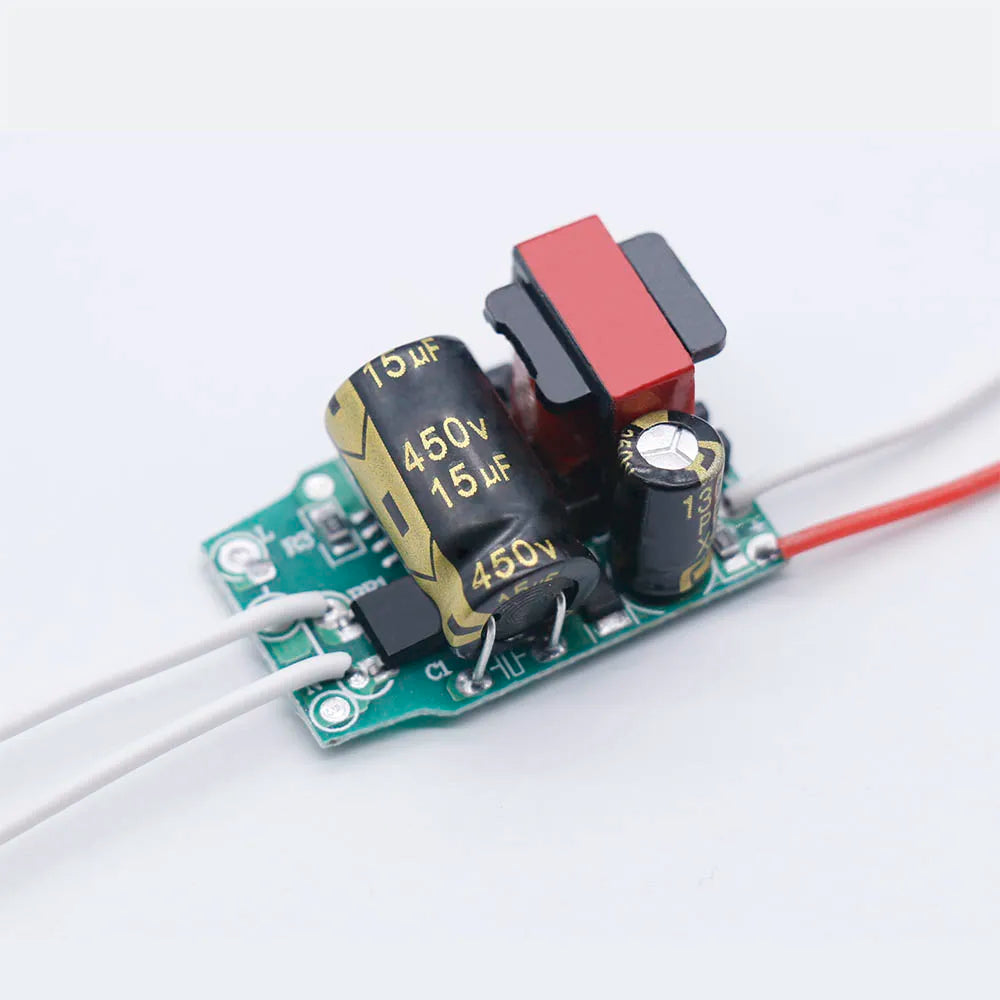

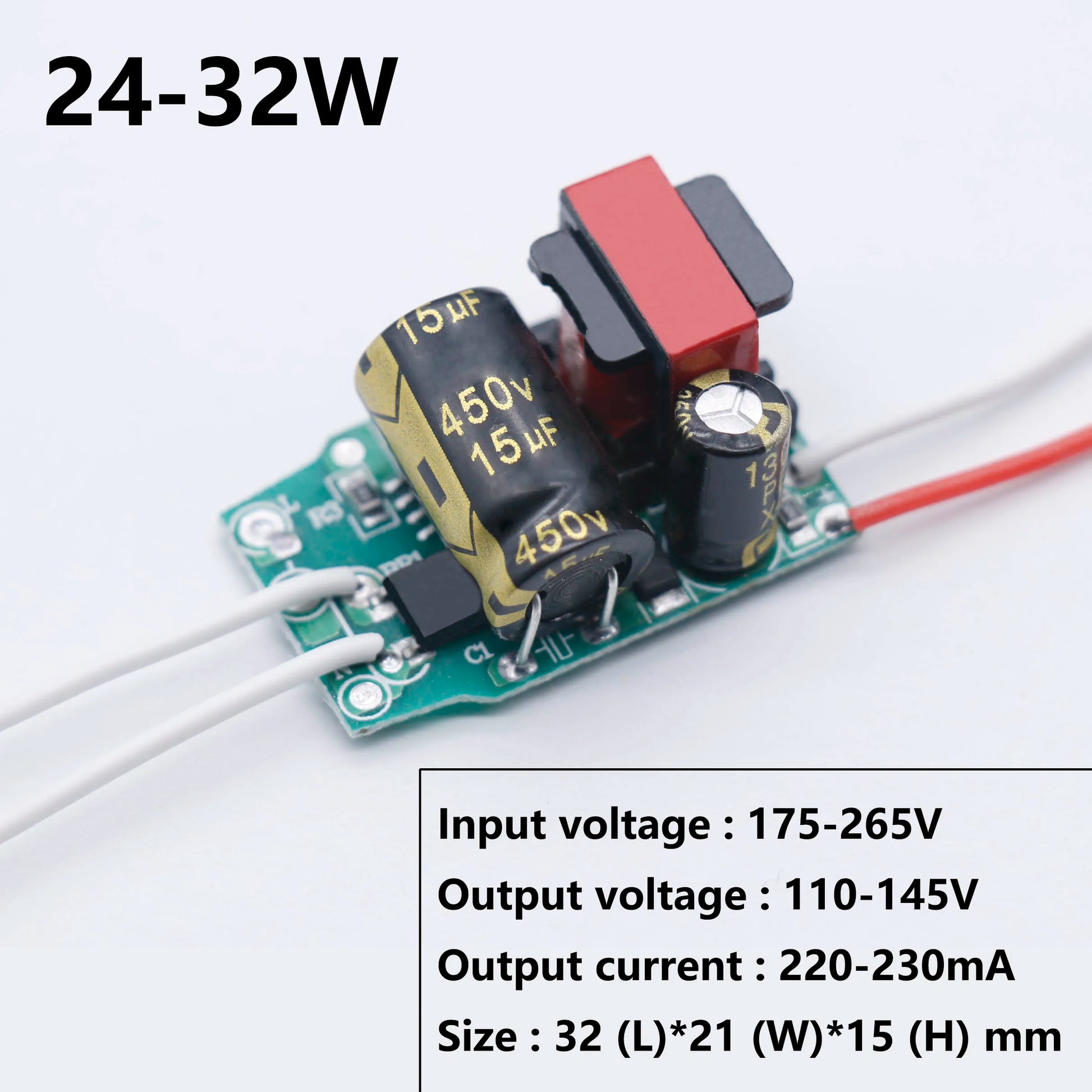

LED Non-isolated 24-32W
Parallel/serial ：2B18C to 2B22C
450v 15uF
130 degree high temperature resistant material
8000 hours of electrolysis
2.0mH Full copper transformer
7G16 copper copper wire
Input voltage: 175-265V
Load Output voltage: 110-145V
Output current: 220-230mA
No-load output voltage : 20-148V
（Danger! No-load test is prohibited）
Size: 32 (L) * 21 (W) * 15 (H) mm

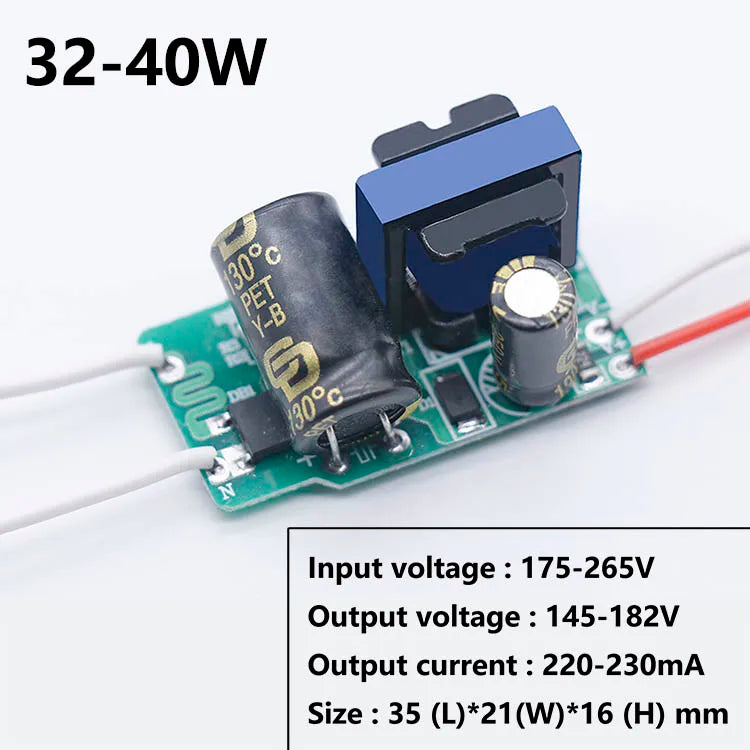

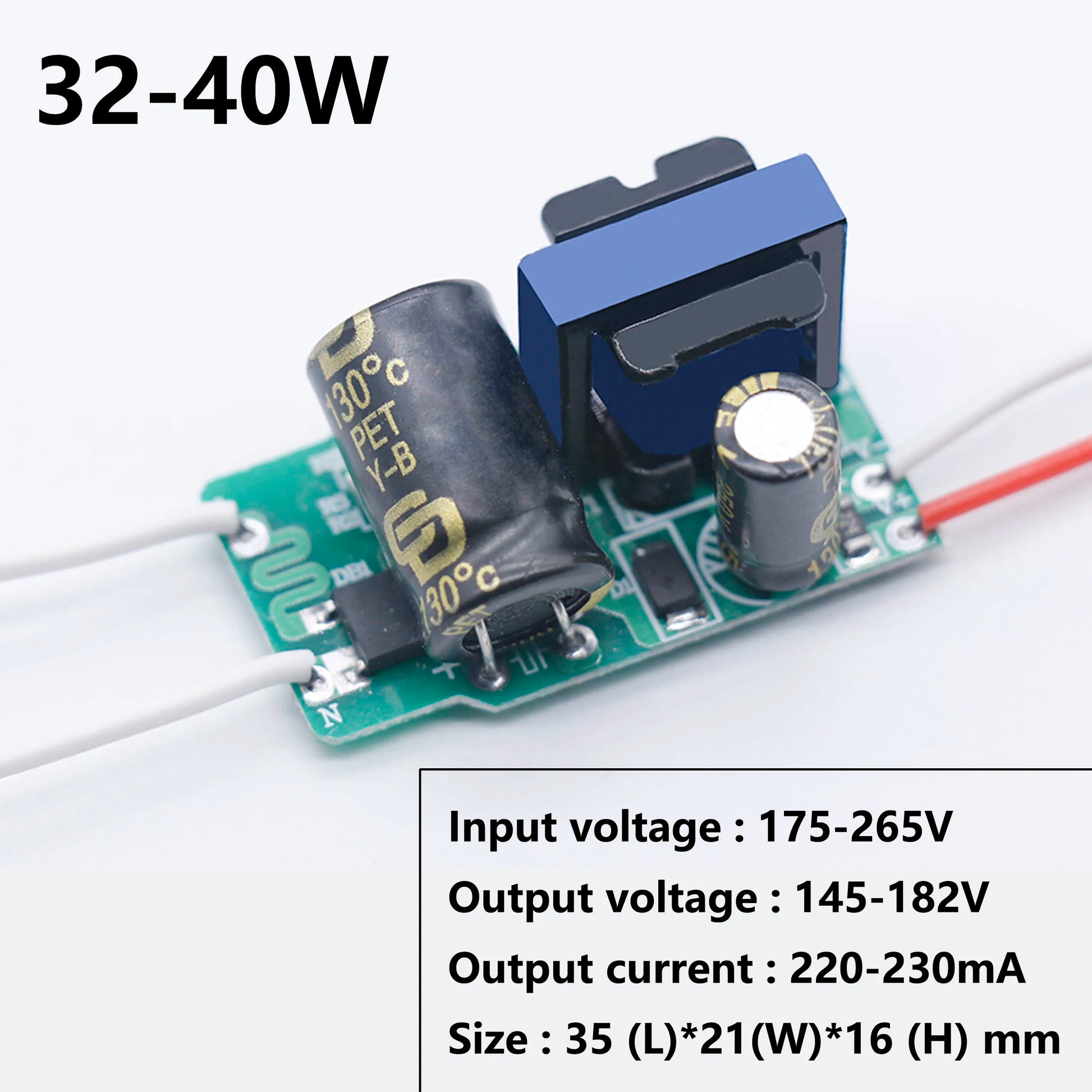

LED Non-isolated 32-40W
Parallel/serial ：2B23C to 2B27C
400v 15uF
130 degree high temperature resistant material
8000 hours of electrolysis
2.0mH full copper transformer
7G16 copper copper wire
Input voltage: 175-265V
Load Output voltage: 145-182V
Output current: 220-230mA
No-load output voltage : 20-200V
（Danger! No-load test is prohibited）
Size: 39 (L) * 20(W) * 13 (H) mm
