Driver LED Aislado Bicolor (3 Pines, 300mA) 3W / 4-7W / 8-12W / 12-18W Fuente Alimentación Iluminación (1 Unidad)
Driver LED Aislado Bicolor (3 Pines, 300mA) 3W / 4-7W / 8-12W / 12-18W Fuente Alimentación Iluminación (1 Unidad)
No se pudo cargar la disponibilidad de retiro
SPECIFICATIONS
12 to 18W Two color driver: Output 36-65V and 300mA

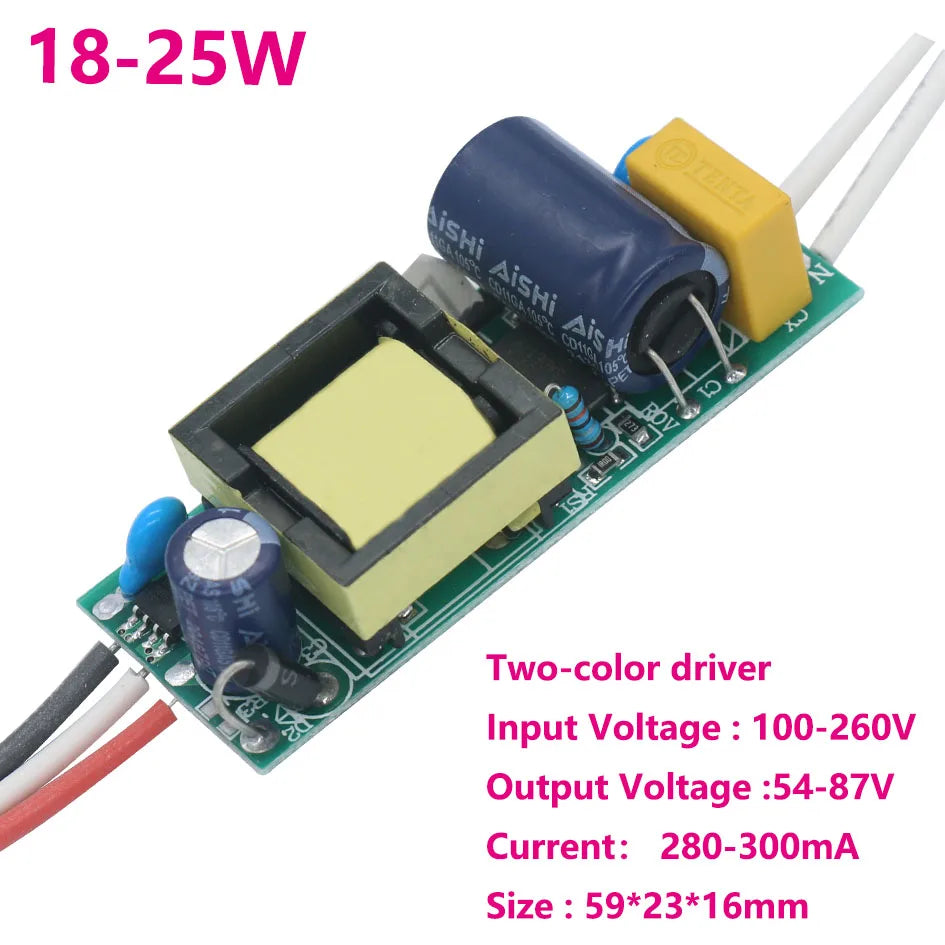

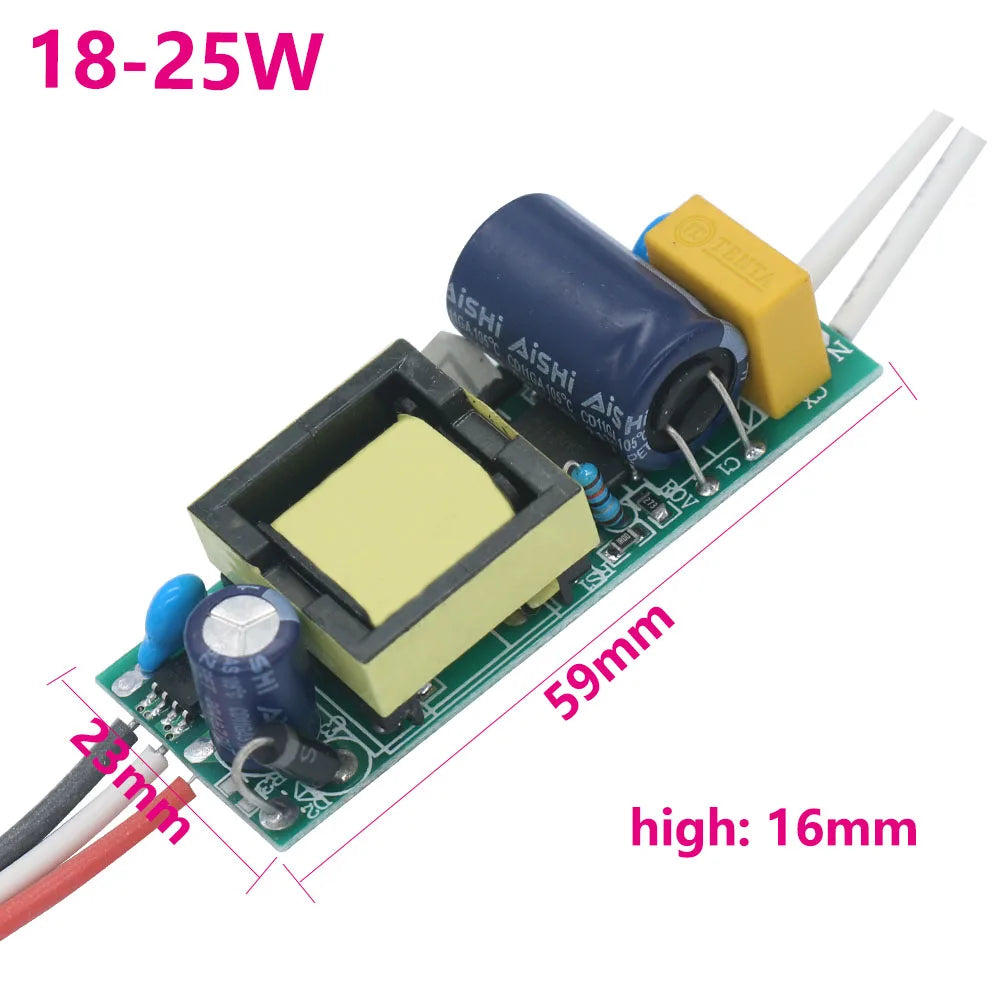

18-25W Two color driver: Output 54-87V and 300mA

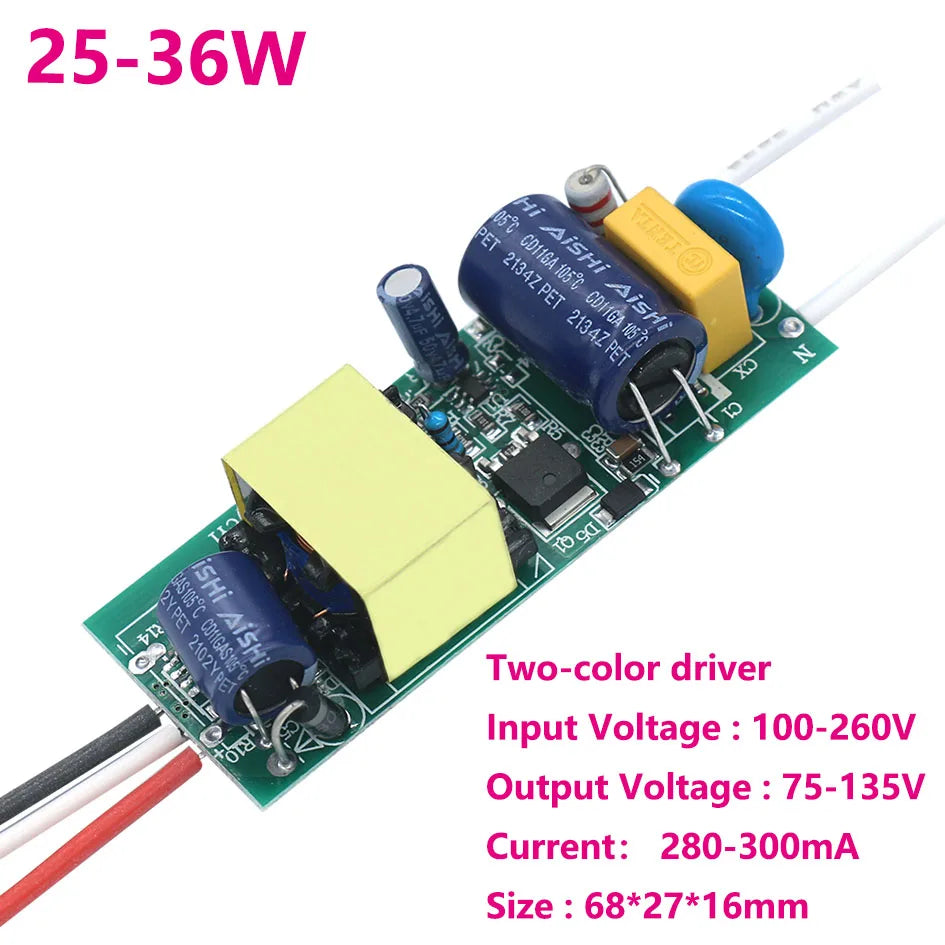

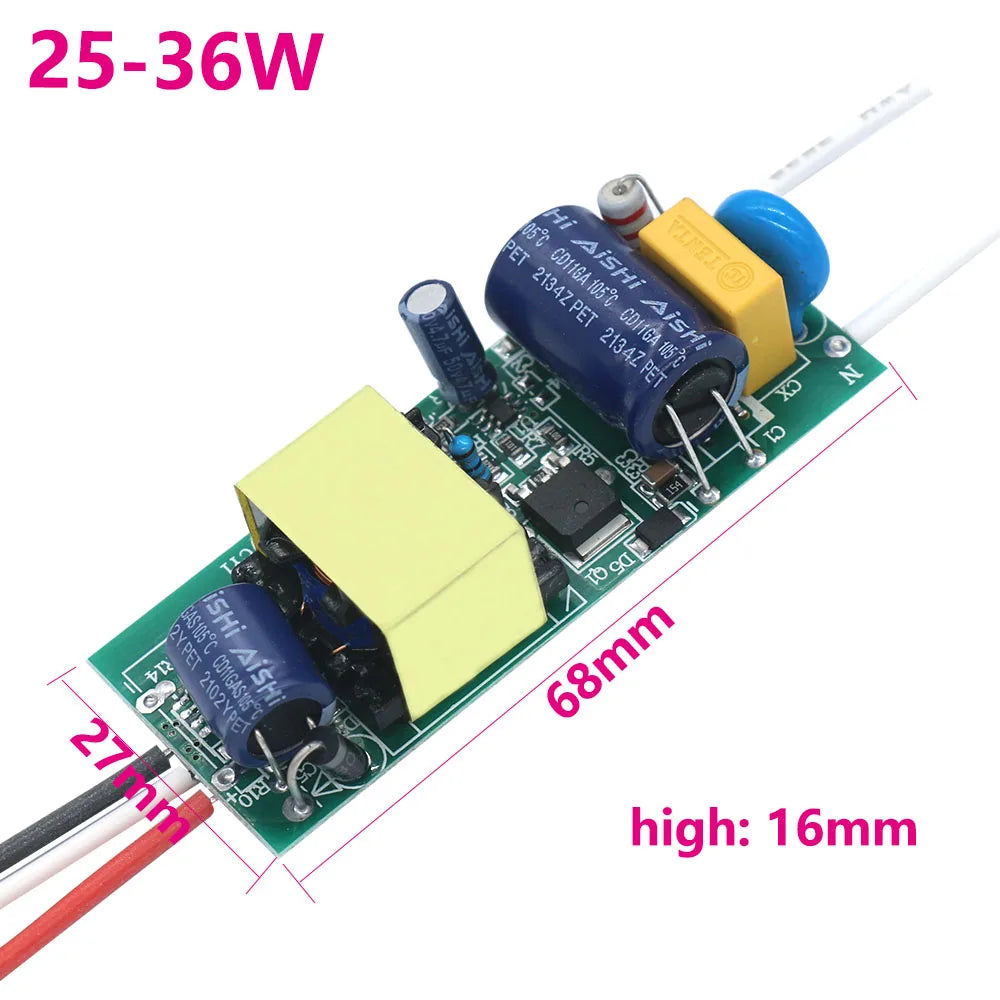

25-36W Two color driver: Output 75-135V and 300mA
3w Two color driver: Output 3-11V and 300mA
4 to 7W Two color driver: Output 12-26V and 300mA
8 to12W Two color driver: Output 24-46V and 300mA
Brand Name: NoEnName_Null
Certification: CCC,ce,CQC,ROHS
Features: Isolated safety driver
Hign-concerned Chemical: None
Input Signal: AC
Input Voltage: 100-265V
Input voltage: 100-265V
Item Type: Lighting Transformers
Material: Plastic alloy electronic components,Plastic alloy electronic components
Model Number: TD0158
Origin: Mainland China
Output Signal: DC
Output Voltage: 3-11/12-26V/24-46V/36-65V/54-87V
Plug Type: None
Warranty: 3
output voltage: 3-11/12-26V/24-46V/36-65V/54-87V
Note

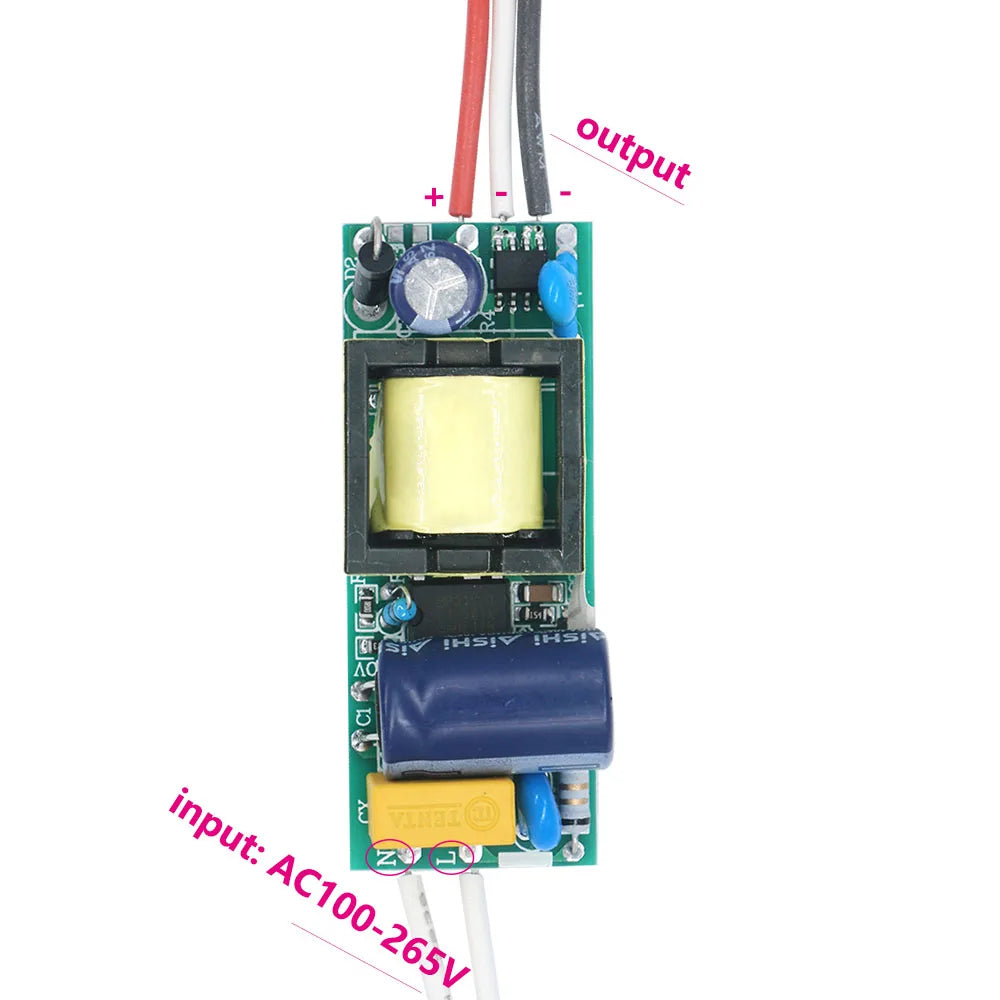

Two white silicone wires are the input ports: N is the zero line and L is the fire line. Three silicone wires are the output ports: Representing: Red is positive + White is the negative - Black is the negative -
Specification

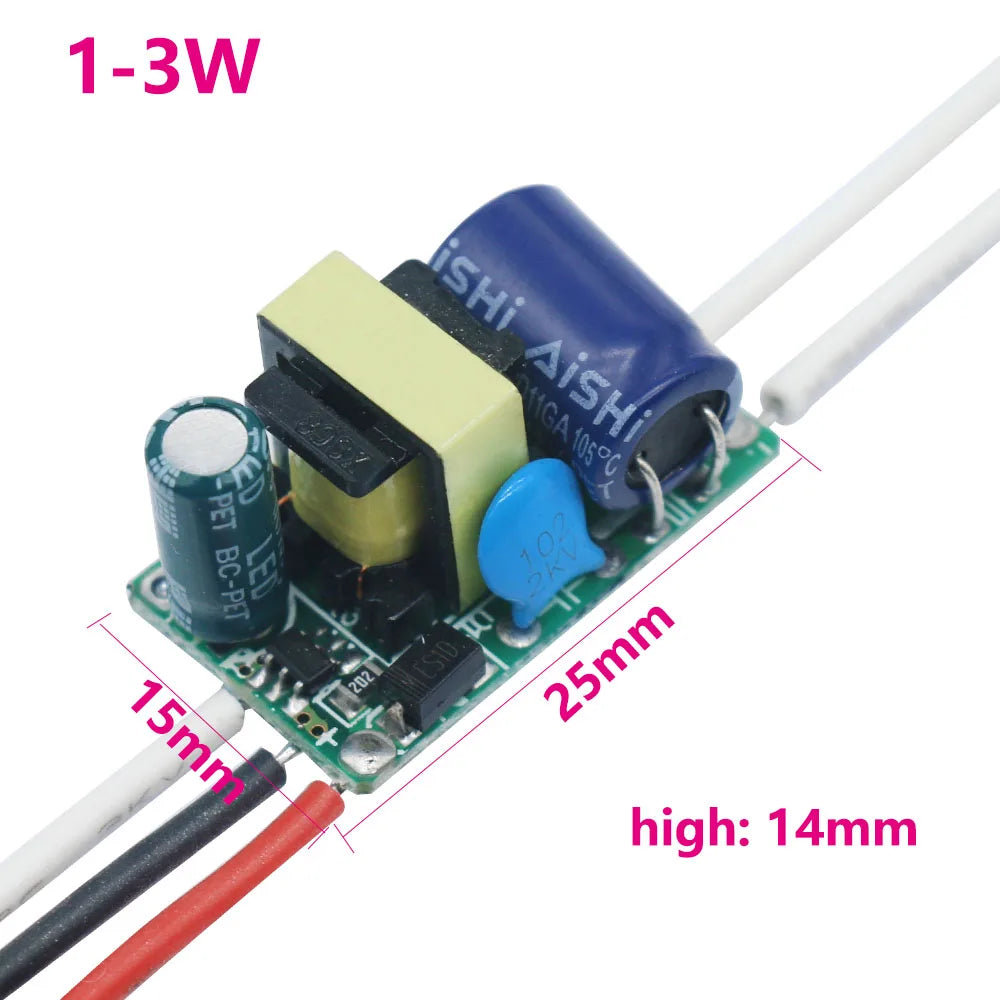

1-3W Input Voltage : 100-260V Output Voltage : 3-11V Output Current : 280-300mA

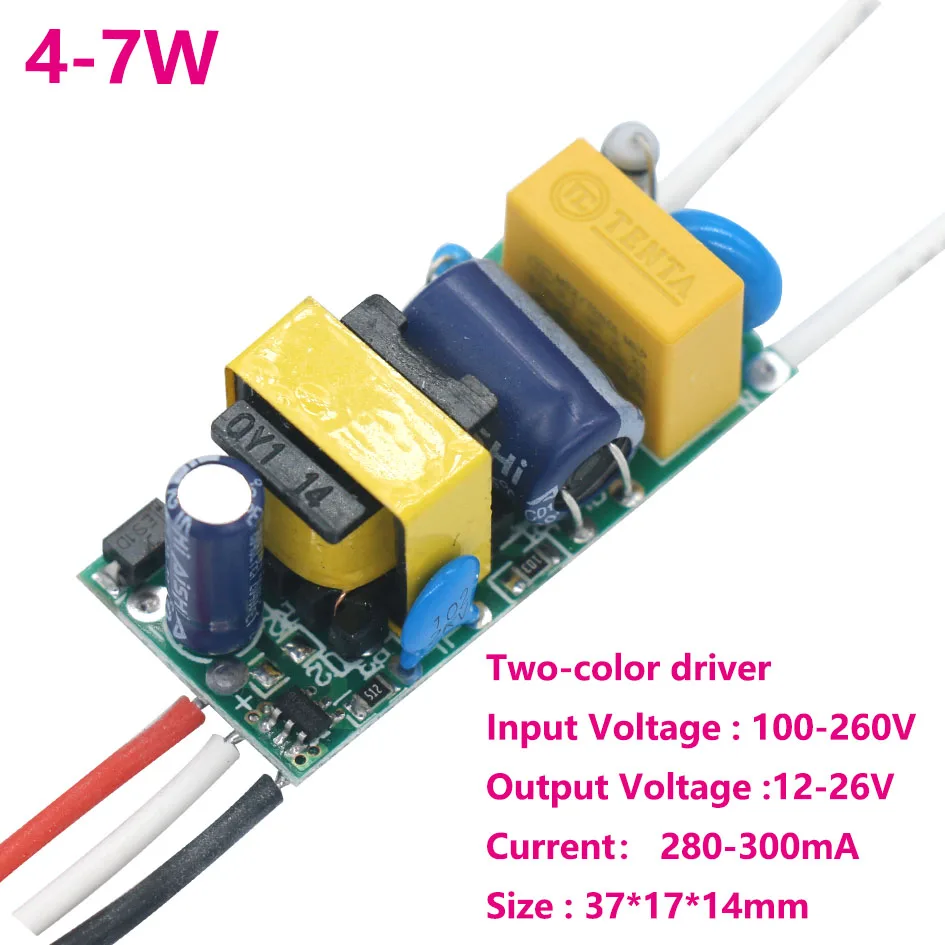

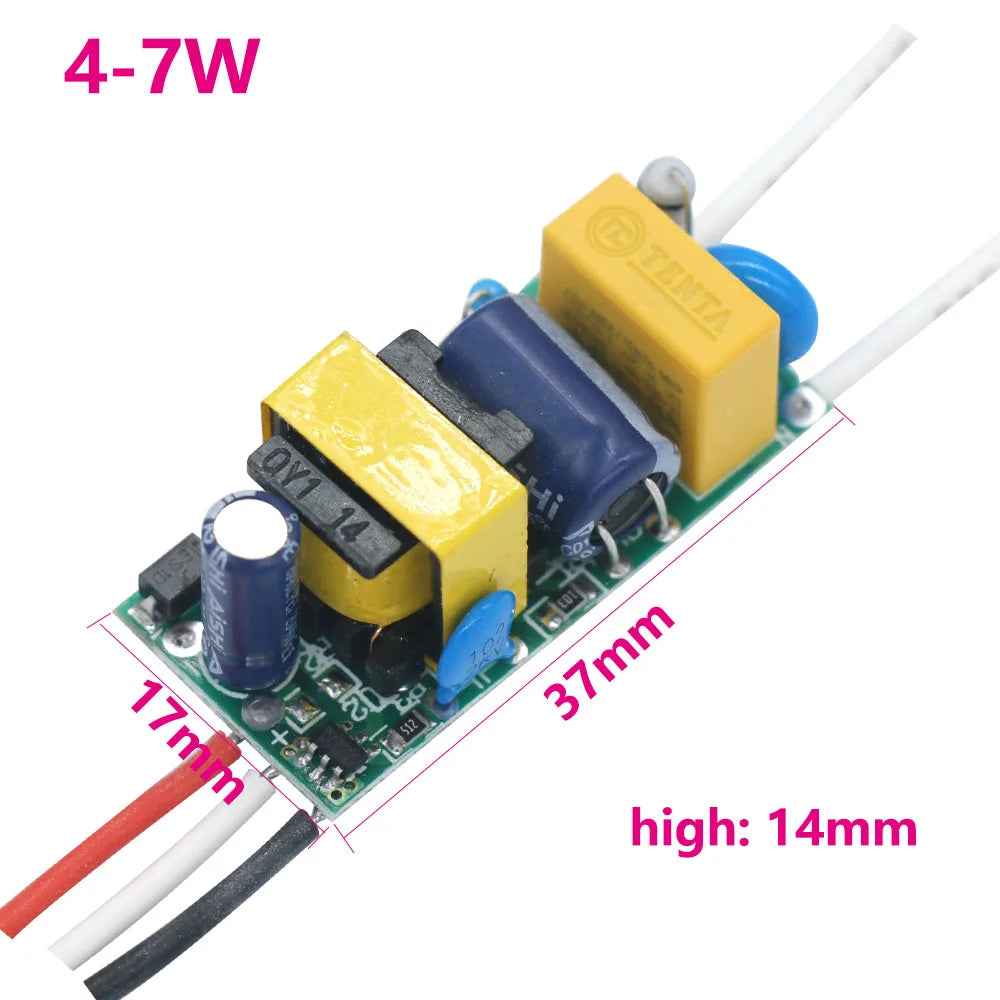

4-7W LED Driver Input Voltage : 100-260VOutput Voltage : 12-26V Output Current : 280-300mA

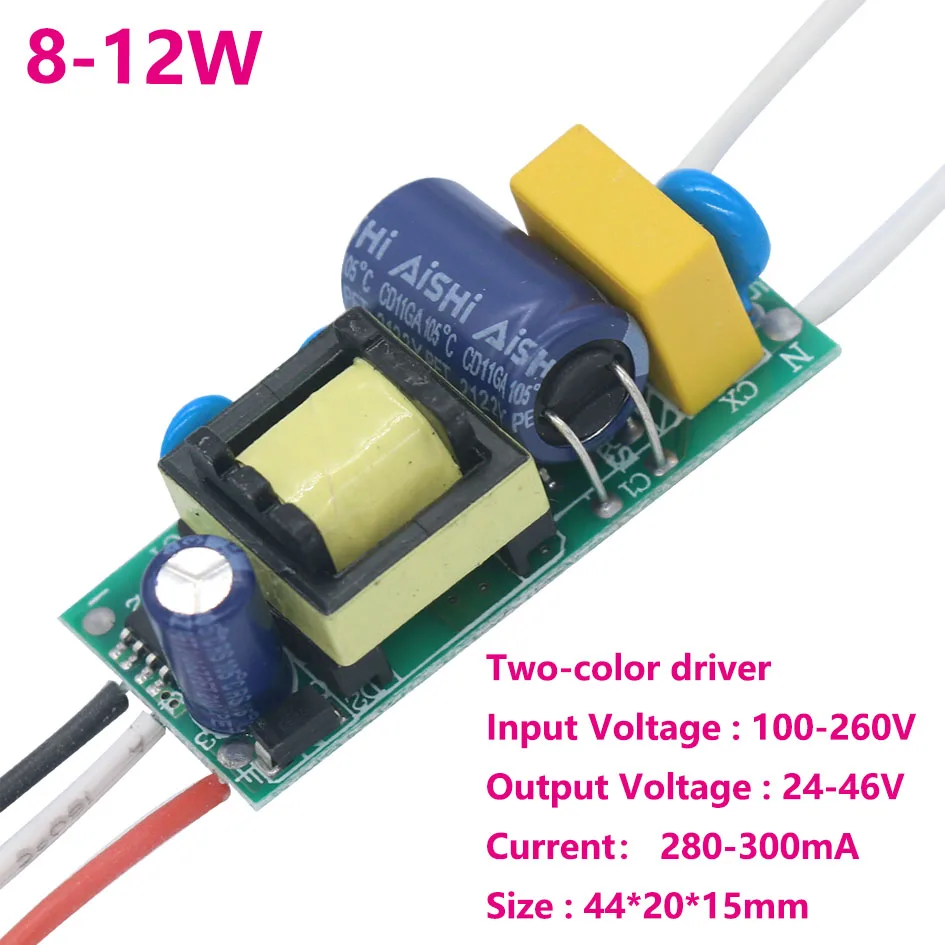

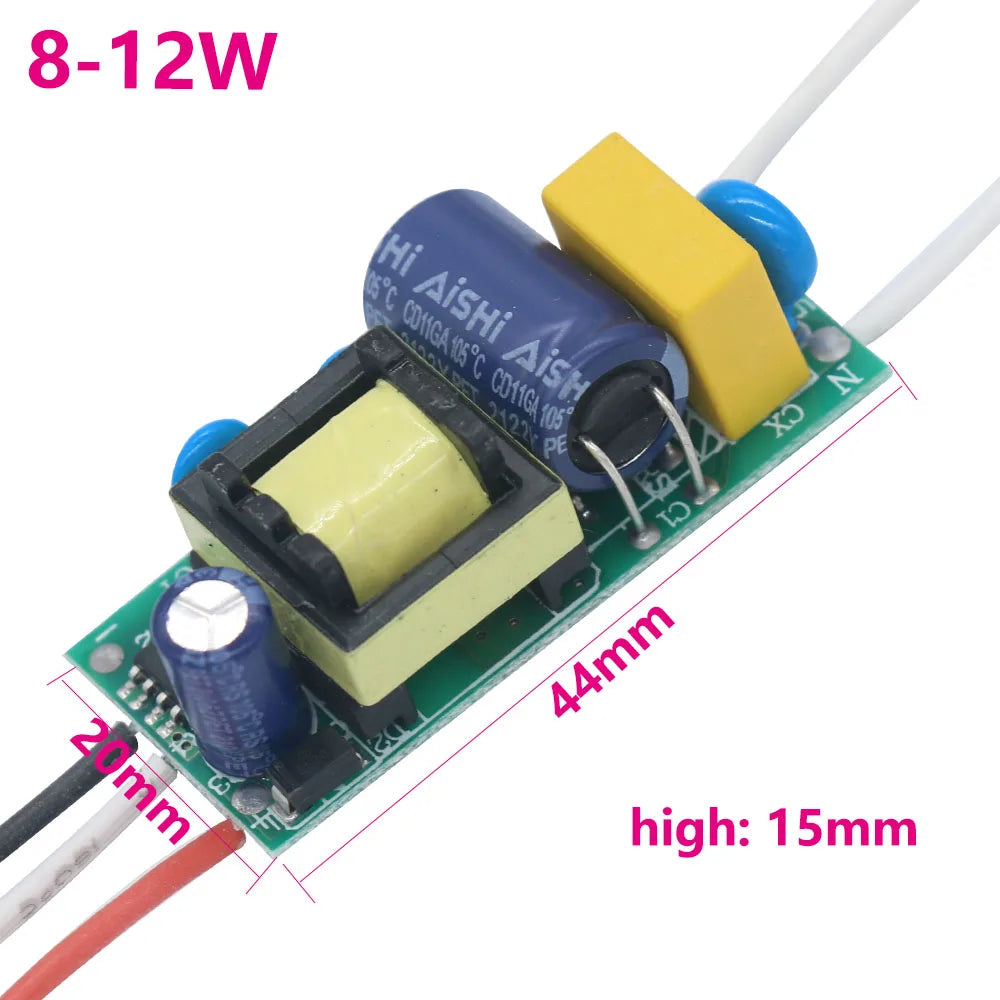

8-12W LED Driver Input Voltage : 100-260V Output Voltage : 24-46V Output Current : 280-300mA

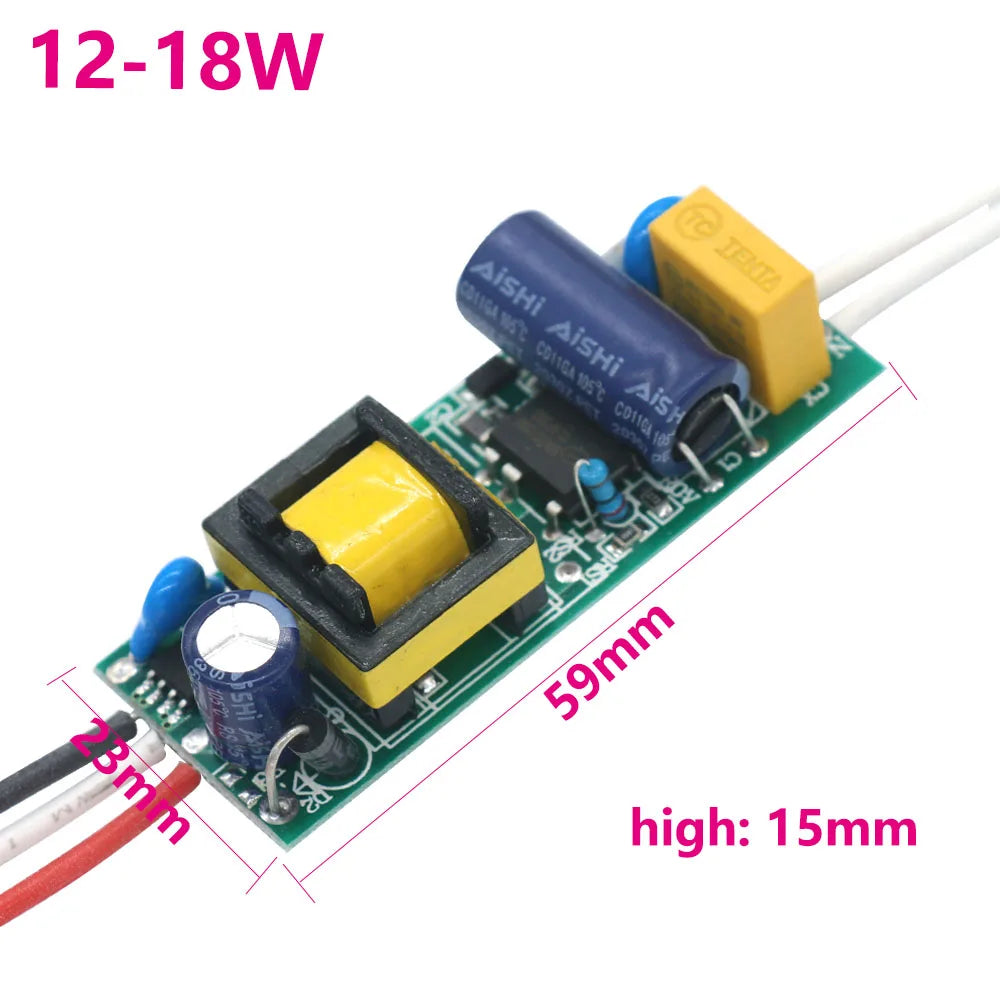

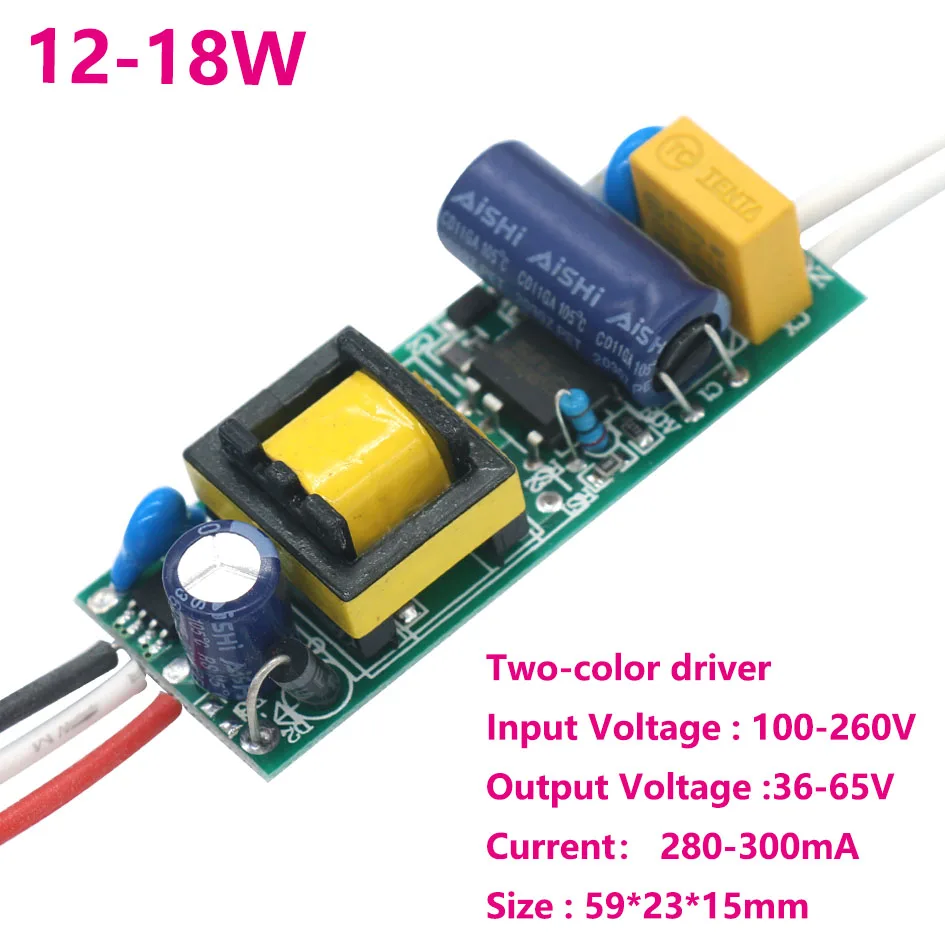

12-18W LED Driver Input Voltage : 100-260V Output Voltage : 36-65V Output Current : 280-300mA
