SPECIFICATIONS

Brand Name: NoEnName_Null

Choice: yes

Control board: T12 JBC245 210 936

DIY Supplies: ELECTRICAL

Model Number: T12 JBC245 210 936

Origin: Mainland China

Size: T12 JBC245 210 936 Controller Board

Style: Temperature Controller

Temperature Controller: 2 inch color screen Digital

Type: T12 JBC245 210 936 Control board

semi_Choice: yes

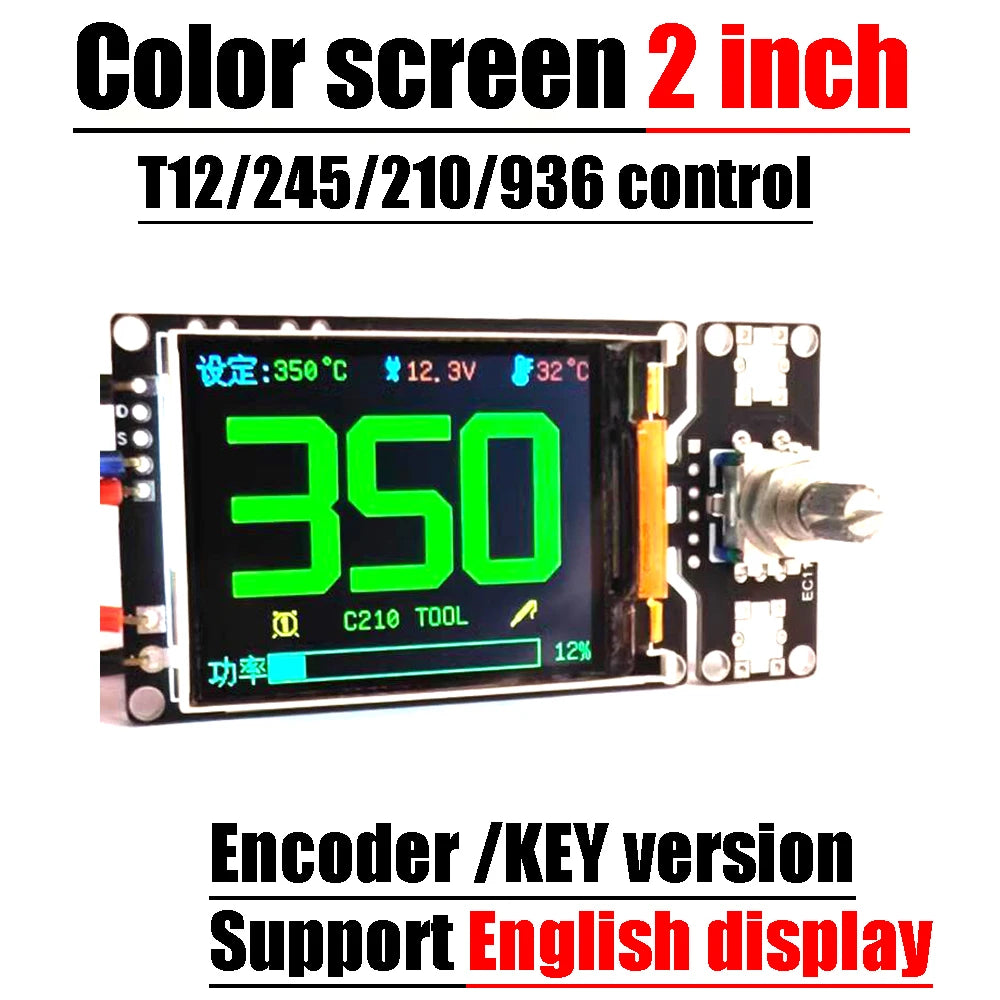

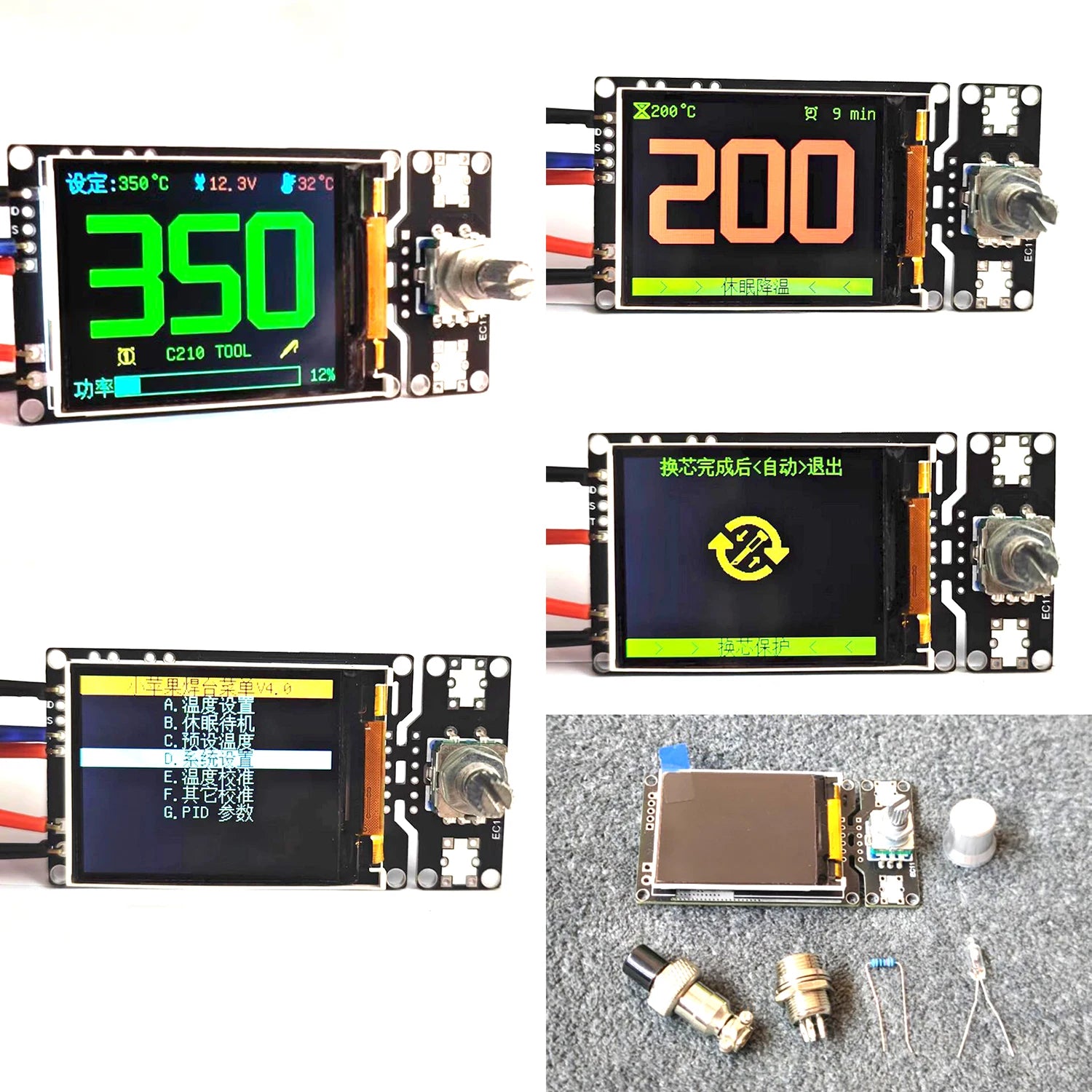

2 Inch T12 Control Board Color Display JBC245 210 936 Digital Soldering Iron Soldering Station Temperature Controller FOR HAKKO

Support for Chinese and English display

Power requirements

t12 24V 3A

C245 24V 6A

C210 12V 6A

936 24V 3A

High precision independent operation amplifier with 32-bit main control,

The original mos tube is more efficient and durable!

The control board supports two modes of vibration hibernation and hibernation seat;

Support jbc core change protection to prevent damage to the motherboard when changing the heating core;

Support automatic shutdown;

Support voltage protection, better protect the battery when using battery power supply, prevent overdischarge;

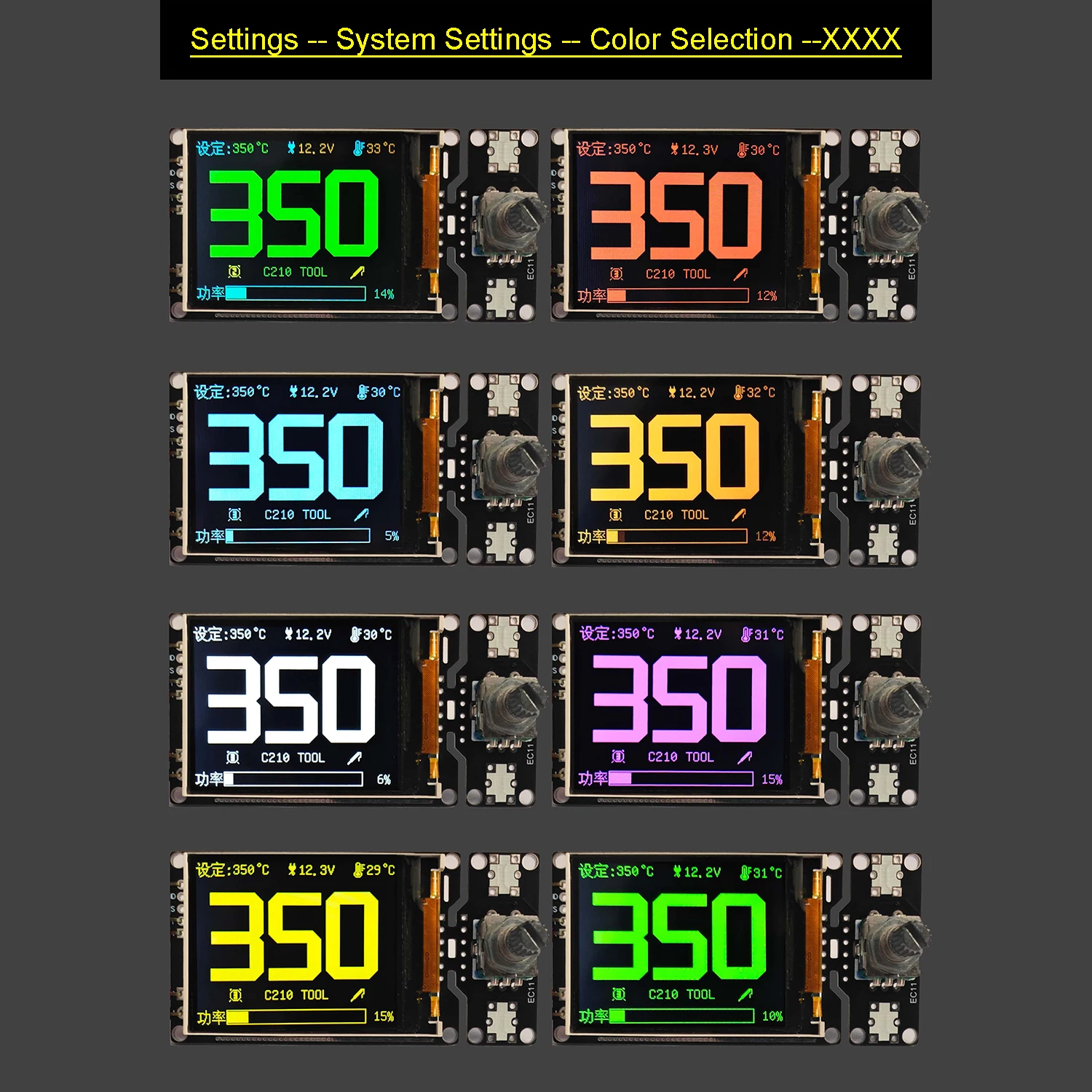

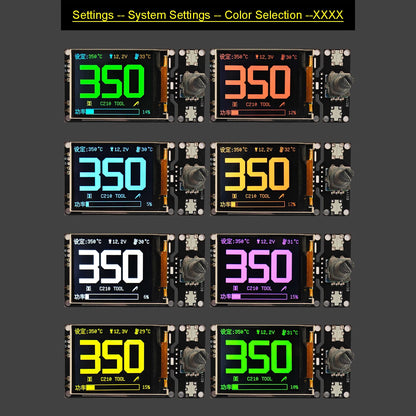

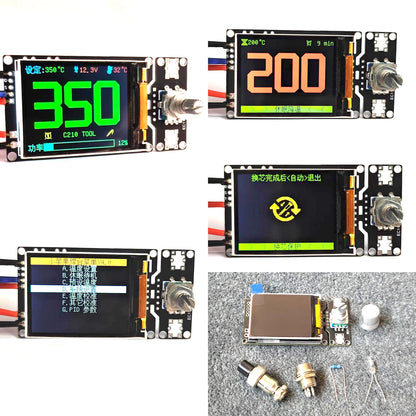

Support 7 color scheme free switching;

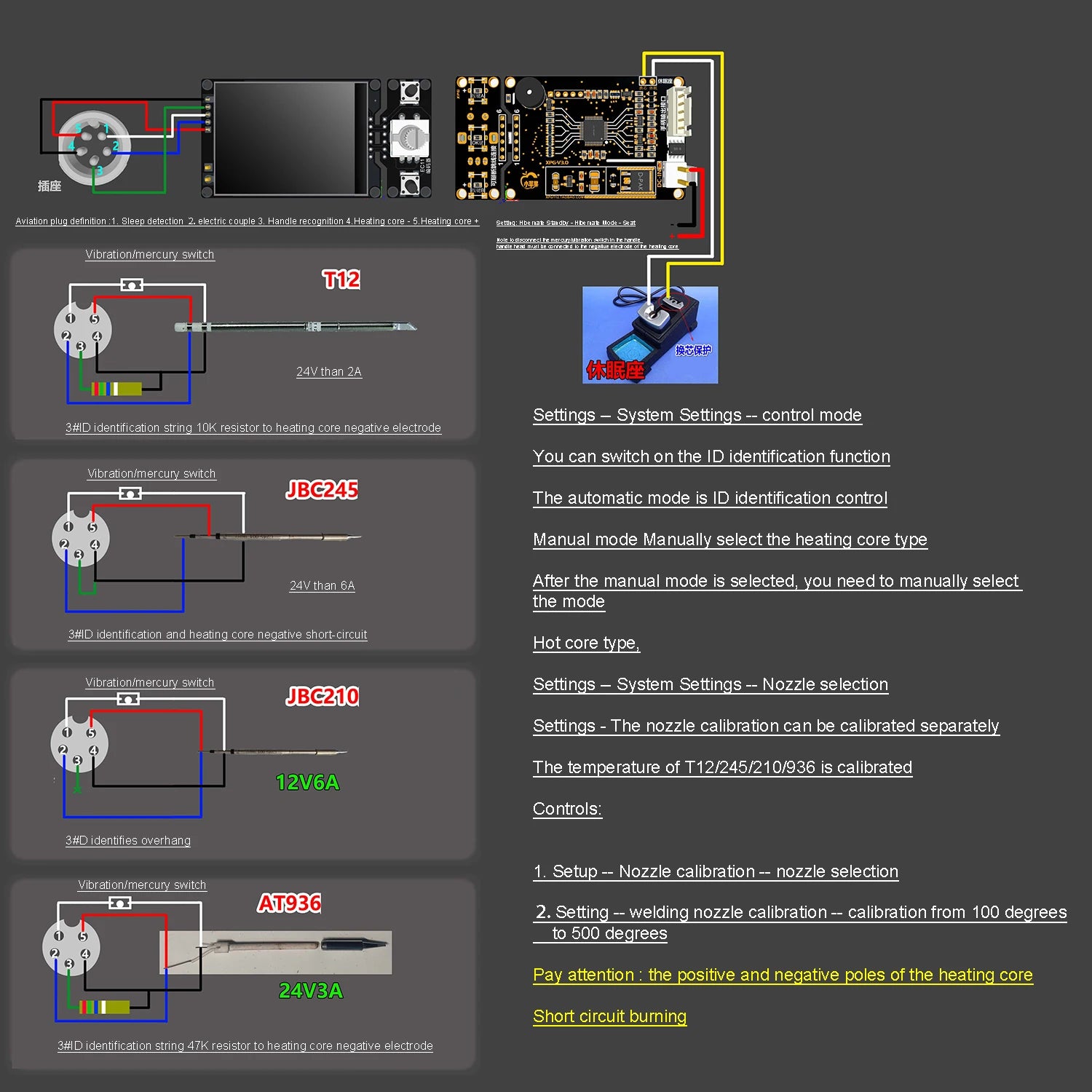

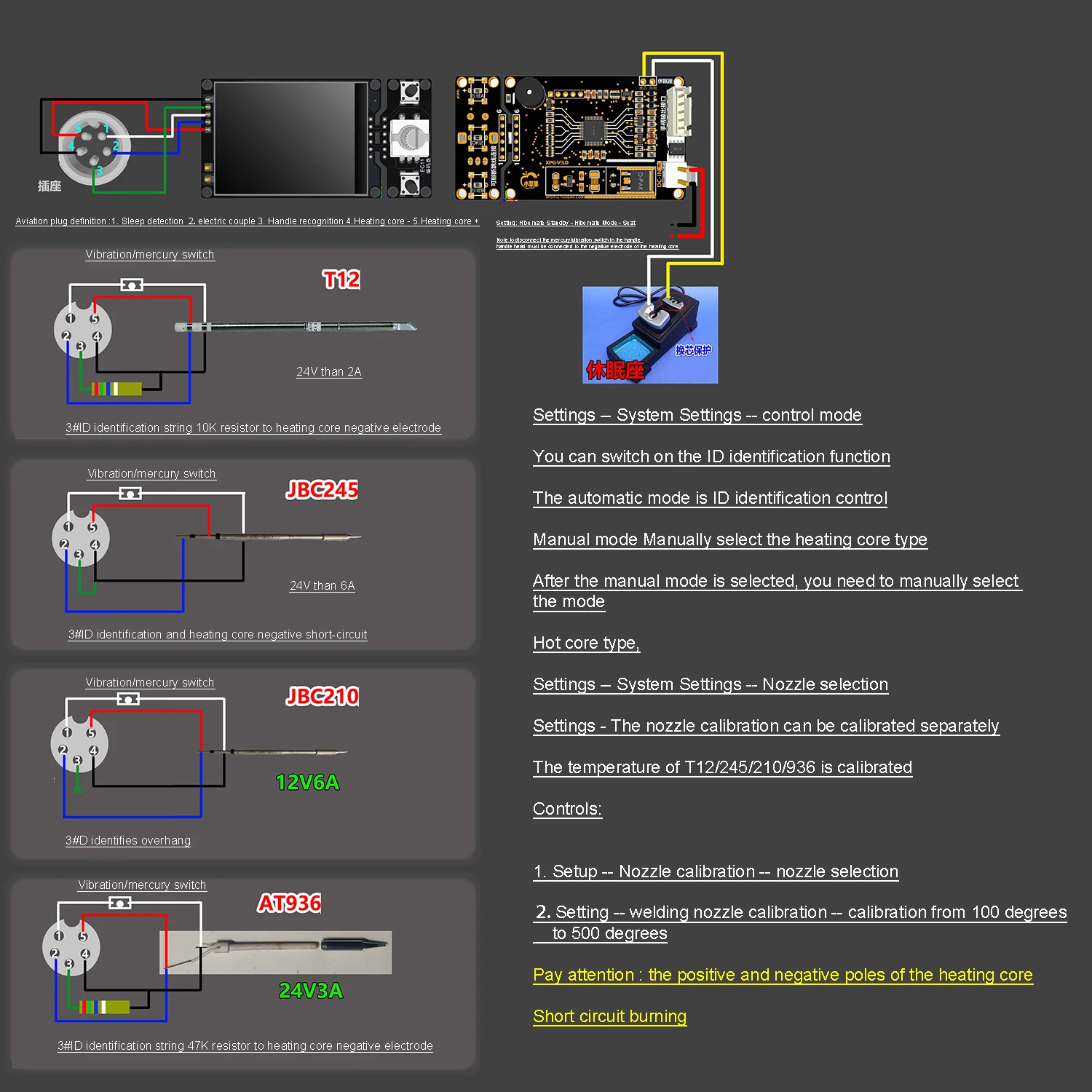

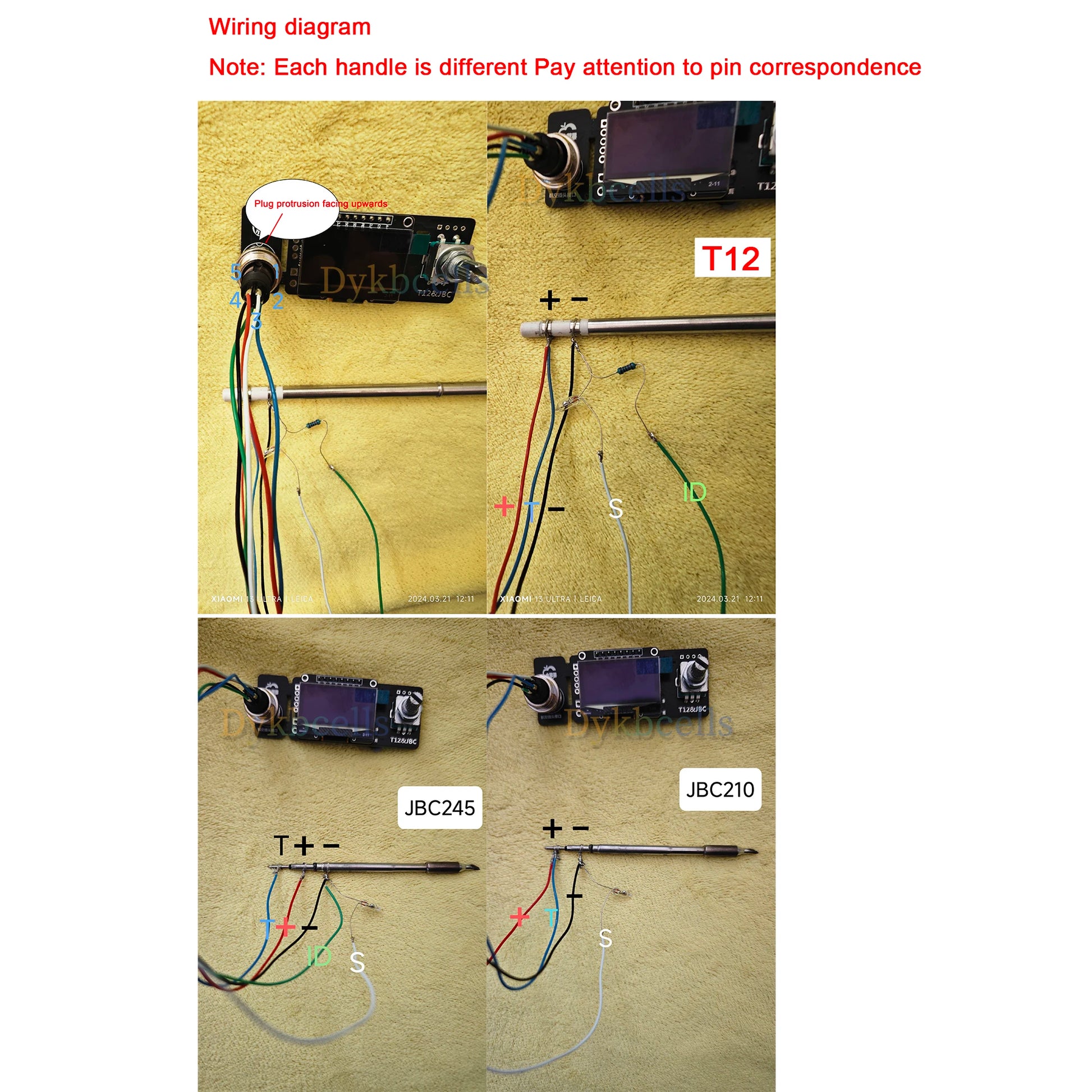

Support t12/245/210/936 automatic identification;

Support self-calibration heating core;

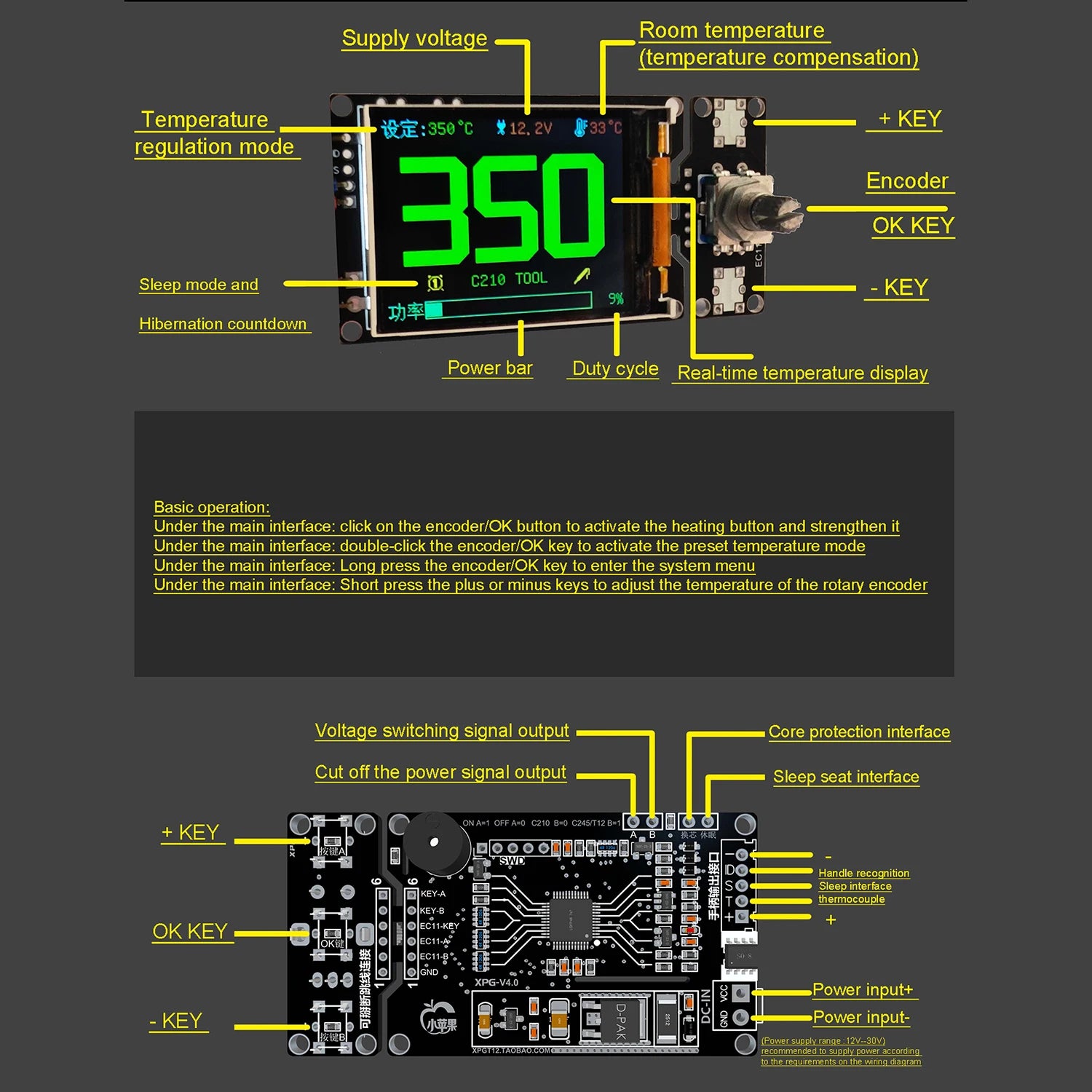

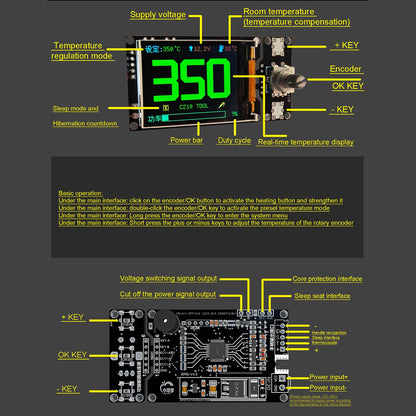

Basic operation 1: In normal mode, press the encoder to enter the preset temperature mode (4 groups of common stability are preset according to your own needs, and the rotary encoder can be switched in these 4 groups of preset temperature cycles), press again to enter the set temperature mode, each time the encoder temperature increases by 10 degrees, and the stepping temperature is adjustable! 2: In normal mode, long press the encoder to enter the setting menu, short press to select, short press again to deselect, and long press the encoder to exit from the menu interface to return to the previous level!

Caution :diy is risky. There is no guarantee of success. A hands-on shot.

Power-on state, please do not touch the components with bare hands, resulting in equipment damage and electric shock accident, the consequences are their own! The LCD screen is fragile, the warranty does not cover the LCD screen!

After receiving the goods, please use the test hook to power test, the screen shows normal re-welding, and the control board is soldered
