SPECIFICATIONS

Base-Emitter Saturation Voltage: 1.45 V

Brand Name: NoEnName_Null

Collector -Emitter Breakdown Voltage: 60 V

Collector Dark Current: <1000 nA

Collector-Emitter Saturation Voltage: 1.0 V

Condition: New

DC Current Amplification Factor: 30000---90000

Emitter-Collector Breakdown Voltage: 7 V

Hign-concerned Chemical: None

Model Number: SGPT5953C

ON-State Collector Current: 1.6 mA

Origin: Mainland China

Package Type: Throught Hole

Range of Spectral Bandwidth: 600---1000 nm

Rise/Fall Time: 60/60 μS

Wavelength of Peak Sensitivity: 800 nm

English is the original language, other languages are automatically translated, there may be translation errors.

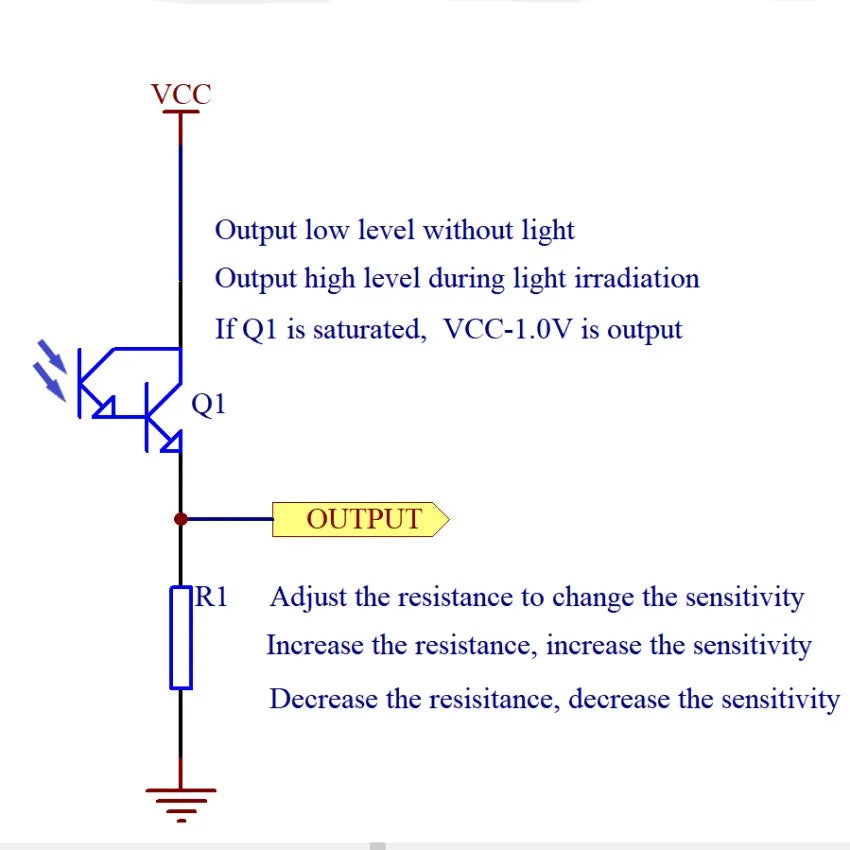

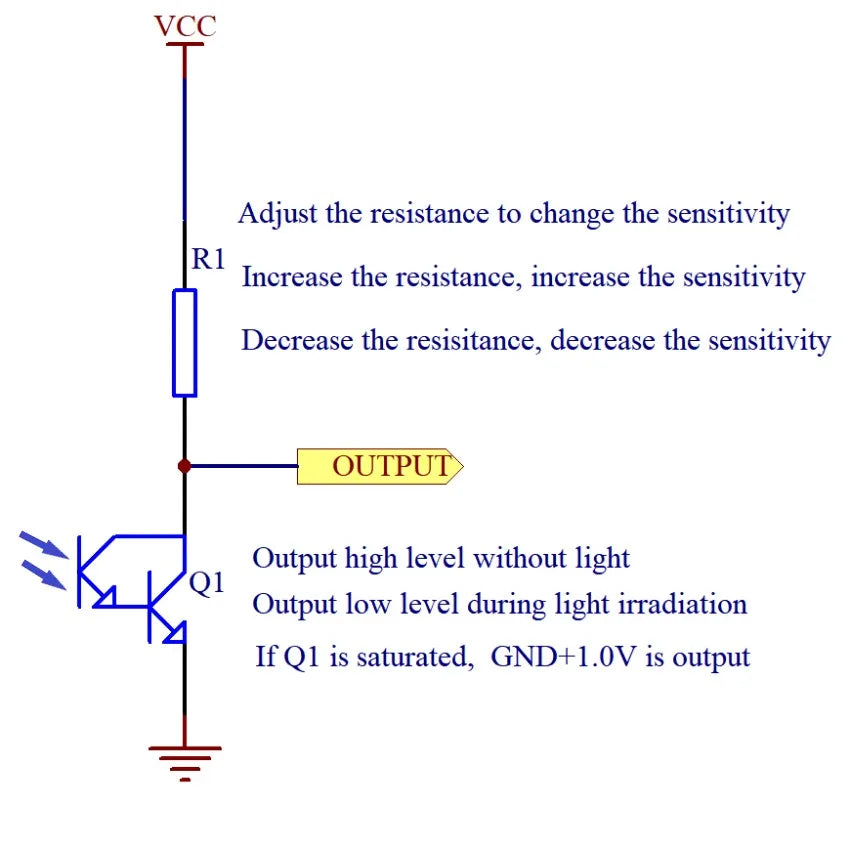

Note that this phototransistor is a DARLINGTON structure with very high sensitivity.

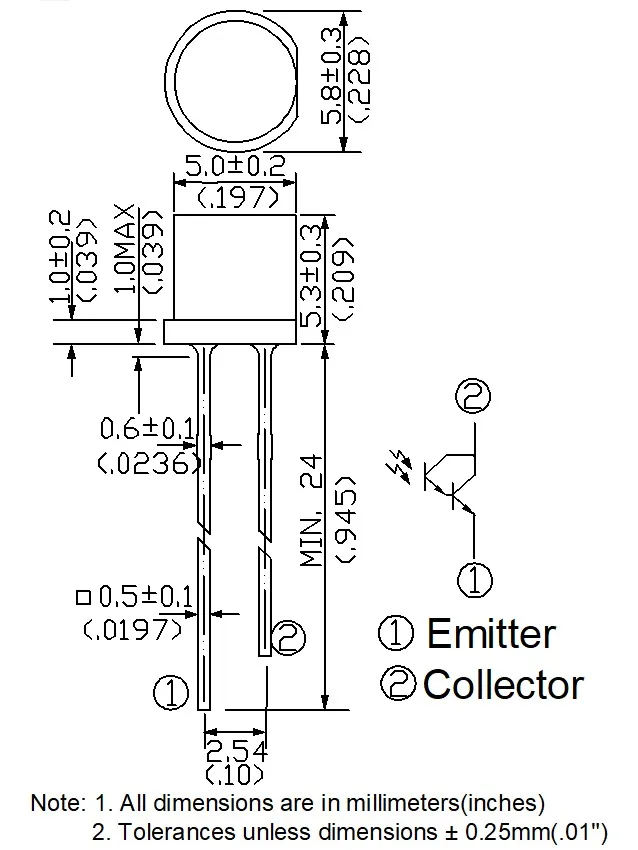

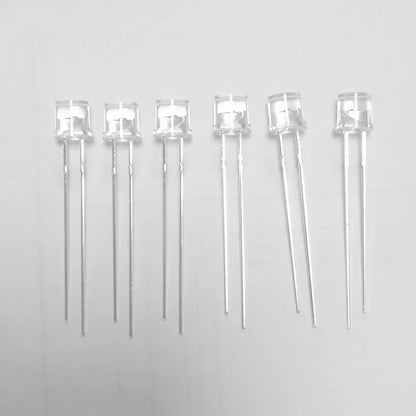

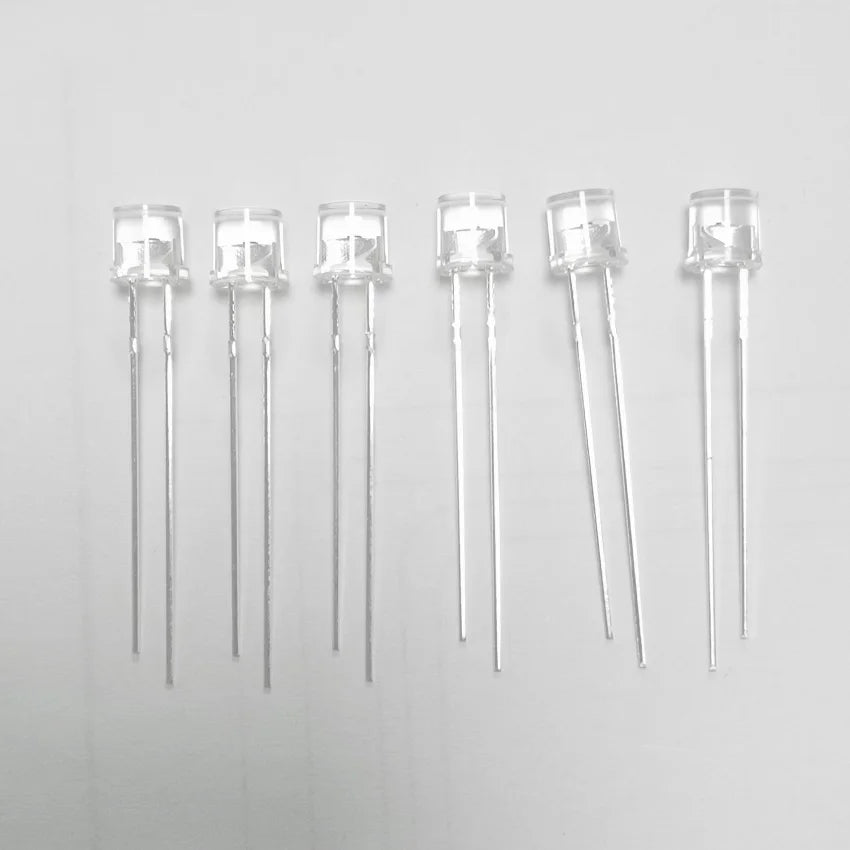

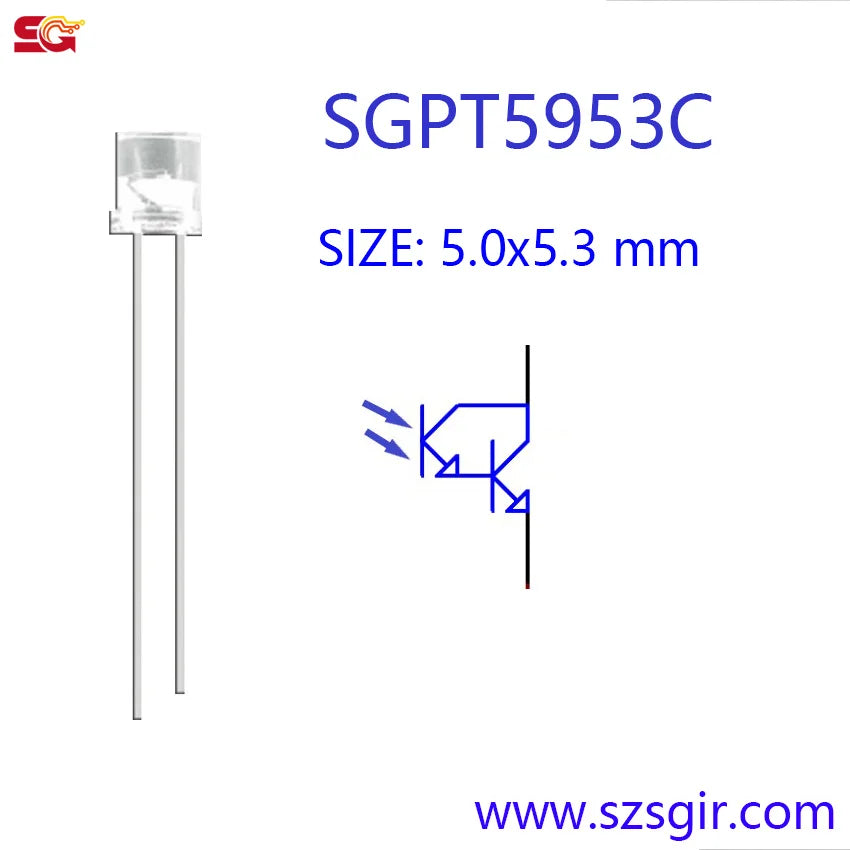

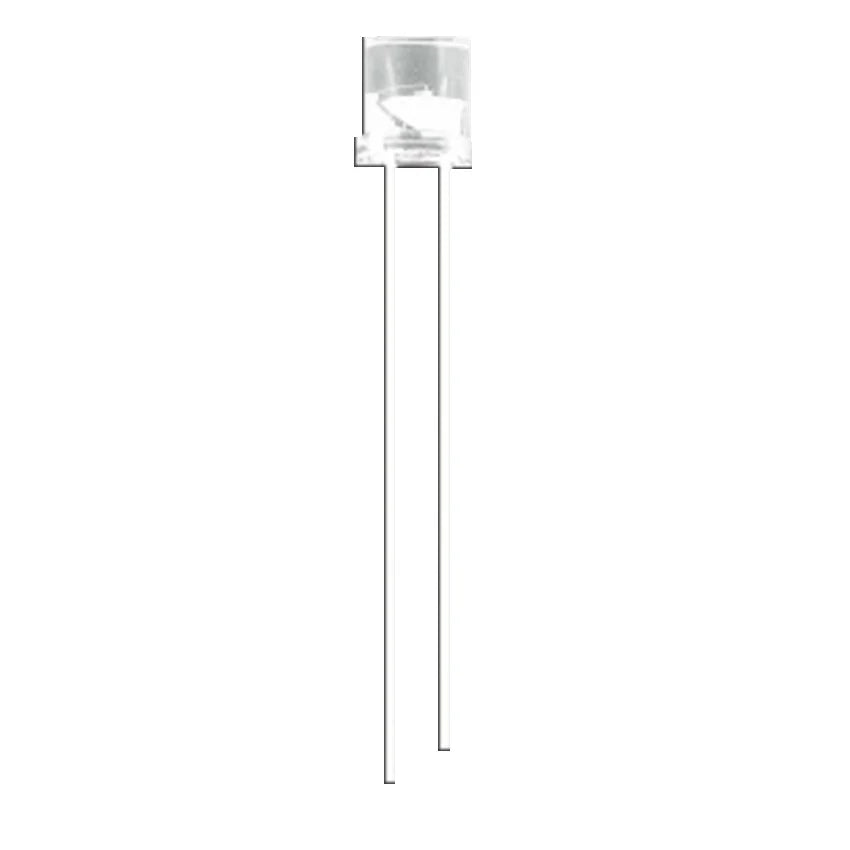

5mm(0.197") DARLINGTON Flat Lens Phototransistor: SGPT5953C

Colour: Transparent

Range of Spectral Bandwidth：600---1000 nm

Wavelength of Peak Sensitivity: 800 nm

Collector-Emitter Breakdown Voltage: >60 V

Emitter-Collector Breakdown Voltage: >7 V

Collector Dark Current: <1000 nA

Collector-Emitter Saturation Voltage: <=1.0 V

Base-Emitter Saturation Voltage: <=1.45 V

ON-State Collector Current: 1.6 mA

Rise/Fall Time: 60/60μS

DC Current Amplification Factor: 30000---90000

For detailed product parameters, please check the specifications and download the specifications from the company's website.

Factory direct sales, batch purchase customers can contact the seller to arrange production.

1000 pcs/bag, The whole package purchase is more favorable.

Difference between Photodiode and Phototransistor

A.  Abbreviation:  Photodiode---PD /  Phototransistor---PT

B.  PIN Name: Photodiode---Anode and Cathode  / Phototransistor---Emitter and Collector

C.  Chip Structure: Photodiode---PN  / Phototransistor---NPN(or PNP)

D.  Response speed：Photodiode---fast /Phototransistor---slow

E.  Amplification characteristics： Photodiode---No / Phototransistor---Yes

F.  Output Linearity:   Photodiode---Good / Phototransistor---Bad

G.  Circuit symbol：Photodiode

DARLINGTON Phototransistor

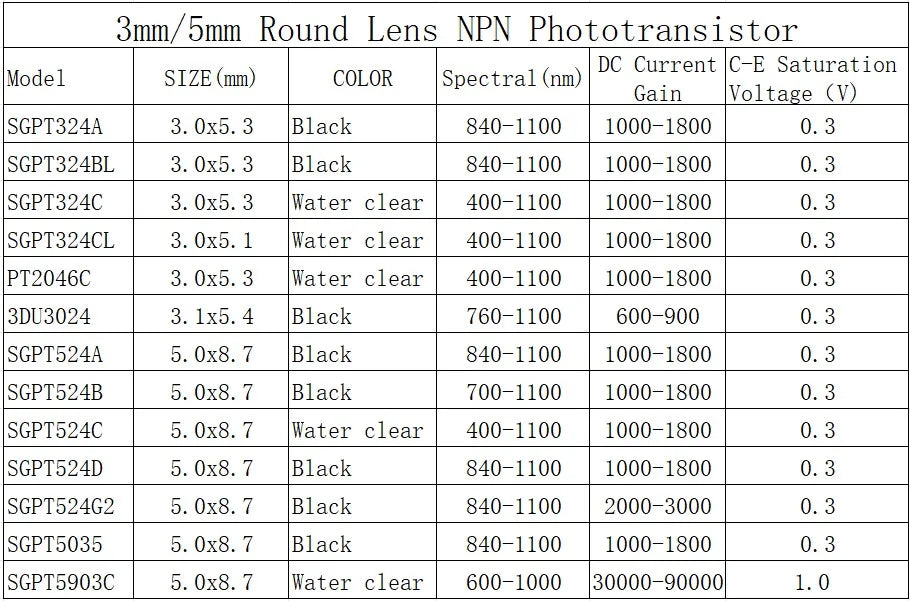

Round Lens NPN Phototransistor

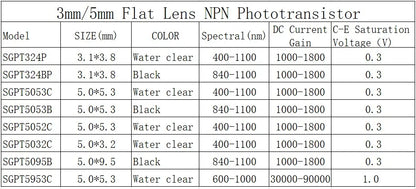

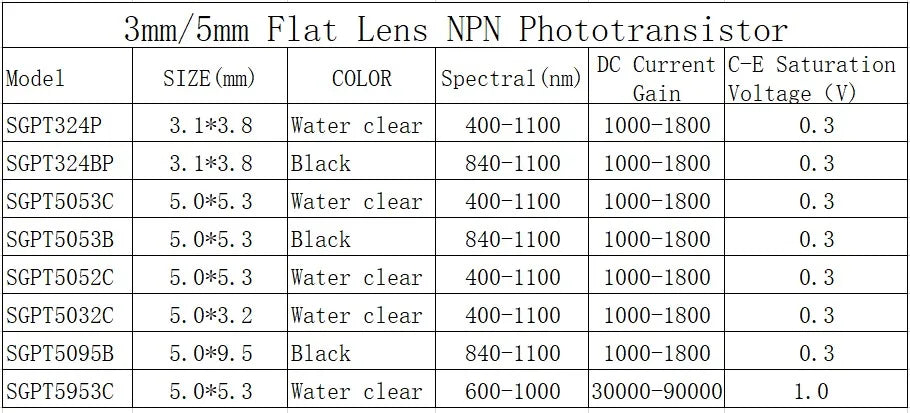

Flat Lens NPN Phototransistor

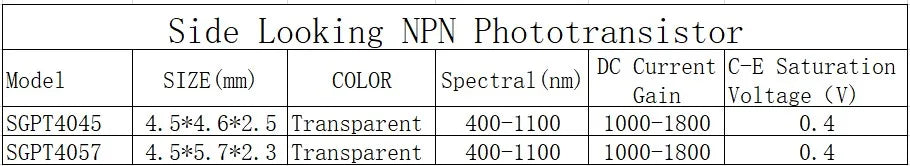

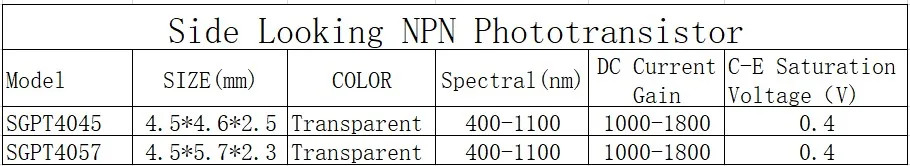

Side Looking NPN Phototransistor

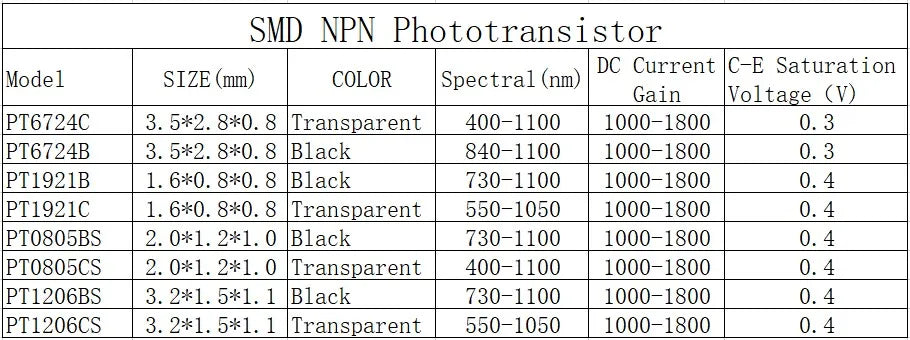

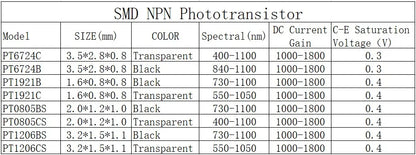

SMD NPN Phototransistor

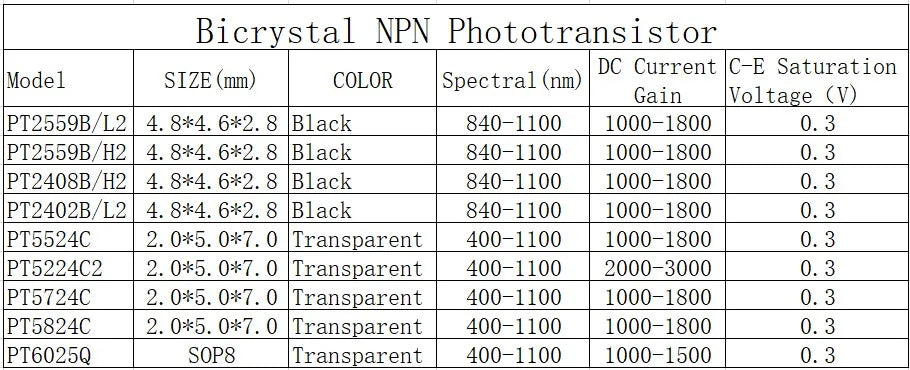

Bicrystal NPN Phototransistor

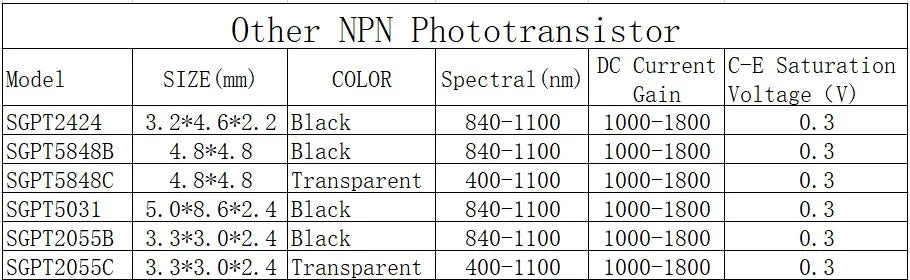

Other NPN Phototransistor
