Regulador Voltaje AC 220V 2000W/4000W Tiristor Alta Potencia Dimmer Control Velocidad/Temperatura
Regulador Voltaje AC 220V 2000W/4000W Tiristor Alta Potencia Dimmer Control Velocidad/Temperatura
Precio habitual
$6.240 CLP
Precio habitual
$7.653 CLP
Precio de oferta
$6.240 CLP
Precio unitario
por
Los gastos de envío se calculan en la pantalla de pago.
No se pudo cargar la disponibilidad de retiro
SPECIFICATIONS
Brand Name: DMWD
Certification: None
Choice: yes
Current Type: AC

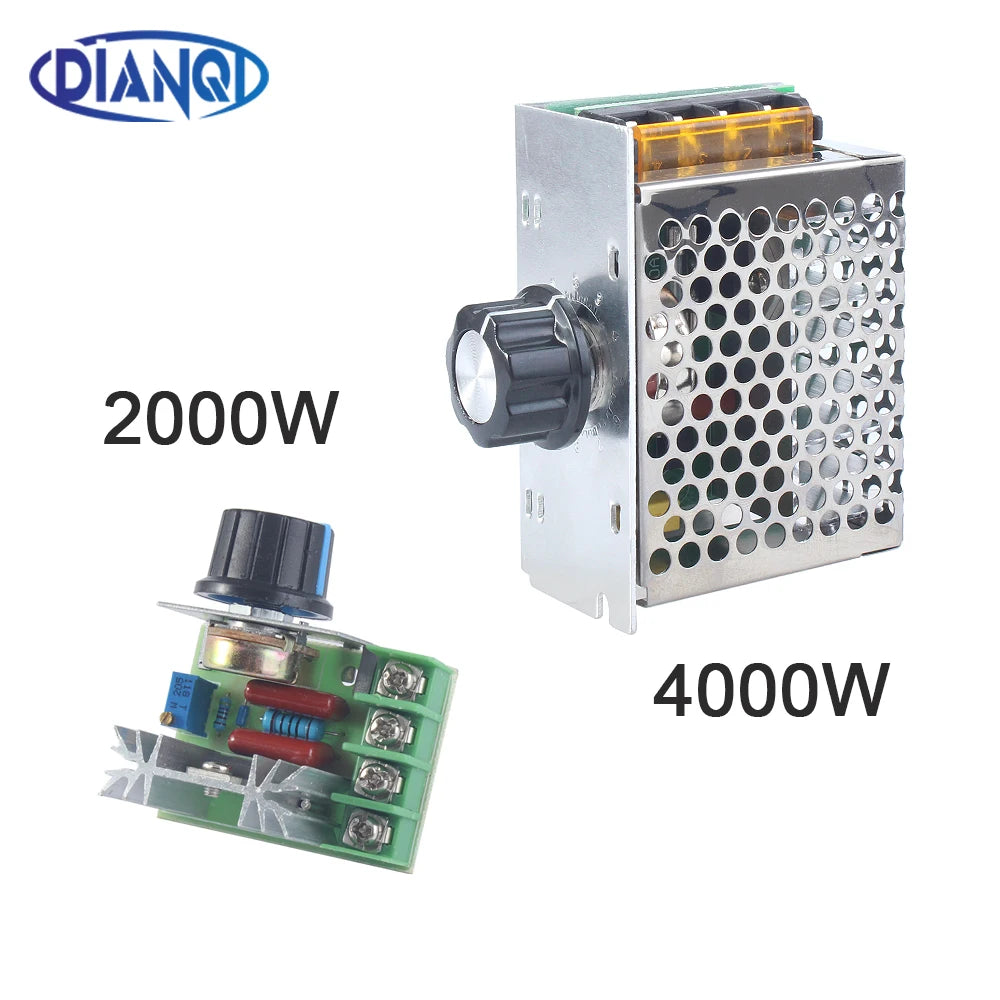

Model Number: 2000W 4000W
Origin: Mainland China
Phase: single phase
is_customized: No

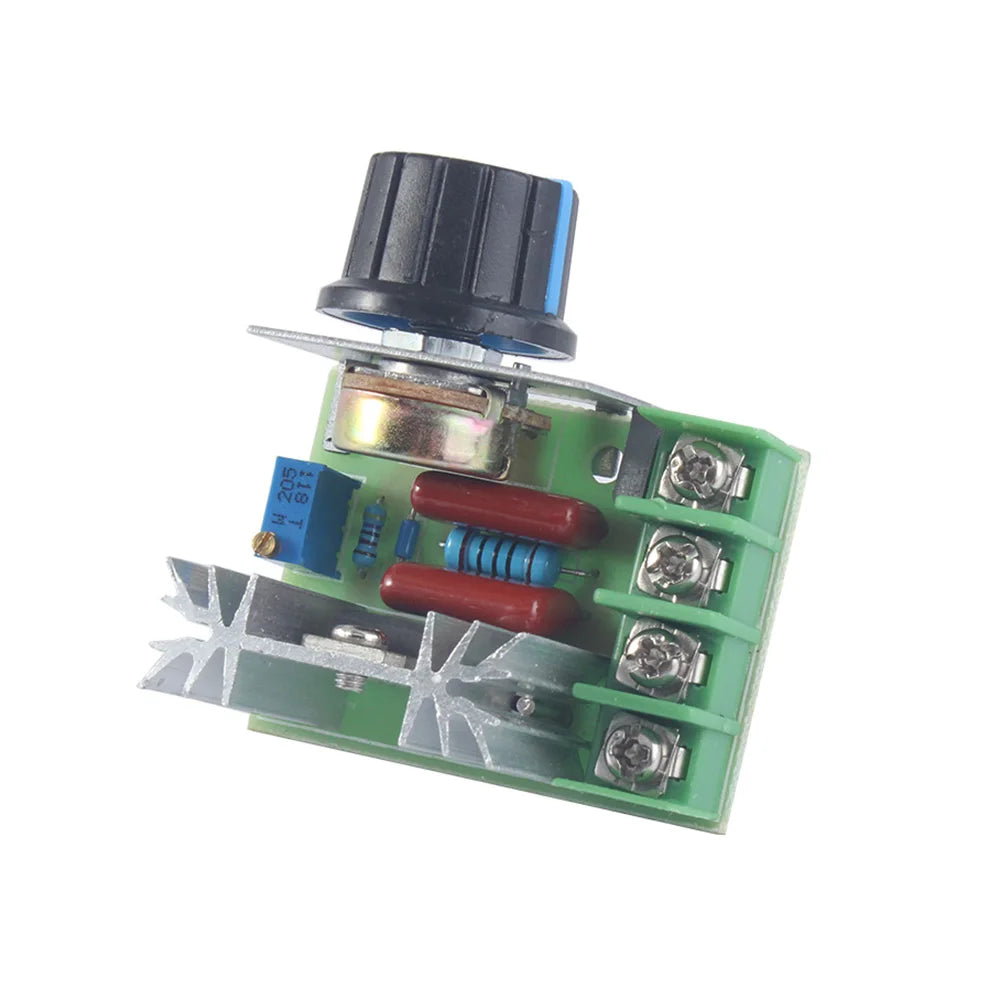

This voltage regulator is a specially improved circuit for motor speed regulation. The minimum output voltage can be adjusted by a precision multi-turn potentiometer.
The voltage regulator has a peak voltage absorption circuit to effectively protect the high-power thyristor, which has a longer life and is more durable.
Parameter:
Use voltage: AC 220V

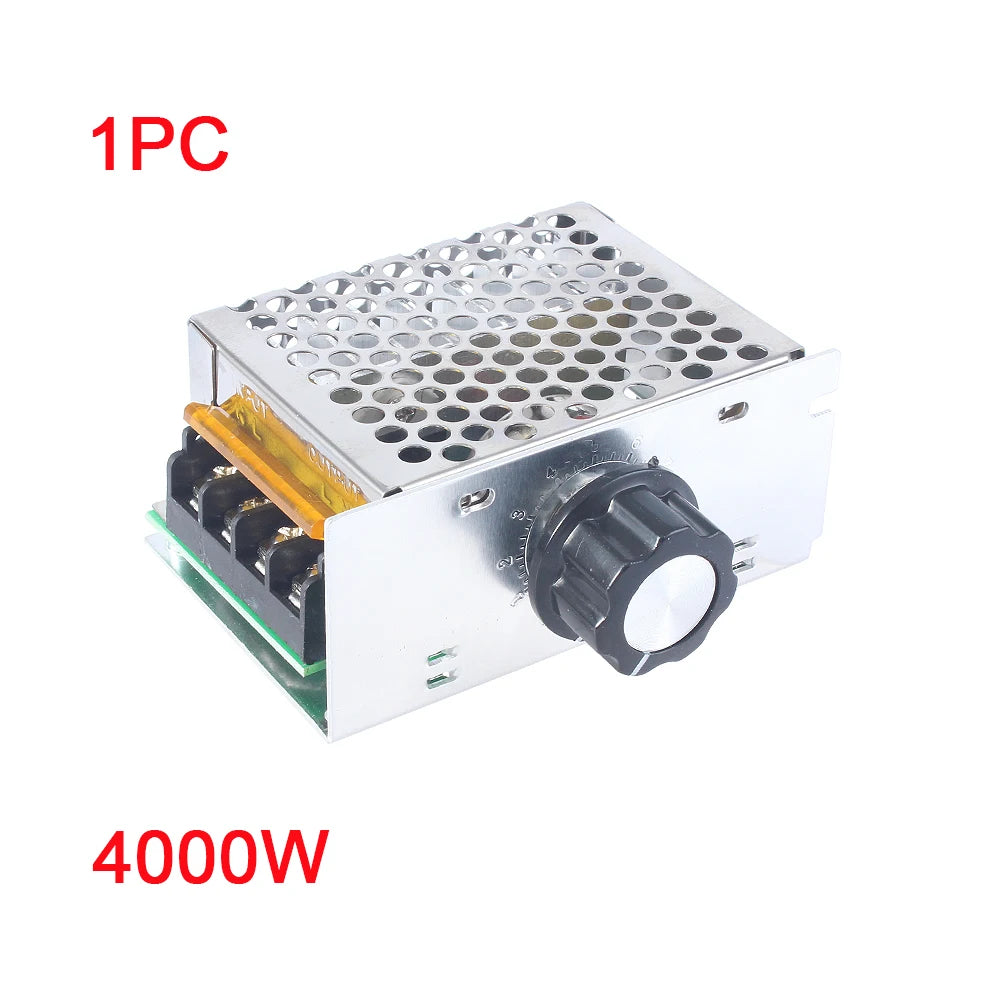

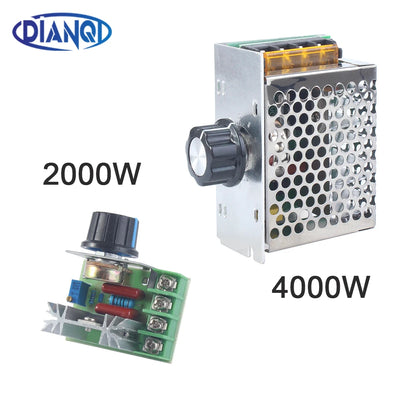

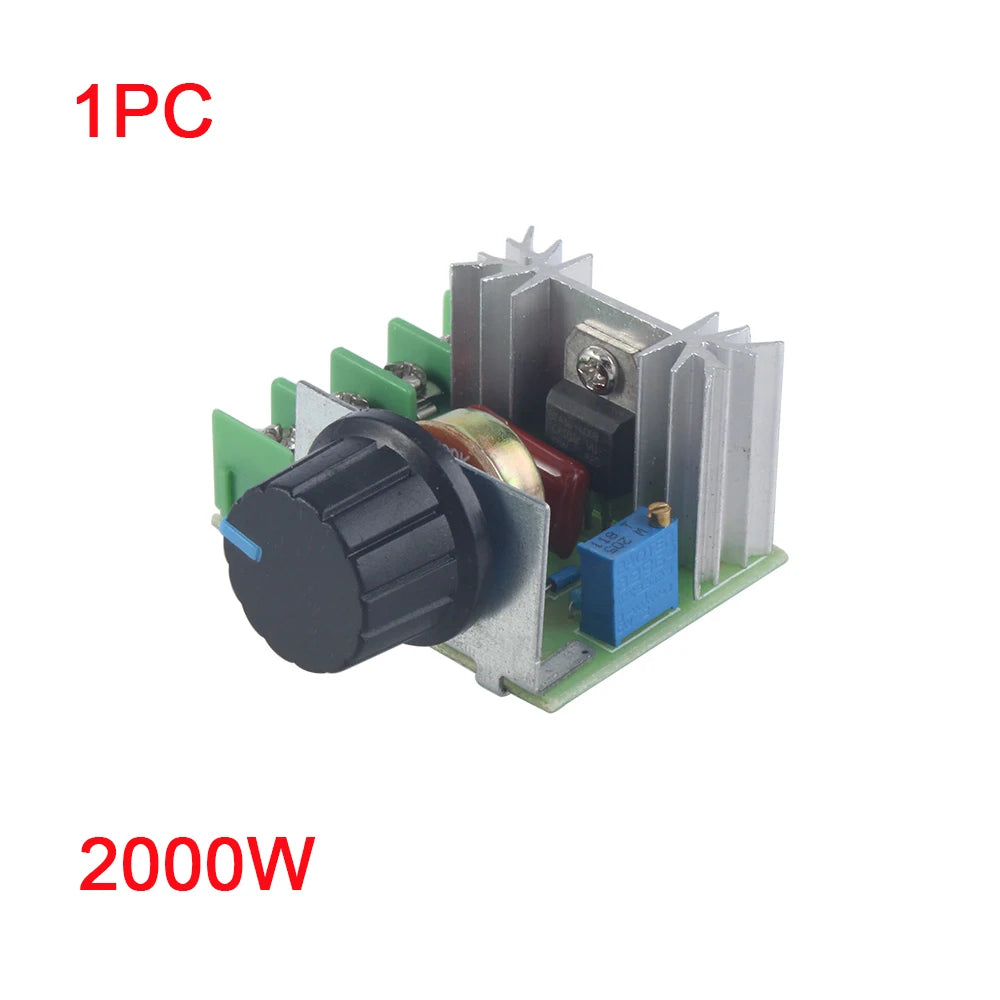

Maximum power: 2000W/4000W(connected resistive load)
Voltage regulation: AC 50-220V

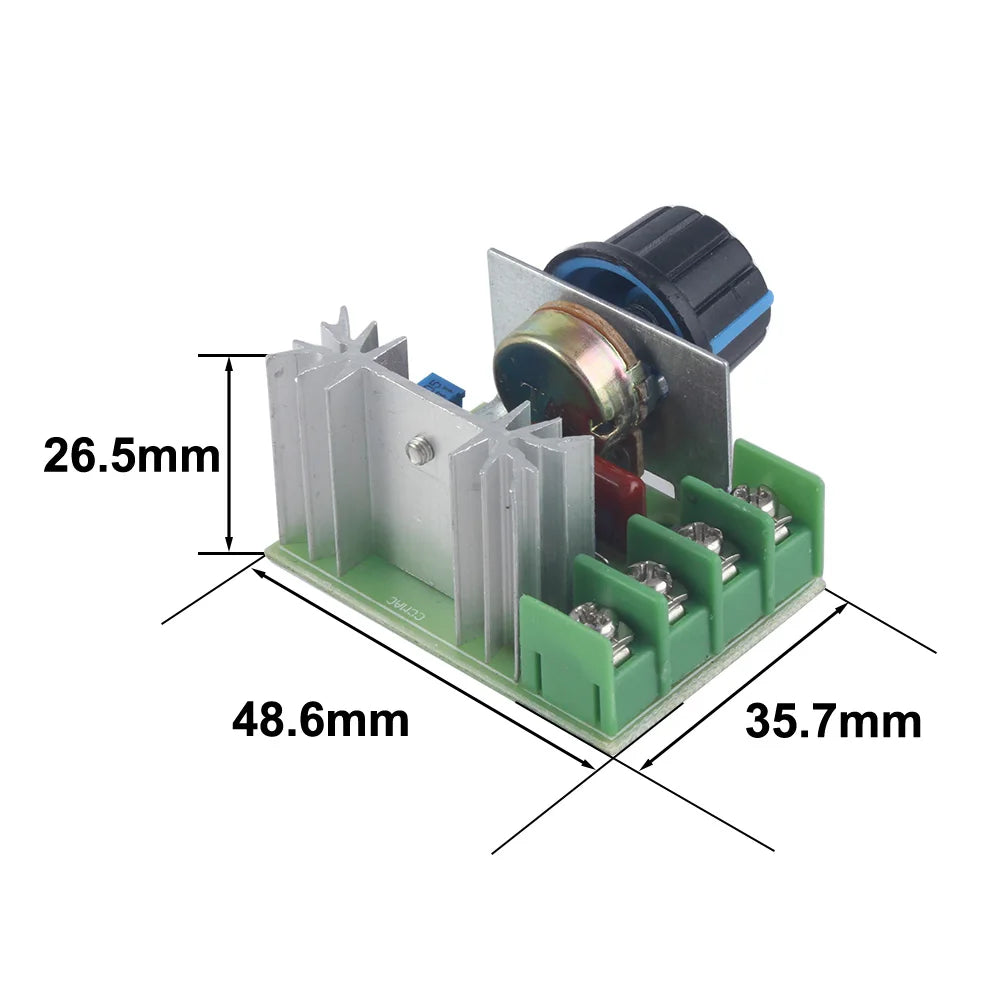

Specification size: high temperature resistant FR-4 circuit board circuit board about 36MM*48MM

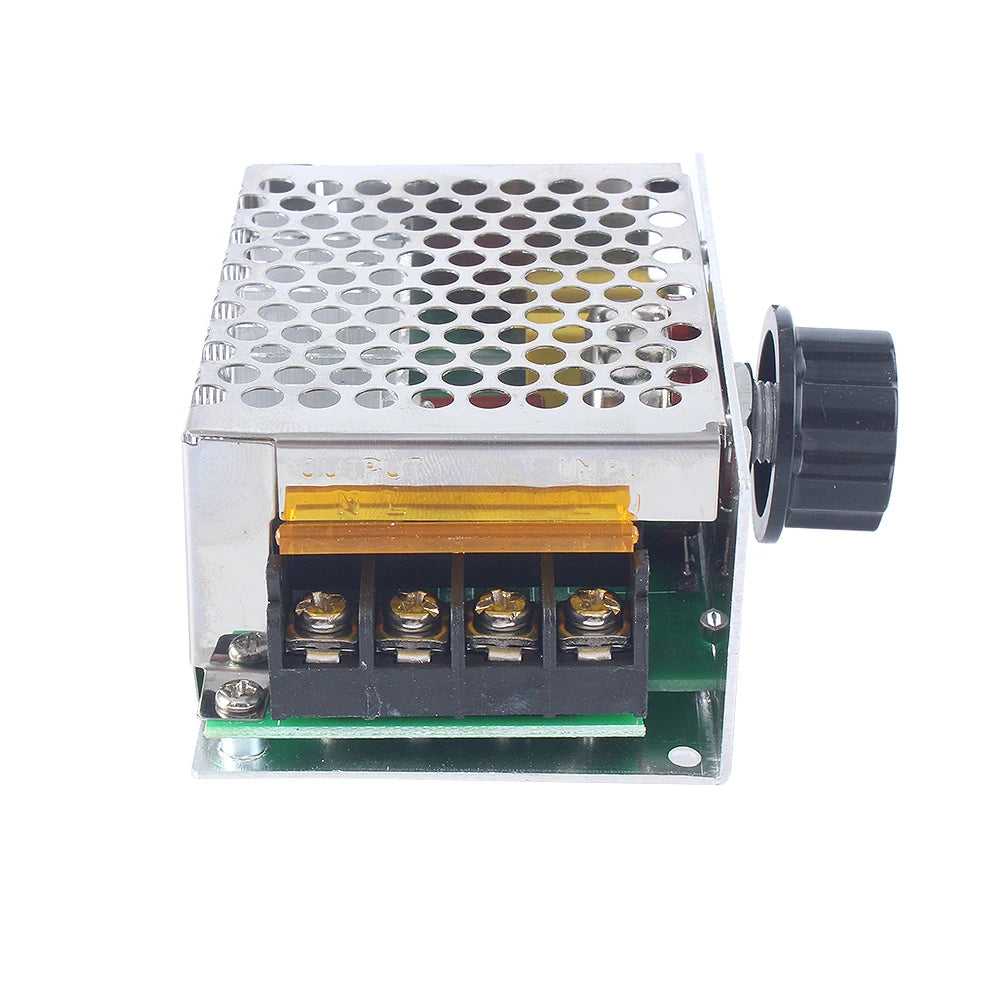

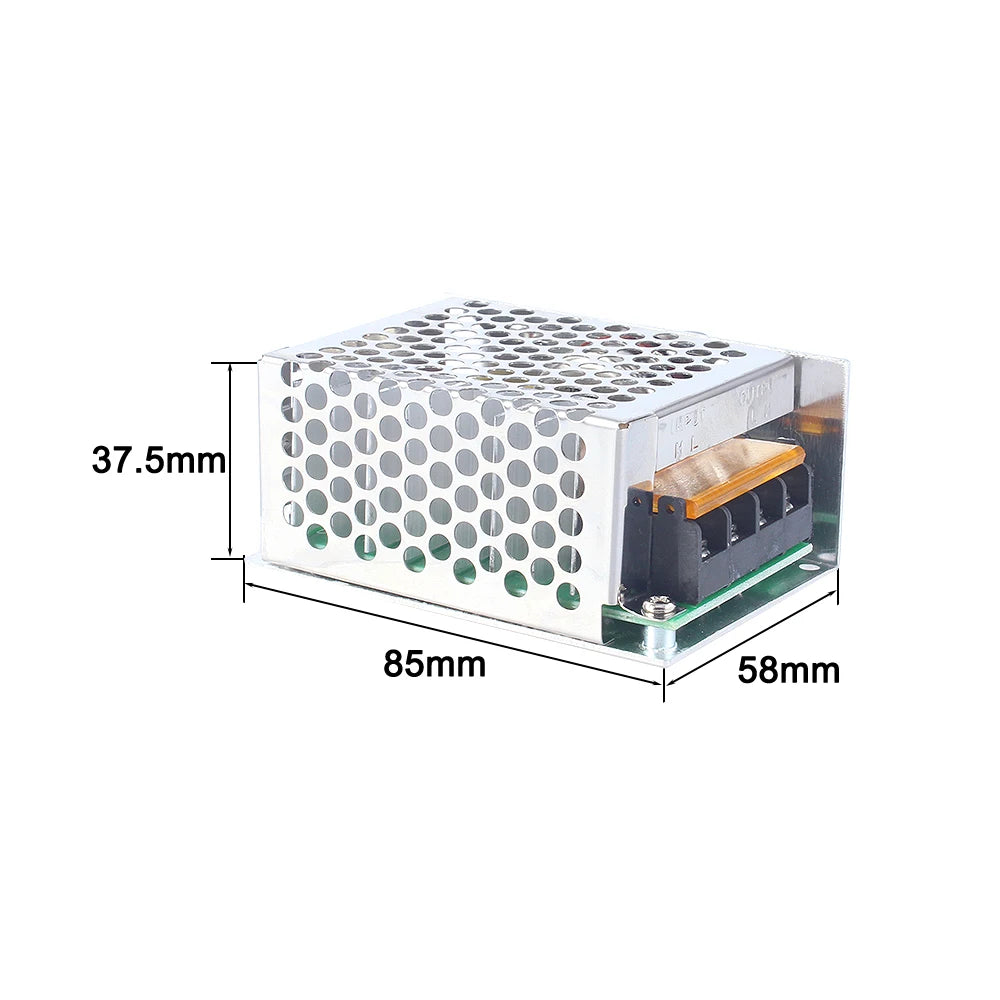

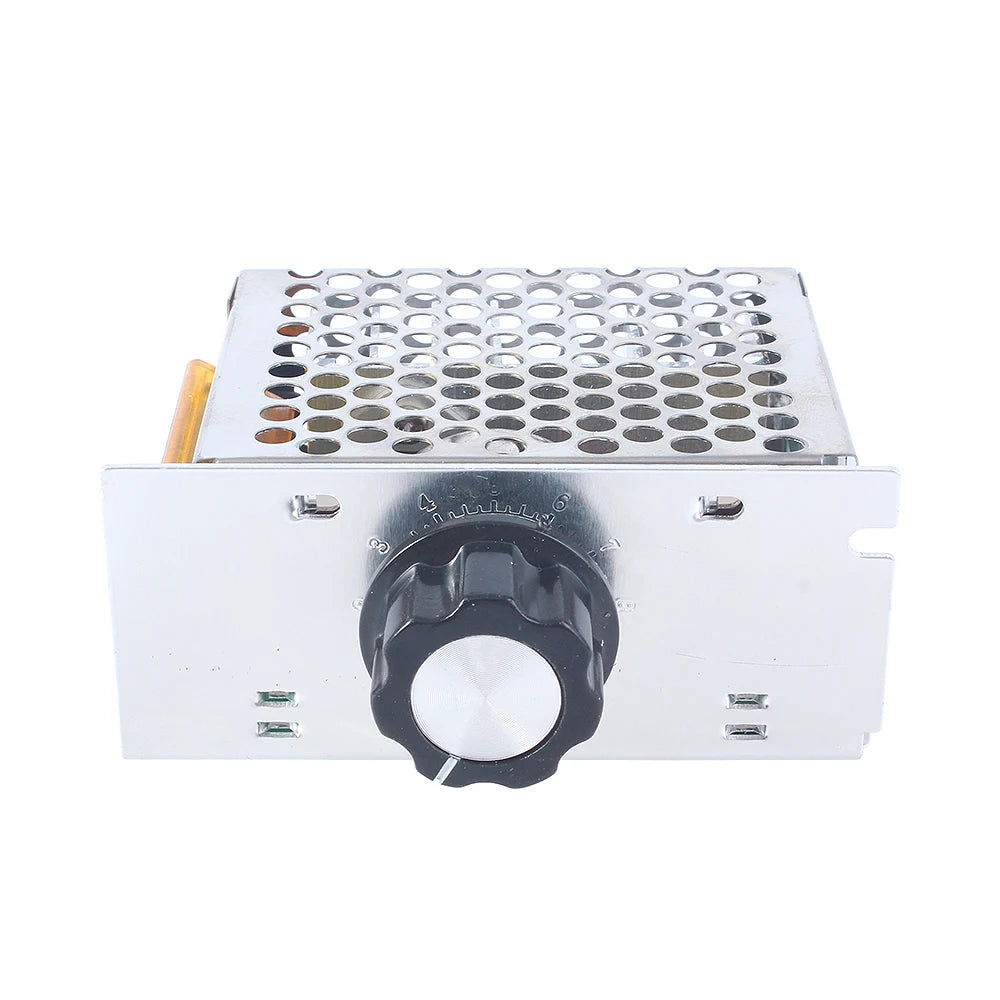

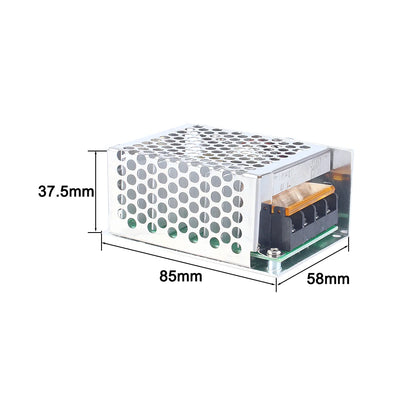

External size: 48MM*60MM (knob direction)*28MM (high)/85(L) x 58(W) x37.5(H)MM/3.35x2.56x1.5"
Instructions:

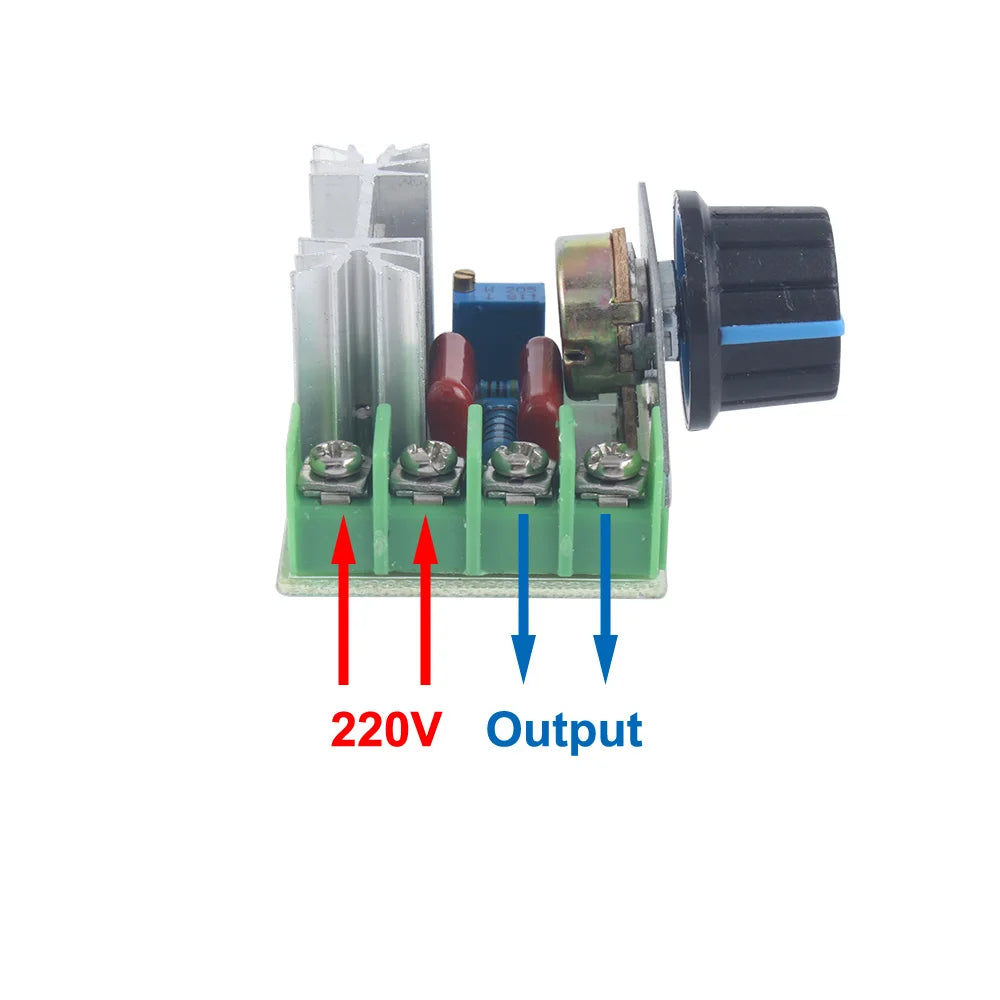

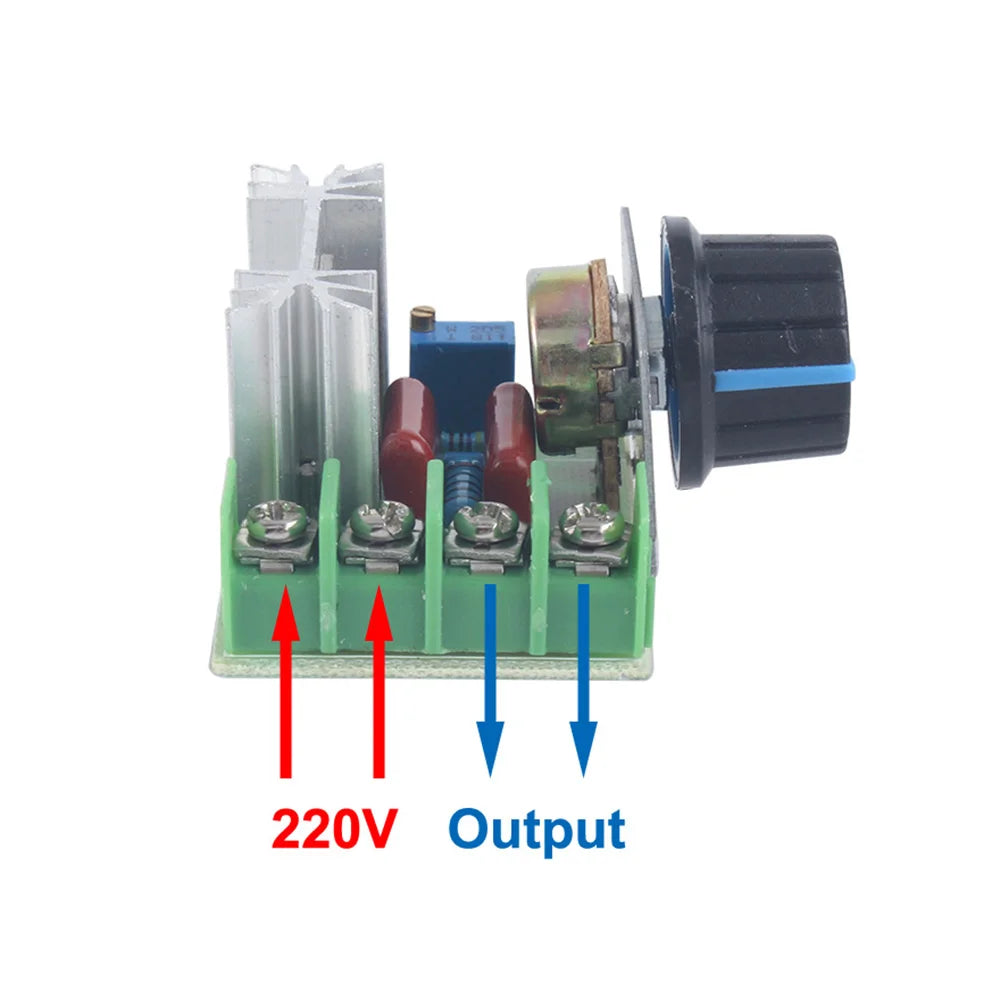

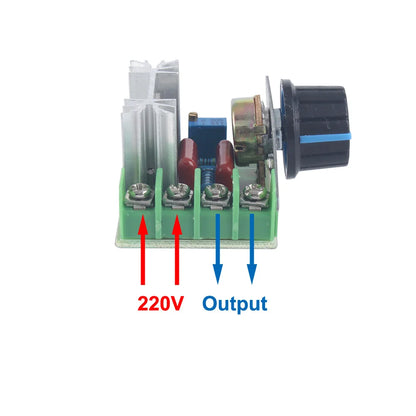

Connect this product to the circuit of the table lamp or the electrical appliance in series (ie disconnect any one of the live or neutral wires of the table lamp, the electrical appliance, etc., and connect the two wires of this "product") rotary potentiometer The rotary rod can play the role of light and dark adjustment, speed adjustment, pressure adjustment and temperature adjustment; it is very convenient to use.
