SPECIFICATIONS

Brand Name: NoEnName_Null

Certification: None

Choice: yes

Current Type: AC

Hign-concerned Chemical: None

Model Number: 4000W 0-220V AC SCR Electric Voltage Regulator Motor Speed Controller

Origin: Mainland China

Power: 4000W

Working Voltage: AC 220V

semi_Choice: yes

Specificaties:

Weerstand materialen: metaal en kunststof
Ingangsspanning: AC 220V
Spanningsregeling: AC 50-220V
Maximaal vermogen: 2000 W
Afmetingen: 48x56x28mm
Sluit dit apparaat met lamp of huishoudelijke apparatuur in een serieschakeling, dan draai de knop voor dimmen, snelheid, spanning, temperatuur controle.
Als de power heeft zeer grote, dus de normale huishoudelijke apparaten of kleine fabrieken genoeg te gebruiken.
Deze druk regulator met twee-weg high power silicon controlled, potentiometer hebben noten, kan gebruik niet behoefte toevoegen componenten, zeer handig en praktisch
Toepasselijk Appliance: Elektrische oven, boiler, lampen, kleine motor, elektrische ijzer. Etc

Feature:

100% brand new and high quality

The input is connected with AC 220V, output is connected to the electric stove wire or motor appliances, then rotate the knob for speed, voltage, temperature control.

Specifications:

Working Voltage: AC 220V

Maximum Power: 4000W (connected resistive load)

Voltage Regulation:AC 0-220V,Start from AC 10V

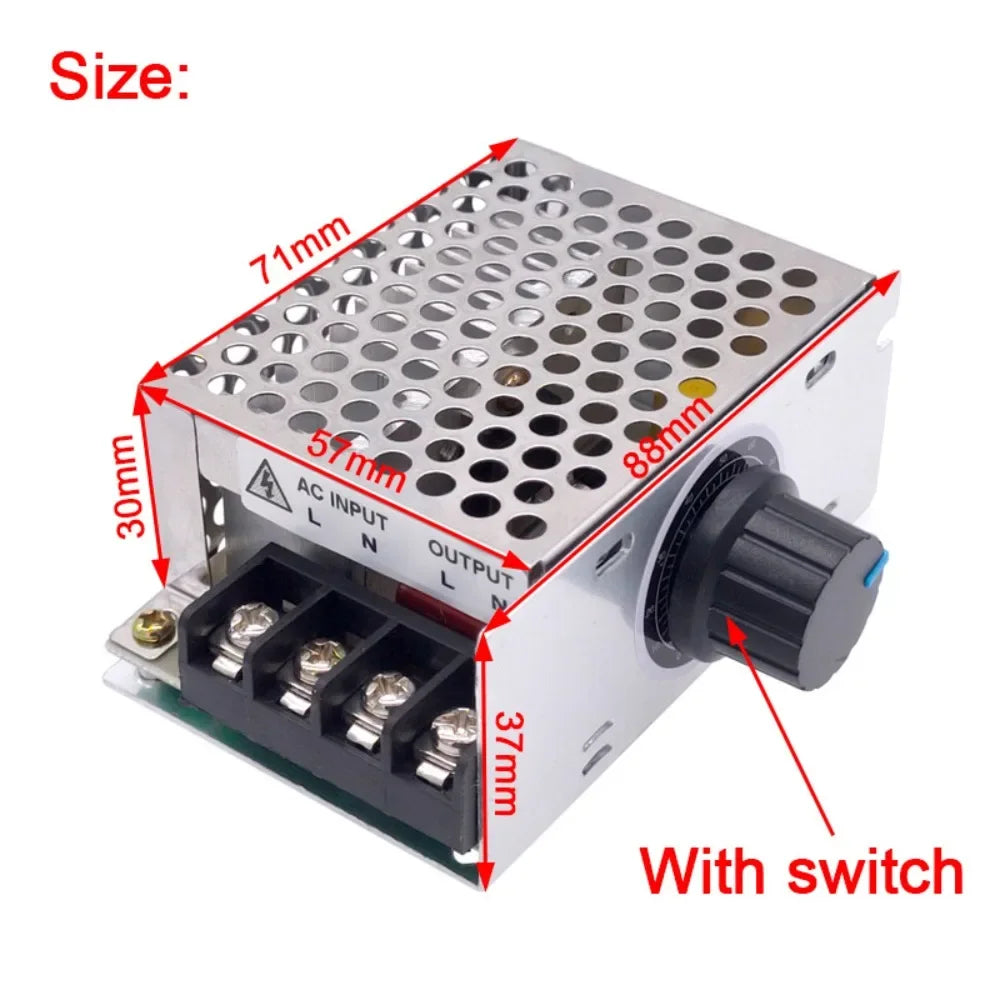

Dimensions: 89(L) x 59(W) x38(H)MM

Protection: Anti-spike, Surge, RC absorption (EOC)

Net weight:147g

Weight:167g

Some Application:

Electric furnace, water heater, lamps, small motor, electric iron etc.Attention:

Load does not exceed the maximum power, otherwise it will burn module and electrical appliances; use the resistive load as far as possible; reduce inductive and capacitive load power greatly.( it is best to leave more than half of them)

Note: Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

Package includes:

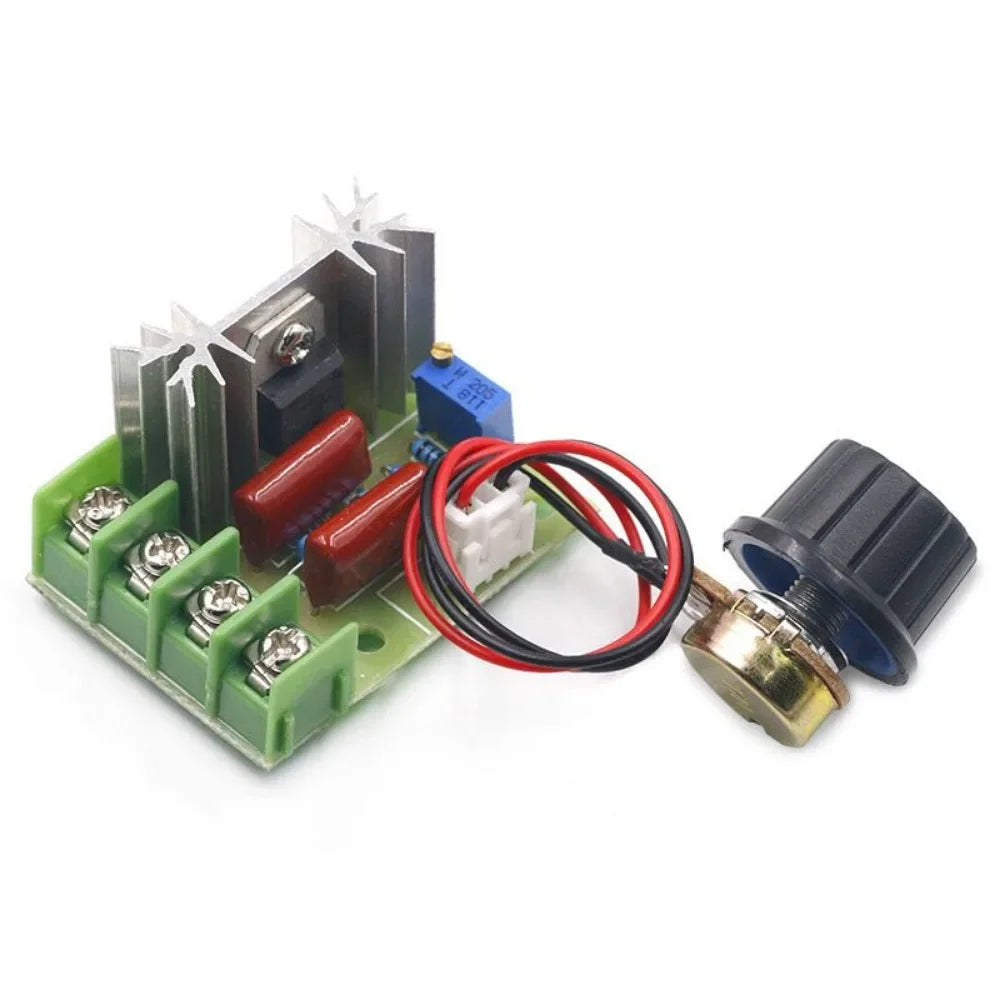

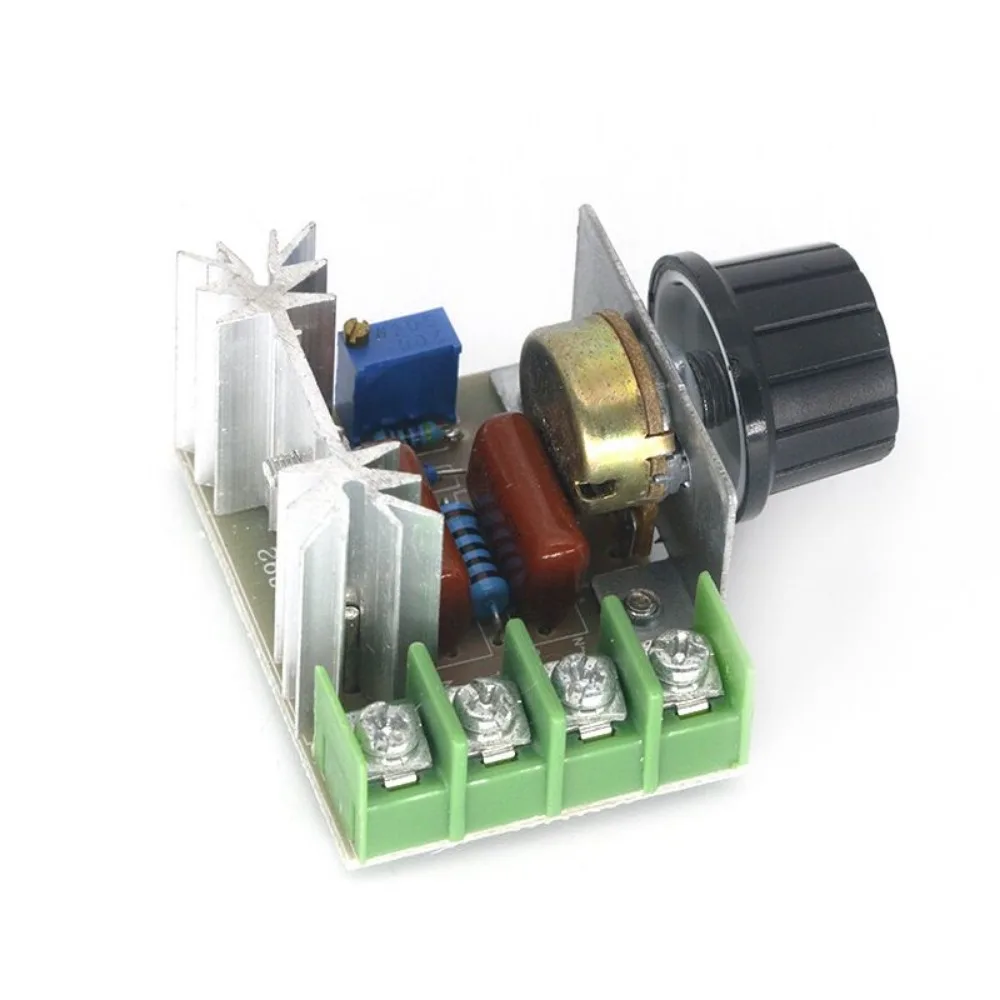

1pc x SCR Voltage Regulator Speed Controller Dimming Thermostat
