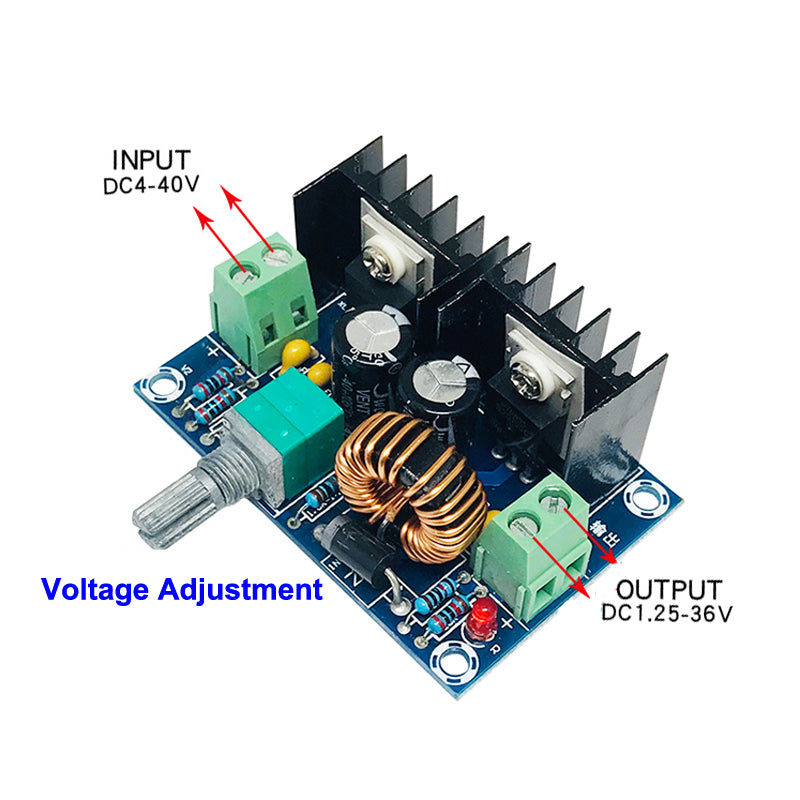

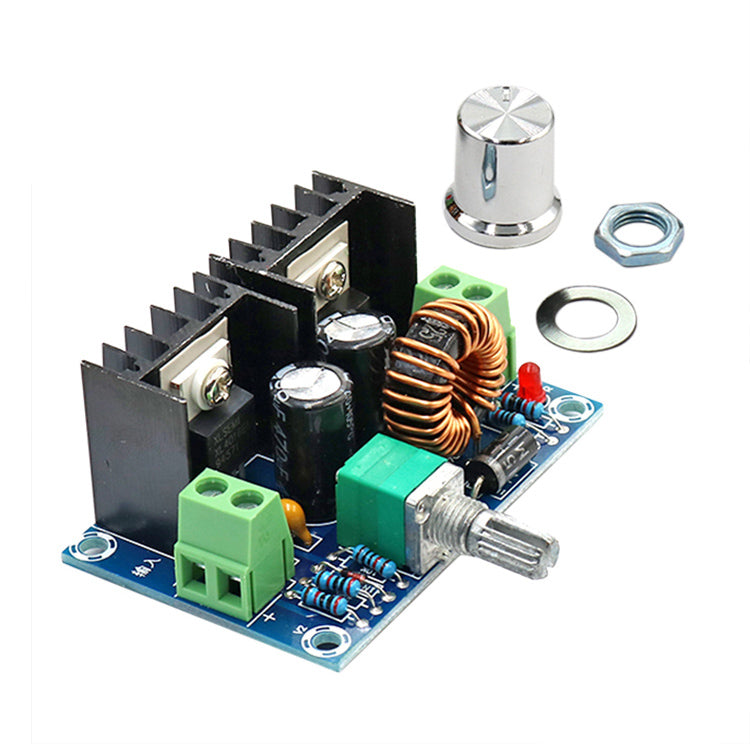

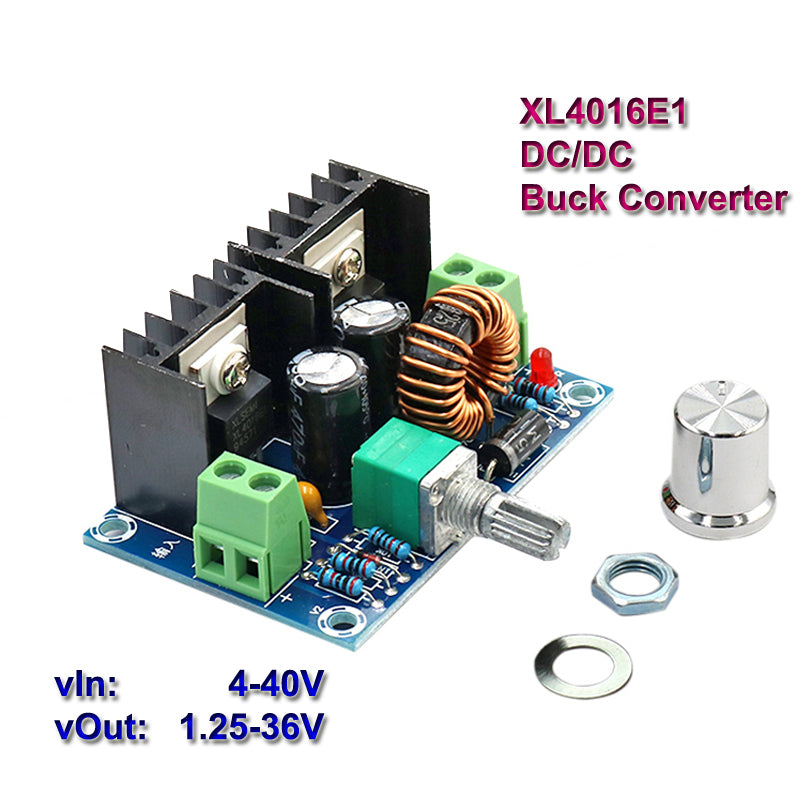

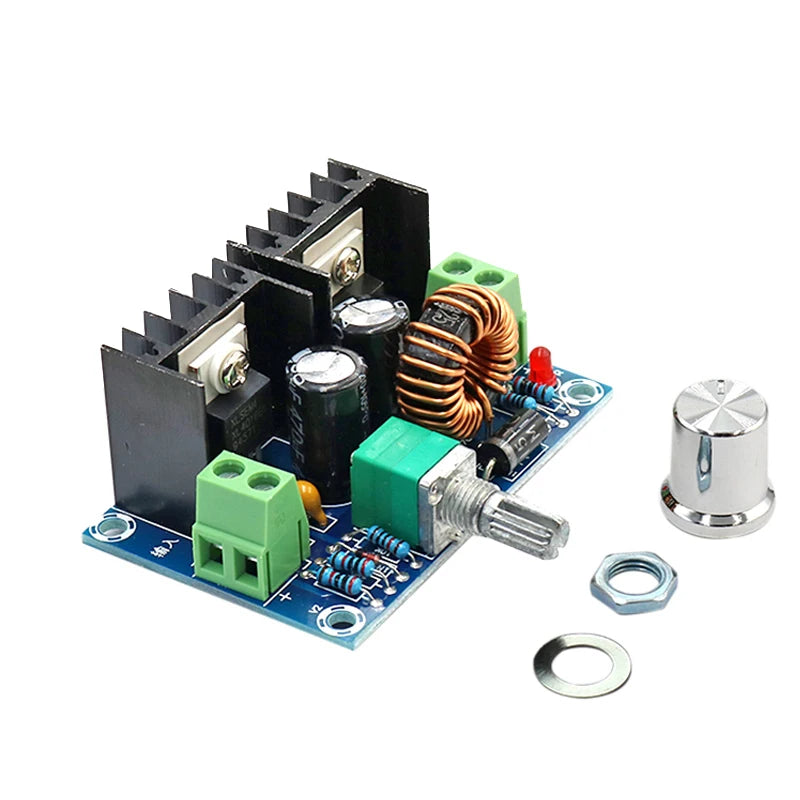

Módulo Regulador Voltaje XL4016E1 DC-DC 200W 8A Buck Ajustable 1.25-36V Estabilizador Vehicular
Módulo Regulador Voltaje XL4016E1 DC-DC 200W 8A Buck Ajustable 1.25-36V Estabilizador Vehicular
Precio habitual
$8.674 CLP
Precio habitual
$11.673 CLP
Precio de oferta
$8.674 CLP
Precio unitario
por
Los gastos de envío se calculan en la pantalla de pago.
No se pudo cargar la disponibilidad de retiro
SPECIFICATIONS
Brand Name: NoEnName_Null
Certification: CE
Current Type: DC
Input current: 2.5A max
Input voltage: dc3.2v-40v
Origin: Mainland China
Output voltage: 1.25v-35v adjustable.
is_customized: Yes
Product name: DC step-down module Converter
Voltage regulating mode: PWM modulation
Input voltage: DC4-40V
Output voltage: DC1.25-36V
Max output current: 8A (more than 5A for long time use,need Fan if over 5A)
Max power: 200W Conversion efficiency: 94%
Switching frequency: 180KHZ

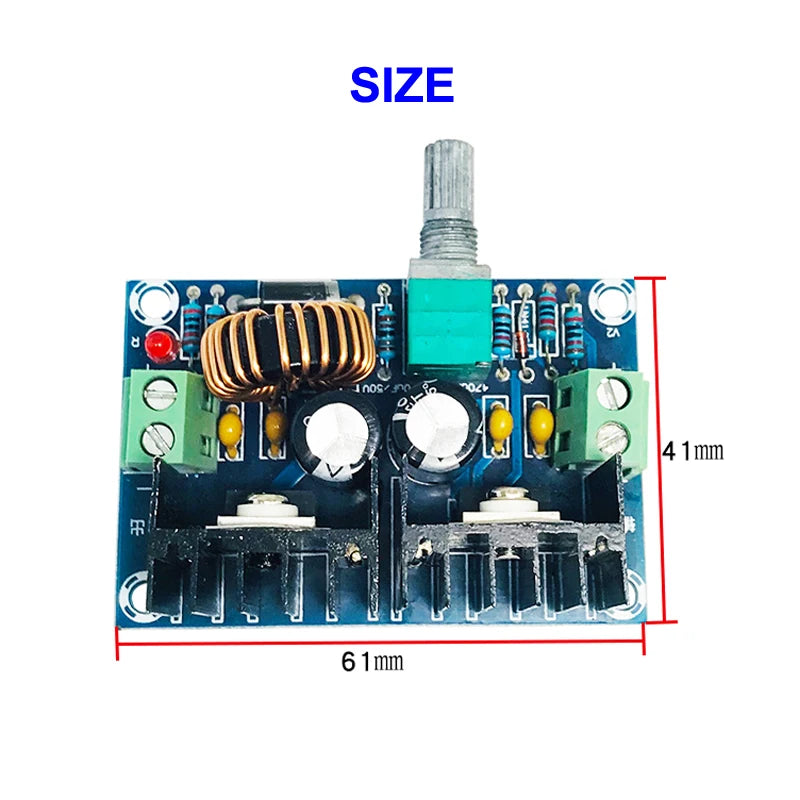

Dimensions: 61*41*27mm
Chip: switching regulator Regulating chip XL4016 with Over current protection, Over temperature protection,Short circuit protection When reach maximum output current 8A, need to add fan. Long term work recommended about 5A
Voltage regulating mode: PWM modulation
Input voltage: DC4-40V
Output voltage: DC1.25-36V
Max output current: 8A (more than 5A for long time use,need Fan if over 5A)
Max power: 200W Conversion efficiency: 94%
Switching frequency: 180KHZ
Dimensions: 61*41*27mm
Chip: switching regulator Regulating chip XL4016 with Over current protection, Over temperature protection,Short circuit protection When reach maximum output current 8A, need to add fan. Long term work recommended about 5A
