SPECIFICATIONS

20A size: 47.8*28.8*41mm

50A size: 47.8*28.8*31.2mm

Accuracy Class: High

Brand Name: Gaqqee

Certification: CE

Current error: 1% (±1 word)

Current measurement range: 0-20A, 0-50A (optional)

DIY Supplies: ELECTRICAL

Display Type: Digital Only

Display color: red + red, red + blue

Display mode: double three-digit 0.28-inch LED digital tube

Hign-concerned Chemical: None

Model Number: 100V 20A/50A Digital Voltmeter Ammeter

Opening size: recommended 46*27mm

Operating Temperature: -10~65℃

Origin: Mainland China

Refresh rate: ≥500mS/time

Resolution: 0.01A

Terminal: high current terminal

Type 1: Voltmeter Ammeter

Type 2: Voltage Current Meter

Type 3: Volt Amp Meter

Type 4: Voltage and current meter

Type 5: Voltage ammeter

Voltage error: 1% (±1 word)

Voltage measurement range: DC 7-100V

Working air pressure: 80~106kPa

Working current: <15mA

Working humidity: 10~80% (no condensation)

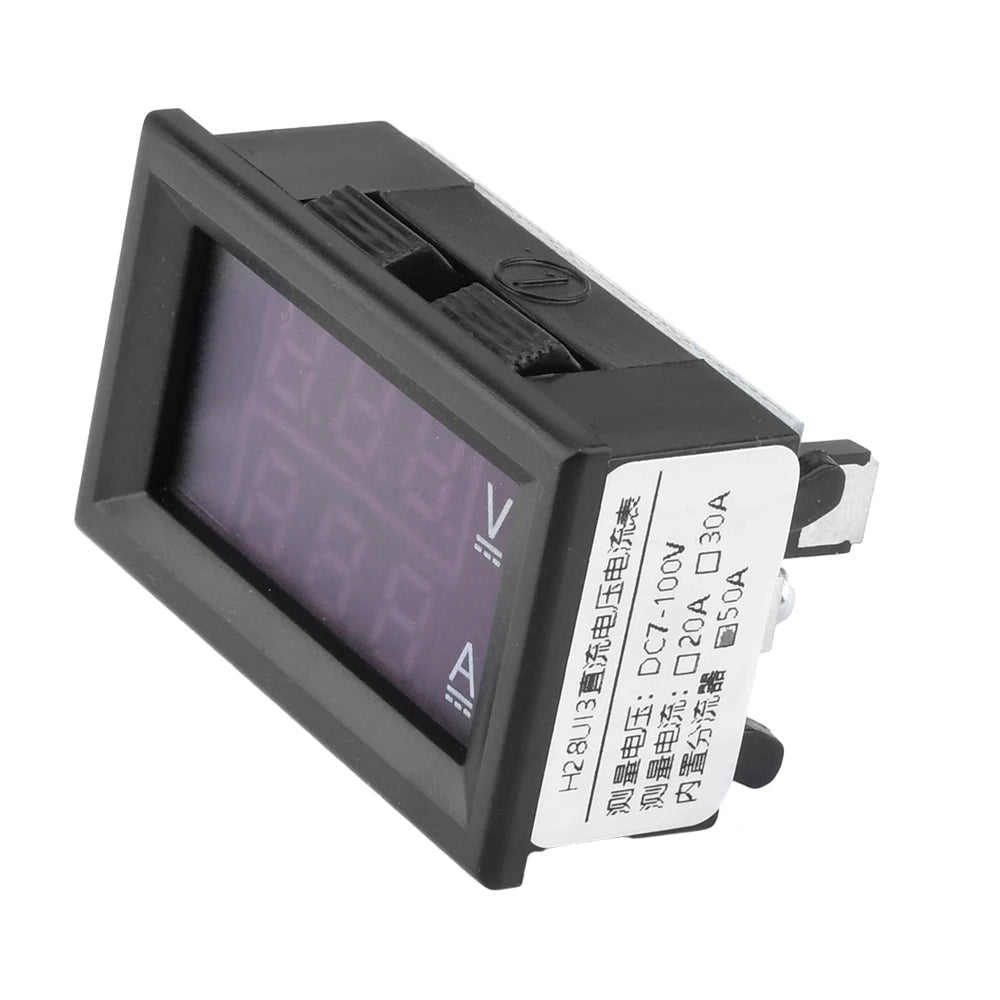

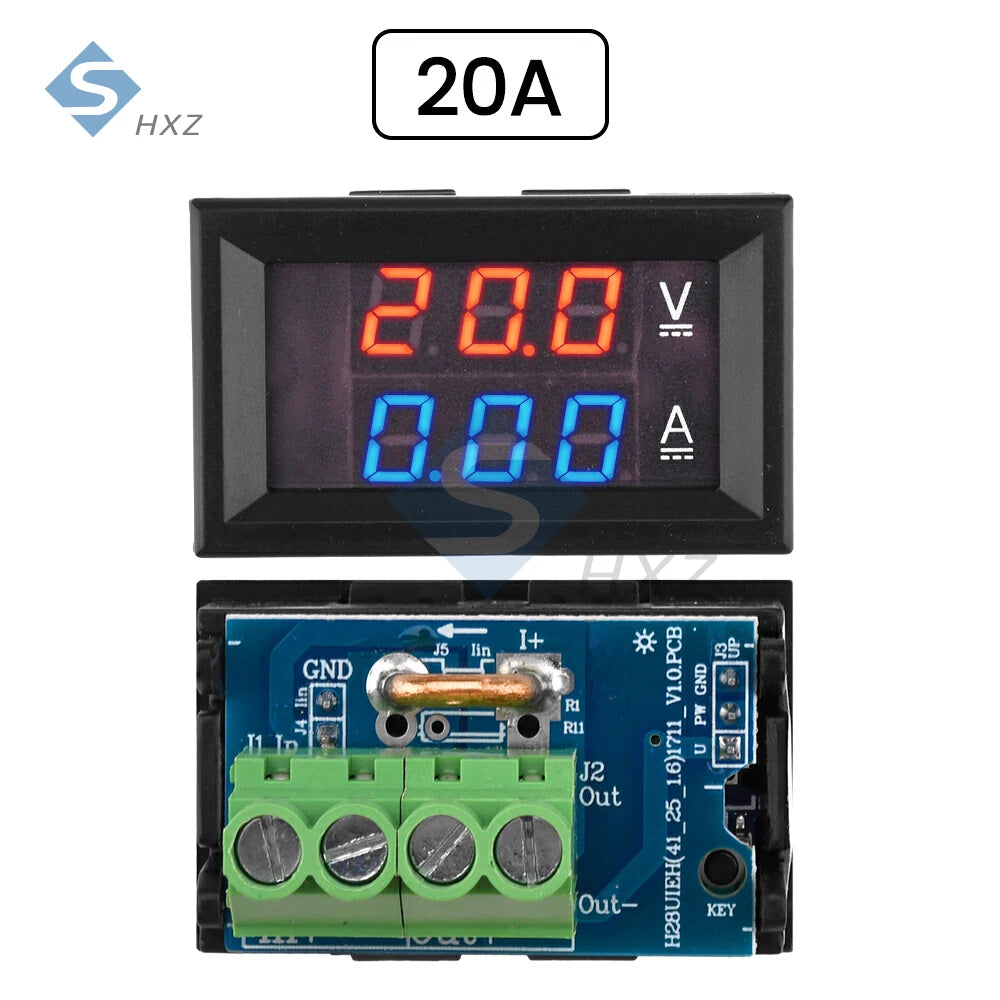

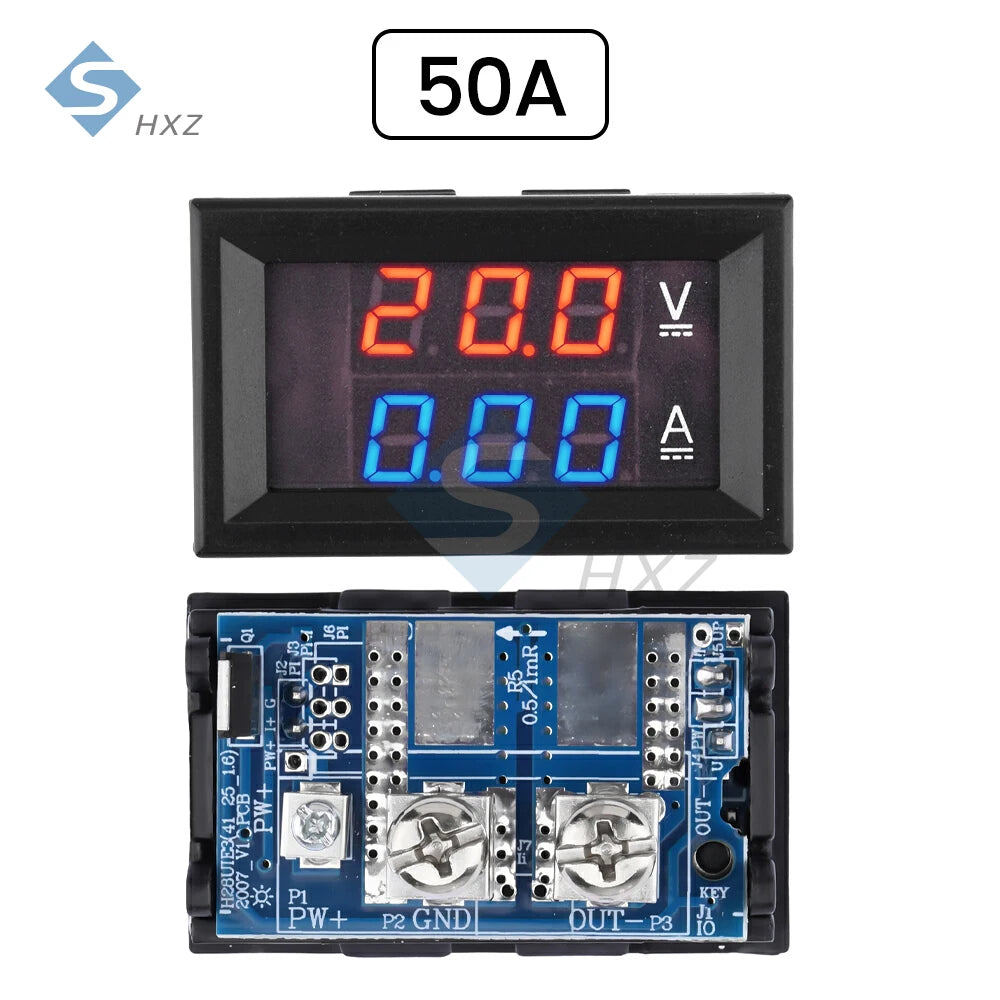

20A/50A Built-in Shunt Digital Voltmeter Ammeter DC7-100V Volt Amp Meter 0.28 Inch Dual LED Display Panel Voltage Current Tester

Features:

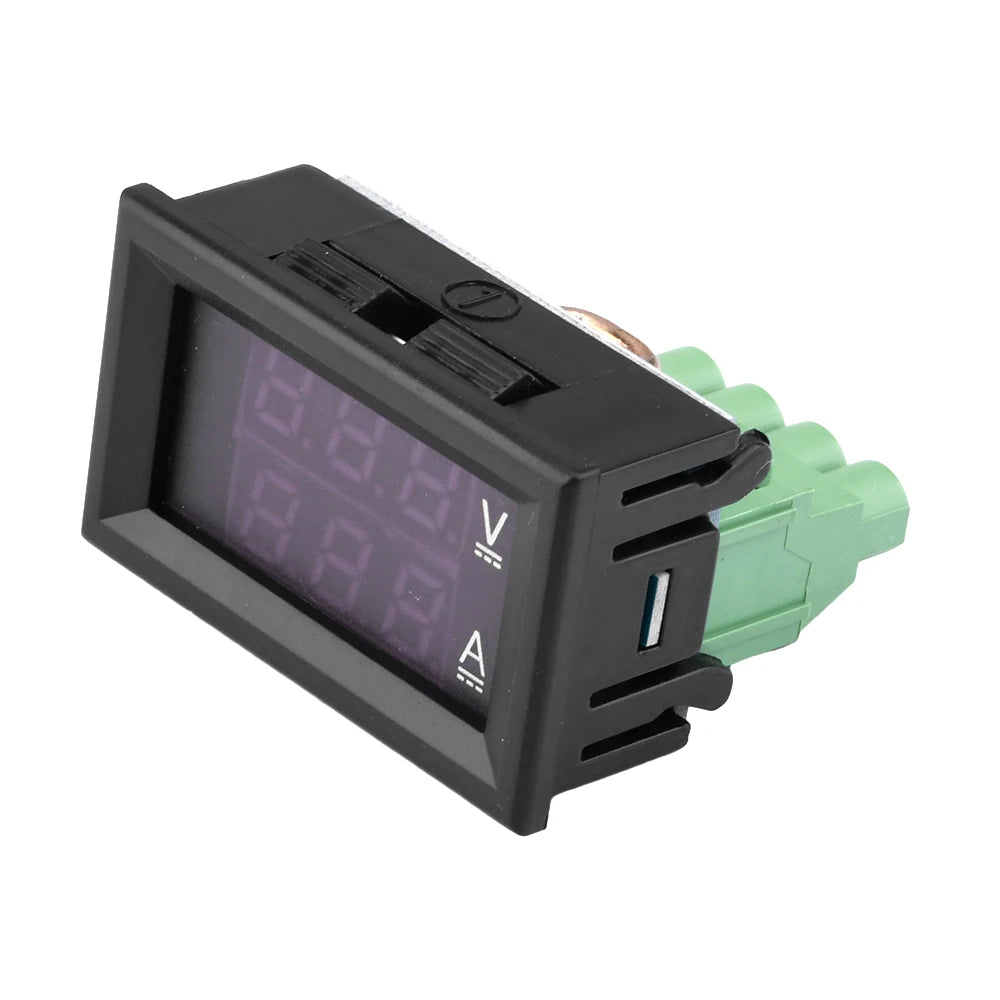

1. Compact size, dual three digit LED digital display, capable of simultaneously displaying voltage and current on the same screen.
2. The working current is very small, only around 15mA, making it safe and reliable to use.

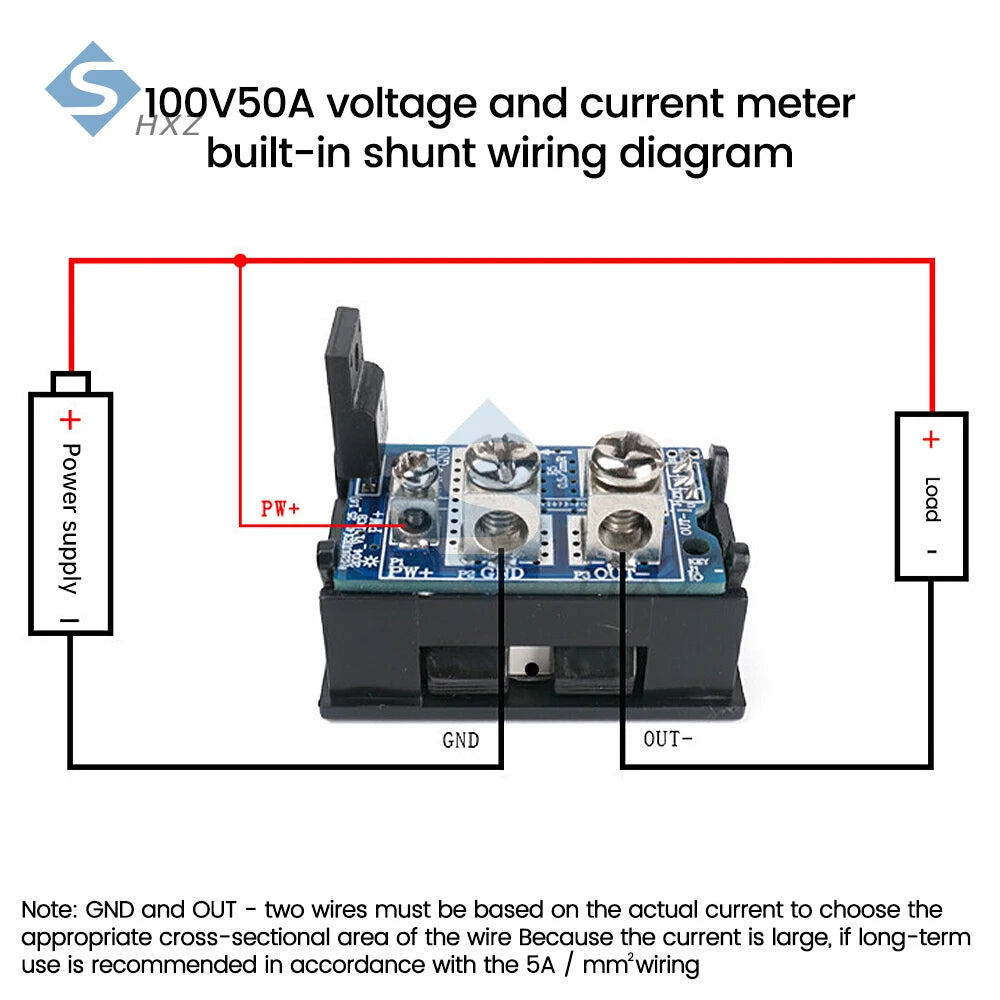

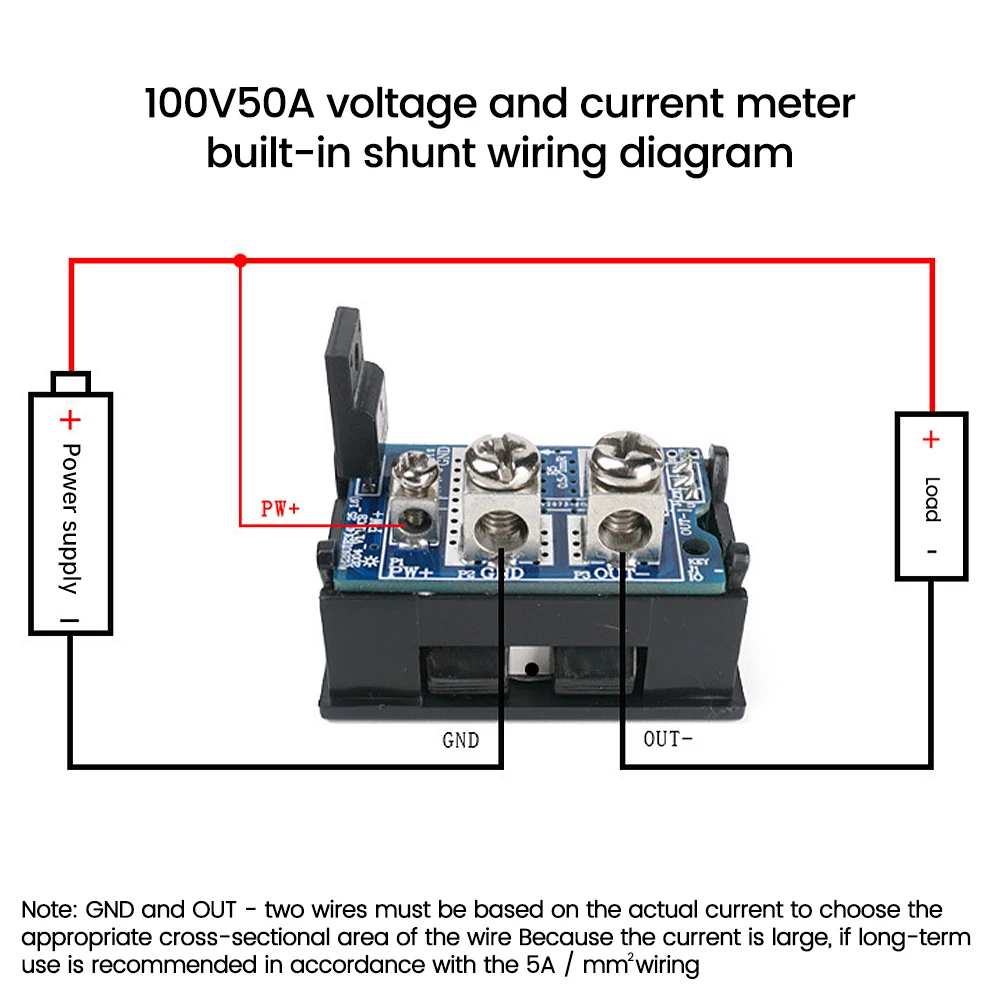

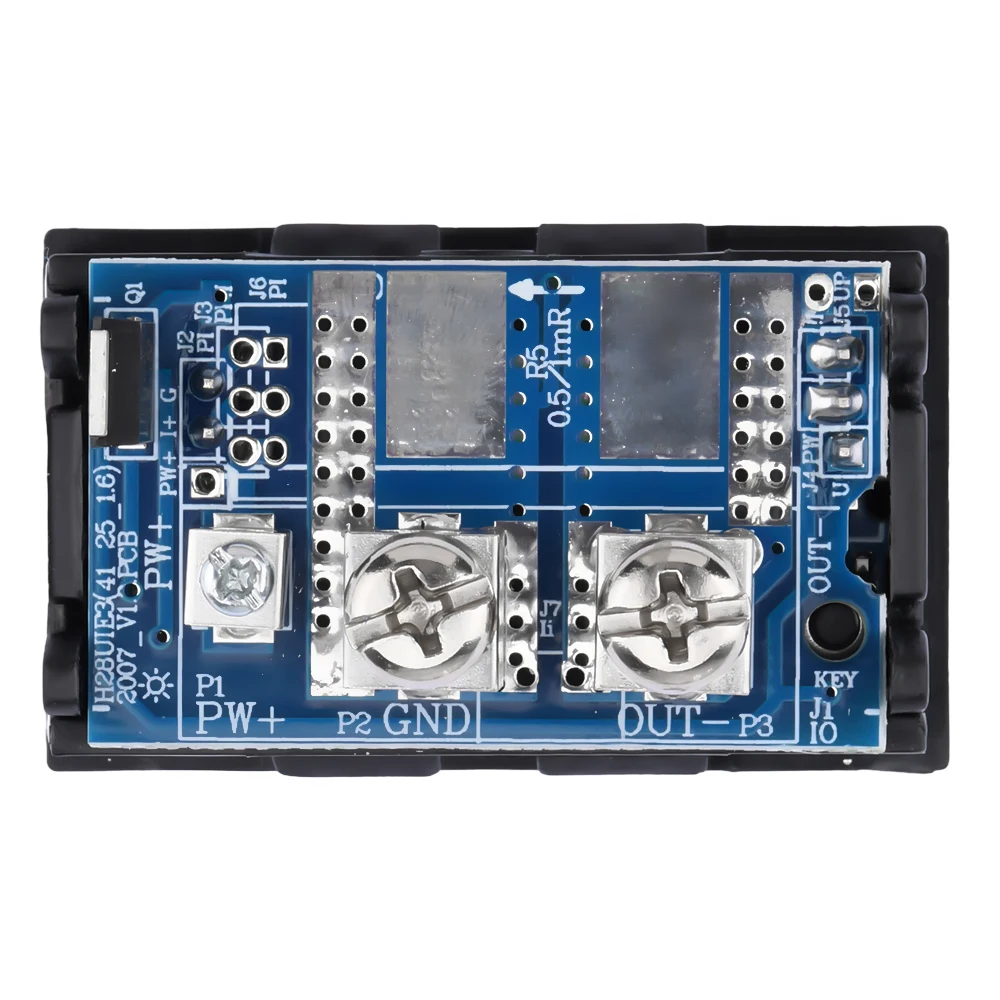

3. Equipped with a splitter, there is no need to connect an external current transformer for easy testing.

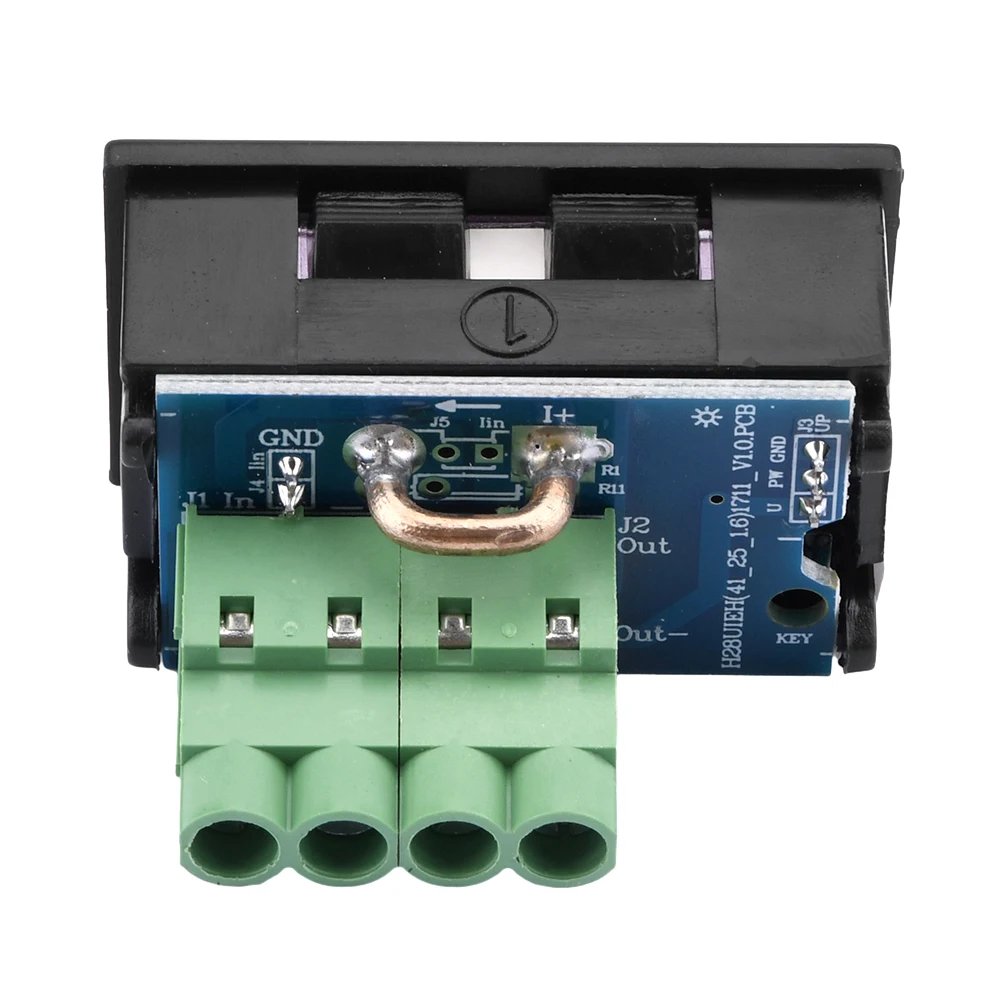

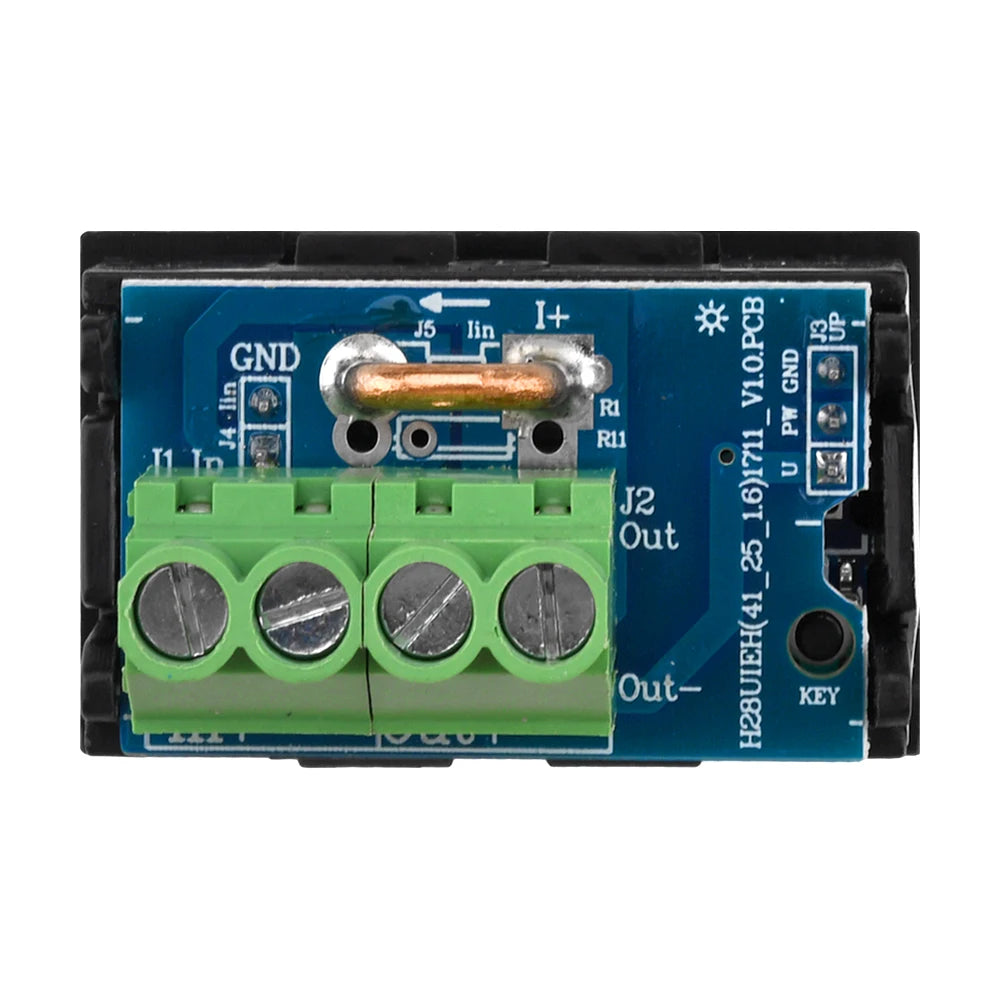

4. Using high current wiring terminals, the contact surface of the live block is large, and the connecting wires are firm and reliable.

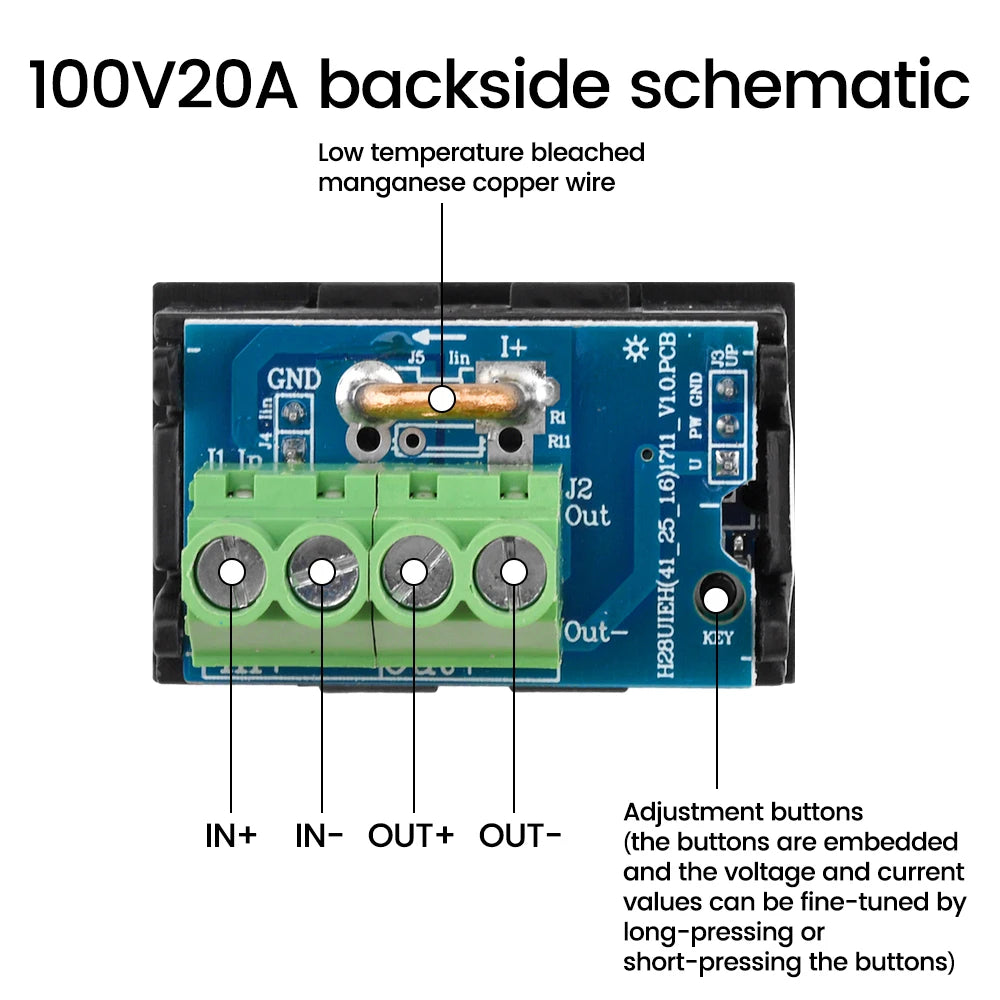

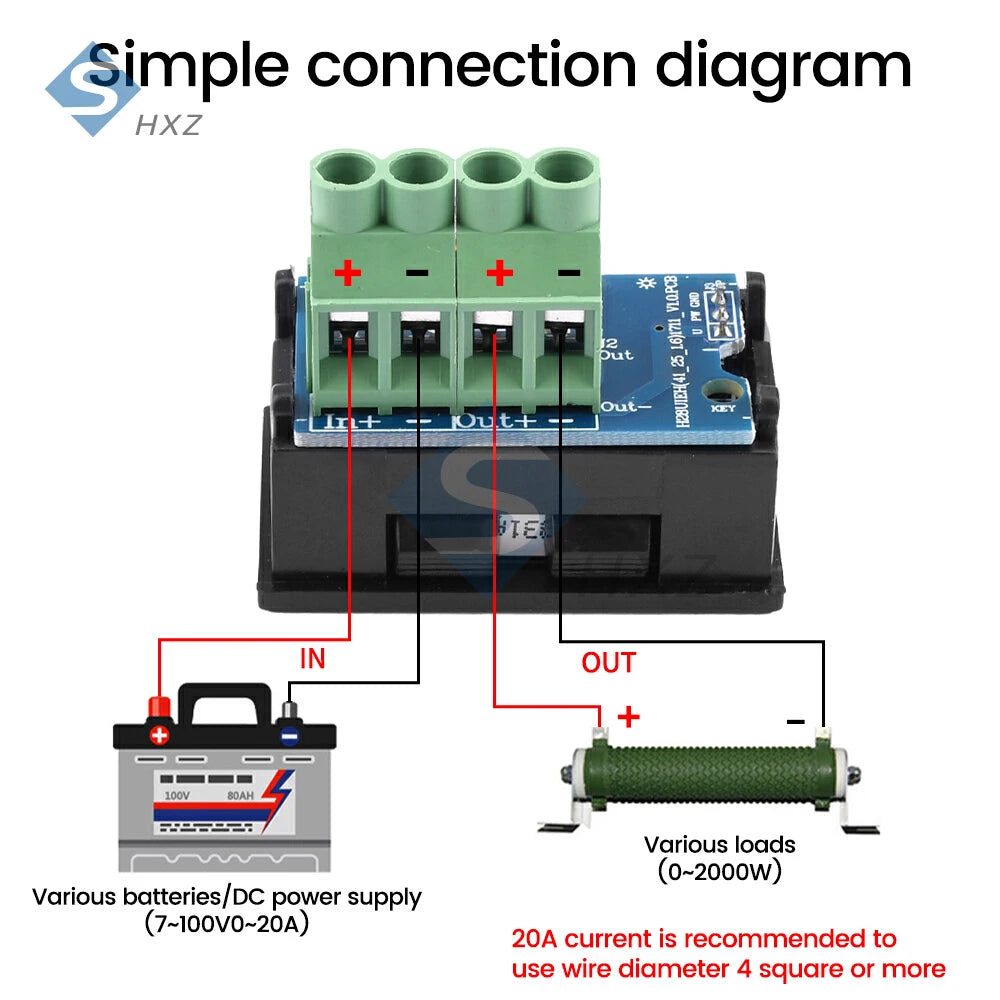

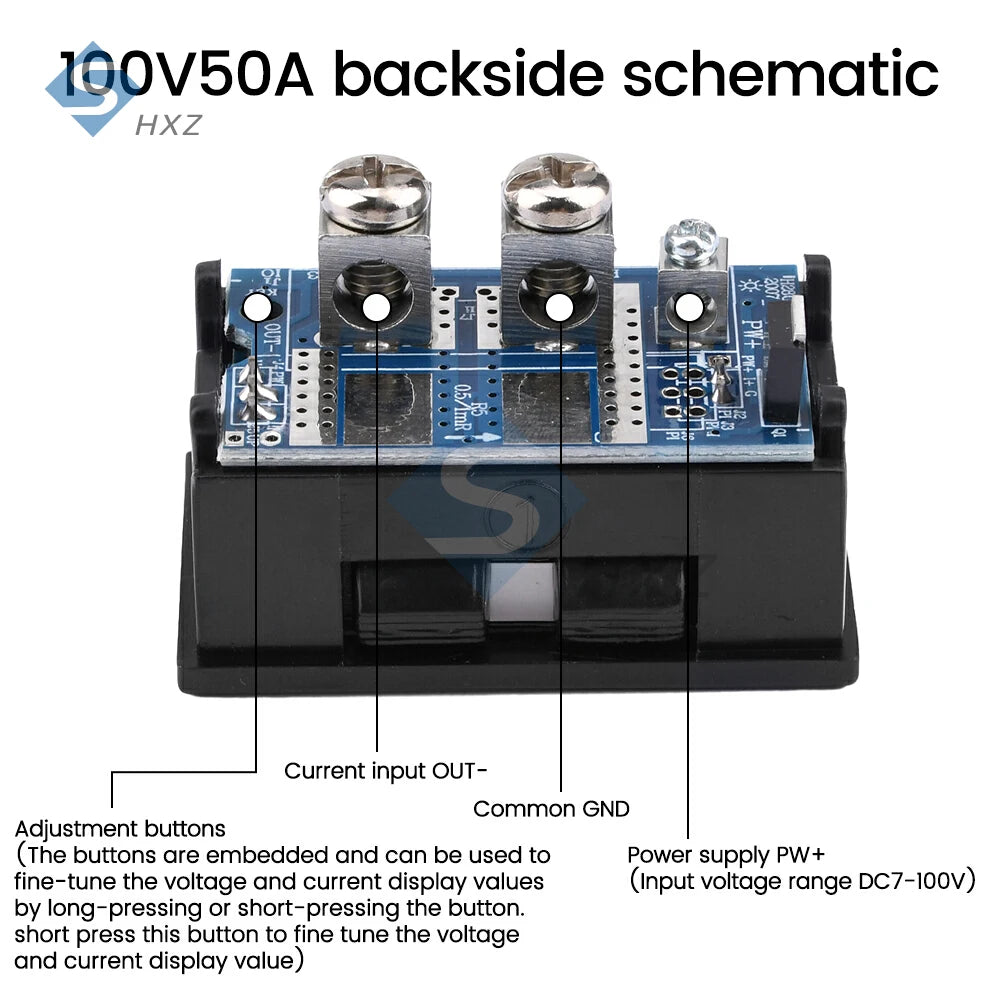

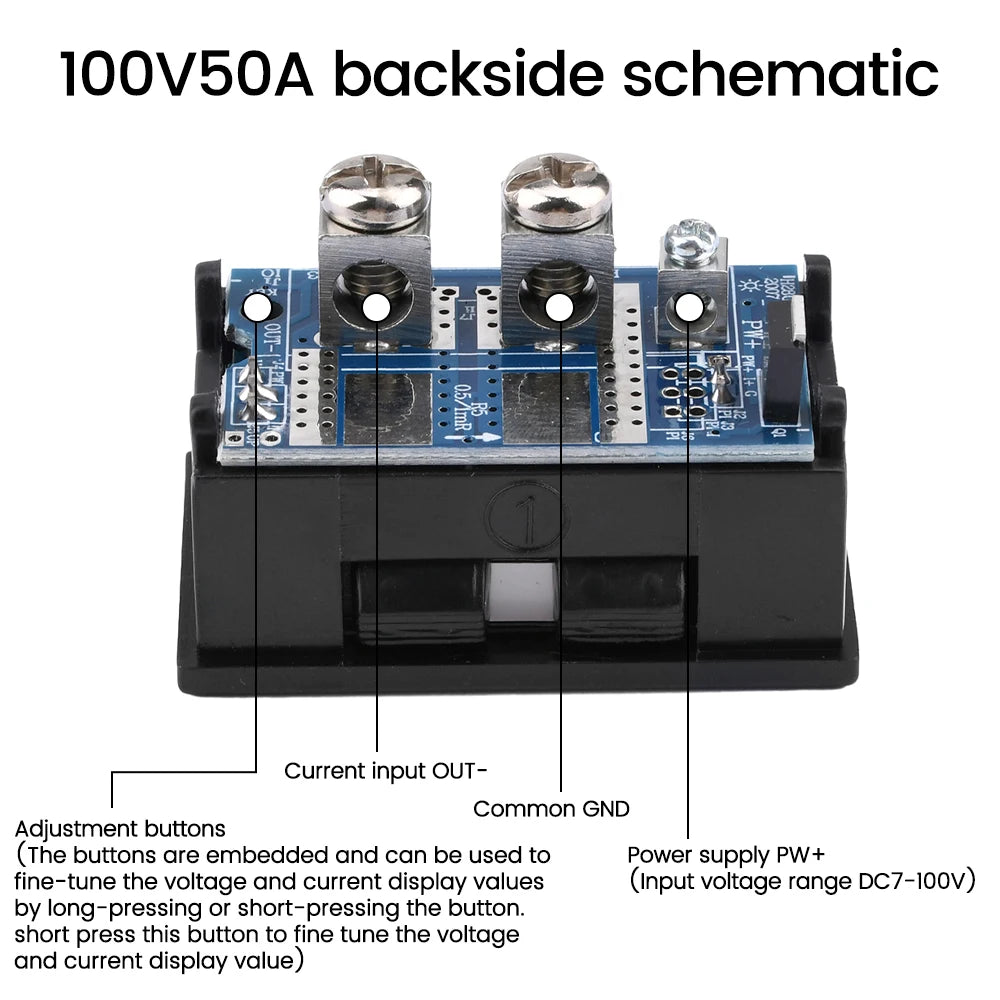

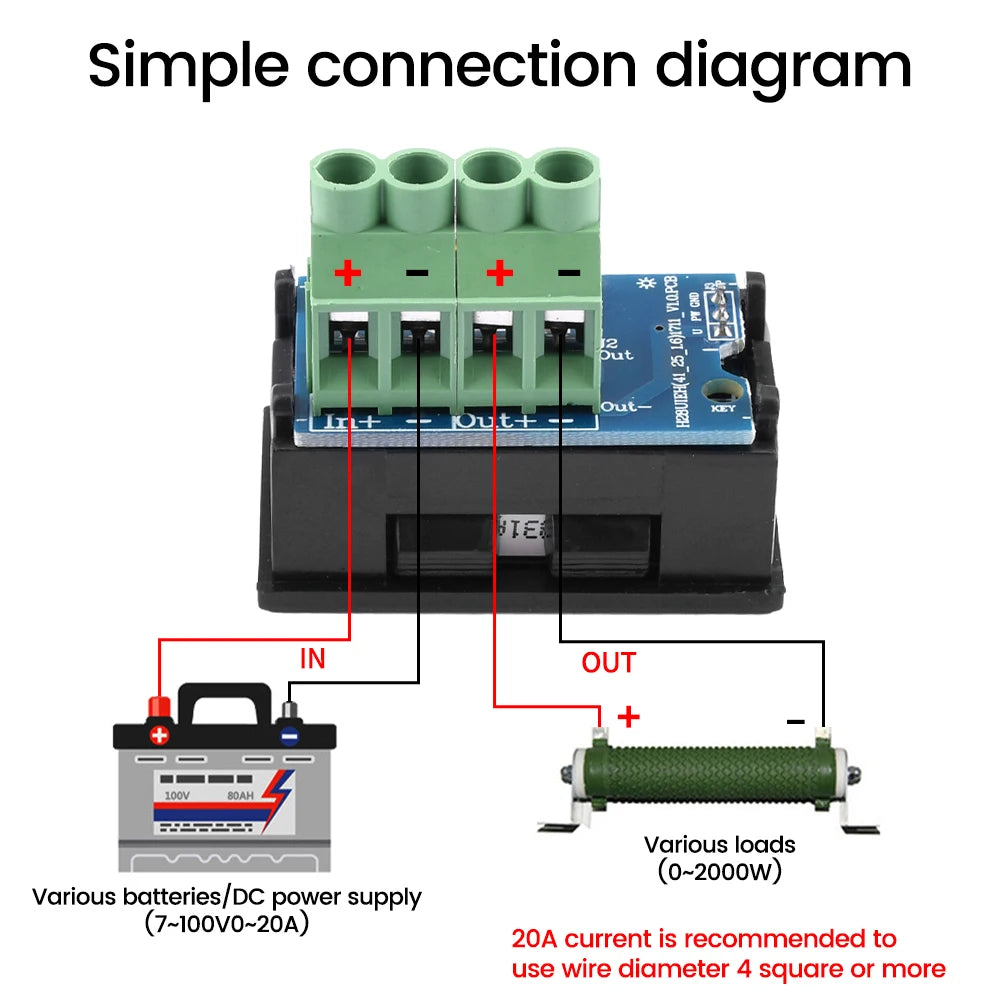

5. The wiring is simple, and the input port is connected to the power supply and the output port is connected to a high-power load for testing.

Specifications:
Voltage measurement range: DC 7-100V
Voltage tolerance: 1% (± 1 word)

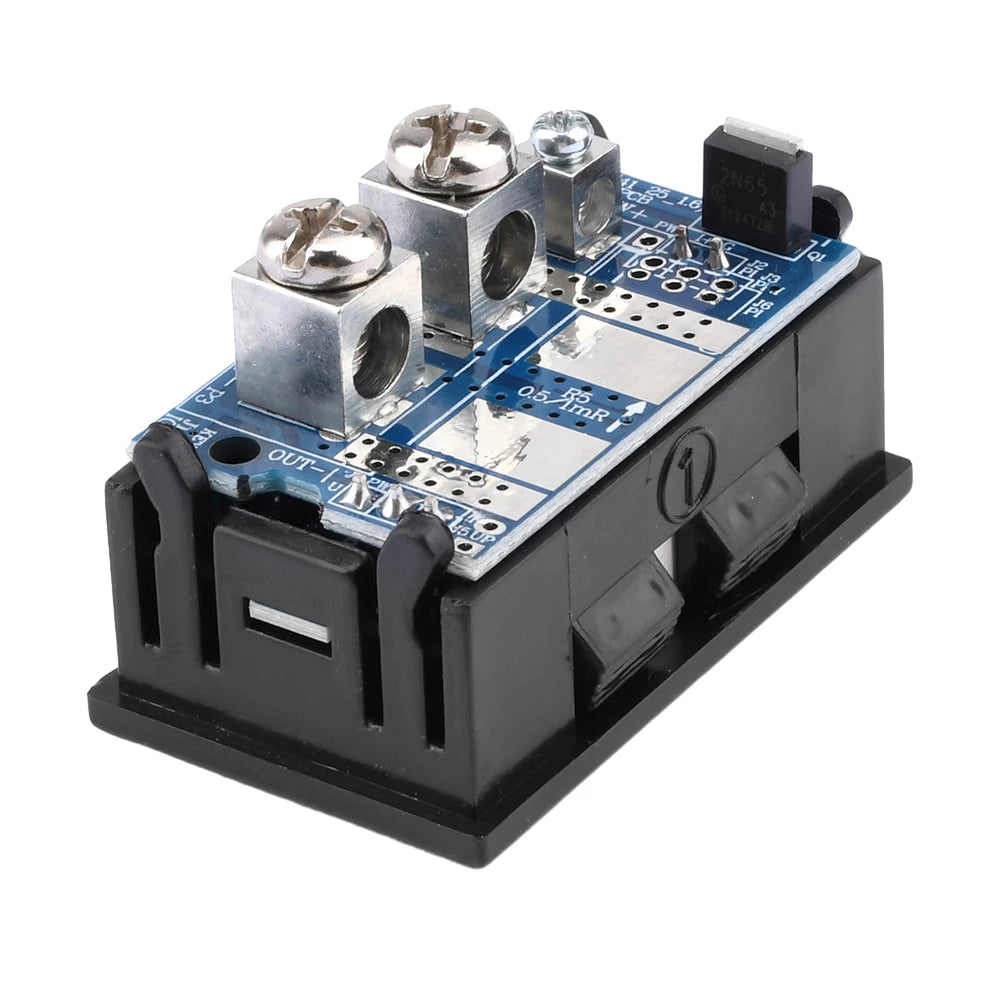

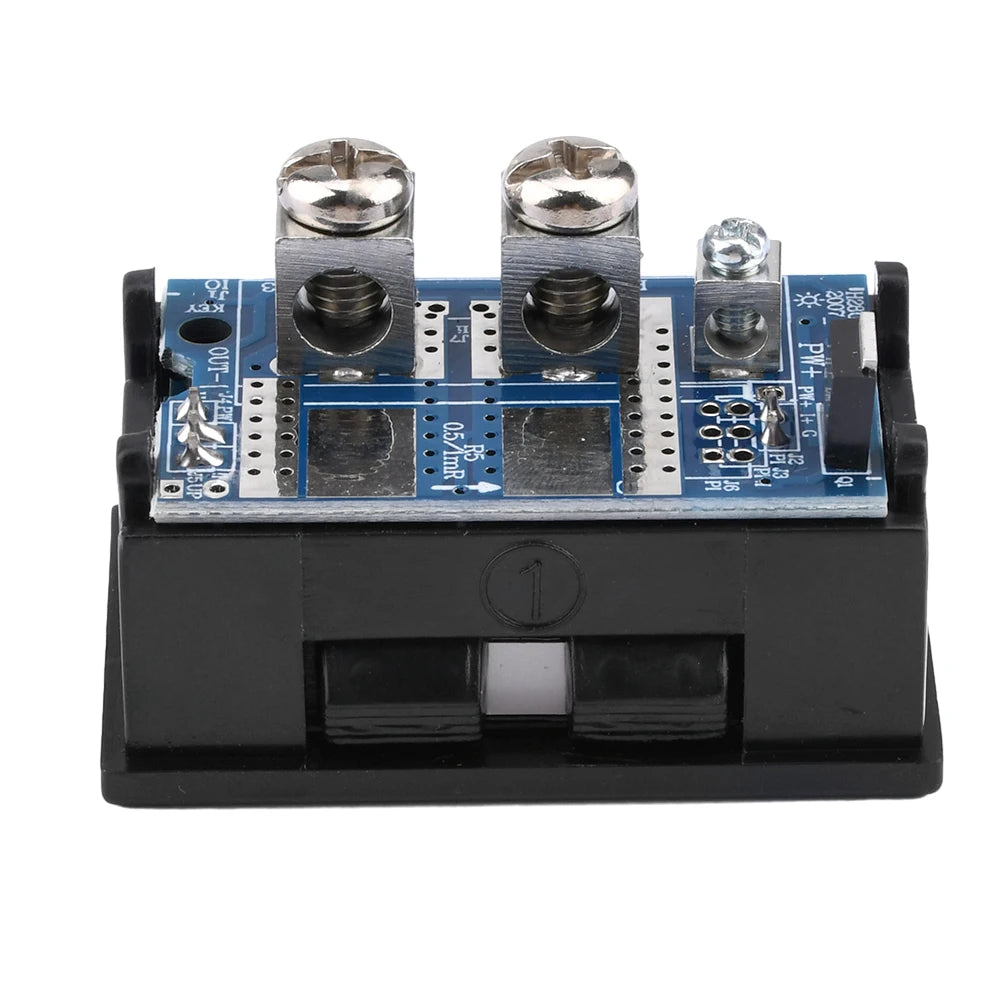

Current measurement range: 0-20A, 0-50A (optional)
Current tolerance: 1% (± 1 word)
Resolution: 0.01A

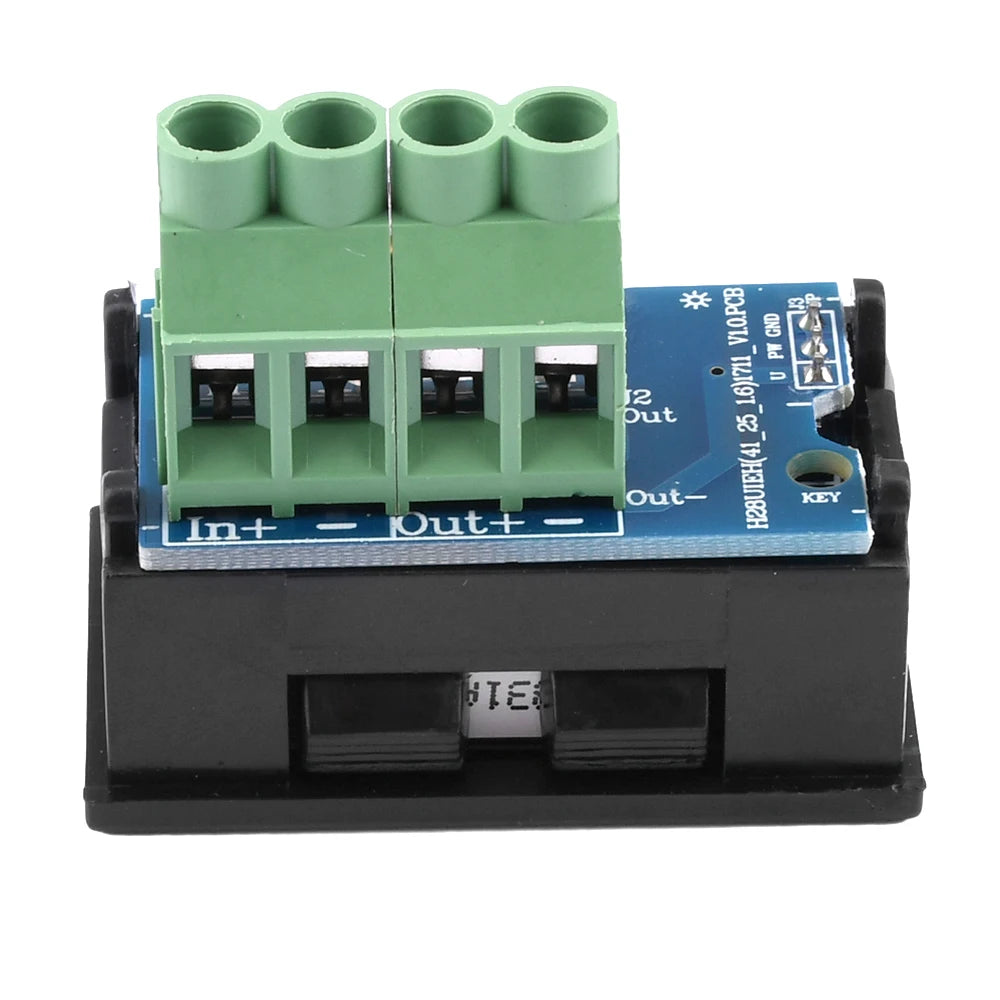

Terminal block: high current terminal block
Working current:<15mA
Refresh rate: ≥ 500mS/time
Working temperature: -10~65 ℃
Working humidity: 10~80% (without condensation)
Working pressure: 80-106kPa
Display method: dual three position 0.28-inch LED digital tube

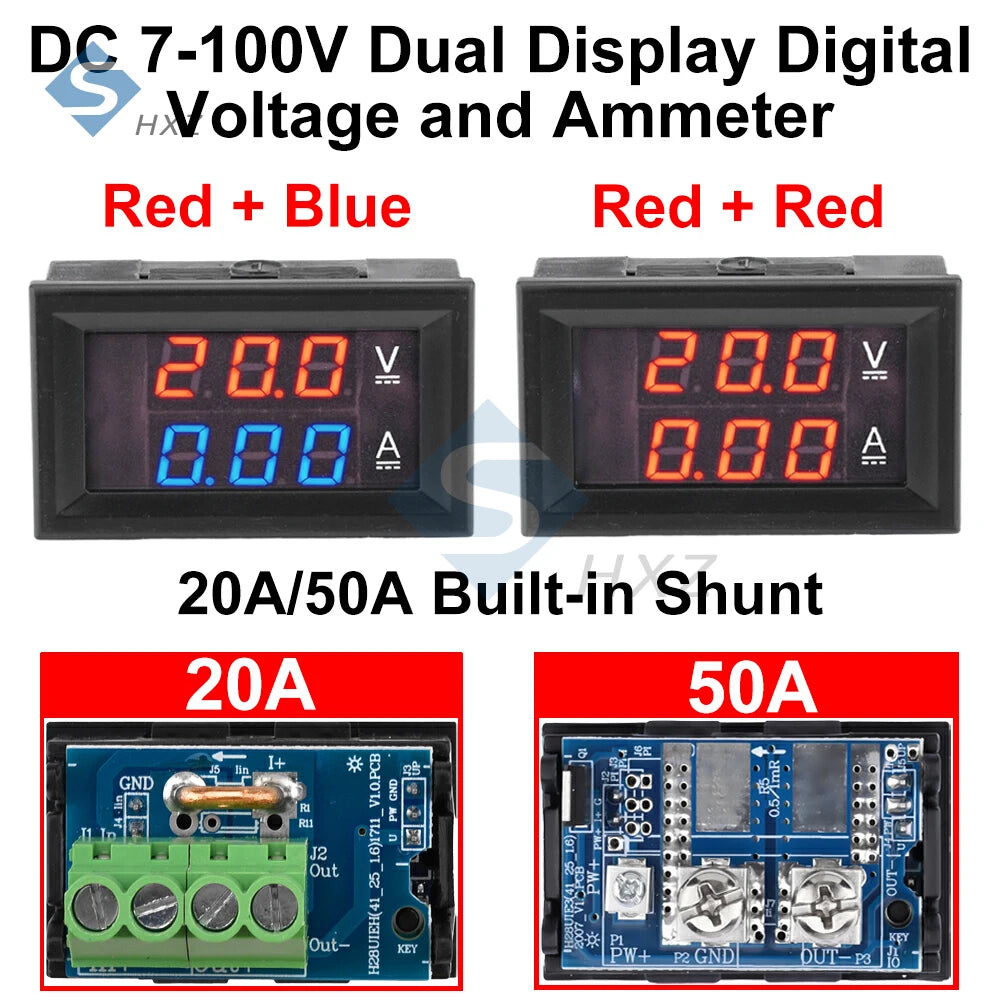

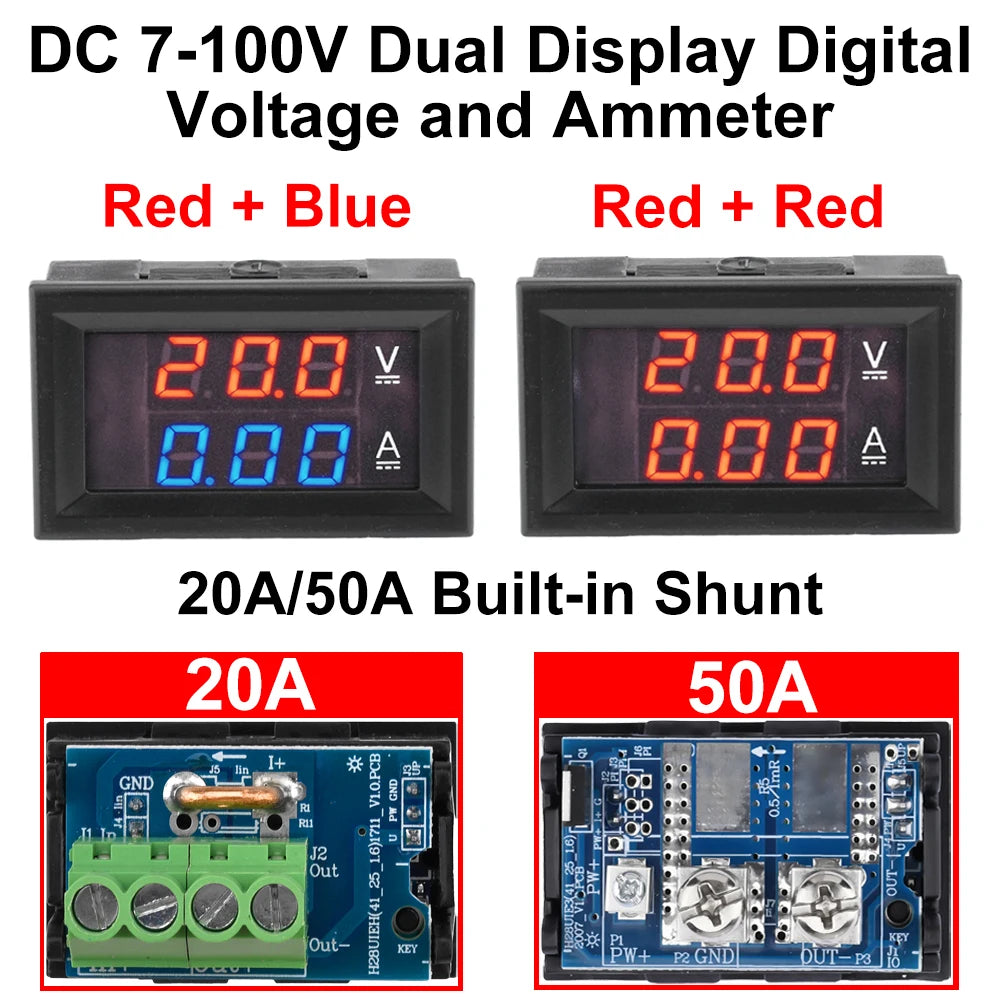

Display color: red+red, red+blue

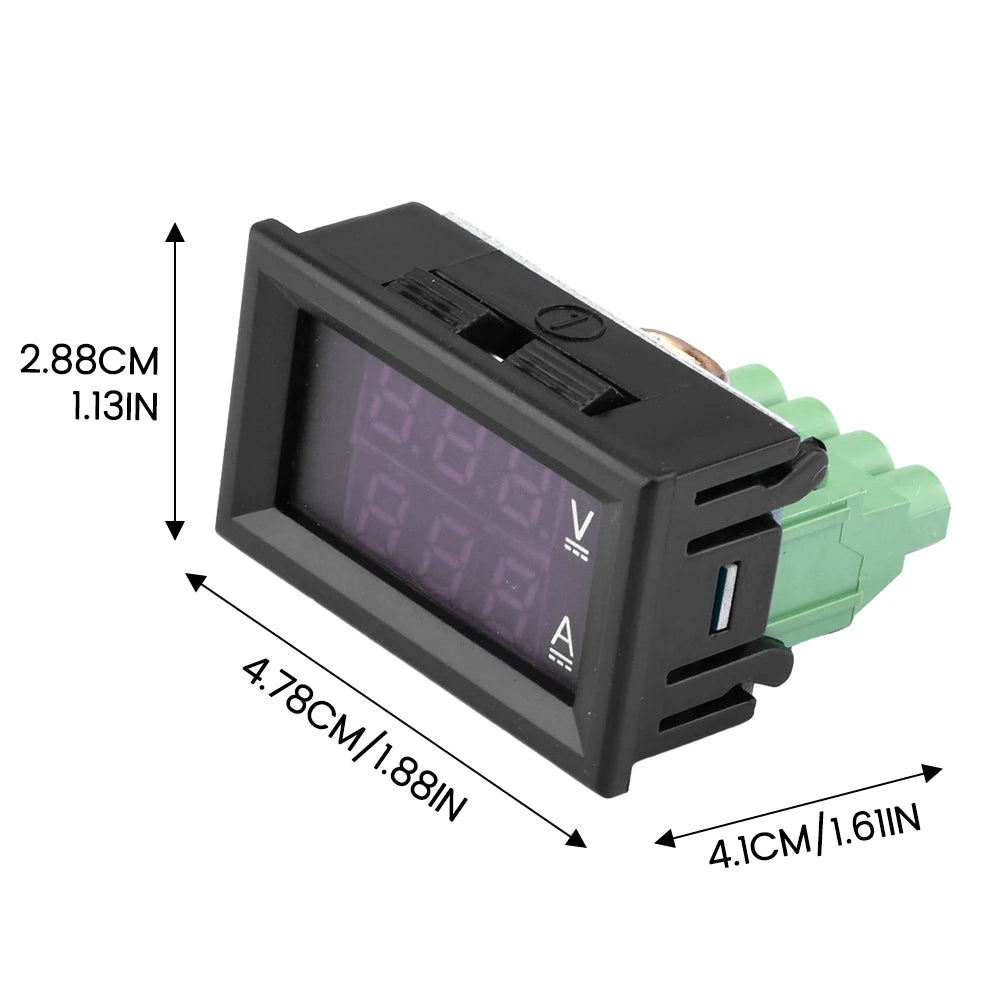

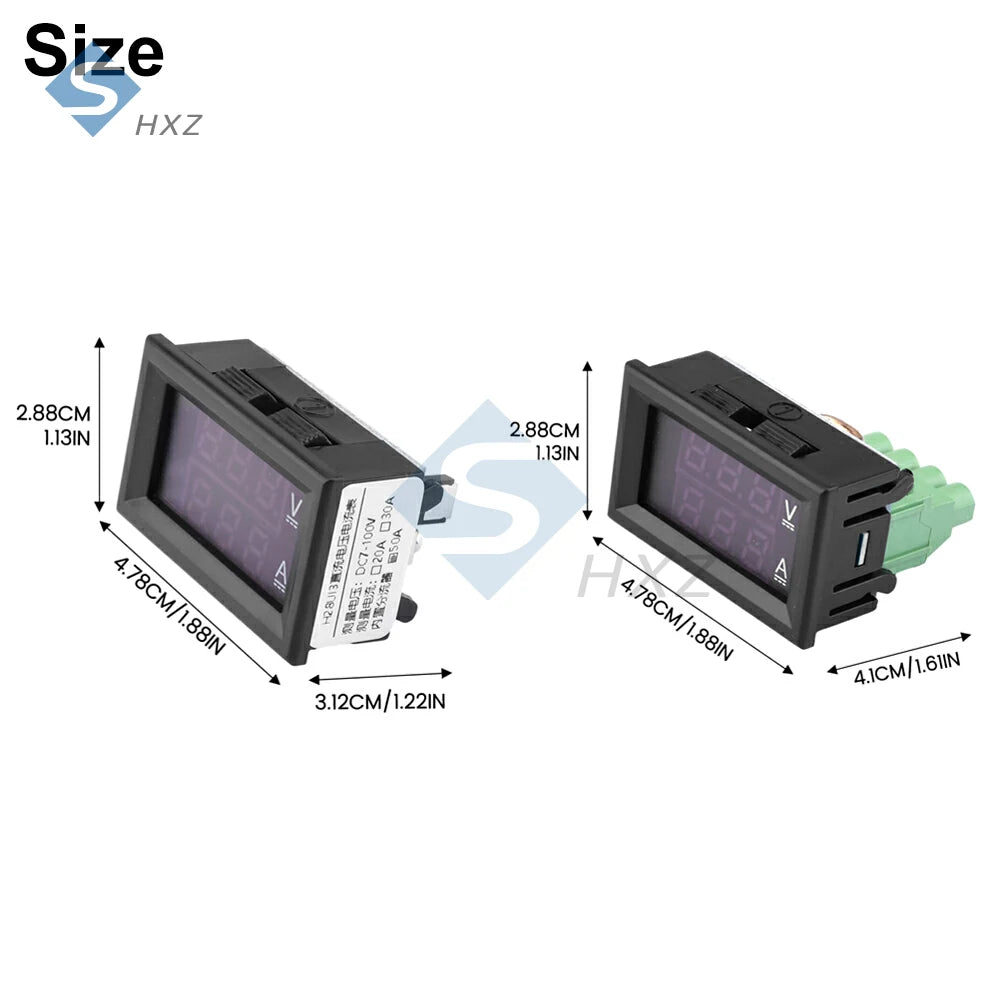

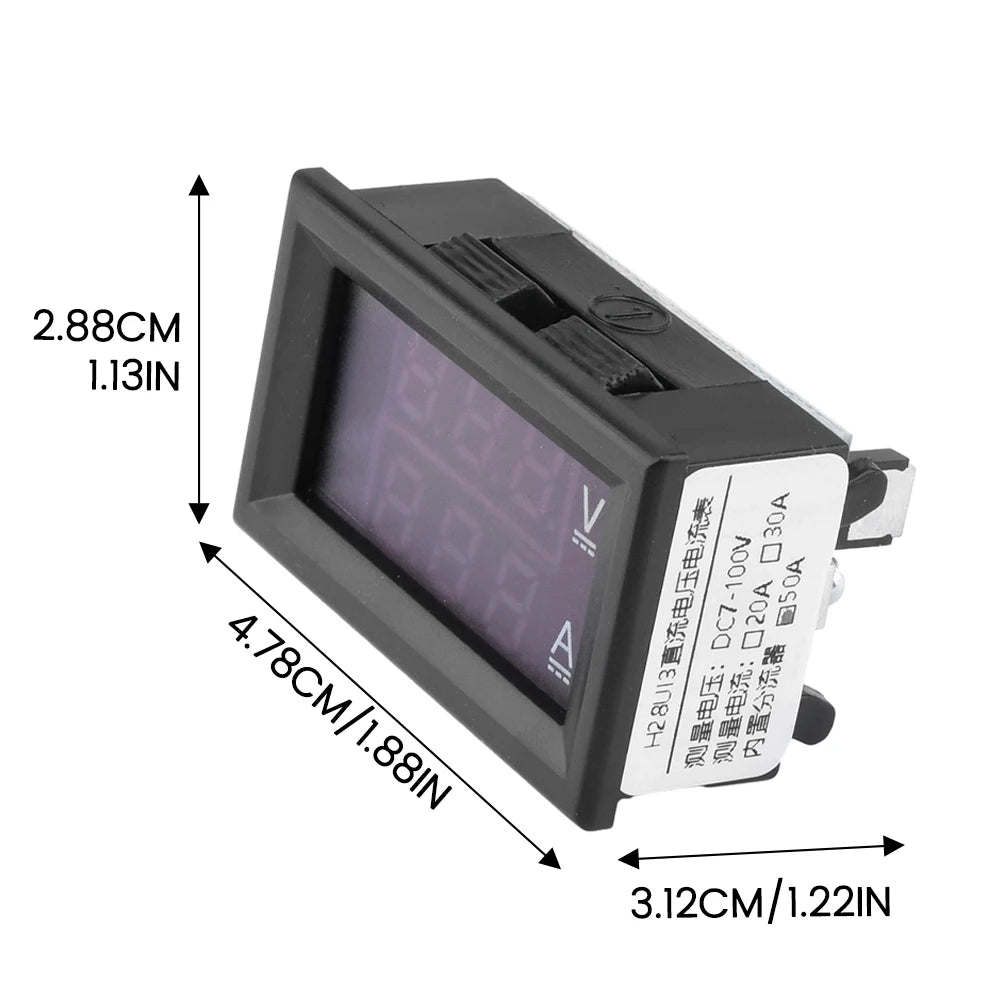

Product size:
20A: 47.8 * 28.8 * 41mm
50A: 47.8 * 28.8 * 31.2mm
Opening size: recommended 46 * 27mm

Package Included:
Volt-Ammeter* 1
