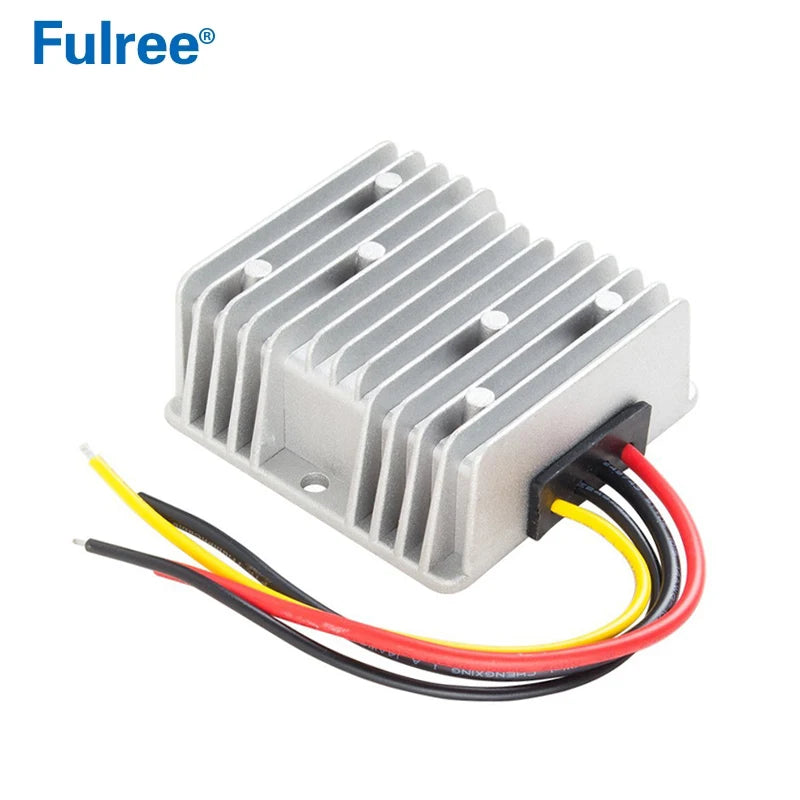

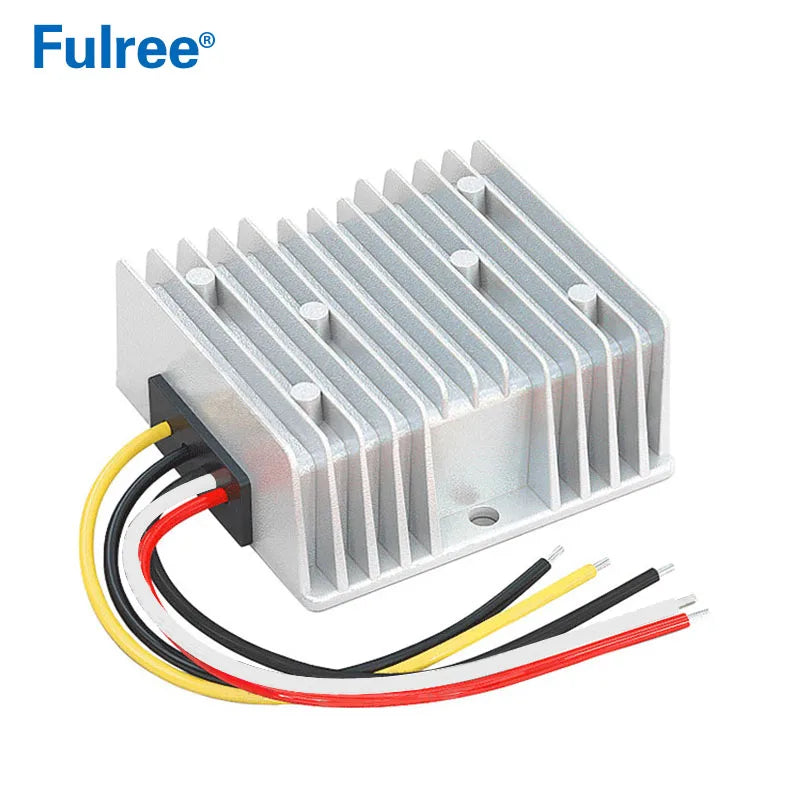

Estabilizador Convertidor Voltaje DC 24V a 24V 3A/5A/8A/10A Step-Up/Down Buck-Boost Módulo Auto

$55.990 CLP

~~$39.973 CLP~~ $55.990 CLP

Oferta Agotado

Los gastos de envío se calculan en la pantalla de pago.

Color 18-36V to 24V 10A 10-36V to 24V 3A 10-36V to 24V 5A 10-36V to 24V 8A

Cantidad

SPECIFICATIONS

Brand Name: fulree

Certification: CE,RoHS

Current Type: DC

Input Volatge: DC 10-36V for 3A-8A / DC 18-36V for 10A

Model Number: F36W24V*A5L

Net Weight: 250g

Origin: Mainland China

Output Current: 3A / 5A / 8A / 10A Max

Output Power: 240W

Output Voltage: DC 24V

Phase: single phase

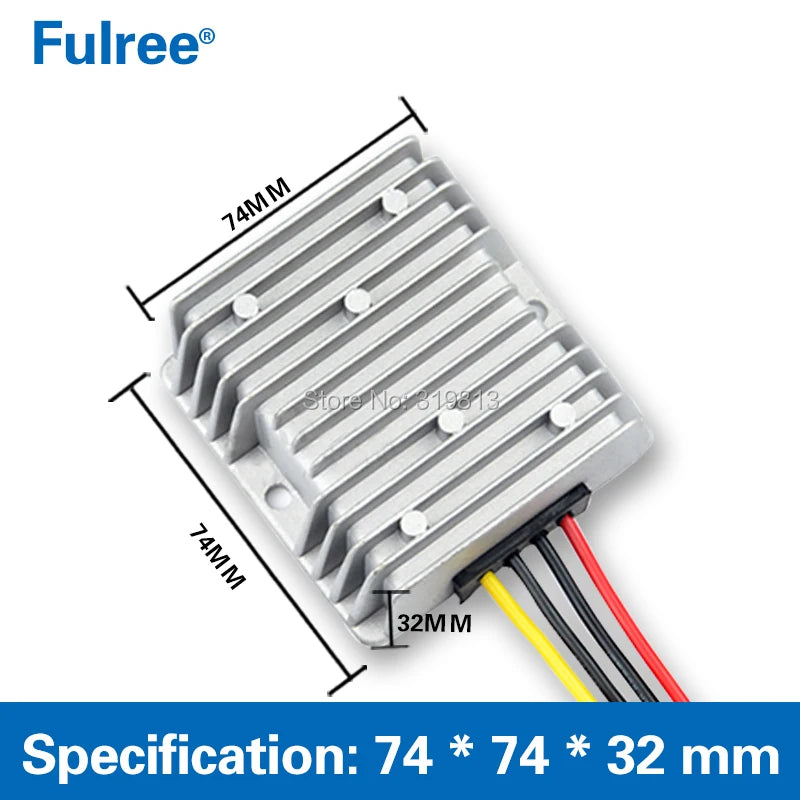

Product Size: 74*74*32MM

Usage: Other

is_customized: Yes

Product Name		24V to 24V DC Converter
Brand		Fulree
Model No.		F36W24V*A5L
Module Properties		non-isolated buck module
Rectification		synchronous rectification
Input(cable length: 12cm)
Input Voltage	DC 24V
InputVoltage Range	DC10-36V for 3A-8A Max / DC 18-36V for 10A Max
Output(cable length: 12cm)
Output Voltage	DC 24V
Output Current	3A / 5A / 8A / 10A Max
Output Power	72W / 120W / 192W / 240W Max
Conversion Efficiency	>93%
Voltage regulation	±1%
Load regulation	± 2%
Ripple (Full load test)	< 150mV
No-load current	<100mA
Working Temperature	-40~80℃( If ambient temperature exceeds 40°c, lower power use, or to enhance heat dissipation)
Waterproof Rating	IP68
Protection	Over-current protection
	Overheating protection short circuit protection
	waterproof IP68 design, anti-shock protection
Application	mobile phone, car camera, Electric motors, Trucks, Golf Carts ,Forklifts,Solar Panel Power System,water pumps, industrial equipment and so on.
Case Material	Die-casting aluminum alloy
Product Size (L x W x H)	747432mm
Product Weight	250g
Warranty	12 months
Cooling Way	Free air convection
OEM&ODM Service	Acceptable
