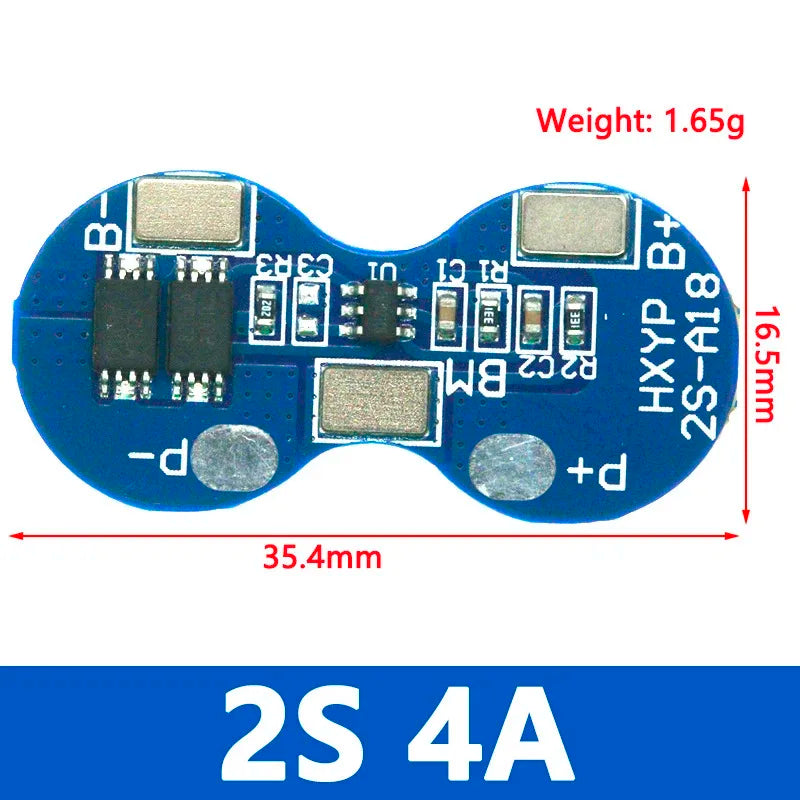

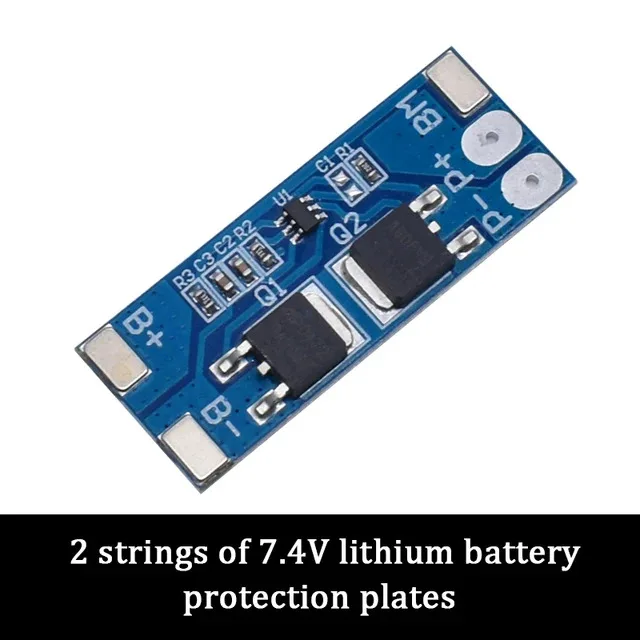

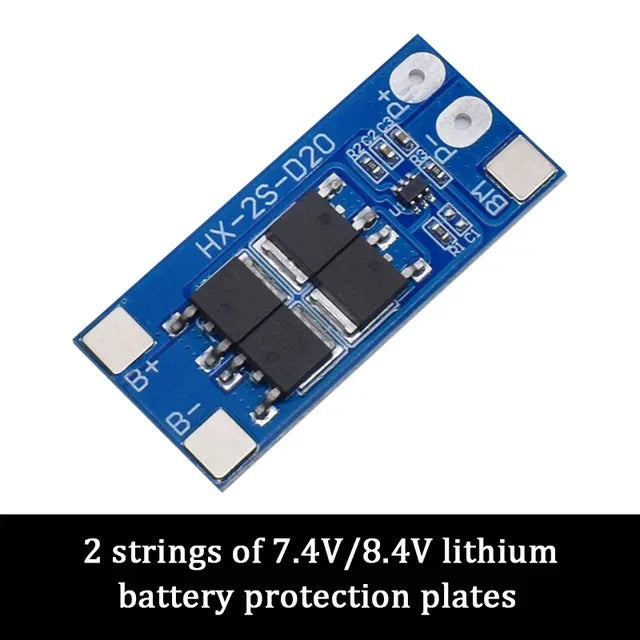

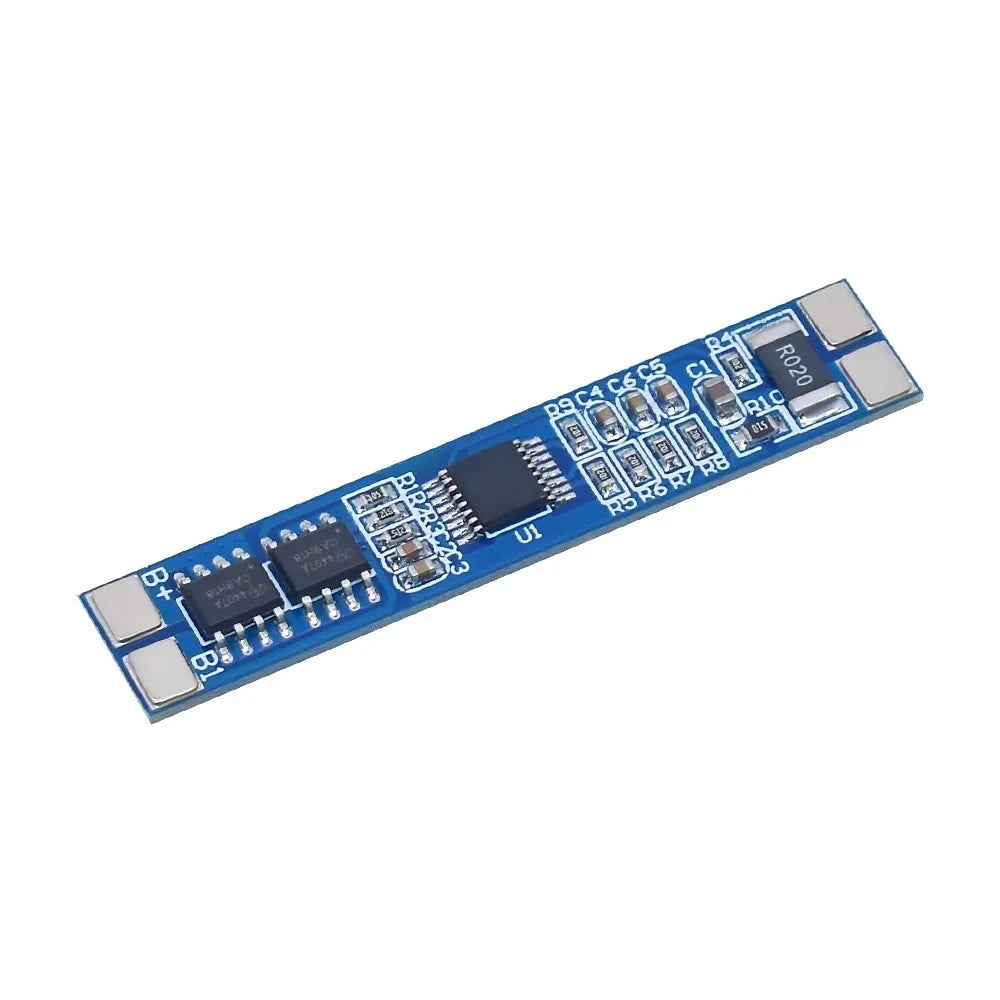

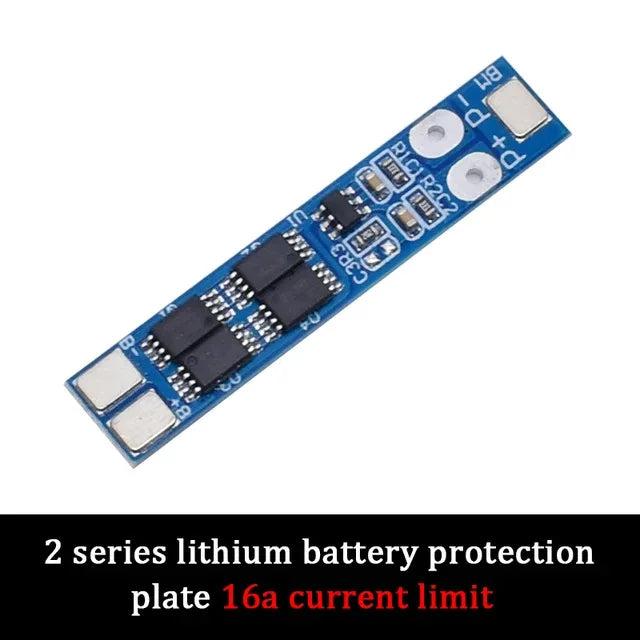

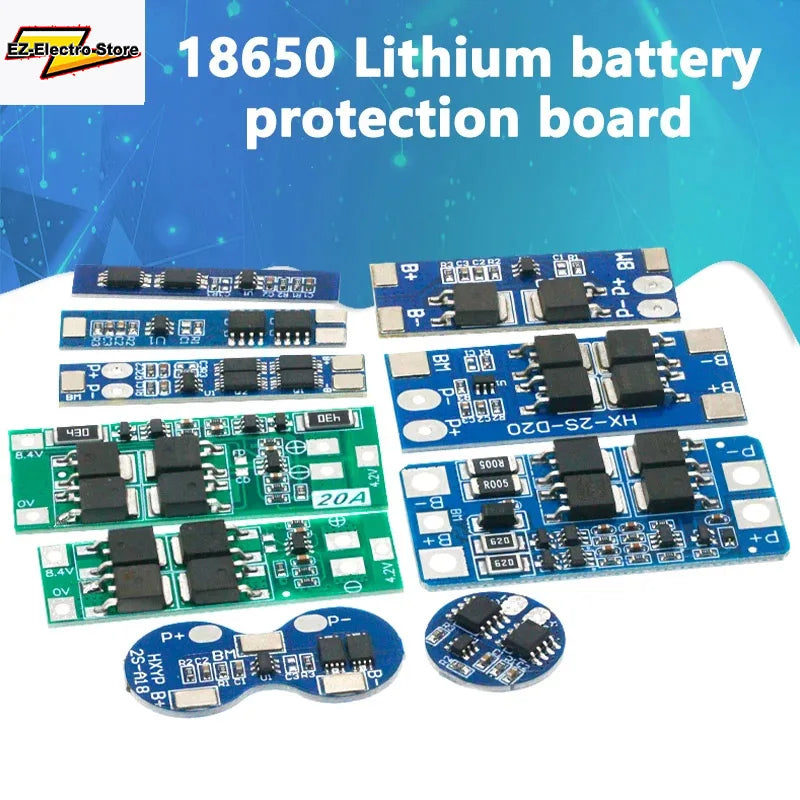

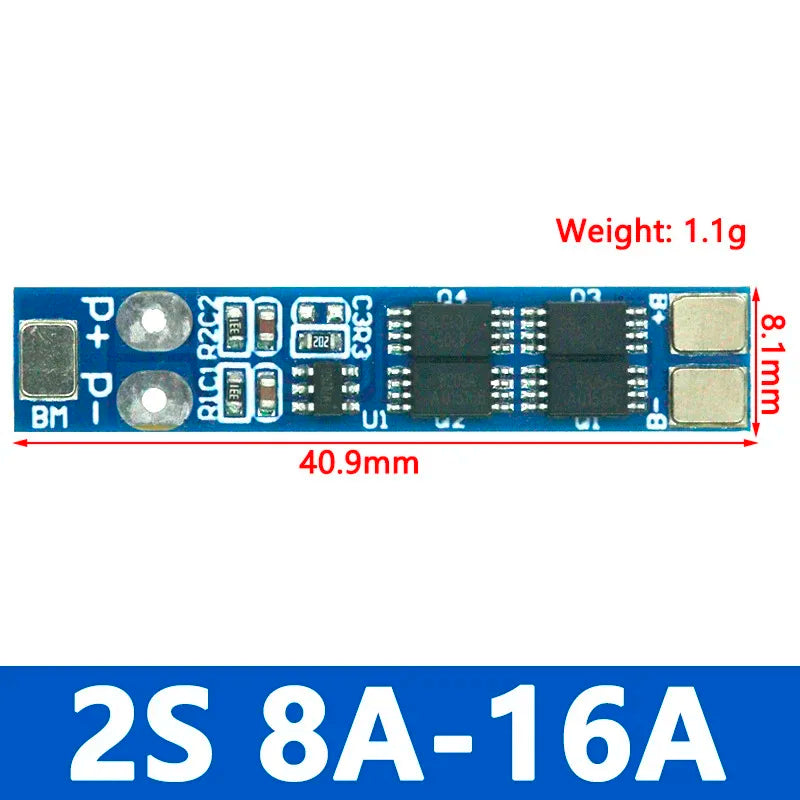

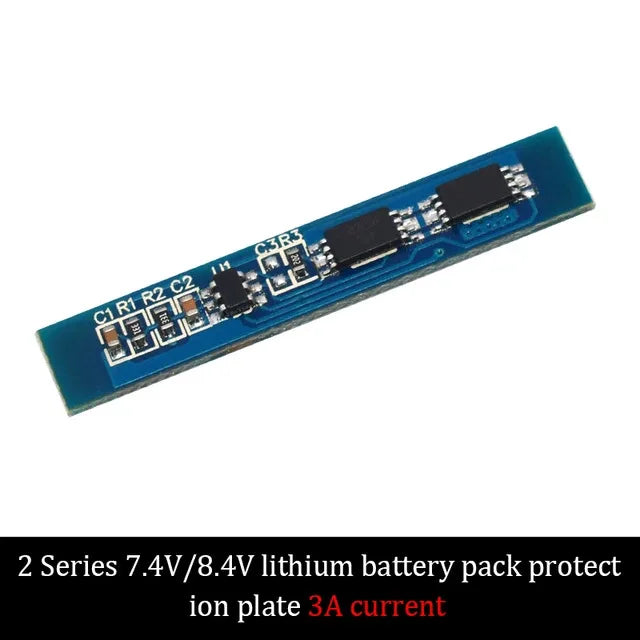

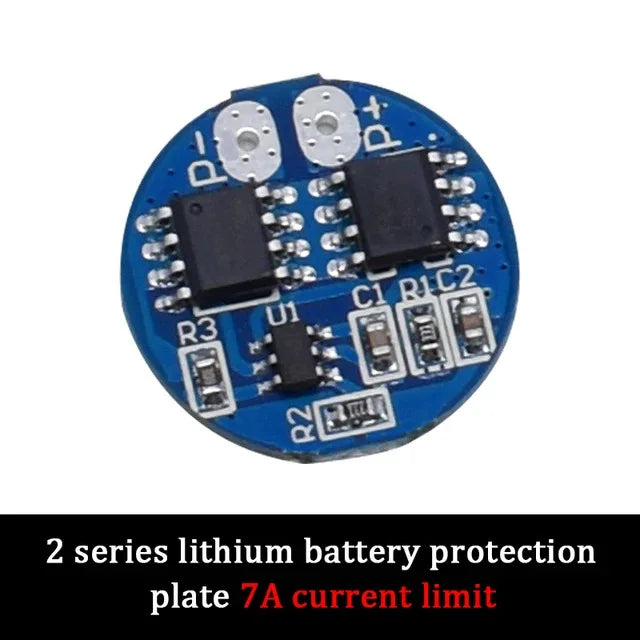

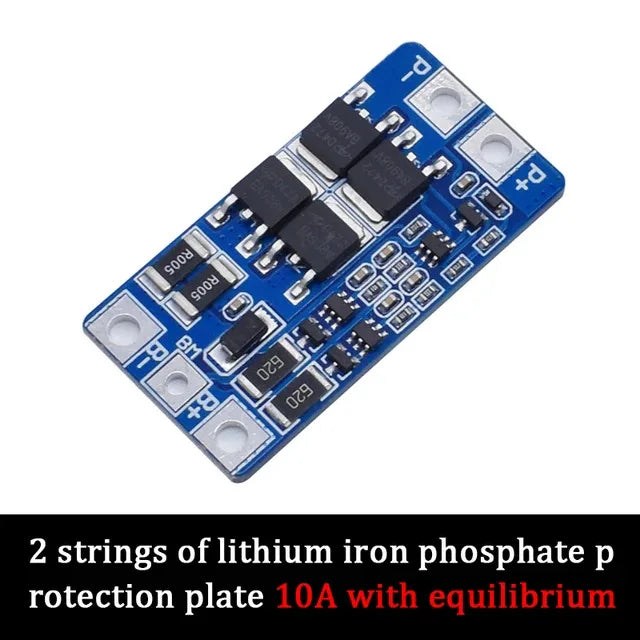

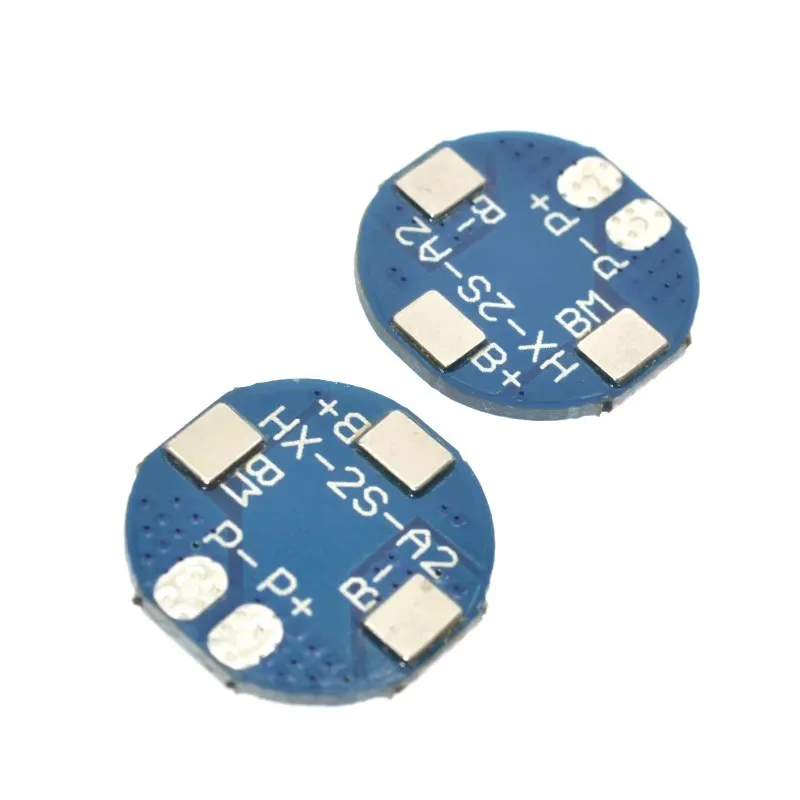

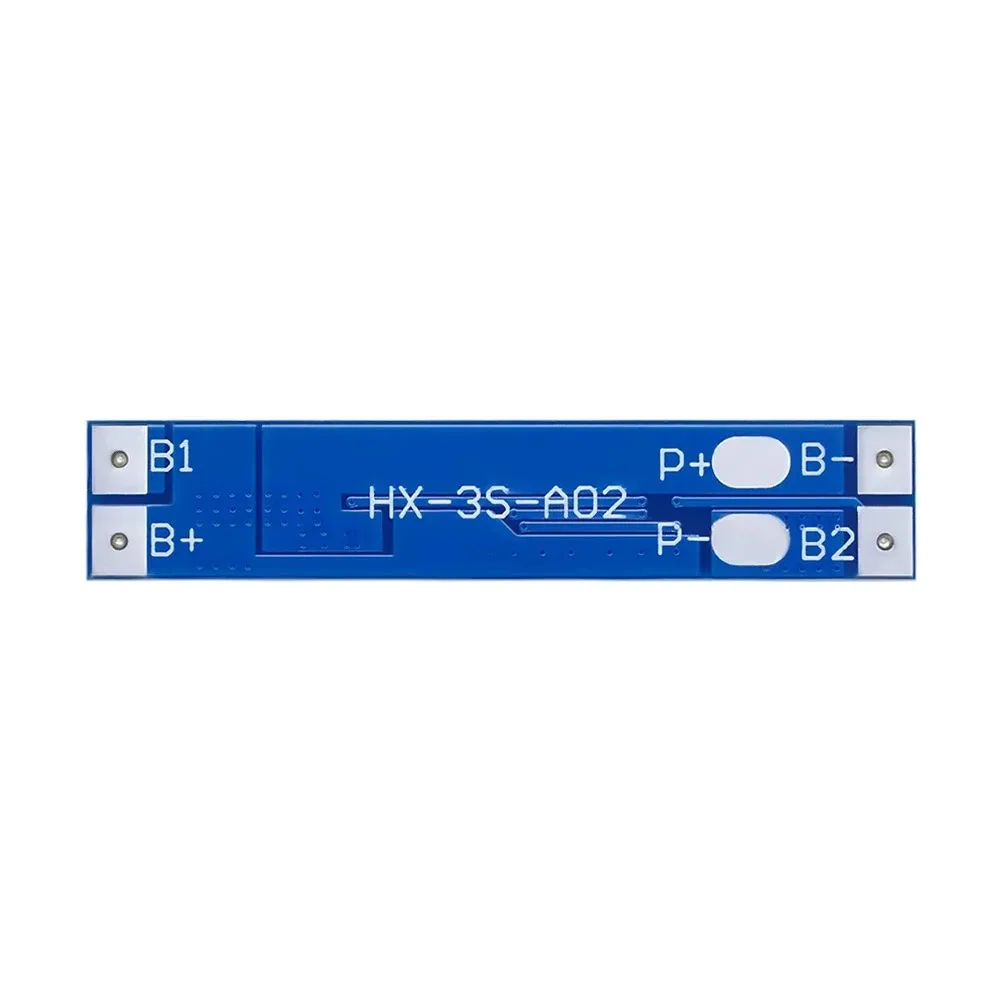

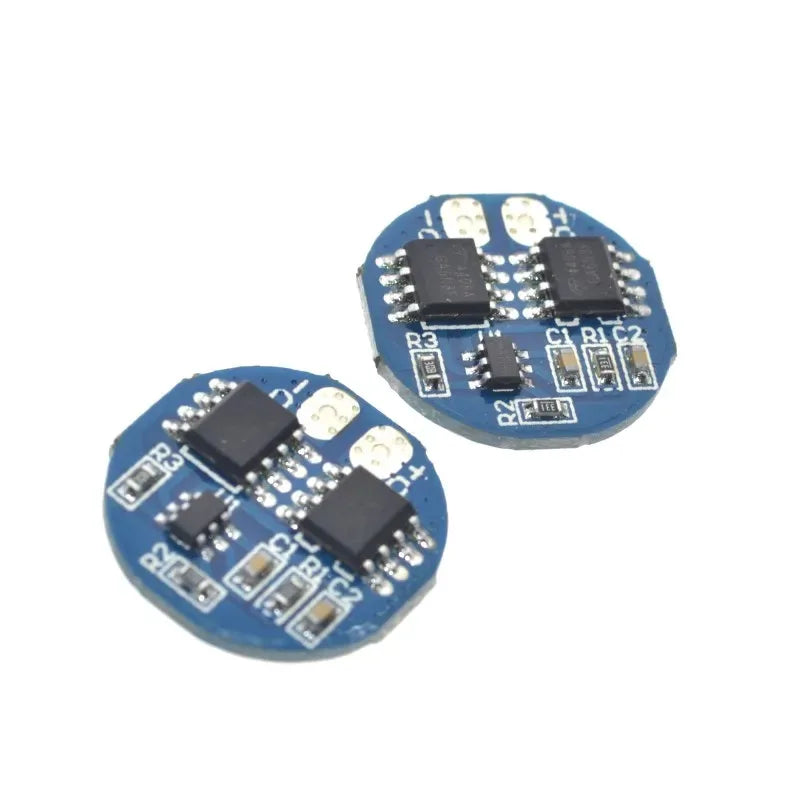

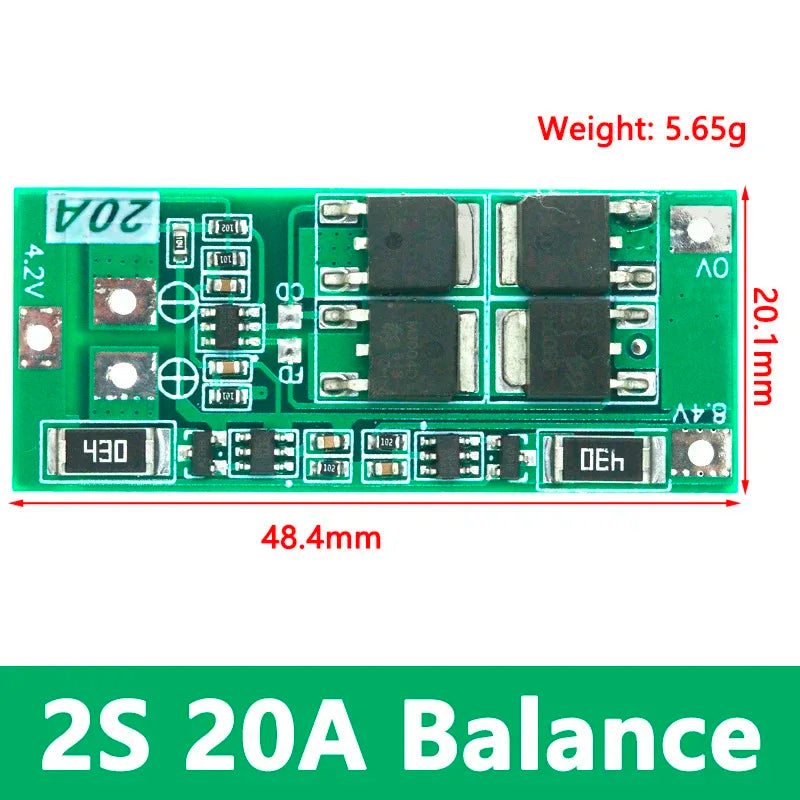

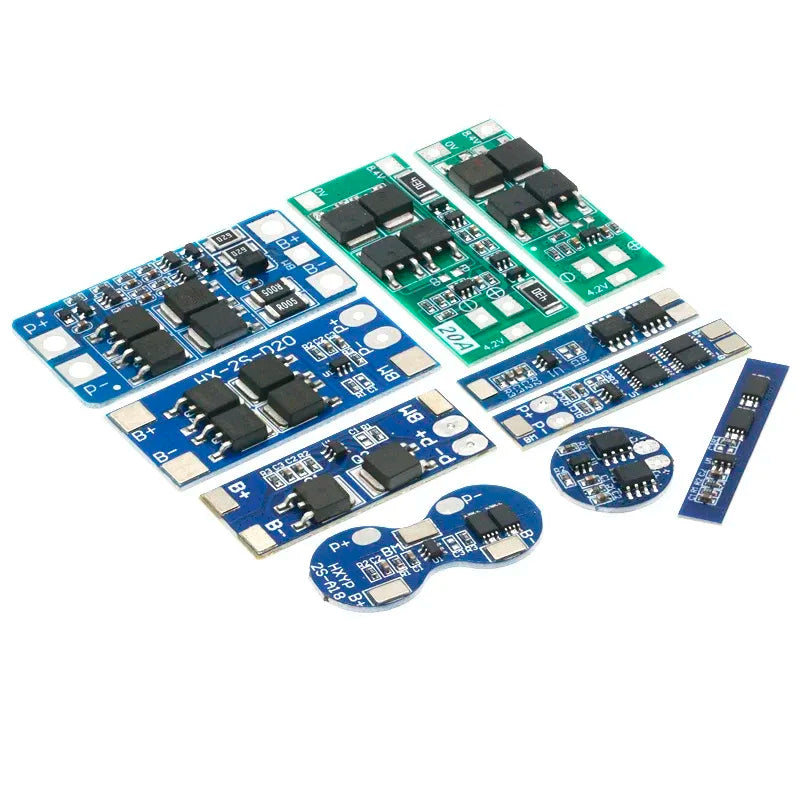

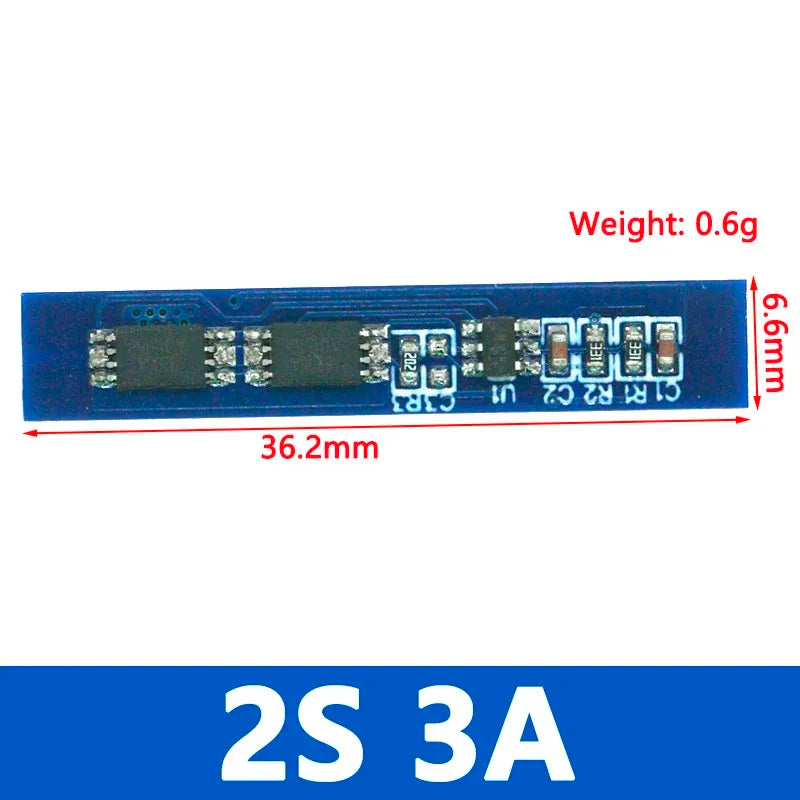

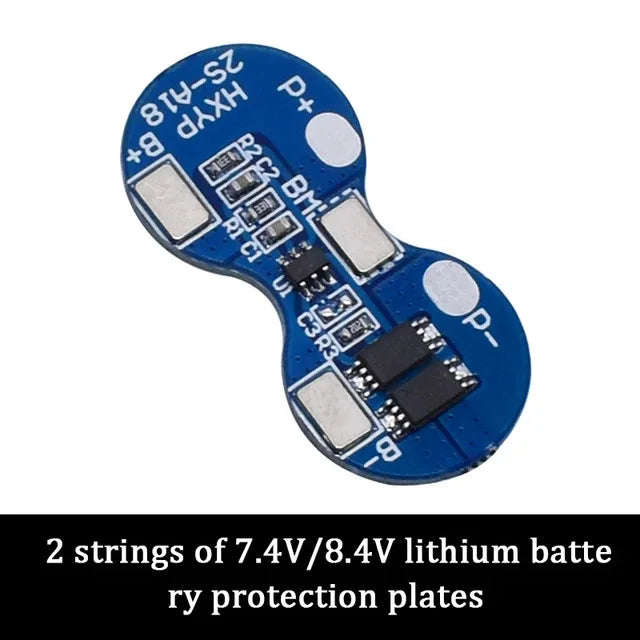

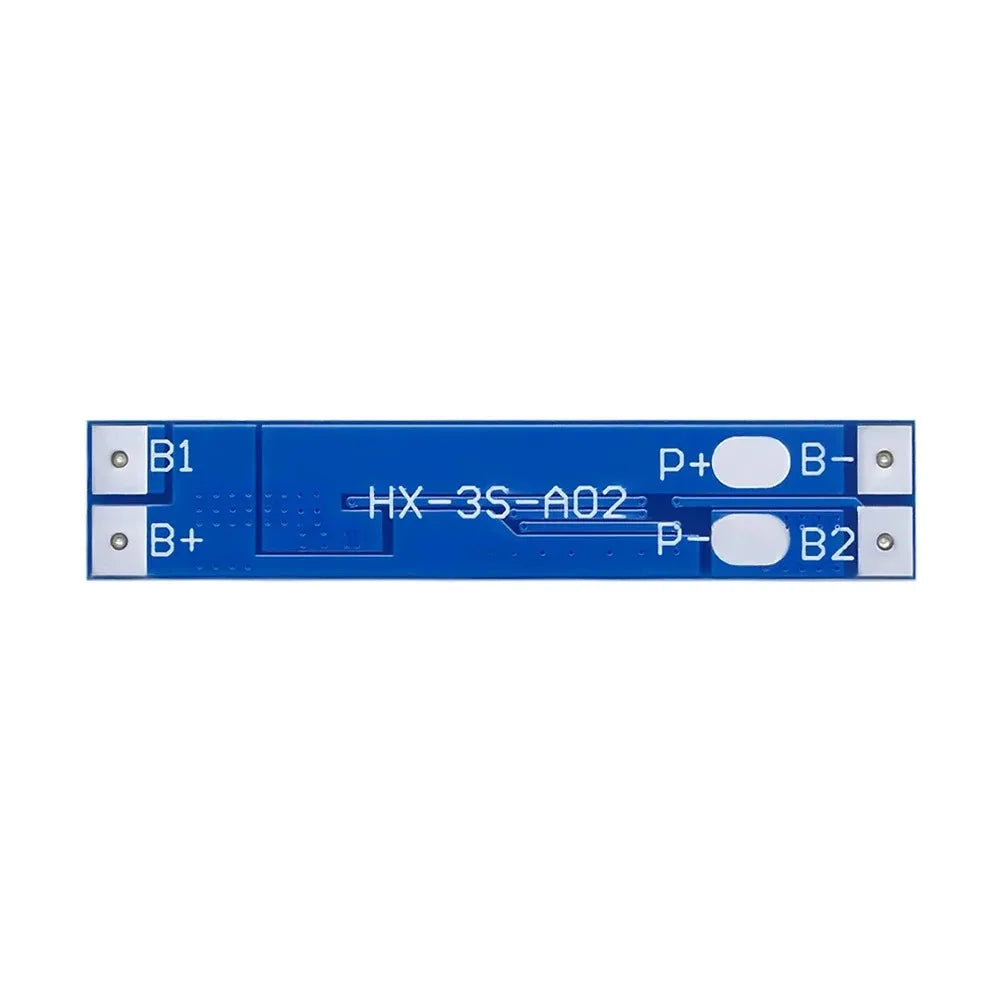

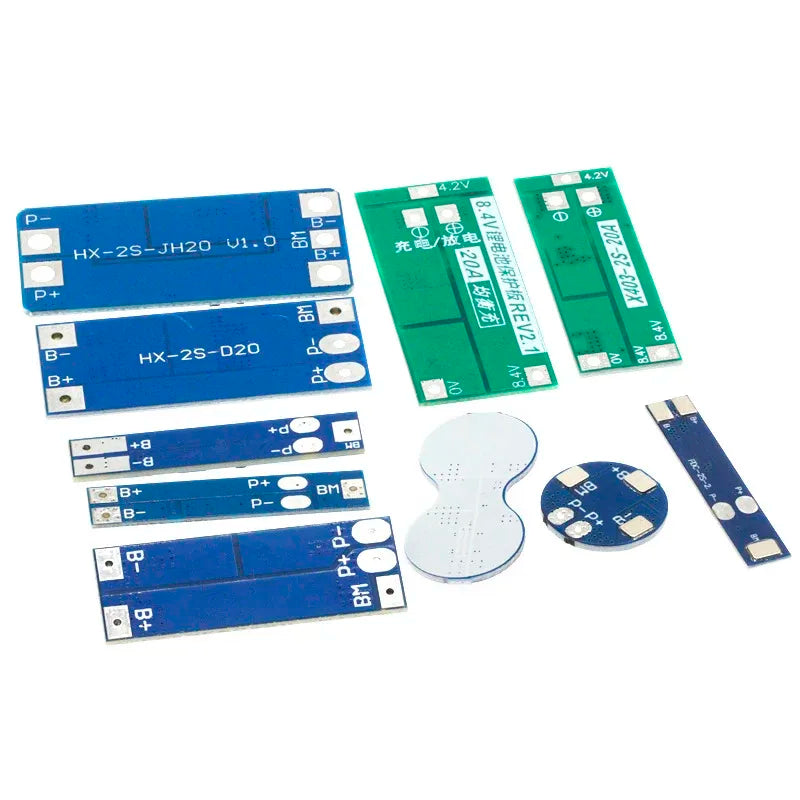

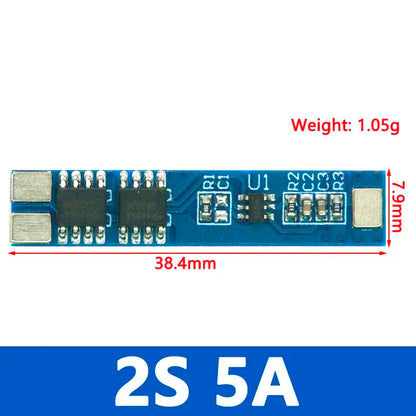

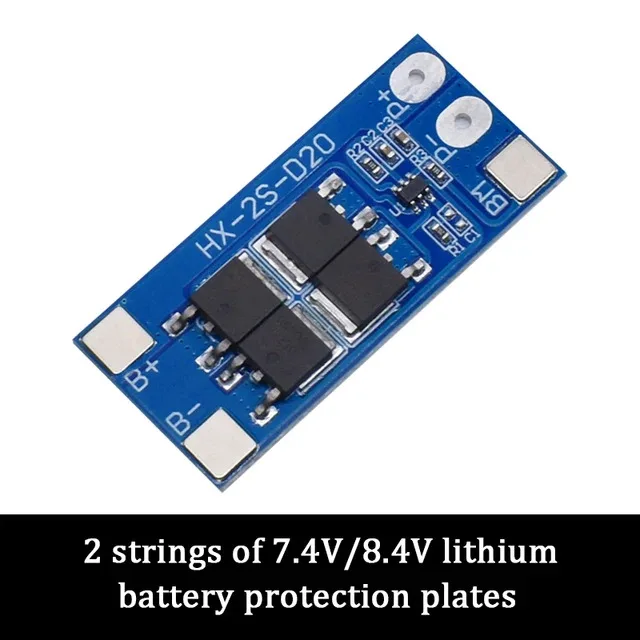

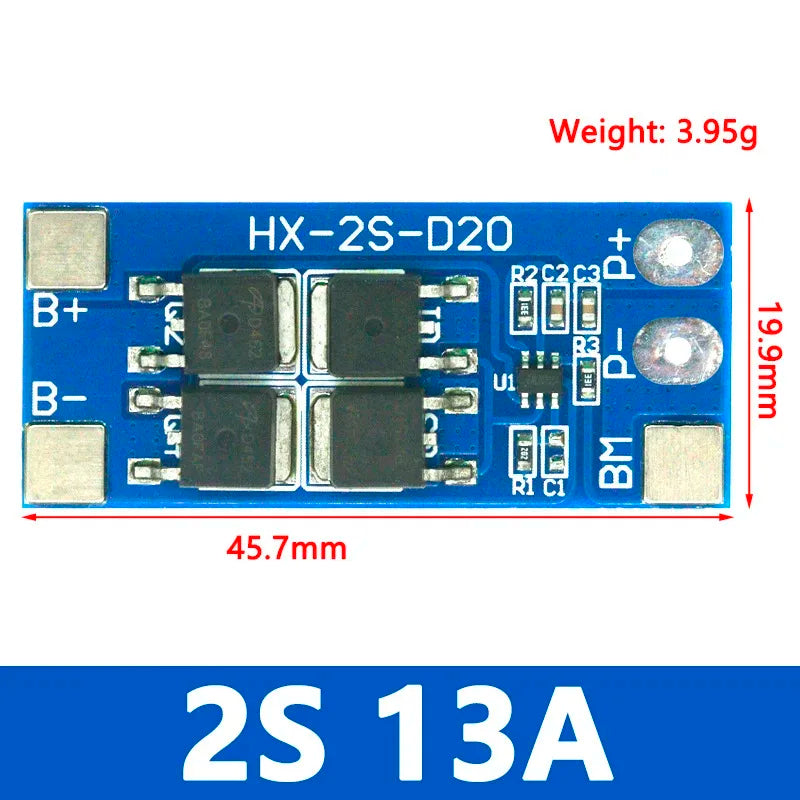

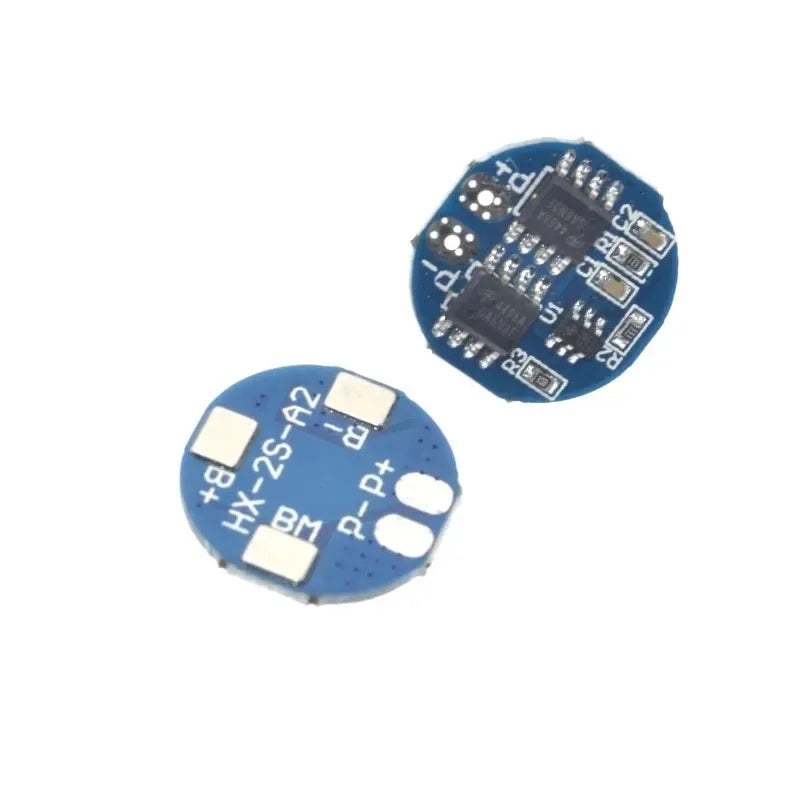

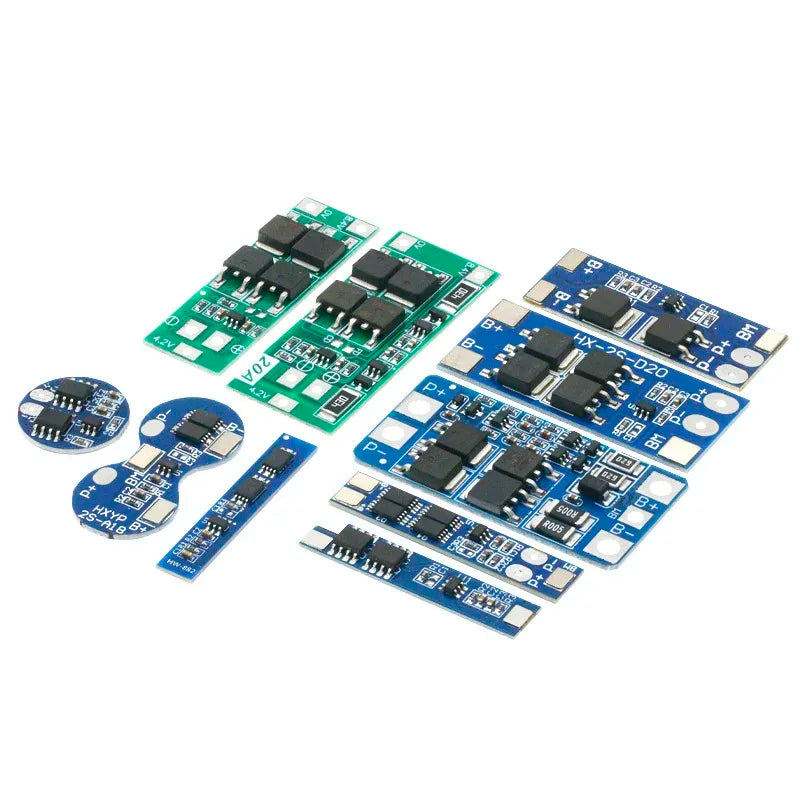

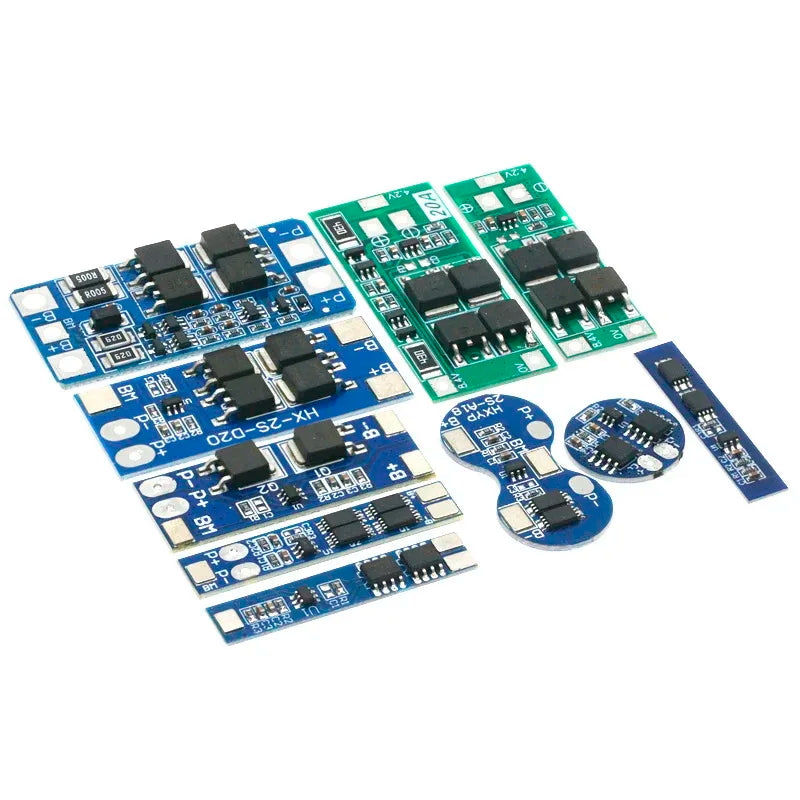

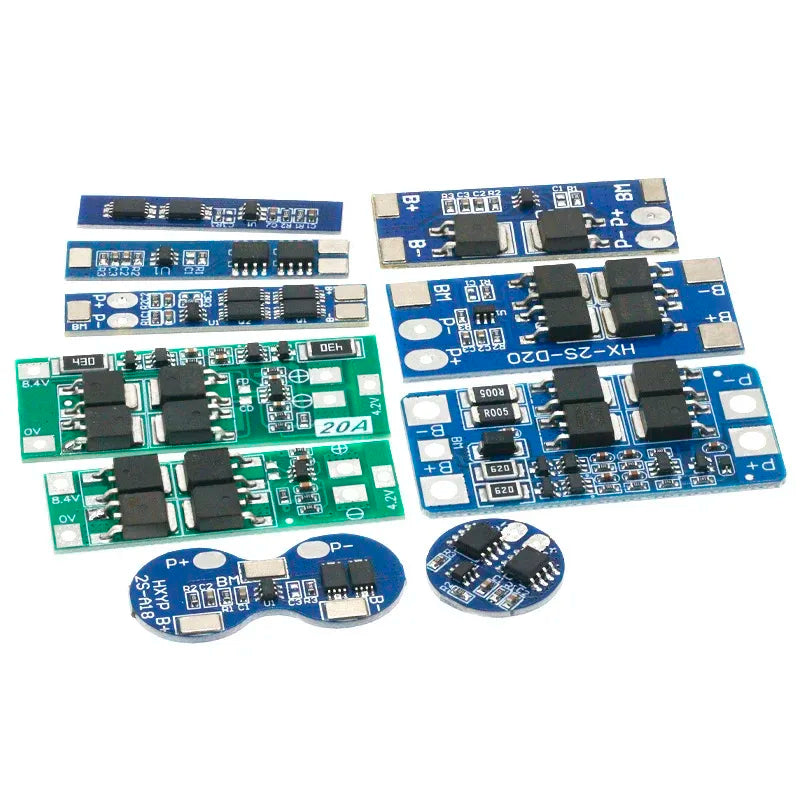

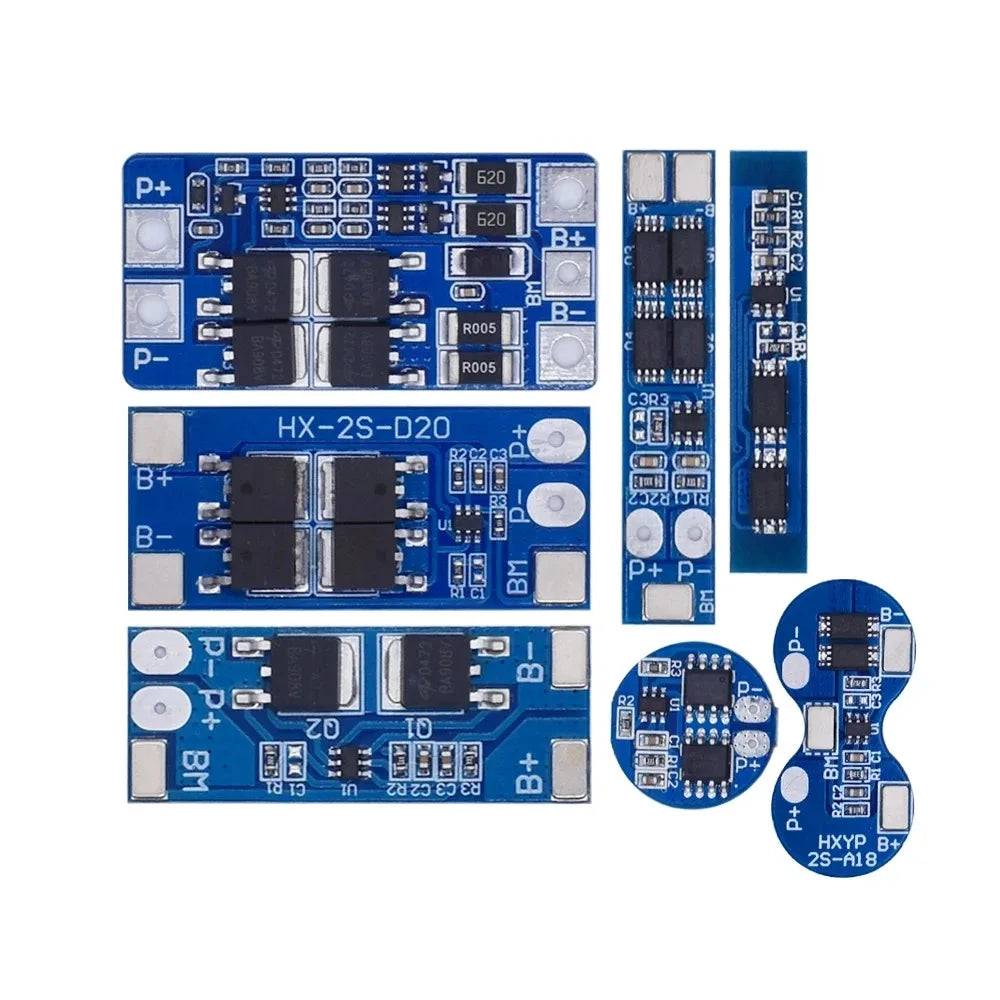

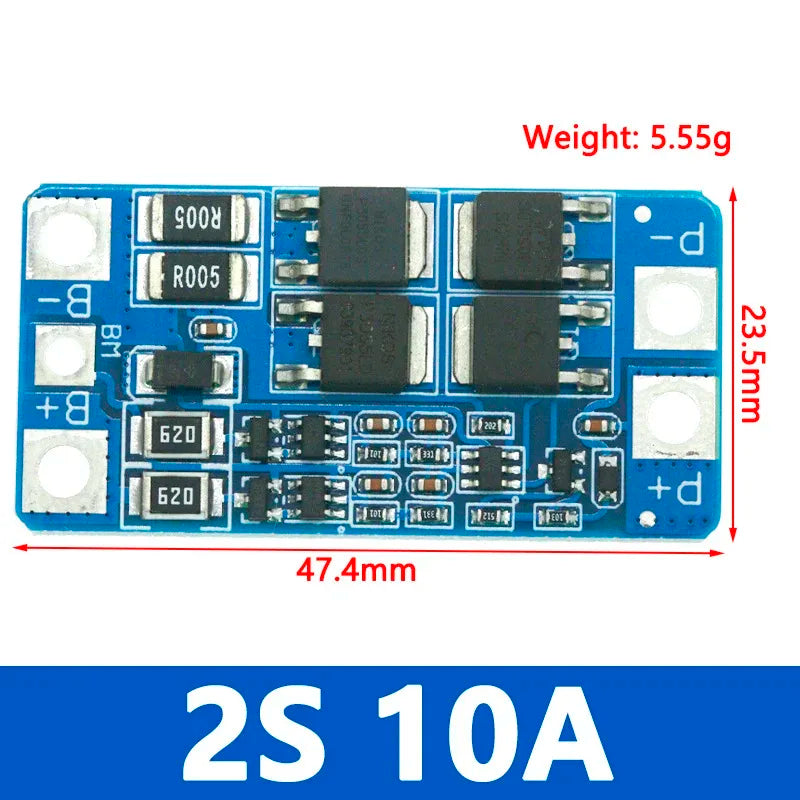

2S 3A 4A 5A 8A 10A 13A 20A 7.4V 8.4V Li-ion 18650 Lithium battery protection board / BMS board Standard / Balance
2S 3A 4A 5A 8A 10A 13A 20A 7.4V 8.4V Li-ion 18650 Lithium battery protection board / BMS board Standard / Balance
No se pudo cargar la disponibilidad de retiro
SPECIFICATIONS
Application: Computer,Computer
Brand Name: NoEnName_Null,quason
Choice: yes
Condition: New,New
Hign-concerned Chemical: None,None
Origin: Mainland China,Mainland China
Package: SMD,SMD
Supply Voltage: 7.4V 8.4V,74V 84V
Type: Voltage Regulator,Voltage Regulator
isCustomized: Yes
semi_Choice: yes
Description
The BMS is used for 3.7V li-ion battery without balancing function
Features:
1) high-accuracy voltage detection circuit;
2) terminal of the charger using high voltage device;
3) Built-in three-stage over-current detection circuit (over-current 1, over-current 2, load short circuit);
4) MOS. transistor can control the battery charge and discharge;
Specification
Over charge voltage: 4.25±0.05V
Over charge release voltage:4.23±0.05V
Over discharge voltage:2.54±0.1V
Maximum continuous charging/discharge current: 7.5A
Maximum Discharging Current: 10A
Size: L35*W7*T2mm
Weight: 10g
Wire connection:
