1) High-precision voltage detection circuit

2) High-voltage device is used for charger terminal

3) Built-in three-level overcurrent detection circuit (overcurrent 1, overcurrent 2, or load short circuit)

4) MOS tube can control battery charging and discharging

5) Low standby current consumption

Overcharge voltage: 4.25-4.35v±0.05v

Overdischarge voltage: 2.5-3.0v±0.05v

Maximum continuous current: 8A

Maximum current: 15A

Operating temperature: -40---+50

Storage temperature: -40--+80

Low current: less than 3uA

Service life exceeds 50,000 hours

Resistance: less than 300mΩ

Shortcut protection: Protectable, rechargeable and repairable

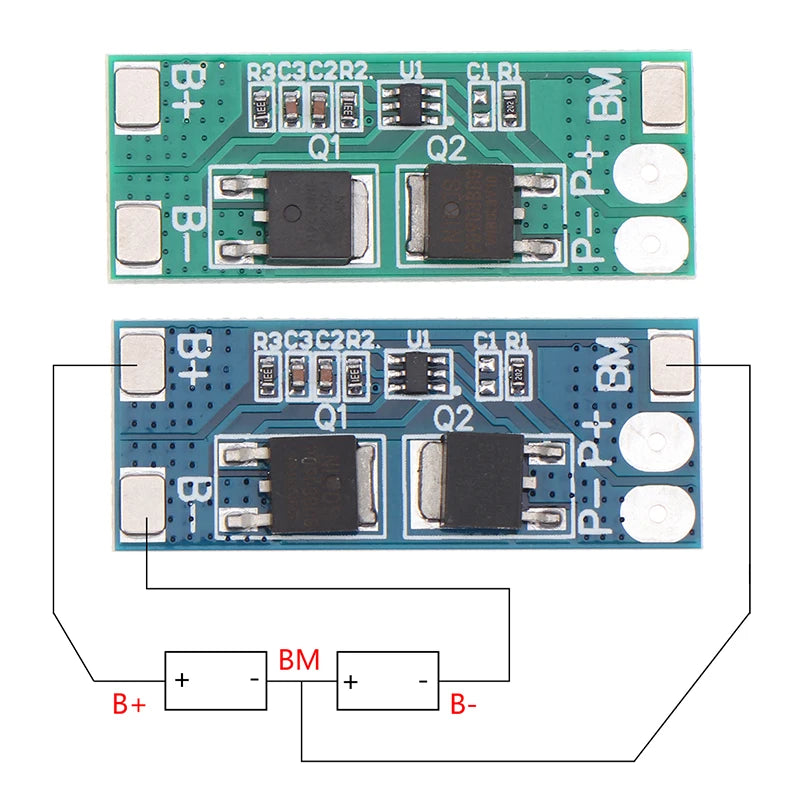

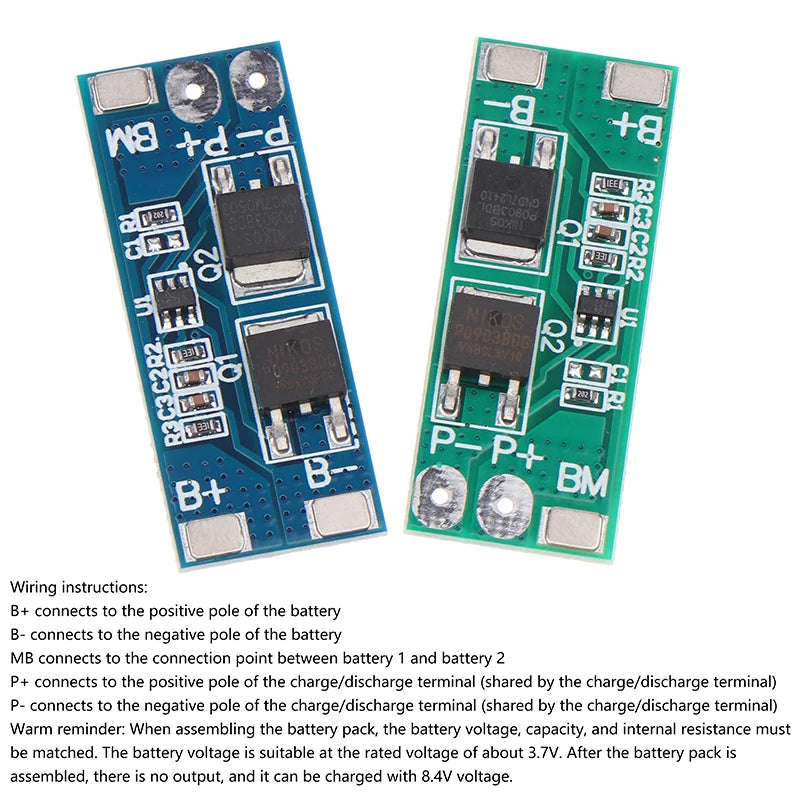

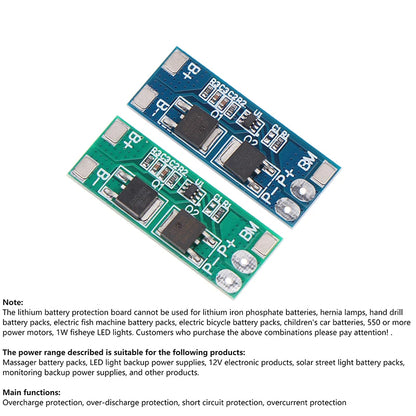

Connection method:

B+ connects to the positive pole of the battery

B- connects to the negative pole of the battery

MB connects to the connection point between battery 1 and battery 2

P+ connects to the positive pole of the charging/discharging terminal (common to the charging/discharging terminal)

P- connects to the negative pole of the charging/discharging terminal (common to the charging/discharging terminal)

Warm reminder: When assembling the battery pack, the battery voltage, capacity, and internal resistance must be matched. The battery voltage is suitable at the rated voltage of about 3.7V. After assembling the battery pack, there is no output, and it can be charged with a voltage of 8.4V.

New and high quality

Material: PCB

Color: green/blue

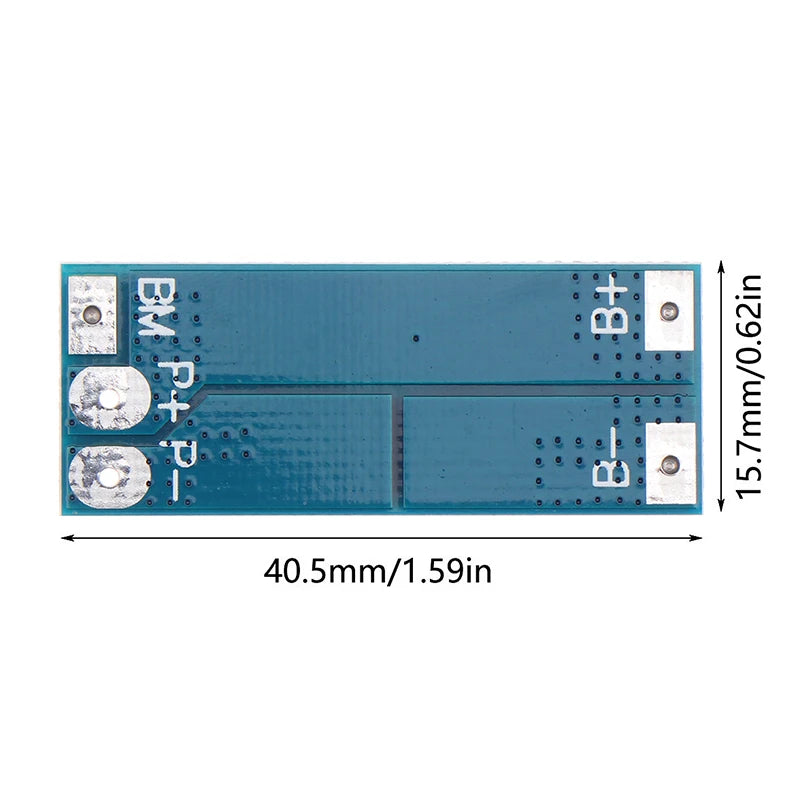

Size:40.5*15.7mm

Package Included:1Pc

Note:

Due to manual measurement, please allow an error of 1-3mm.

As different computers display different colors, thank you for your understanding, the actual product color may be slightly different from the image.
