Set Núcleo Ferrita EE16/5 PC40 con Bobina Vertical 5 Pines (3-10 Juegos)
Set Núcleo Ferrita EE16/5 PC40 con Bobina Vertical 5 Pines (3-10 Juegos)
Precio habitual
$9.582 CLP
Precio habitual
$12.582 CLP
Precio de oferta
$9.582 CLP
Precio unitario
por
Los gastos de envío se calculan en la pantalla de pago.
No se pudo cargar la disponibilidad de retiro
SPECIFICATIONS
Brand Name: UXCELL
Certification: None
Choice: yes
Model Number: EE16
Origin: Mainland China
Type 1: Power Transformers Ferrite Cores
Type 2: PC40 Transformer Inductor
Type 3: Vertical Type Ferrite Magnetic Core Bobbin
Usage: electronic
is_customized: Yes
semi_Choice: yes
Description:
Widely used in color TV, monitor, electric car charger, DVD, switching power supply, UP power supply, DC-DC converter, high frequency transformer, filter, inductor, household appliance, industrial automation, instrumentation, communication, energy saving Lighting and more!
Product Range: Transformers, filter inductors, coils, bobbins, magnetic cores.
Widely used in color TV, monitor, electric car charger, DVD, switching power supply, UP power supply, DC-DC converter, high frequency transformer, filter, inductor, household appliance, industrial automation, instrumentation, communication, energy saving Lighting and more!
Product Range: Transformers, filter inductors, coils, bobbins, magnetic cores.

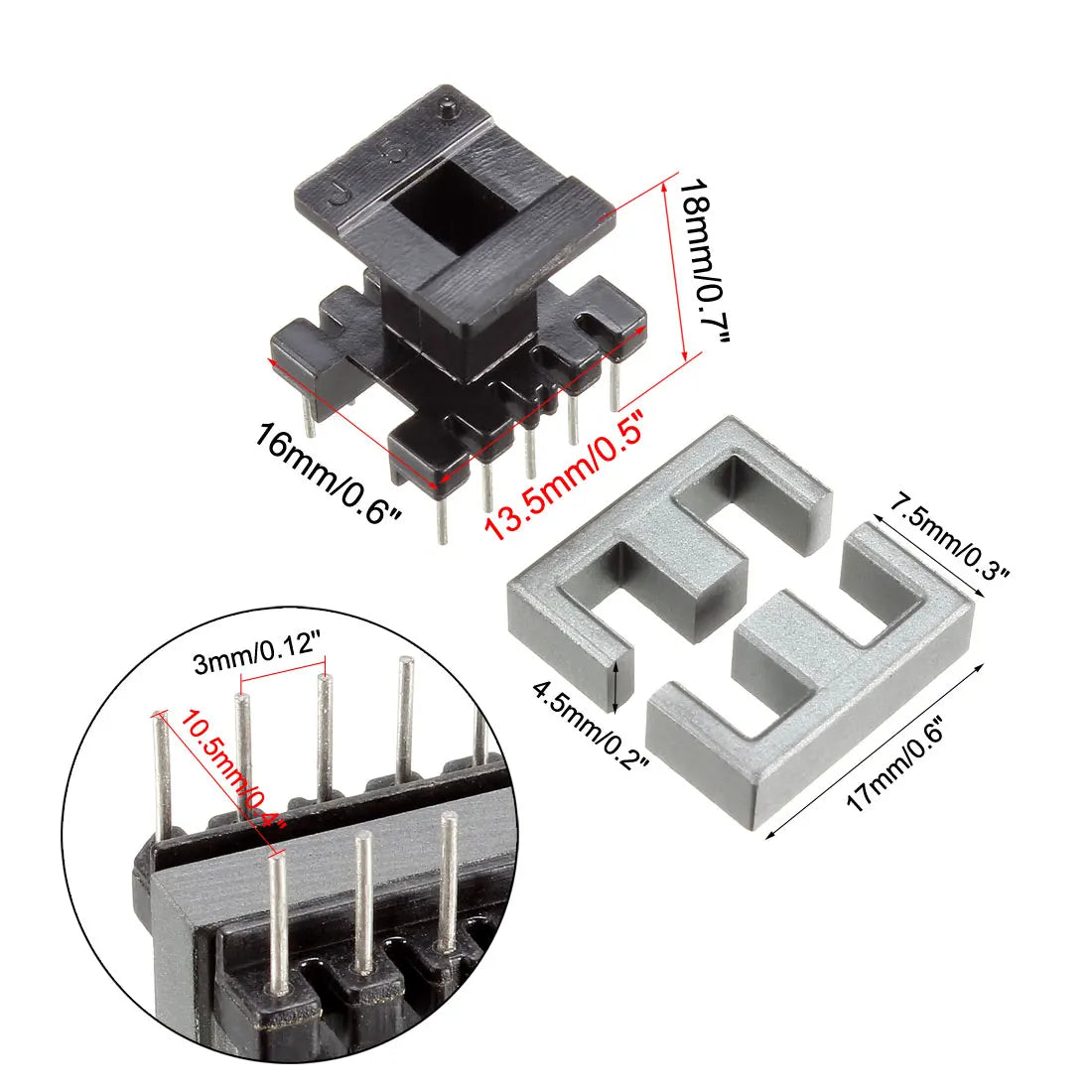

Type: EE16
Pin spacing: 3mm/0.12''
Row spacing: 10.5mm/0.4"
Ferrite core Size: 17 x 4.5 x 7.5mm/0.6" x 0.2" x 0.3"(L*W*T)
Bobbin size: 16 x 13.5 x 18mm/0.6" x 0.5" x 0.7"(L*W*H)
Winding frame size: 8.5 x 6.5 x 5.5mm/0.3" x 0.2" x 0.2"(L*W*H)

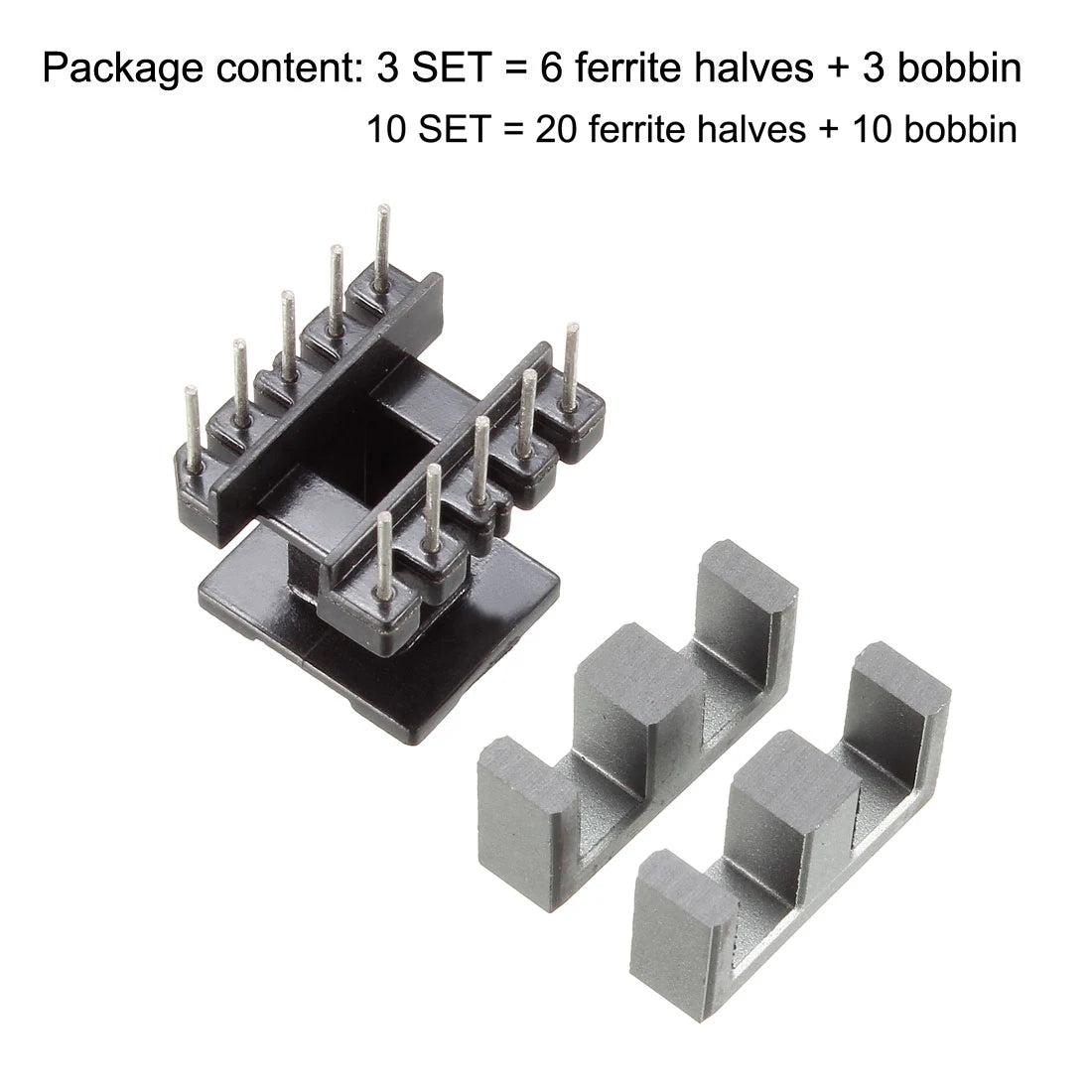

Package Content:
3 SET = 6 ferrite halves + 3 bobbin
10 SET = 20 ferrite halves + 10 bobbin
