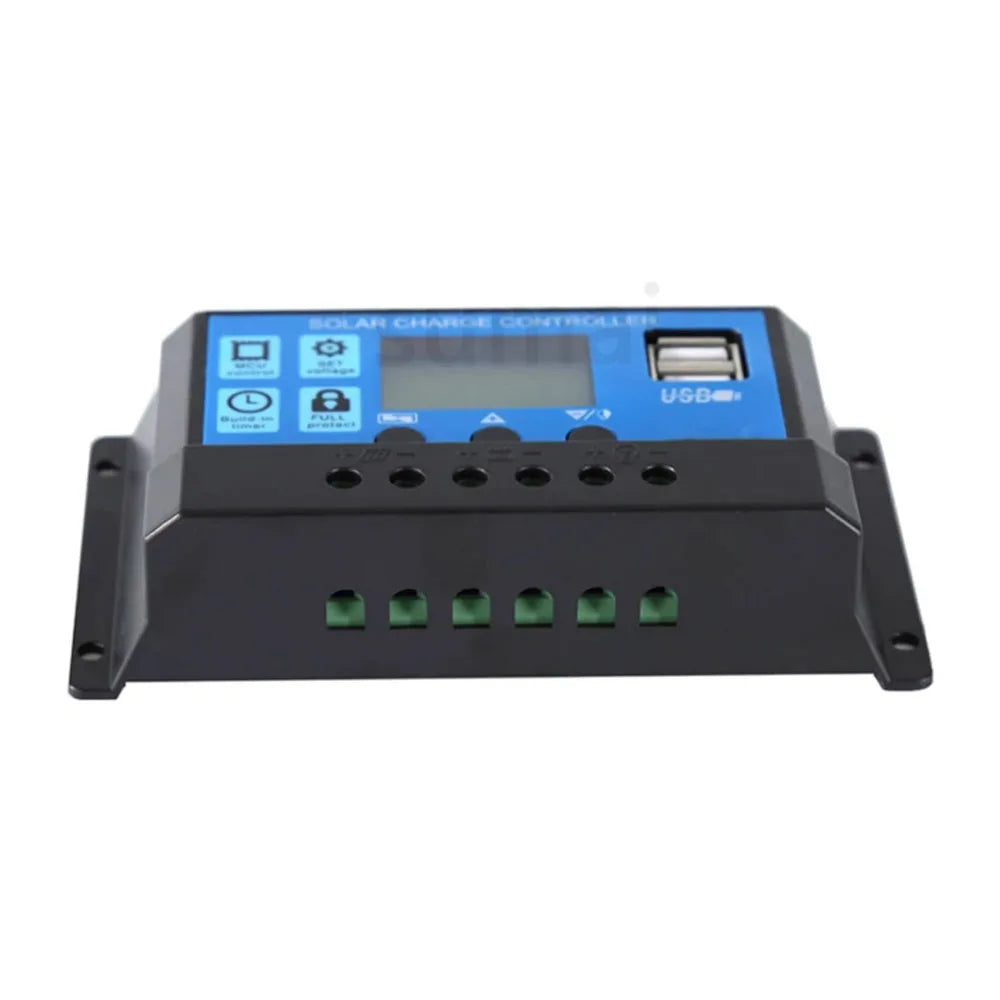

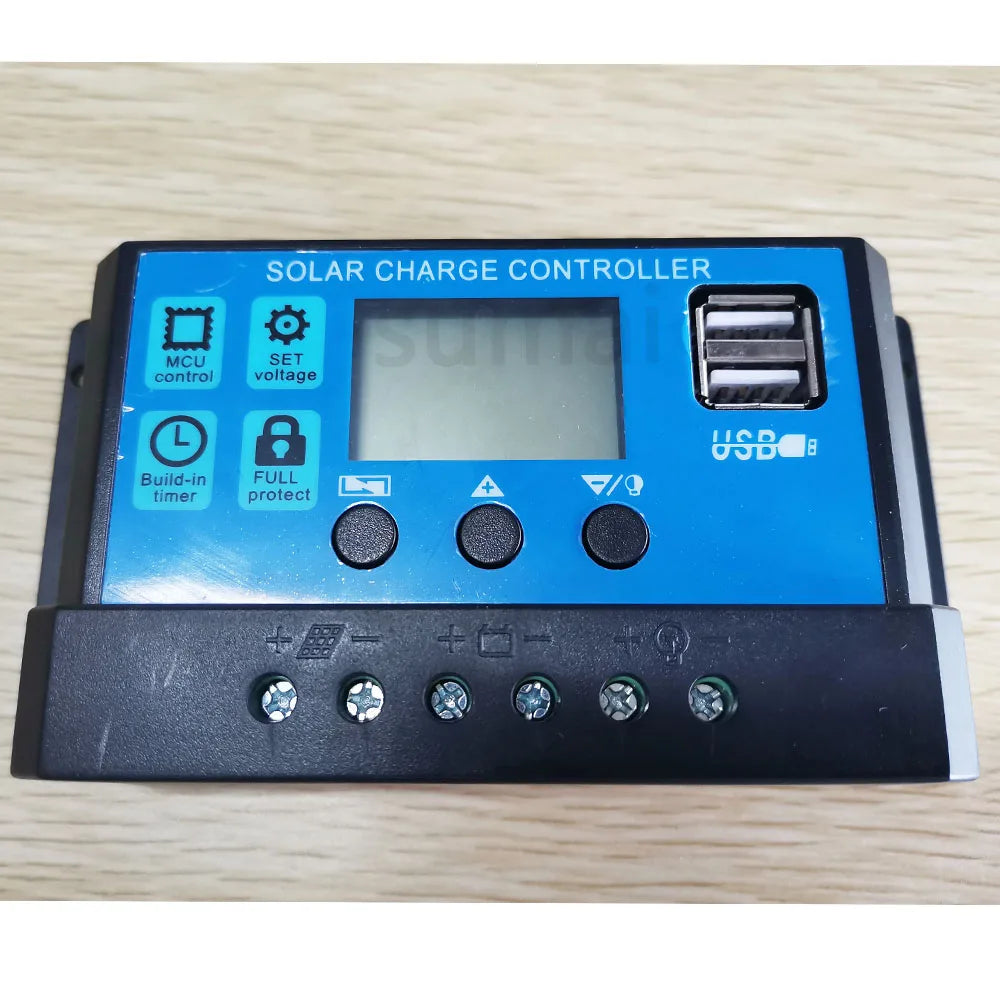

Controlador Carga Solar PWM 30A/50A/60A 12V/24V Auto LCD Dual USB 5V Regulador Panel Batería
Controlador Carga Solar PWM 30A/50A/60A 12V/24V Auto LCD Dual USB 5V Regulador Panel Batería
No se pudo cargar la disponibilidad de retiro
SPECIFICATIONS
Application: Charger Controller,Voltage Controller,Solar System Controller,Solar Working Station
Brand Name: NoEnName_Null
Certification: CE
Hign-concerned Chemical: None
Maximum Current: 30A
Model Number: S-01
Origin: Mainland China
Features
1.Build-in industrial micro controller.
2.Big LCD display,all adjustable parameter.
3.Fully 4-stage PWM charge management.
4.Build-in short-circuit protection,open-circuit protection,reverse protection,over-load protection.
MODEL |
RBL-10A |
RBL-20A |
RBL-30A |
RBL-40A |
RBL-50A |
RBL-60A |
Battery Voltage |
12V 24V Auto |
|||||
Charging Current |
10A |
20A |
30A |
40A |
50A |
60A |
Discharging Current |
10A |
10A |
10A |
20A |
30A |
30A |
Max Solar input |
48V(for 24V battery) 24V(for 12V battery) |
|||||
Equalization |
14.4V(Sealed) 14.2V(Gel) 14.6V(Flood) |
|||||
Float charge |
13.7V(defaul,adjustable) |
|||||
Discharge stop |
10.7V(defaul,adjustable) |
|||||
Discharge reconnect |
12.6V(defaul,adjustable) |
|||||
Charge reconnect |
13V |
|||||
Voltage of open light |
Solar Panel8V(Light lights delay) |
|||||
Voltage of close light |
Solar Panel8V(Light off delay) |
|||||
USB output |
5V/3A |
|||||
Self-consume |
<10mA |
|||||
Operating temperature |
-35°C~+60°C |
|||||

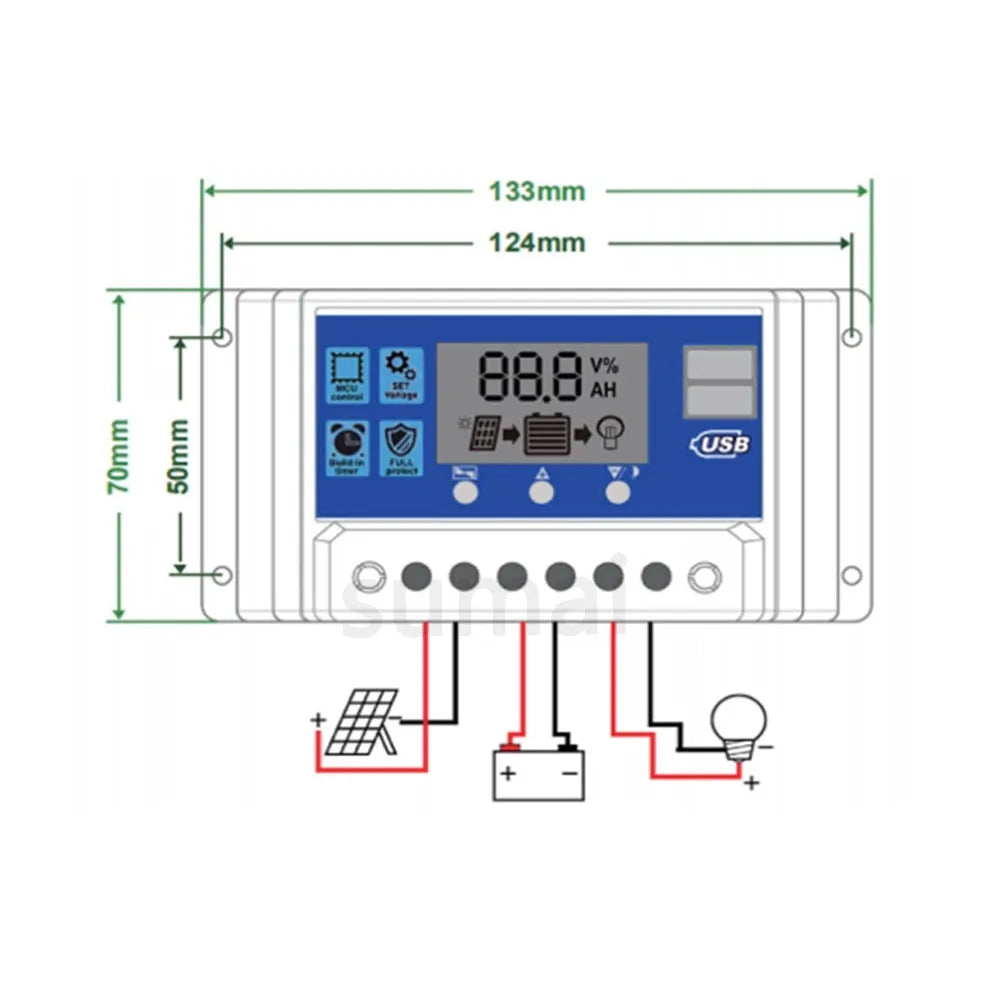

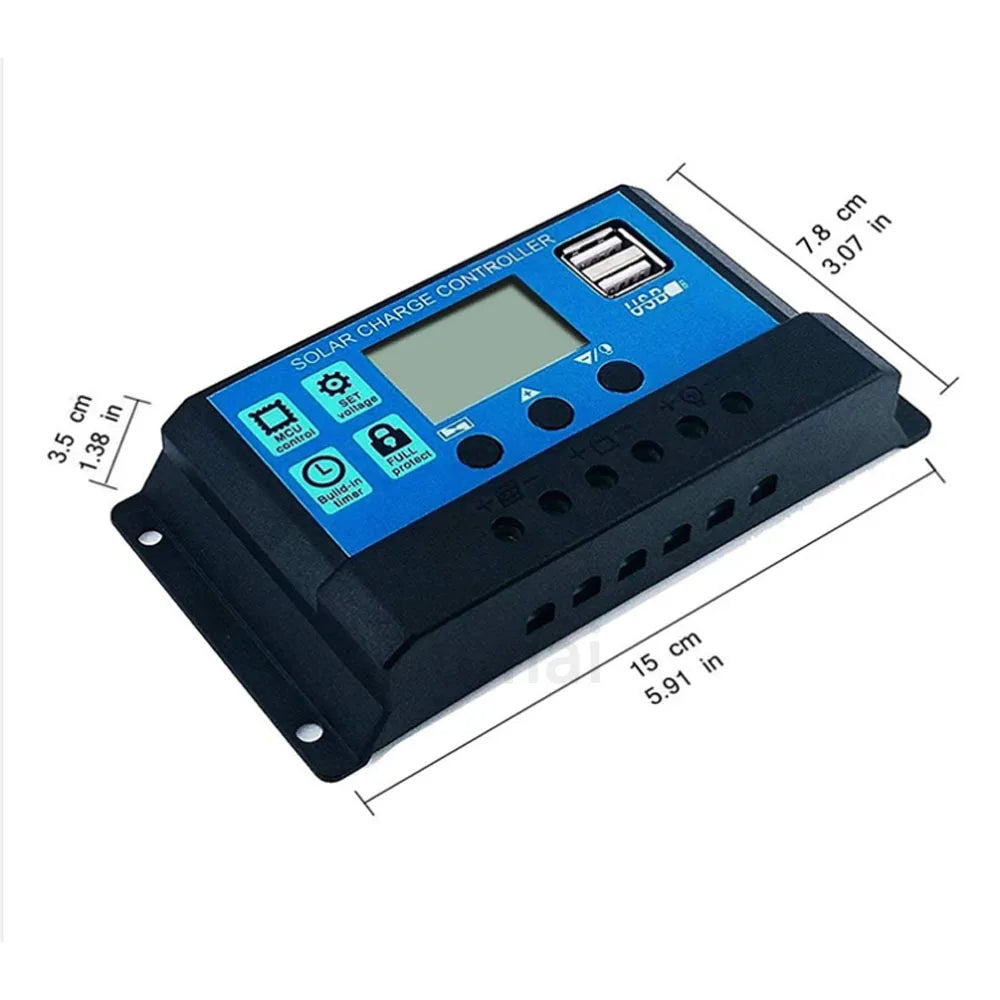

Size |
133.5*70*35mm |
188*90*47mm |
||||
*all red color voltage X2 ,while using 24V system.

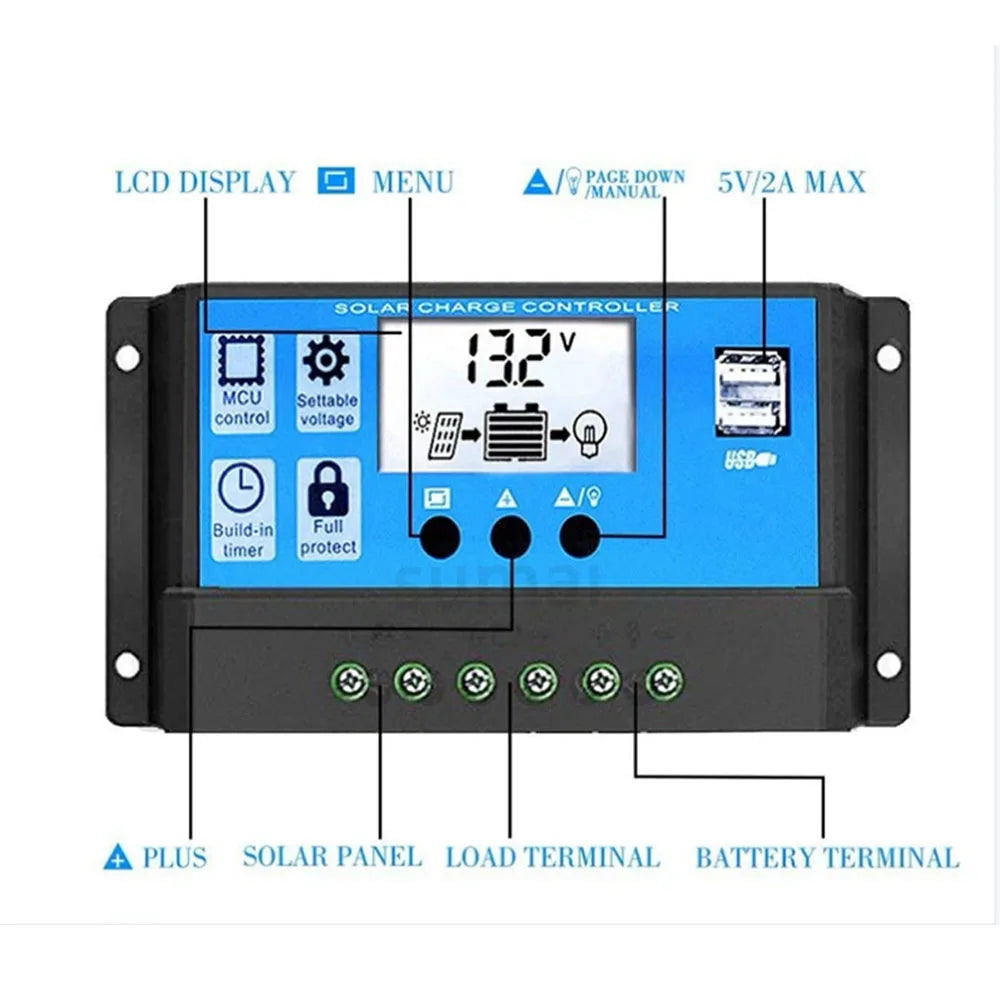

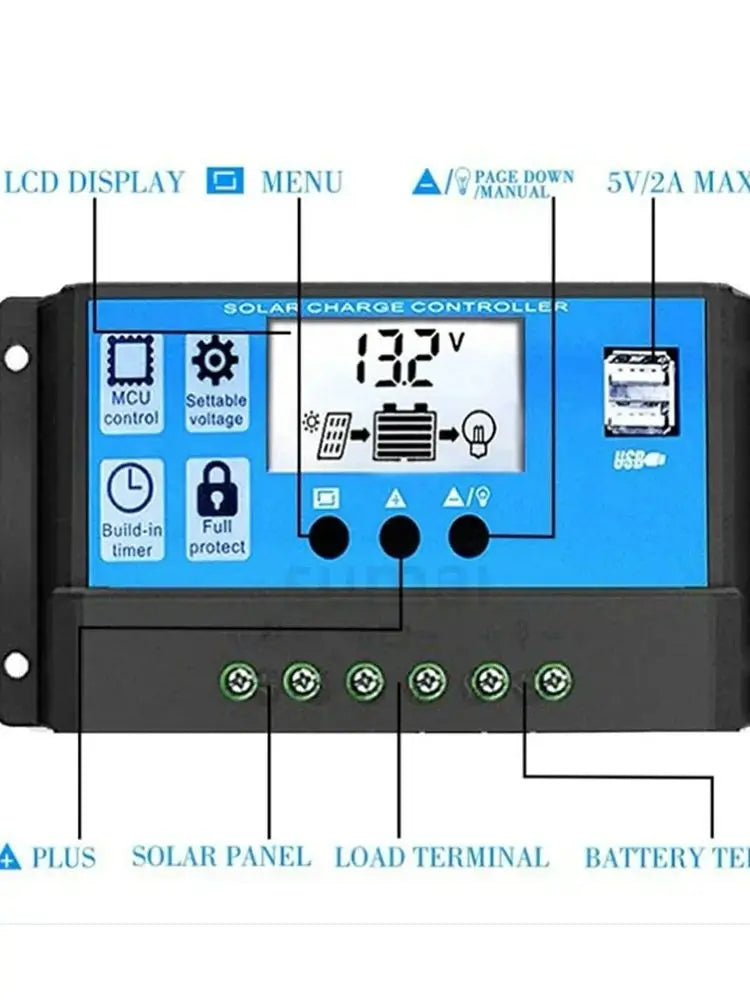

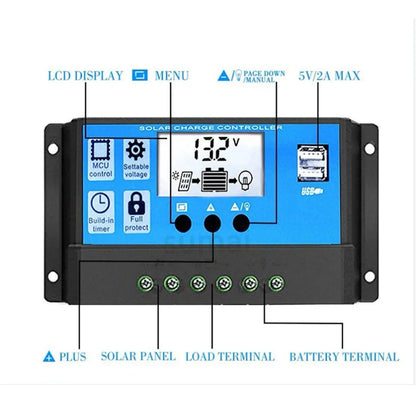

Connection
1.Connect the battery to the charge regulator - plus and minus.
2.Connect the photovoltaic module to the regulator - plus and minus.
The reverse order applies when deinstalling!
An improper sequence order can damage the controller!
Emergency Announcement:
At present, some sellers like E***N,they sell the similar 40A 50A 60A controllers with very low price,but their
fake 40A 50A 60A are very light and have no heat dissipating teeth on the bottom.they are not real 40A 50A
60A.You can do the test if you already bought them ! Please don't buy their cheaper controllers to save money
If you don't believe it, you can buy our controllers and their controllers for comparison!
1.Refund or replacement request is available only the requests within 1 week after parcel received & returning the item as the same condition as received.
2.Please contact us to request a return authorization. Your name, auction number, and reason for return should be included in the email. All items returned must contain all original packaging materils.
3.Please repack the item carefully. Items returned will be tested and a new replacement will be shipped to the buyer immediately when found defective.In the event that a suitable replacement is not available then a refund will be issued. Shipping, handling and insurance fees are non refundable.
4.If the item is found non-defective, the item will be sent back to the buyer at buyer’s expense.
