35W/80W DC DC Buck Boost Converter CC CV Adjustable DC Voltage Regulator Power Supply Step Down Stabilized Module 6-36V 5-30V

Features:

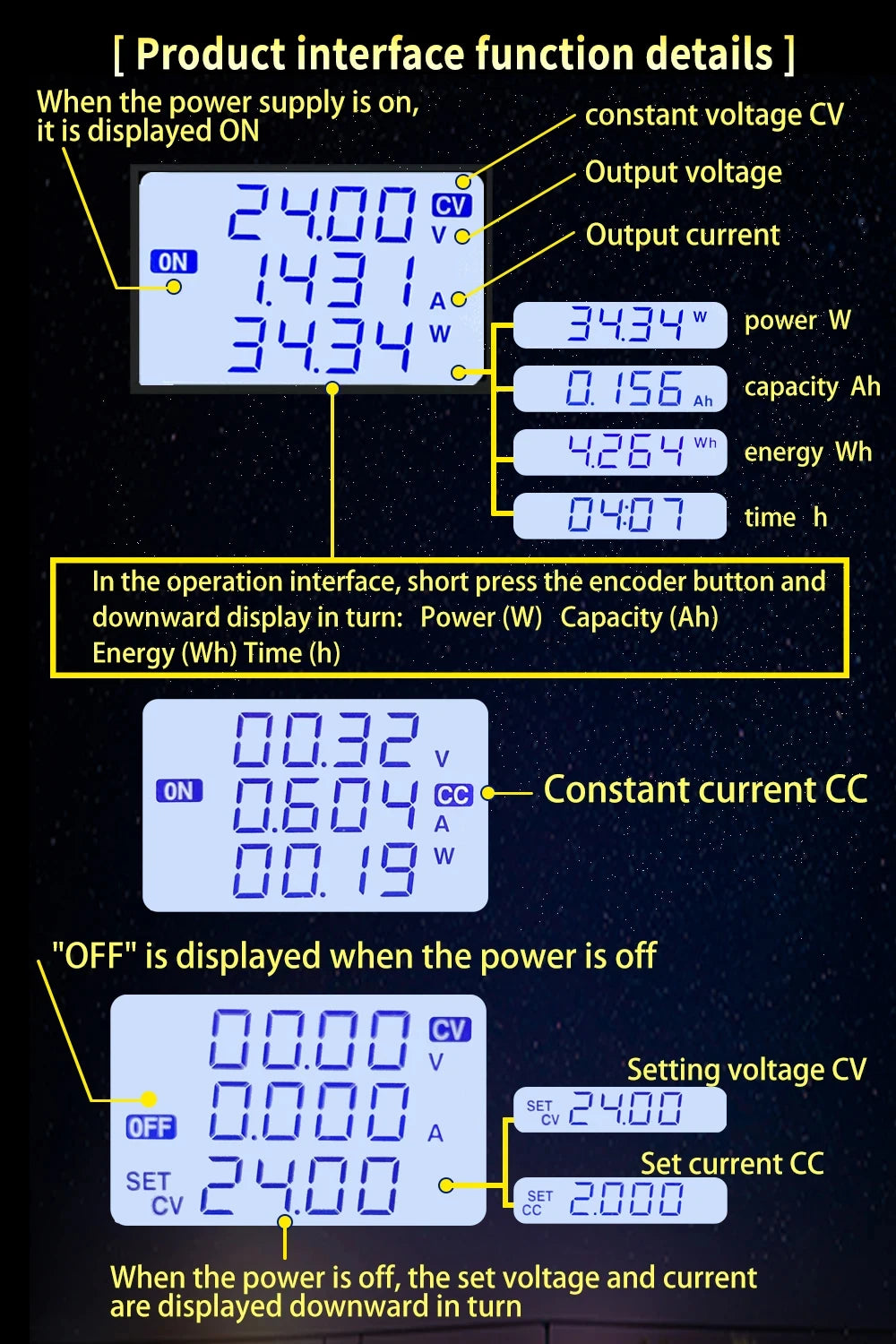

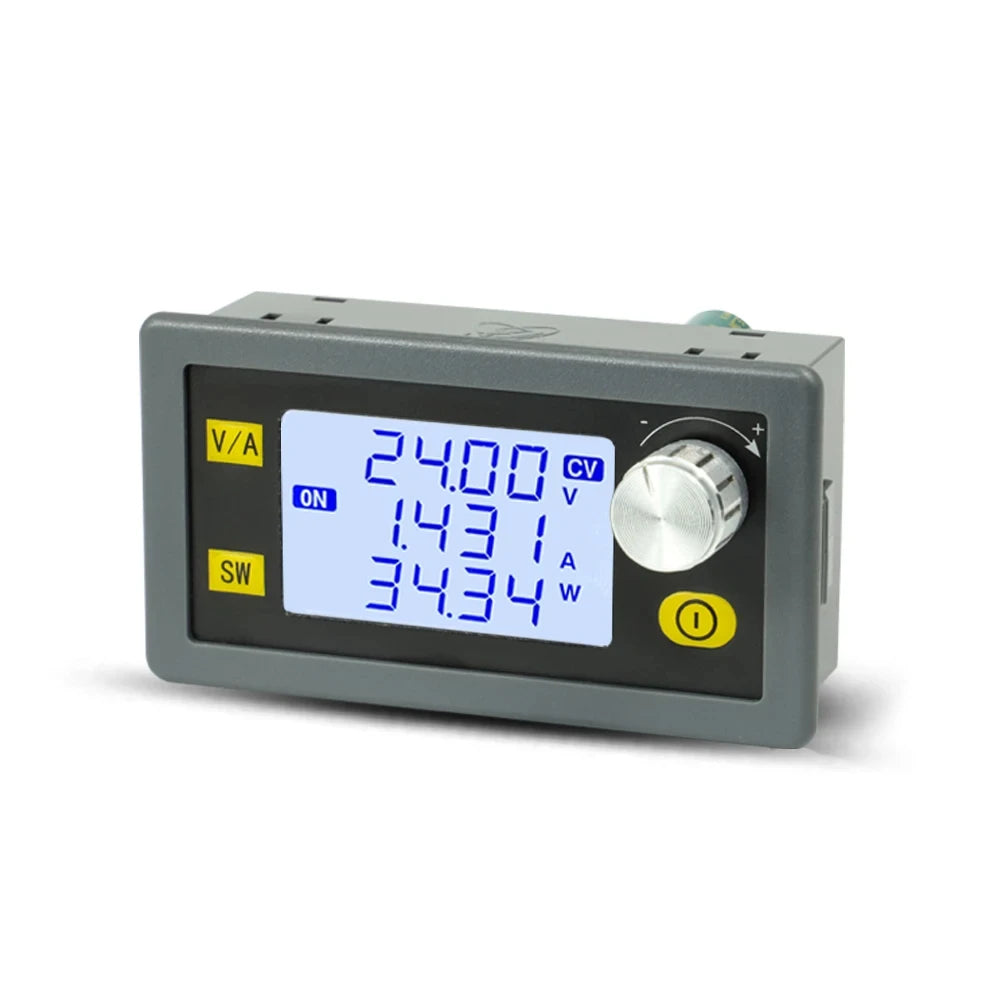

1. LCD large screen display for easy data reading.
2. Automatic DC power supply for solar charging, computer power conversion, DIY desktop CNC power supply.

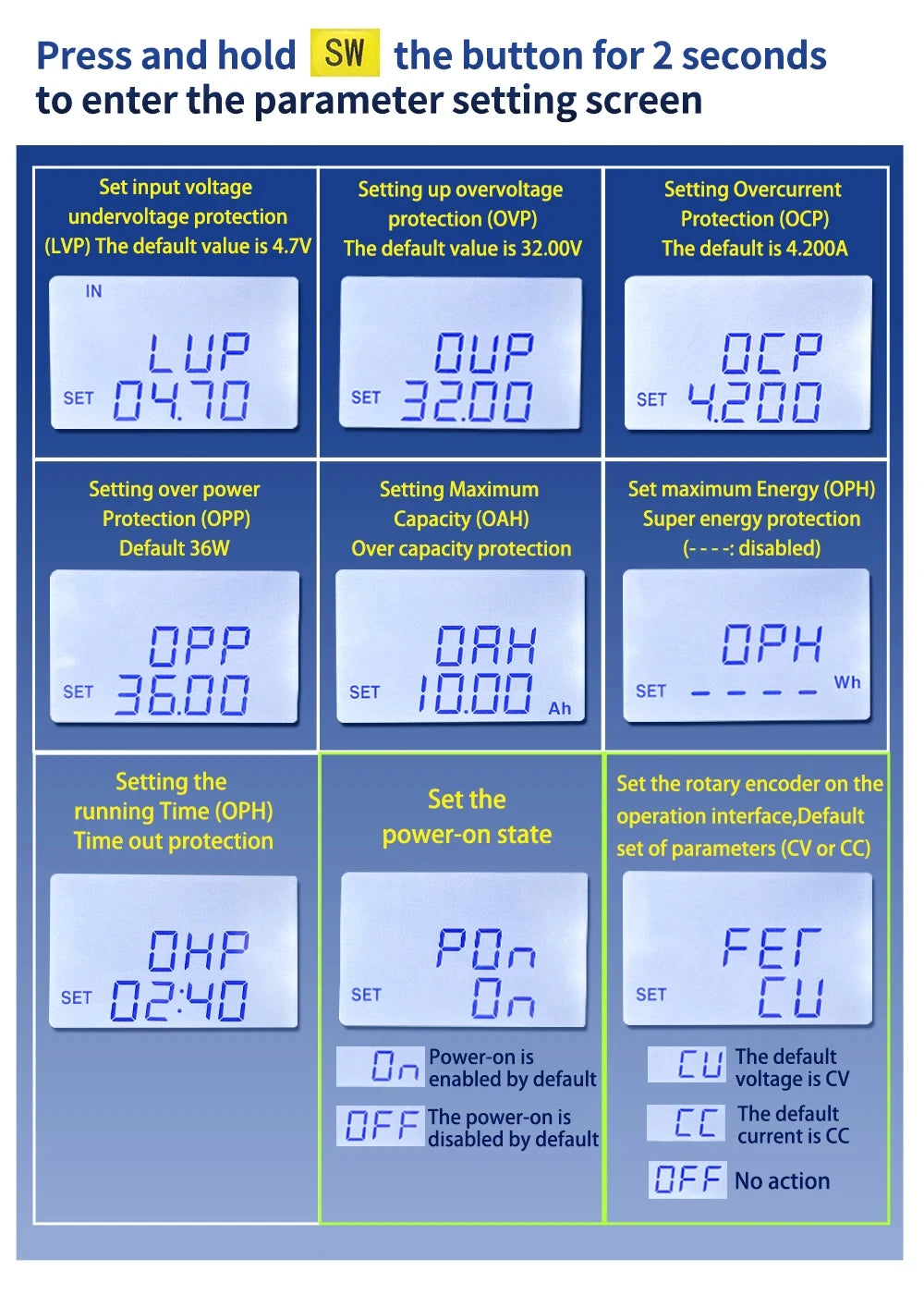

3. Multiple protection functions: anti-reverse connection, under-voltage protection, over-current protection, over-temperature protection.

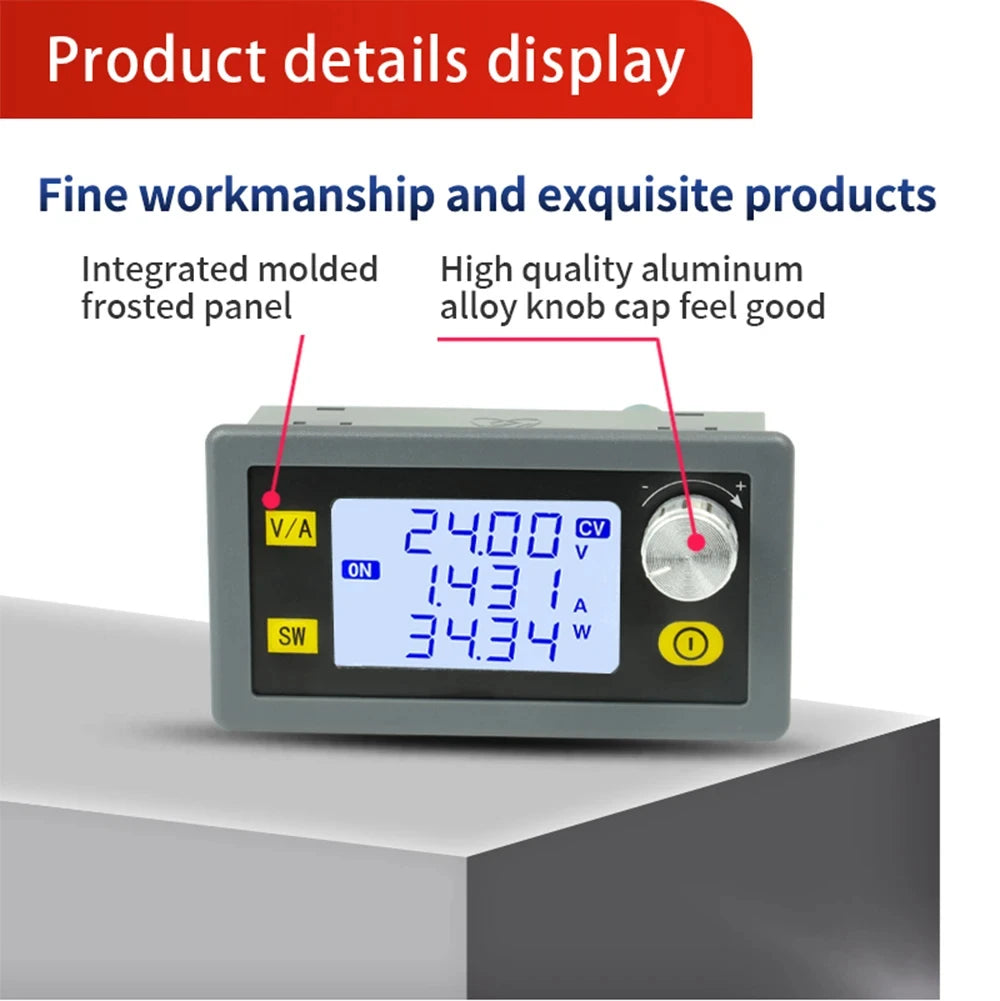

4. Frosted panel, high quality aluminum alloy rotating cap, comfortable to use.

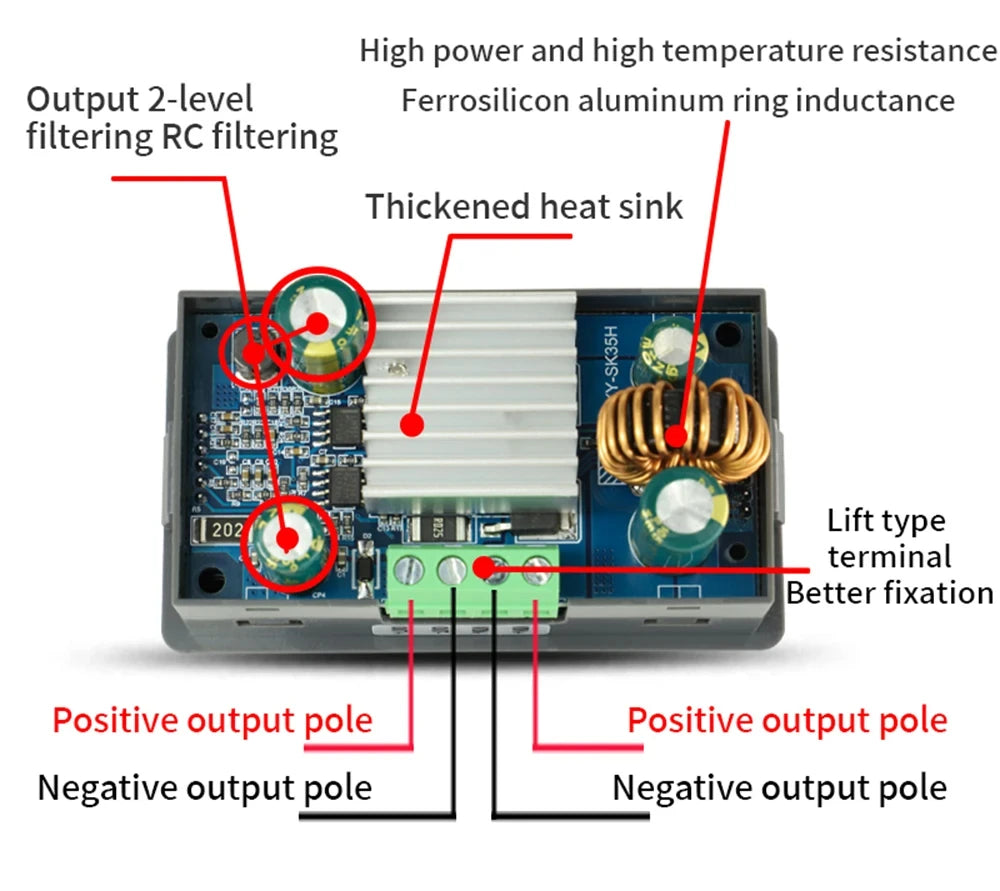

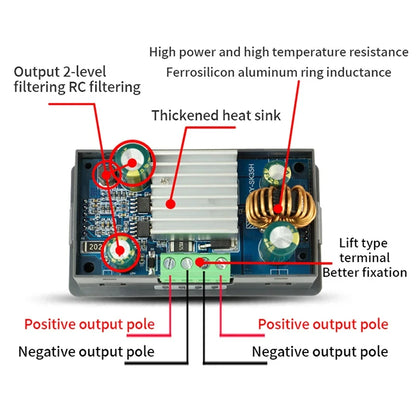

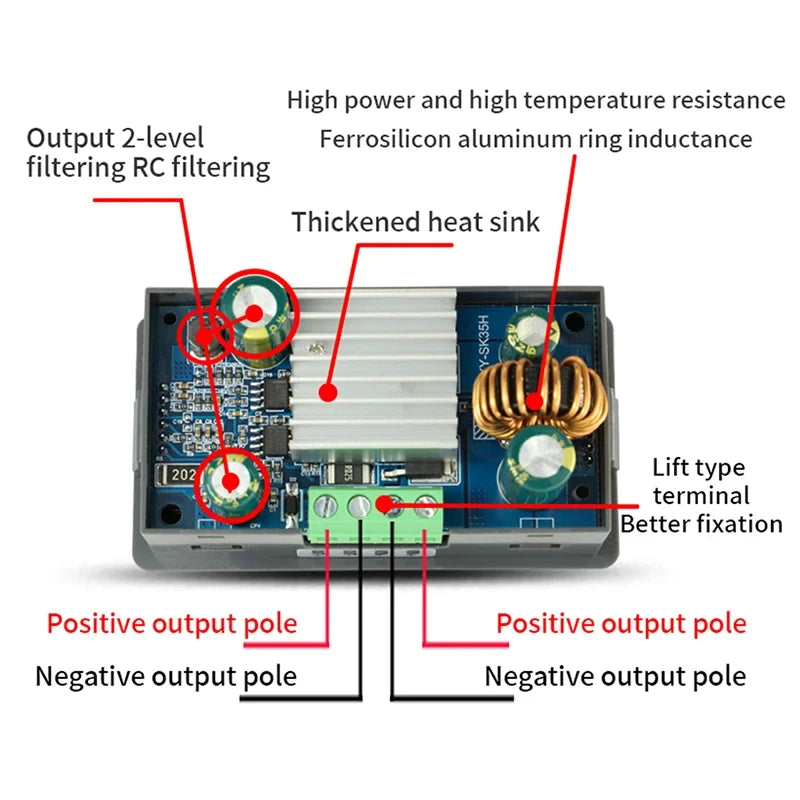

5. Thicker heat sink for smoother operation.

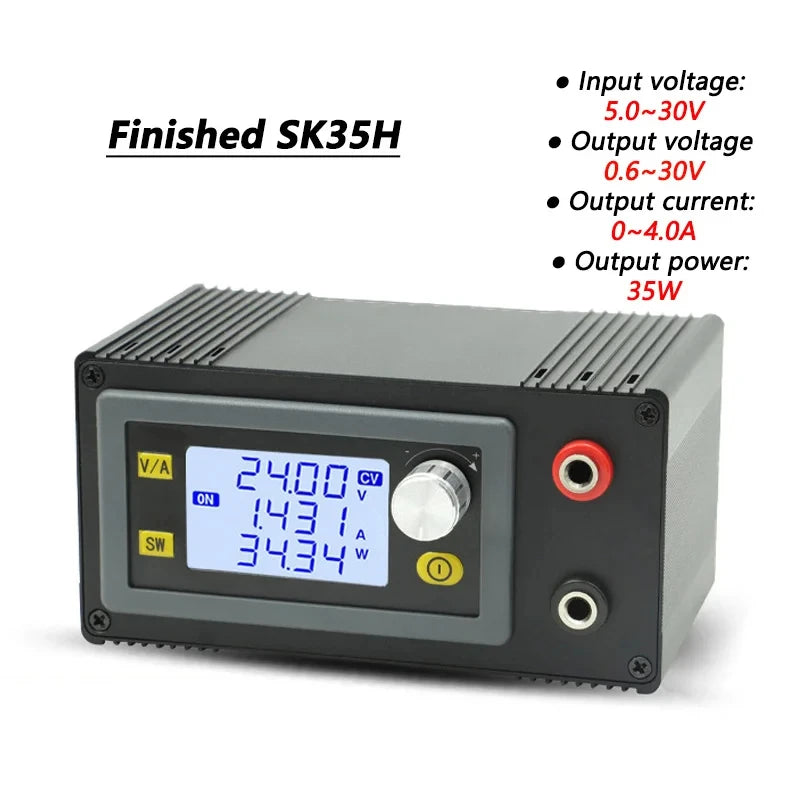

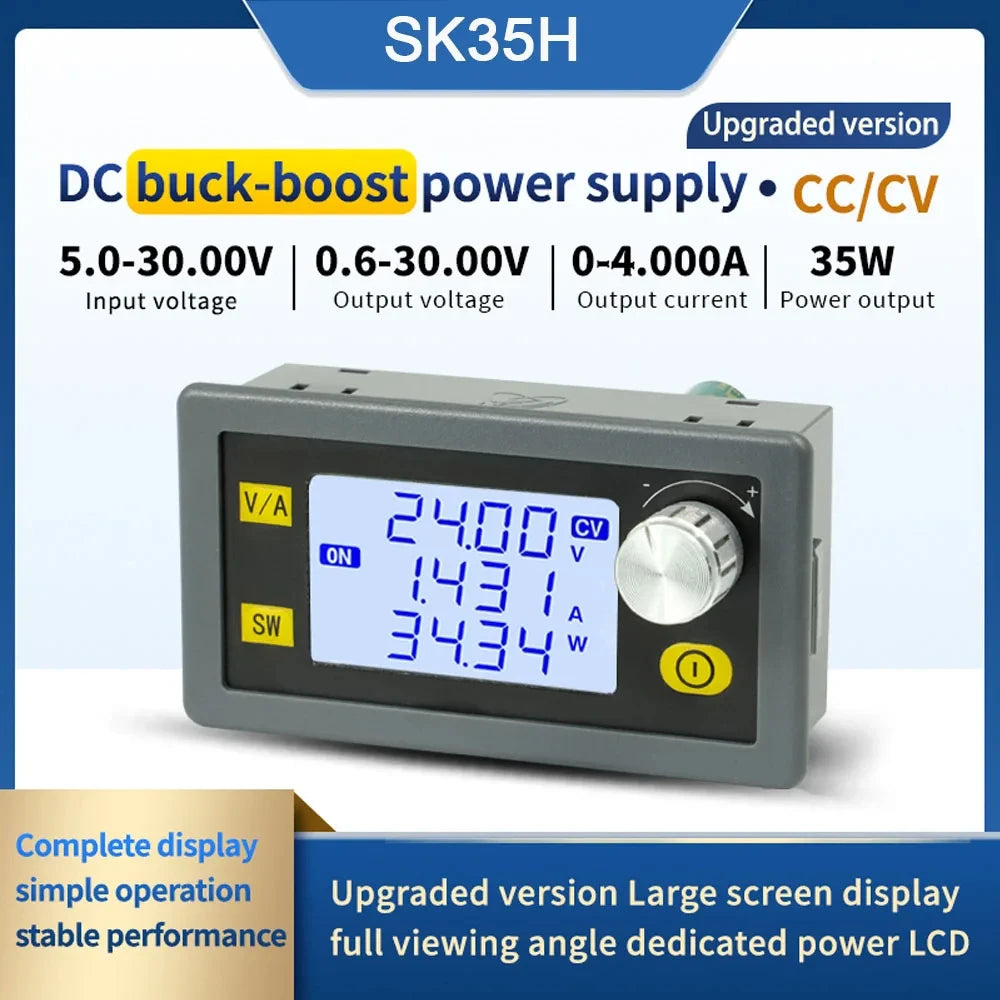

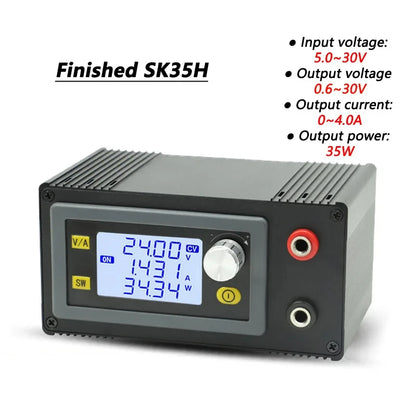

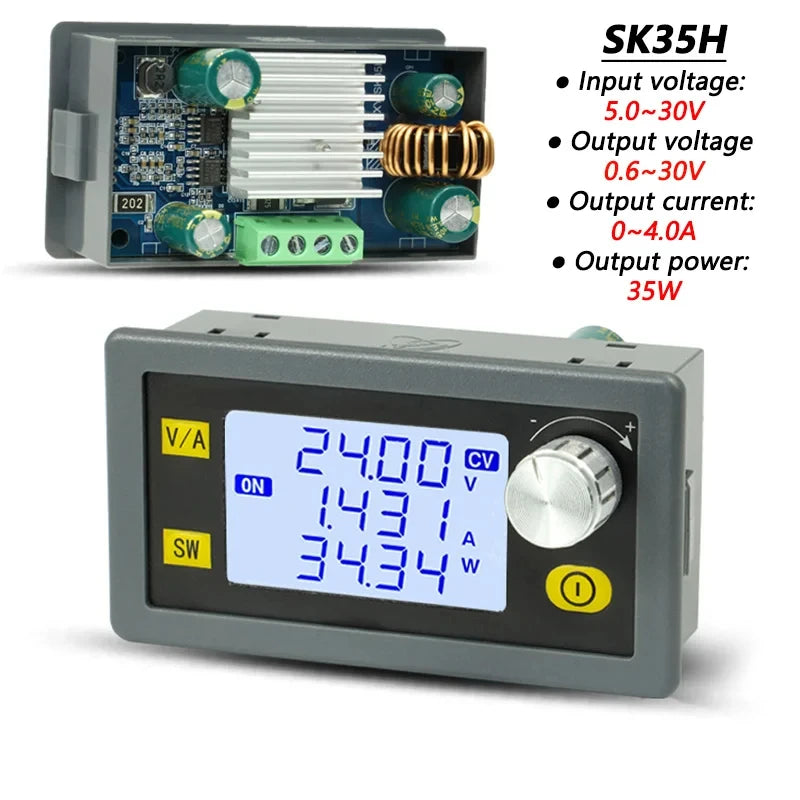

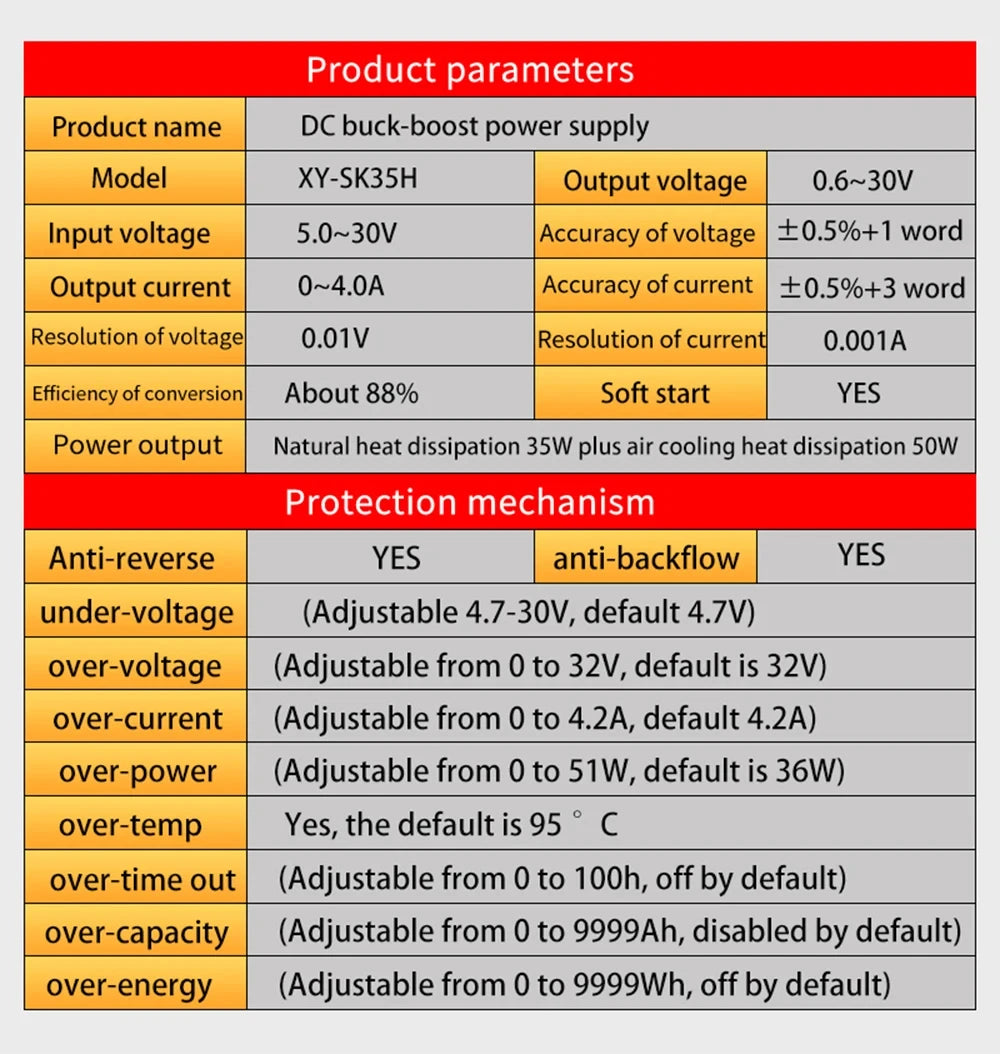

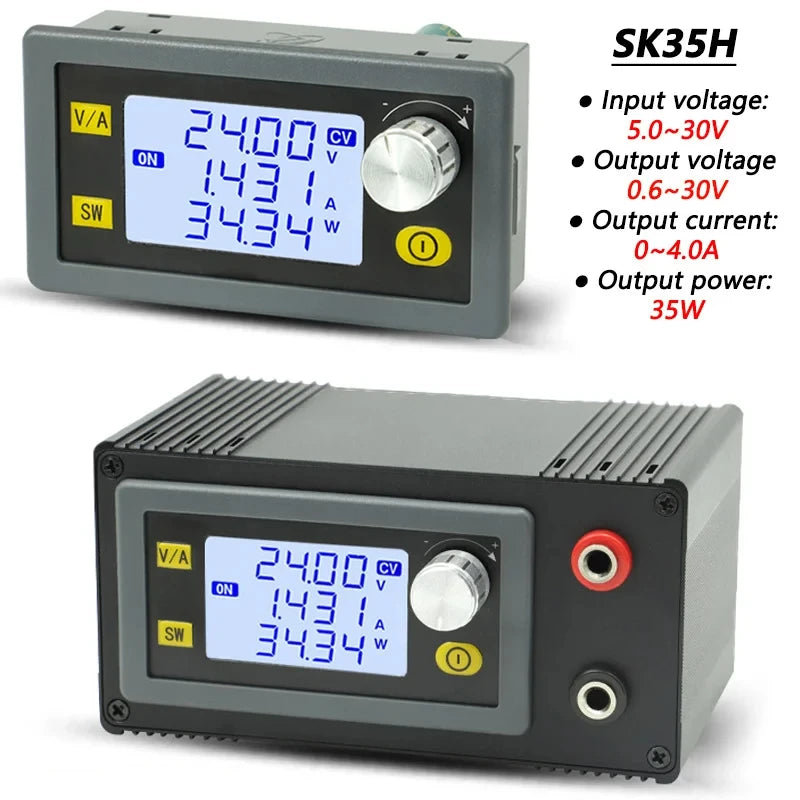

SK35H Specifications:

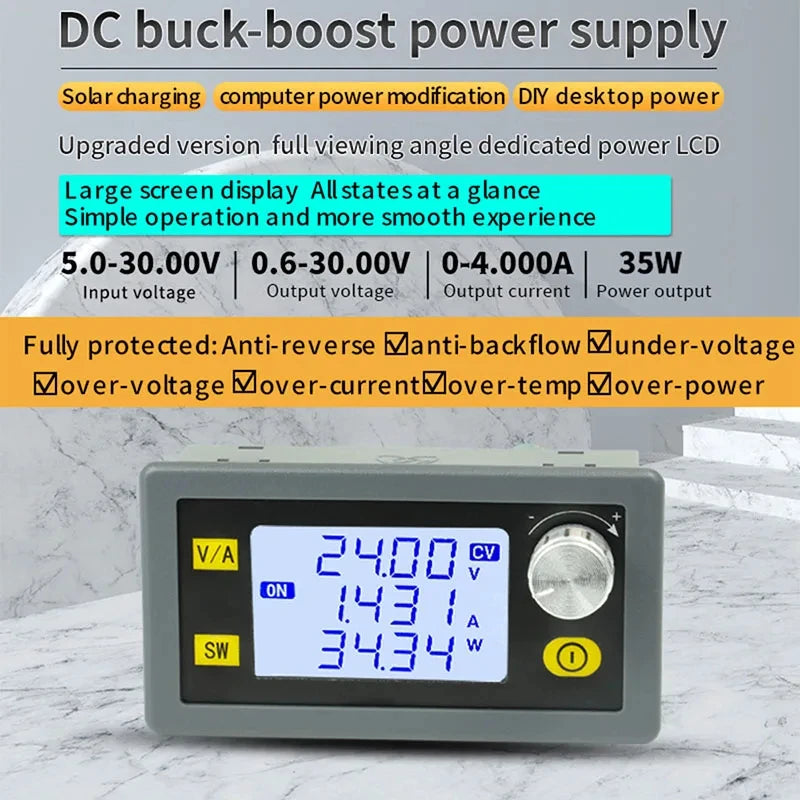

● Name:DC DC Buck Boost Converter
● Product Model: XY-SK35H
● Input voltage: 5.0~30V
● Output voltage 0.6~30V
● Output current: 0~4.0A
● Output power: 35W with natural heat dissipation 50W with air cooling
● Voltage Resolution: 0.01V
● Current resolution: 0.001A
● Conversion efficiency: 88% or so

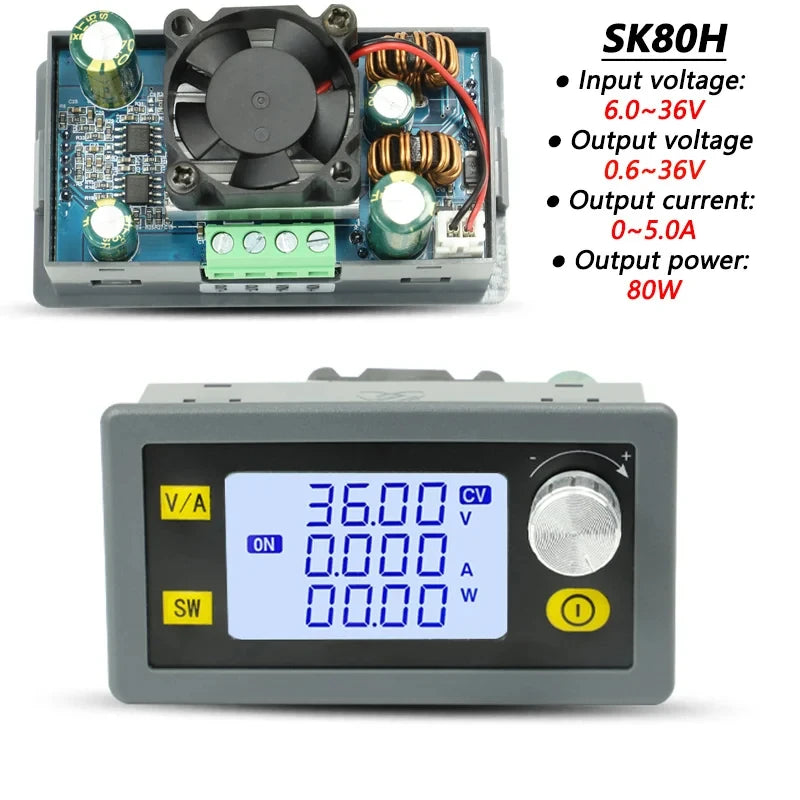

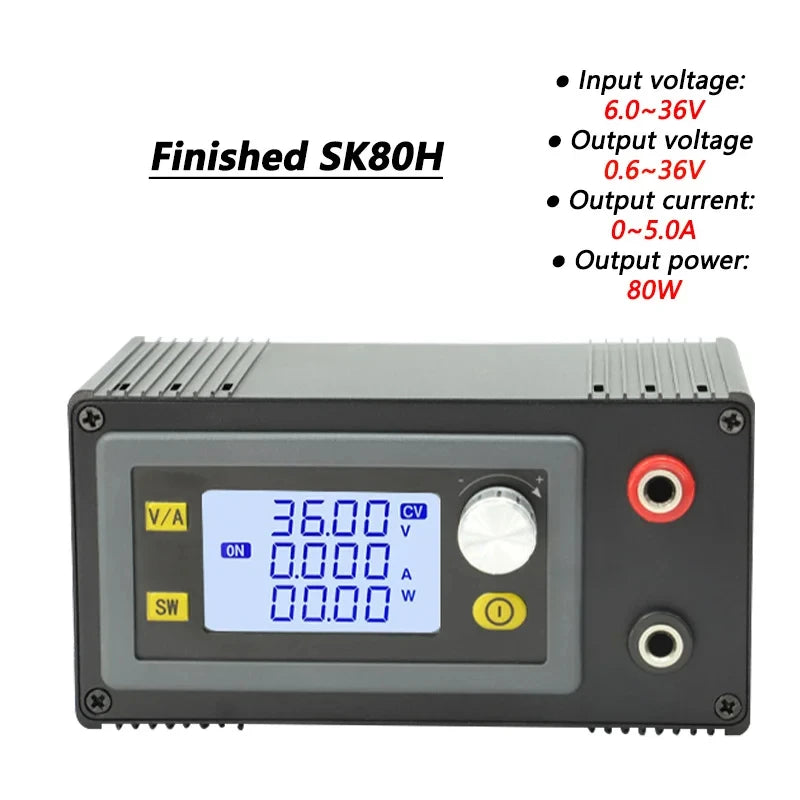

SK80H Specifications:

● Name:DC DC Buck Boost Converter
● Product Model: XY-SK80H
● Input voltage: 6.0~36V
● Output voltage 0.6~36V
● Output current: 0~5.0A
● Output power: 80W

Package list:

Notes:

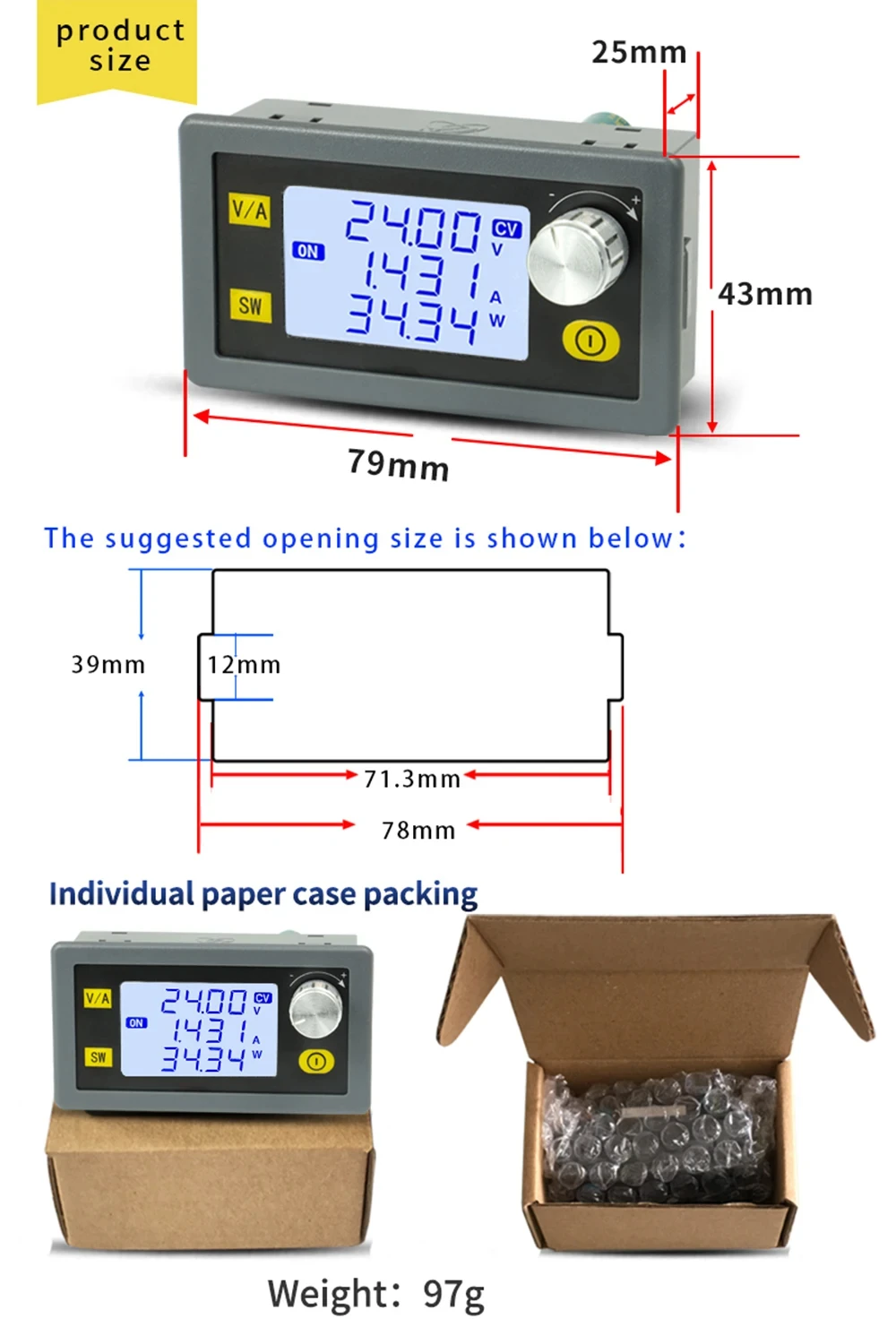

1. Please allow slight dimension difference due to different manual measurement.
2. Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understanding.
