Lote 3 Pcs Convertidor Buck DC-DC 3A Step-Down (1.25V, 1.5V, 1.8V, 2.5V, 3.3V, 5V)
Lote 3 Pcs Convertidor Buck DC-DC 3A Step-Down (1.25V, 1.5V, 1.8V, 2.5V, 3.3V, 5V)
No se pudo cargar la disponibilidad de retiro
SPECIFICATIONS
Brand Name: NoEnName_Null
Current Type: DC
Model Number: 1.25V 1.5V
Origin: Mainland China
is_customized: Yes
Specification:

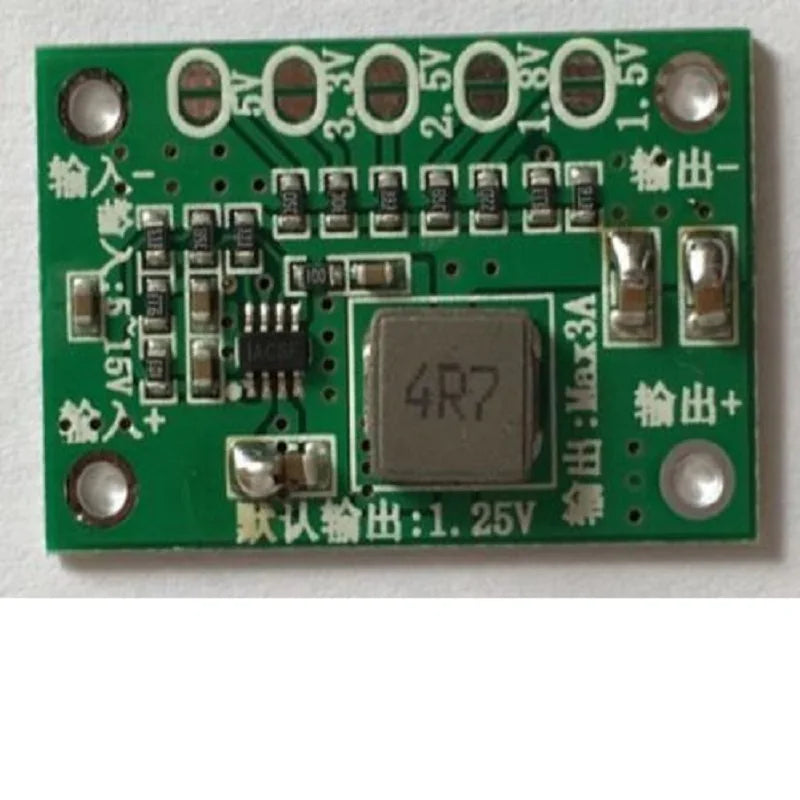

This adjustable step down module is use MP1495 Chip.Synchronous rectification output, Power efficiency up to 90% or more.
input Voltage: DC 5v~16v
Output Voltage: DC 1.25v, 1.5v, 1.8v, 2.5v, 3.3v, 5v
Default Output Voltage: DC 1.25v

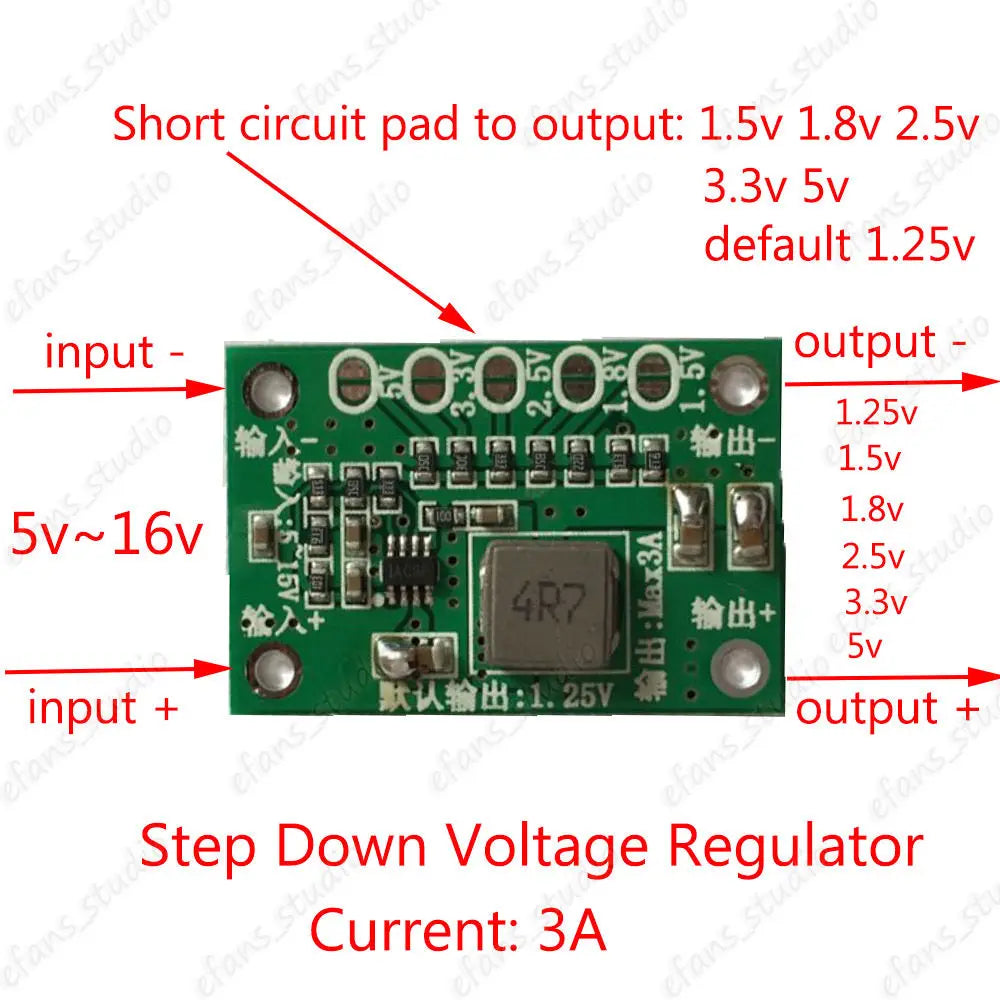

We do not need to adjust the Potentiometer to output the voltage, just need to short circuit pad to output the accurate Voltage, For example, if we want to output 3.3v, We just need to short ciruit pad of 3.3v, that the module will output 3.3v, if we do not short ciruit any pads, the module will output default 1.25v.
Application areas:
communications equipment supply,etc.
Package Include:
3 PCS * Adjustable Step Down Buck Mini Micro Module
