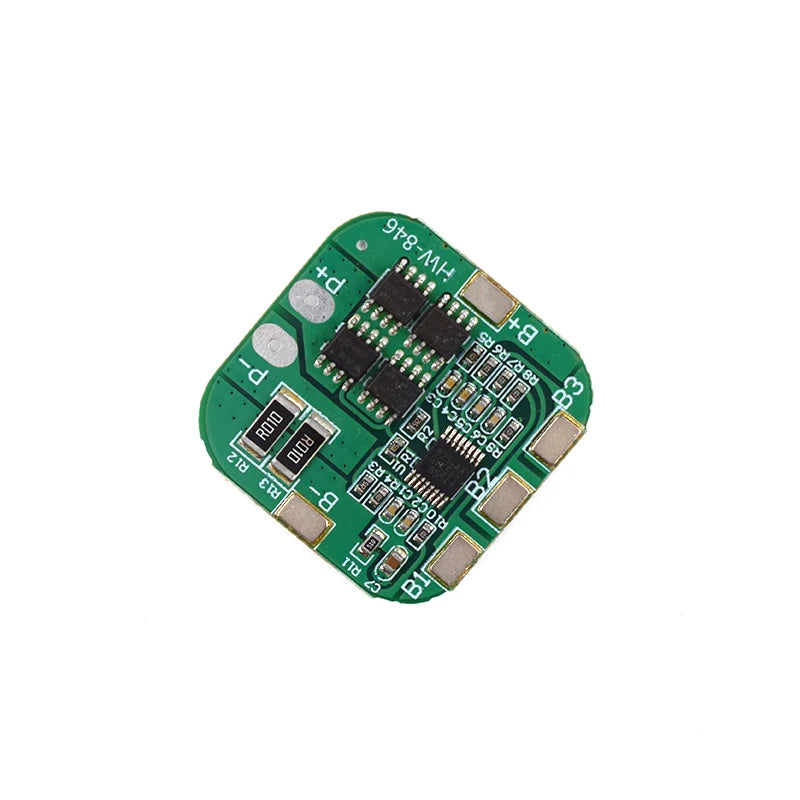

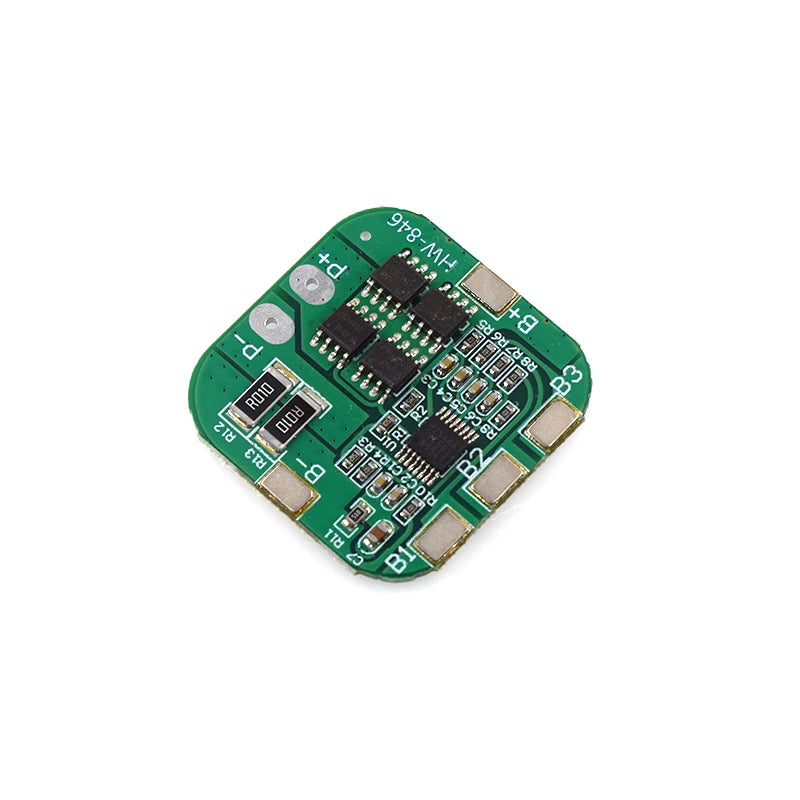

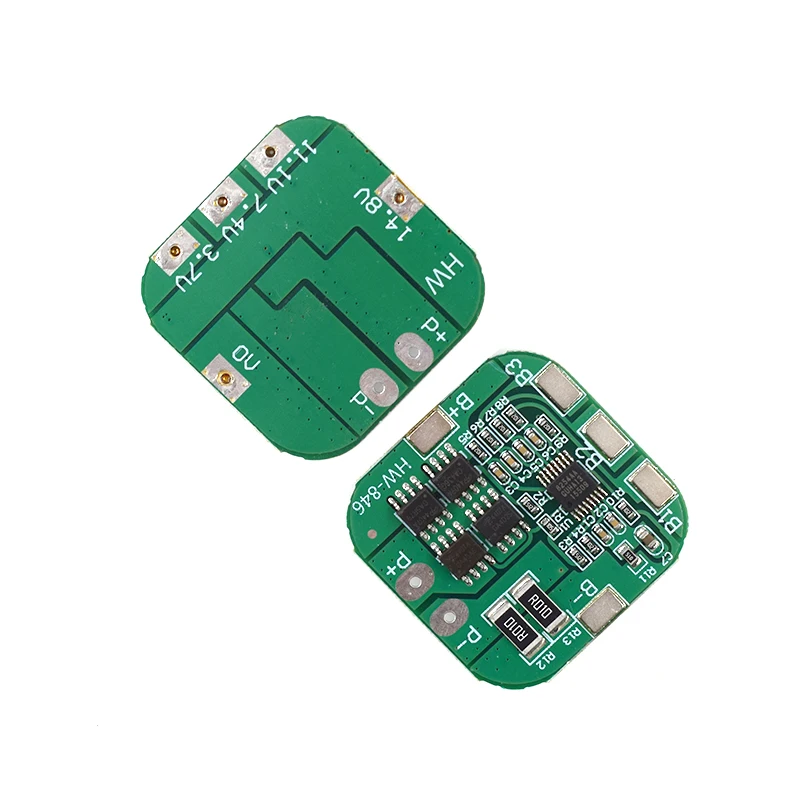

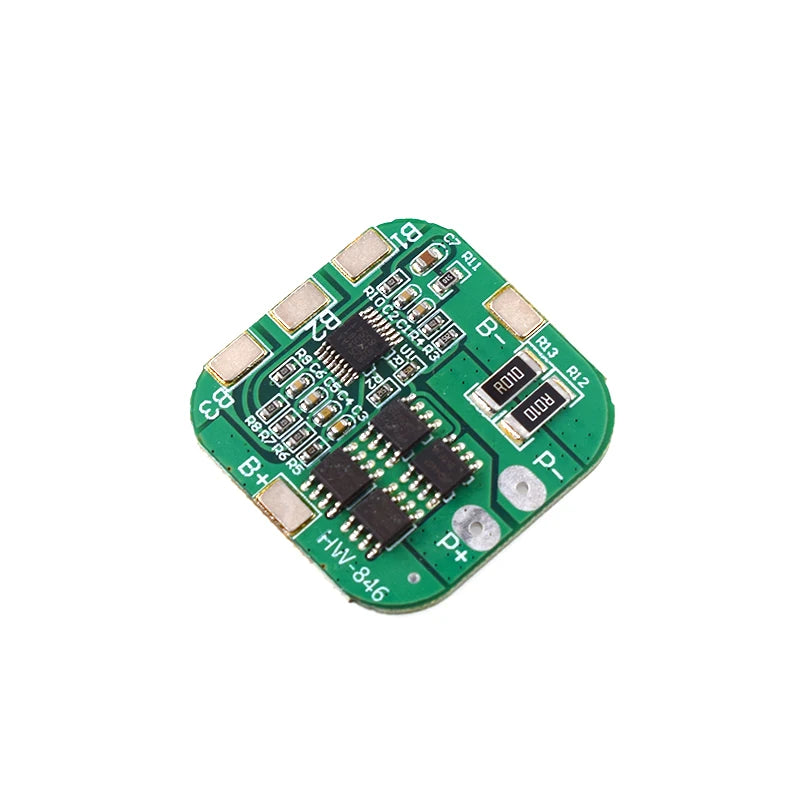

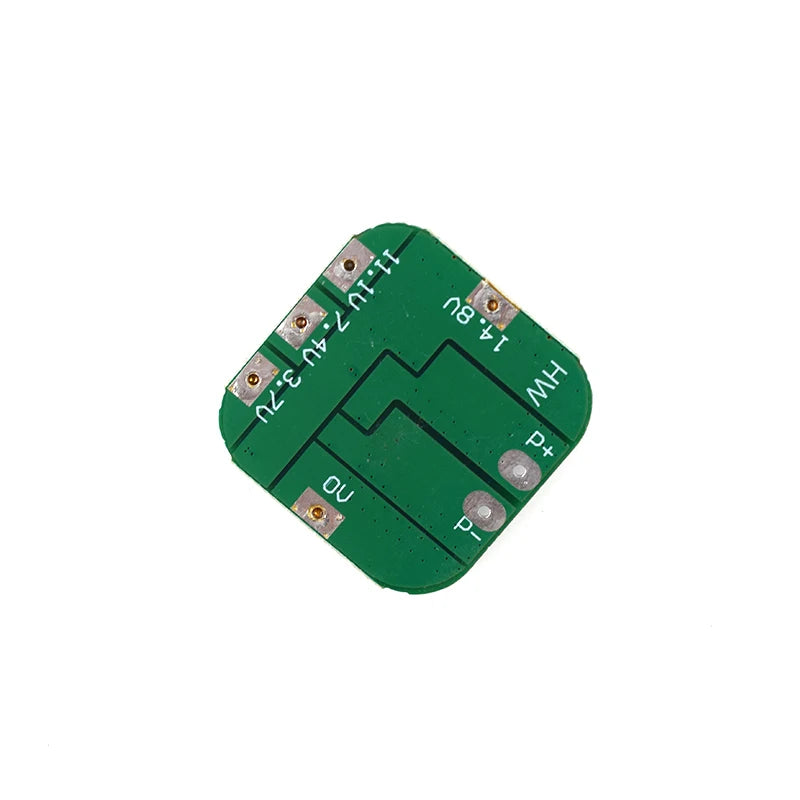

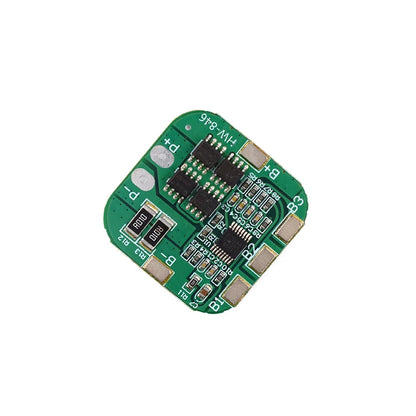

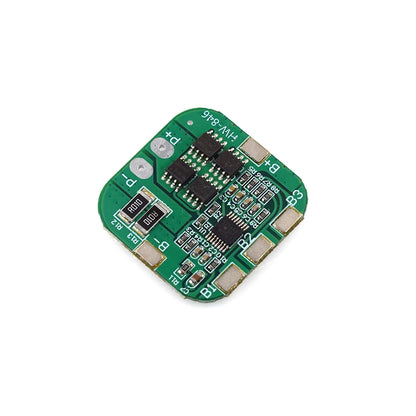

3S/4S 5A 10A 20A 25A 40A 60A Li-ion Battery Charger Protection Board 18650 BMS for Drilling Rig Motor Standard 4S 20A HW-846
3S/4S 5A 10A 20A 25A 40A 60A Li-ion Battery Charger Protection Board 18650 BMS for Drilling Rig Motor Standard 4S 20A HW-846
Precio habitual
$7.572 CLP
Precio habitual
$10.571 CLP
Precio de oferta
$7.572 CLP
Precio unitario
por
Los gastos de envío se calculan en la pantalla de pago.
No se pudo cargar la disponibilidad de retiro
SPECIFICATIONS
Brand Name: NoEnName_Null
Choice: yes
Condition: New
Hign-concerned Chemical: None
Origin: Mainland China
Type: Module
Parameter:
Model: HW-846
Overcharge voltage range: 4.25-4.35V±0.05V
Over-discharge voltage range: 2.3-3.0V±0.05V
Maximum operating current: 10A
Operating temperature: -40 -- +50°C
Maximum instantaneous current: 20A
Storage conditions: -40 -- +80°C
Quiescent current: less than 30uA
Active life: more than 50000 hours
Internal resistance: less than 60mΩ
Short-circuit protection: can be protected, needs to be charged to recover
Charging voltage: 16.8V-17V
