SPECIFICATIONS

Brand Name: eletechsup

Certification: None

Choice: yes

Input Voltage: DC 3-6V

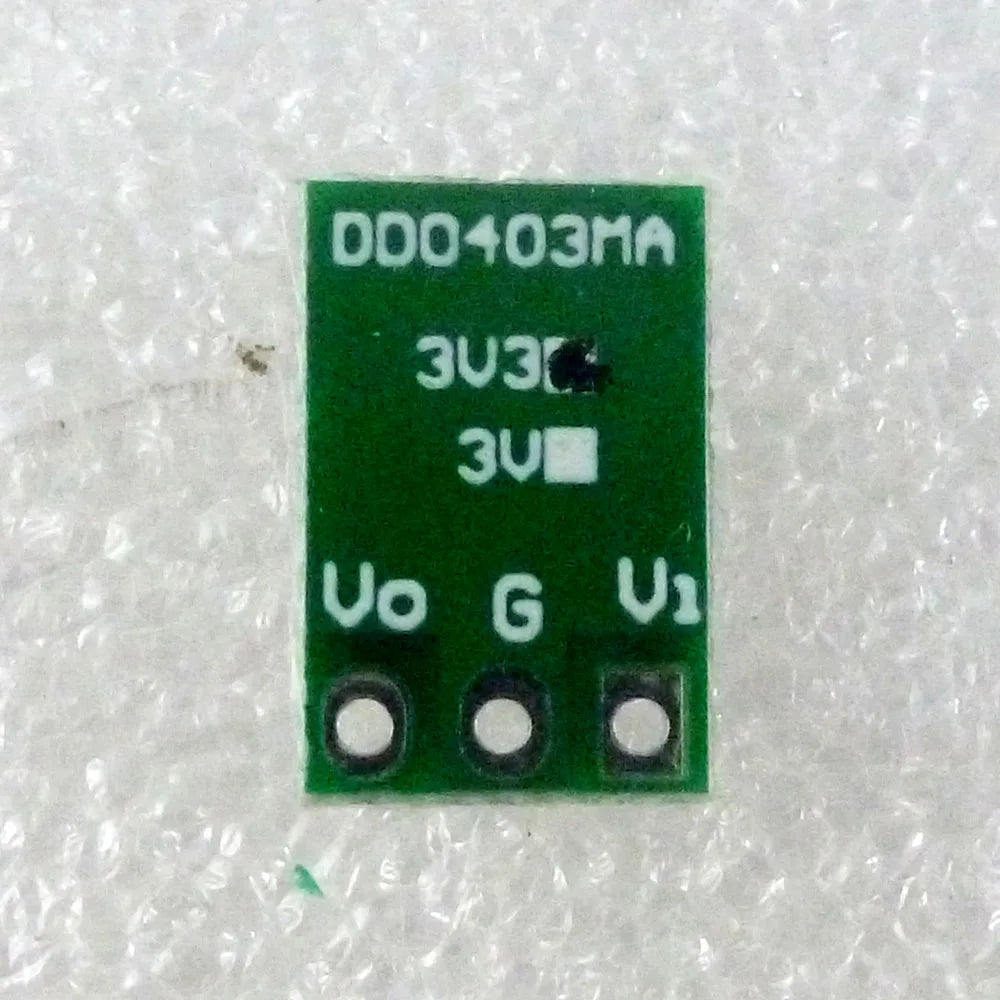

Model Number: DD0403MA+DD0403MB

Origin: Mainland China

Output Current: <400MA

Output Frequency: LDO DC-DC

Output Power: 1 - 50W

Output Type: SINGLE

Output Voltage: DC 3V/3.3V

Size: 11.6 x 7.8 x 2.5mm

Type: DC/DC Converters

Weight: 0.5g(with Pin),0.3g(no Pin)

is_customized: Yes

semi_Choice: yes

Product Name:  5 x 3.3-6V to 3V 3.3V DC-DC Converter Step-Down Power Supply Buck LDO Module Voltage regulator Board

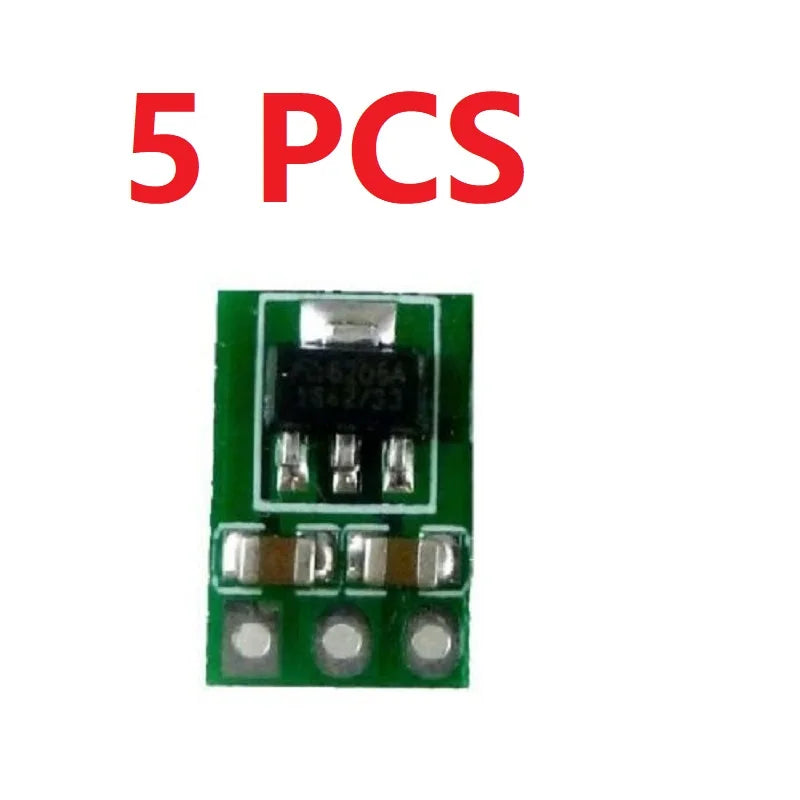

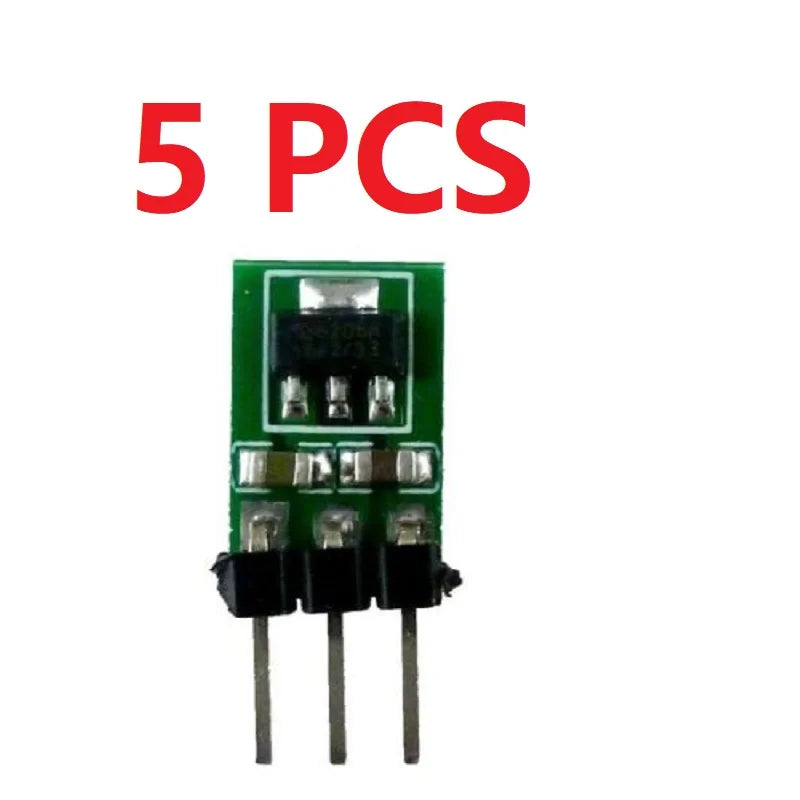

Packing list:  5 PCS  3V 3.3V DC DC Step Down Converter LDO Module

Description:

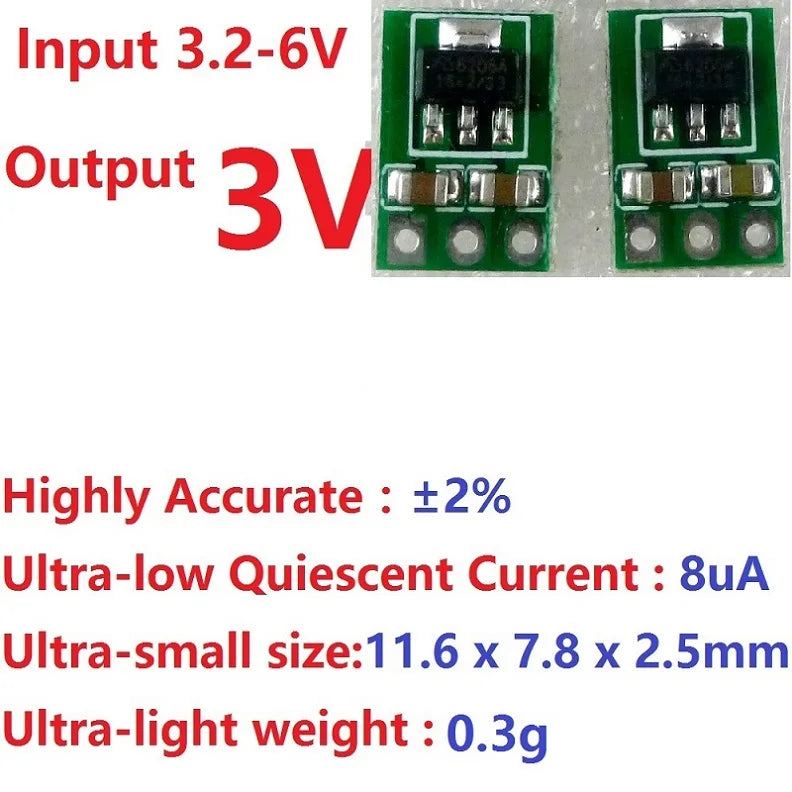

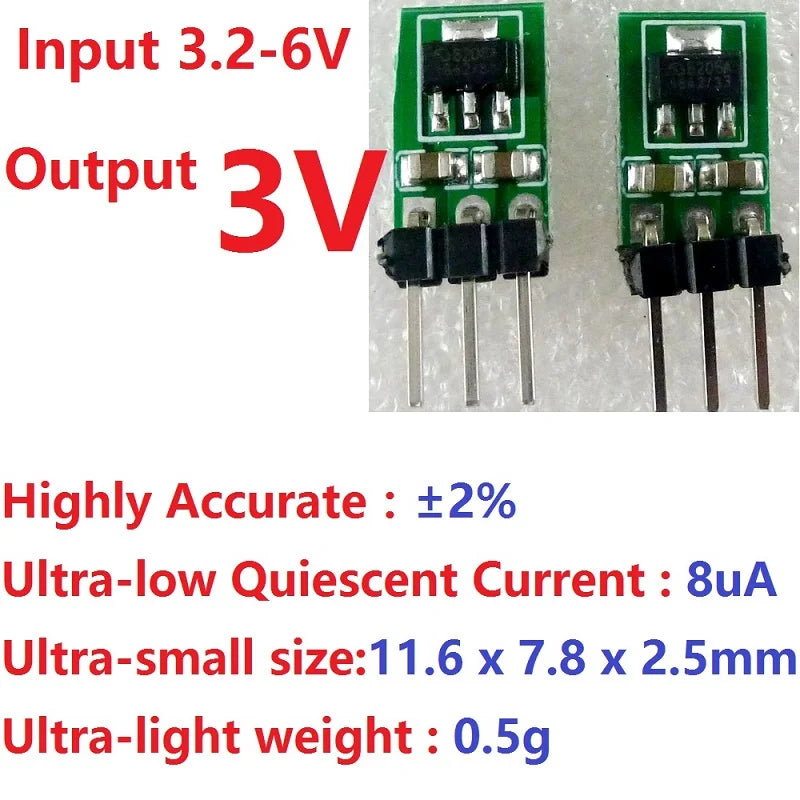

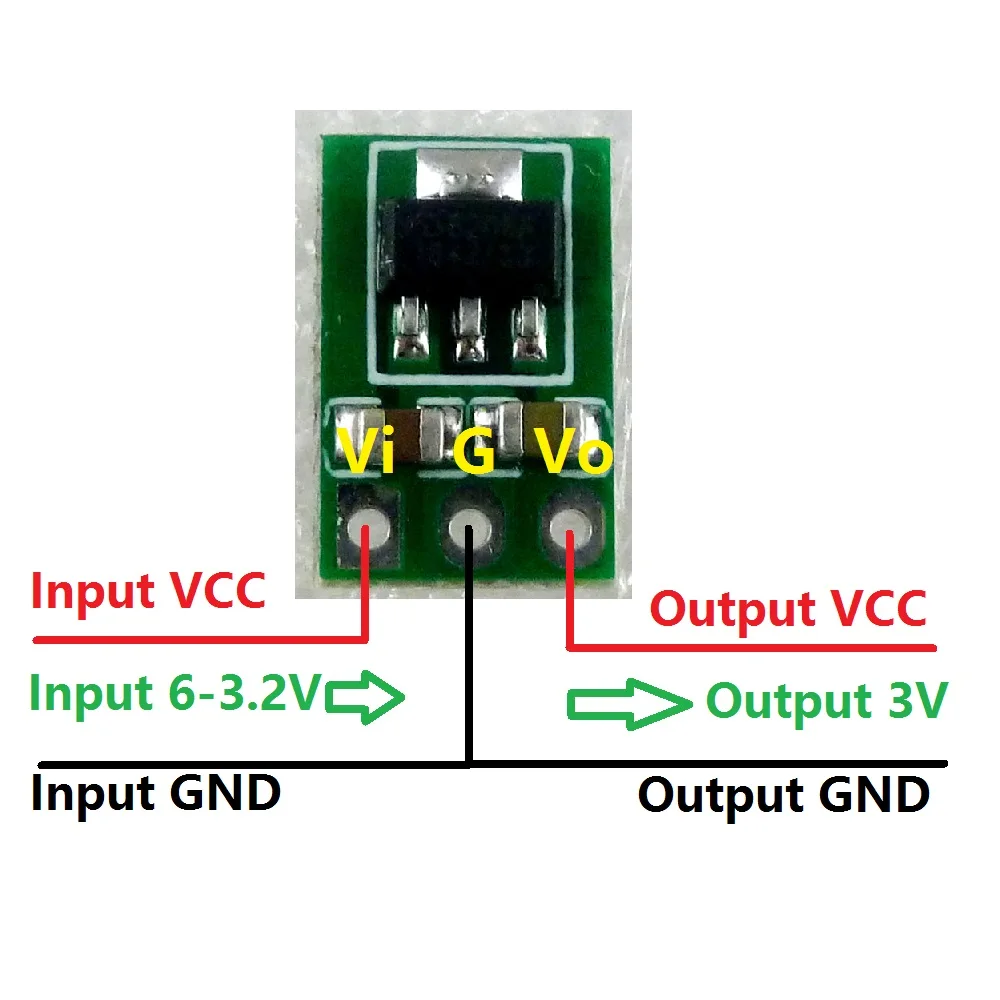

3V :



Low power consumption,Low ESR Cap.Compatible DD0403MA Series LDO Module,Very suitable for lithium battery-powered

Input voltage: DC 3.2-6V

Output voltage: DC 3V

Long time maximum output current 300mA

Short time maximum output current 400mA

Highly Accurate:±2%

Quiescent Current : 8uA

Short Circuit Current : 30mA

Over Current Protection : 500mA

Operating Temperature: -25℃ ~ +85℃

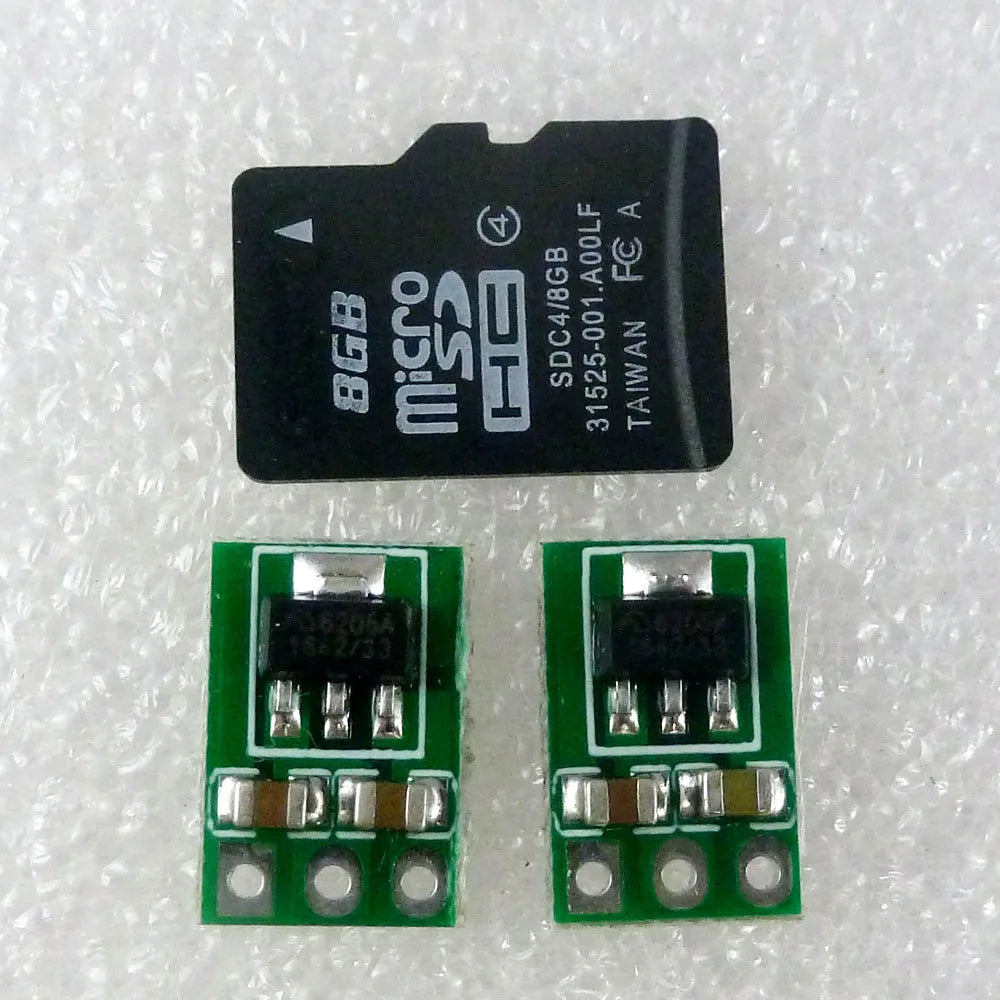

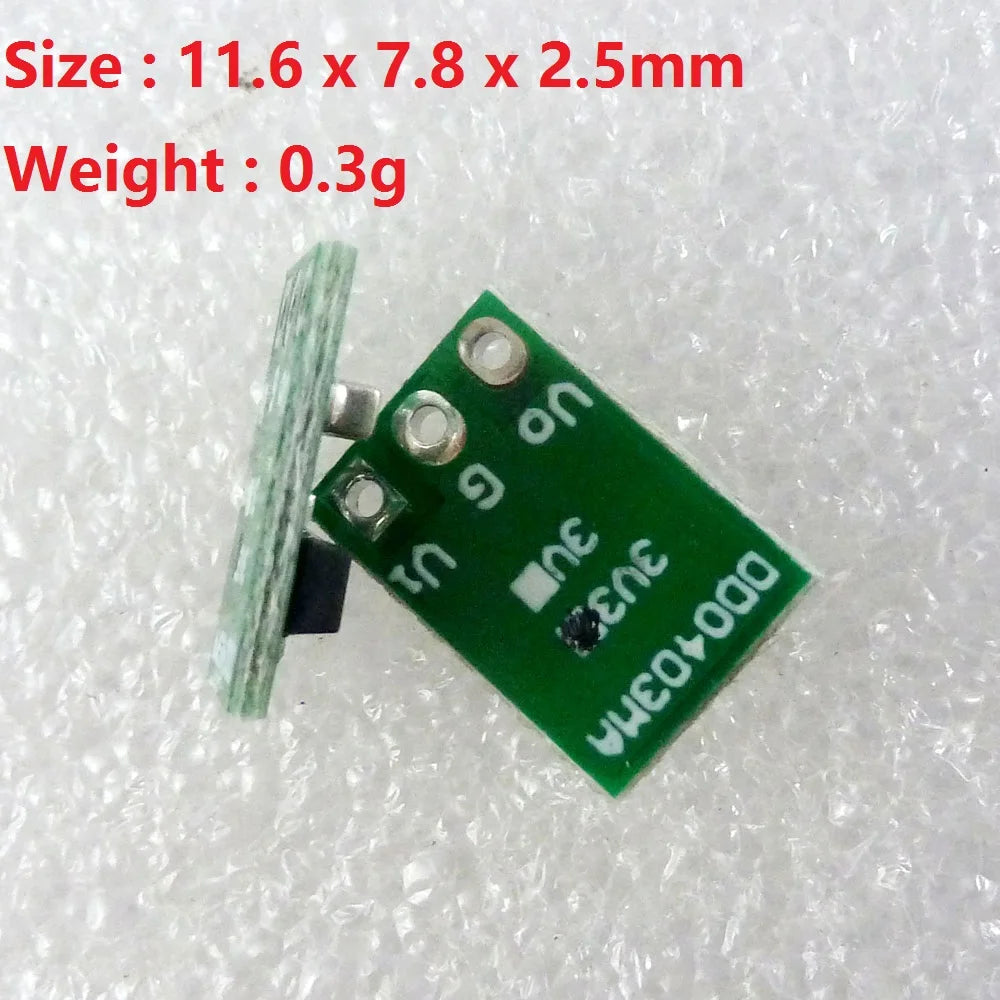

Size : 11.6 x 7.8 x 2.5mm

Weight : with pin 0.5g,no pin 0.3g

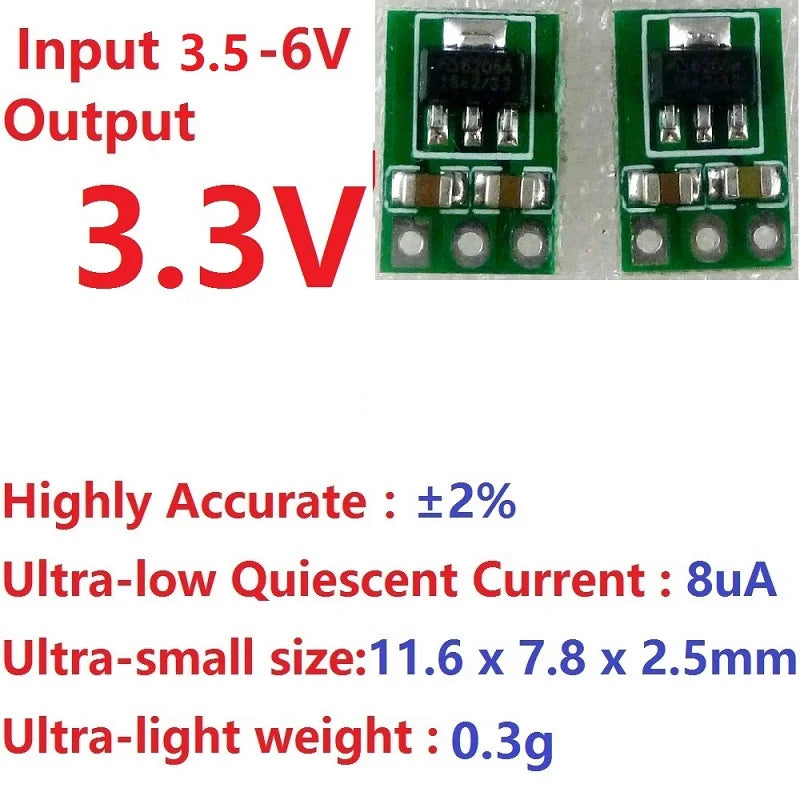

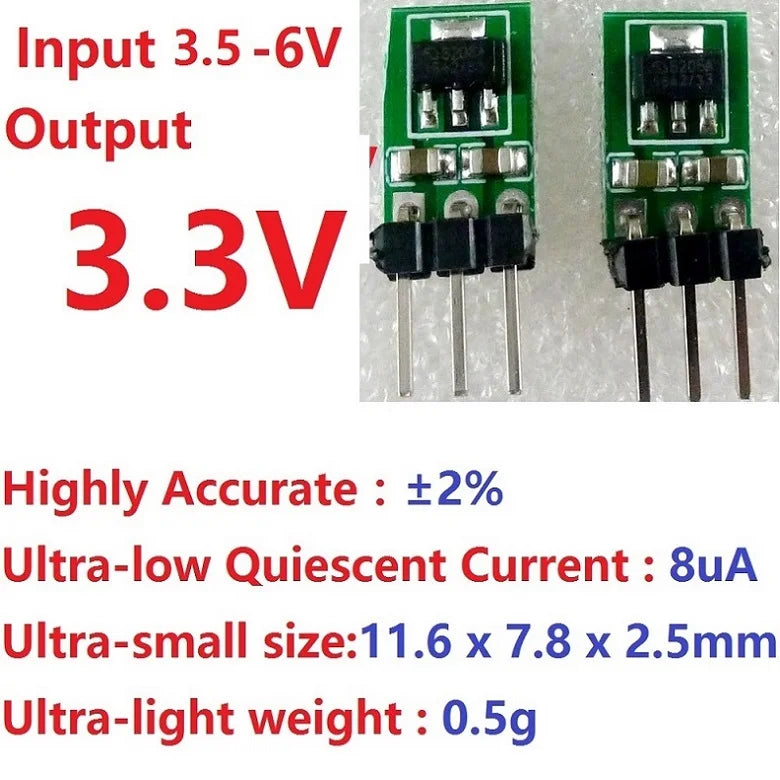

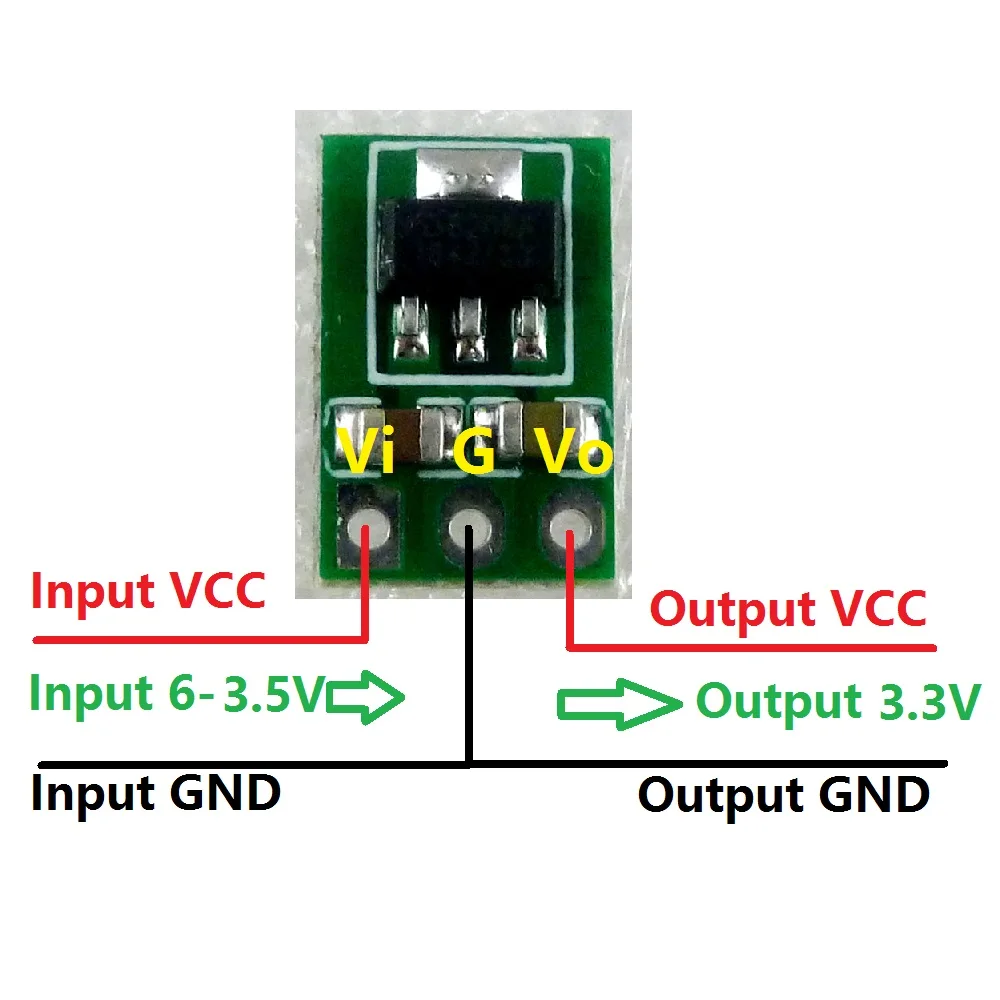

3.3V :

Low power consumption,Low ESR Cap.Compatible DD0403MA Series LDO Module,Very suitable for lithium battery-powered

Input voltage: DC 3.5-6V

Output voltage: DC 3.3V

Long time maximum output current 300mA

Short time maximum output current 400mA

Highly Accurate:±2%

Quiescent Current : 8uA

Short Circuit Current : 30mA

Over Current Protection : 500mA

Operating Temperature: -25℃ ~ +85℃

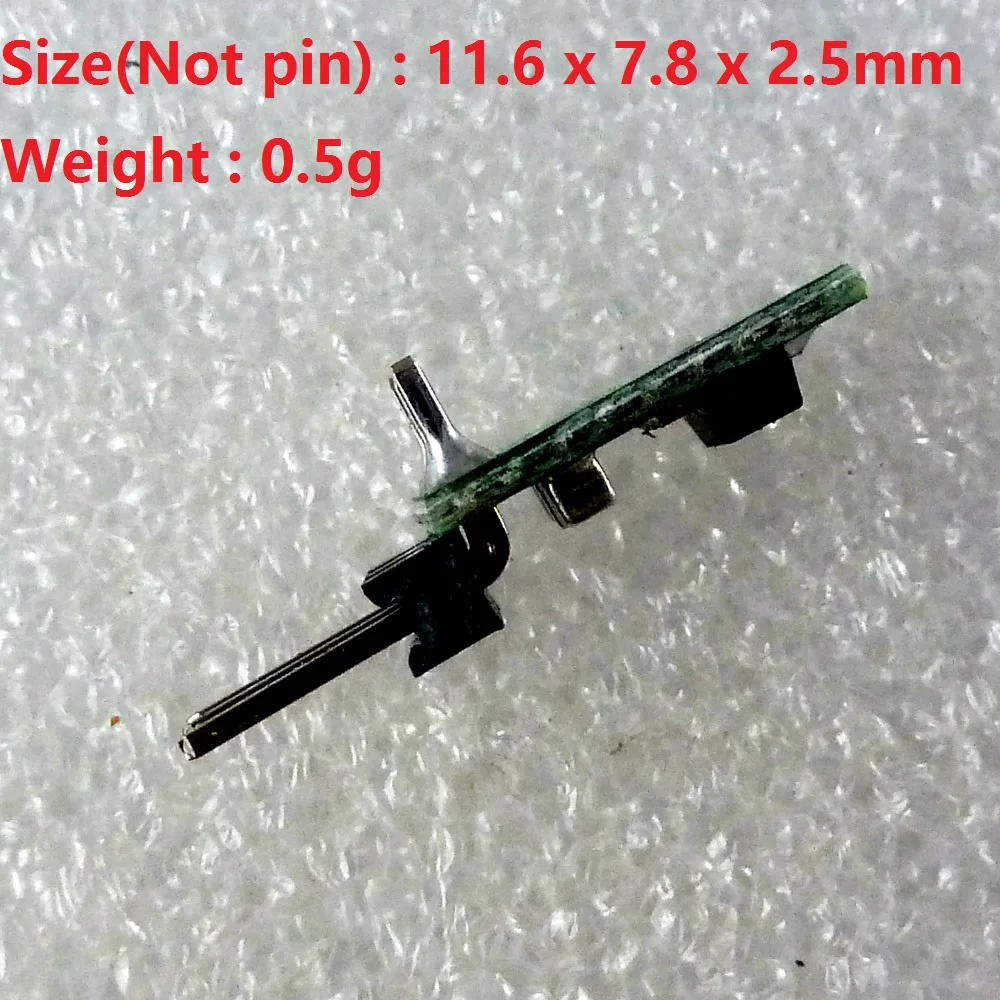

Size(Not including pin) : 11.6 x 7.8 x 2.5mm

Weight : with pin 0.5g,no pin 0.3g







Attention :

This is a DC-DC voltage converter module,Must be noted when using:

1 Input voltage can not be greater than the maximum input range

2 Output power can not be greater than the maximum load for a long time

3 Input power must be greater than the output power, because the power consumption of the module itself



Applications:



AA AAA Dry cell powered equipment

Breadboard Power Supply

Small power motors

Camera, Video camera

Electric toys

Model aircraft

LED Lighting

raspberry pi Arduino UNO MEGA2560

electronic diy kit

STM32 FPGA/CPLD PIC AVR Board

electronic diy kit

Wifi Module,ESP8266

Bluetooth Module,HC-05,HC-06,SPP-C
