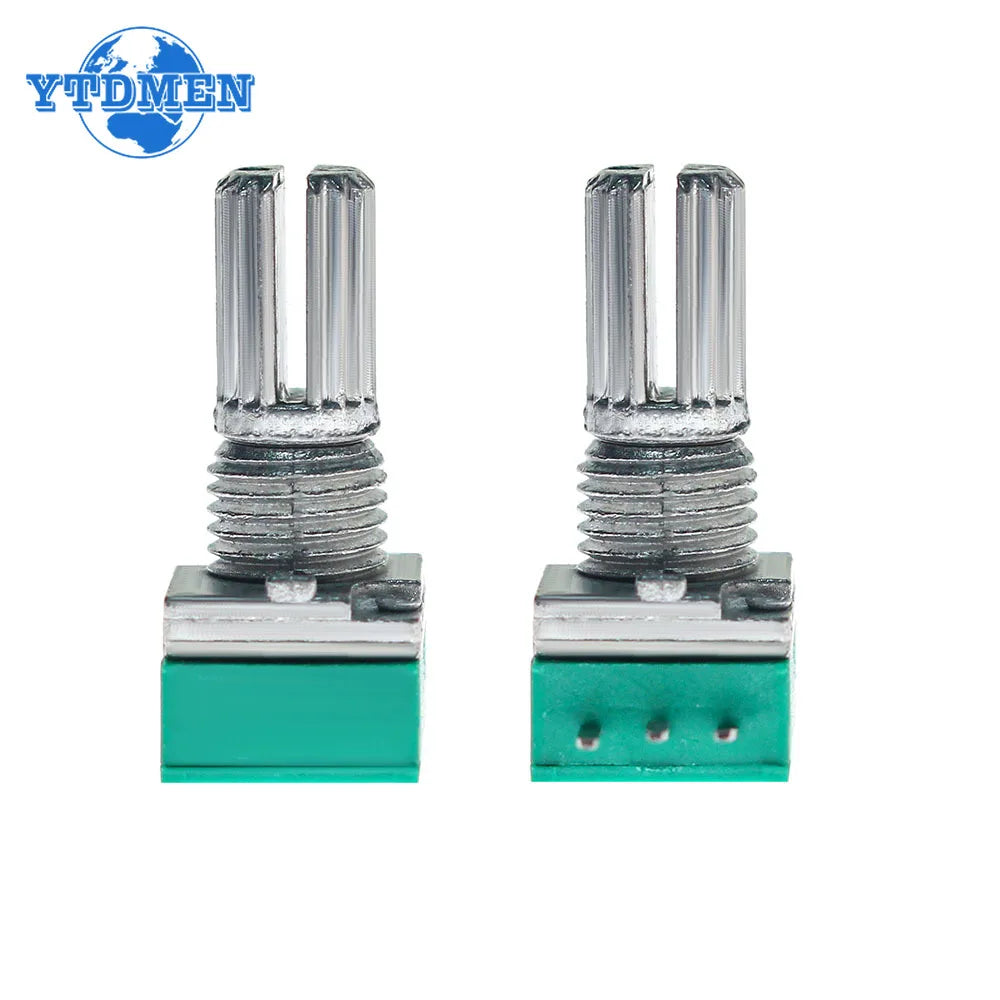

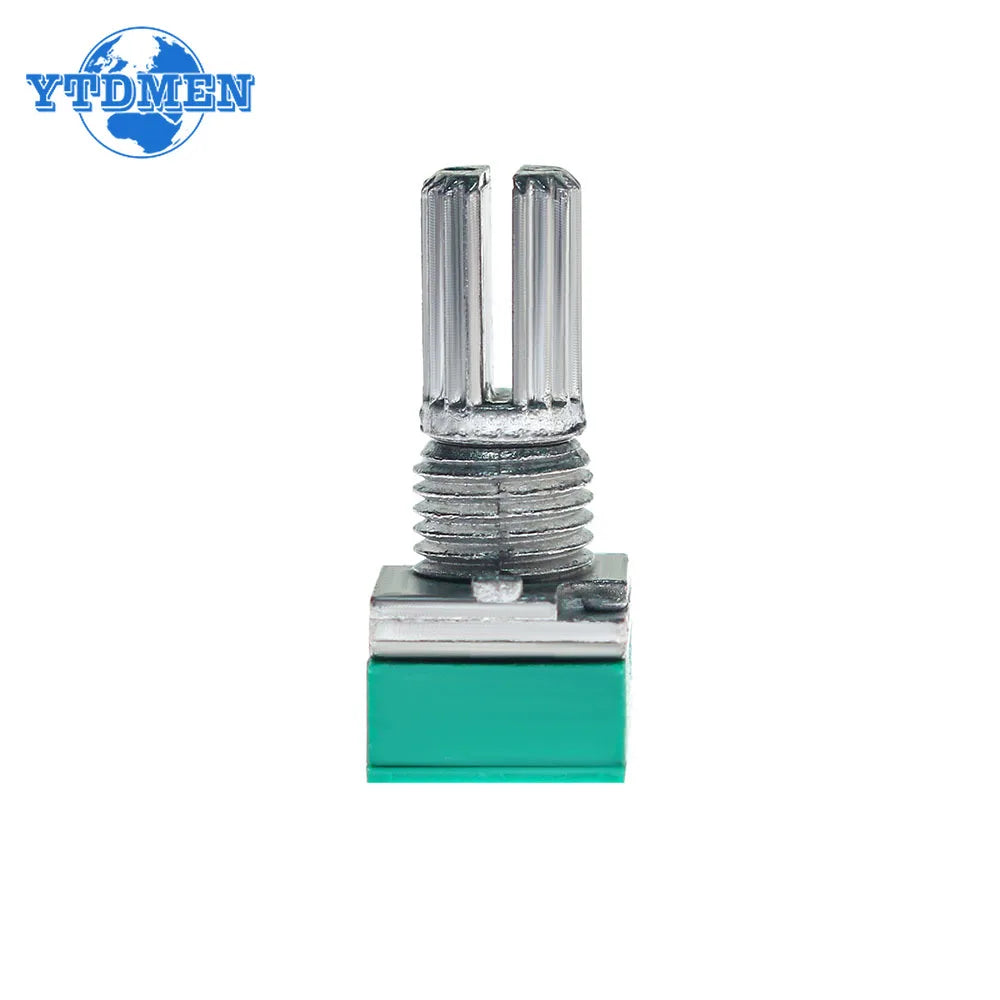

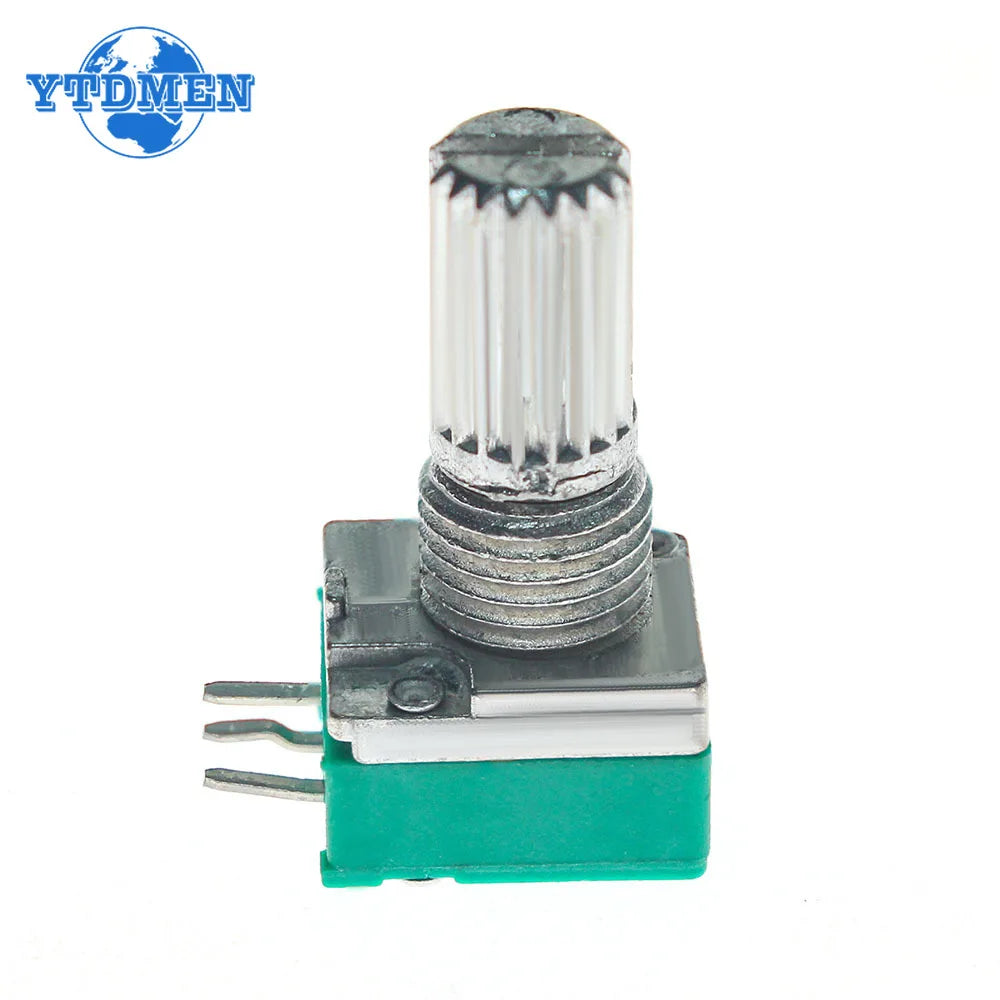

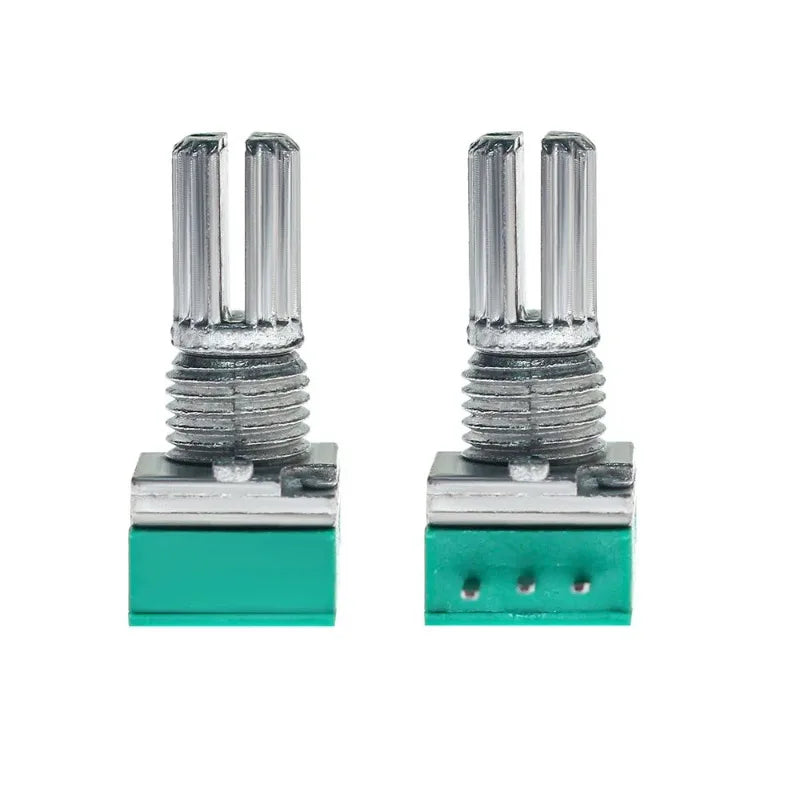

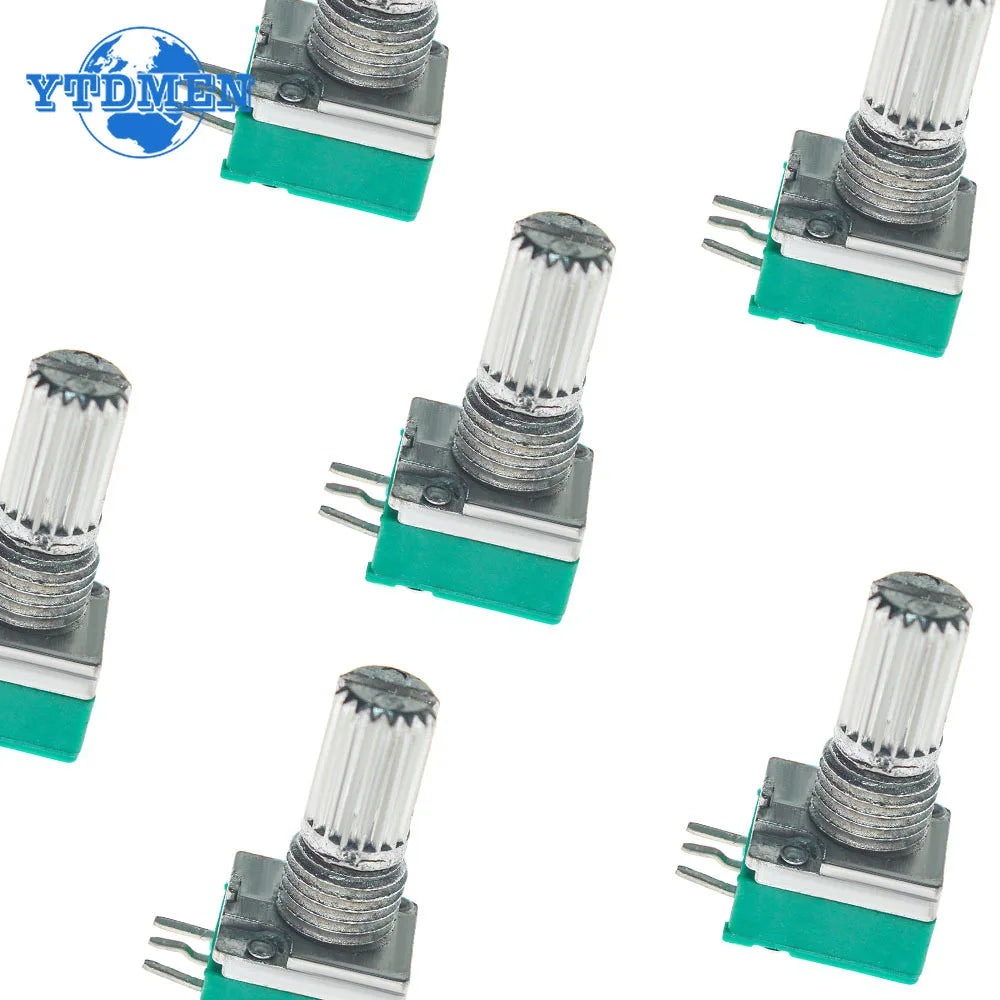

5PCS Potentiometer 3Pin RK097N B100K B1K B5K B10K B20K B50K B500K RK097 Potentiometers Audio Amplifier Sealing
5PCS Potentiometer 3Pin RK097N B100K B1K B5K B10K B20K B50K B500K RK097 Potentiometers Audio Amplifier Sealing
Precio habitual
$7.113 CLP
Precio habitual
$10.112 CLP
Precio de oferta
$7.113 CLP
Precio unitario
por
Los gastos de envío se calculan en la pantalla de pago.
No se pudo cargar la disponibilidad de retiro
SPECIFICATIONS
Brand Name: YTDMEN
Choice: yes
Condition: New
Hign-concerned Chemical: None
Max. Operating Voltage: standard

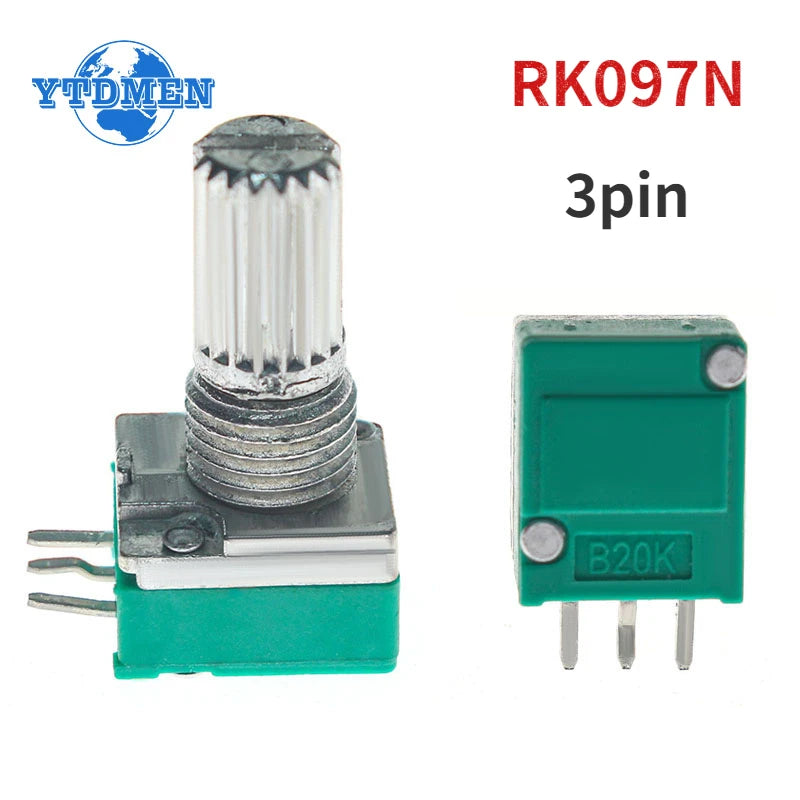

Model Number: RK097N
Operating Temperature: standard
Origin: Mainland China
Rated Power: 0.05W
Resistance Tolerance: 20%
Size: 3PIN
Technology: Metal alloy
Type: Rotary Potentiometer
Parameters:
Total impedance value: 10K Ω
Load value borne by switch:/ Aat DC/V
Allowable error value of total impedance: ± 20%
Full rotation angle: 270 ° ± 5 °
Impedance characteristic: B Taper
Rotating torque: 20~100gf.cm
Maximum operating voltage: AC 50V DC 12V
Rotation stop strength: 3Kgf.cm Max
Fixed frame power: ≤ 0.05W
Axial push-pull strength: 4Kgf.cm Max
Noise: 100 mv Max
Switch action angle: /±/
Insulation impedance value: 100MQ Min DC 250V
Switching force: /~/gf.cm
Voltage withstand characteristic: AC M2 Min DC 250V
Fixing strength of shaft sleeve nut: /Kgf.cm Max
Residual resistance value: 20 Ω Max
Number of rotating segments: /C
Synchronization error value: -/dbof/db ±/db
Segment driving force: /~/gf.cm
Switch residual resistance value: M Ω Max
Solder heat resistance: below 250 ° C, within 2 seconds
Product Application:
Widely used in electrical appliances, audio equipment, communications, medical facilities, security products, UPS power supplies, video recorders, MP3 players, VCDs, telephones, and other equipmen.
Package List:

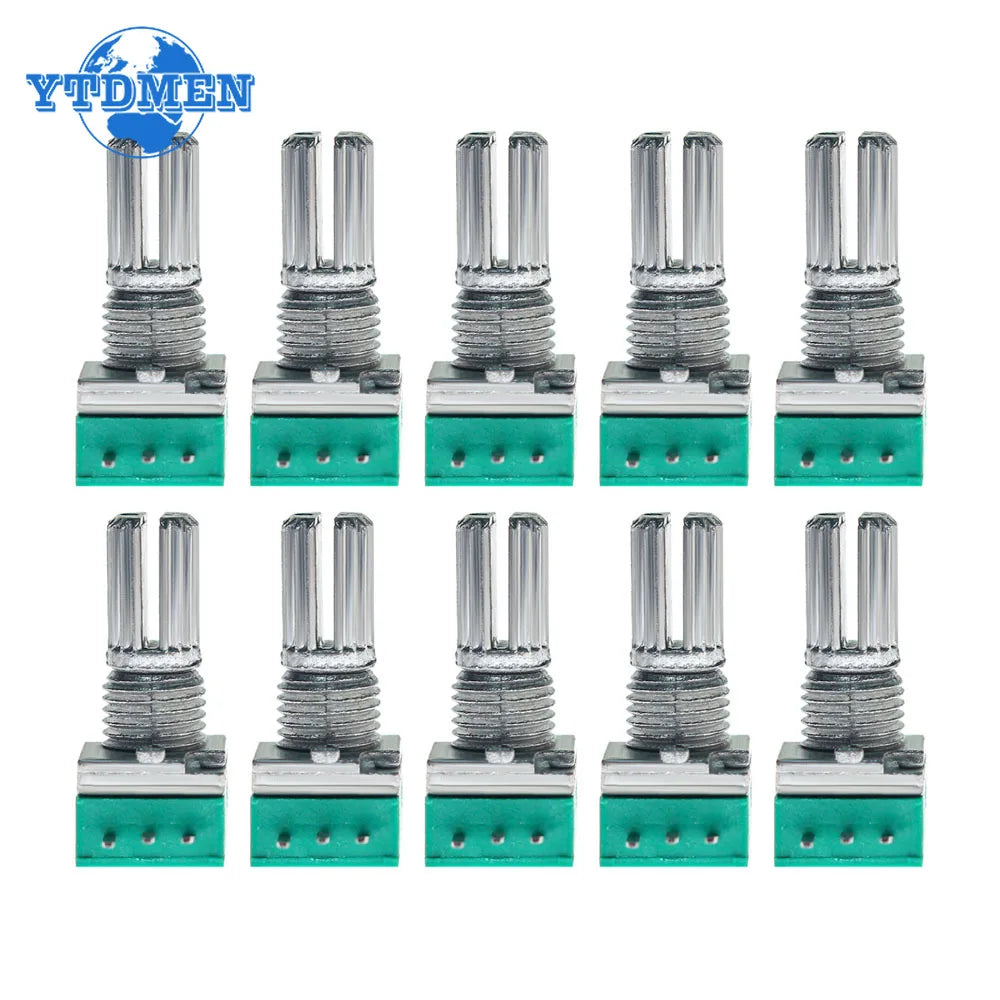

5PCS RK097N Potentiometers
