SPECIFICATIONS

Brand Name: Ziqqucu

Choice: yes

Condition: New

Hign-concerned Chemical: None

Max. Operating Voltage: AC 250V

Operating Temperature: -10 -100℃

Origin: Mainland China

Rated Power: 0.05W

Resistance Tolerance: ±20%

Size: 6pin

Technology: Carbon Film

Type: Rotary Potentiometer

is_customized: Yes

semi_Choice: yes

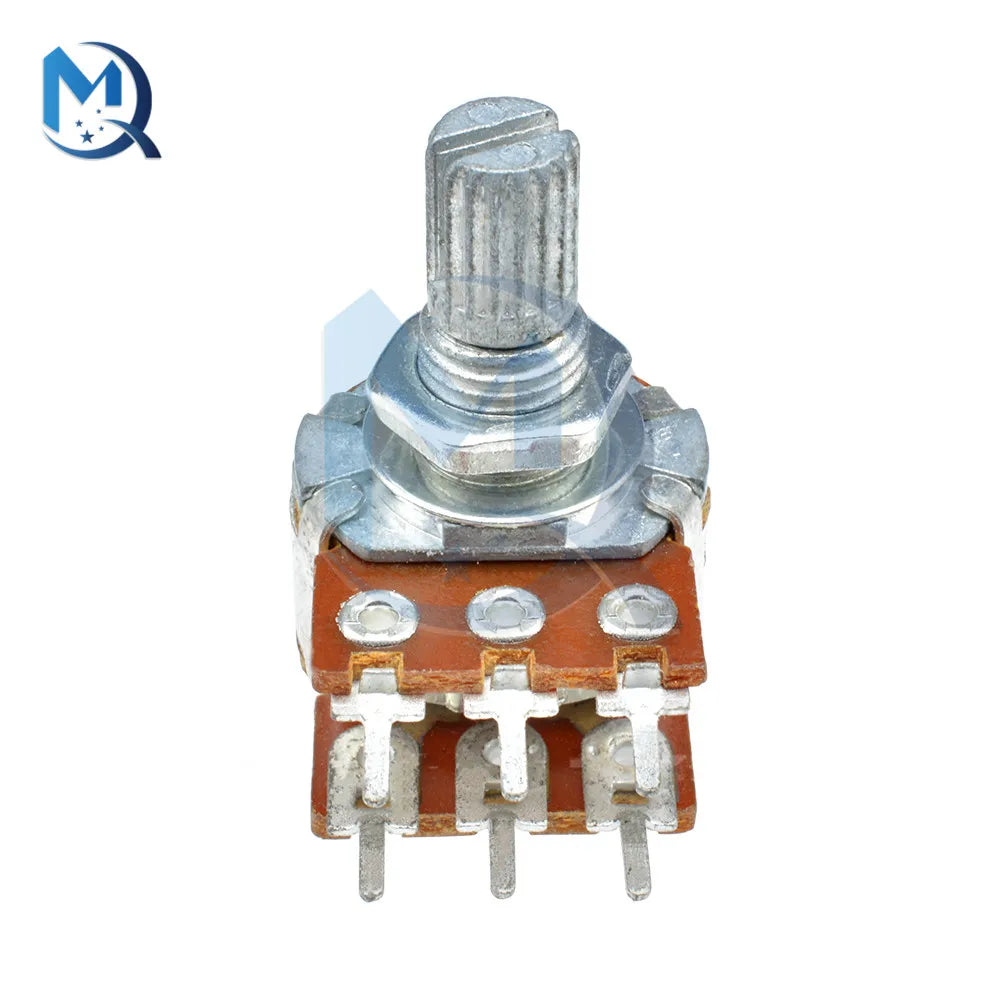

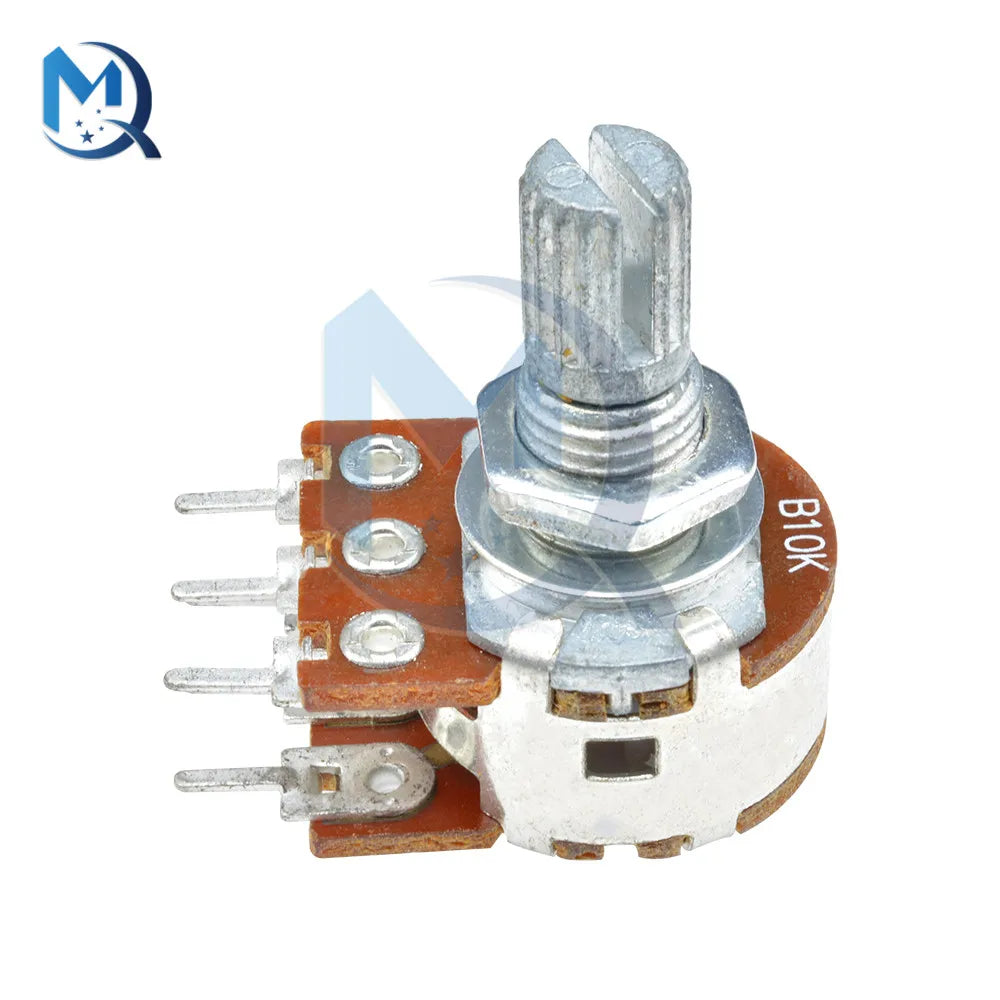

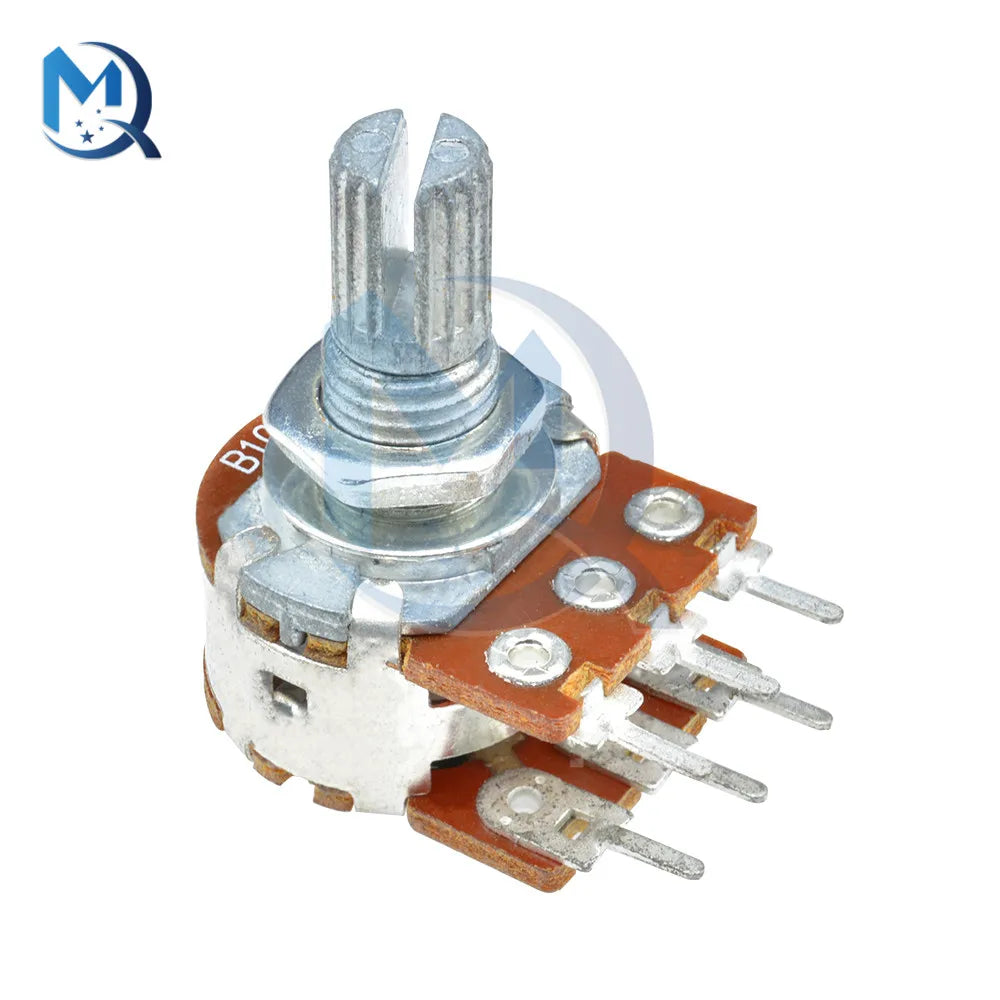

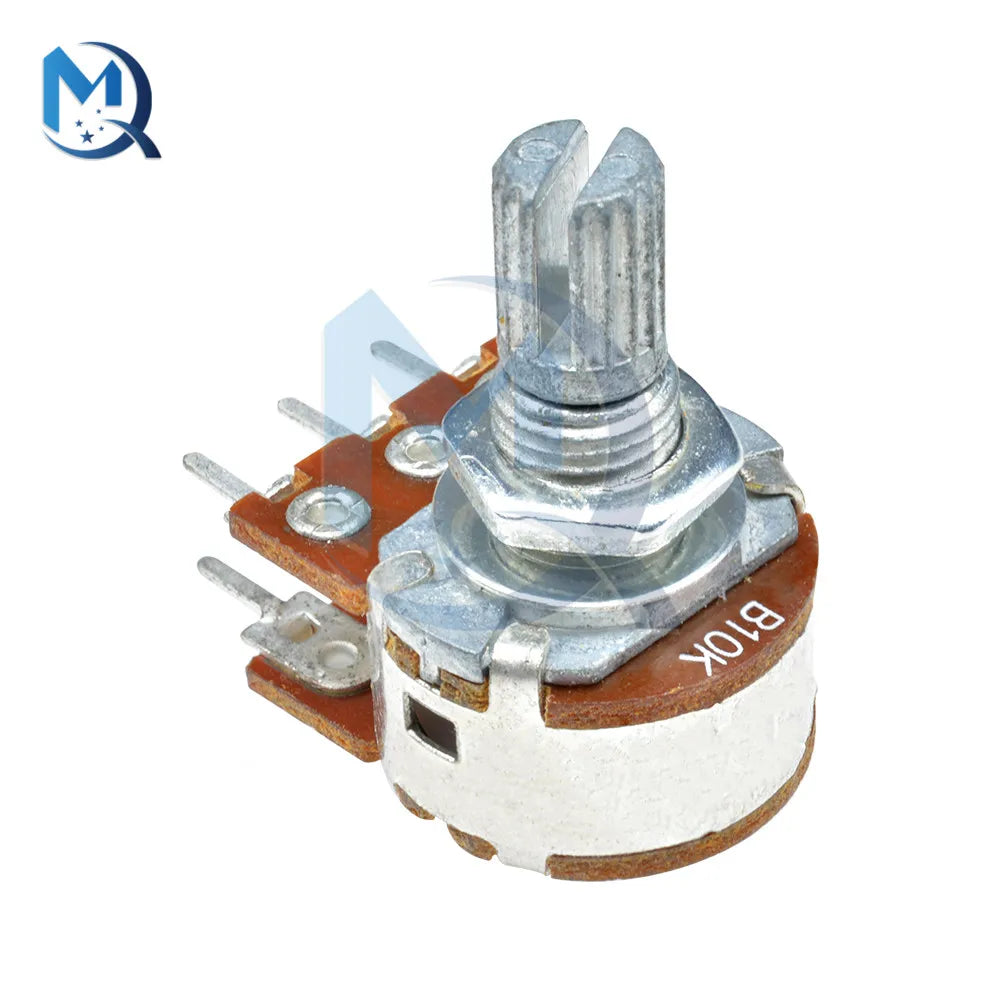

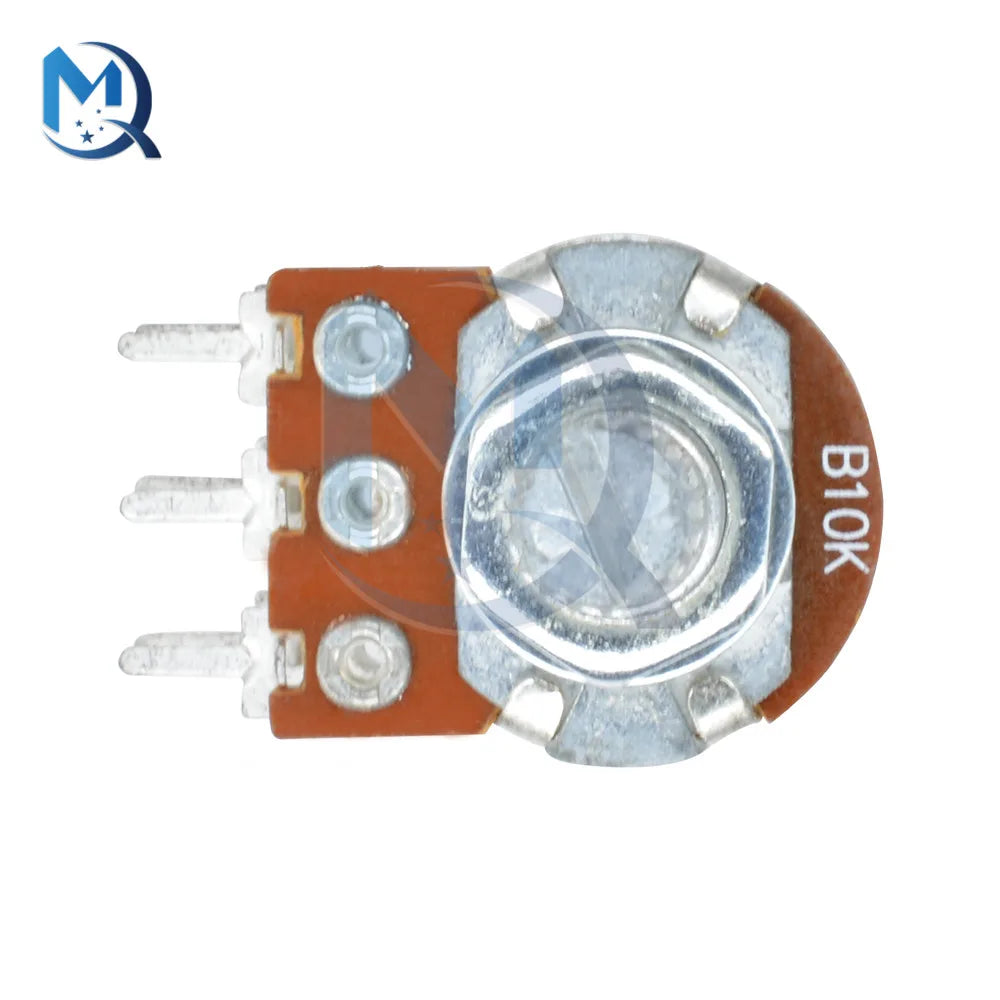

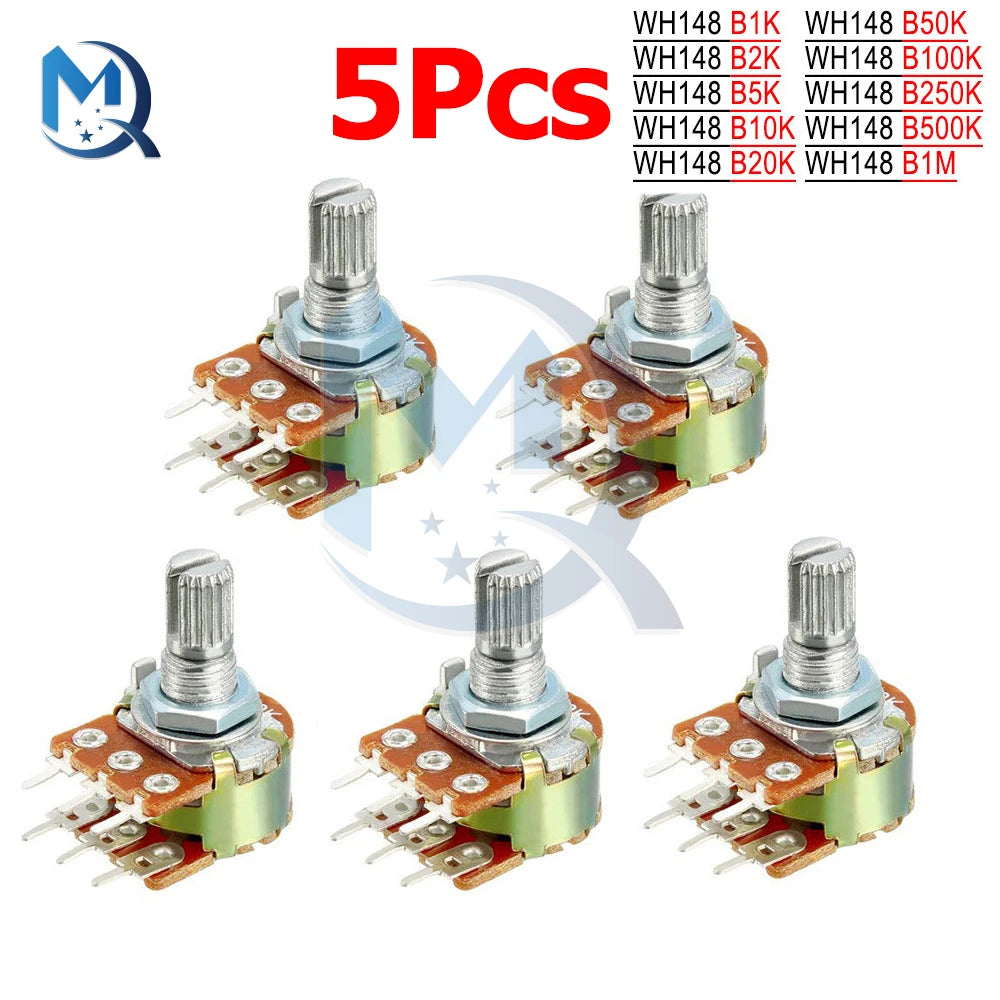

5PCS/Lot WH148 6Pin Potentiometer Resistor 1K 5K 10K 50K 100K 500K 1M Ohm Dual Linear Shaft Taper Rotary Resistors for Arduino

Feature:

：Resistance identified on potentiometer, convenient to distinguish and install.

Specification:

：Name: Rotary Potentiometer

：Type: Dual Linear

：Terminal: 6 Pin

：Resistance Value: 1K, 2K, 5K, 10K, 20K, 50K, 100K, 250K, 500K, 1M Ohm

：Material: Metal + Carbon Film

：Rotation angle: 300°±10°

：Rotational torque: 10 -200gf.com

：Point electric torque: 50 -150gf.cm

：Resistance tolerance: ±20%

：Withstand voltage: 1 minute AC 250V

：Rotating noise: less than 100mV

：Rotation life: 10000 cycles

：Load power: Curve B: 0.05W, other than B: 0.025W

：Operating voltage: Curve B: 50V DC other than B: 25V AC

Package Included:

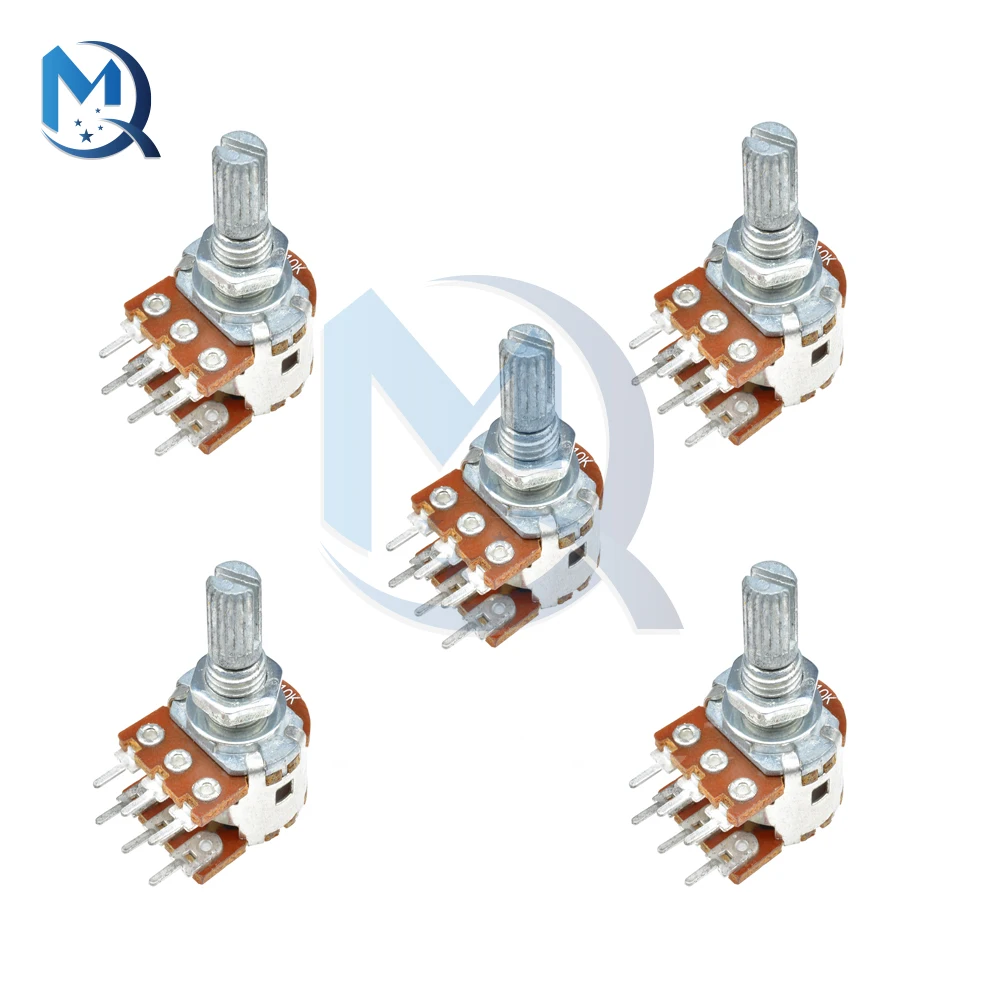

：5 x Dual Linear 6 pin Rotary Potentiometer

Only the above package content, other products are not included.

Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
