Lote 5 Pcs Módulo Control Carga XH-M603 12-24V Batería Litio Switch Protección Display LED
Lote 5 Pcs Módulo Control Carga XH-M603 12-24V Batería Litio Switch Protección Display LED
No se pudo cargar la disponibilidad de retiro
SPECIFICATIONS
Application: Electric Toy
Brand Name: NoEnName_Null
Condition: New
Dissipation Power: standard
Hign-concerned Chemical: None
Model Number: NA
Operating Temperature: standard
Origin: Mainland China
Package: Module
Supply Voltage: standard
Type: Module
is_customized: Yes
1× DC12V-24V Lithium Battery Charge Control Protection Board /w LED Display XH-M603
Package Included:
3.Factory Reset:in power on state press the start/stop button at the same time,digital tube will display 888;that represents factory reset settings
2.Set Stop Voltage:in normal display voltage state,press the button will display stoping charge voltage;long press the button for 3s the digital tube will flash;you can start or stop button to set stoping charge voltage value
1.Set Starting Voltage:in normal display voltage state,press the button will display start charging voltage;long press for 3s the digital tube will flash;you can start or stop button to set starting up charge voltage value
Using Method:

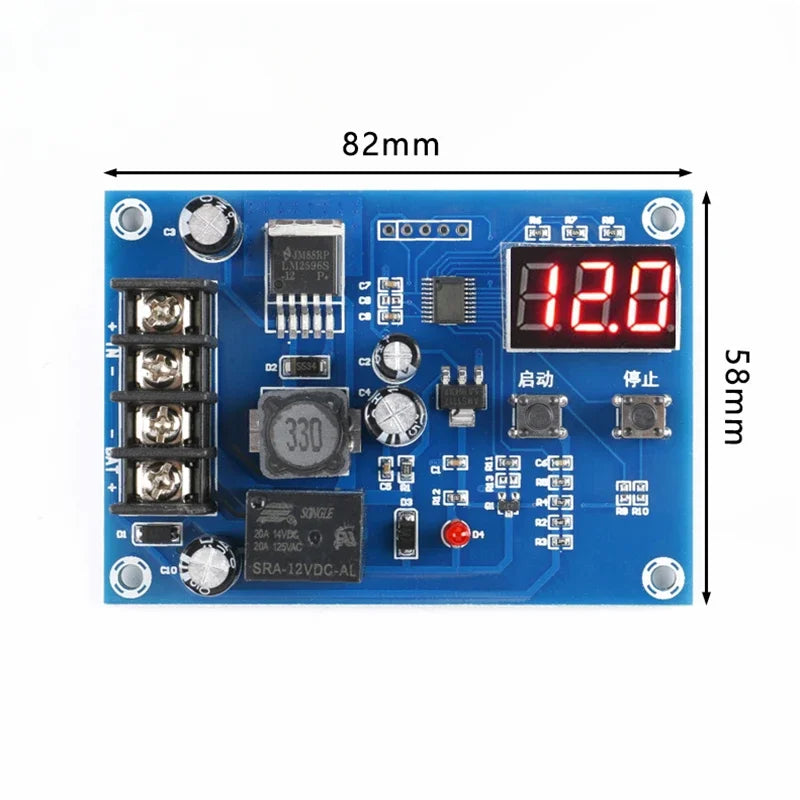

8.Size;82*58*18mm
7.Application Fields:12-24V storage battery
6.Voltage Tolerance:+/-0.1V
5.Output Type:direct output
4.Control Precision:0.1V
3.Display Precision:0.1V
2.Input Voltage:DC 10-30V
1.Model:XH-M603
Product Introduction:

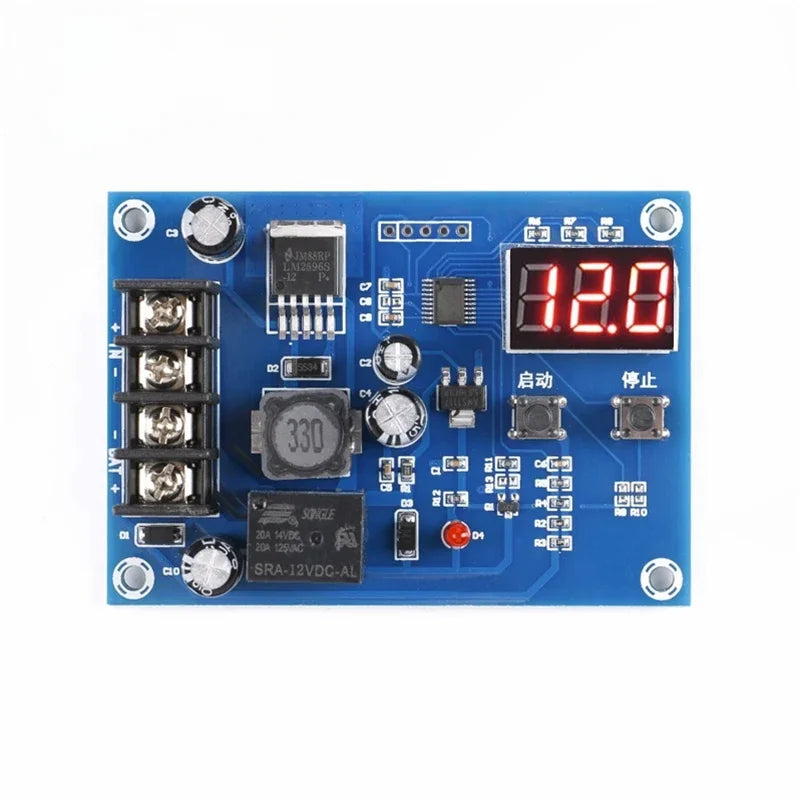

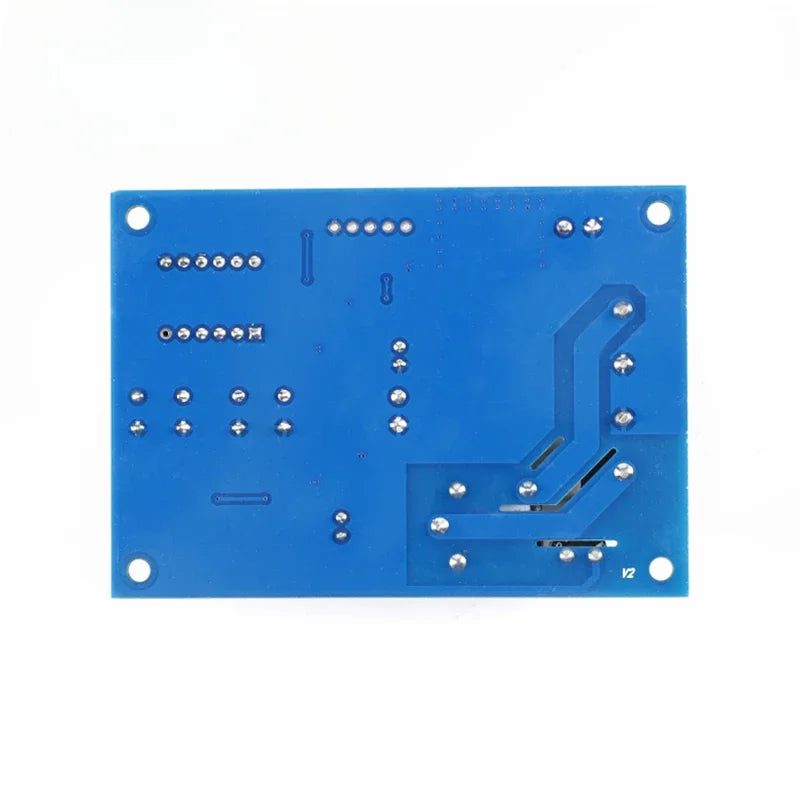

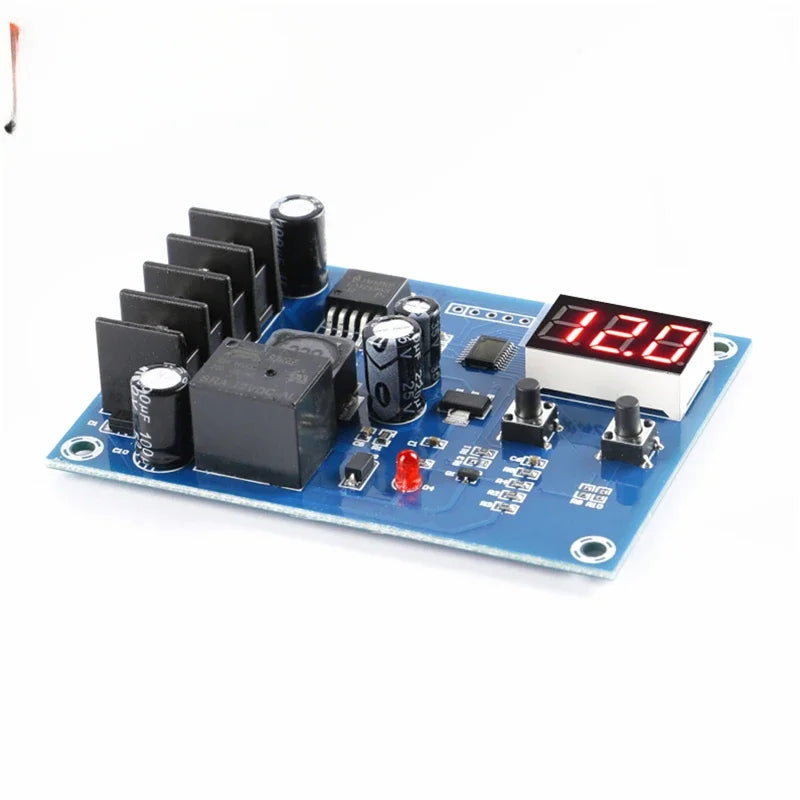

XH-M603 Charging Control Module 12-24V Storage Lithium Battery Charger Control Switch Protection Board
Description:
