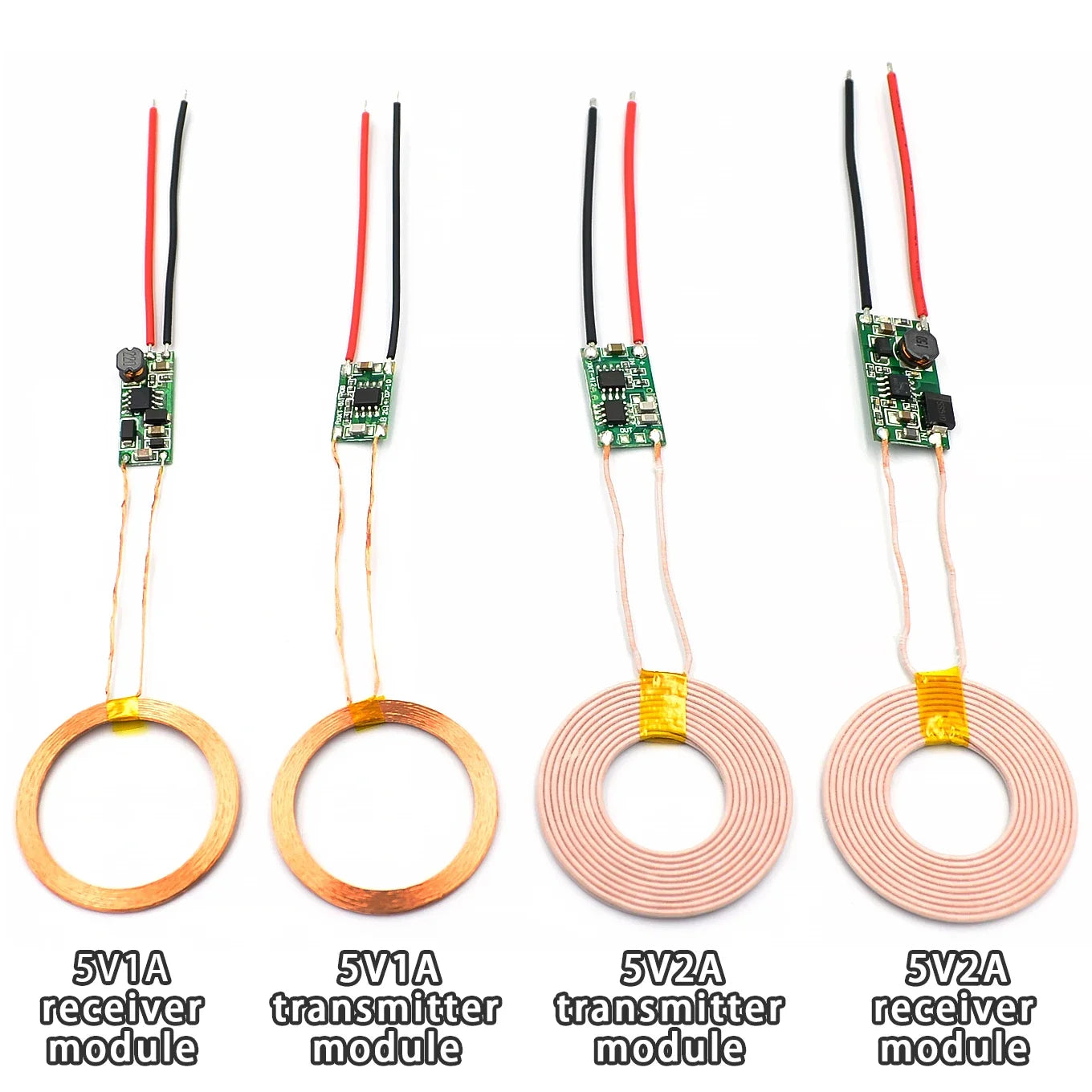

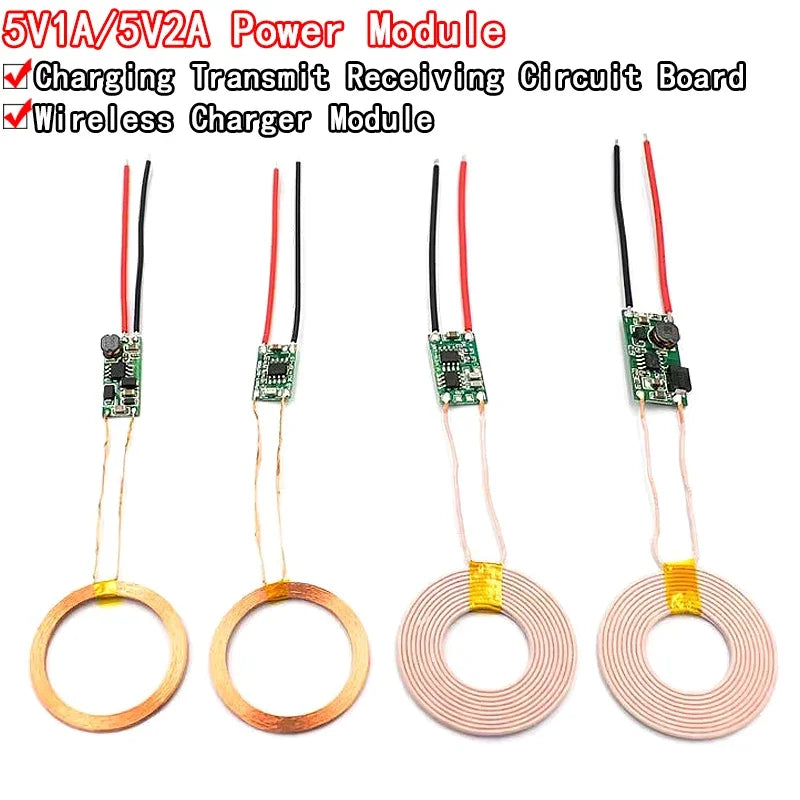

Módulo Transmisor/Receptor Cargador Inalámbrico 5V 1A/2A Terminal Placa Circuito para DIY
Módulo Transmisor/Receptor Cargador Inalámbrico 5V 1A/2A Terminal Placa Circuito para DIY
Precio habitual
$14.740 CLP
Precio habitual
$12.000 CLP
Precio de oferta
$14.740 CLP
Precio unitario
por
Los gastos de envío se calculan en la pantalla de pago.
No se pudo cargar la disponibilidad de retiro
SPECIFICATIONS
Application: Computer,Computer
Brand Name: NoEnName_Null,Si TaiSH
Choice: yes
Condition: New,New
Dissipation Power: 1,1
Model Number: 1A2A,1A2A
Origin: Mainland China,Mainland China
Package: SMD,DIY modules
Supply Voltage: 1,1
Type: Module,Module
isCustomized: Yes
semi_Choice: yes
Product Description
- The wireless charging and power supply development of small electronic products is designed with small size, easy to use, high efficiency and low price.
- Mainly used in mobile electronic products such as: mobile phones, game consoles, fish tanks, MP3, MP4, adult products, digital cameras, electric razors, learning machines, medical, underwater products and other product applications.
- Due to the use of contactless charging power supply, the product can be completely sealed, waterproof and dustproof; increase the service life of the product and make it more convenient to use.

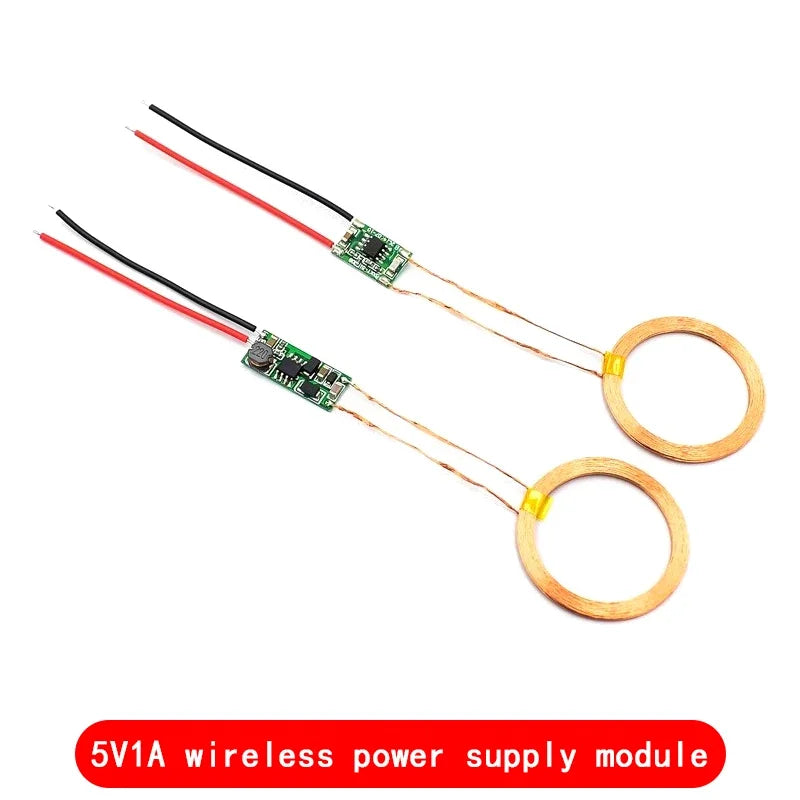

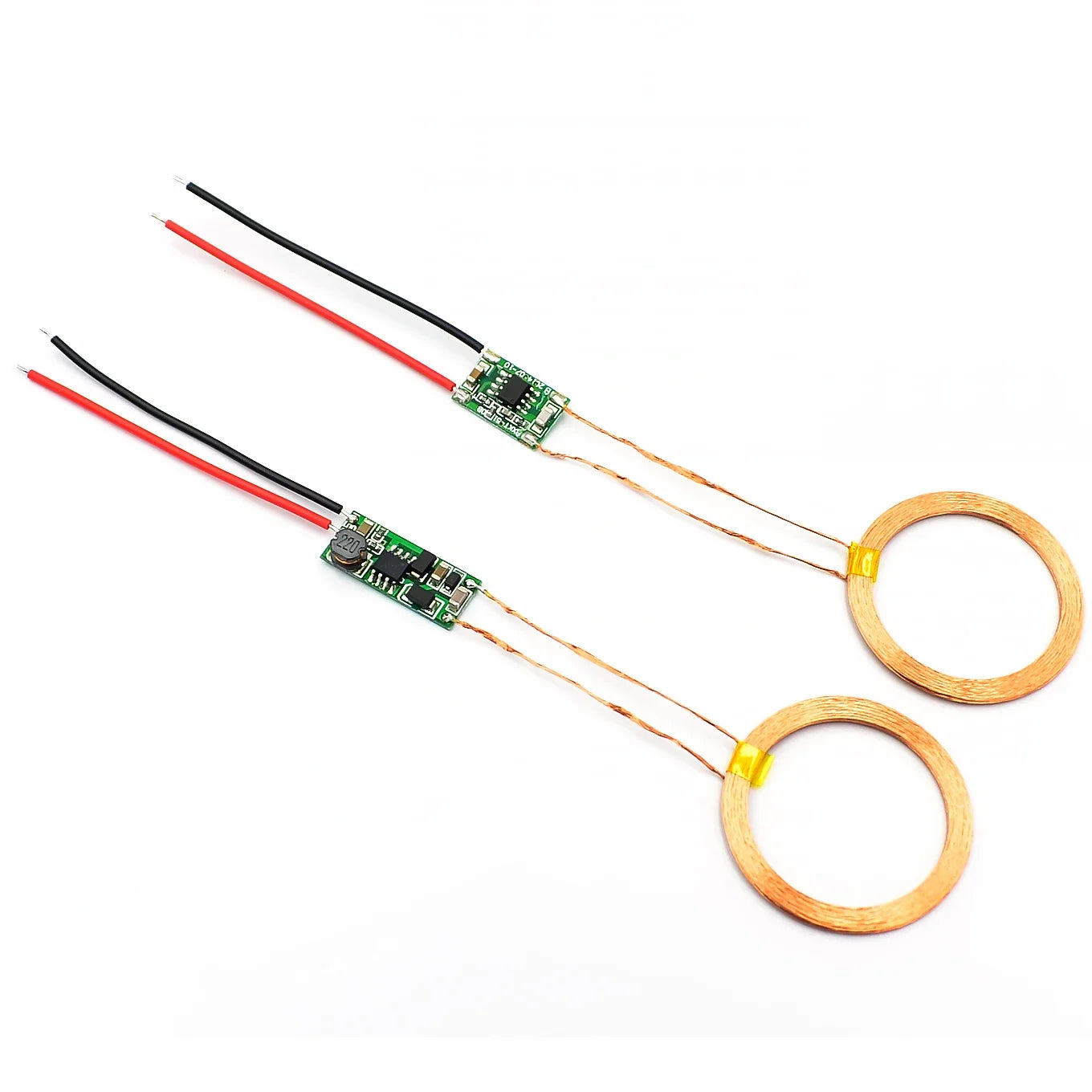

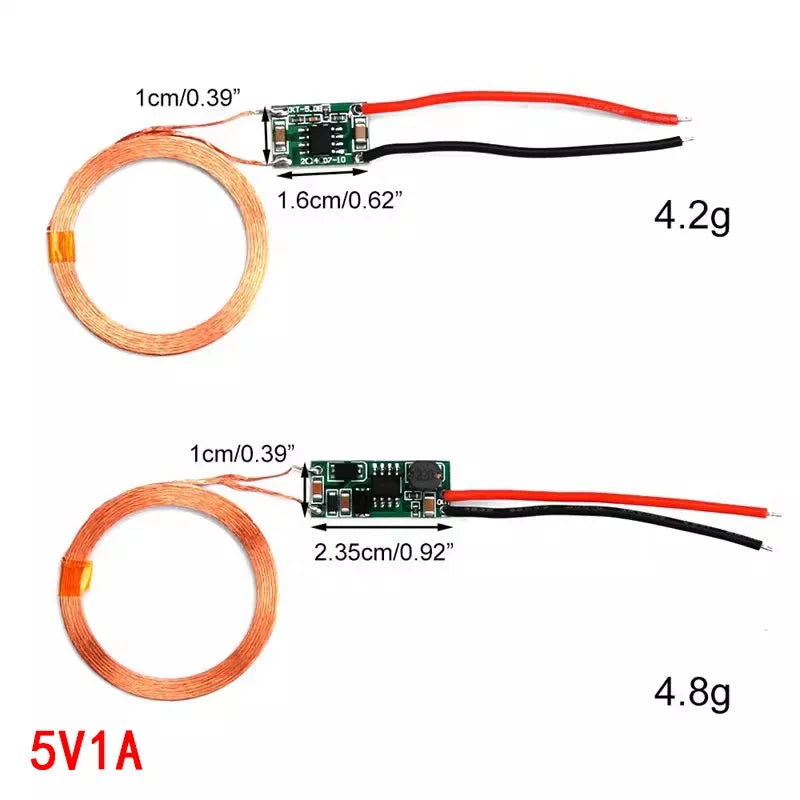

5V1A Parameter
1. Transmitter module size: 17mm * 11mm * 2.3mm
2. Transmitting and receiving coil size: outer diameter 40mm, thickness 1.8mm
3. Transmitter module working voltage: 5V~12V
4. Transmitter module operating current: automatically increase or decrease with the receiving load current
5. Receive module output current: 5V/1000mA
6. Transmitting distance: 1~20mm
7. If the small current works, the number of receiving coil turns can be increased to increase the transmission distance.
8. Connection method:
1 pin connected to the negative pole of the power supply;
2 pin connected to the positive pole of the power supply;
3 and 4 pin connected to external transmit coil.
