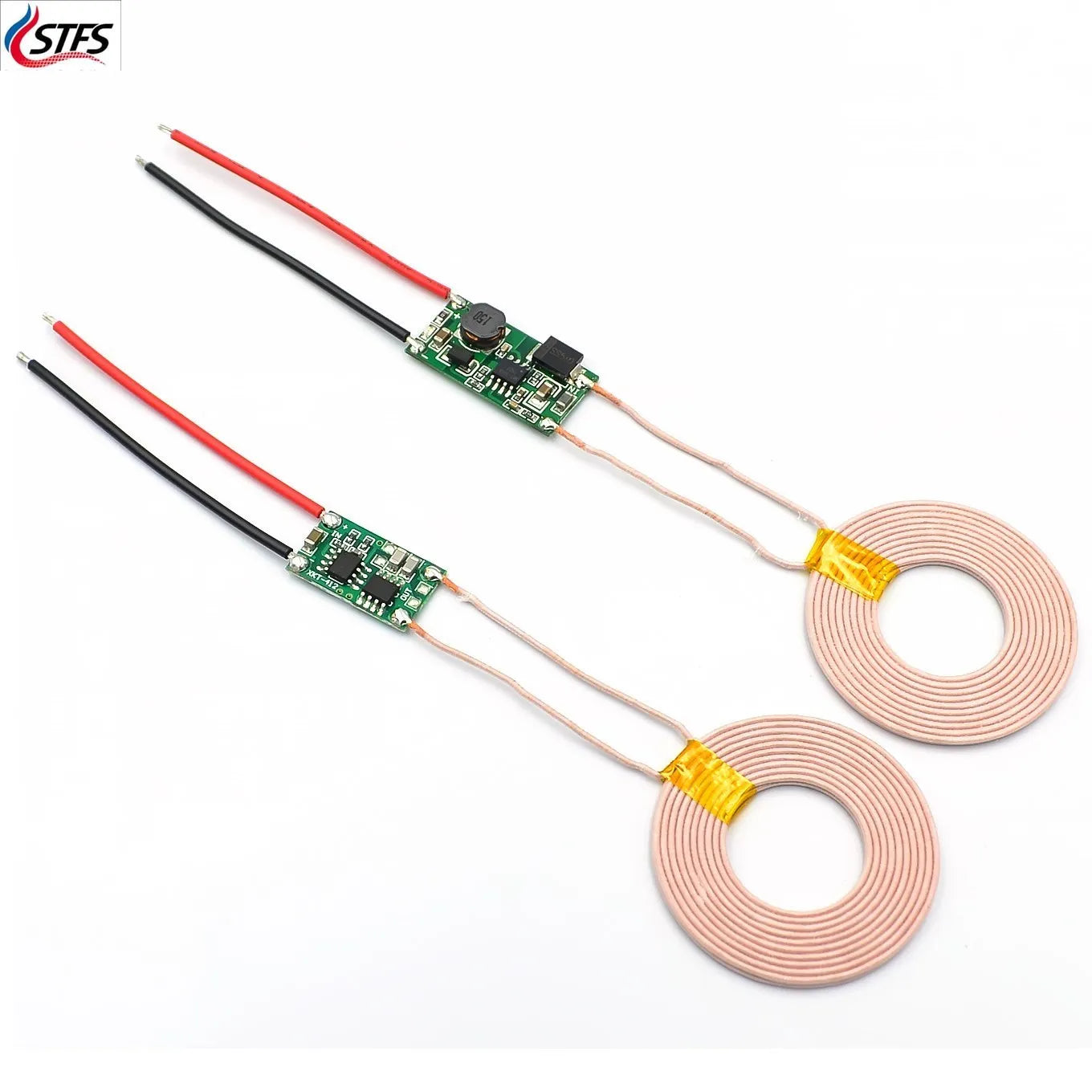

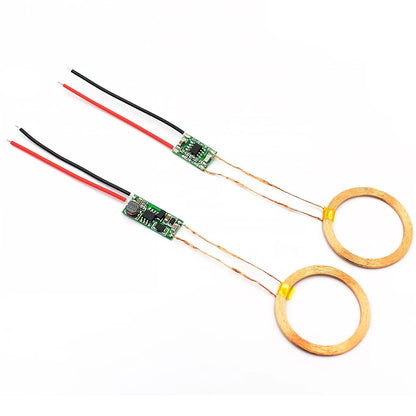

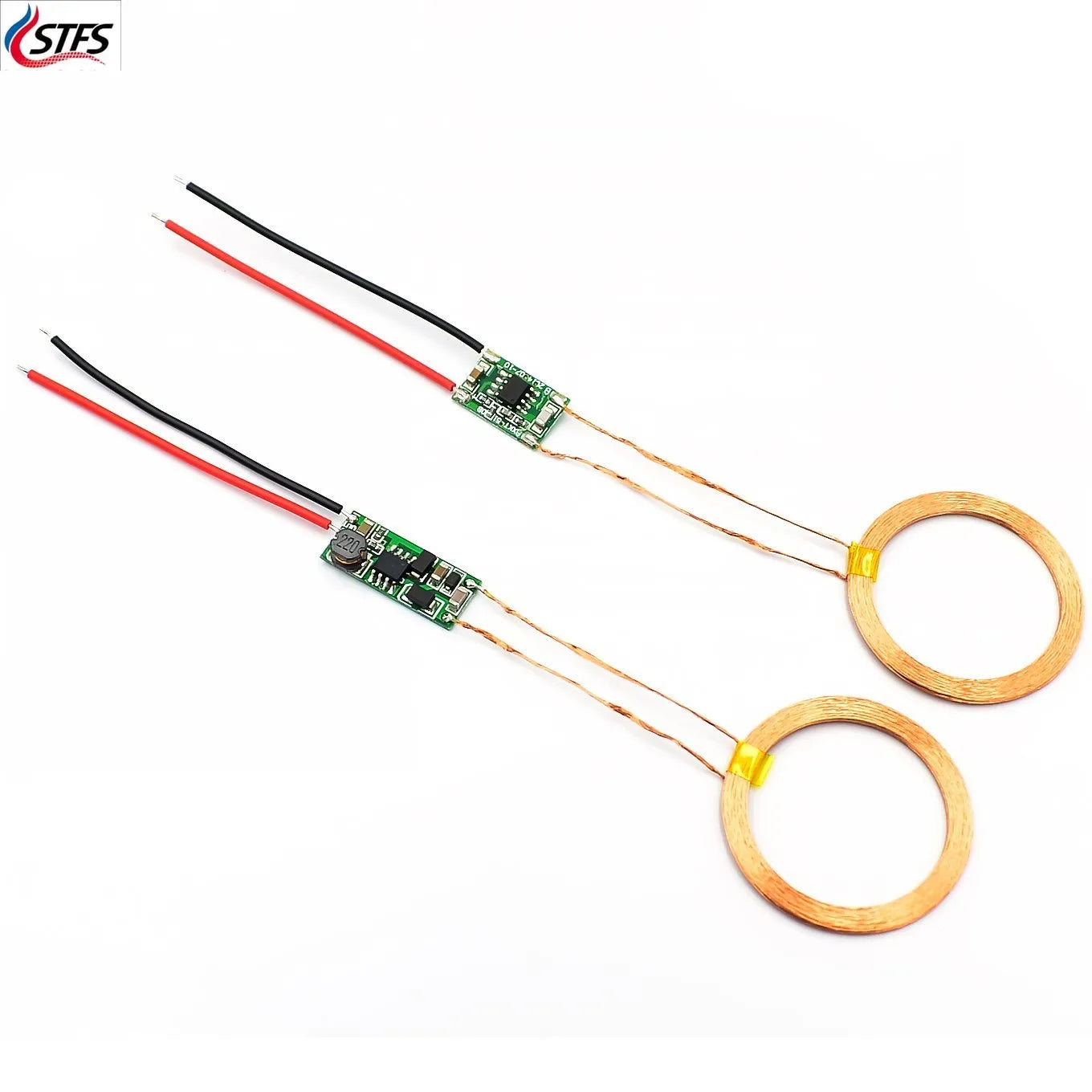

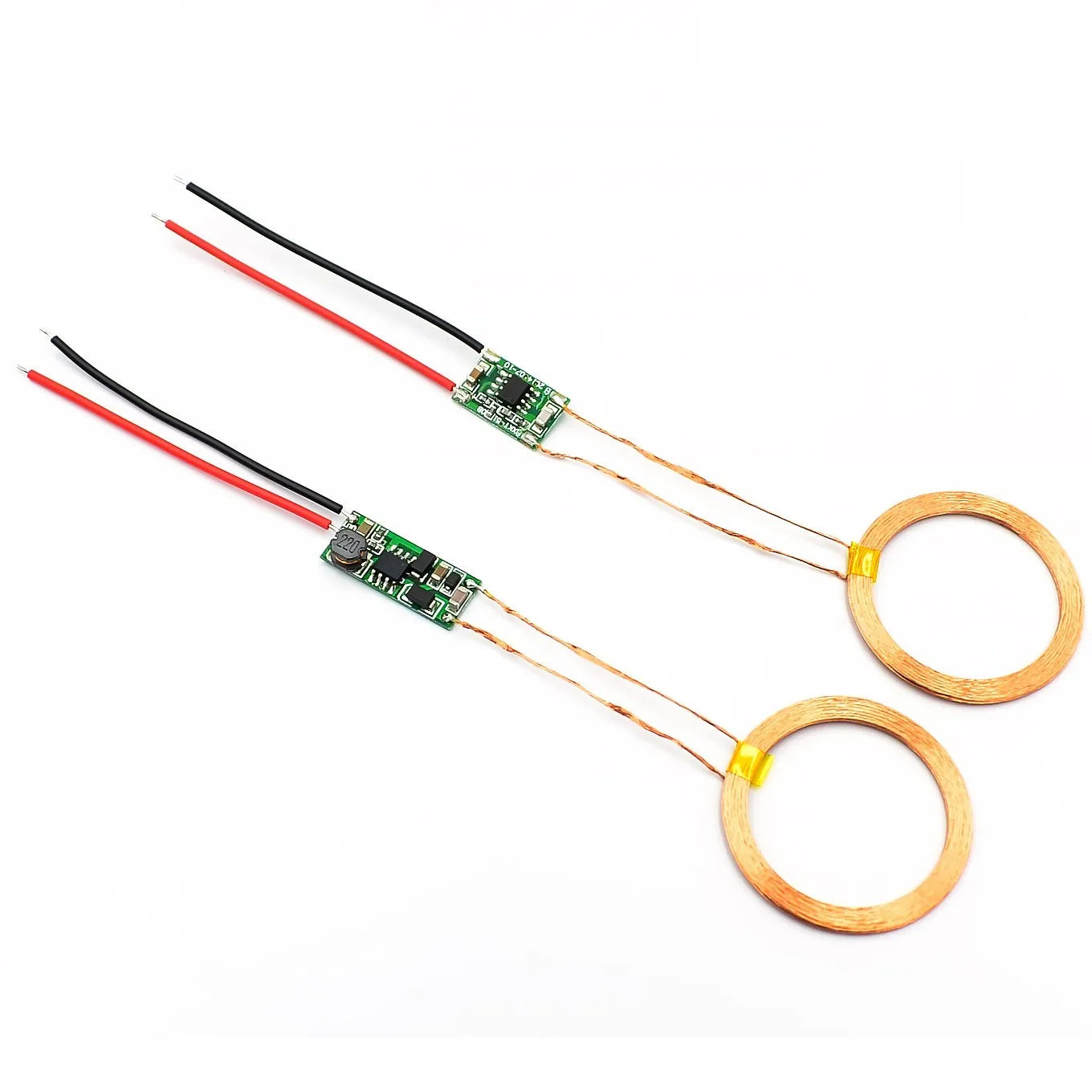

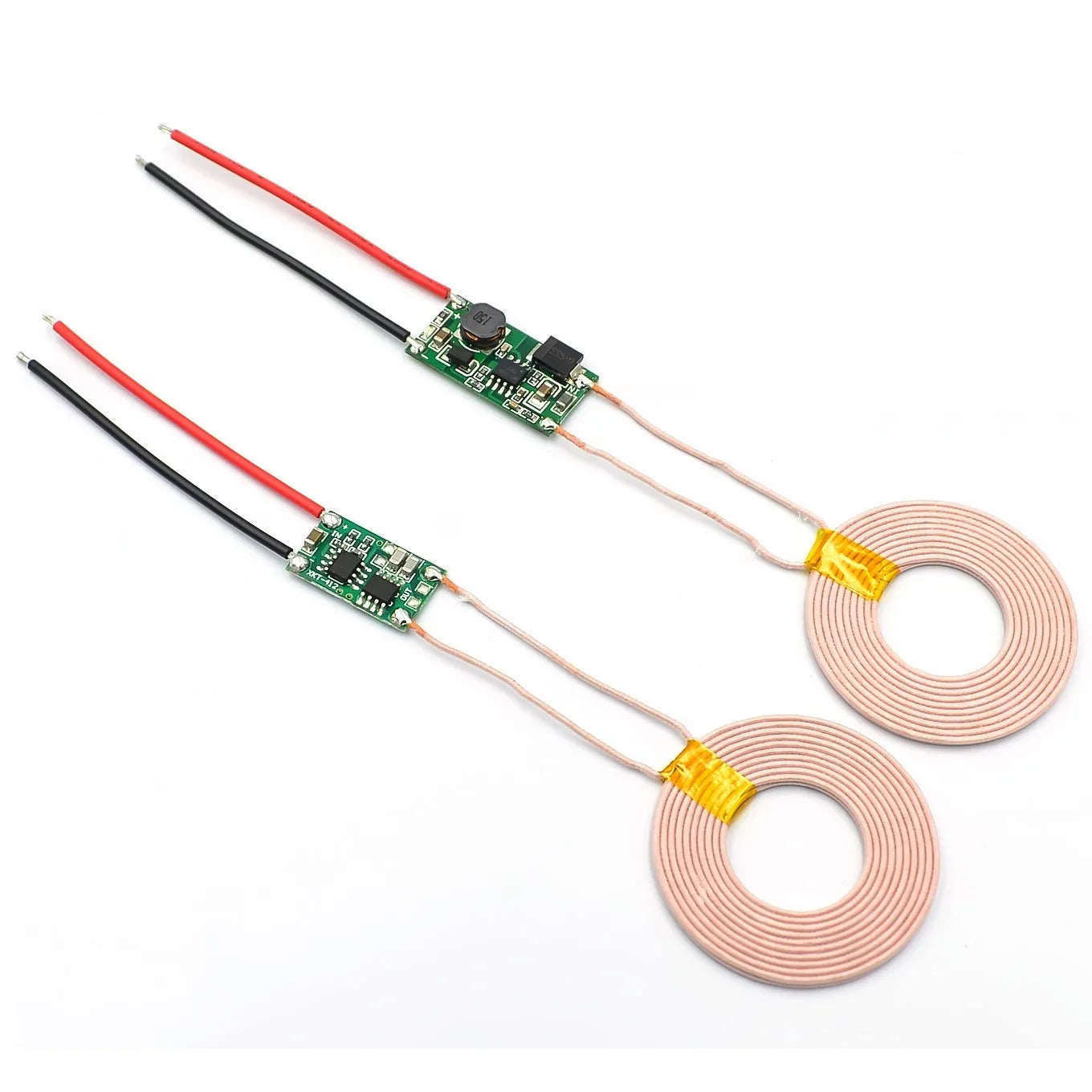

Módulo Fuente Alimentación Inalámbrica 5V 1A/2A Cargador Qi Transmisor + Receptor DIY

Módulo Fuente Alimentación Inalámbrica 5V 1A/2A Cargador Qi Transmisor + Receptor DIY

Precio habitual $12.740 CLP
Precio habitual $11.000 CLP Precio de oferta $12.740 CLP
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.
Color

SPECIFICATIONS

Application: Computer

Brand Name: NoEnName_Null

Condition: New

Dissipation Power: 1

Model Number: MW

Origin: Mainland China

Supply Voltage: 1

Type: Voltage Regulator

is_customized: Yes

Product Description
  • The wireless charging and power supply development of small electronic products is designed with small size, easy to use, high efficiency and low price.

  • Mainly used in mobile electronic products such as: mobile phones, game consoles, fish tanks, MP3, MP4, adult products, digital cameras, electric razors, learning machines, medical, underwater products and other product applications.

  • Due to the use of contactless charging power supply, the product can be completely sealed, waterproof and dustproof; increase the service life of the product and make it more convenient to use.

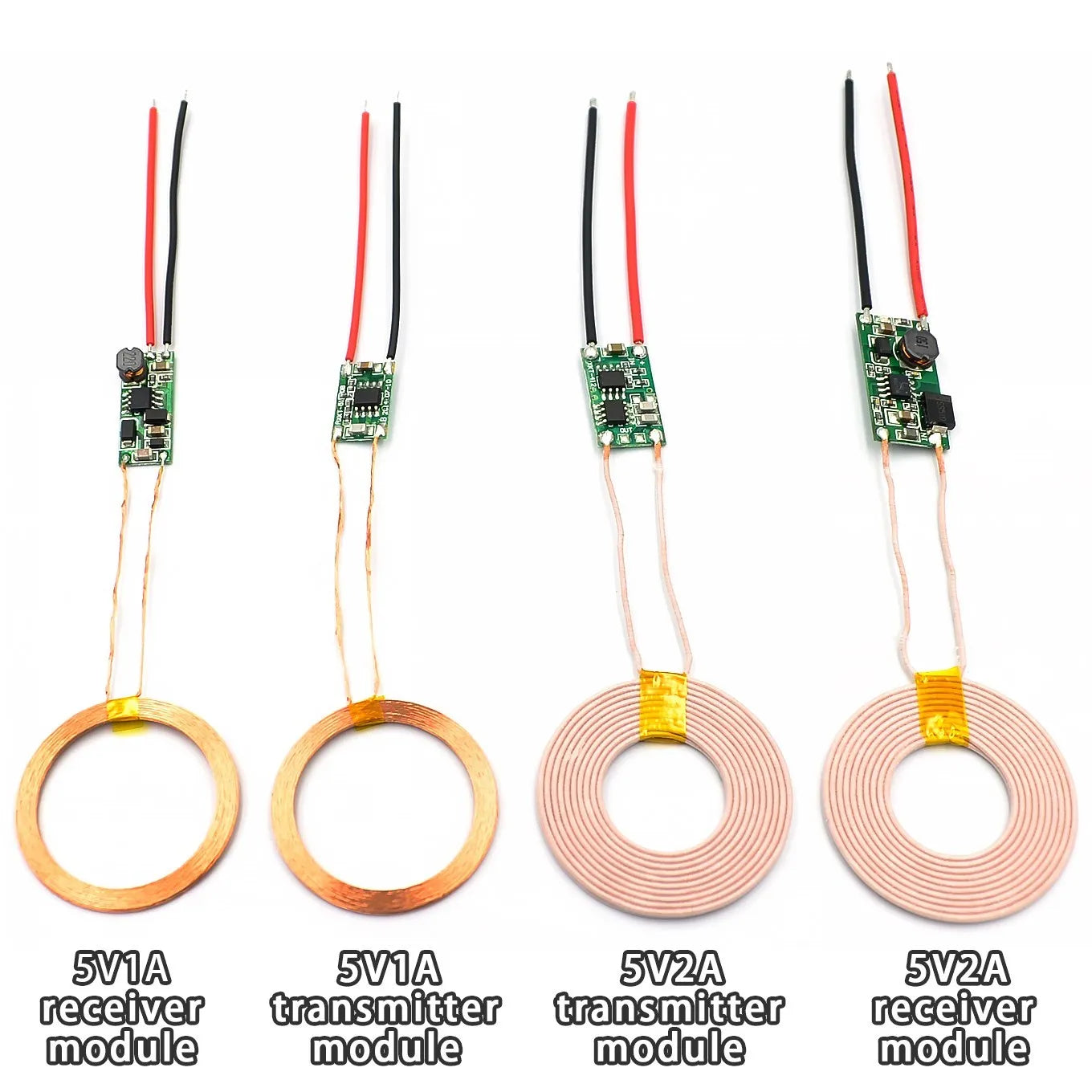

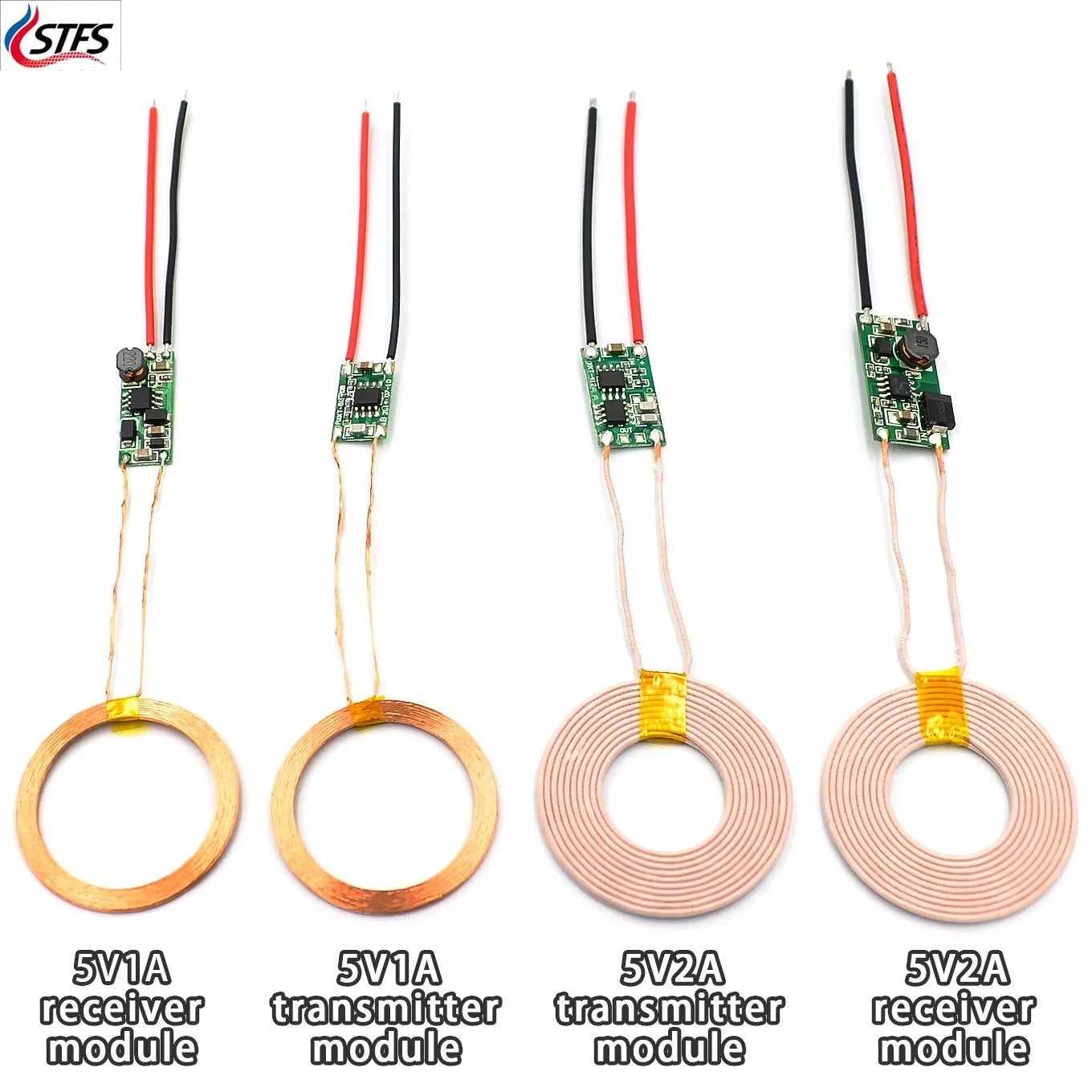

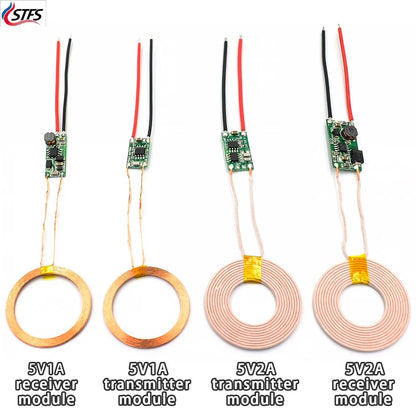

5V1A  Parameter
1. Transmitter module size: 17mm*11mm*2.3mm
2. Transmitting and receiving coil size: outer diameter 40mm, thickness 1.8mm
3. Transmitter module working voltage: 5V~12V
4. Transmitter module operating current: automatically increase or decrease with the receiving load current
5. Receive module output current: 5V/1000mA
6. Transmitting distance: 1~20mm
7. If the small current works, the number of receiving coil turns can be increased to increase the transmission distance.
8. Connection method:
                                1 pin connected to the negative pole of the power supply;
                                2 pin connected to the positive pole of the power supply;
                                3 and 4 pin connected to external transmit coil.



Ver todos los detalles
