Features:

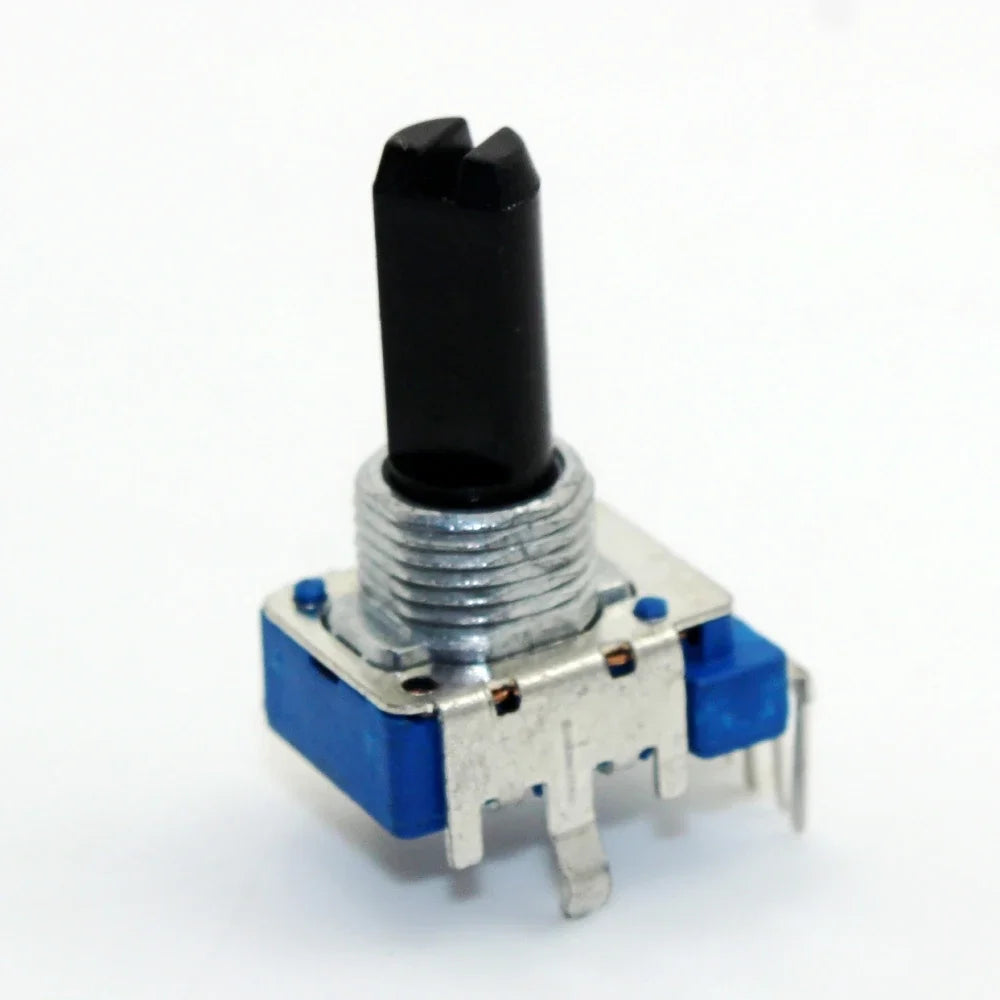

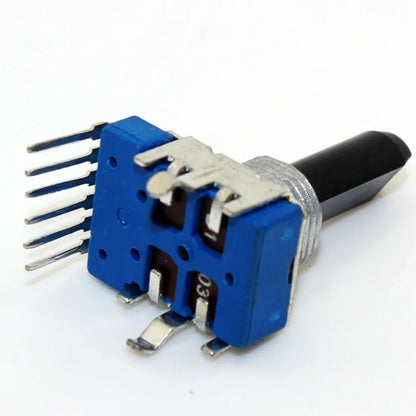

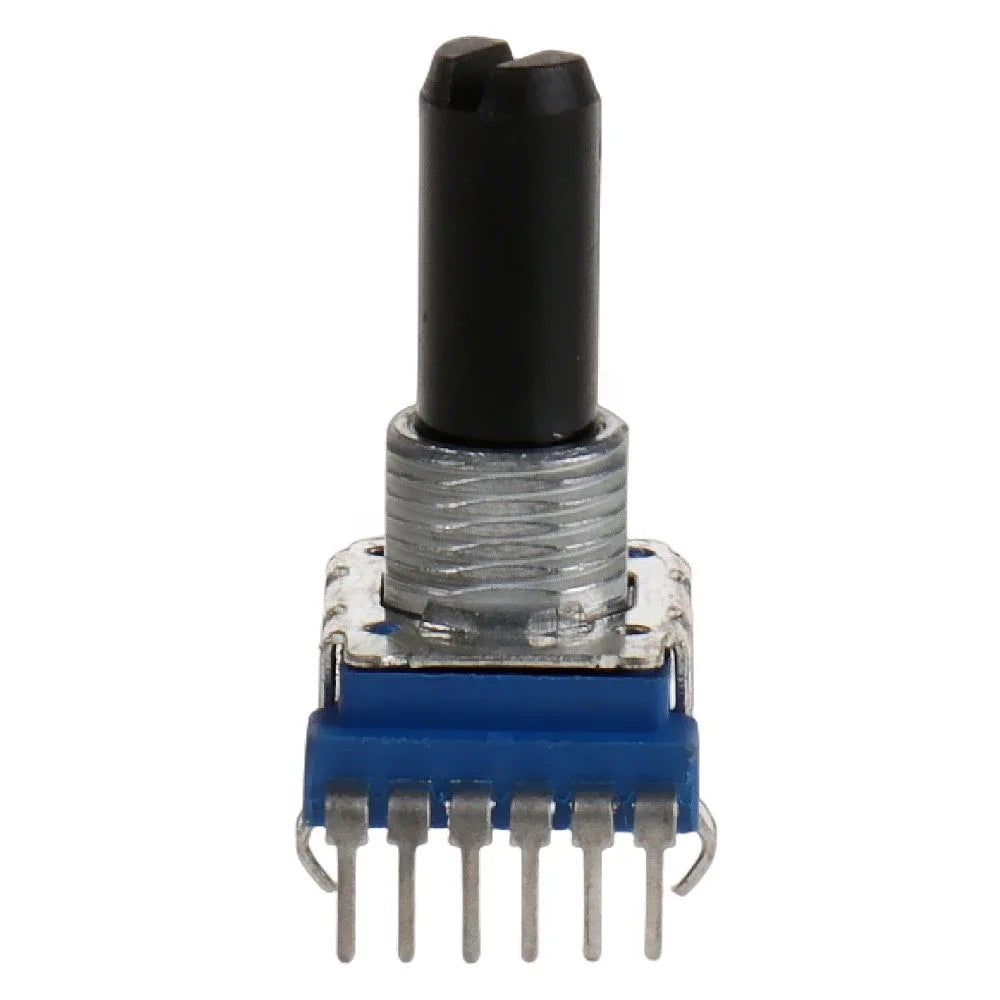

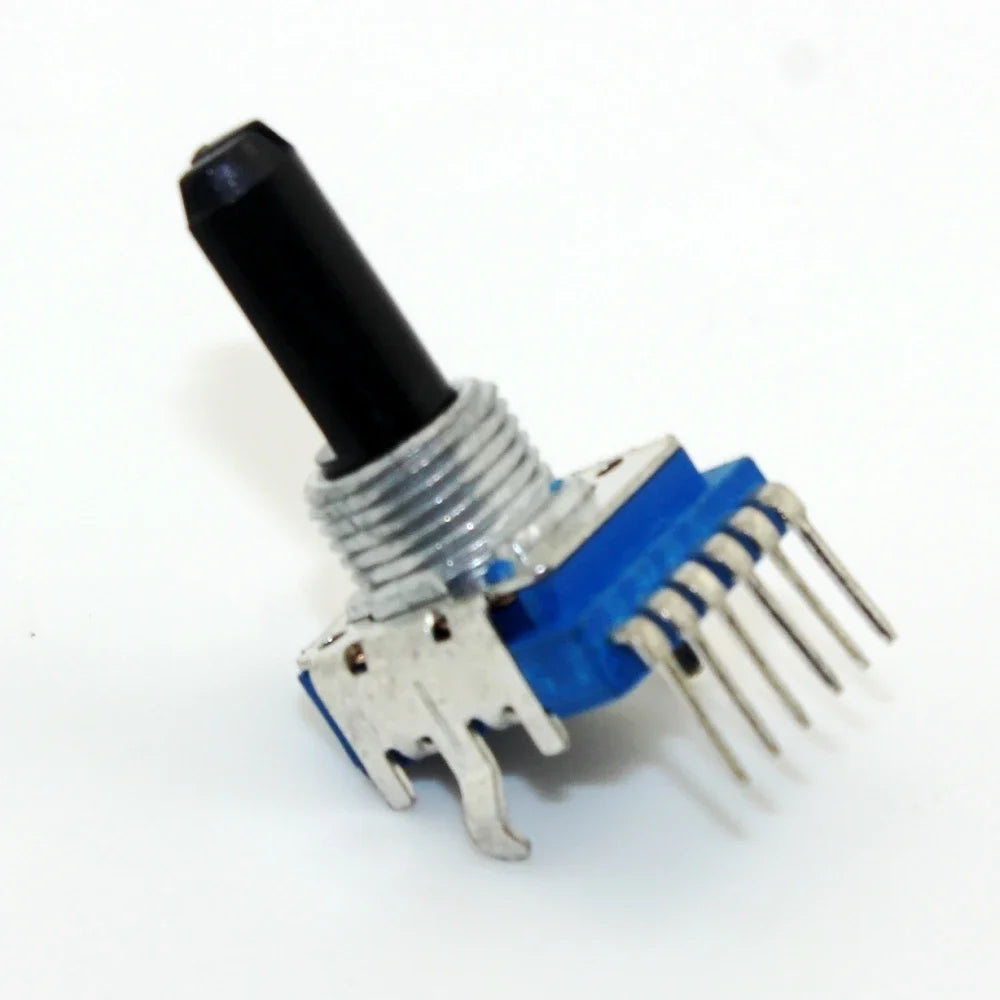

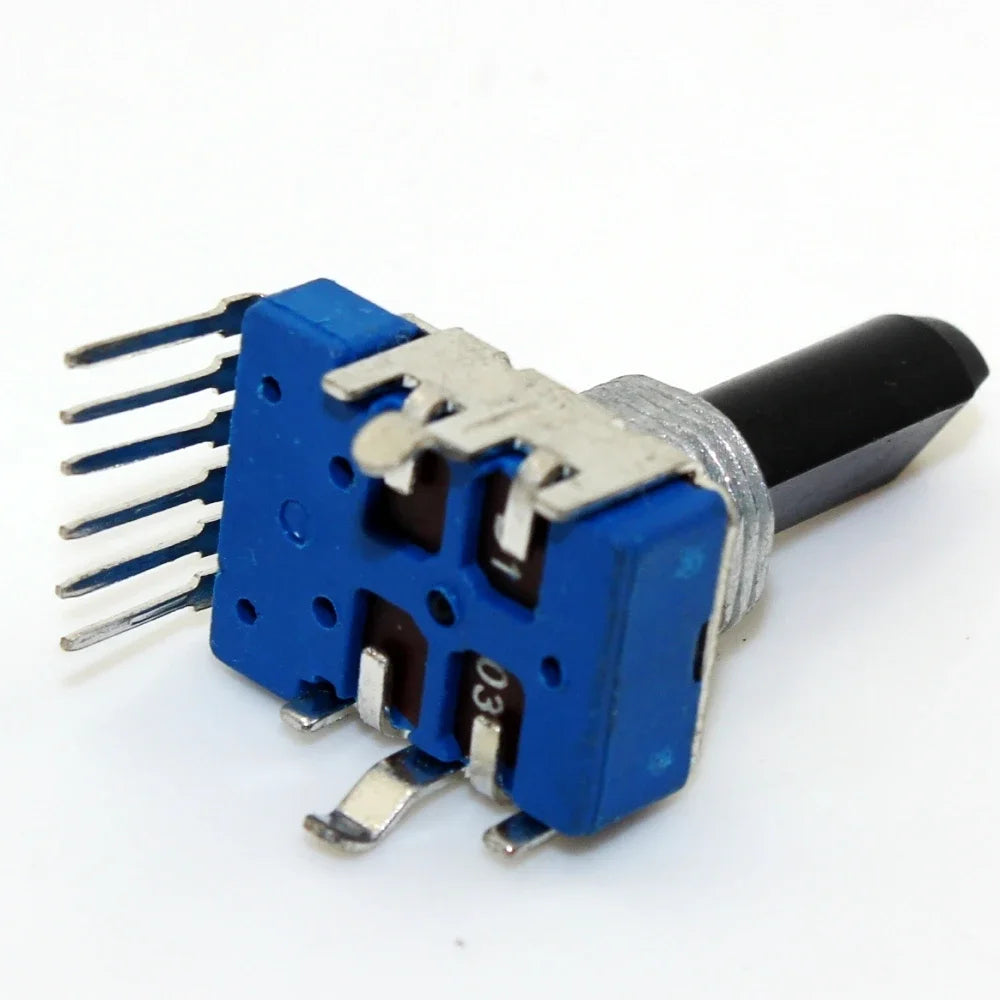

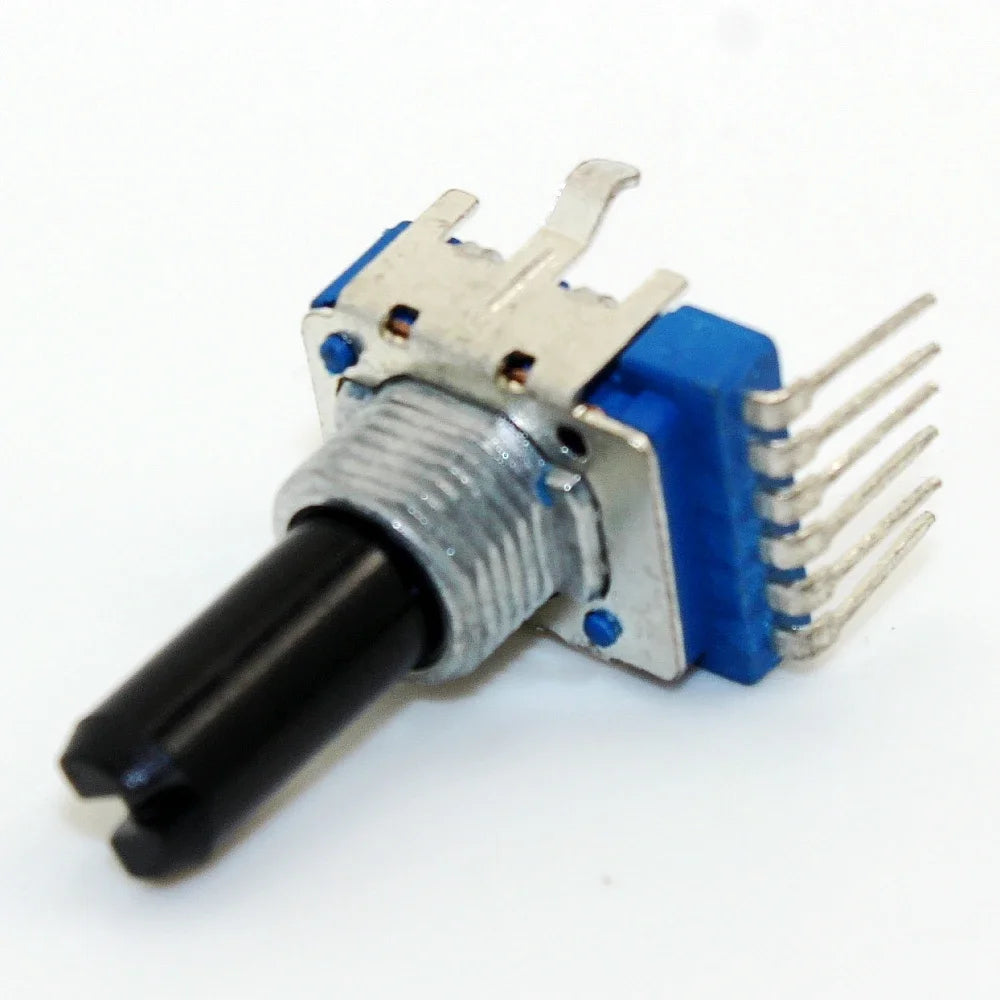

Product Name Potentiometer
Model RK1114GH
Resistance Value 10K ohm
Adjustment Type Top Adjustment
Type Single Linear(Type B)
Pin Terminal 6

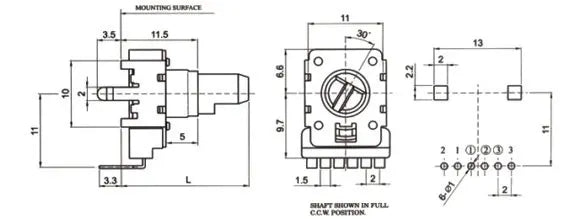

Shaft Diameter 6mm / 0.23"
Shaft Length 20mm / 0.7"
Thread Dia 7mm / 0.27"
Base Height 5mm / 0.2"
Base Size 16 x 12mm / 0.63" x 0.47"(L*W)
Material Metal w Electronic Parts
Weight 5g
Package 1 x Potentiometer
Description:
Top adjustment type and knurled shaft for easy operate in daily use time.
Main used to control electrical devices such as volume controls on audio equipment.
Knurled shaft with split design for push-on knob.
