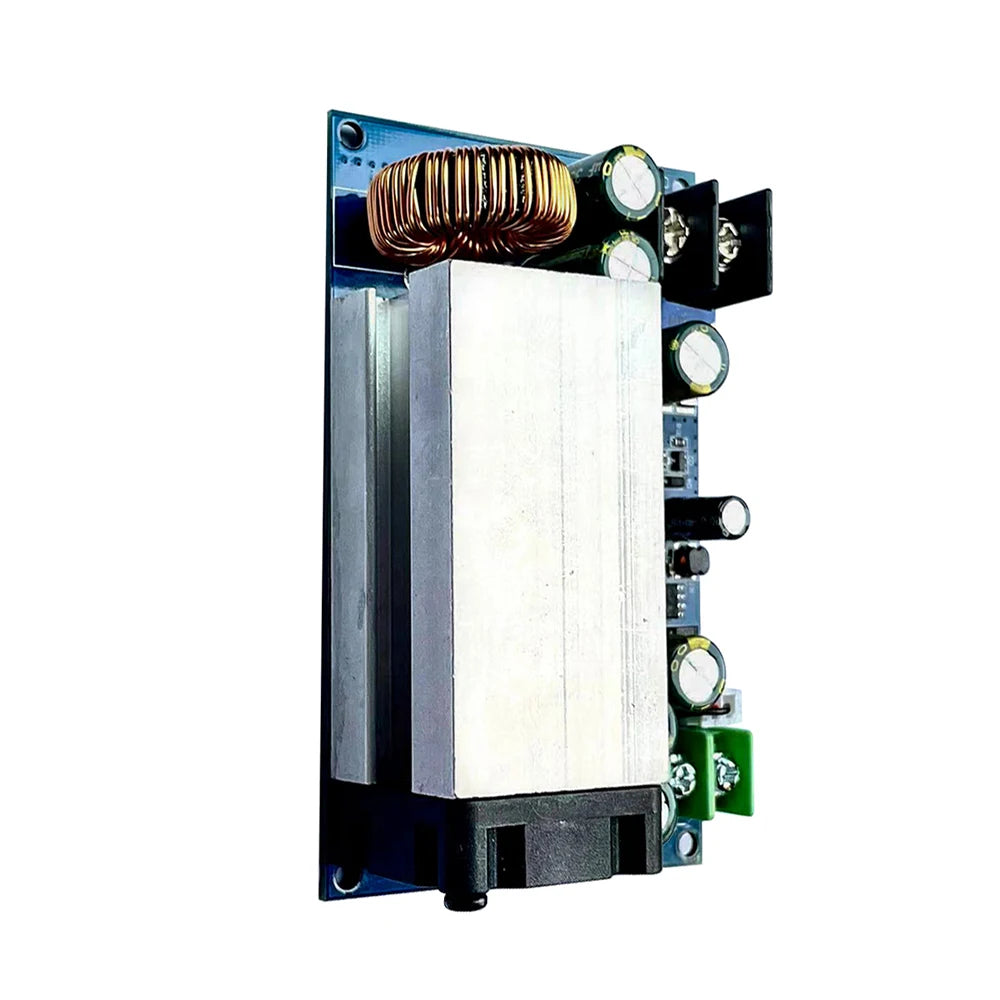

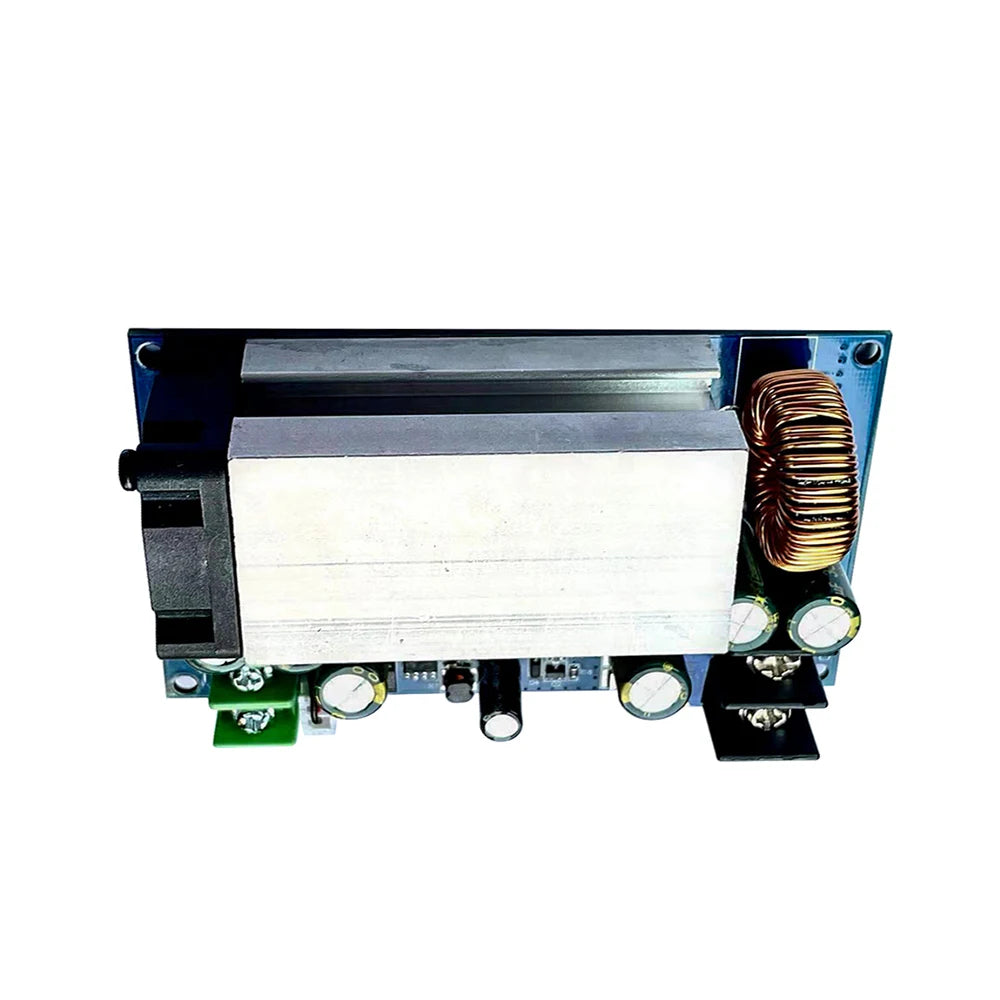

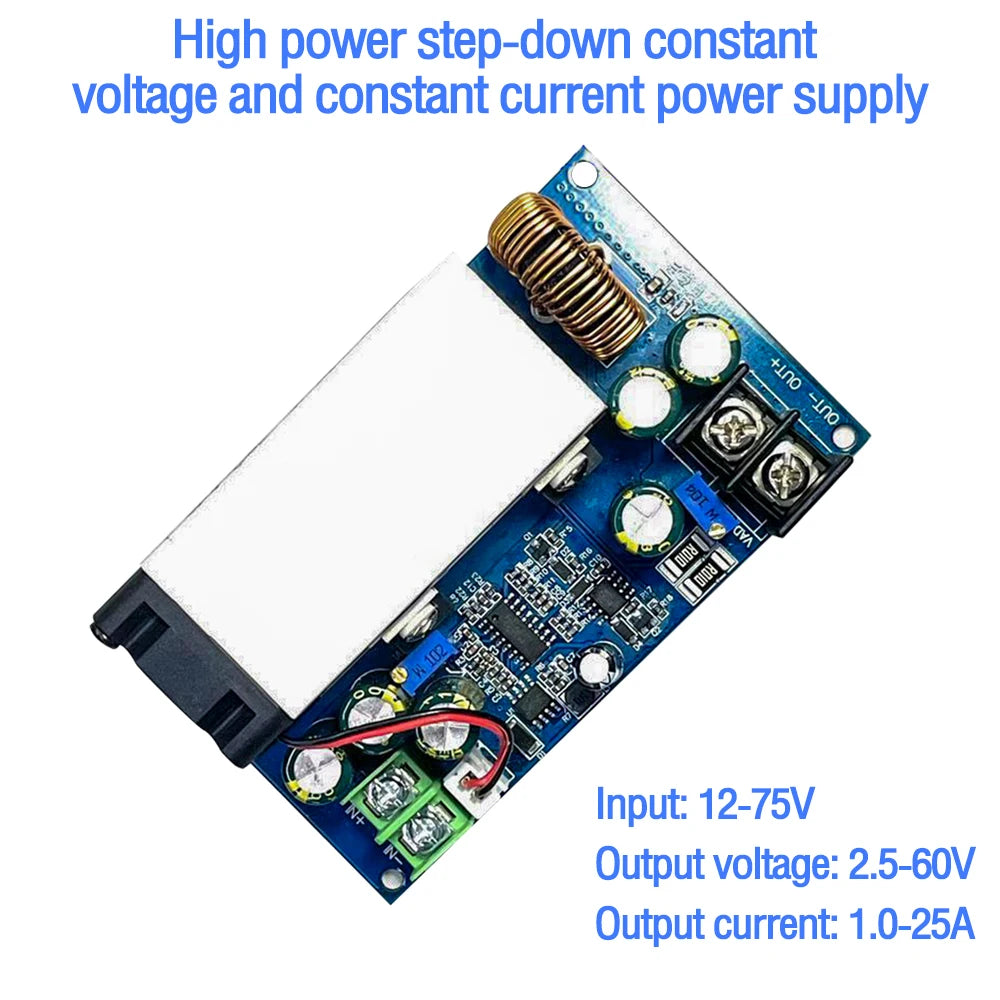

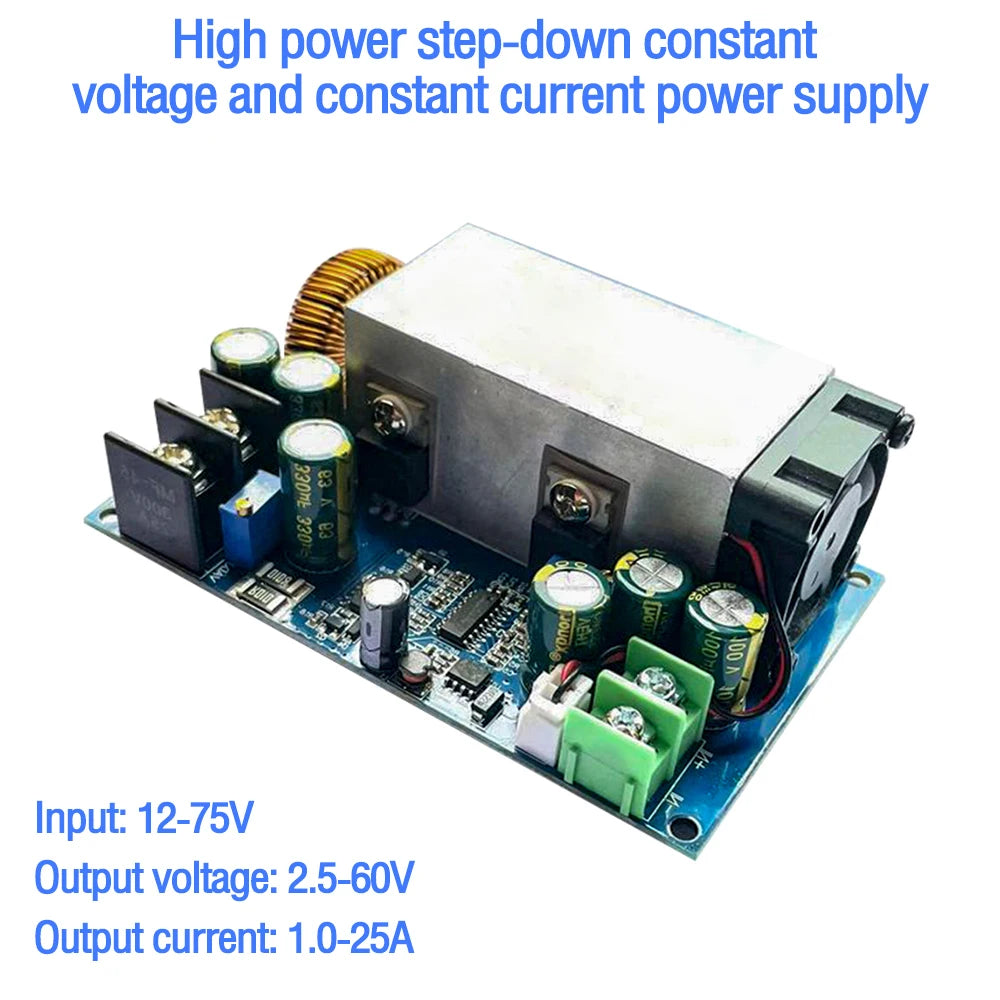

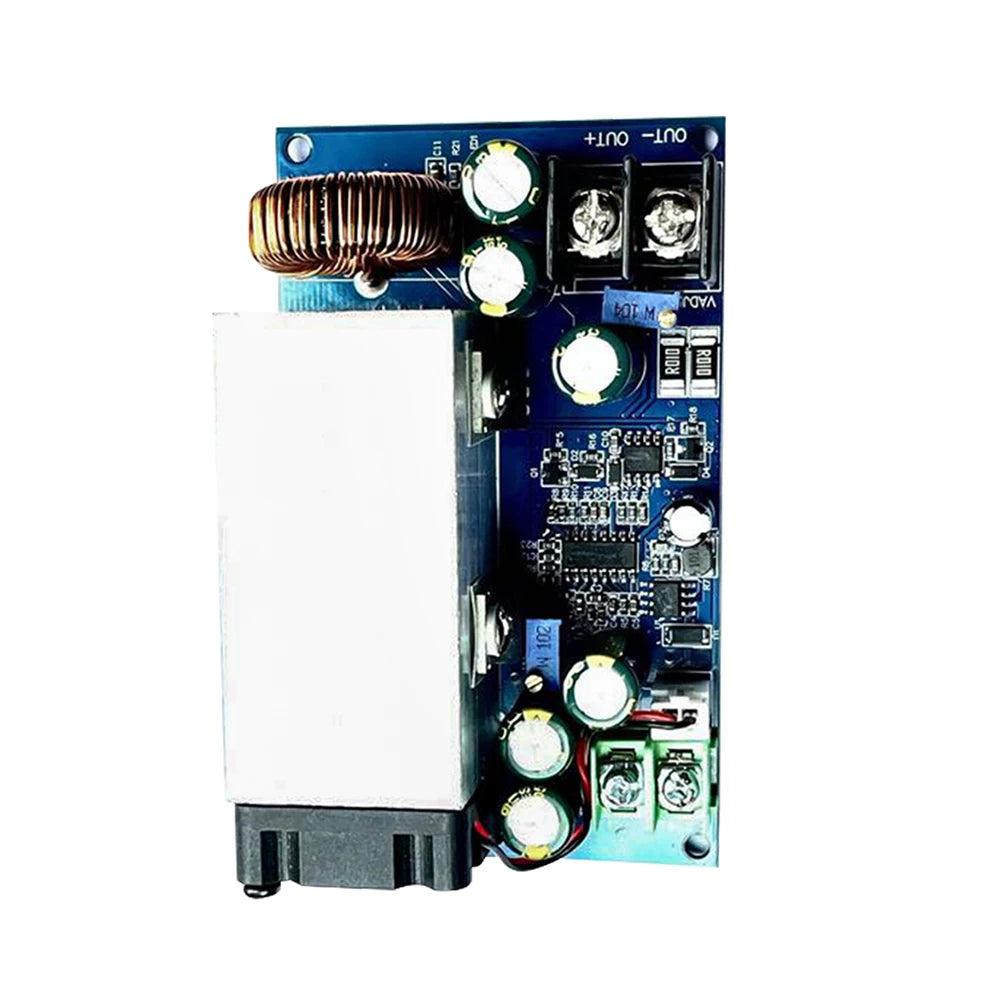

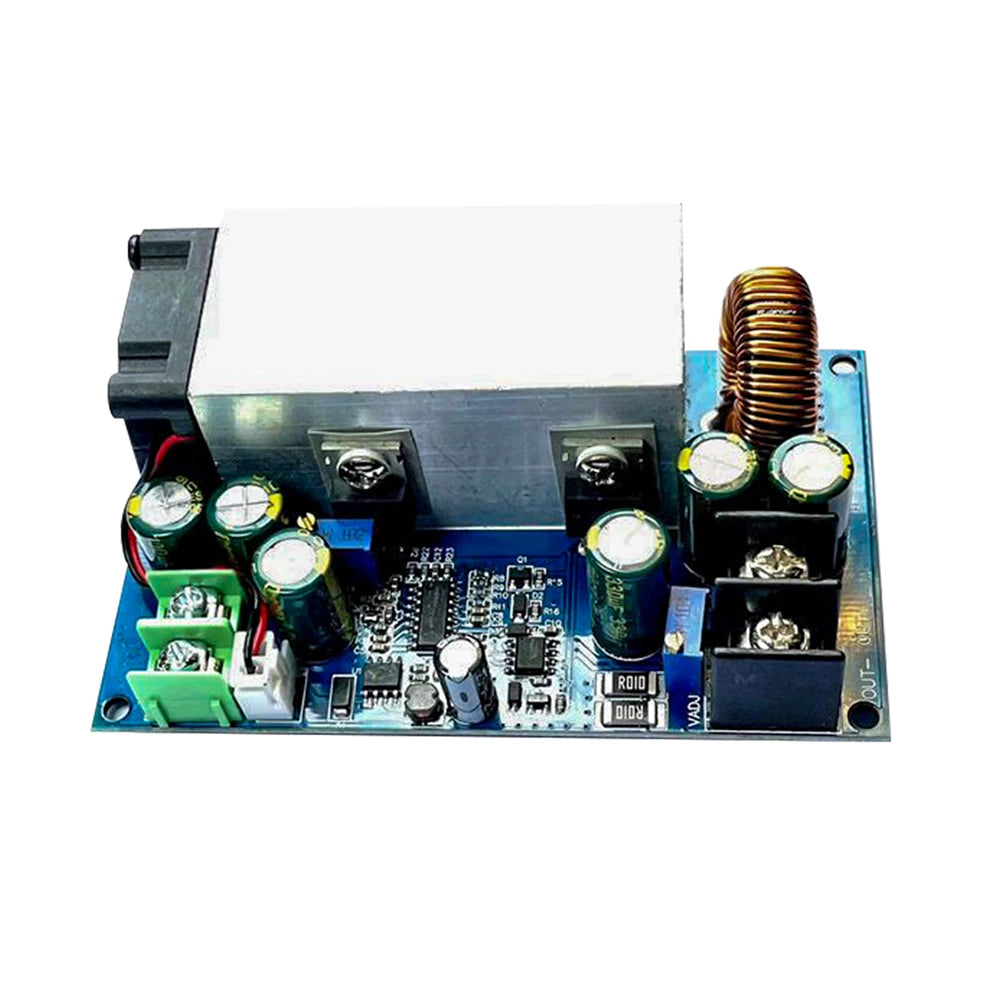

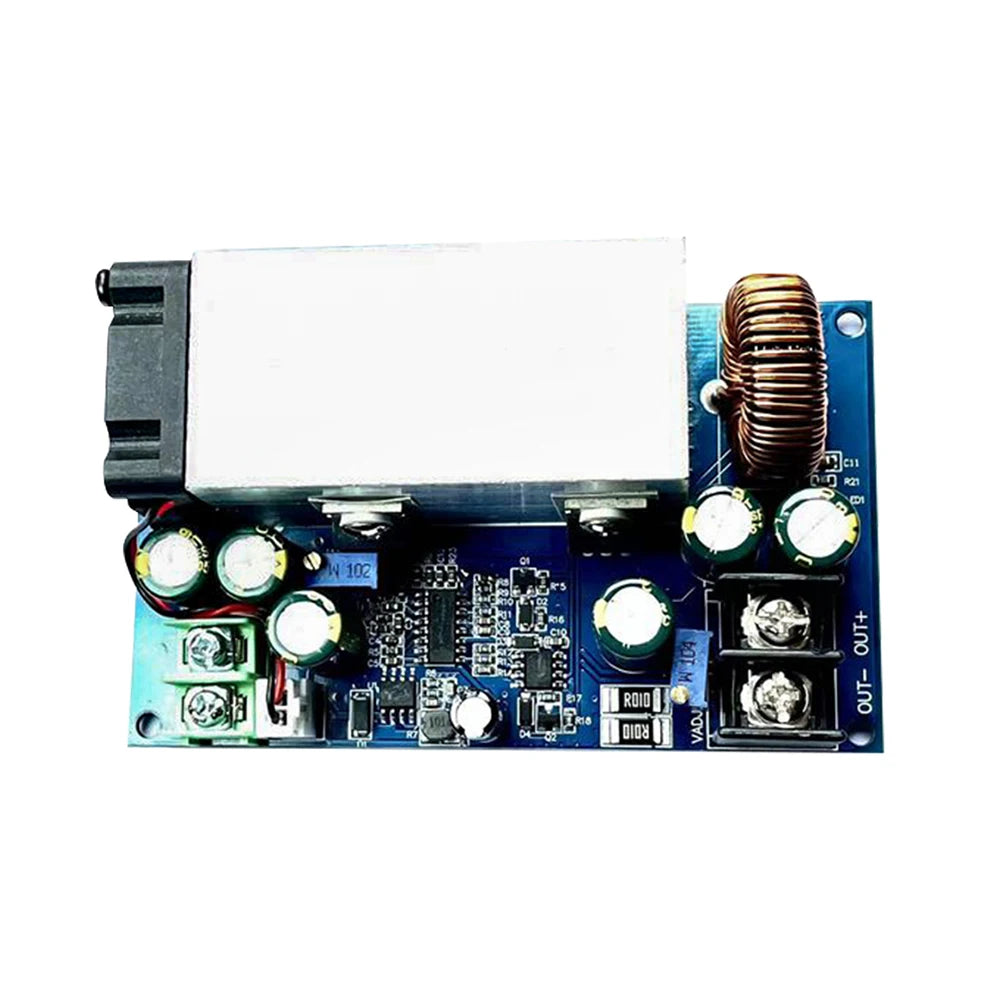

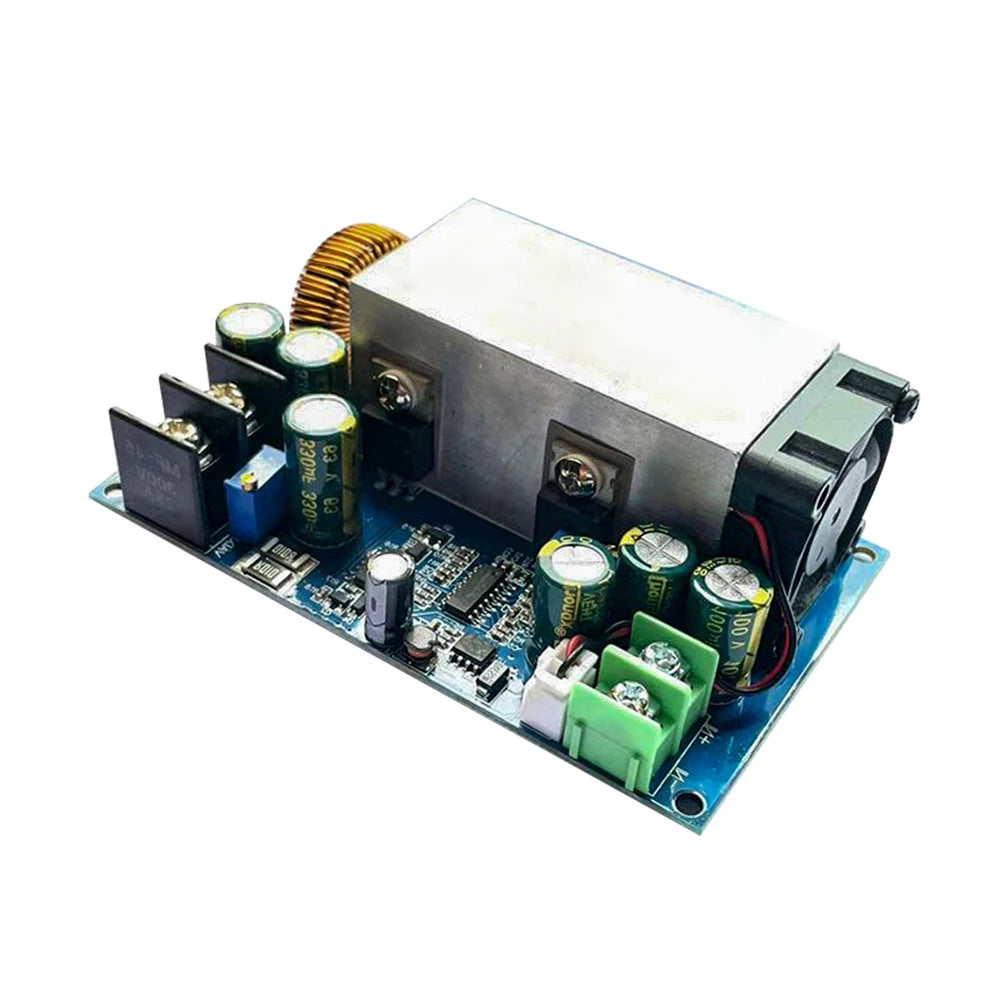

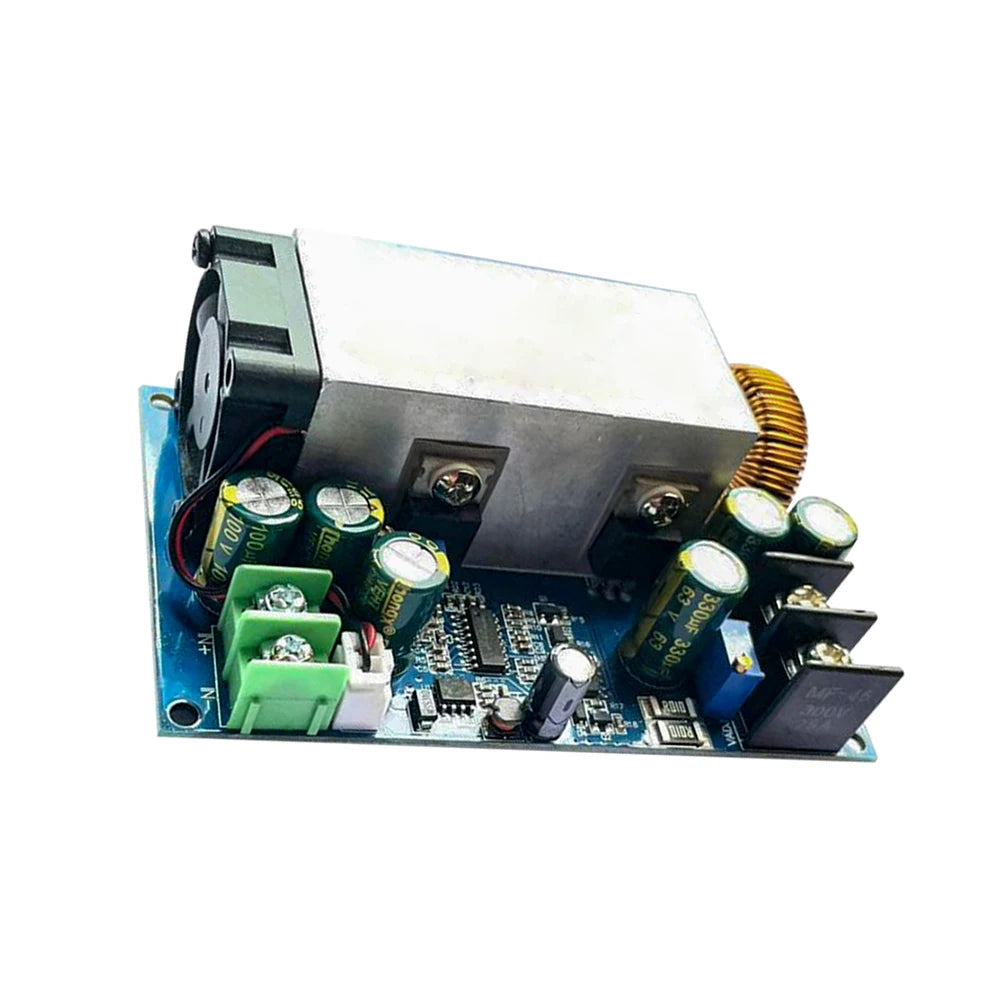

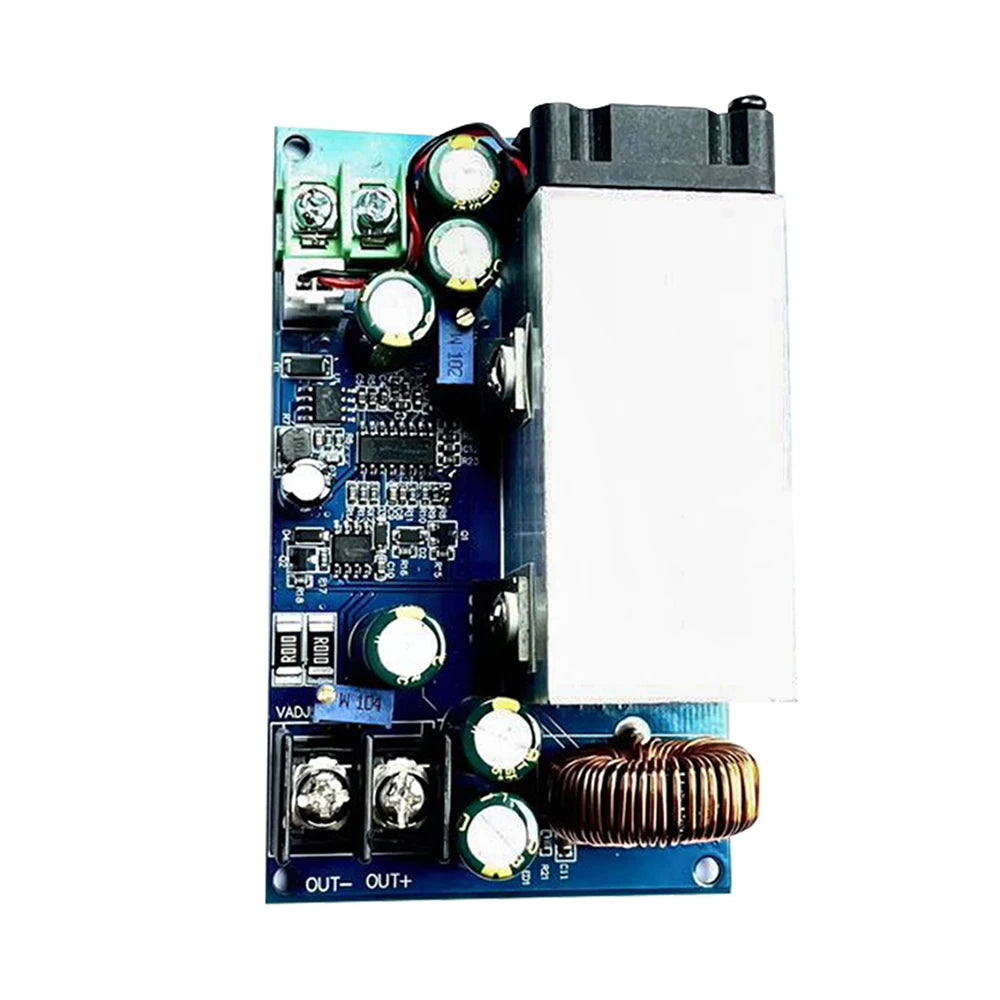

600W Adjustable DC-DC Buck Converter Module 12-75V to 2.5-60V Step Down Constant Voltage Regulator Constant Current Power Supply

Features:
1.Continuous adjustable output voltage and current
2.Easy to use
3.Easy to operate
4.Stable performance, with an input voltage of up to 75 volts
5.Extremely efficient

Description:
*The module adopts a step rectification scheme, with extremely high efficiency, with a maximum efficiency of up to 95%
*Continuous adjustable output voltage and current
*The input voltage can reach up to 75 volts, and the output voltage can reach up to 60 volts (at 75 volts input) with a maximum current of 25 amperes.

Specifications:
Product model: SZ-8025CCCV
Module name: 600W step-down constant voltage constant current adjustable power module
Module nature: Non isolated buck module (BUCK)
Input voltage: 12-75V
Output voltage range: 2.5-60V (must meet voltage reduction conditions, IN input multiplied by 0.8)
Minimum output voltage: 2.5V
Maximum output voltage: approximately equal to input voltage * 0.8 (for example, if the input is 40V, 40V * 0.8=32V, the maximum output voltage is 32V)
Output constant current: 1-25A (continuously adjustable)
Maximum output power: 600W (working environment must be well ventilated)
Continuous maximum working power: 500W (in a ventilated environment)
Continuous maximum working current: 25A (in a ventilated environment)
Heat dissipation method: air-cooled heat dissipation
Input undervoltage protection: None
Input overvoltage protection: None (overpressure prohibited)
Working temperature: -10~+65 degrees Celsius
Working frequency: 80KHz
Conversion efficiency: up to 95% (efficiency is related to input and output voltage, current, and voltage difference)
Short circuit protection: Yes (constant current protection)
Input reverse protection: None
Output anti backflow: None (charging the battery, connecting the output to an inductive load, such as adding anti backflow diodes when connecting to the motor)
Work indicator light: Yes (output voltage blue LED light)
Wiring method: Equipped with solderless terminal blocks

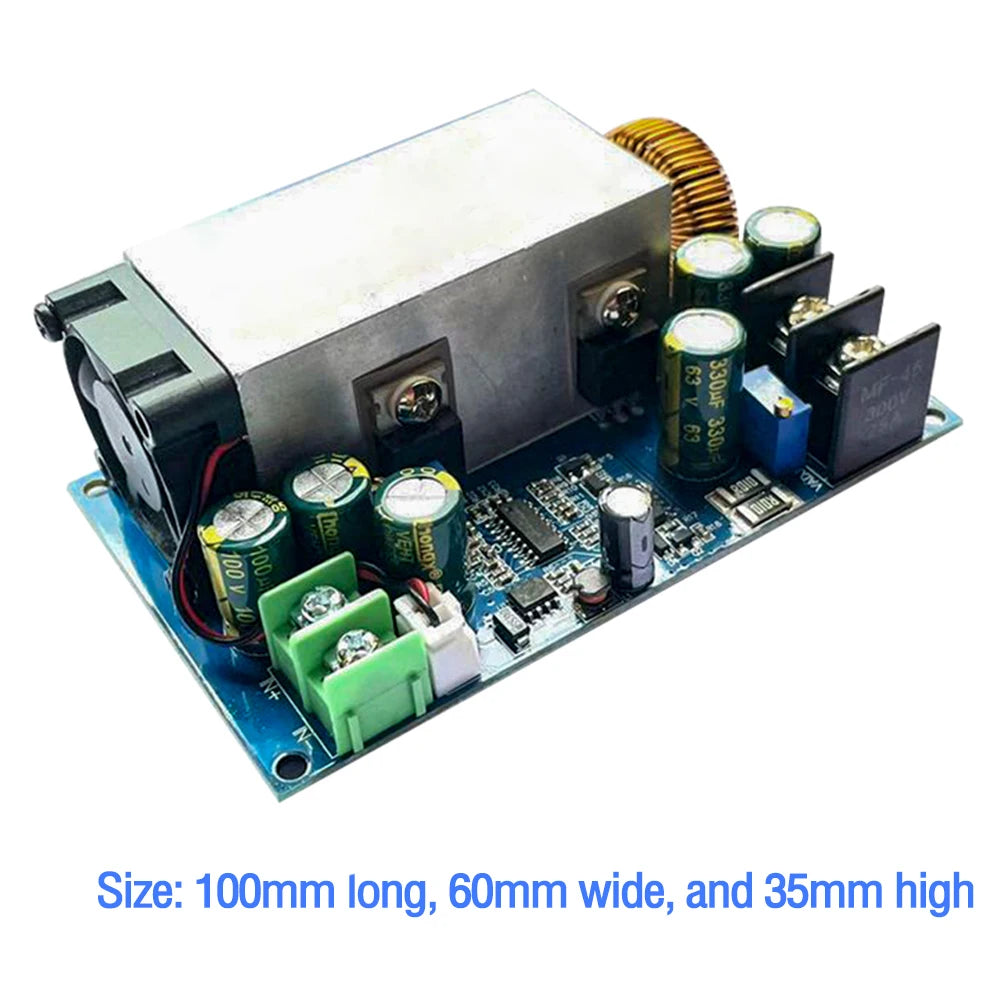

Module size approximately: 100mm long, 60mm wide, and 35mm high
Net weight: approximately 140 grams

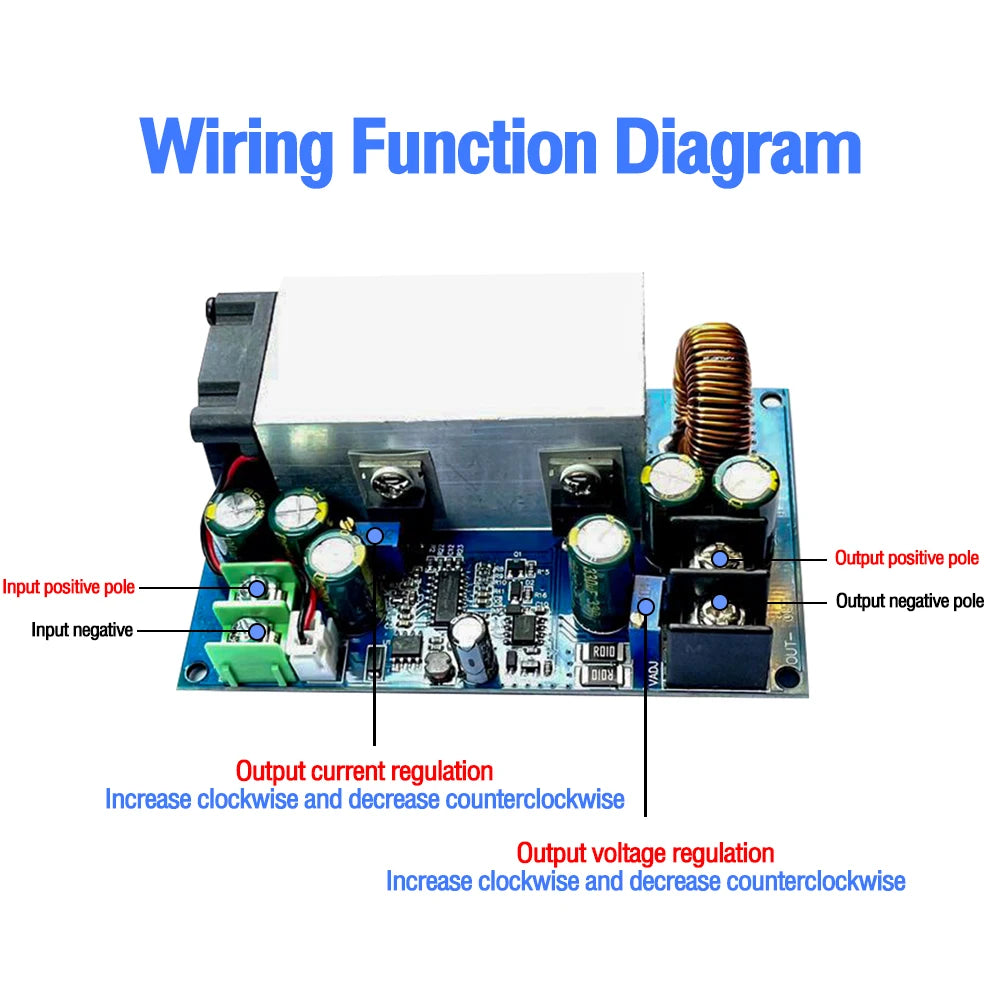

Wiring: "IN" is the input.
'OUT' is the output

Package Included:
1X power module
