SPECIFICATIONS

Application: Electric Toy

Brand Name: eletechsup

Choice: yes

Condition: New

Dissipation Power: <30W

Hign-concerned Chemical: None

Model Number: DD03AJTA

Operating Temperature: -40~85

Origin: Mainland China

Package: DIP

Supply Voltage: DC 2.7-5.5V

Type: Voltage Regulator

is_customized: Yes

semi_Choice: yes



Product Name :   6A High-power DC 2.7-5.5V to 3.5-24V Step-Up Boost Converter Module for Li-ion Lipo UVLO PTZ IP Camera PLC Motro LED



Packing list:



1 PCS DD03AJTA  30W high-power adjustable boost module

Description:

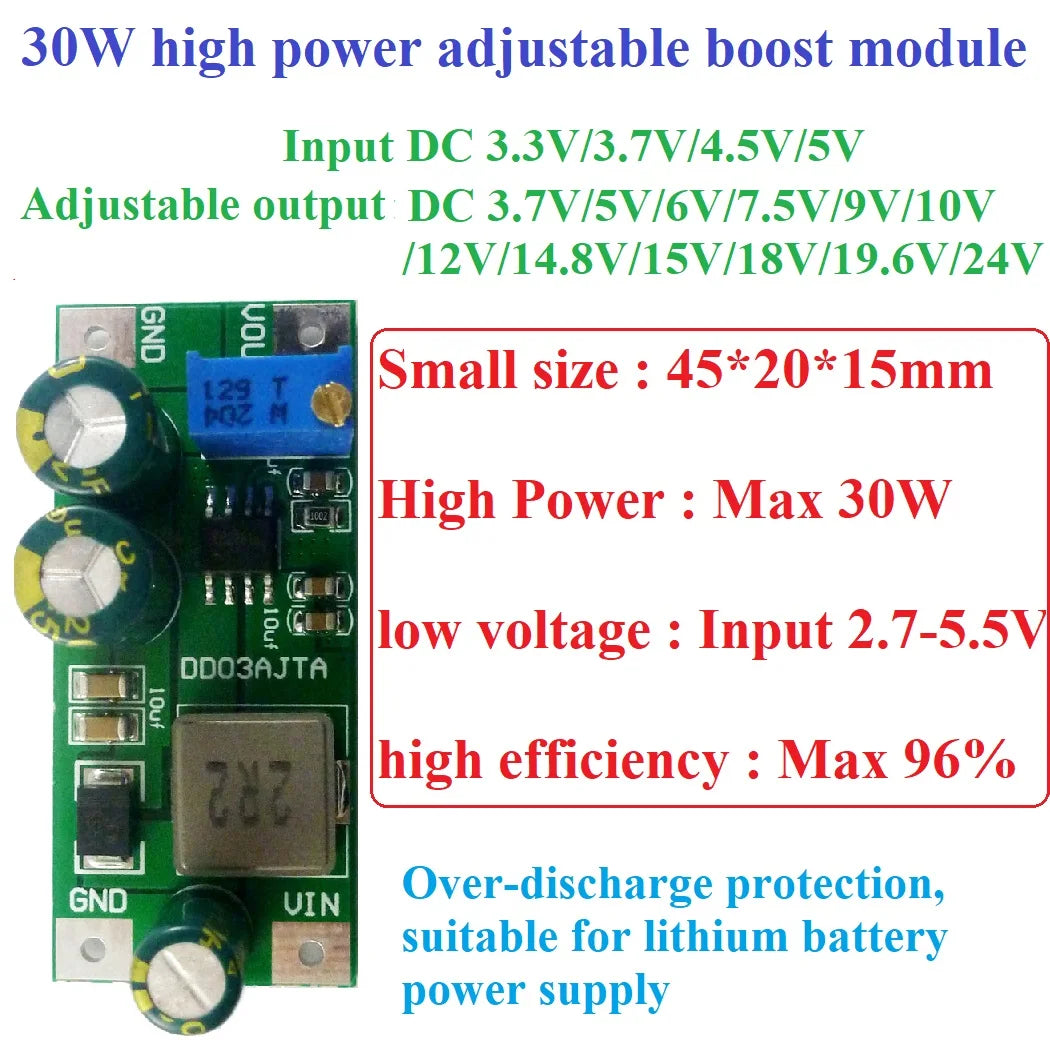

30W high-power adjustable boost module

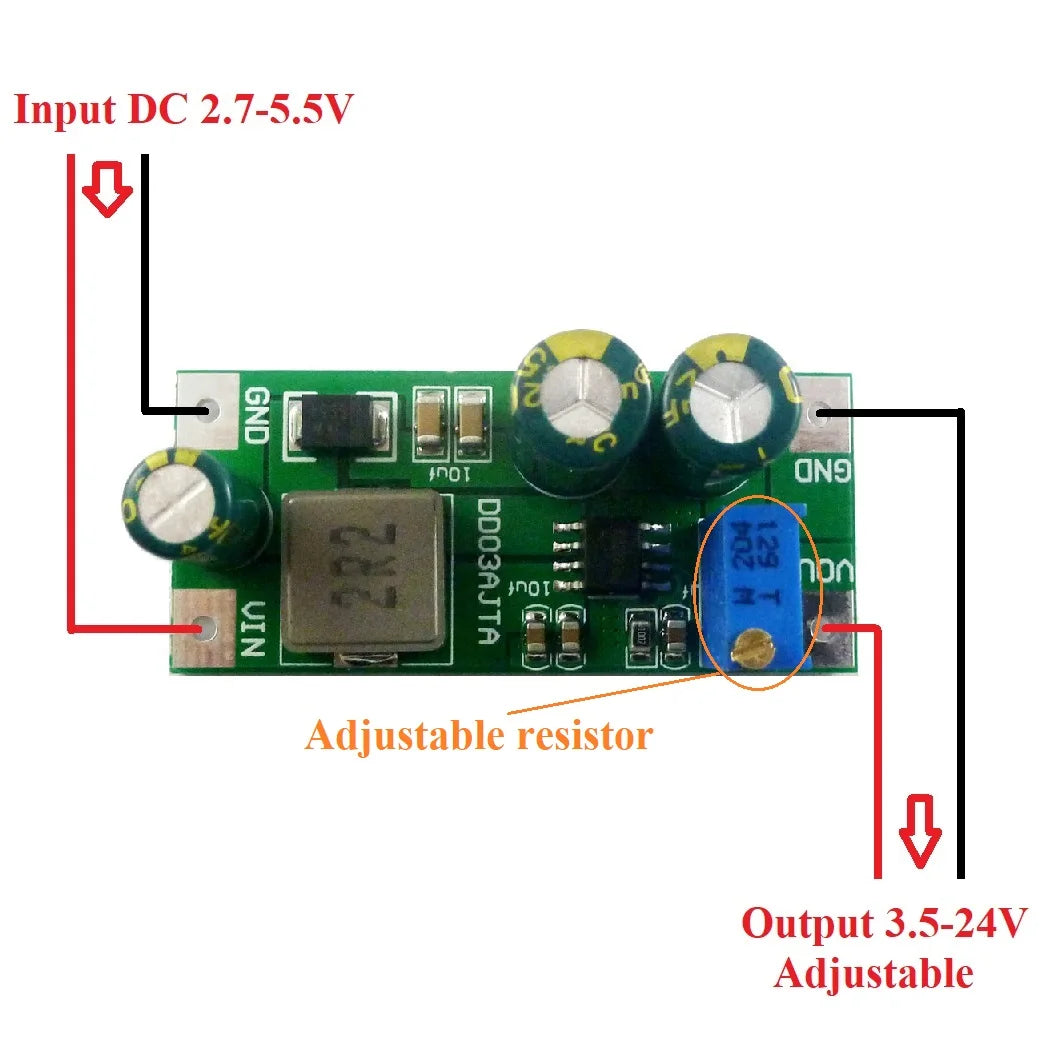

Input DC 2.7-5.5V,Adjustable Output DC 3.5-24V

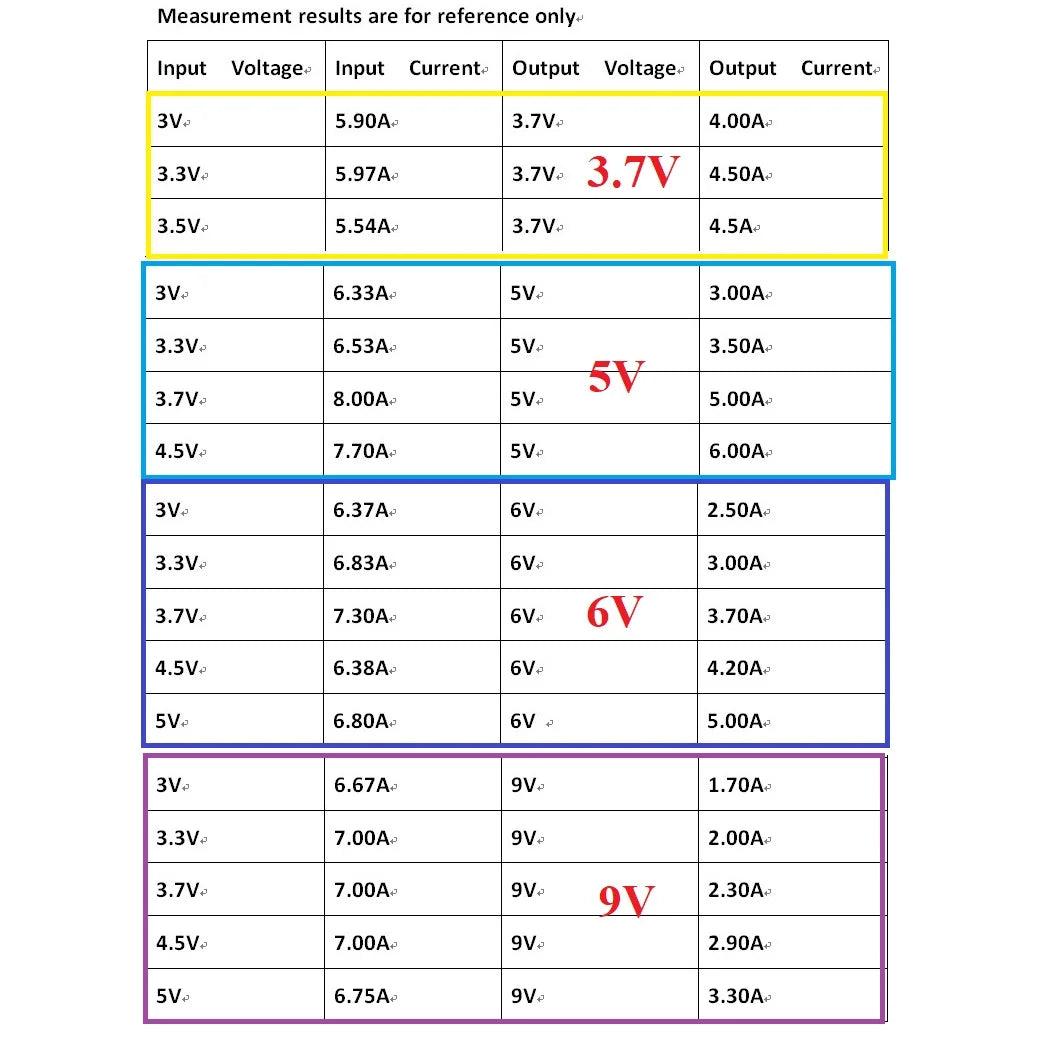

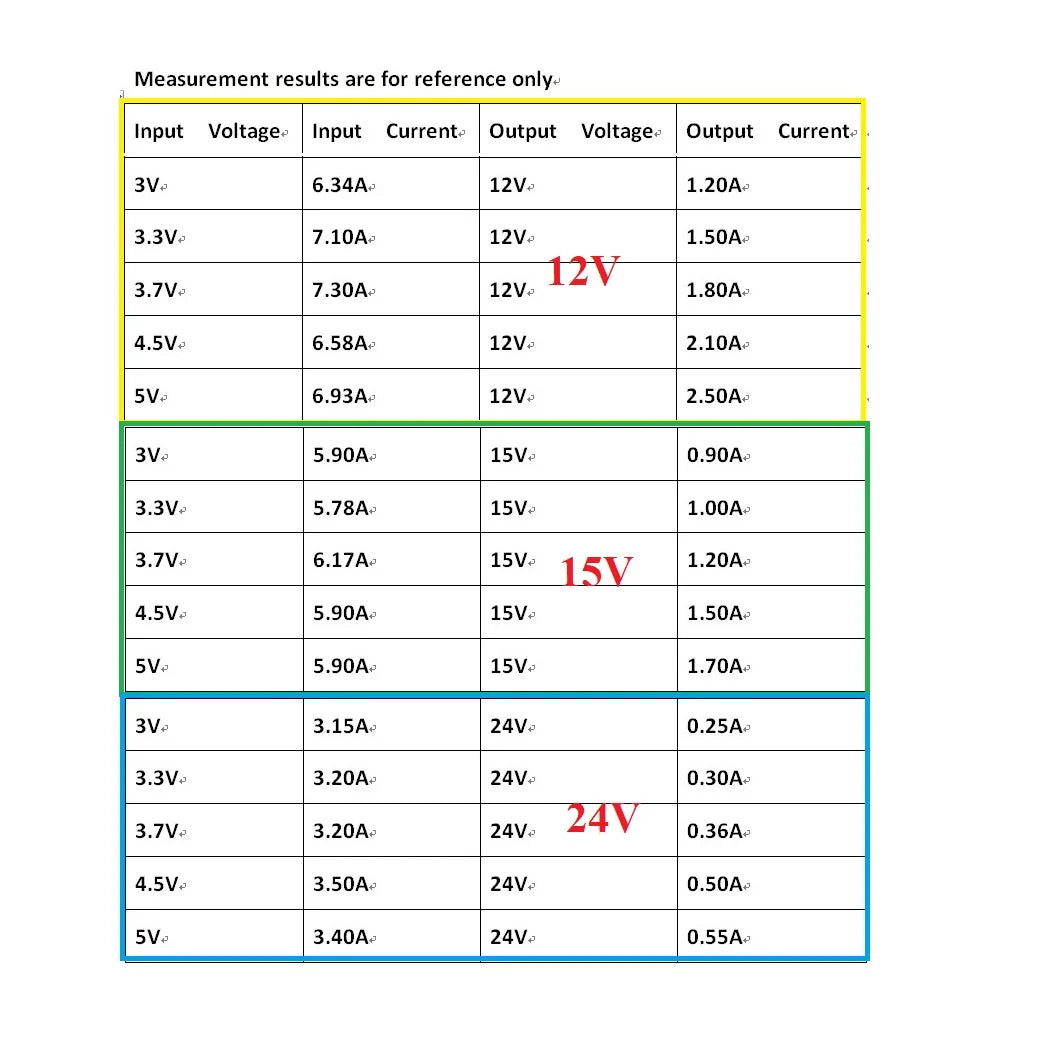

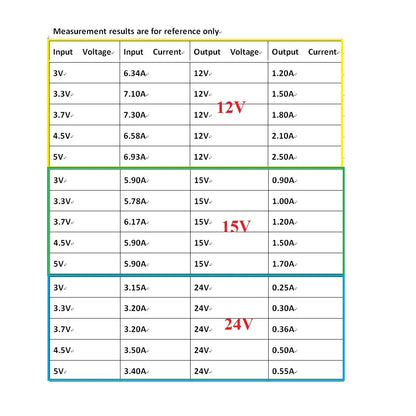

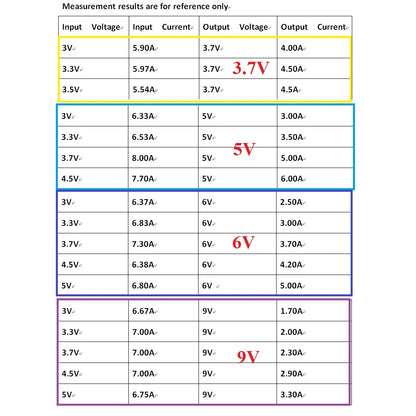

Maximum output power 30W(See the table for details)
Maximum input current: 8A(See the table for details)
Maximum output current: 6A(See the table for details)
Quiescent current: about 1MA
Efficiency : >=96%

Switching Frequency : 600KHz fixed
Overtemperature shutdown, input under-voltage protection and short circuit protection.

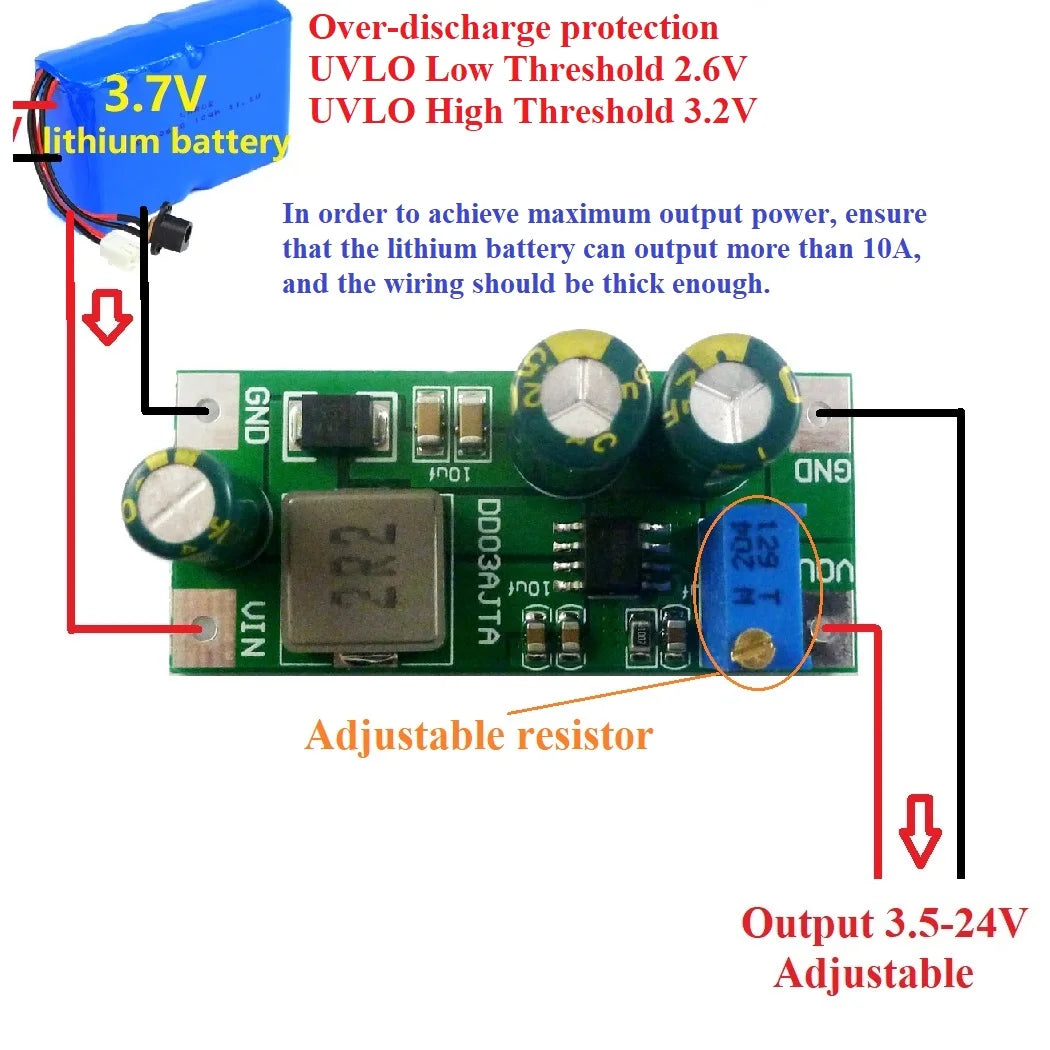

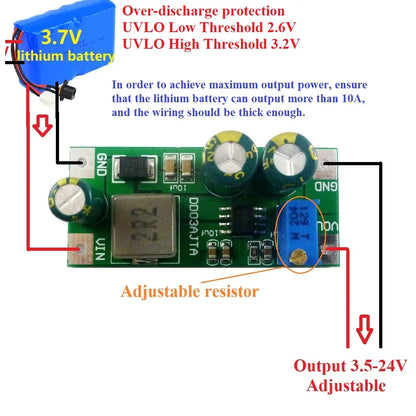

UVLO Low Threshold 2.6V,UVLO High Threshold 3.2V,suitable for 3.7V lithium battery power supply
Operating Ambient Temperature : -40 to 85 °C
Storage Temperature : -55 to 150°C

Size : 45*20*15mm
Weight : 8g



Attention :

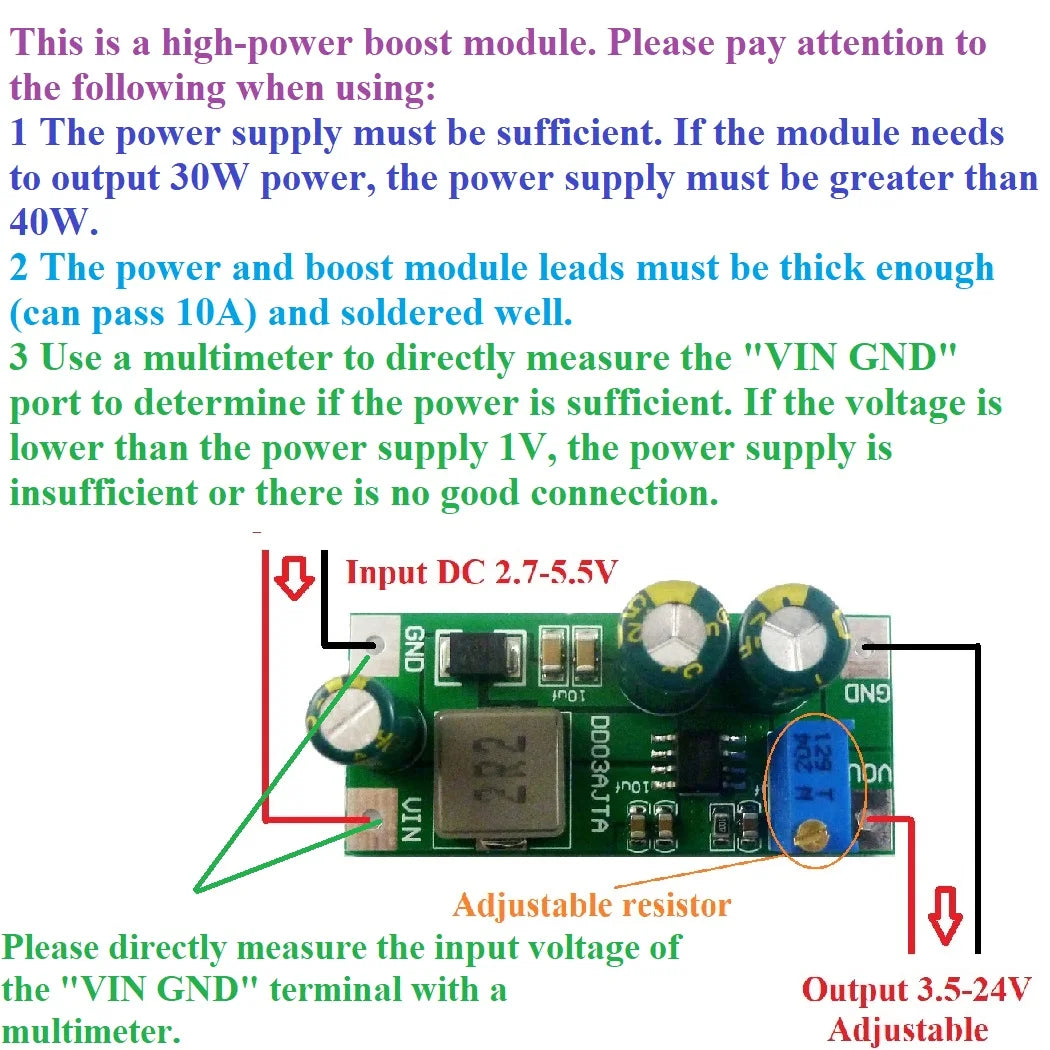

This is a high-power boost module. Please pay attention to the following when using:

1 The power supply must be sufficient. If the module needs to output 30W power, the power supply must be greater than 40W.

2 The power and boost module leads must be thick enough (can pass 10A) and soldered well.

3 Use a multimeter to directly measure the ''VIN GND'' port to determine if the power is sufficient. If the voltage is lower than the power supply 1V, the power supply is insufficient or there is no good connection.

4 Input voltage can not be greater than the maximum input range
5 Output power can not be greater than the maximum load for a long time
6 Input power must be greater than the output power, because the power consumption of the module itself

Applications:



for QC2.0 3.0 charger
for 3.7V li-on Lithium Battery 18650
PTZ CCTV IP camera
Smart home / home automation
WIFI Router Switch Network equipment

LED Motor
