SPECIFICATIONS

Brand Name: Riskcell

Certification: CE

Choice: yes

Model Number: EU

Origin: Mainland China

Output Type: DC

Output voltage: 12V

Usage: Switching,air humidifier,Air Purifiers,Refrigerators,VACUUM CLEANER,Electric Tool,Router,TV Receivers,Set-top Boxes,Speaker,Monitors,CD Player

semi_Choice: yes

About this item

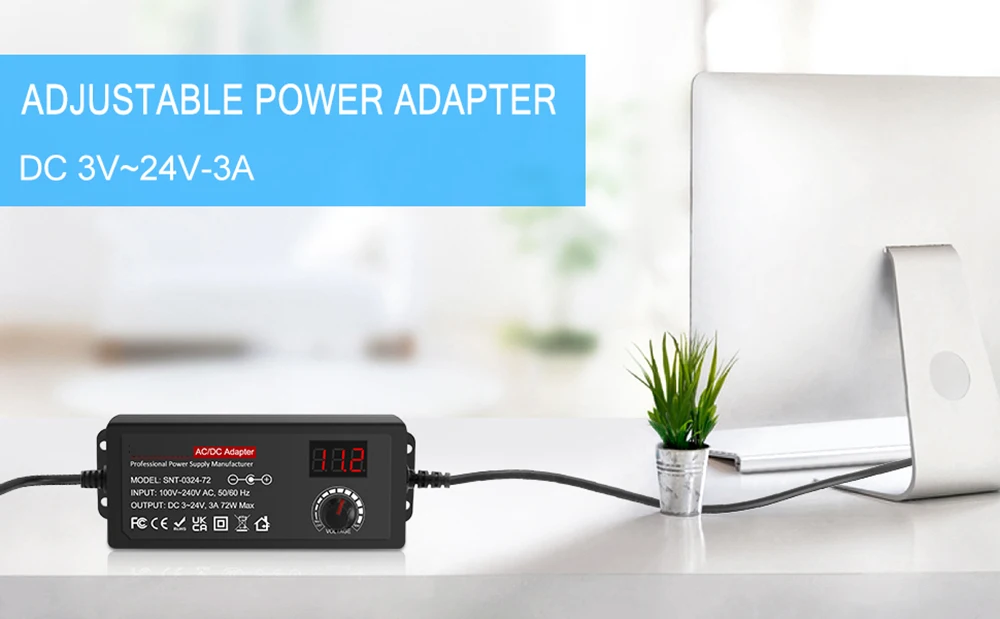

• 𝐈𝐧𝐩𝐮𝐭 𝐚𝐧𝐝 𝐎𝐮𝐭𝐩𝐮𝐭: Input: AC 100~240V, 50/60Hz ; Output: DC 3~24V Adjustable, Max 3A 72W ; It can supply with any voltage between 3~24V,such as 3V 4V 4.5V 5V 5.5V 6V 9V 12V 14V 15V 19V 20V 24V, etc and any amp less than 3A, such as 300mA, 500mA,1A, 1.5A, 2A, 2.5A, 3A. LCD display will show the output voltage, in case that wrong voltage regulation damage your device.

• 𝐔𝐩𝐠𝐫𝐚𝐝𝐞𝐝 𝐕𝐞𝐫𝐬𝐢𝐨𝐧 𝐏𝐨𝐰𝐞𝐫 𝐒𝐮𝐩𝐩𝐥𝐲: Based on hundreds of users feedback, we have made the following improvements: 1. The knob can be adjusted more evenly, and it can reach 13V ~ 14V by rotating 50%. 2. Increase the off gear to turn off the power without pulling the plug. 3.Add a polarity converter cable, which make it compatible with more devices，doubles its range of application.

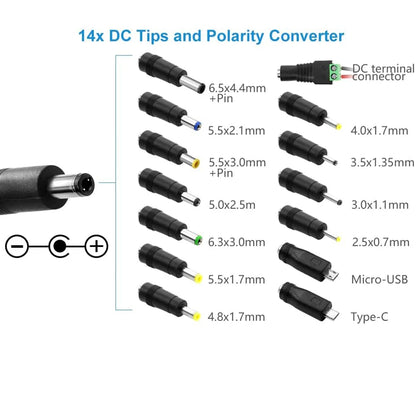

• 𝟏𝟒𝐩𝐜𝐬 𝐅𝐫𝐞𝐪𝐮𝐞𝐧𝐭𝐥𝐲 𝐔𝐬𝐞𝐝 𝐓𝐢𝐩𝐬: It comes with an original 5.5x2.5mm tip and 14pcs frequently used tips: 6.5x4.4mm+Pin, 5.5x2.1mm, 5.5x3.0mm+Pin, 5.0x2.5mm, 6.3x3.0mm, 5.5x1.7mm, 4.8x1.7mm, 4.0x1.7mm, 3.5x1.35mm, 3.0x1.1mm, 2.5x0.7mm, Micro-USB, Type-C and DC terminal connector. Can be applied to almost all commonly used electronic devices. You can screw wires onto it easily, perfect for DIY projects.

• 𝐖𝐢𝐝𝐞 𝐑𝐚𝐧𝐠𝐞 𝐨𝐟 𝐀𝐩𝐩𝐥𝐢𝐜𝐚𝐭𝐢𝐨𝐧𝐬: The 72W all-in-one multipurpose AC/DC adapter fit for many 3~24V small household electronics such as LED strips, under-cabinet light, TV Box, smart speaks, wireless routers, essential oil diffuser humidifier, USB fan, Wifi camera, USB Hub, hard disk box, DC motor, DC pump, digital photo frame, DVR NVR surveillance system etc.For indoor use only.

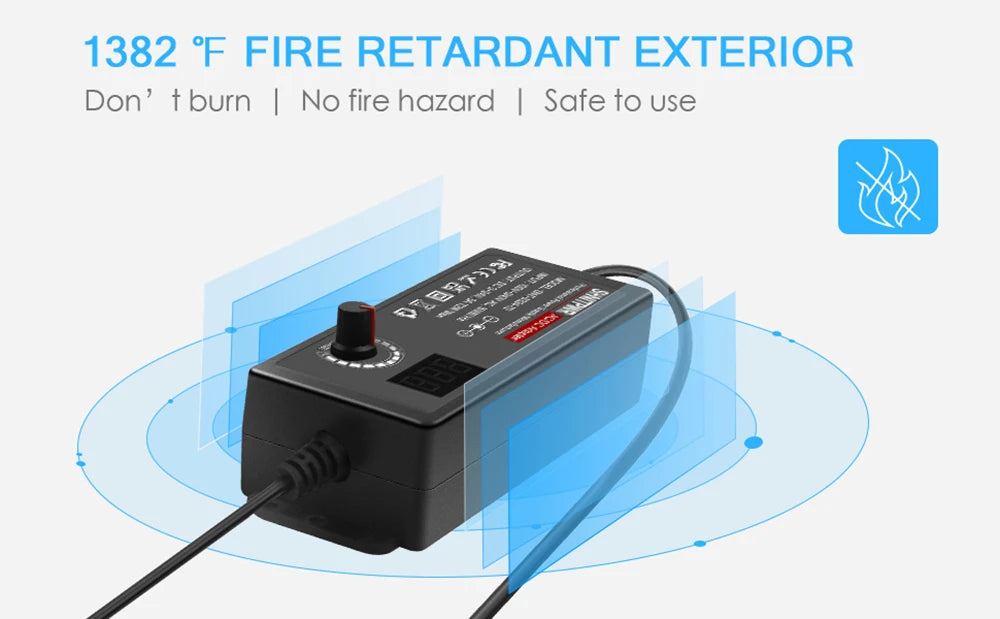

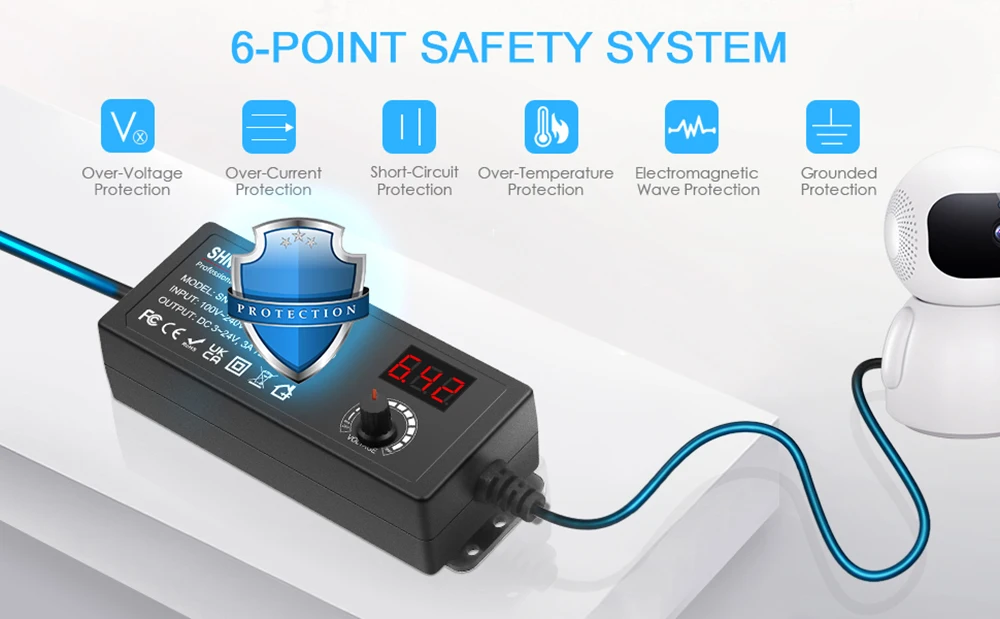

• 𝐒𝐚𝐟𝐞𝐭𝐲 𝐏𝐫𝐨𝐭𝐞𝐜𝐭𝐢𝐨𝐧 𝐒𝐲𝐬𝐭𝐞𝐦𝐬: Built-in multiple safety protection systems. Automatic over voltage cut-off, over current cut-off, over temperature cut-off, short circuit cut-off. We focus on producing premium quality and safety power adapters. No noise, no spontaneous combustion, no explosion, no fire hazard, safe to use. 6ft long power cable makes it convenient to use.

Parameter

• Input: AC 100V~240V 50/60Hz

• Output Voltage: DC 3V~24V Adjustable

• Output Current/Wattage: 3A, 72W Max

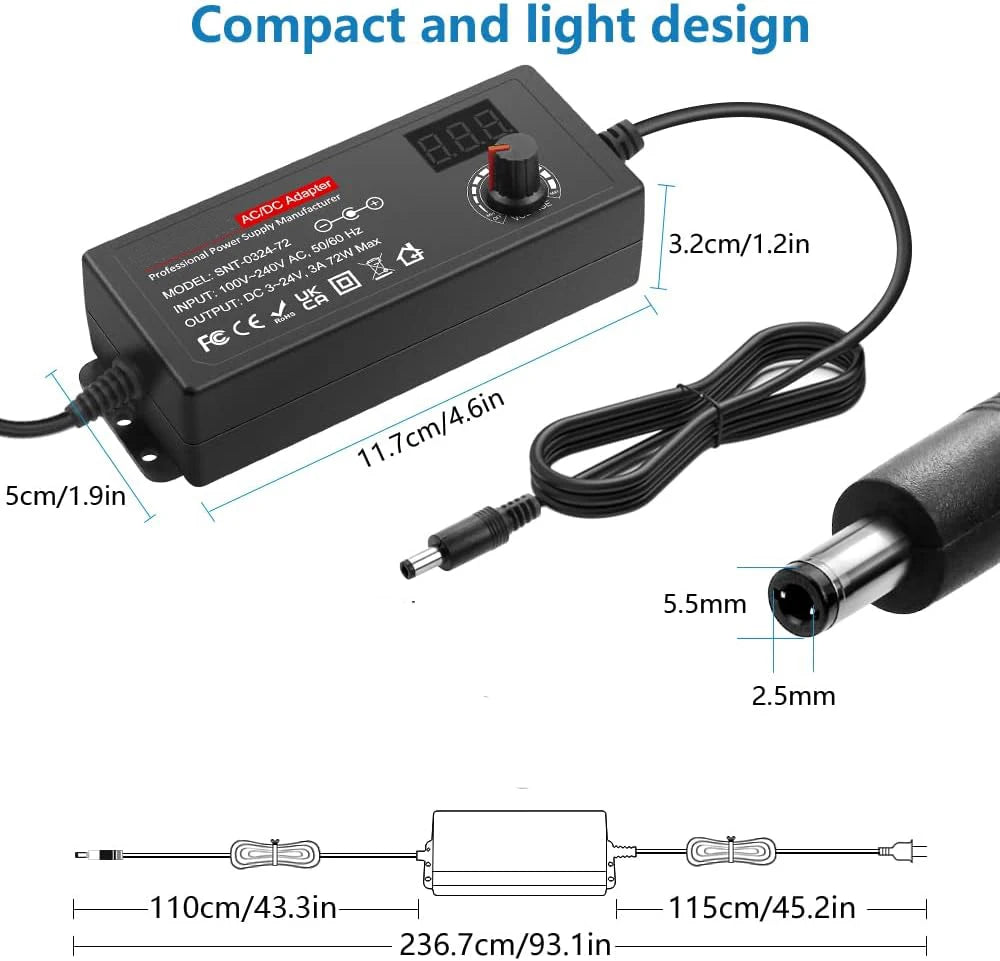

• Output DC connector:5.5mm x 2.5mm (inside"+", outside"-")

• Reverse polarity converter: 5.5mm x 2.1mm

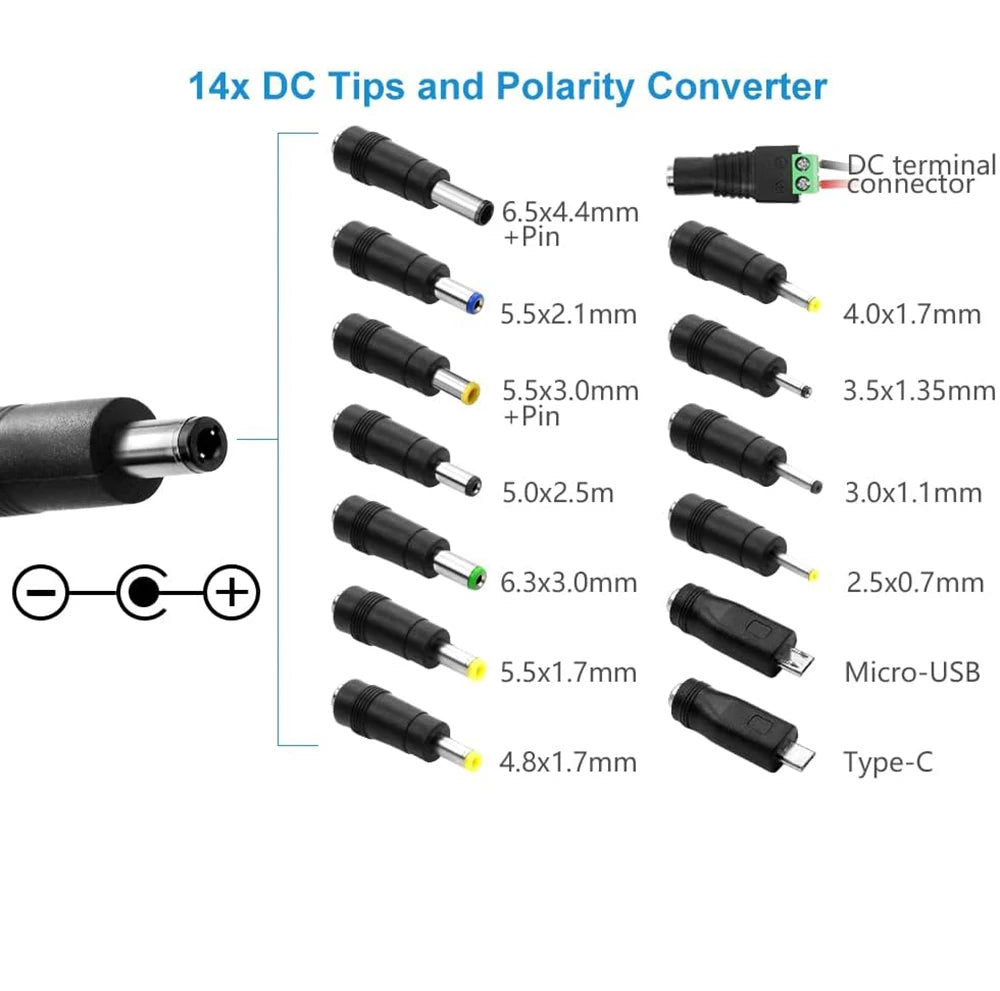

• 14 Tips Size: 6.5x4.4mm+Pin, 5.5x2.1mm, 5.5x3.0mm+Pin, 5.0x2.5mm, 6.3x3.0mm, 5.5x1.7mm, 4.8x1.7mm, 4.0x1.7mm, 3.5x1.35mm, 3.0x1.1mm, 2.5x0.7mm, Micro-USB, Type-C and DC terminal connector.

• Power cable length: 7.7ft / 236cm

• Safety Compliance: FCC / CE/ RoHS / CCC

• Working Temperature: -10~40℃

• Weight: 0.66 lb / 300g

• Attention:

• The power cord between power brick and DC plug will lead to 0.4V~0.6V voltage drop, so we designed the screen displayed voltage was 3.5V~24.5V. Only in this way can your device really get 3V~24V voltage. This is the reason why we advertise the power supply's voltage range is 3V~24V, not 3.5V~24.5V.

Package included

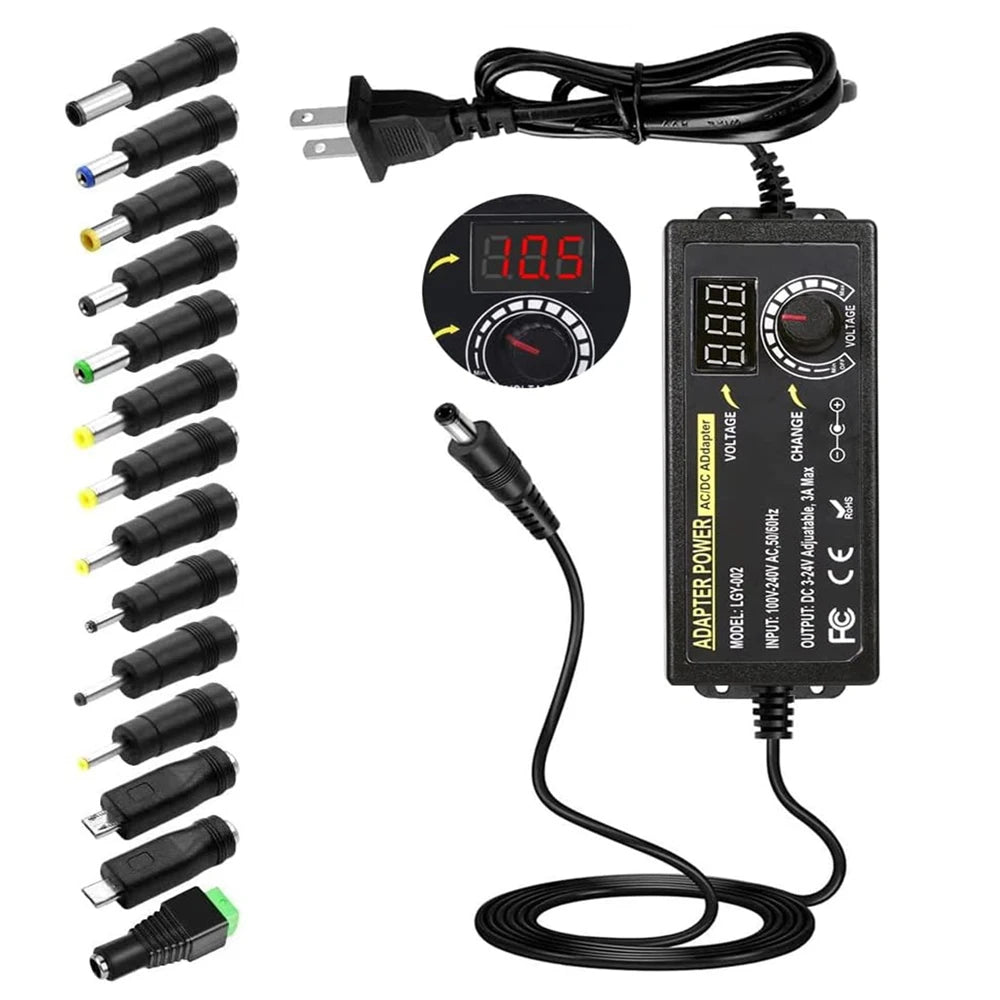

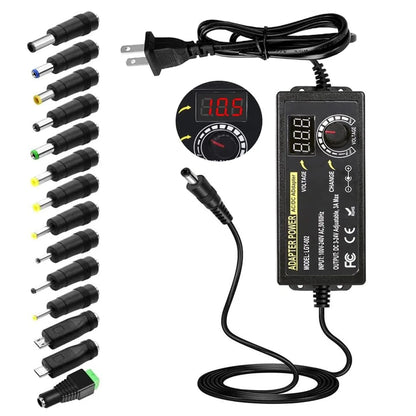

• 1x 72W Universal Power Supply Adapter; 14x DC Tips;

Latest upgraded version of adjustable power supply！

Based on hundreds of users feedback, we have made the following improvements:

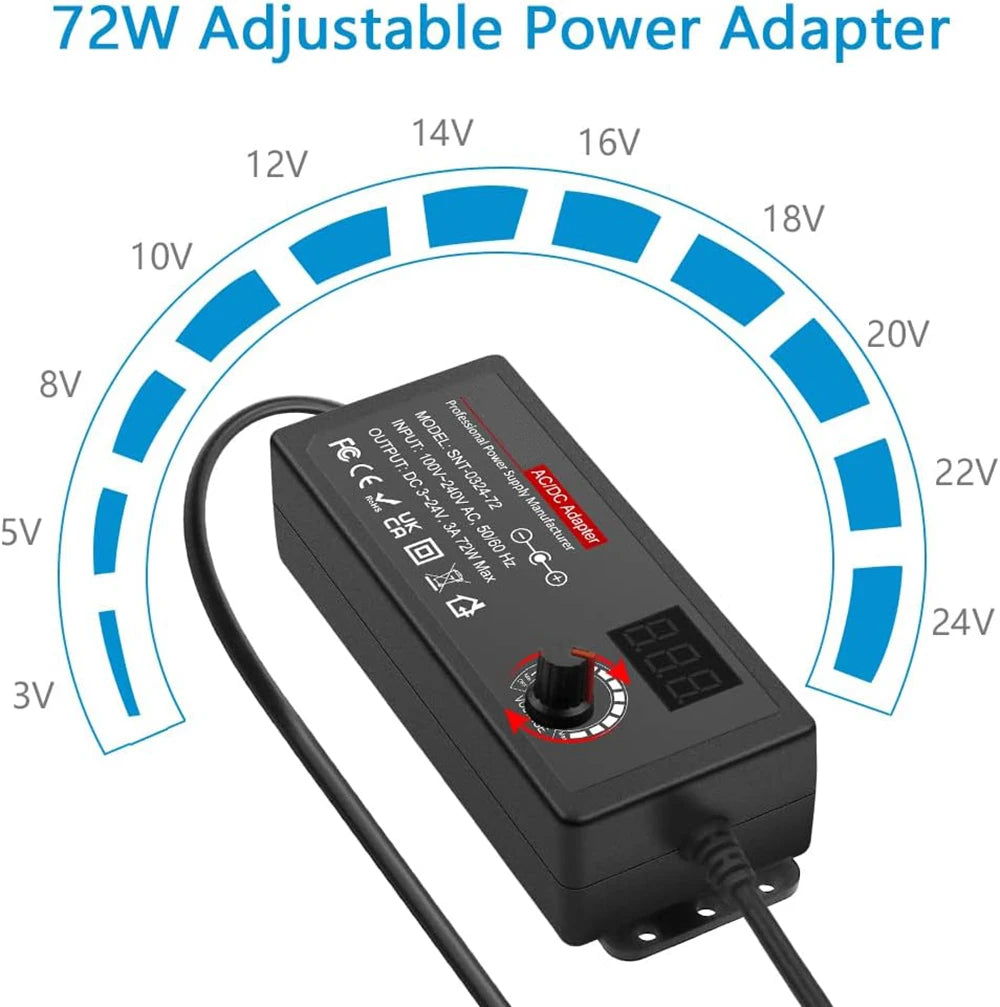

1. The knob can be adjusted more evenly, and it can reach 13V ~ 14V by rotating 50%.

2. Increase the off gear to turn off the power without pulling the plug.

3. Add a polarity converter cable, which make it compatible with more devices.

Kindly note:

• Some user complained that voltage will change slightly without adjusting it.

• In fact, this is normal when your device is working.

• Besides, ambient temperature, magnetic field, signal noise will also affect output voltage.

• But the change is slight and acceptable. It will not damage most of the electronics.
