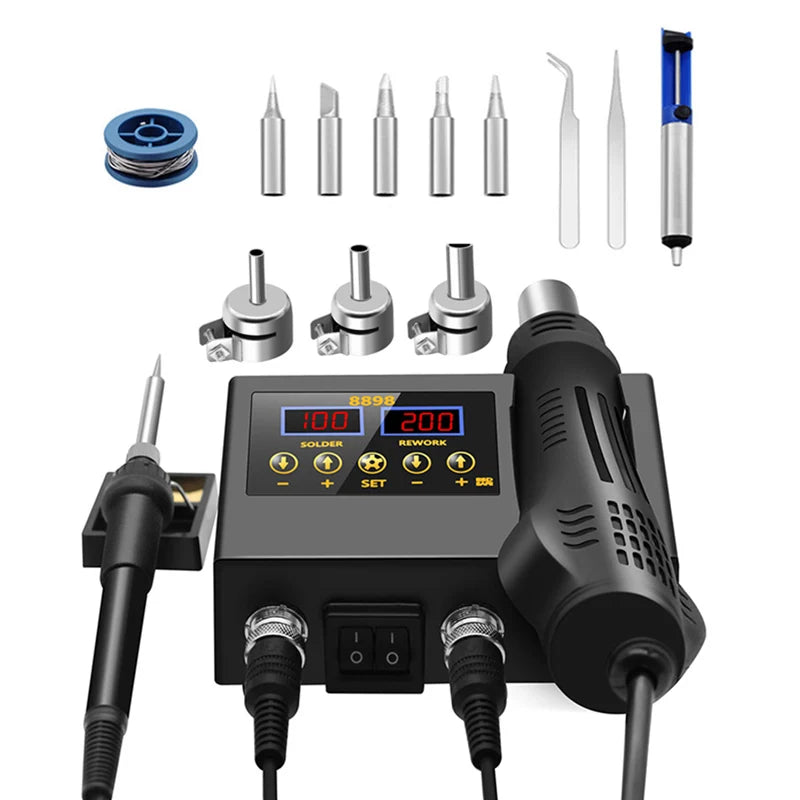

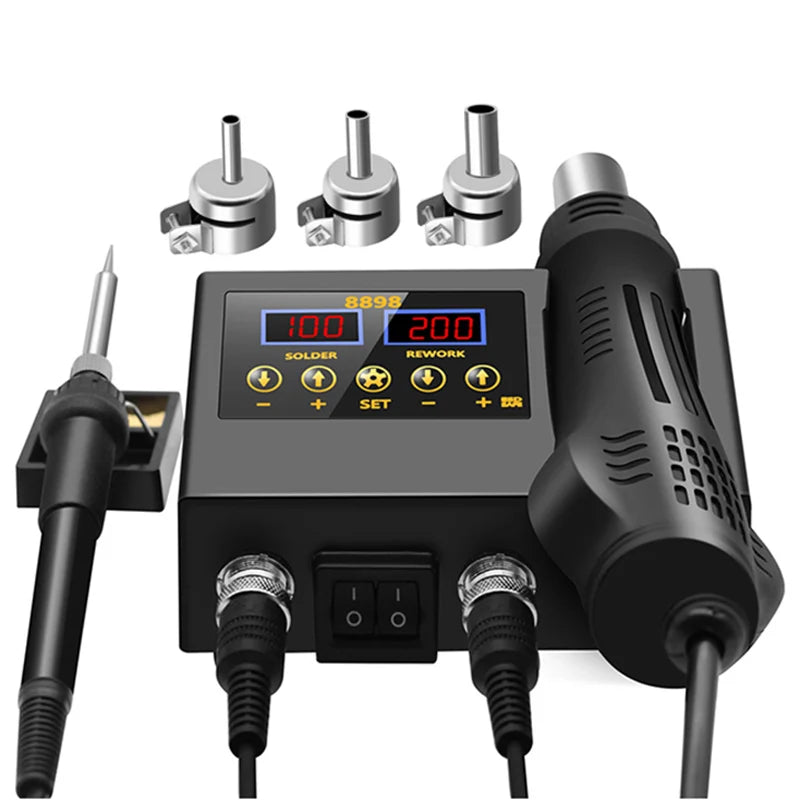

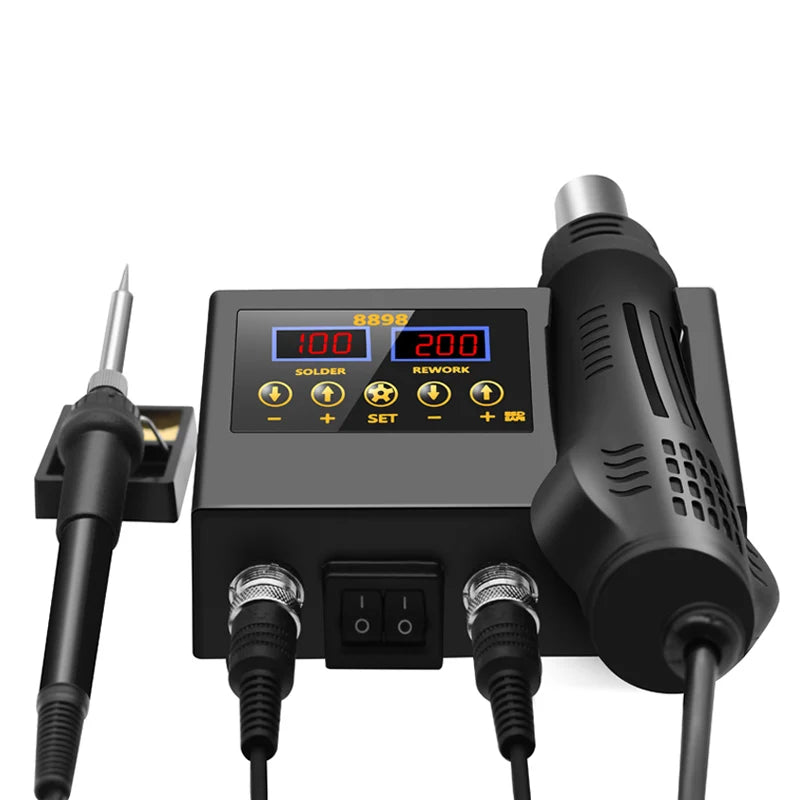

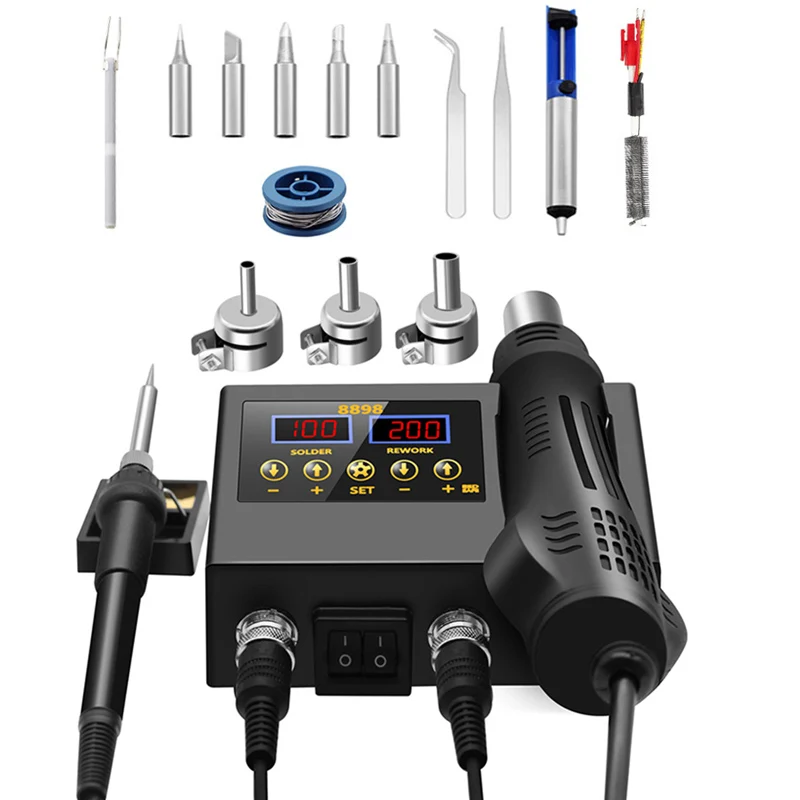

8898 Soldering Station Portable Digital Hot Air Gun BGA Rework Solder Station Hot Air Blower Heat Gun Desoldering VS 8586D 8586
8898 Soldering Station Portable Digital Hot Air Gun BGA Rework Solder Station Hot Air Blower Heat Gun Desoldering VS 8586D 8586
No se pudo cargar la disponibilidad de retiro
SPECIFICATIONS
Air Volume: Soldering Station
Brand Name: Yarboly
Certification: None
Choice: yes
Feature: Cool / Hot Air
Model Number: 8898D
No-Load Speed: 1200rpm
Origin: Mainland China
Rated Output Power: 100-650W
Rated Voltage: 220V
Use: Home DIY
Weight: 0.7KG
is_customized: Yes
8898 Soldering Station Portable Digital Hot Air Gun BGA Rework Solder Station Hot Air Blower Heat Gun Desoldering VS 8586D 8586
Hot air heater and welding iron 2in1 rework soldering station.

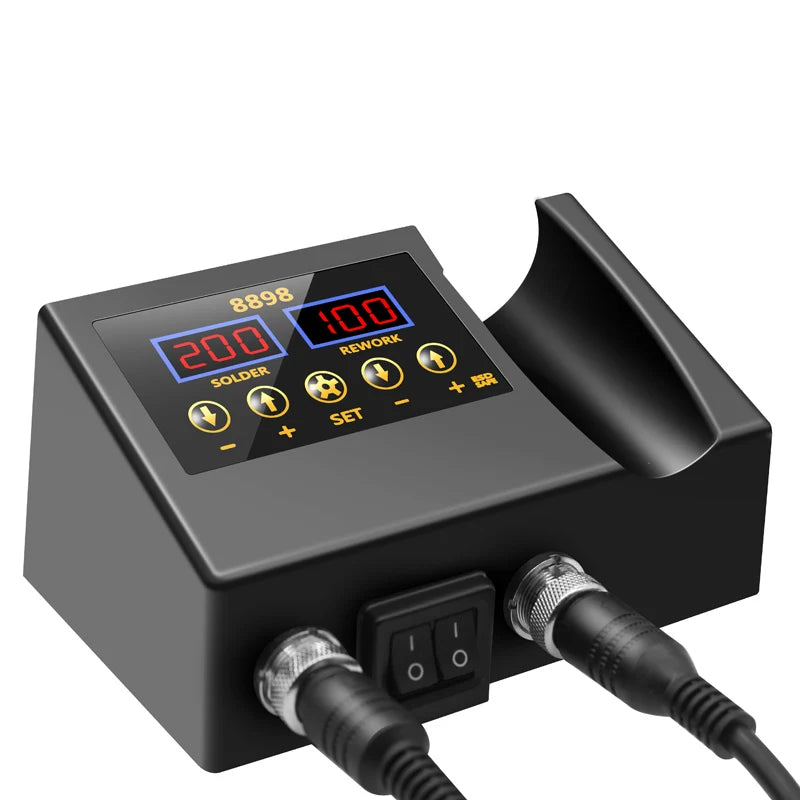

Dual LCD digital displays to show precision temperature.
Extremely low noise and space saving design.
Intelligence self-detection function features safe personal operation.
Automatic cooling function for effectively prolonging the heater's life and protecting the hot air heater.

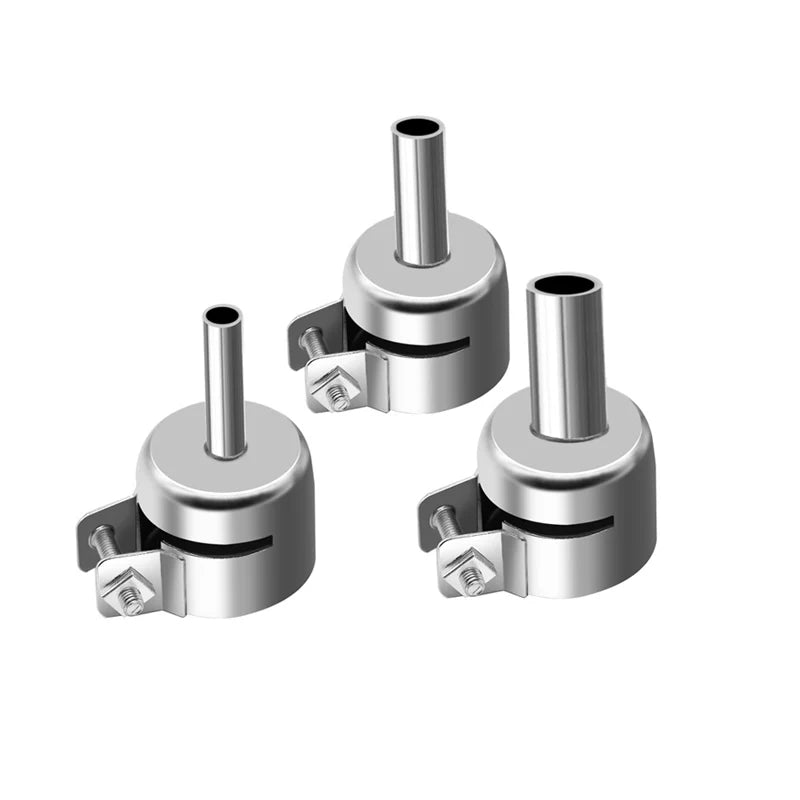

Hot air gun
Working Voltage: AC220-240V
Frequency: 50Hz
Output Power: 700W
Temperature Range: 100°C~480°C
Temperature Stability:±2℃
Air Flow: 150L/min (max)

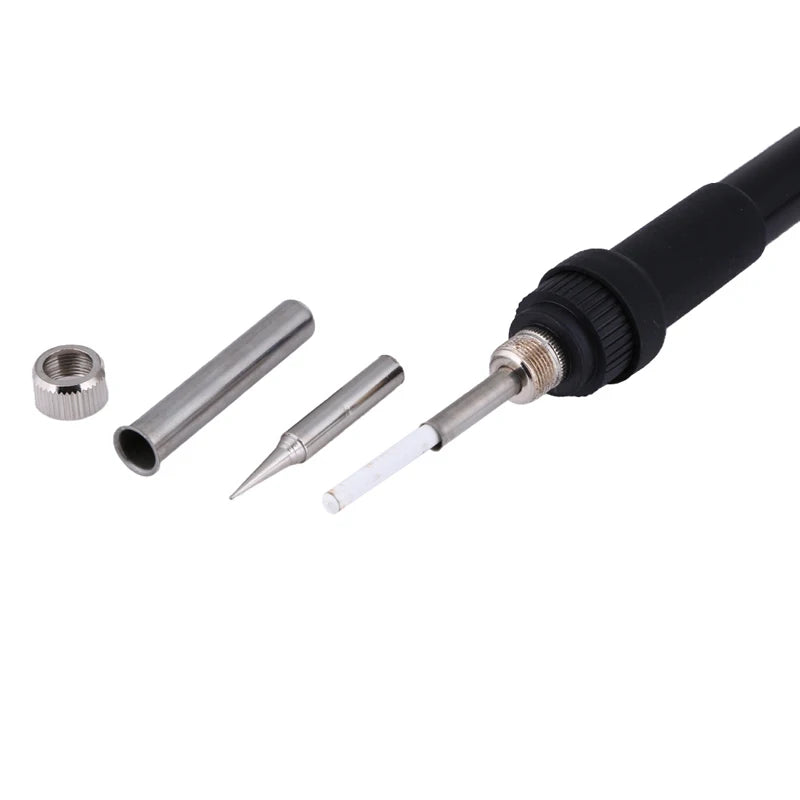

Soldering iron
Working Voltage: AC220-240V
Output Power: 80W
Frequency: 50Hz/60Hz
Temperature Range: 180°C-500°C
Temperature Stability: ±1°C
Soldering Iron : ESD design
Heater Material : Ceramics
How to use:
1. Clean the electronic components to be soldered.
2. Once iron reaches temperature (not too high, recommend 300-400℃).
3. Apply a little solder to the heated iron tip to prevent oxidation, then rub the iron tip to evenly extend the solder to the surface of the iron tip.
4. Start to solder
