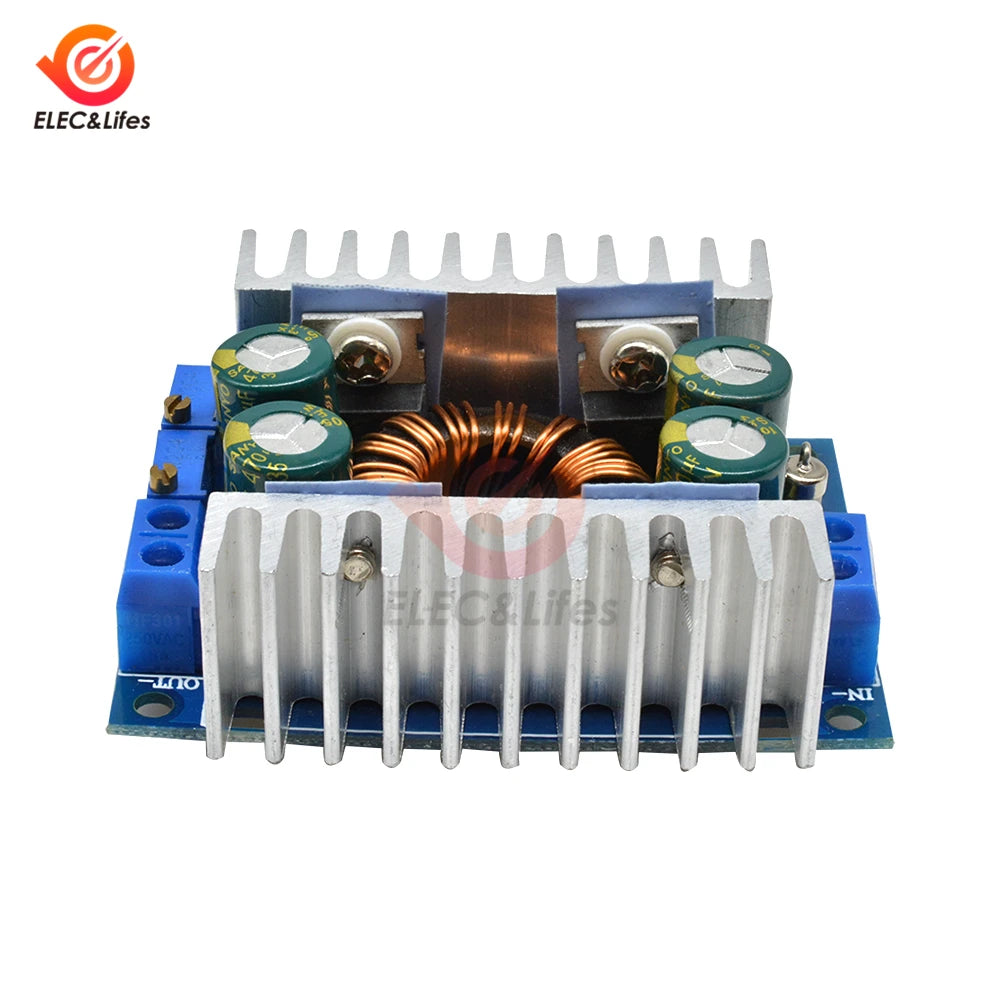

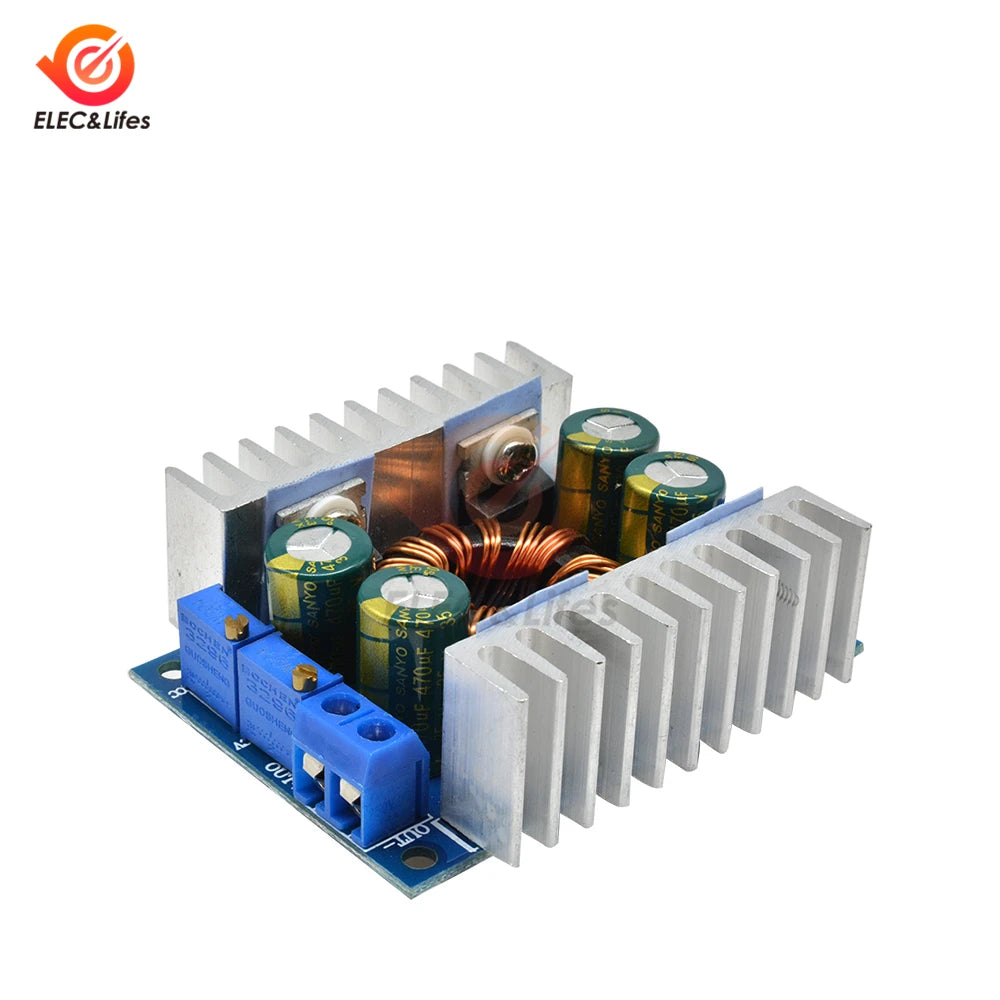

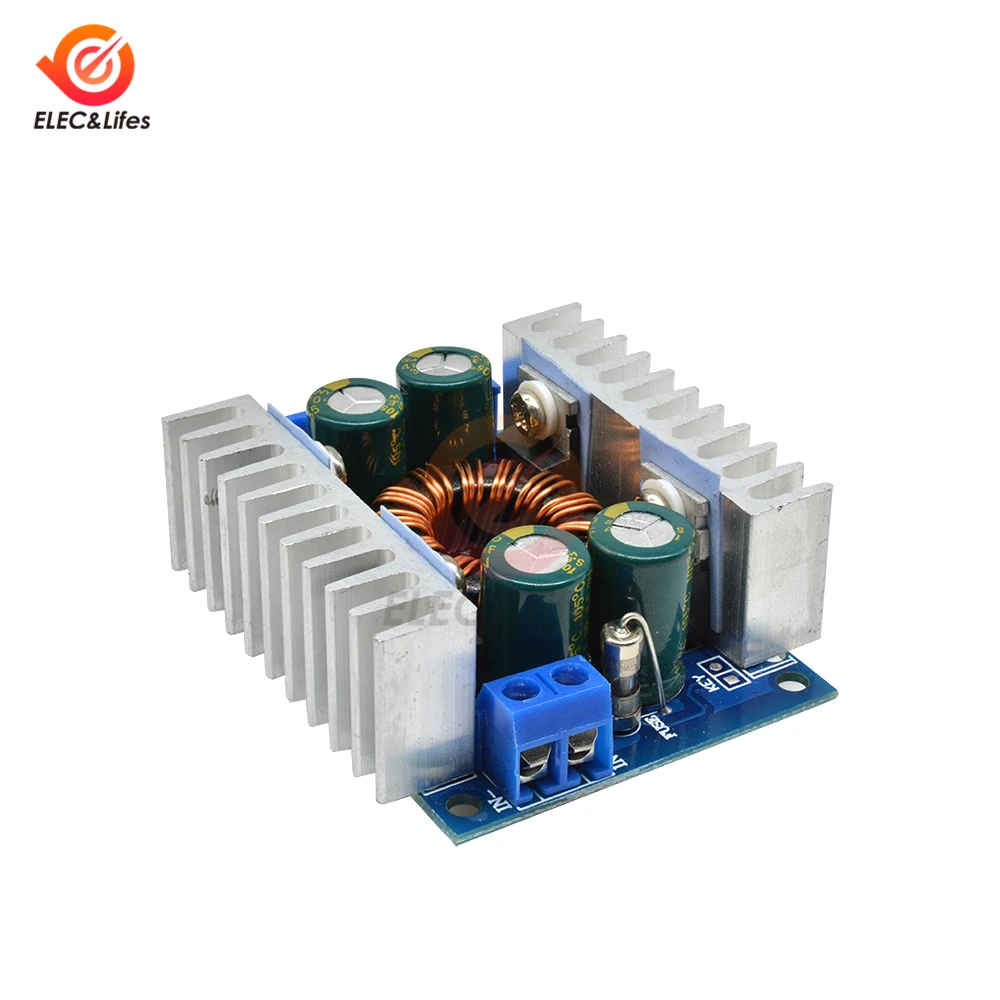

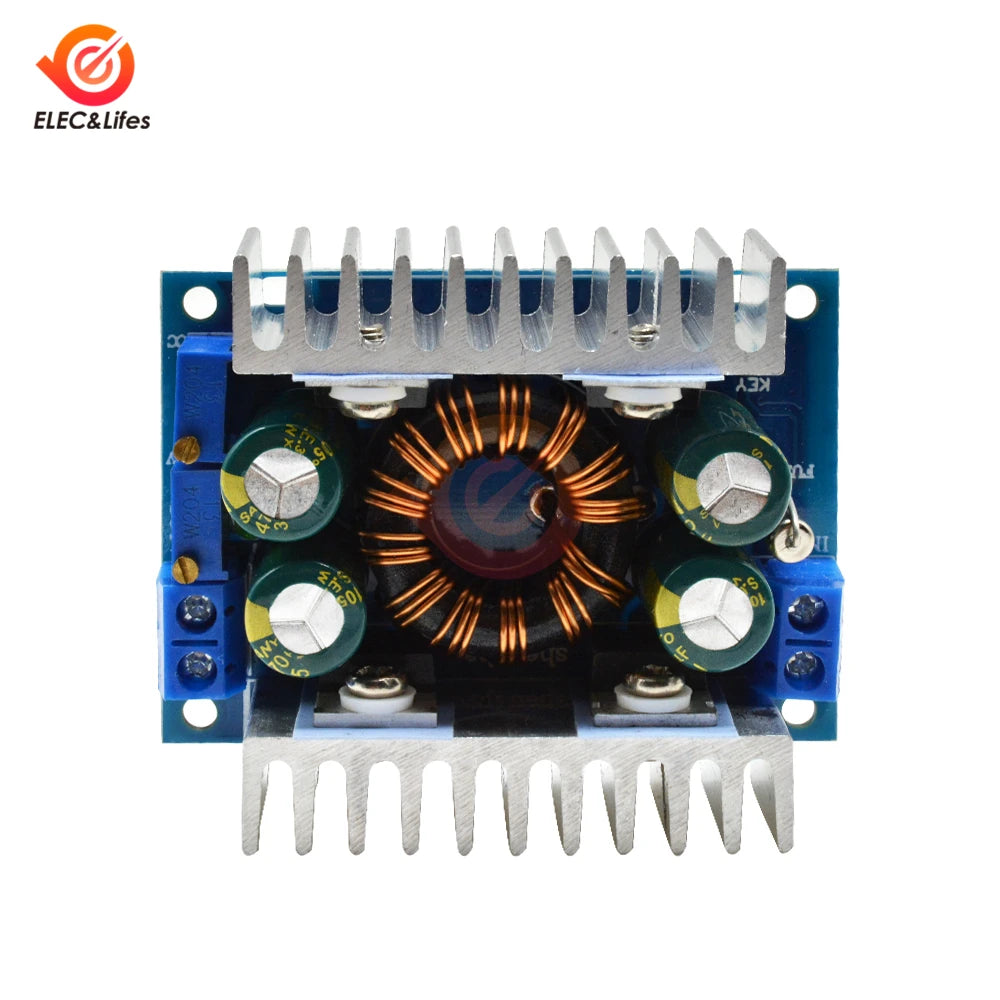

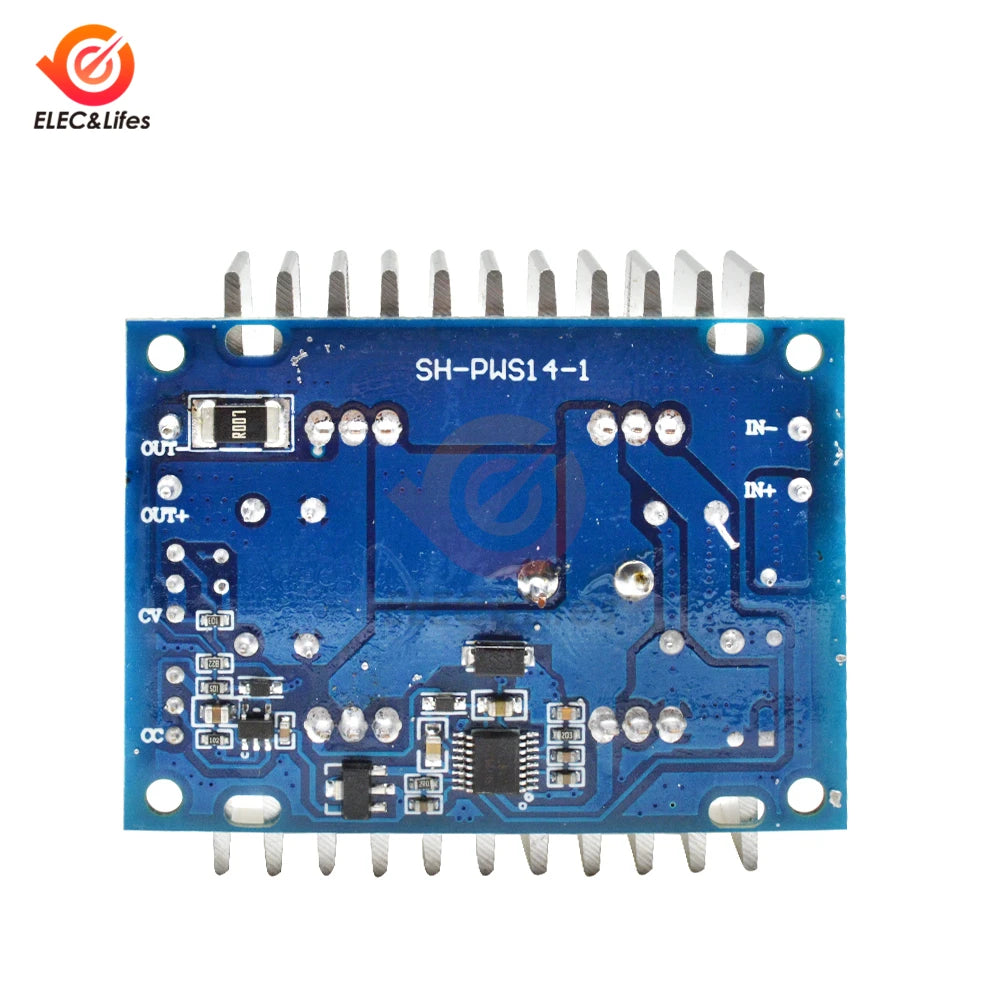

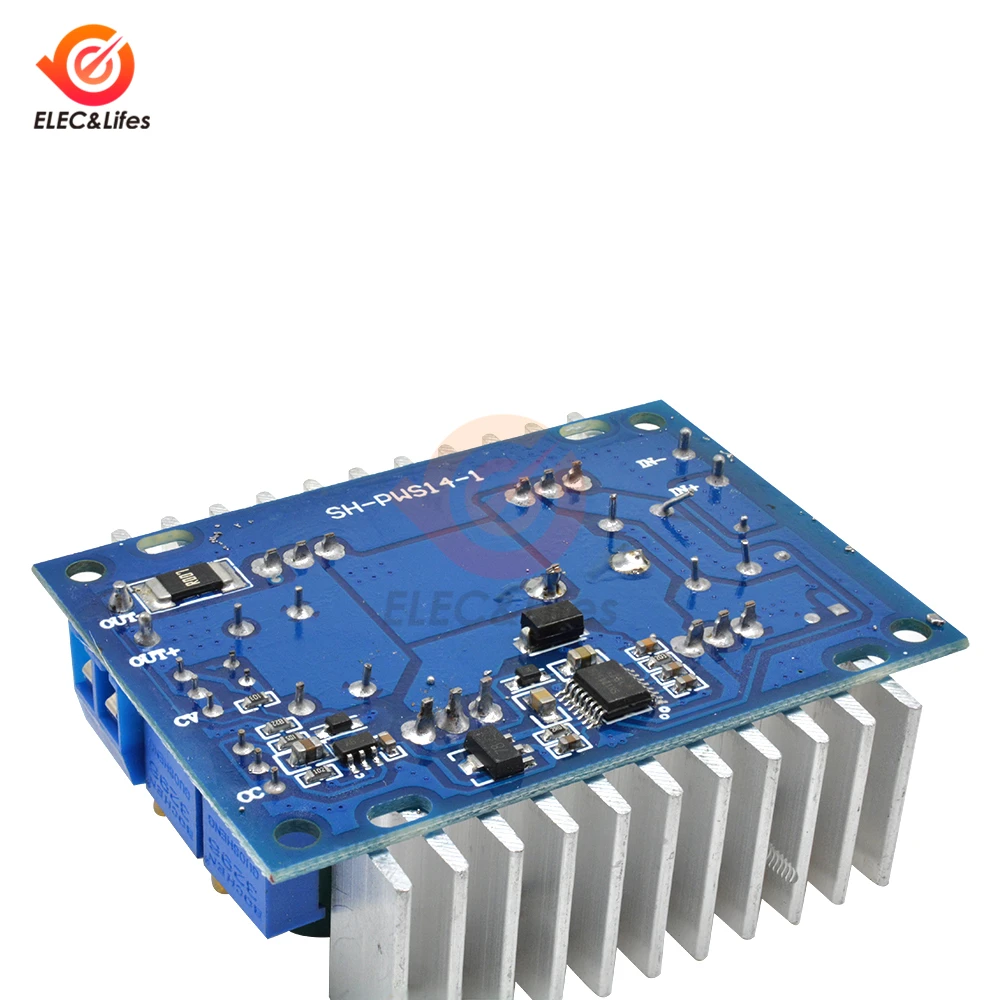

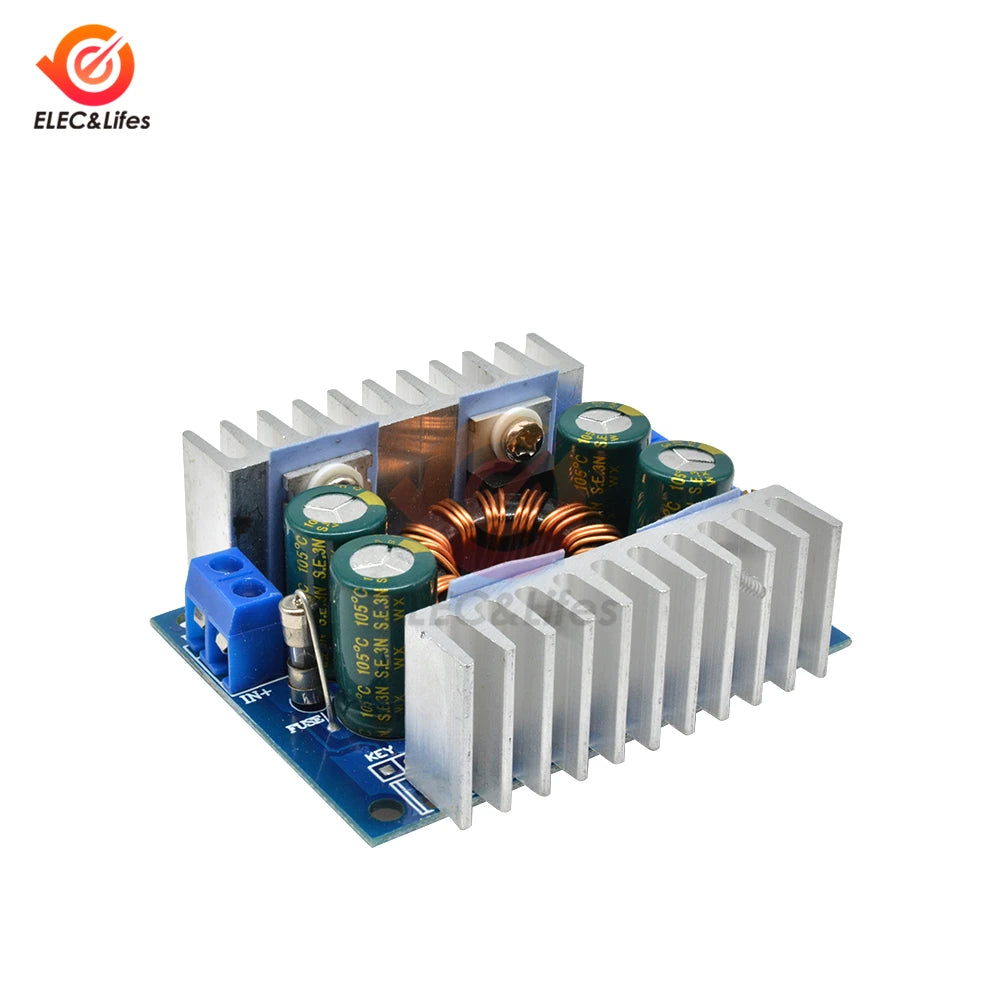

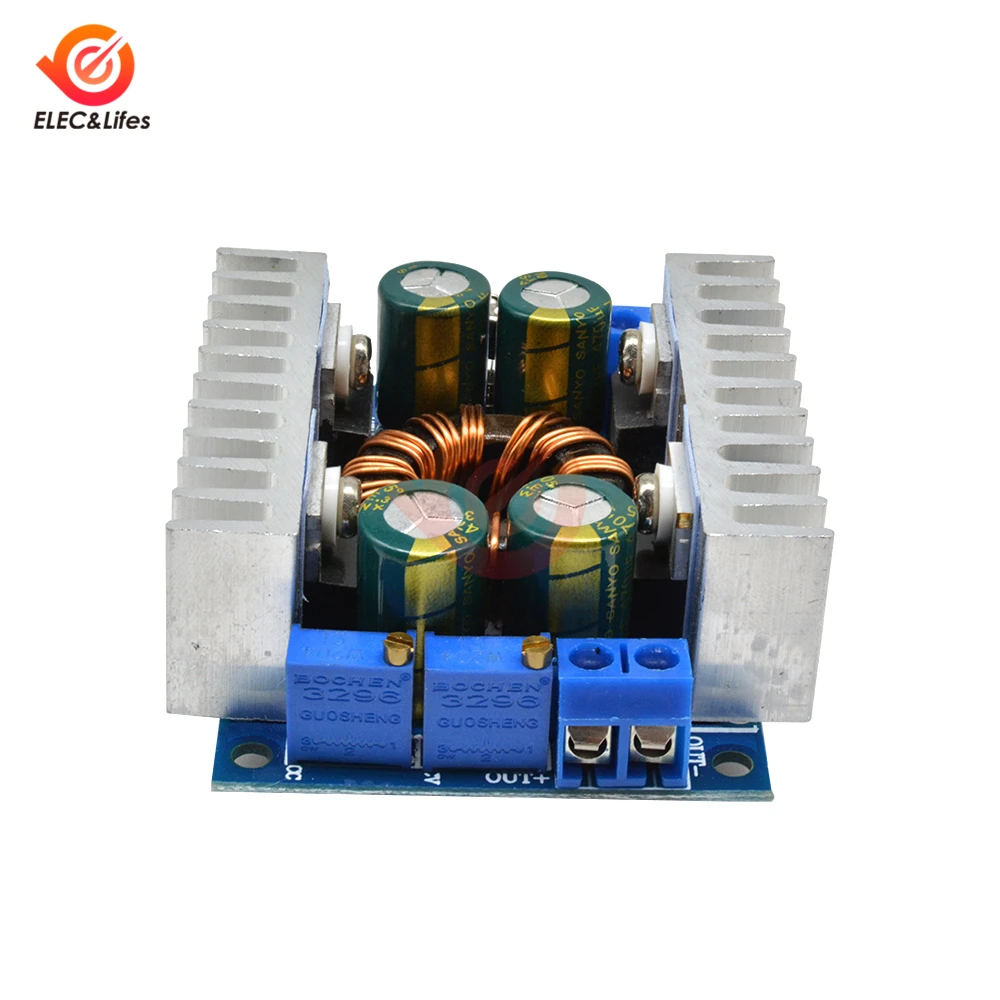

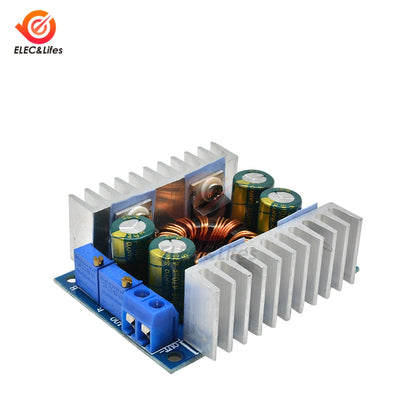

Módulo Fuente Alimentación Automática Step-Up/Down 8A/10A Pico CC/CV Ajustable Boost/Buck para Auto

Módulo Fuente Alimentación Automática Step-Up/Down 8A/10A Pico CC/CV Ajustable Boost/Buck para Auto

$11.878 CLP
$14.878 CLP $11.878 CLP
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.
Default Title

SPECIFICATIONS

Brand Name: Aideepen

Certification: CE

Choice: yes

Current Type: DC

Hign-concerned Chemical: None

Input voltage: DC 5-30V

Model Number: DC-DC Step up down power Supply module

Origin: Mainland China

Output voltage: DC 1.25-30V Continuously adjustable

Phase: single phase

Type1: DC 5-30V To DC 1.25-30V Adjustable Power Supply

Type2: CC/CV step up down module

Type3: DC 5-30V to DC 1.25-30V adjustable Voltage Regulators/Stabilizers

Usage: Boost Buck Converter power Module

Use1: Used for car vehicle voltage regulator

Use2: Solar board small regulator

Use3: DIY Adjustable power supply

Use4: for LED Driver

Use5: for small battery charging

is_customized: Yes

semi_Choice: yes

Module parameters:

Input voltage: DC5-30V
Input current: 8A (MAX) for peak 10A (6A working for a long time)
Quiescent current: 4mA (different operating voltage will cause errors)
Output voltage: 1.25-30V continuously adjustable
Output current: 10A (MAX) (long-term natural heating within 5A)
Output current range: 0.2-10A
Operating temperature: -40 to +85 degrees
Working frequency: 150KHz
Conversion efficiency: typical 91% (12V to 12V5A) maximum 93%
Overcurrent protection: where
Short circuit protection: (Limited protection)
Over-temperature protection: (Automatically reduces output voltage after overheating)
Input reverse polarity protection: None, (if necessary, please enter a diode in series)
Output anti-backflow: Yes, no charging and blocking diode are required.
Connection: terminal output, (IN is input, OUT output)

Output current adjustment method:

1. CV potentiometer adjustment, according to your load requirements, the output voltage is set to the voltage value you need.
2, CC potentiometer is located about 30 turns counterclockwise (that is, the output current is set to the minimum), connected to the LED,
Potentiometer CC is tuned to the required current. After charging the battery, the battery is completely discharged,
Then output, adjust to the current CC you want,
(Be sure to fully discharge the battery before allowing the transfer, as the battery power is left at a higher level,
The charging current is small. )
Please do not use the short-circuit current transmission method, the circuit structure of the module cannot be short-circuit transmission method

Package Included:

1 *Automatic boost step-down adjustable power module
