SPECIFICATIONS

Brand Name: Gaqqee

Certification: CE

DIY Supplies: ELECTRICAL

Display Type: Digital Only

HD backlight screen: Yes

Hign-concerned Chemical: None

Live neutral and live wire: Yes

Low power prompt: Yes

Model Number: Digital Test Pencil

NCV voltage sensing: Yes

Origin: Mainland China

voltage rang: 4V~600V

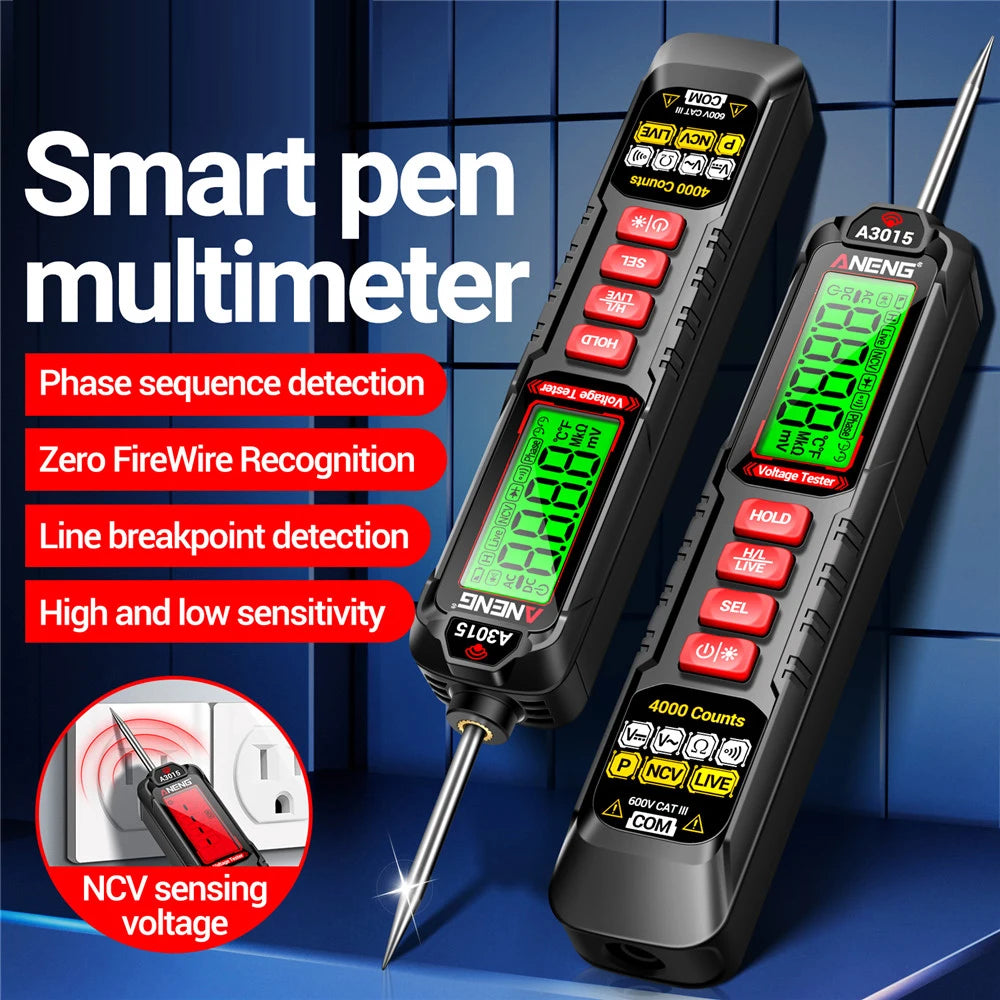

Features:

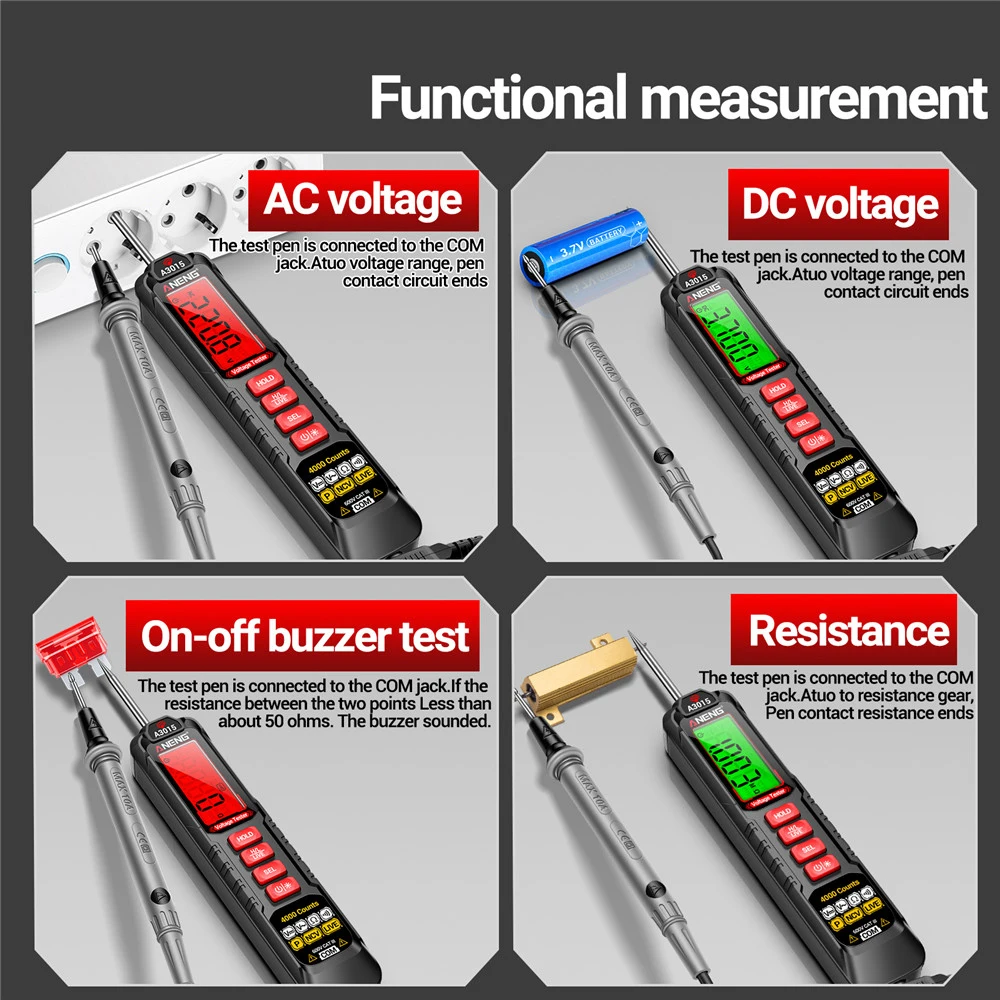

1. Multi-function real-time detection: supports ten tests such as AC/DC voltage, resistance, on/off, phase sequence, etc., one machine with multiple functions, easily cope with complex working conditions.

2. High-precision wide range: DC/AC 4V-600V accurate measurement, error as low as ±0.1%, meeting professional-level detection needs.

3. Intelligent breakpoint positioning: resistance <50Ω triggers buzzer + red light double prompt, quickly locks line breakpoints, and improves troubleshooting efficiency by 50%.

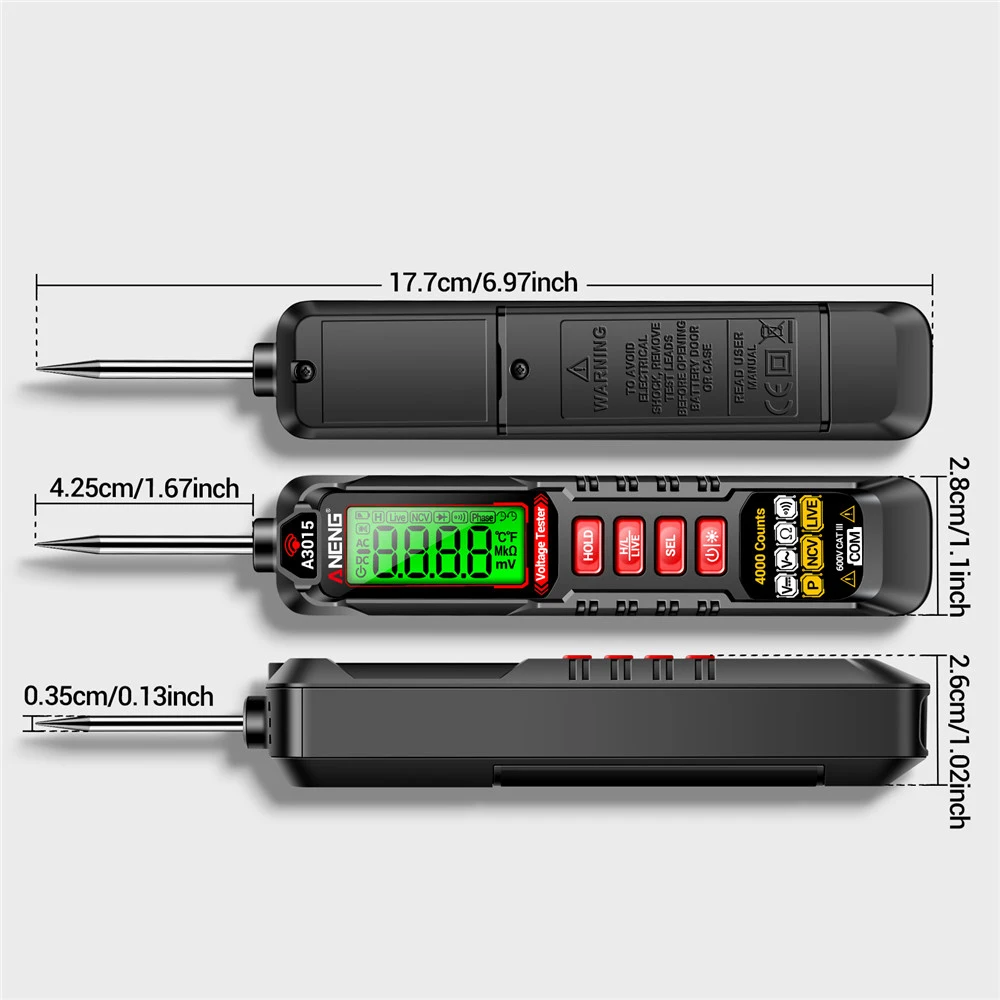

4. Durable and portable design: The metal probe is anti-oxidation and wear-resistant, and the ABS body is only the size of a palm, which is easy to carry for outdoor operations.

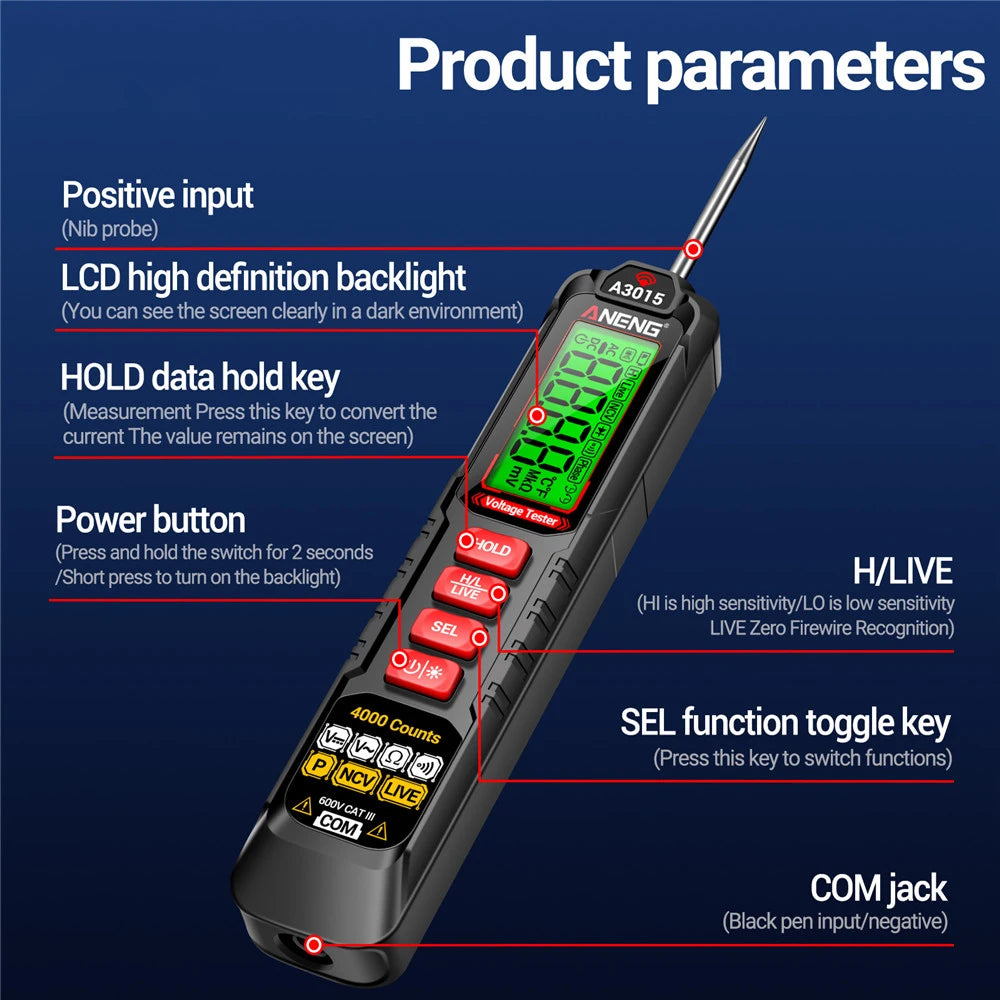

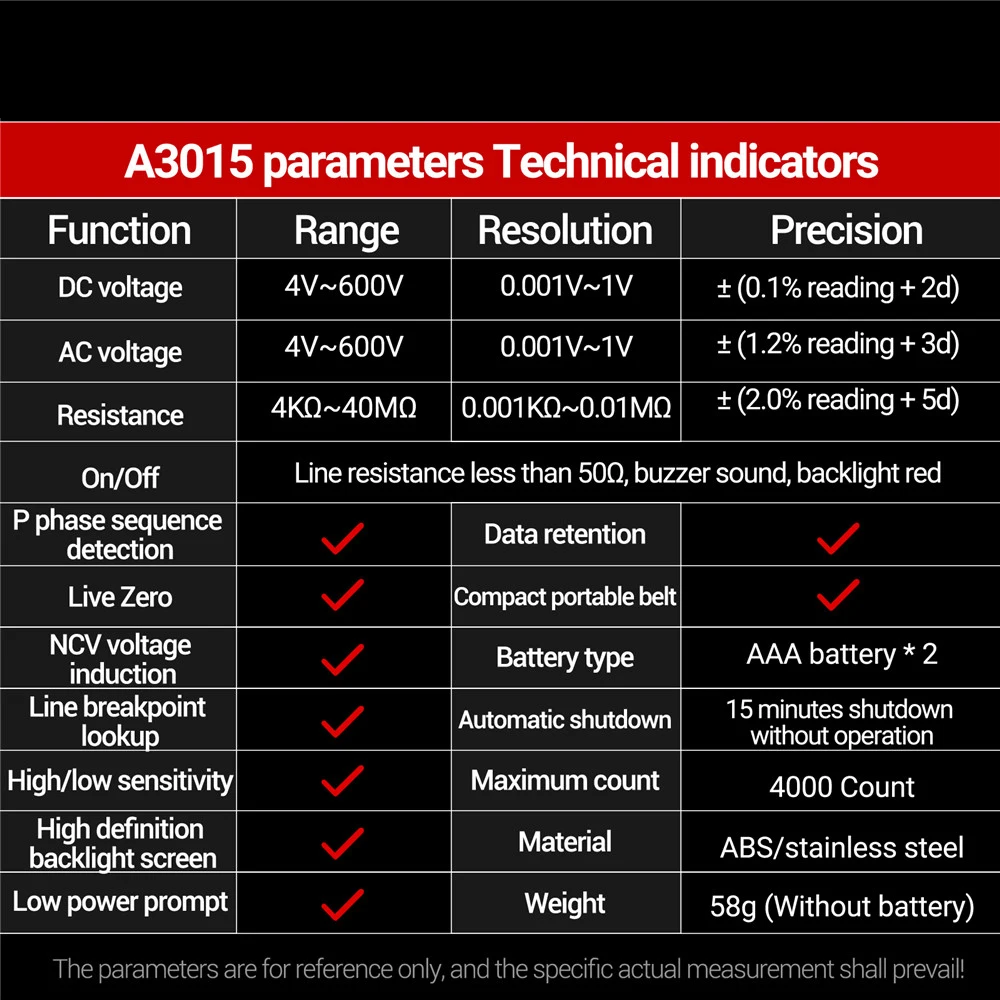

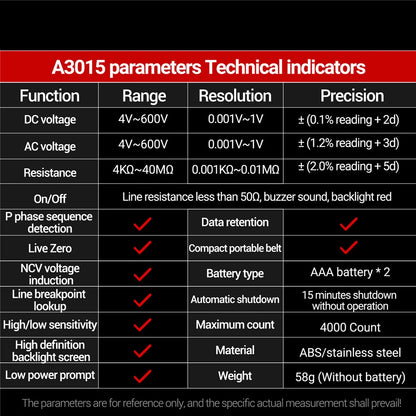

Parameters:
DC voltage: 4V~600V, resolution 0.001V~1V, accuracy ±(0.1% reading + 2 characters)
AC voltage: 4V~600V, resolution 0.001V~1V, accuracy ±(1.2% reading + 3 characters)
Resistance: 4KΩ~40MΩ, resolution 0.001KΩ~0.01MΩ, accuracy ±(2.0% reading + 5 characters)
On/off: If the resistance of the measured circuit is less than 50Ω, the buzzer inside the meter will sound, and the backlight will turn red when it is turned on

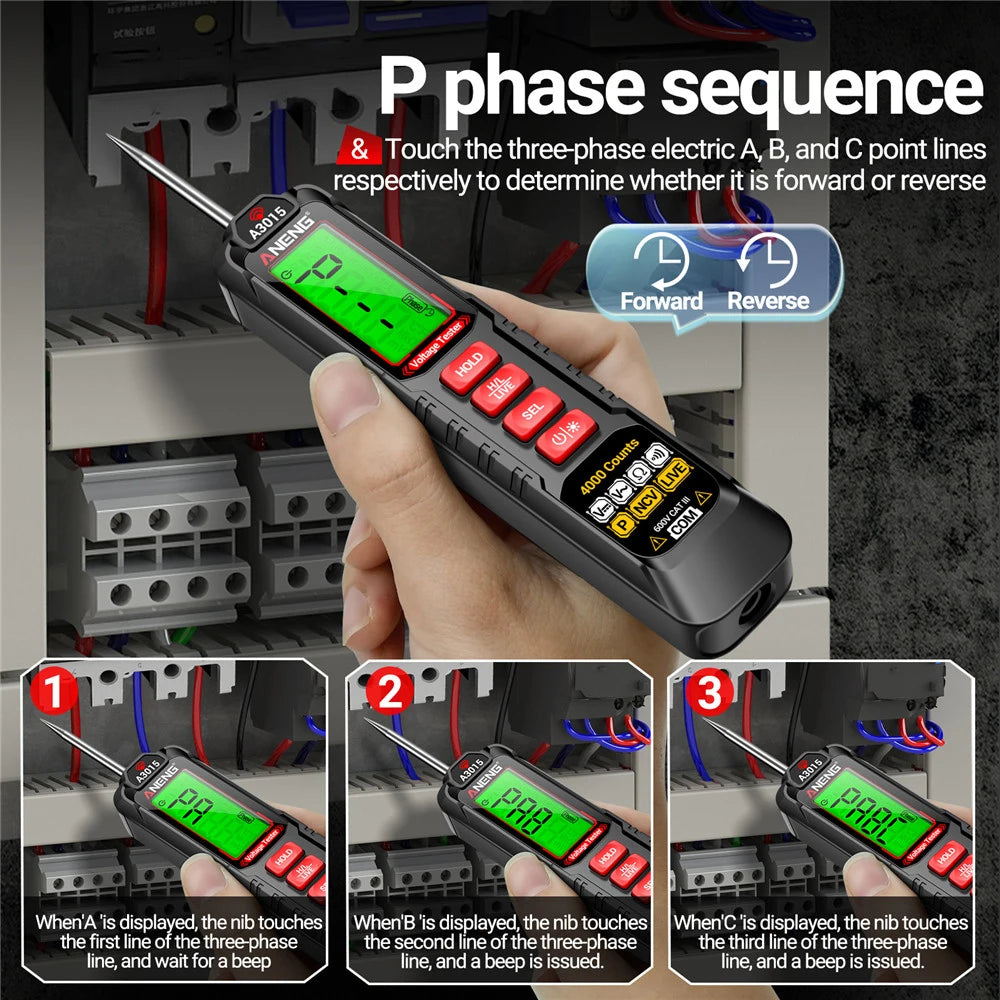

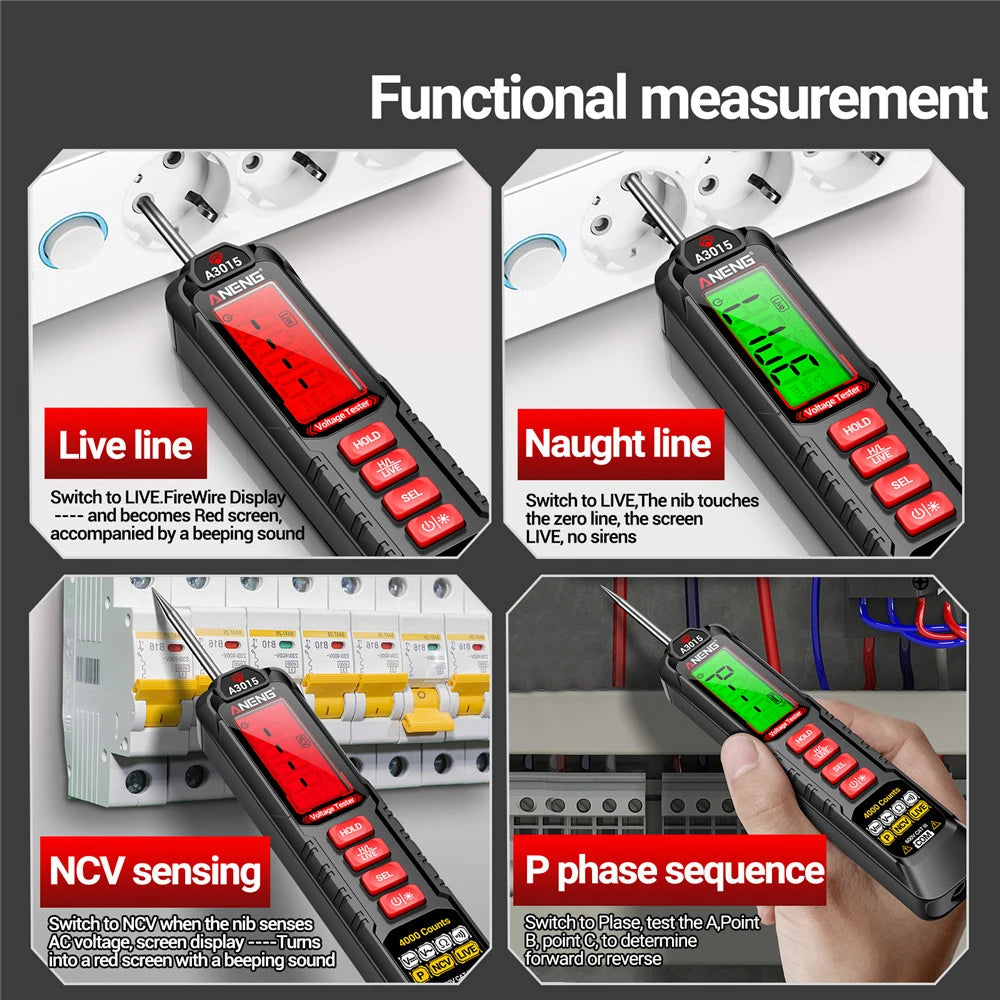

P phase sequence detection: √

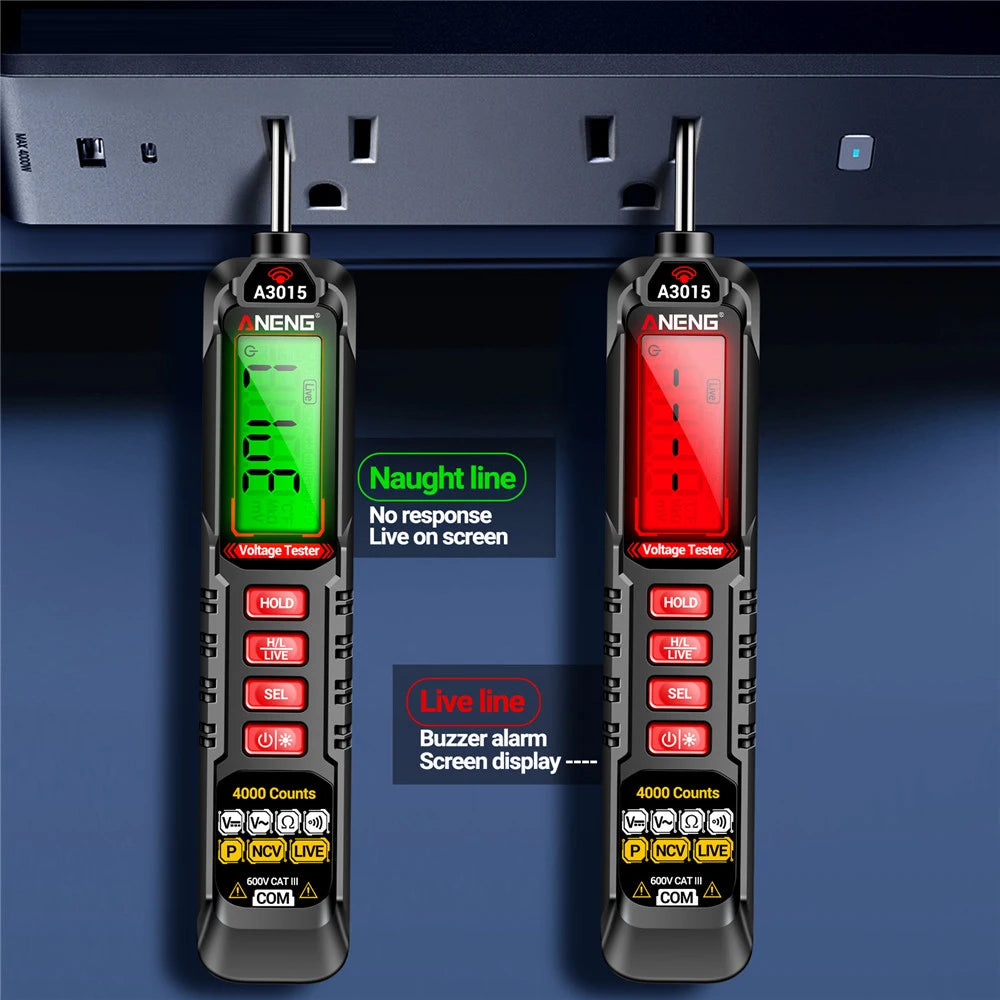

Live zero and live wire: √
NCV voltage sensing: √

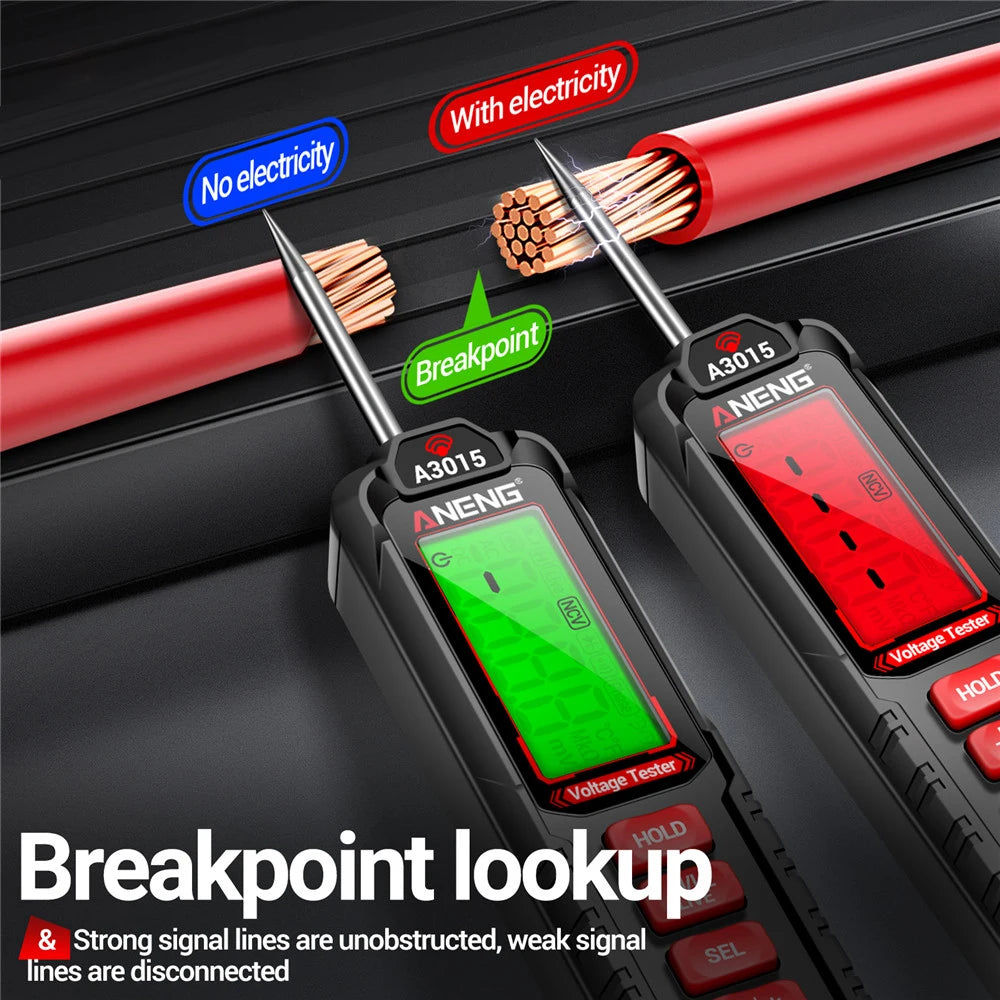

Line breakpoint search: √

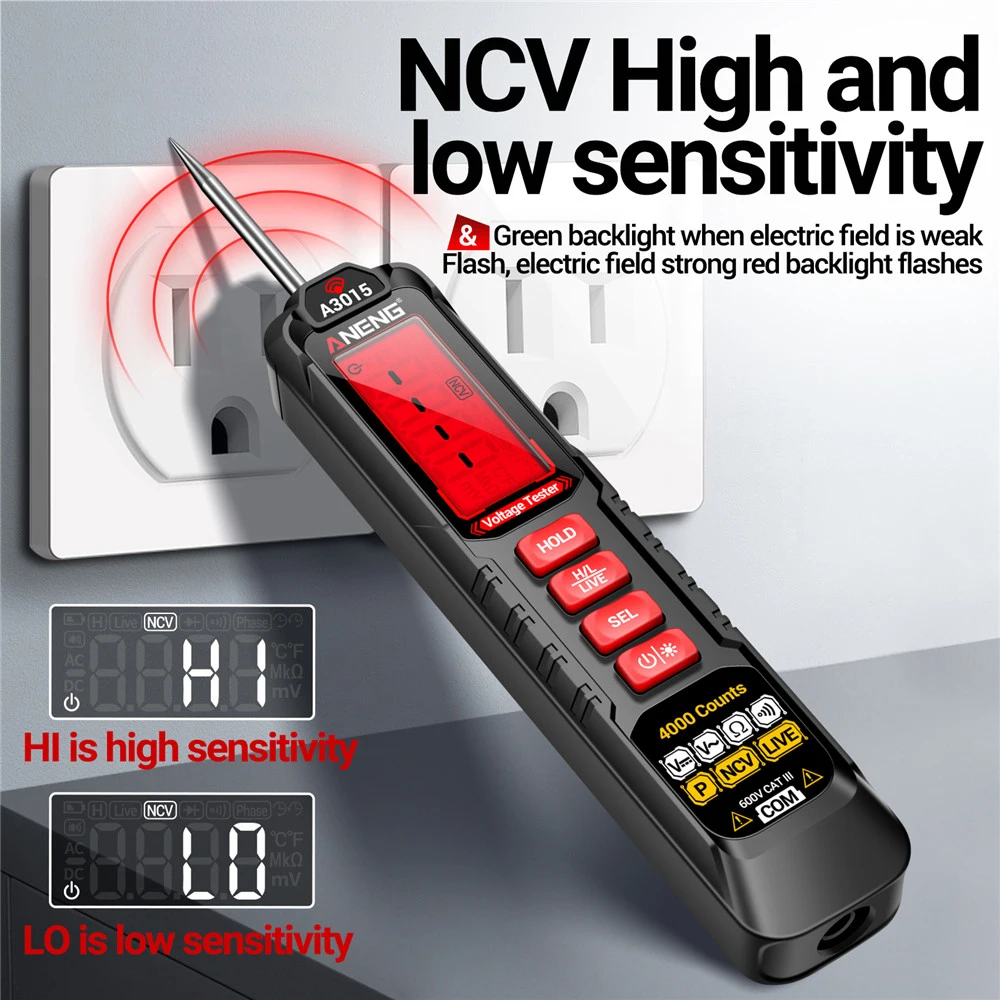

High/low sensitivity: √
HD backlight screen: √
Low power prompt: √
Data retention: √

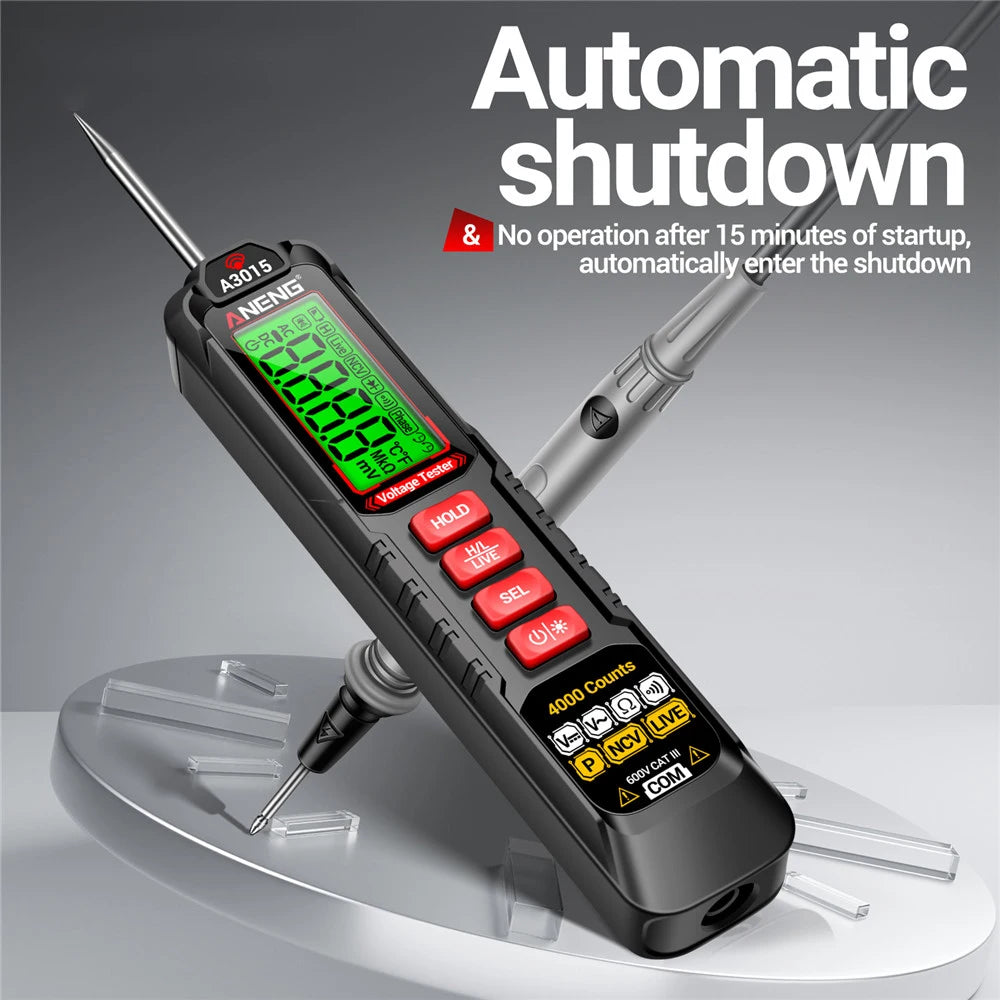

Automatic shutdown: √
Maximum count: 4000 counts
Material: ABS/stainless steel
Power supply: A3015 AA*2 (batteries not included in delivery),

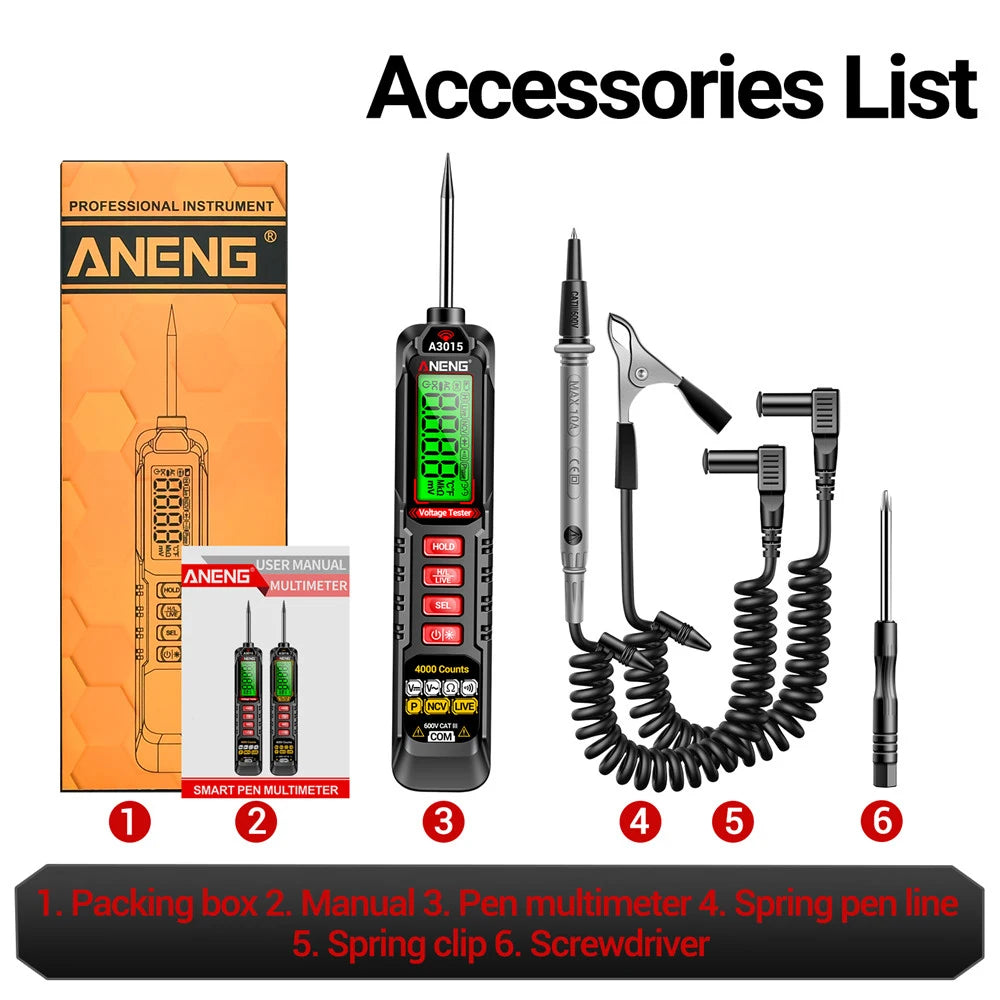

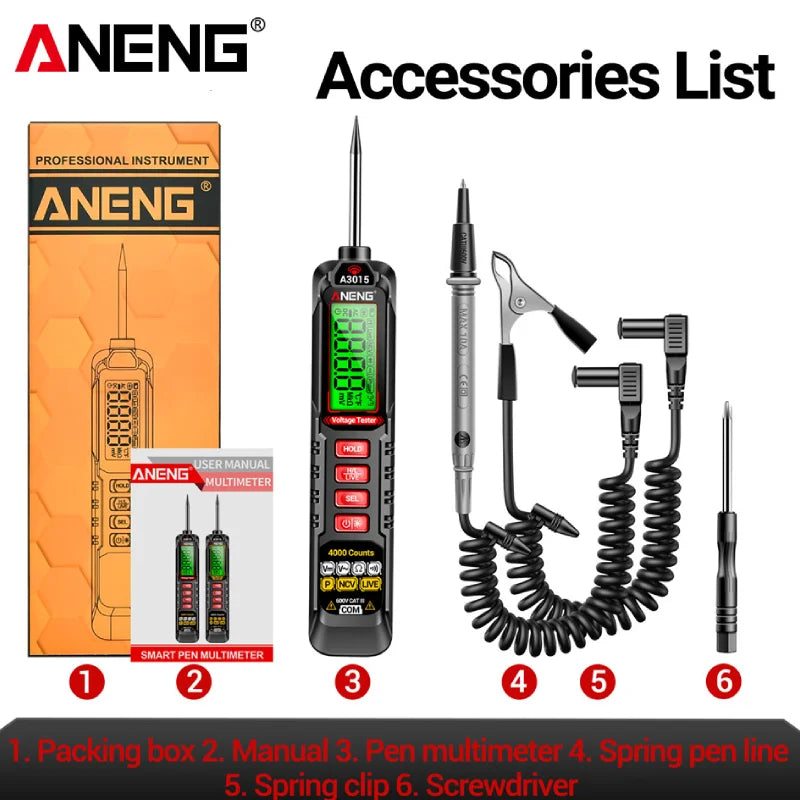

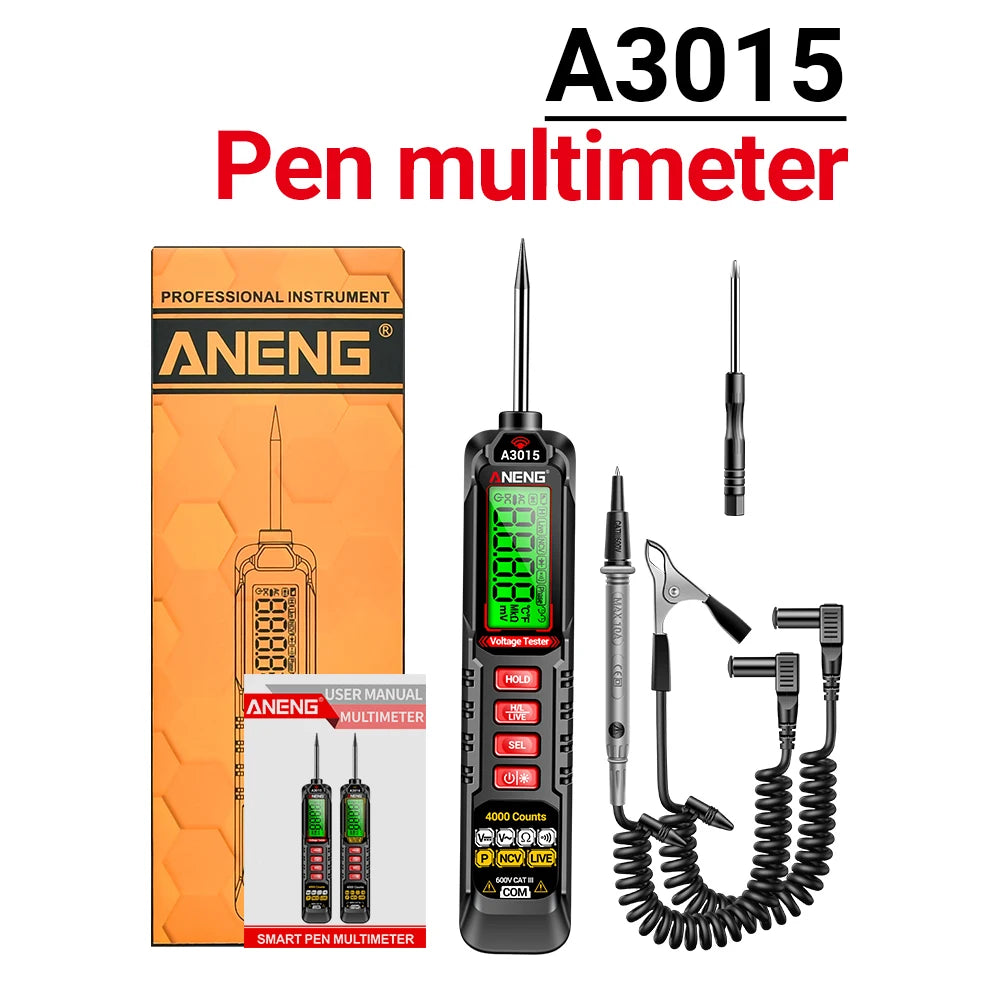

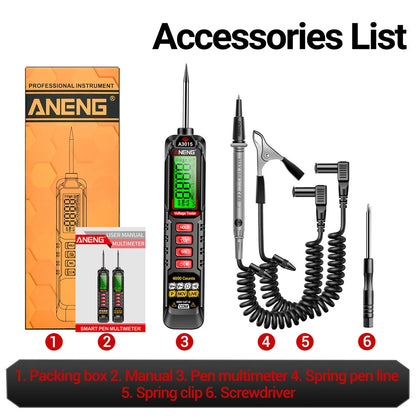

Package includes:
Host*1
Instruction manual*1

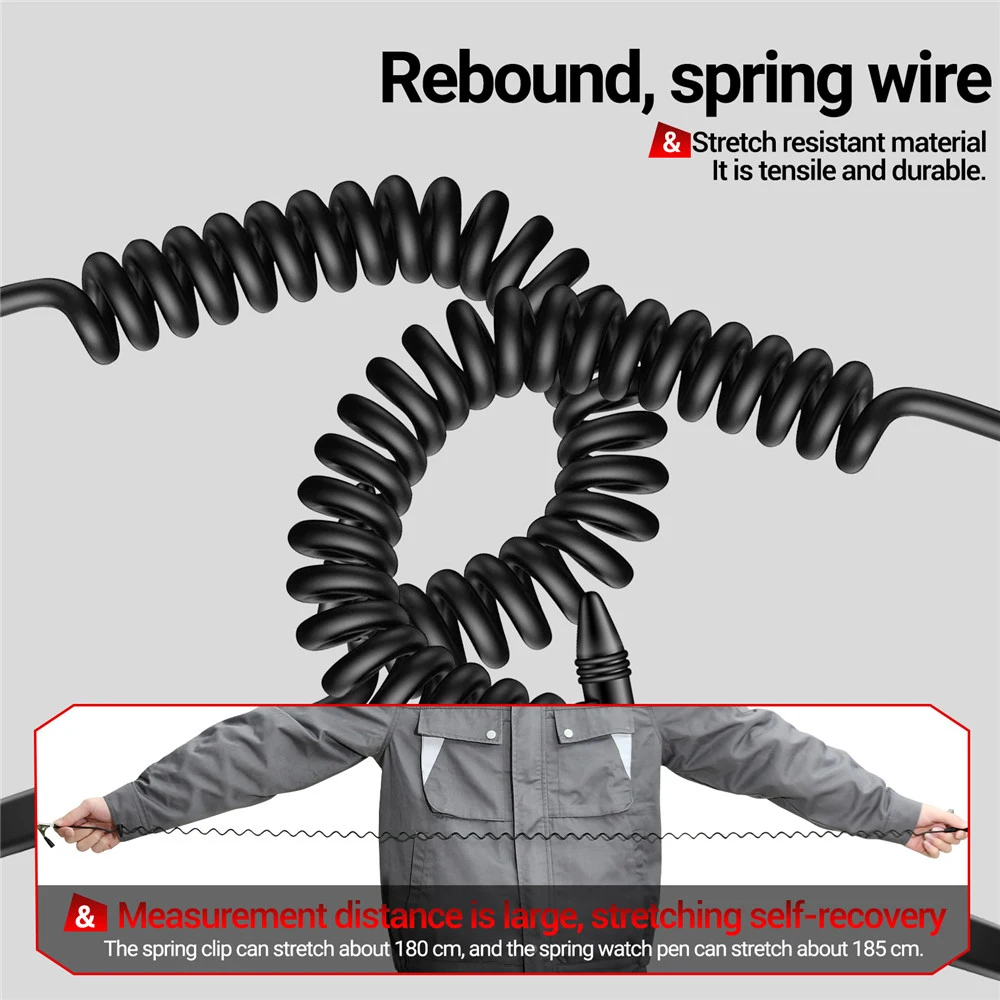

Spring test lead*1
Spring clip*1
Screwdriver*1
