Transmisor/Transductor Corriente AC/DC 0-10A a 150A a 0-10V/0-5V/4-20mA Agujero 8mm/12mm DC24V
Transmisor/Transductor Corriente AC/DC 0-10A a 150A a 0-10V/0-5V/4-20mA Agujero 8mm/12mm DC24V
No se pudo cargar la disponibilidad de retiro

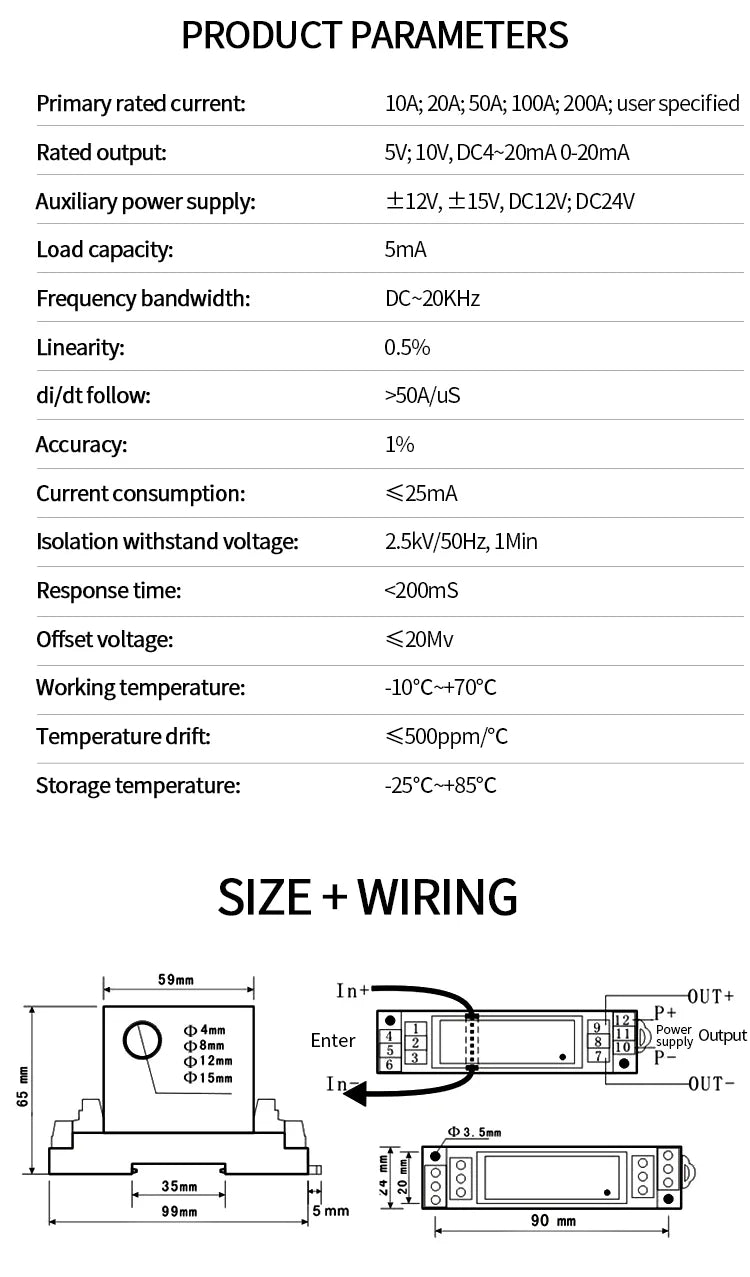

SPECIFICATIONS
Accuracy Class: 0.2%
Brand Name: NoEnName_Null
Certification: CE,FCC,RoHS
Choice: yes
Code: JXK-14 AC/DC Current Sensor Transmitter
DIY Supplies: ELECTRICAL
Dimensions: 24*99*70
Display Type: Analog Only
Full-load Consumption: 1w
Hign-concerned Chemical: None

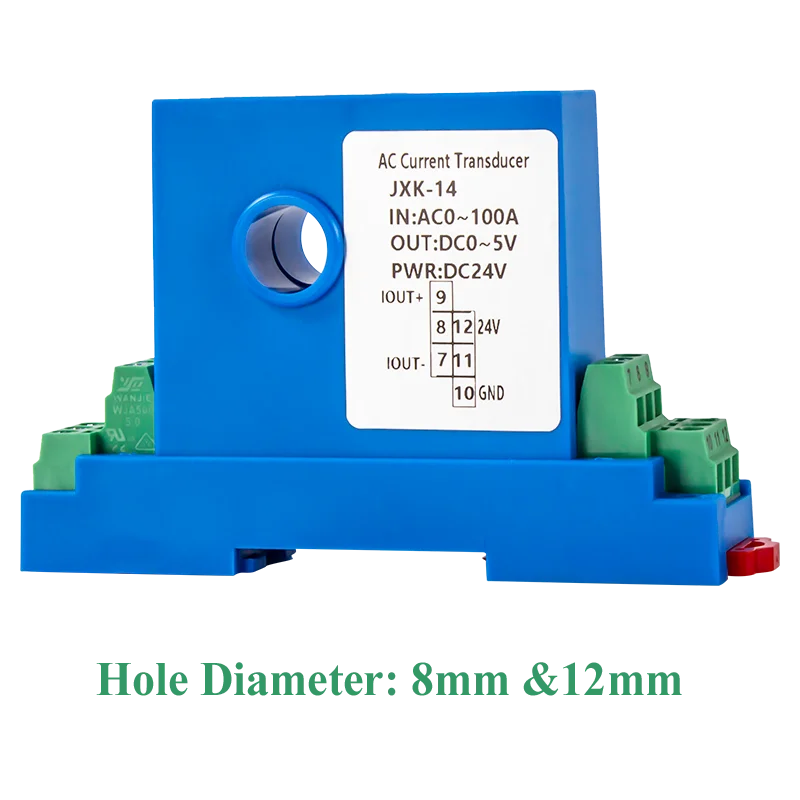

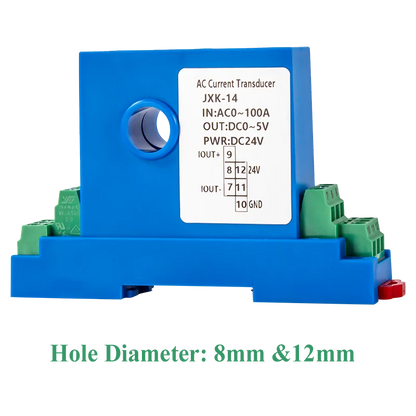

Hole Diameter: 8mm/12mm

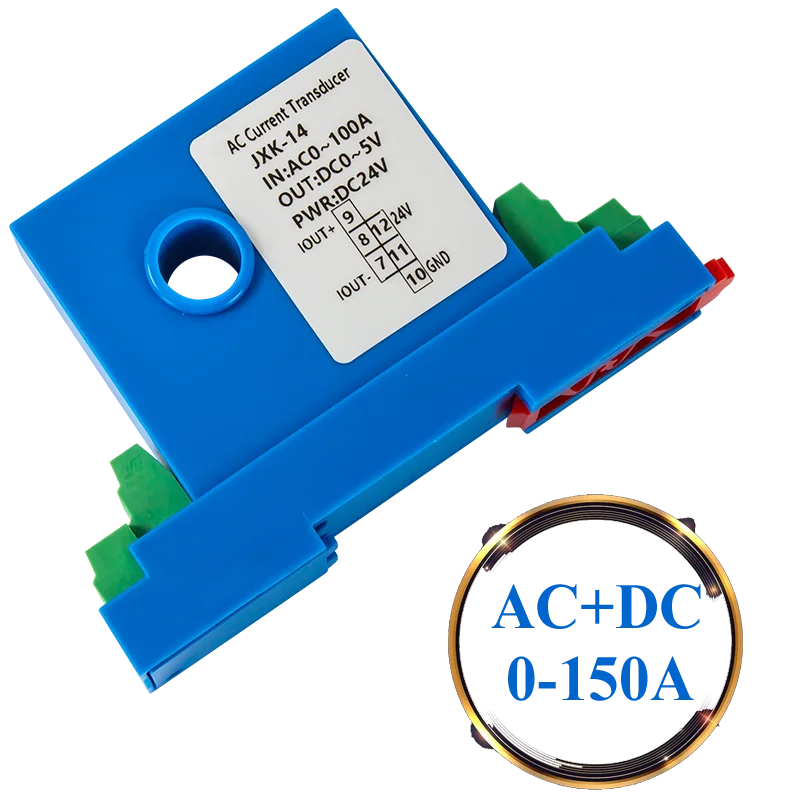

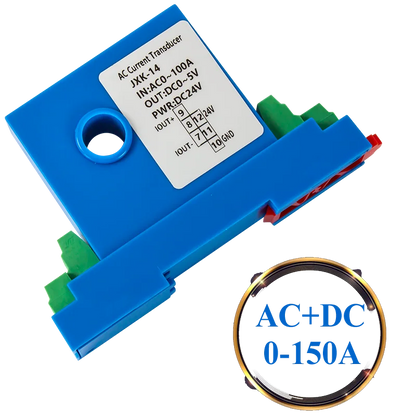

Input: AC/DC 0-10A-20A-50A-100A-150A

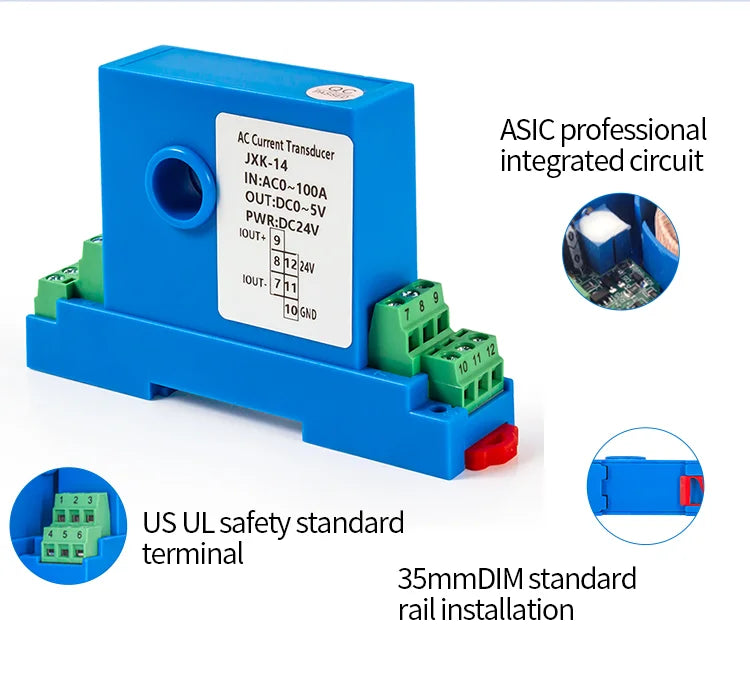

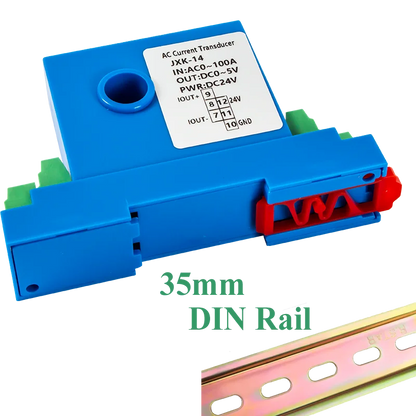

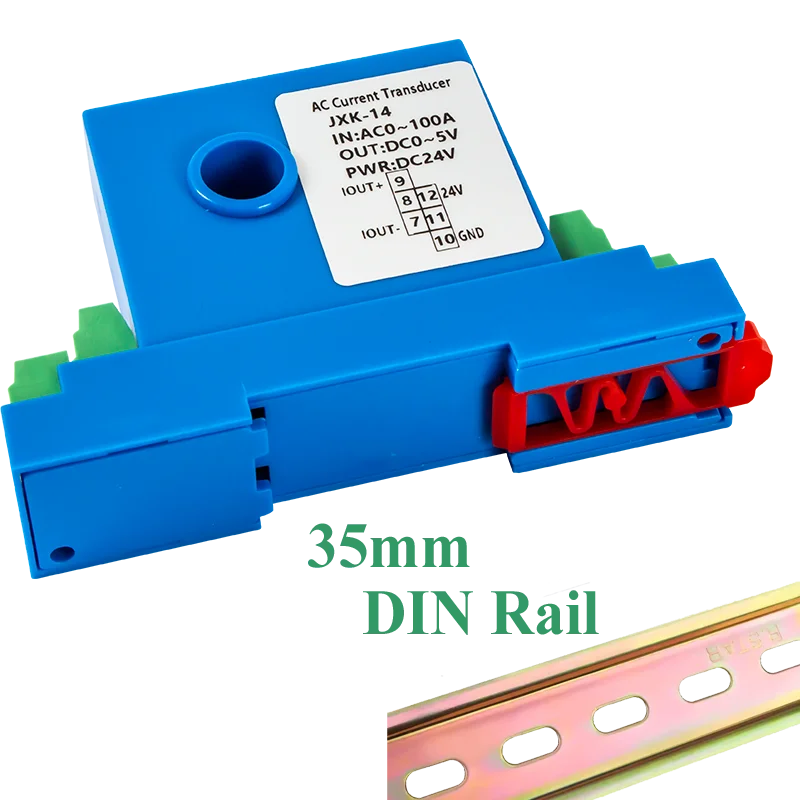

Installation: 35MM DINRail & Screw Mounting
Linearity: 0.1%
Model Number: JXK-14
Operating Temperature: -20~60℃
Origin: Mainland China

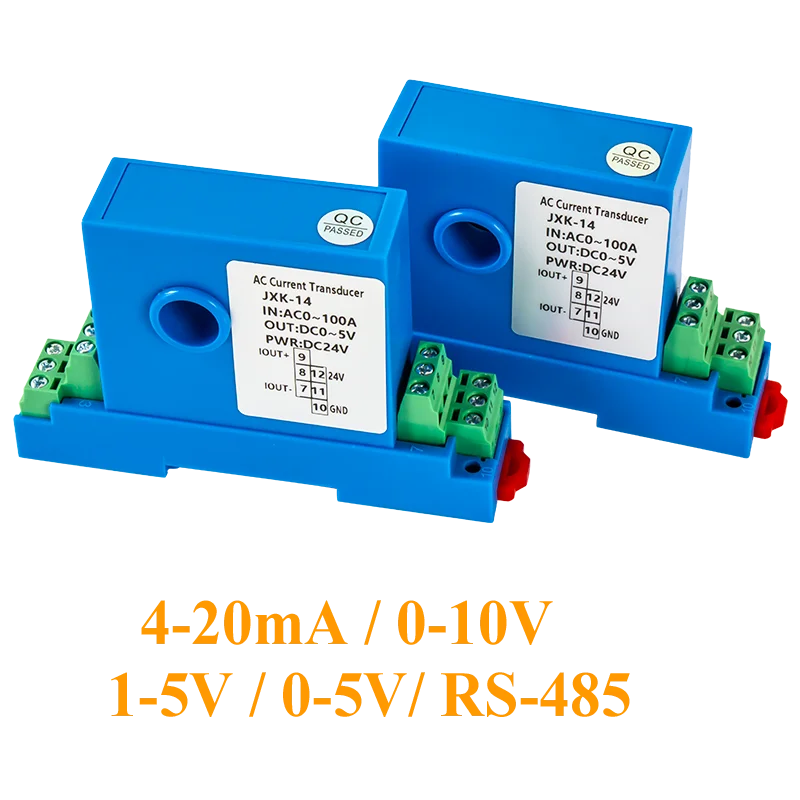

Output: 4-20mA/0-10v/1-5v/0-5v/rs485

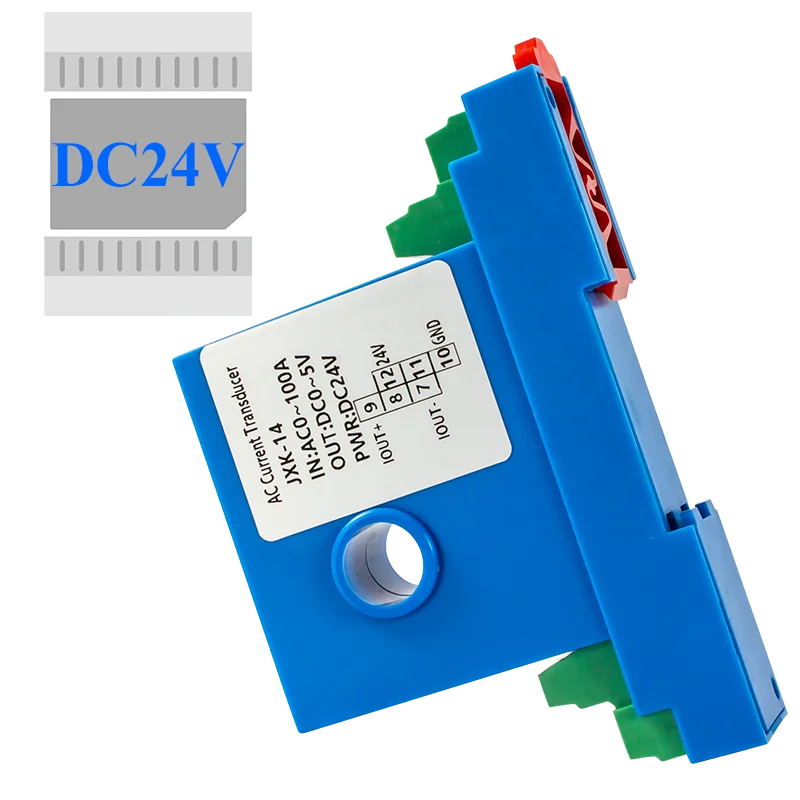

Power Supply: DC24V,DC
Response Time: 50ms
Temperature: 100ppm/℃
semi_Choice: yes

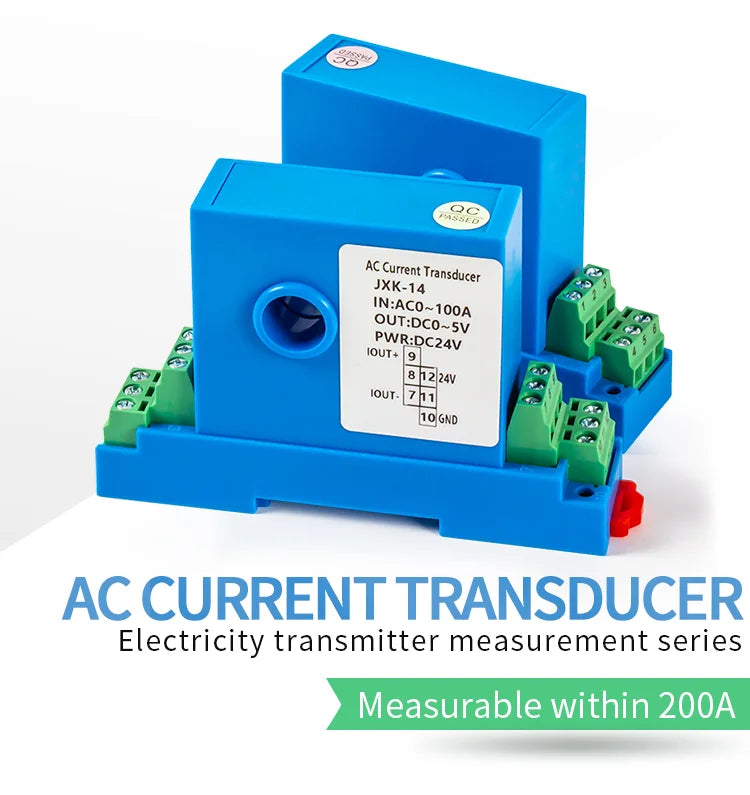

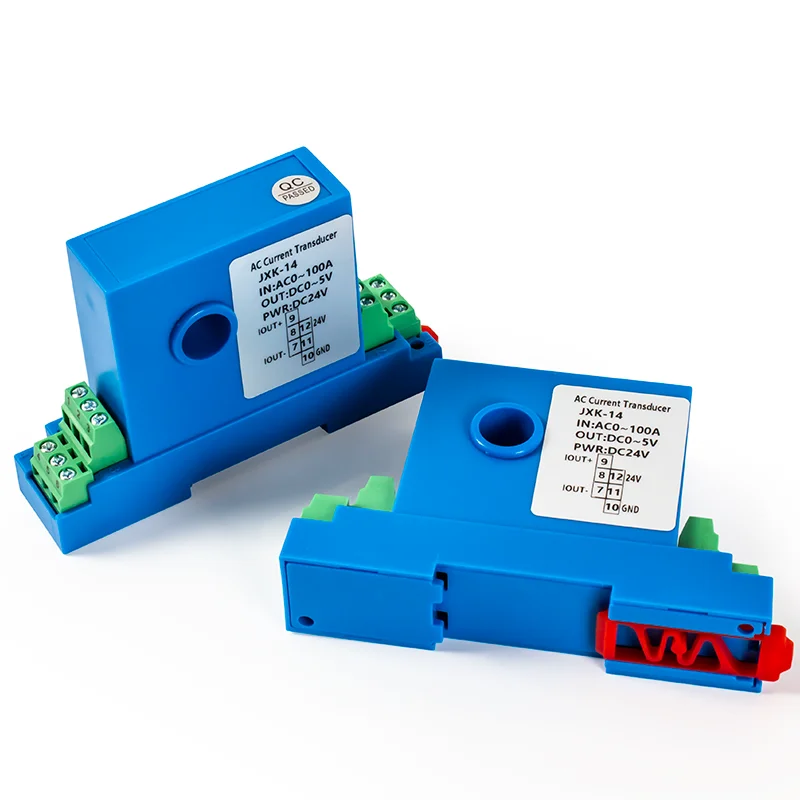

JXK-14 Close Loop AC/DC Current Transmitter 0-150A to 4-20mA 0-10v RS485
1. Measurement Range From 0 to 150A, Support Customzied . LIke 0-80A/ 100-150A/ 70-150A etc
2. Output Signal : 4-20mA/0-10v/1-5v/0-5v/RS-485
3. Power Supply . DC24V Default. also supply DC5V DC12V DC15V ±15V DC12-28V Wide Voltage Power .
Please Contact me if you need Customzied. Thanks
