SPECIFICATIONS

Brand Name: Aideepen

Certification: None

Hign-concerned Chemical: None

Model Number: Buck Converter

Origin: Mainland China

Output Current: As Description

Output Frequency: As Description

Output Power: 1 - 50W

Output Type: As Description

Size: As Description

Type: DC/DC Converters

Weight: As Description

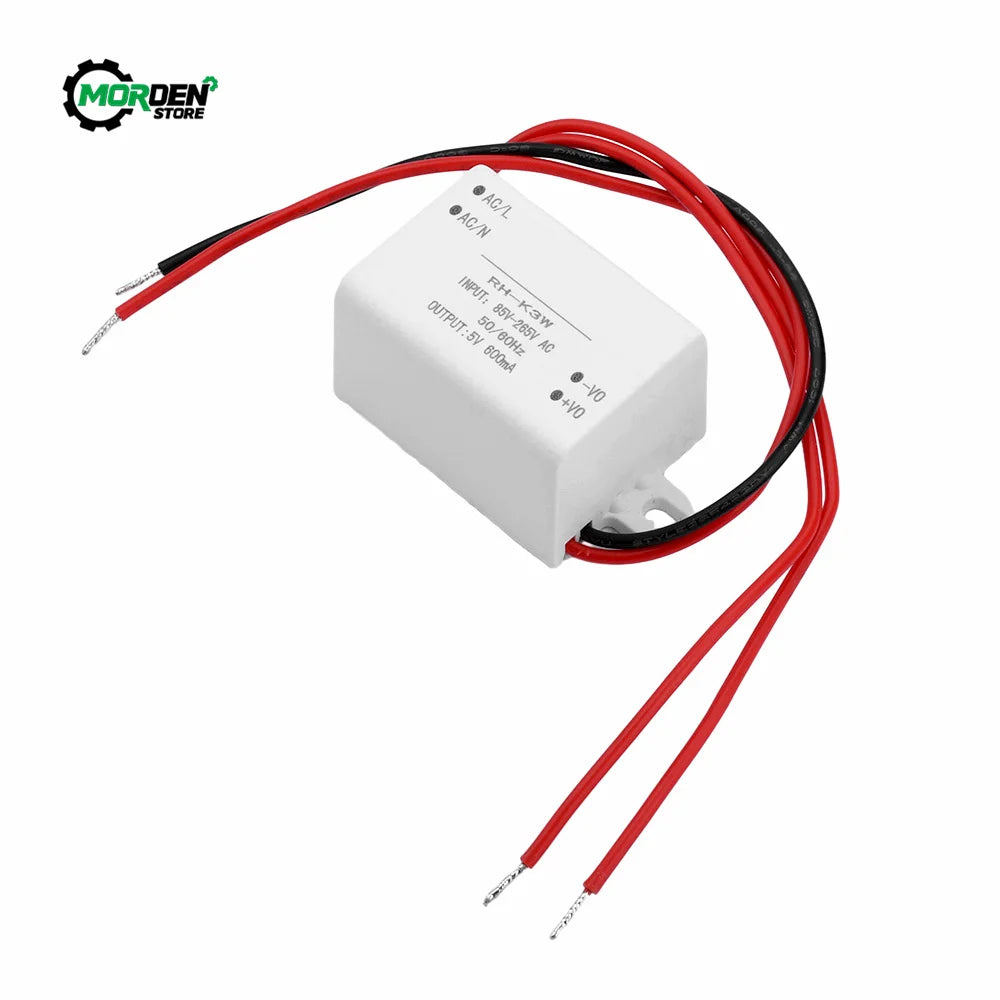

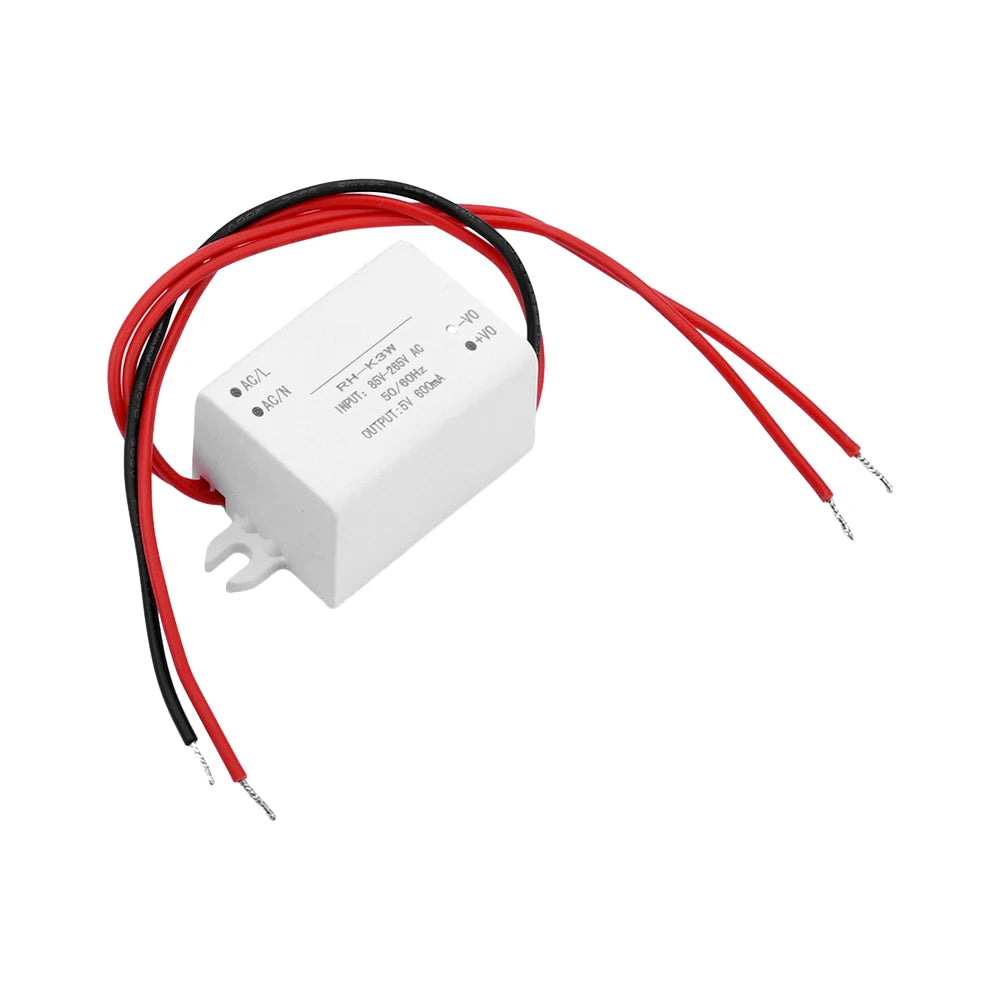

AC-DC Module AC 110V 220V 230V To DC 5V 12V 24V Buck Converter Power Supply AccessoriesAC-DC Module AC 110V 220V 230V To DC 5V 12V 24V Buck Converter Power Supply AccessoriesAC-DC Module AC 110V 220V 230V To DC 5V 12V 24V Buck Converter Power Supply AccessoriesAC-DC Module AC 110V 220V 230V To DC 5V 12V 24V Buck Converter Power Supply AccessoriesAC-DC Module AC 110V 220V 230V To DC 5V 12V 24V Buck Converter Power Supply AccessoriesAC-DC Module AC 110V 220V 230V To DC 5V 12V 24V Buck Converter Power Supply AccessoriesAC-DC Module AC 110V 220V 230V To DC 5V 12V 24V Buck Converter Power Supply Accessories

Feature:

1. Use high-quality materials, durable

2. Brand new IC solution, sufficient materials, accurate voltage stabilization output, sufficient power and current

3. With overload, short circuit and over-temperature protection; stable performance and long service life

4. Input and output high and low voltage isolation, low output ripple noise and higher efficiency

5. This product has undergone a full-load aging test before leaving the factory. It is small in size, full-featured, and has a wide range of uses.

parameter:

AC input: AC85-265V

DC input: DC120-374V

Frequency range: 47-63Hz

Inrush current: Cold start: 10A/220VAC

Leakage current: <2mA/220VAC

Standby power consumption: ≦150mV/230VAC

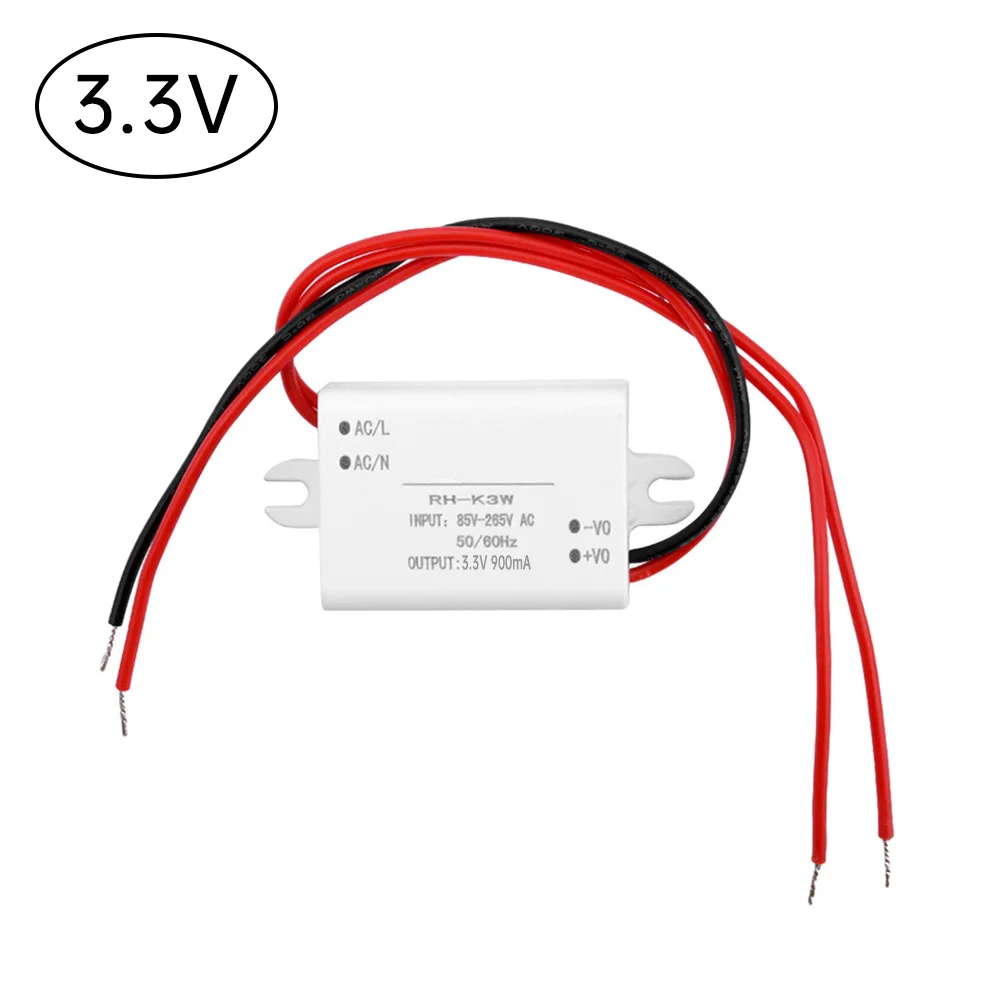

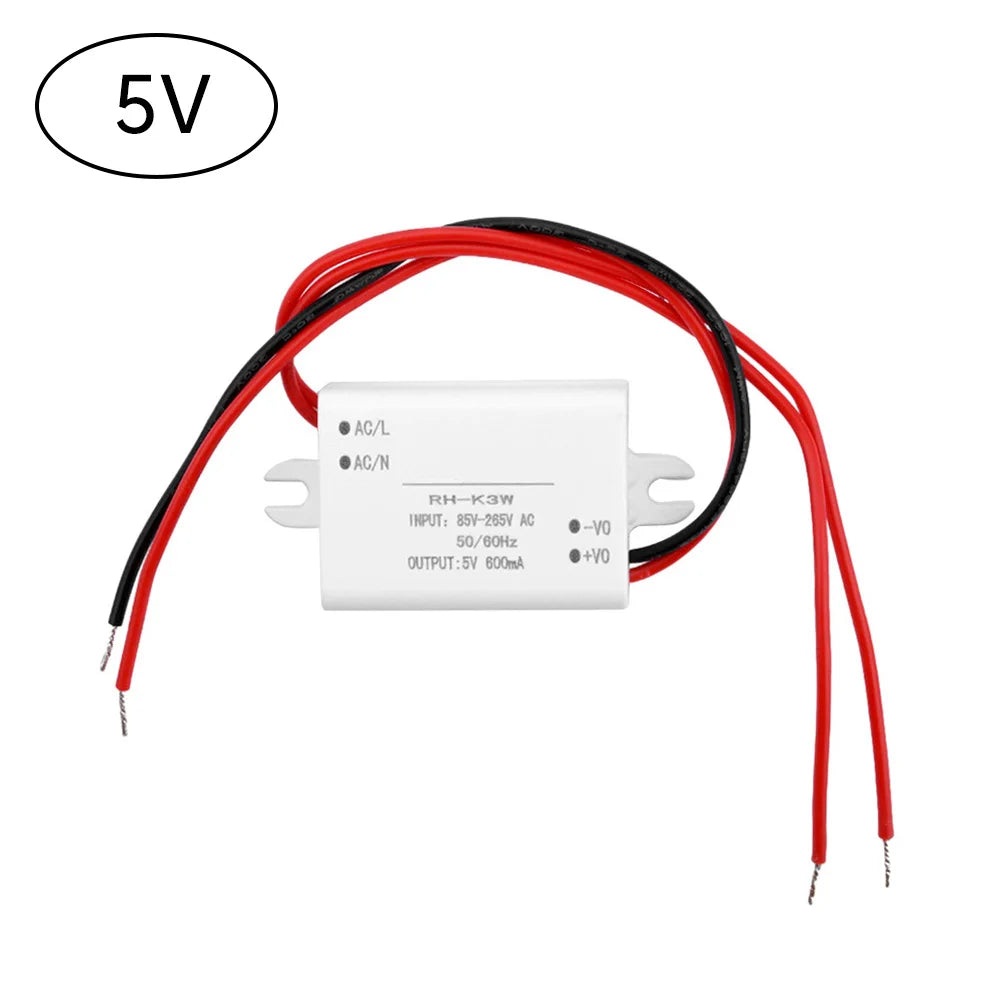

Output voltage: 3.3V/5V/12V (optional)

Rated current: 1A/0.6A/0.3A

Current range: 0-1000ma/0-600ma/0-300ma

Rated power: 3W

Efficiency: 77%/79%/86%

Output accuracy: ±1%

Voltage regulation: ±1%

Load regulation: ±1%

Ripple: ≦150mV

Switching overshoot: 10%

Precautions:

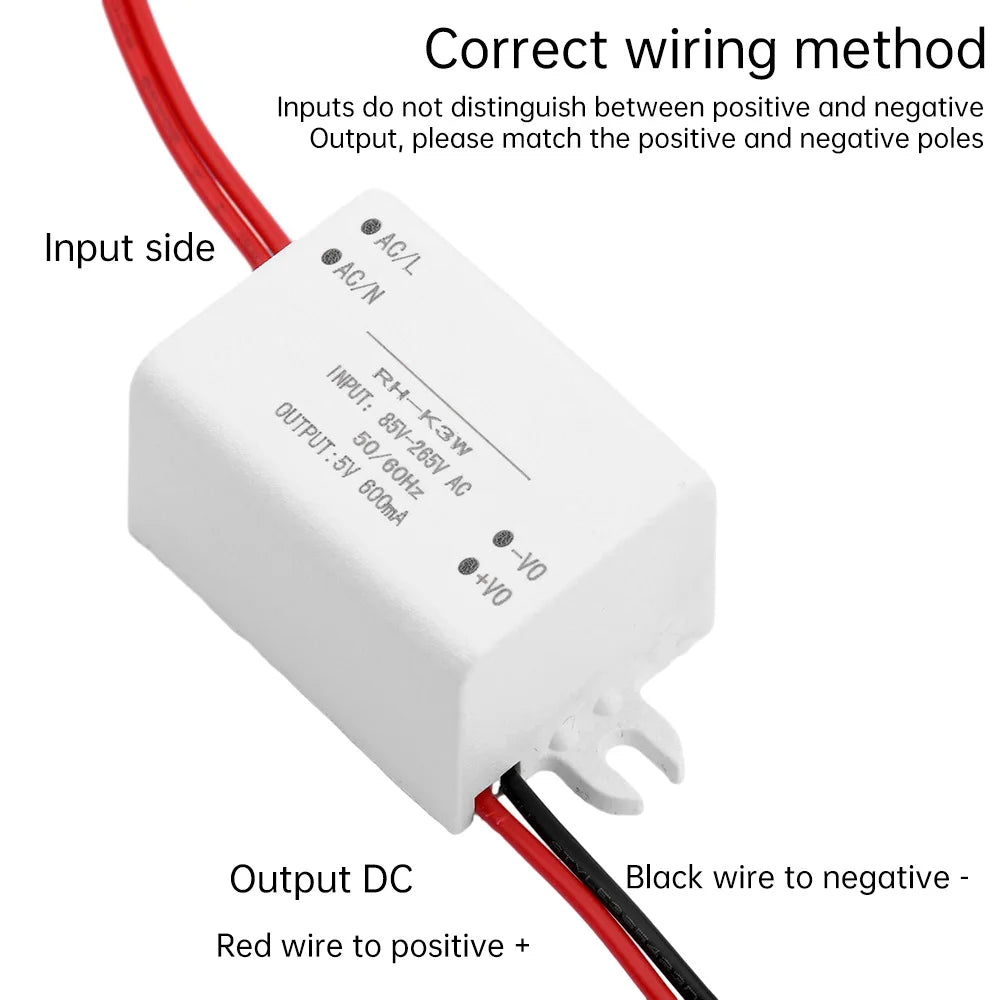

1. Before powering on, check whether the input and output leads are correct to avoid damaging the equipment and burning out the power supply.

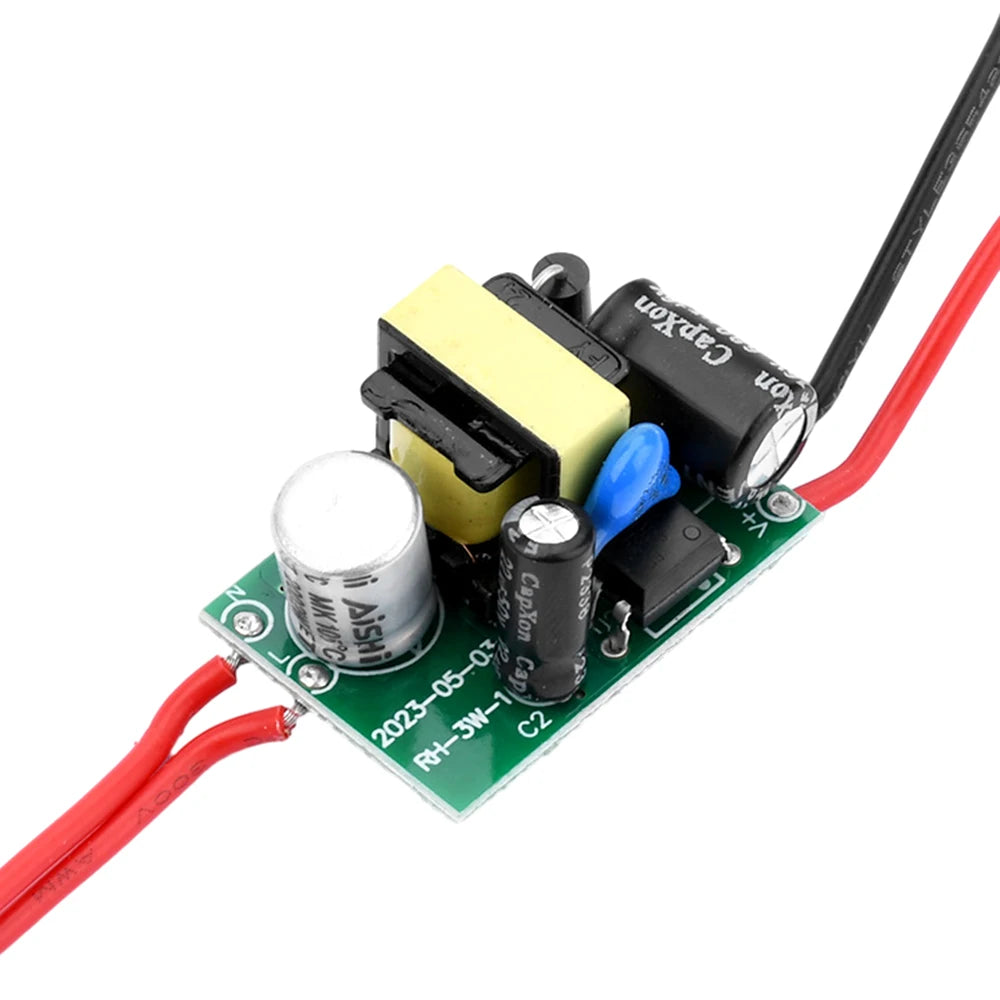

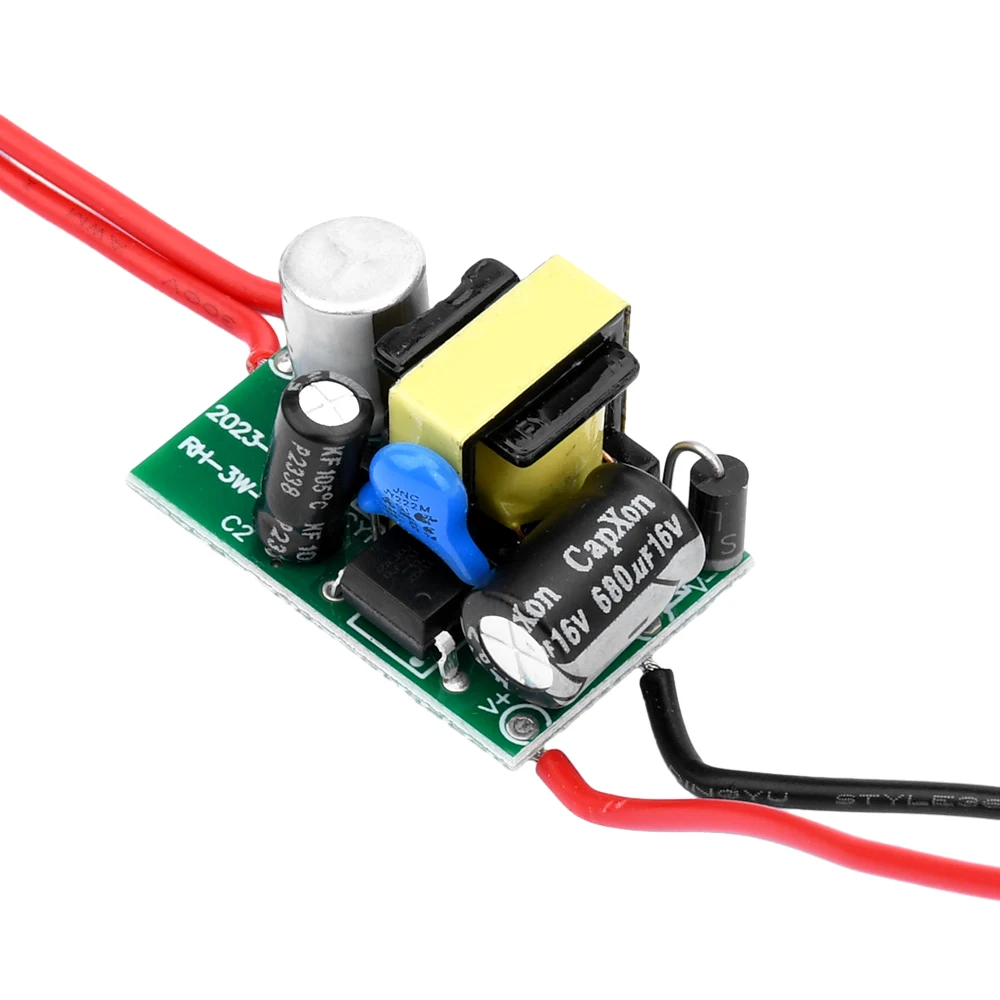

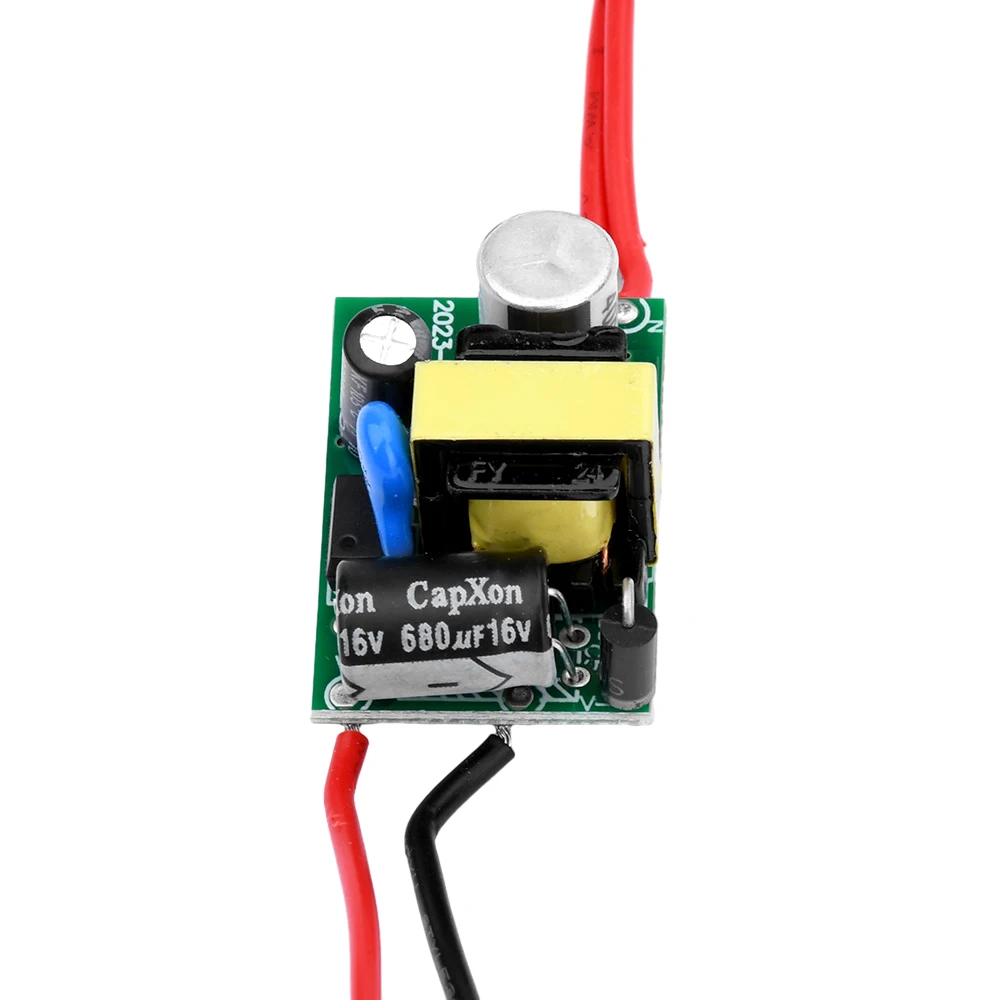

2. The component feet at the bottom of the bare board power supply board are conductive. Do not touch the bottom of the board with your hands during the test. It is necessary to place non-conductive things such as insulating rubber pads or clean paper on the bottom of the board to avoid the risk of electric shock and burning the power board.

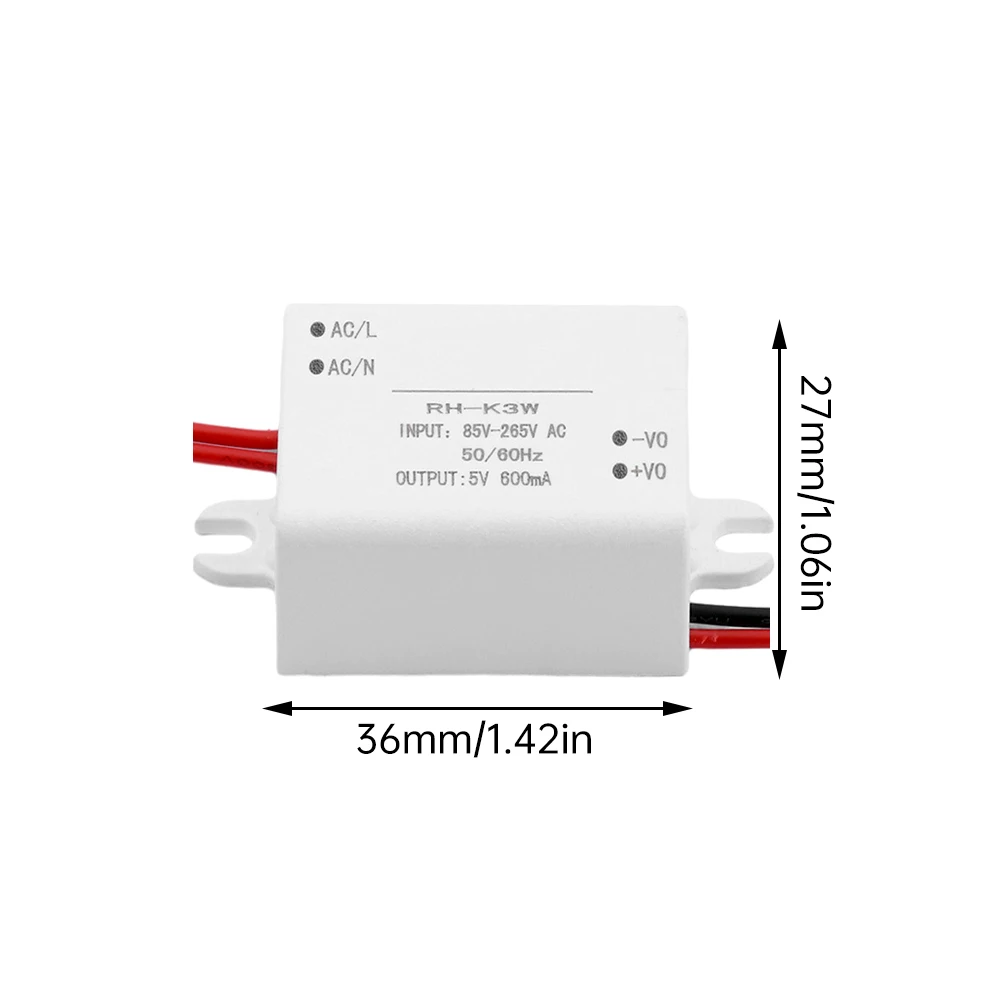

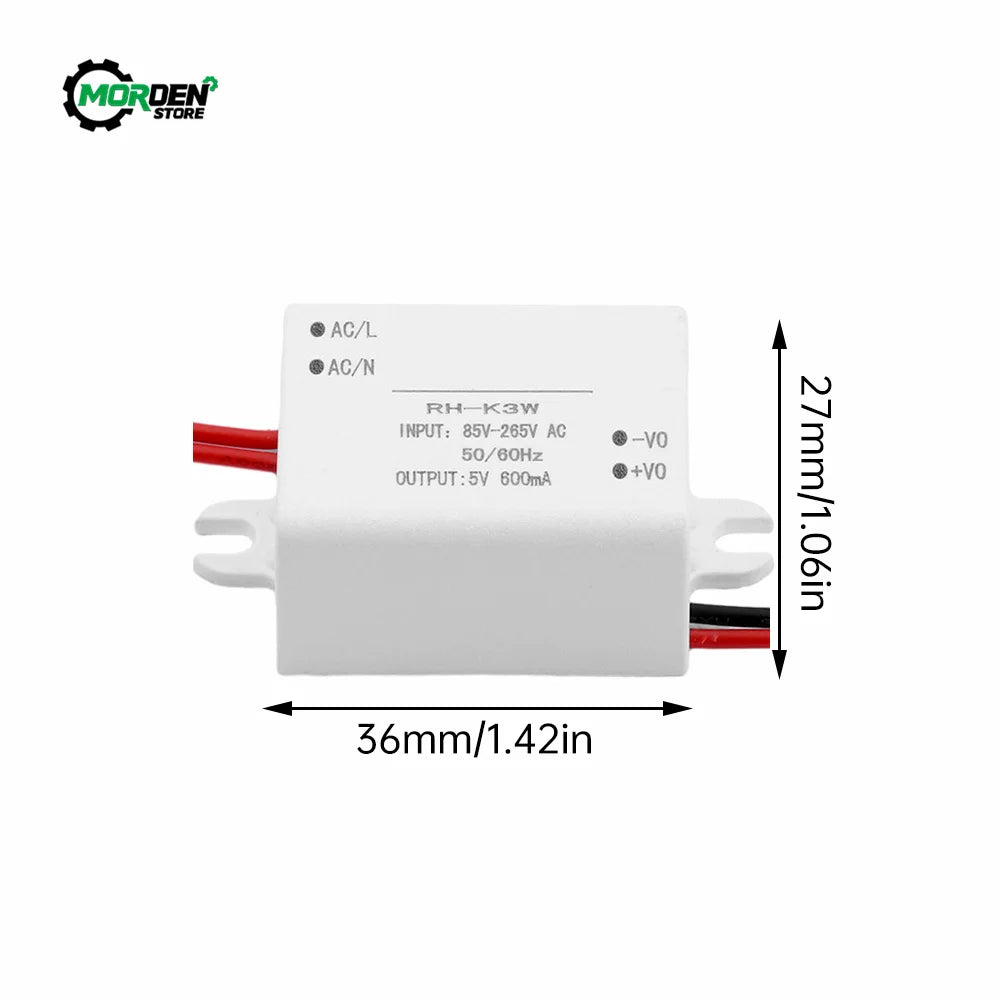

3. The AC-DC power module of this product has a stable voltage, constant voltage but not constant current. Please confirm the voltage, current and installation dimensions you need before purchasing.

Package list:

Buck module*1
