SPECIFICATIONS

8-120V: 5-24V

Brand Name: NoEnName_Null

DIY Supplies: ELECTRICAL

Hign-concerned Chemical: None

Model Number: H18

Origin: Mainland China

Style: with mobile phone APP

Type: BMS displayer battery indicator

Product Name:

Ant protection board Bluetooth displayer, BMS wireless Bluetooth reader

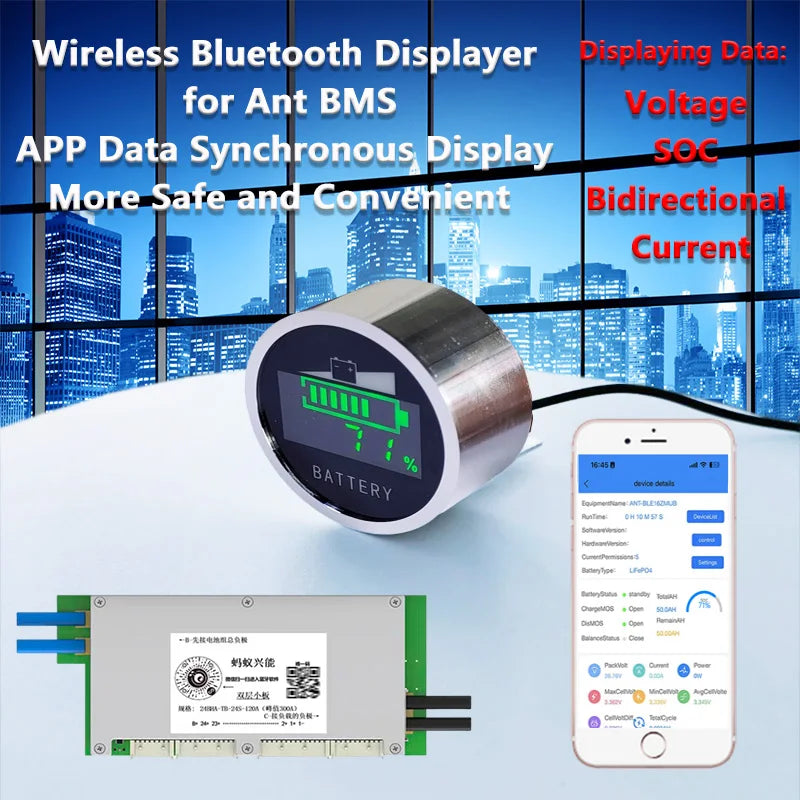

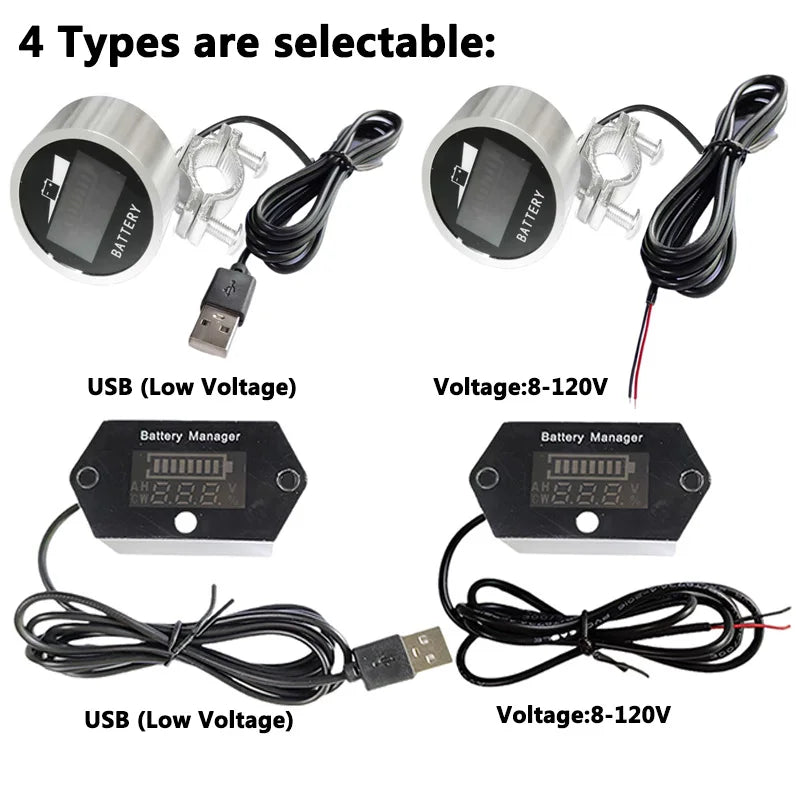

Votage range: 8-120V, 5-24V                Type： H18 H19

Product Features:

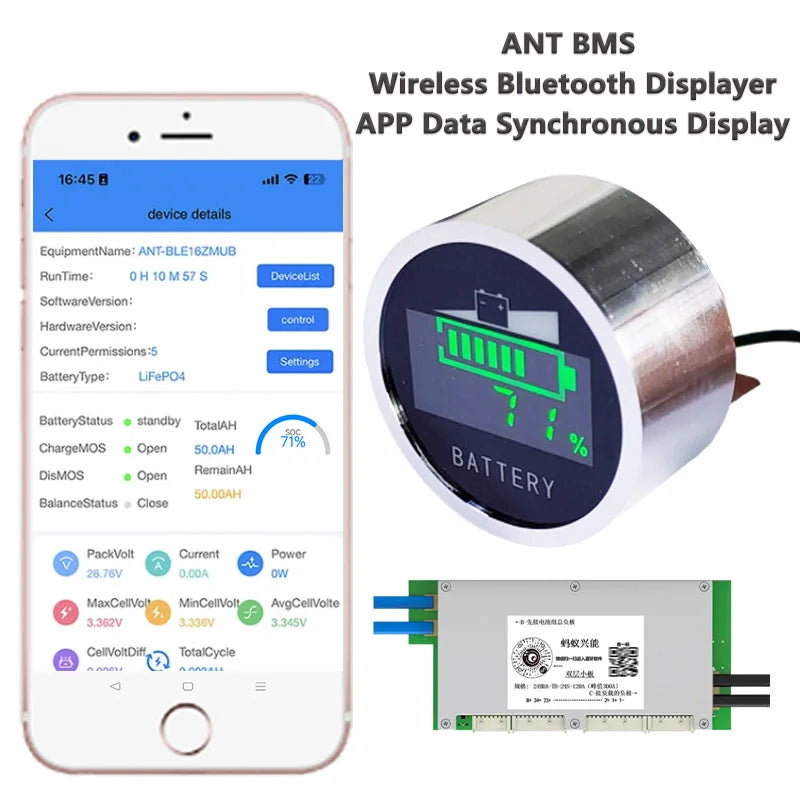

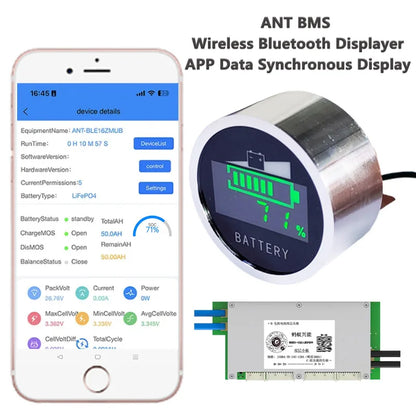

Synchronizing the BMS APP data, reading the BMS information, indicates the battery percentage, current, and  voltage. Riding without looking at the mobile phone, more convenient and safe when riding the motorbike.

this indicator is widely used for batteries with Ant BMS on cars, e-bikes, touring cars, motorhome, electric motorcycles, e-scooters, robot vacuum cleaner, etc

It can also read the voltage and power data of all Bluetooth coulombmeters of our store.

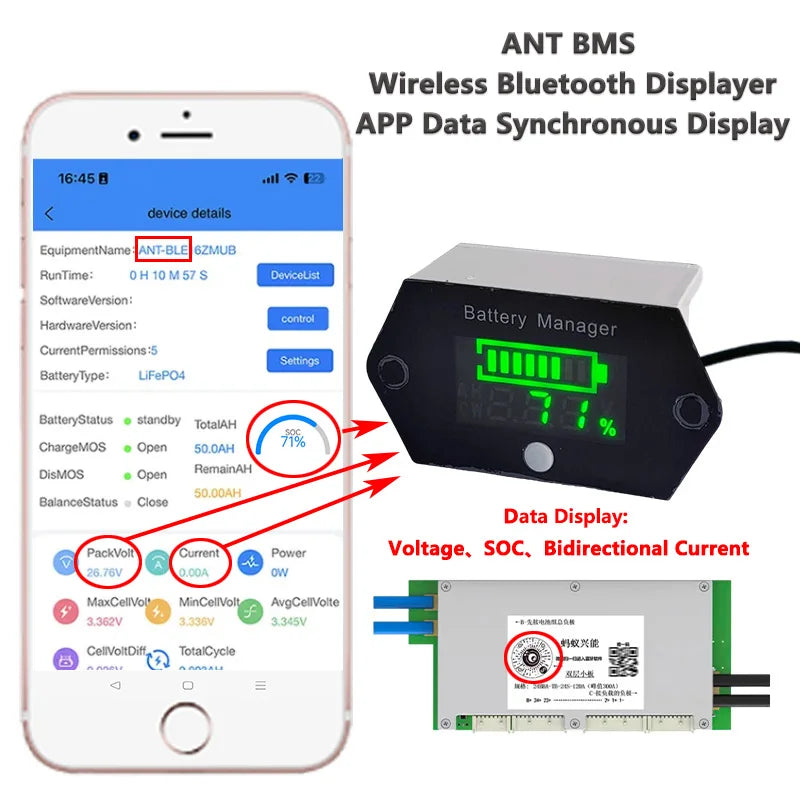

Voltage、SOC and bidirectional current display in turn, each data can be fixed to display.

Notes:this display only support to read the data of newest versionof ant BMS, which shows ANT-BLE in the ant protection board’s APP, shows as bellow: (the very old ants protecttion boardare not compatible)

Usage:

First, bind the batterywith ant BMS.

Power on this display while press the setting button(be sure the ant BMS is on), when the display shows CCC, release the button, wait about 20 seconds. When the power and voltagedata are displayed, the binding is successful. Later, no need to bind again. It will be automatically link to the BMS and shows the data.

Note: the ant BMS APP cannot be used at the same timewhen this display is reading the data. So be sure to switch the APP off when using this display.

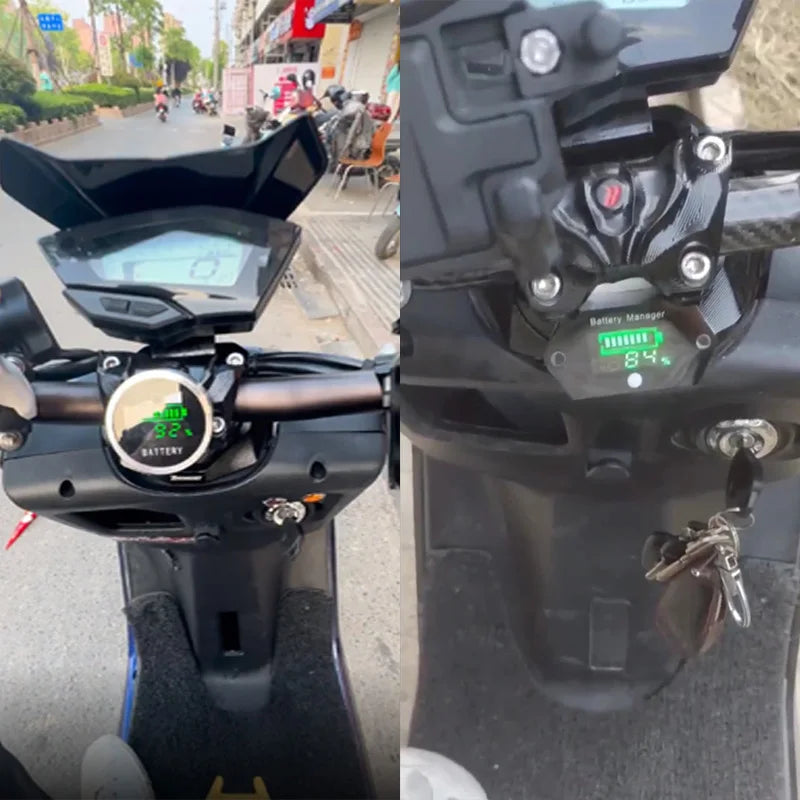

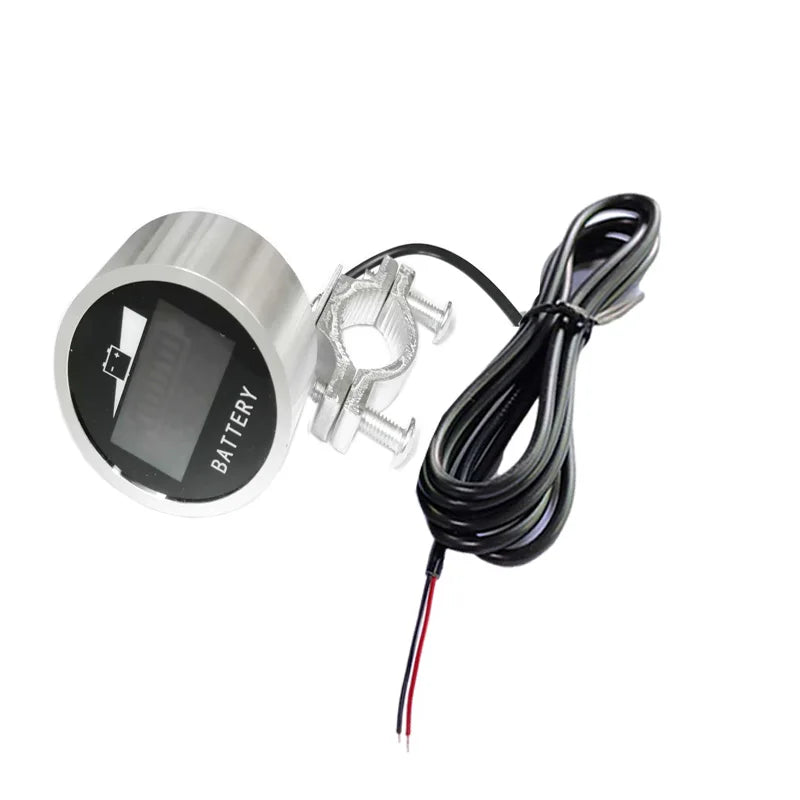

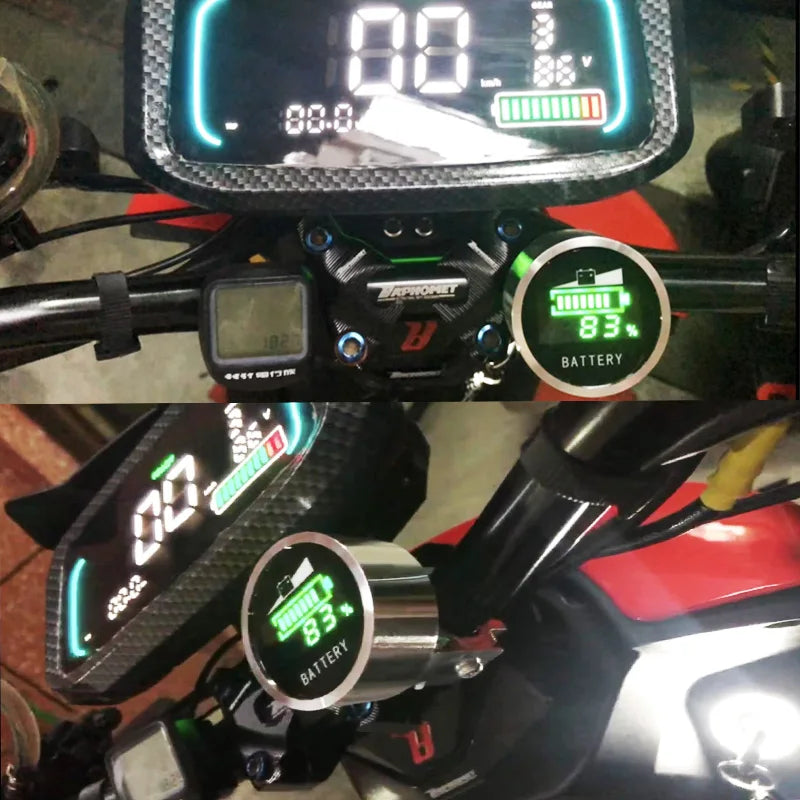

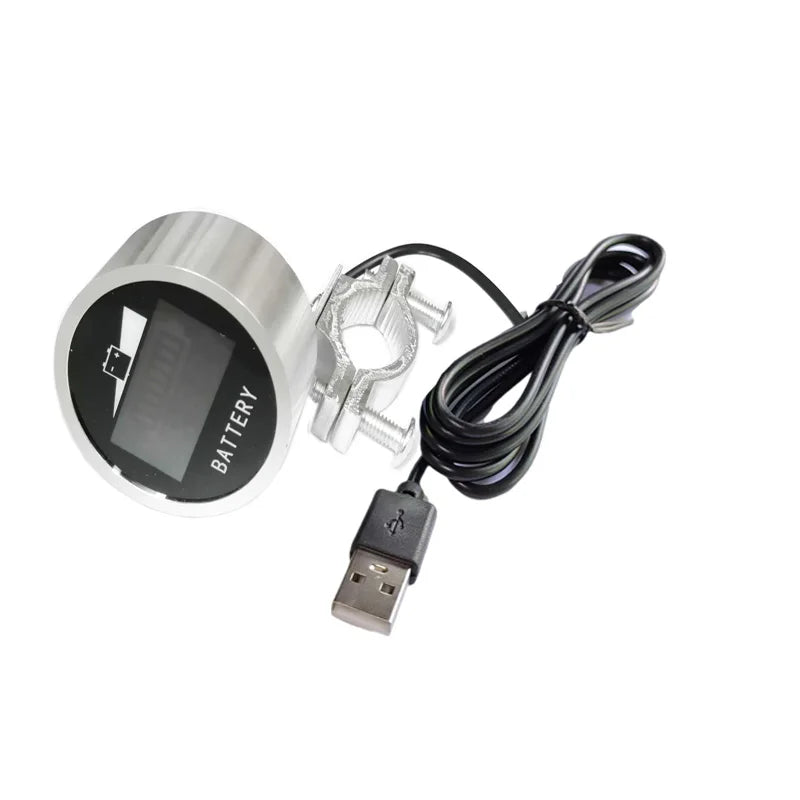

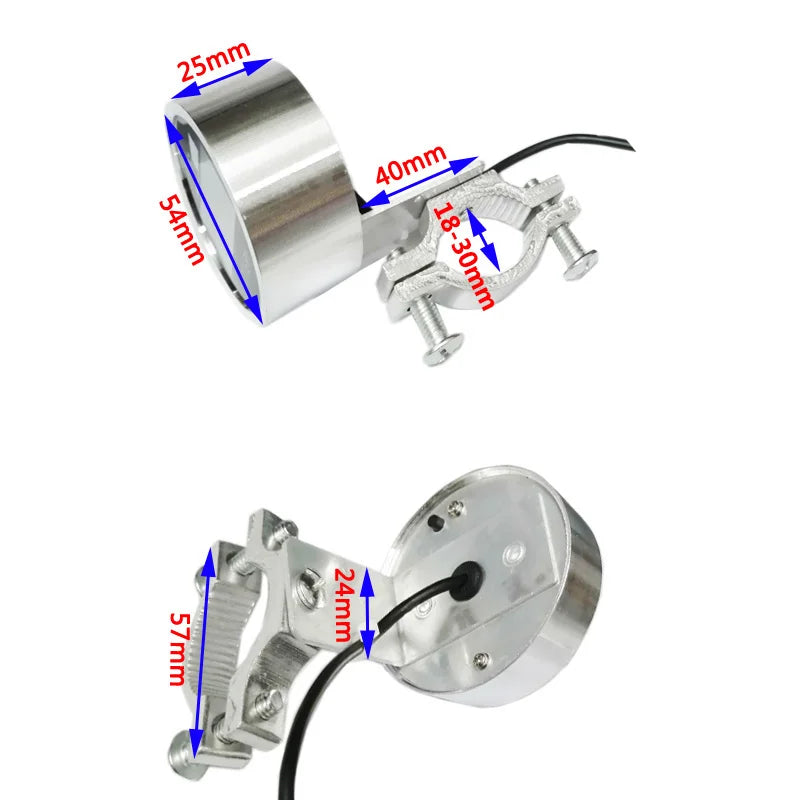

The round aluminum alloy display is used for the 2-3 wheel car, which can be connected to any positive and negative poles, generally to the positive and negative poles inside the front dashboard, when the car is switched off, this display is off too.

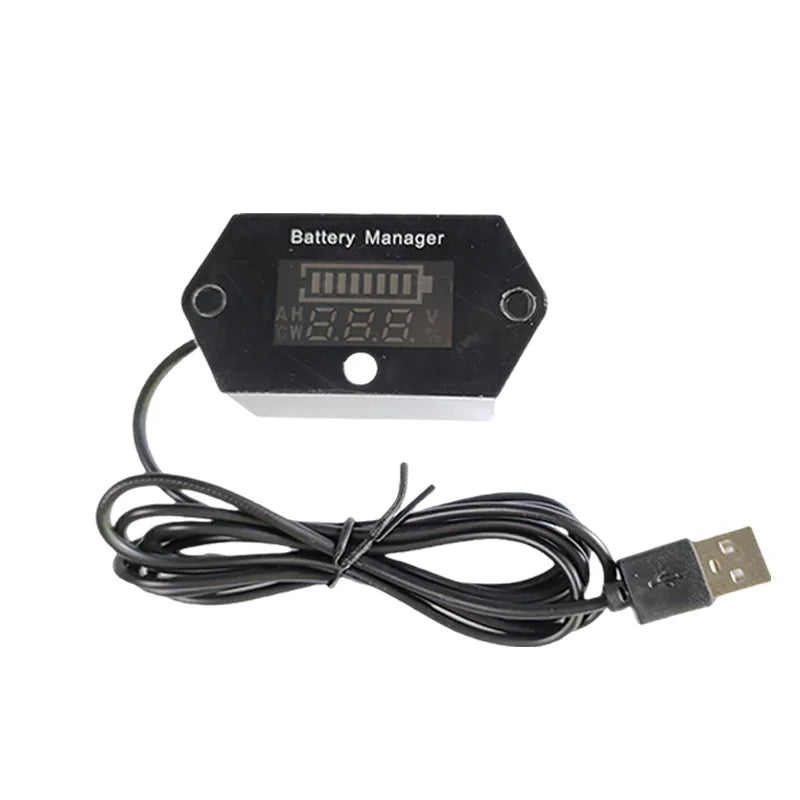

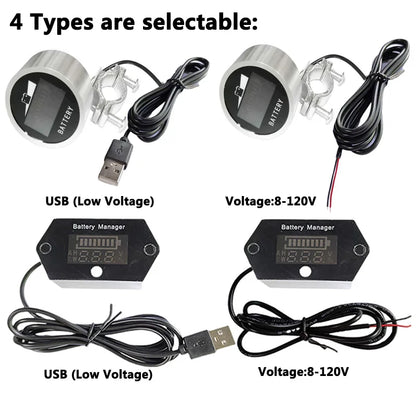

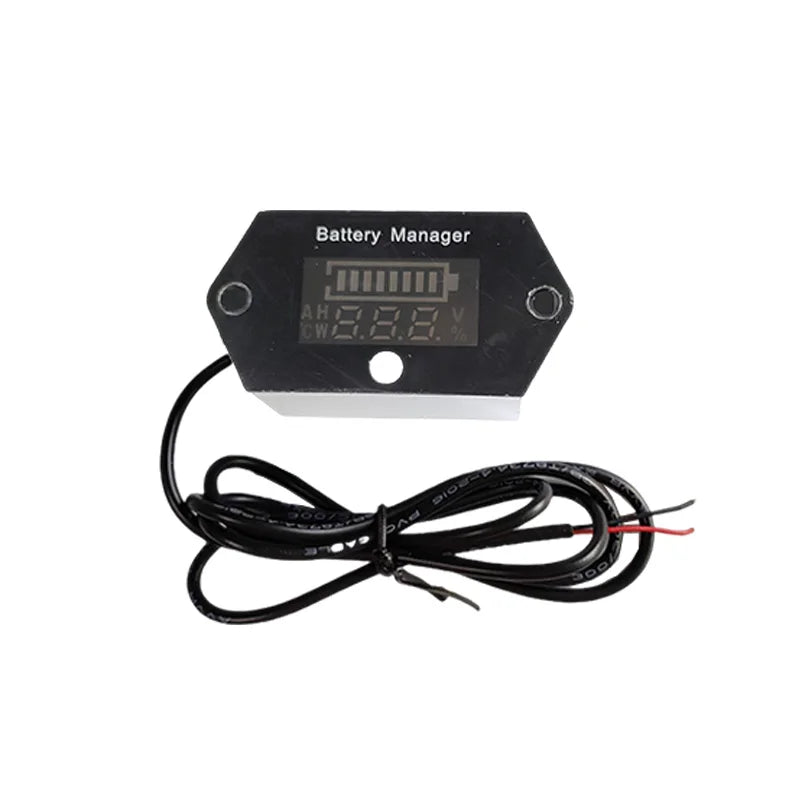

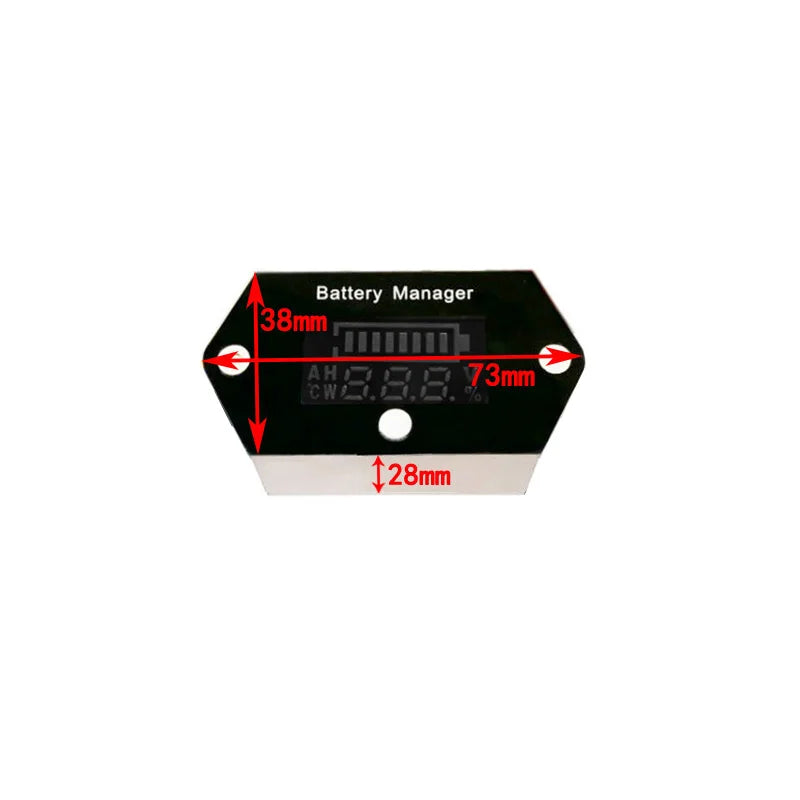

The squre shaped one with USB connection is used on 4-wheeler cars.

Other parameter Settings:

1. There is a button on the surface of the produc t(the round shape is on the back). Press the button for 3 seconds to display 4-d, release it and press it for 1 second to display 5-L, release it and press it for 1 second to display 6-C.

2, when the display 4-d, you can adjust the display mode. When it shows 4-d, press the key for 3 seconds to change the value. V is the voltage mode; % is the percentage pattern; A is the current, VA%means alternate display, default alternate display.

3. When 5-L is displayed, you can set the alarm value of the percentage of the current remaining battery power, and long press the button to change the value. Factory default 10%, range set 1-100%. If the battery is below the alarm level, the screen will blink to indicate the battery is too low.

4, 6-C means type selection. press the key for 3 seconds can change the value, 0 is on behalf of ant protection board, 1 is on behalf of Hongteda Bluetooth Coulombmeter. The factory default is 0.

Please refer to the video about how to bind to BMS and how to fix showing battery capacity.
