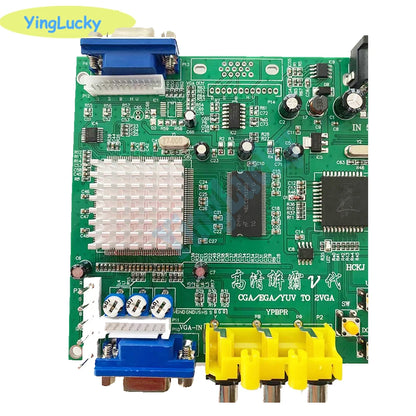

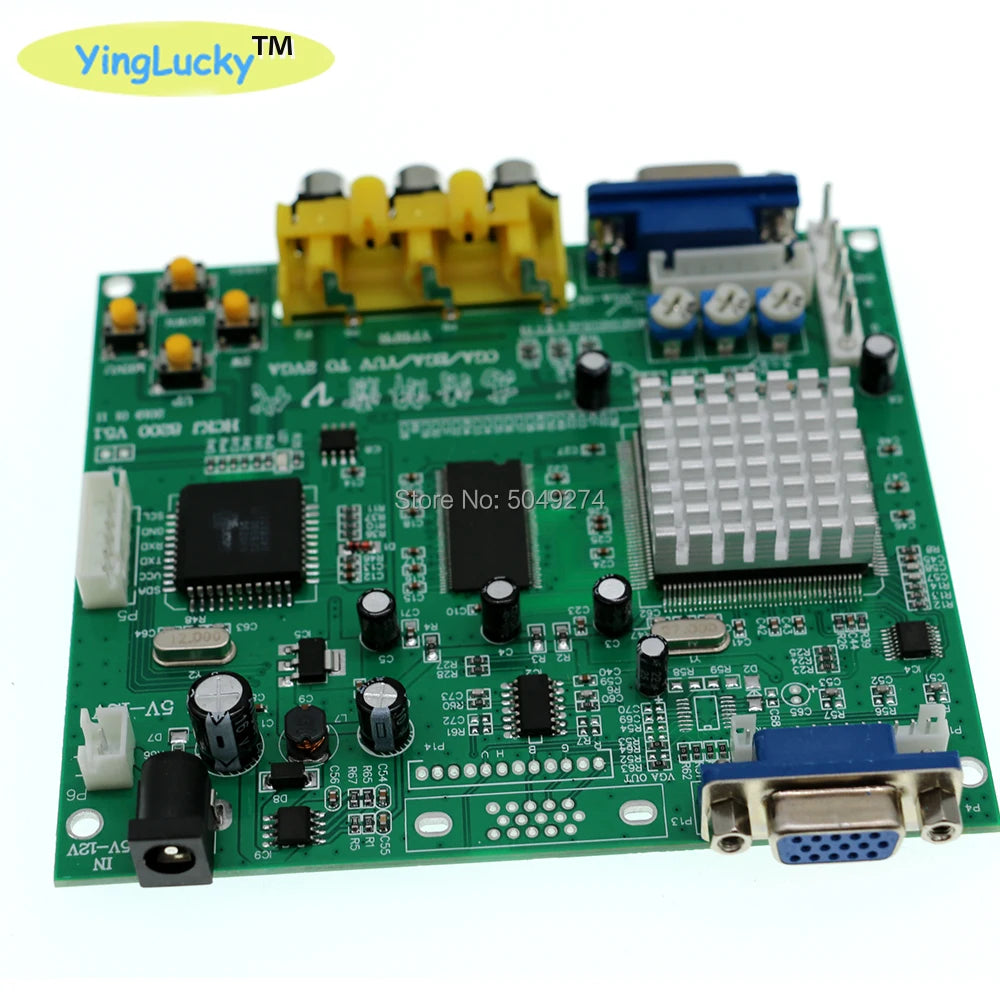

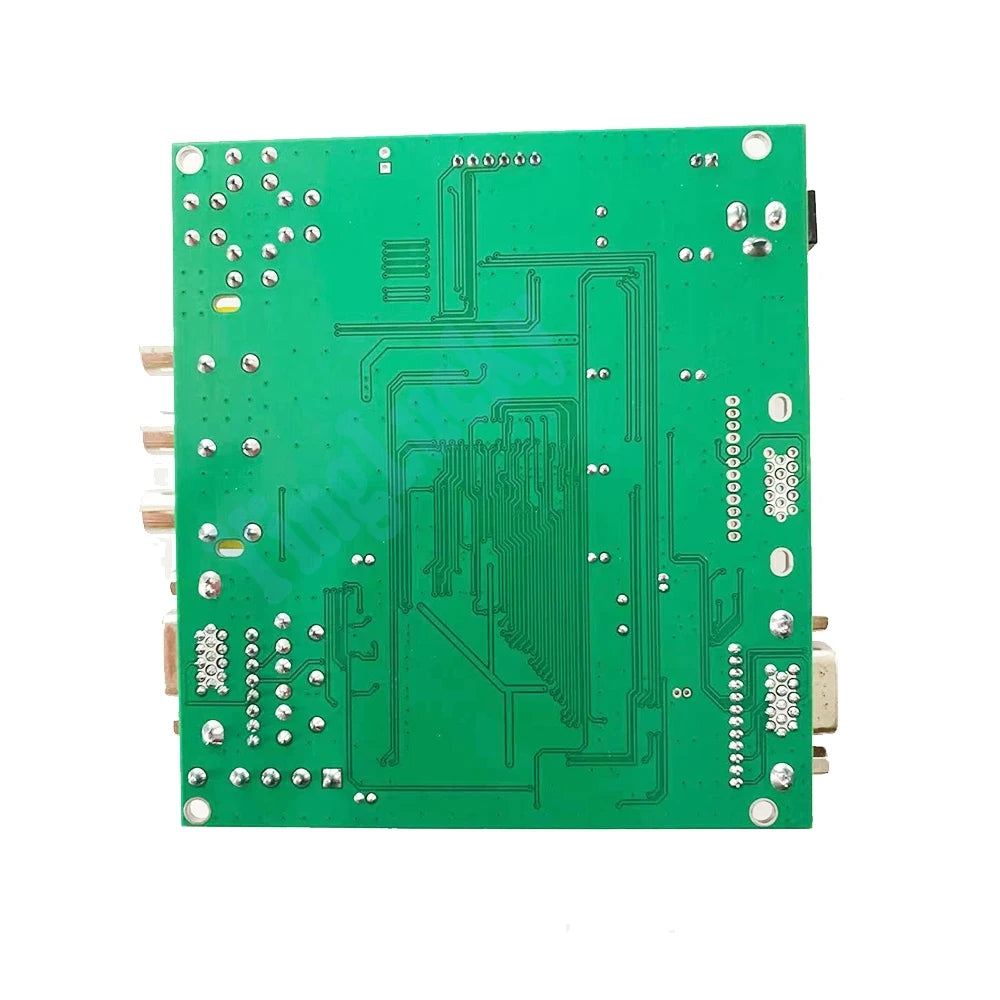

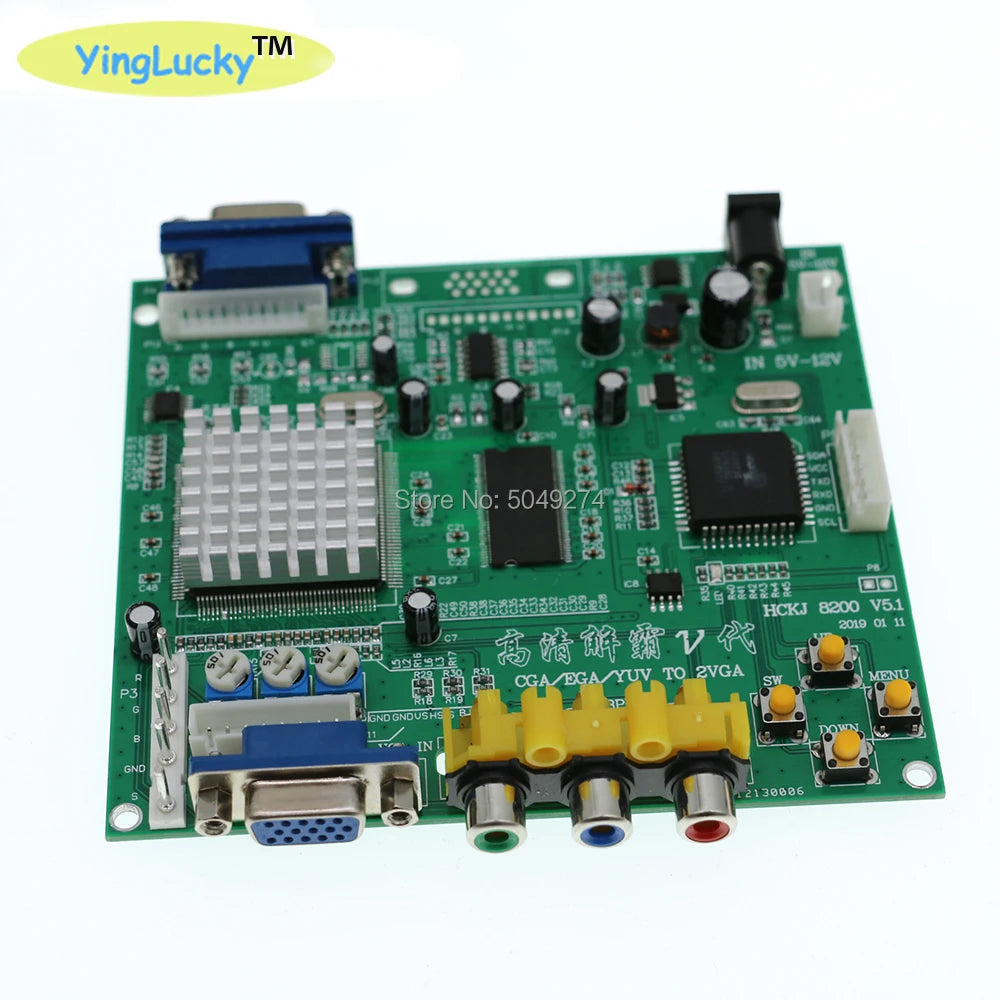

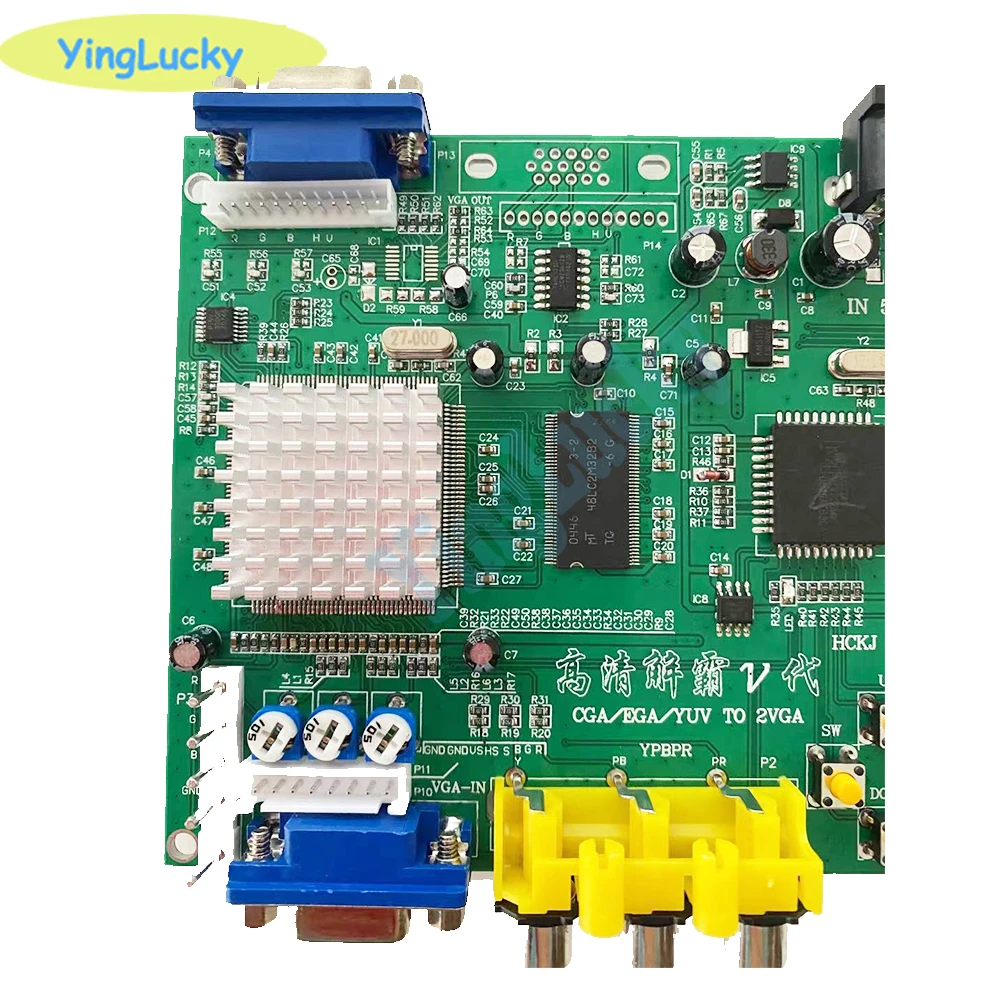

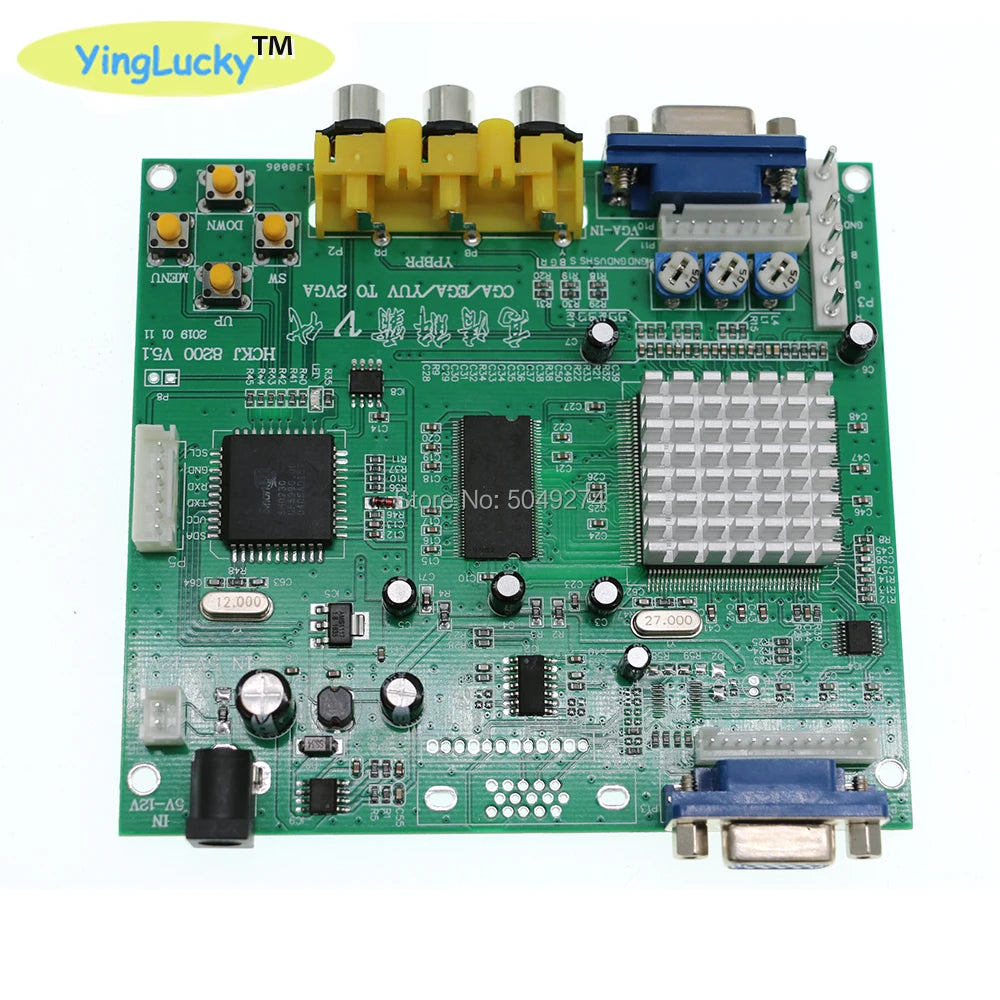

Arcade Game RGB/CGA/EGA/YUV To Dual VGA HD Video Converter Adapter Board GBS-8220

Description:
HD Dual VGA game converter wiring board (dual output, connect sparring), specifically for the gaming industry is the launch of a "high-low transfer solution solution" high-performance video processing card.
Has a strong game compatibility and versatility, the solution supports a variety of high-low game (such as King of Fighters, PS2, XBOX and so on, the game support rate of 98%, also in accordance with the requirements of the upgrade).
Through professional DSP chip processing output high-resolution screen, image clarity, color, supports a variety of displays, are widely used in the gaming industry.

Features:
100% brand new and high quality.
Supports CGA/EGA/VGA/YUV component signal input.
Convert CGA / EGA / YUV component input signal to dual VGA video signal, CGA / EGA / VGA signal auto scan (15KHz, 24KHz, 31KHz)
Greatly improve the definition of the picture.
Supports VGA Output (640 x 480, 800 x 600, 1024 x 768, 1360 x 768), YUV Component signal auto scan (480i, 576i, 720i, 1080i, 480p, 576p, 720p, 1080p)
Has strong compatibility and universality of Games.
Support almost all kinds of games.
With the performance of TwinView output, on screen display (English and Chinese).
Supports image position control & image zoom control.
True digital 24-bit A/D converter for true 16.7-million color conversion.
Supports ALL types of VGA monitors: CRT, LCD, PDP, projector, etc.
Works With all Jamma boards and MAME systems.

Specifications:
Item Type: RGB/CGA/EGA/YUV To Dual VGA HD Video Converter Adapter Board
Model Number: GBS-8220
Material: Plastic and Metal

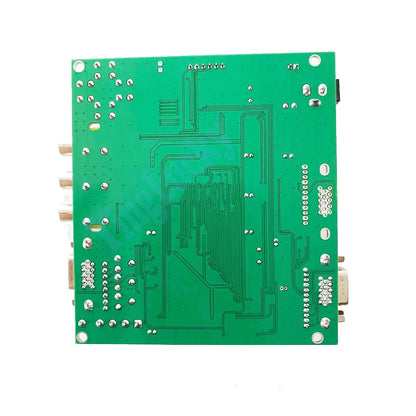

Main Color: Green (shown as pictures)
Size: 105×115mm/4.13×4.53in (Approx.)

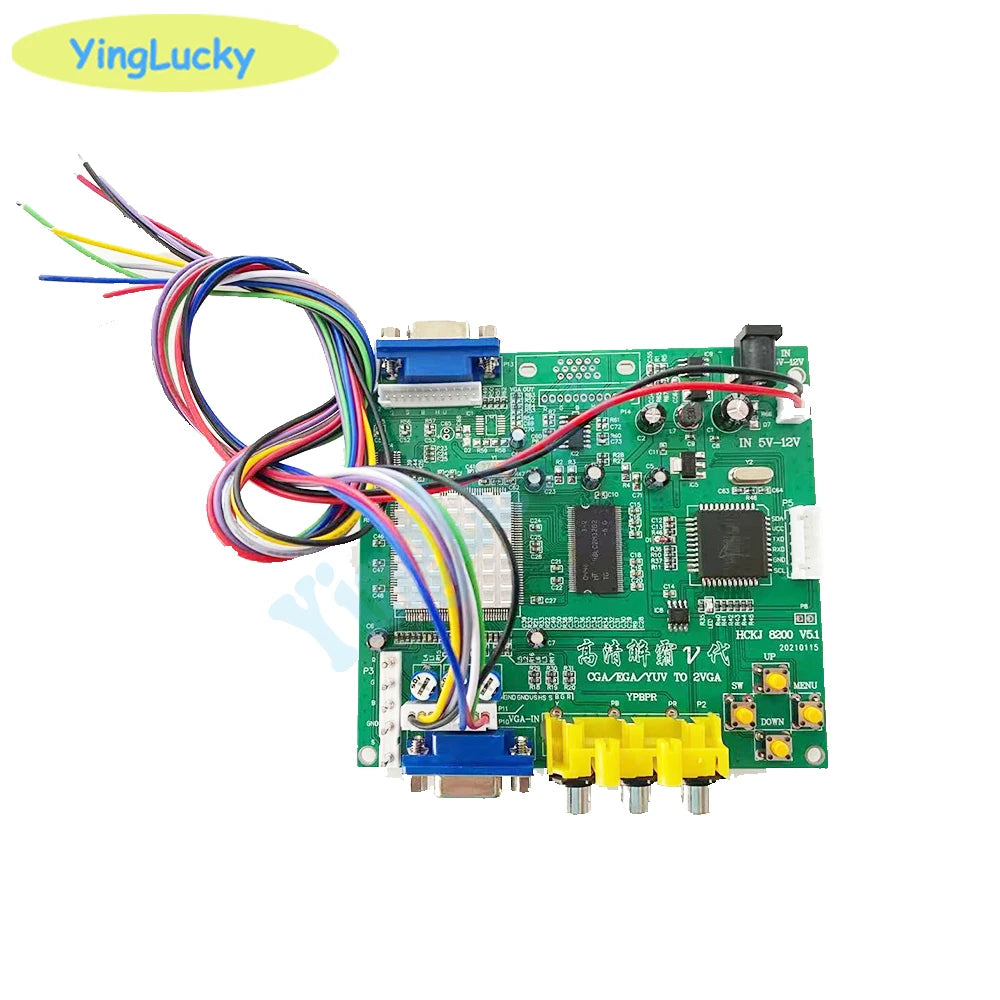

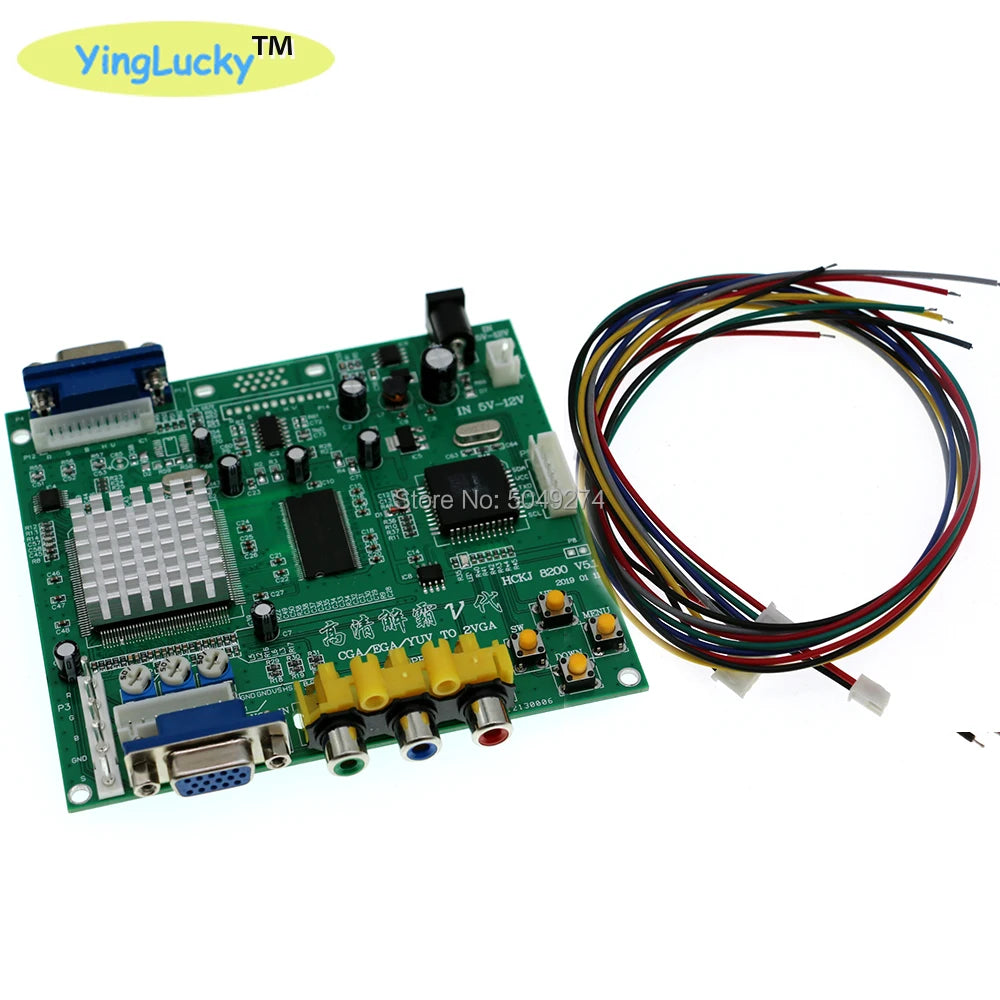

Cable length: 50cm/19.69in (Approx.)
Input Power: DC 5V-12V (2A)
Supports VGA Output: 640 x 480, 800 x 600, 1024 x 768, 1360 x 768
Input signal formats supported: RGBS, RGBHV, YPbPr (the color), CGA / EGA.
Enter RGBS, RGBHV formats supported: 15KHz, 24KHz, 31KHz horizontal frequency signal pattern.
YPbPr input formats supported: 480i-60, 576i-50, 1080i-50, 1080i-60, 480p-60, 576p-50, 720p-50, 720p-60, 1080p-50, 1080p-60 mode.
Enter the tricolor: Through 500 ohm potentiometer adjustment.
On Screen Display: English and Chinese
Quantity: 1 Set (other accessories demo in the picture is not included)

Note:
1.Transition: 1cm=10mm=0.39inch
2.Please allow 0-1cm error due to manual measurement. pls make sure you do not mind before you bid.
3.Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
