SPECIFICATIONS

Brand Name: NoEnName_Null

Clock Speed: 48MHz

Demo Board Type: Raspberry pi 2 b

Digital IO Pin: 14

Hign-concerned Chemical: None

Input Voltage: 6-20V

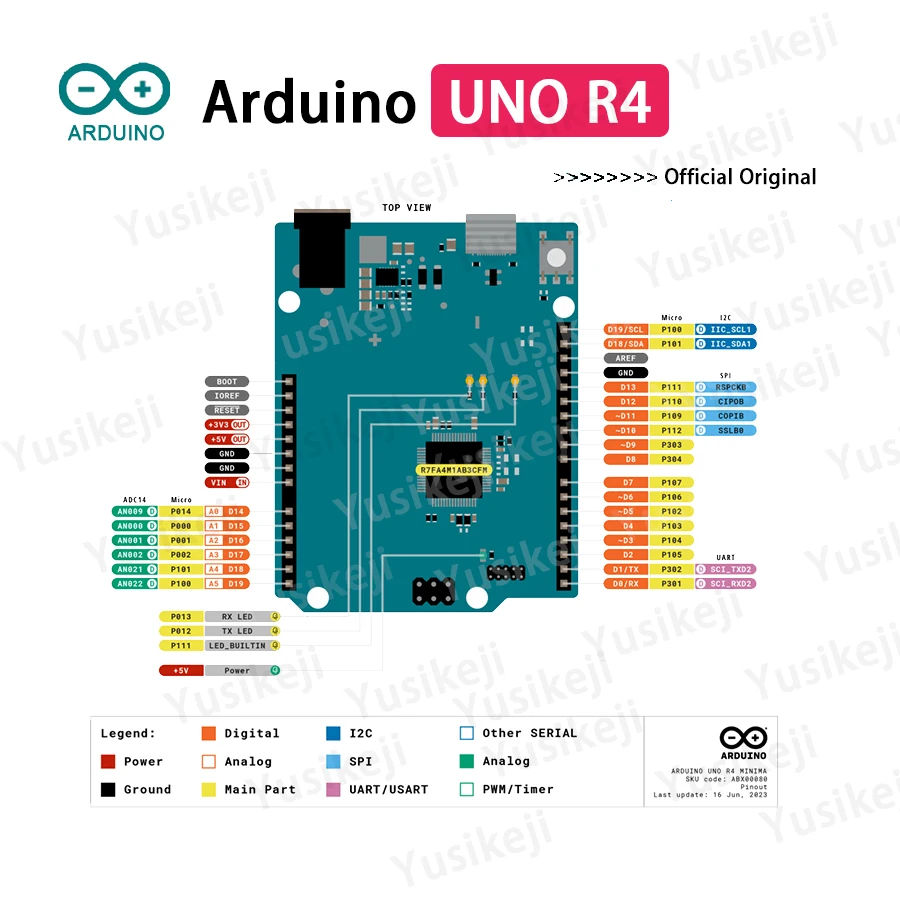

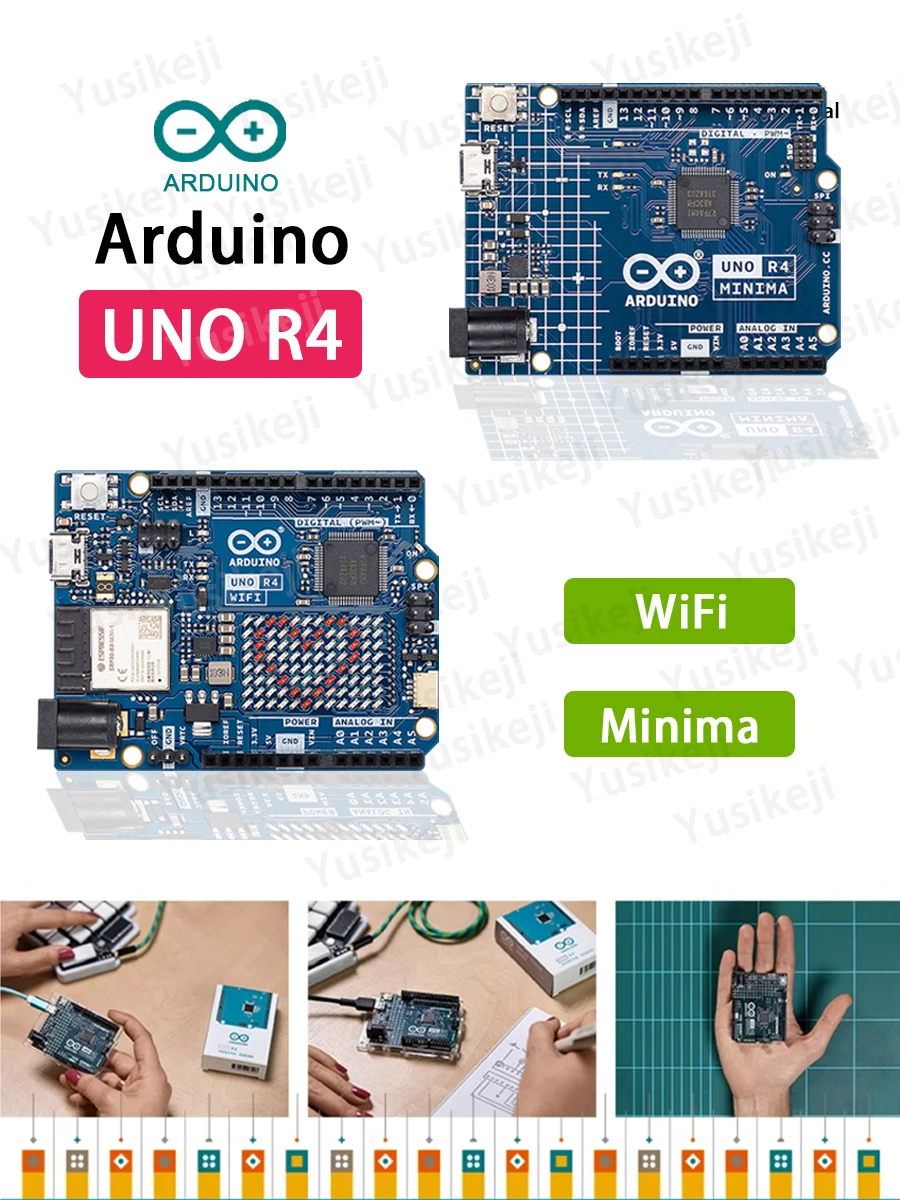

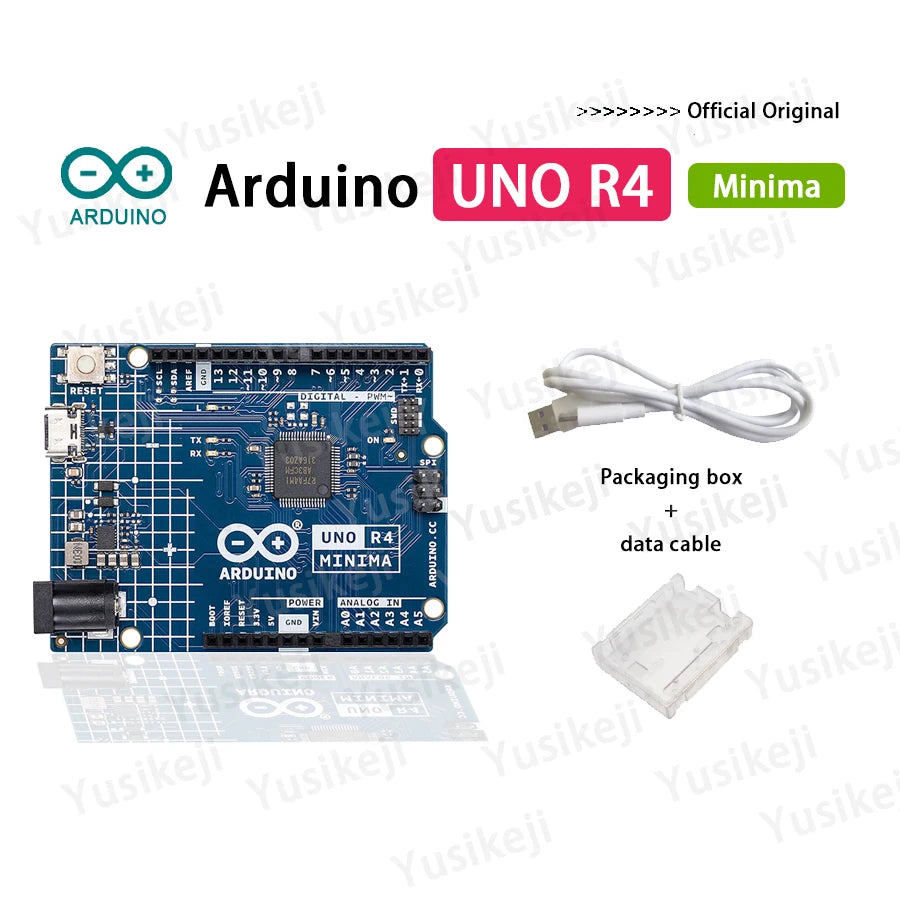

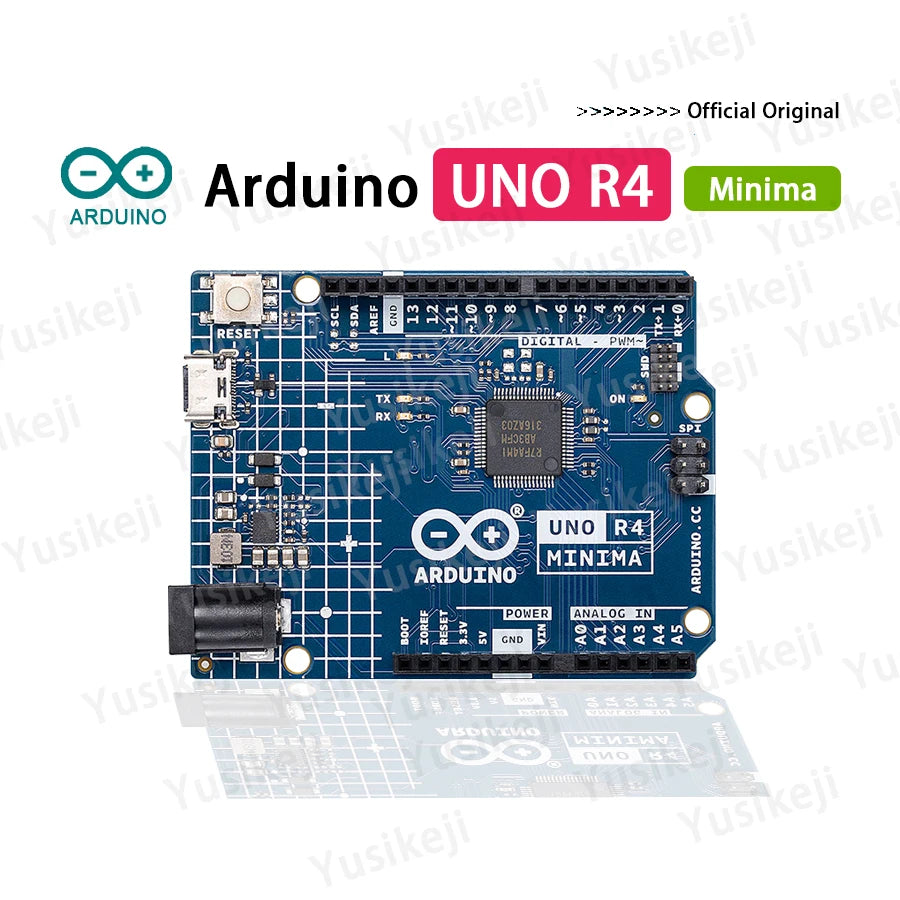

Model Number: Arduino UNO R4 Minima/WiFi edition

Operating Voltage: 5V

Origin: IT(Origin)

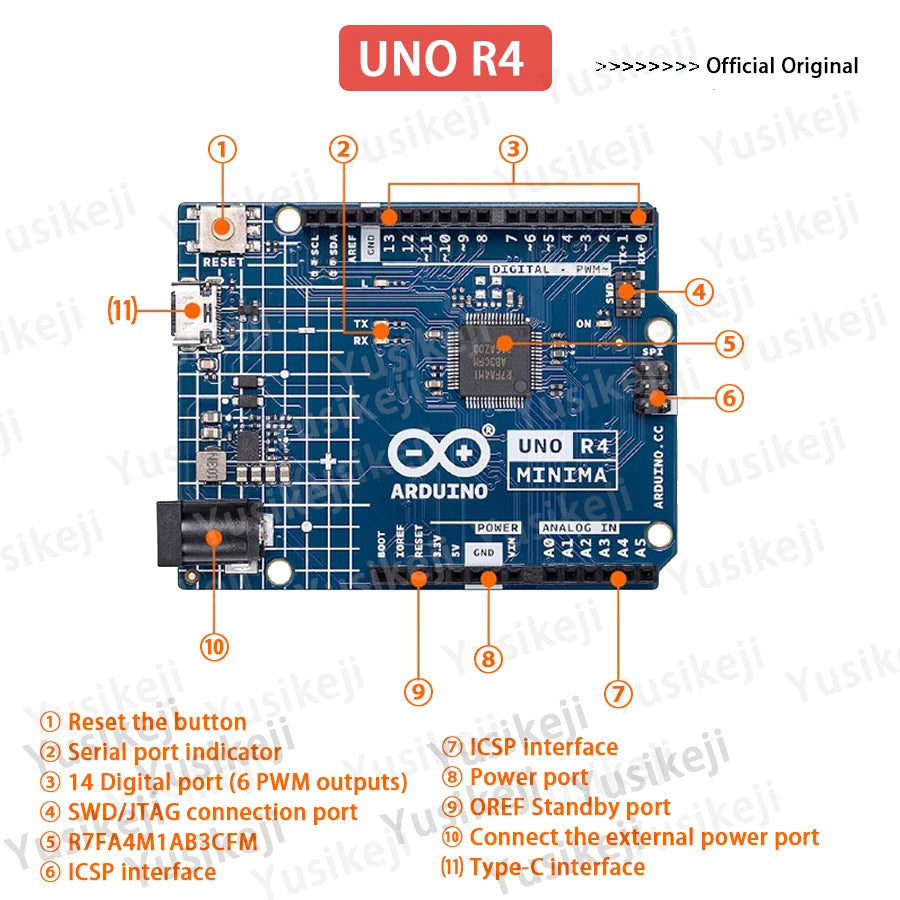

Ports: Power port /OREF standby port /ICSP port /Type-C port /SWD and JTAG port

Size: 68.85x53.34mm

Product introduction

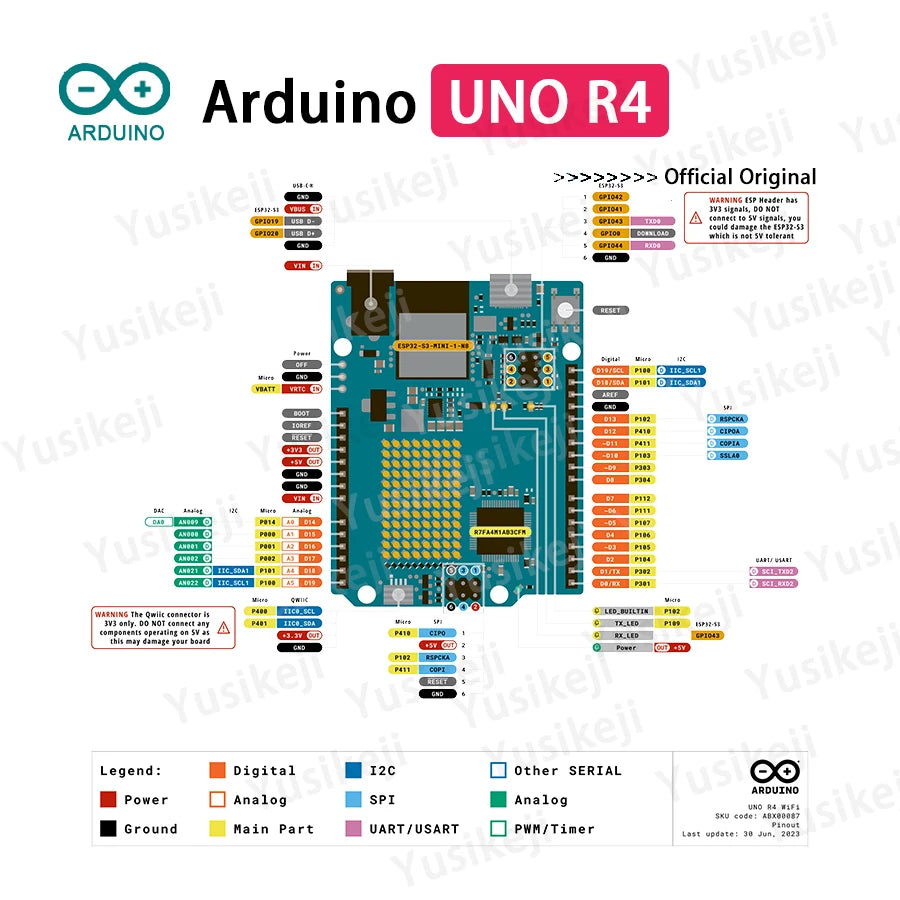

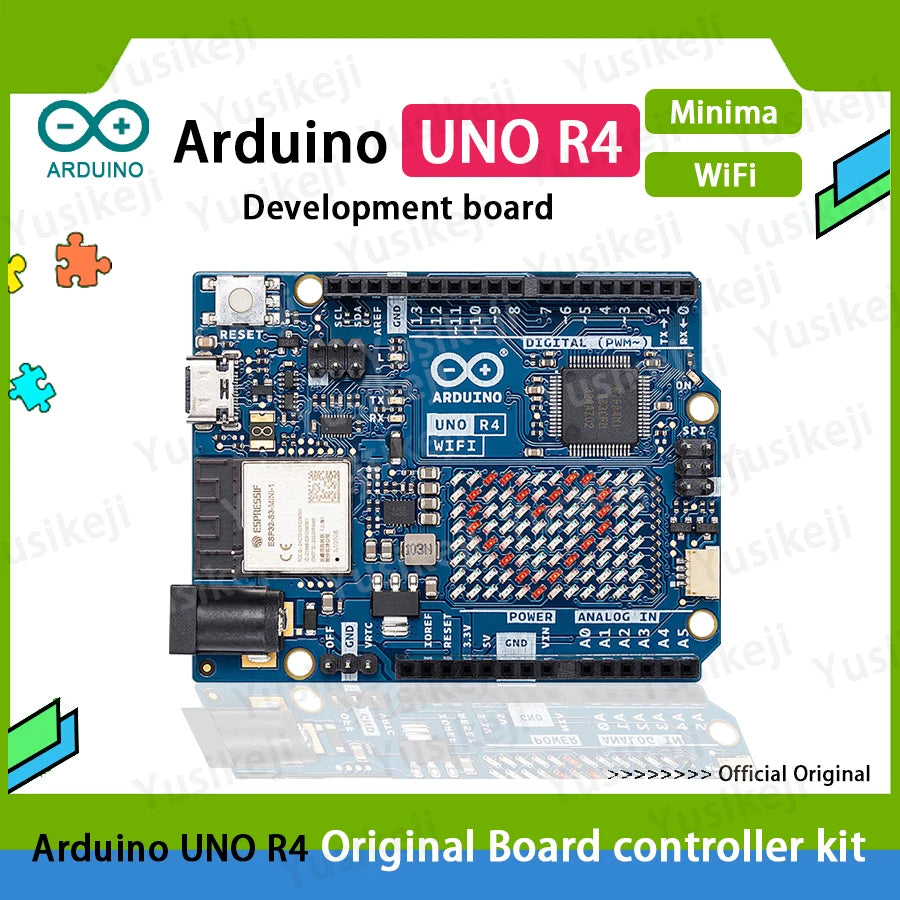

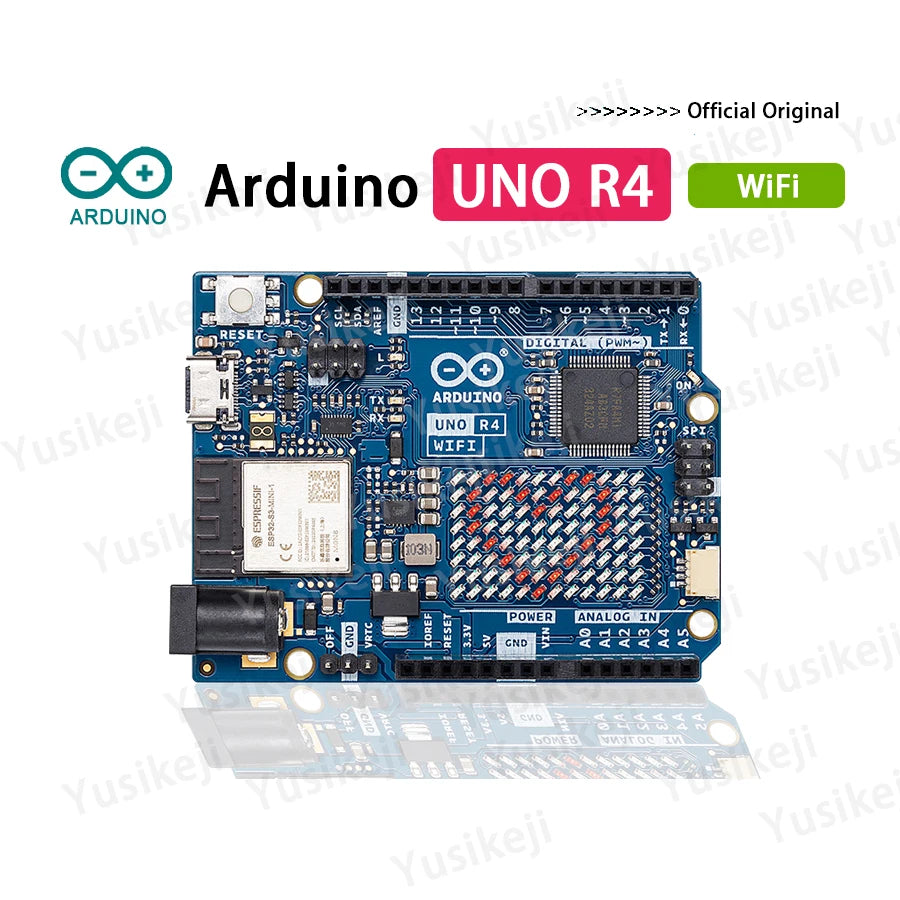

The new Arduino UNO R4 WiFi runs on the Renesas RA4M1(Arm Cortex-M4) at 48MHz, which is three times faster than the UNO R3. SRAM was increased from 2kB in R3 to 32kB and flash memory from 32kB to 256kB to accommodate more complex projects. According to the requirements of the Arduino community, the USB port was upgraded to USB-C and the maximum power supply voltage was increased to 24V. The board provides a CAN bus that allows users to minimize wiring and perform different tasks by connecting multiple expansion boards, and the new board also includes a 12-bit analog DAC.This version is equipped with the Espressifs3 WiFi module, which provides more creative opportunities for manufacturers, educators and enthusiasts.
