Antena GPS Activa Interna Beitian BT-580 Cirocomm (Cerámica 25x25x2mm, 32dB Ganancia, Conector IPEX, Cable 5cm)
Antena GPS Activa Interna Beitian BT-580 Cirocomm (Cerámica 25x25x2mm, 32dB Ganancia, Conector IPEX, Cable 5cm)
No se pudo cargar la disponibilidad de retiro
SPECIFICATIONS
Brand Name: wishiot
Choice: yes
Hign-concerned Chemical: None
Model Number: FZ1546
Model Type: BT-580
Origin: Mainland China
semi_Choice: yes

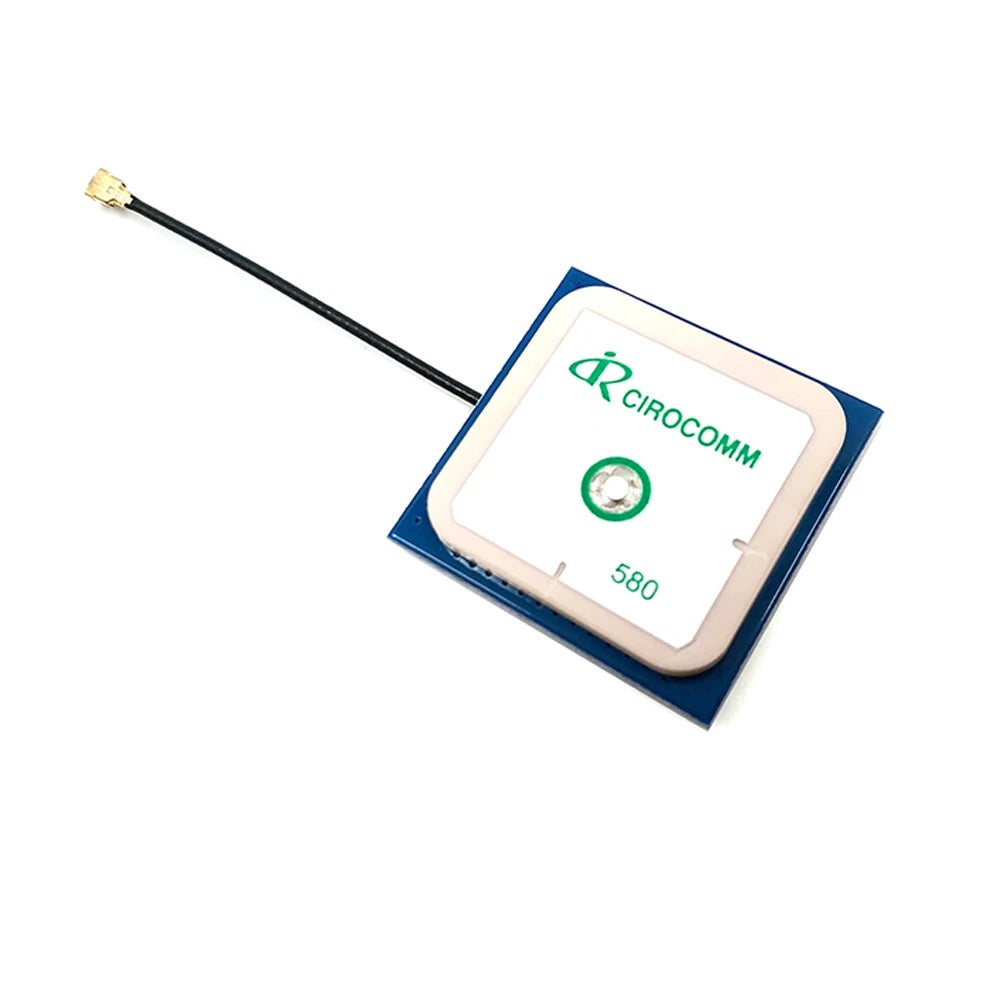

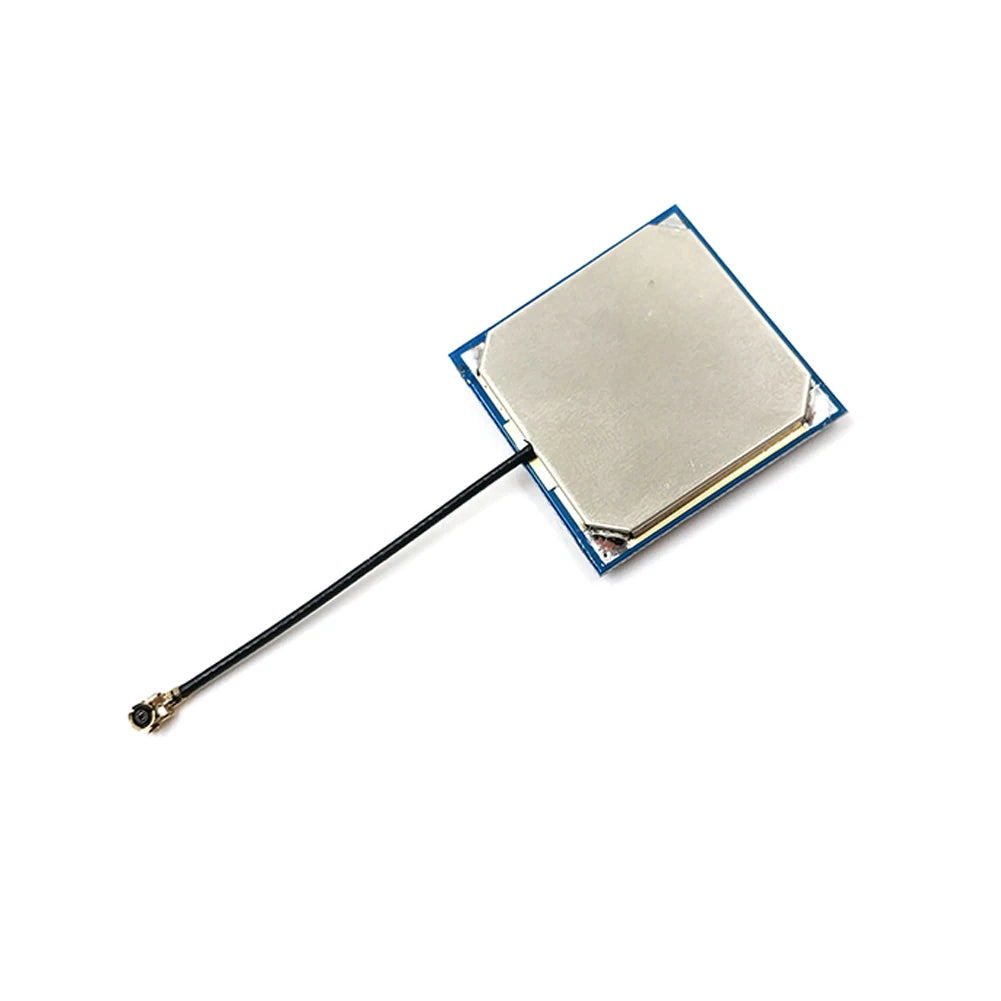

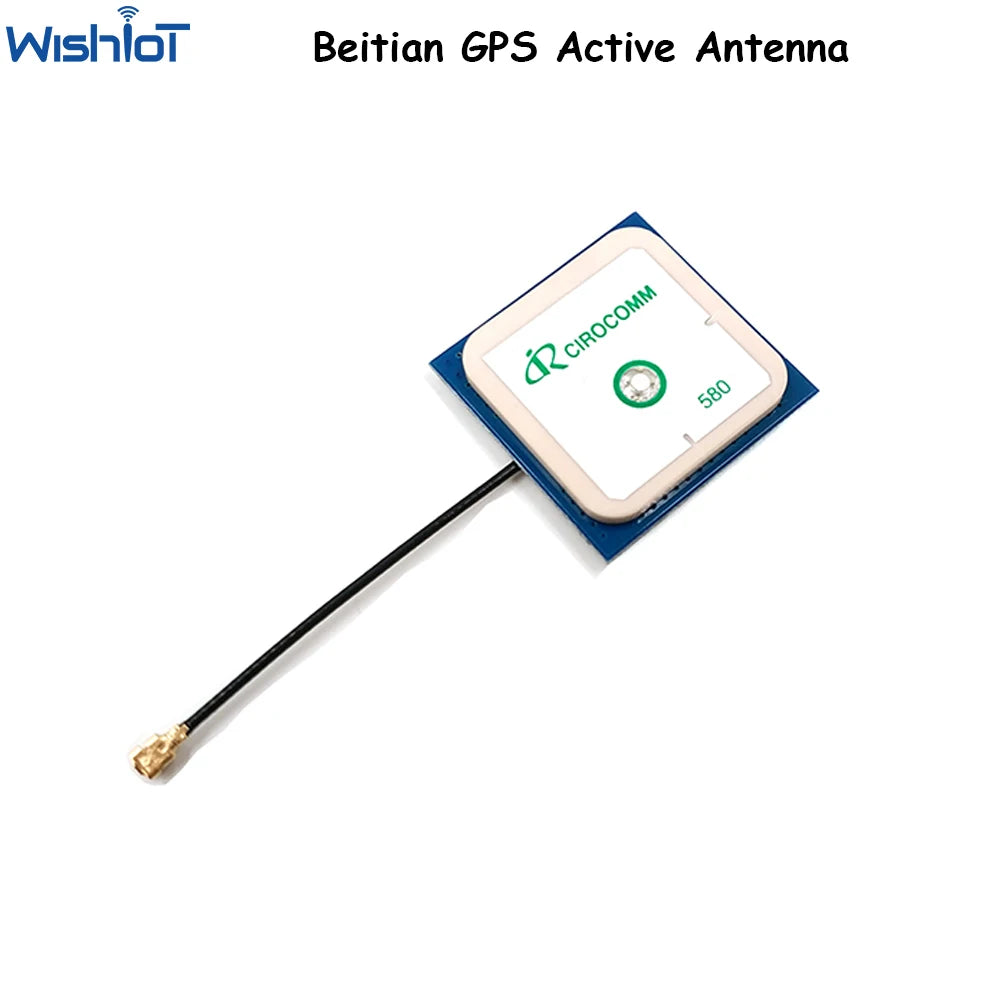

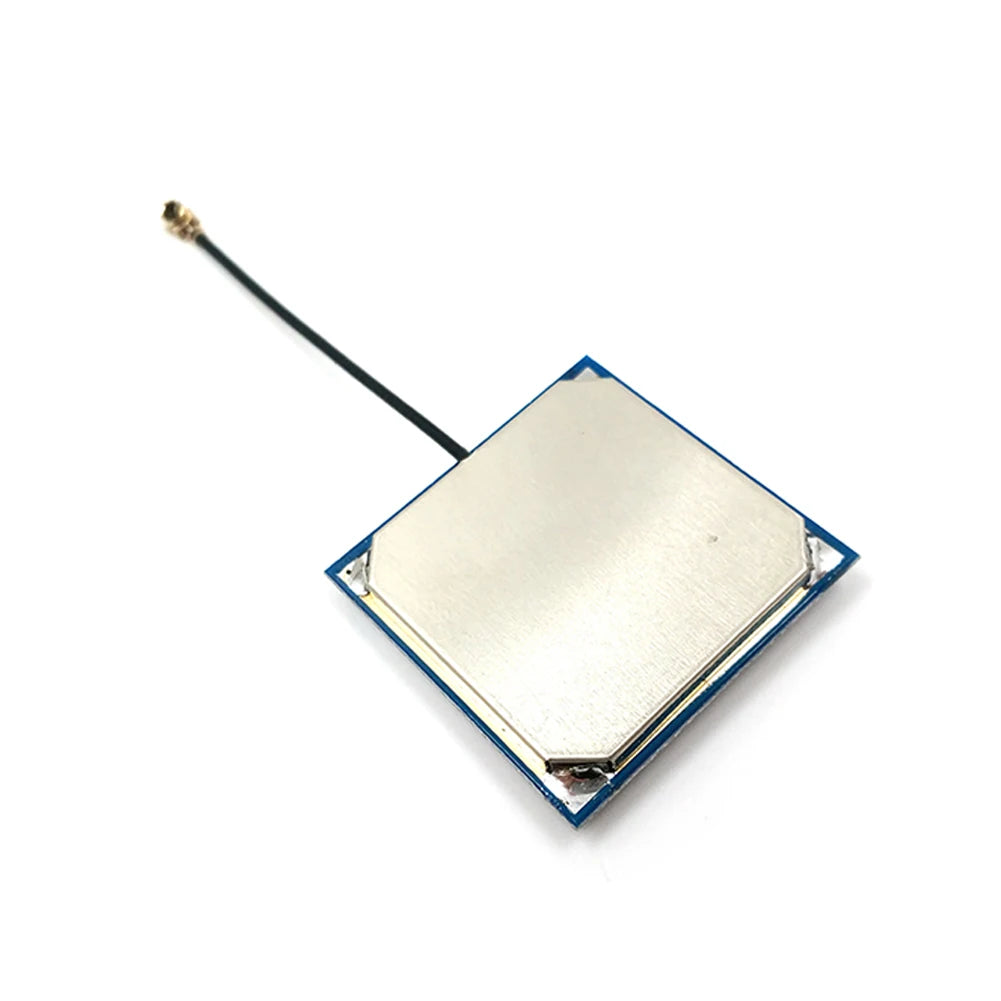

Beitian BT-580 Cirocomm GPS Active Internal Antenna 32db High Gain Ceramic Antenna IPEX Connector 25x25x2mm 1.13 Cable 5cm Length
1．Characteristics of Ceramic Antenna
Table of parameters:
Item |
Specification |
Range Of Receiving Frequency |
GPS L1:1575.42MHz |
Gain at Zenith |
3.0dBi |
Output VSWR |
<1.5 |
Impendance |
50Ω |
Band Width |
±10MHz |
Polarization |
RHCP |
Axis ratio |
<3dB |
Horizontal coverage angle |
360° |
Frequency Temperature Coefficient |
0±10 |
2．LNA Specification
Item |
Specification |
LNA Gain |
33dB |
Noise figure |
<1.8dB(Only LNA) |
Output VSWR |
<1.5 |
Output impedence |
50Ω |
Passband Ripple |
±1.0dB(Only LNA) |
Supply Voltage |
2.8V-5.0V |
Supply Current |
≤20mA |
3．Work environment
Item |
Specification |
Operational Temperature |
-40℃ - +85℃ |
Storage Temperature |
-40℃ - +85℃ |
Wet degree |
40% - 95% |

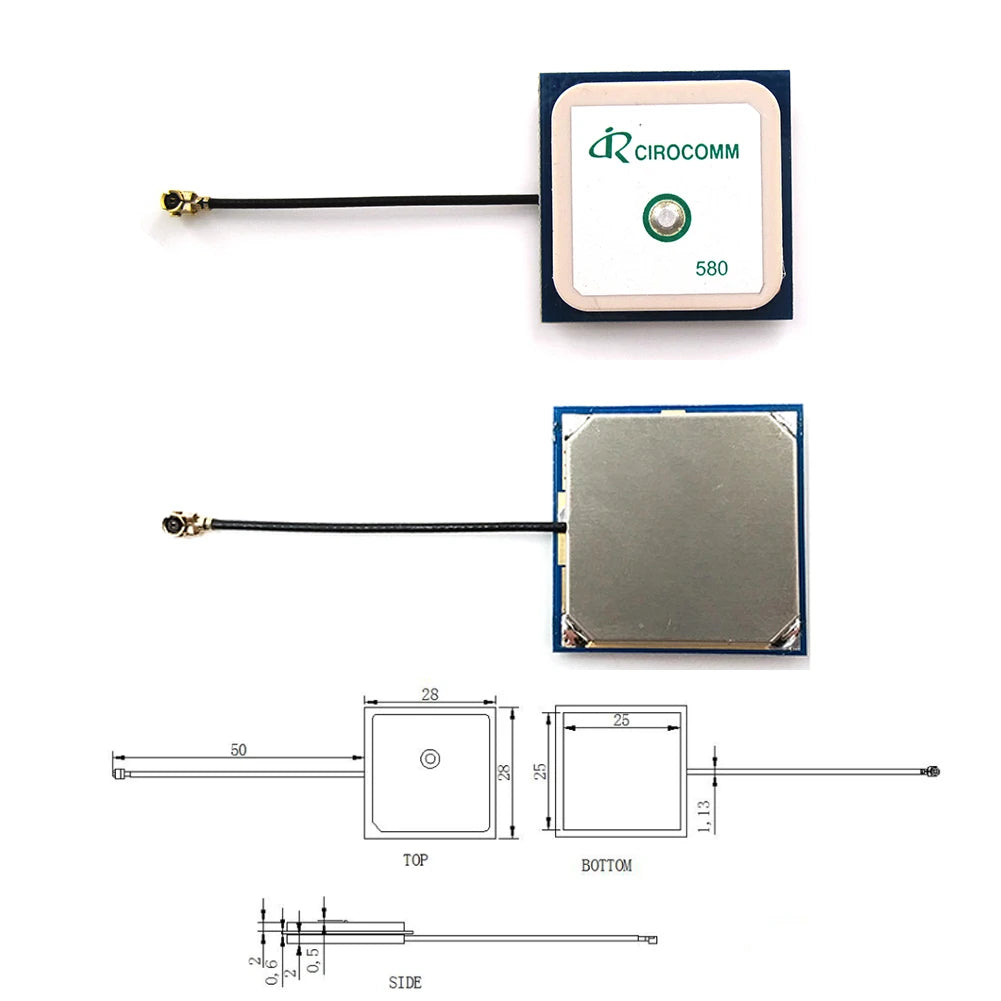

4．Structural characteristics
Item |
Specification |
Size |
28*28*5mm |
Antenna Size |
25*25*2mm |
Weight |
≤ 10g |

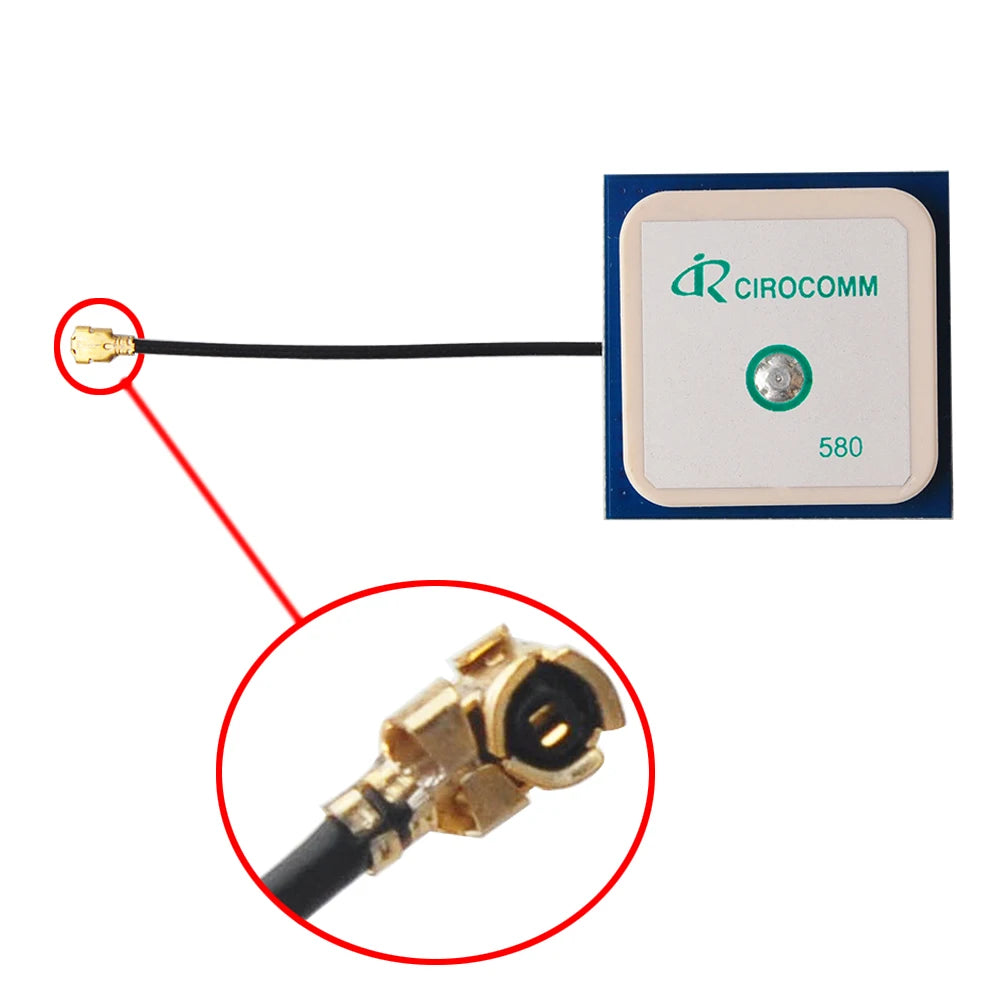

Connector |
IPEX |
Cable |
1.13 Cable |
Length |
5cm |
